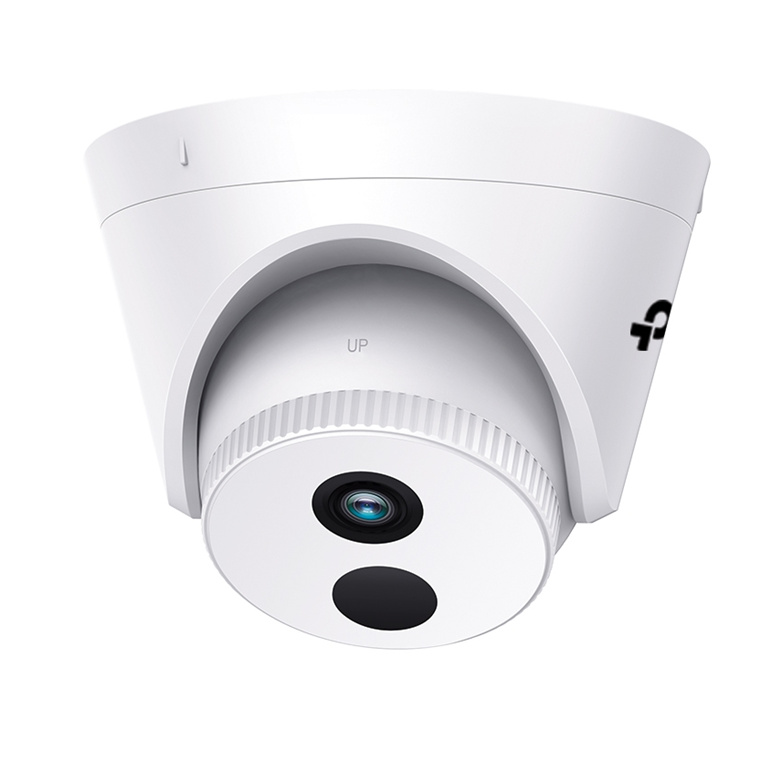

TP-Link VIGI C400 3MP/H.265+ Turret PoE IP Camera, 2.8mm

TP-Link VIGI C400 3MP/H.265+ Turret PoE IP Camera, 2.8mm
PB Tech price: PB Tech price:
$77 39  +GST $89 00  inc GST
$77.39  +GST
$89.00  inc GST

or six weekly payments of $15.28 with Laybuy


Generating Print Page

TP-Link VIGI C400 3MP/H.265+ Turret PoE IP Camera, 2.8mm

Part #: CCTTPL3400
1
PB Tech price: PB Tech price:
$77 39 $89 00
 +GST  inc GST


Click & Collect: Select your store to check availability
$77.39  +GST
$89.00  inc GST

or six weekly payments of $15.28 with Laybuy

Six easy payments of $15.28 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $18.33 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

  • Brand: TP-Link
  • MPN: VIGI C400HP-2.8
  • Part #: CCTTPL3400
  • UPC:
  • Camera Megapixels: 3 Megapixels
  • Indoor/Outdoor Use: Indoor/Outdoor
  • Max Video Resolution: 2304 x 1296
  • Memory Card Support: Not Specified
  • Wireless Technology: Not Specified
  • View more

Features

3MP Ultra-High Definition

Looking for a higher resolution? It's right here.
The VIGI C400 camera comes with 3MP-more than enough pixels to pick up some of the more discrete details.



Choose the right lens for your security.

2.8/4 mm Lens
Whether you need a wide angle lens to cover enclosed spaces like elevators or a higher millimeter lens for longer distances in open spaces like parking lots, C400 comes with two different lens versions to better suit your security needs.



We keep an eye on your business.

Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection
Get instant notifications when your camera detects motion.

Area Intrusion
Set customized activity zones around key areas for more focused monitoring.

Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Camera Tampering
Receive alerts when someone obstructs the camera.

SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.



Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.



3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.



Around-the-clock protection.

Night Vision
A robust night vision system ensures your camera performs well in low light conditions and records what's happening for future inspection.



More compression. More savings. Same quality.

H.265+
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.



Flexible Installation Gives You More Convenience.

Easily route your camera's cable into a dropped ceiling or avoid drilling by slotting it through the camera's side outlet.



Take full control over your security. Anytime, anywhere. Three-Way Management

NVR
Build your network and manage your cameras all through your connected NVR. On-site management allows you to readily fix issues as they arise and check your system without any additional equipment.

VIGI App
Manage your security from the palm of your hand with the VIGI app.

-Easily choose a camera from the multi-display profile and move it to the top for a larger view to see more details.
-Choose and adjust specific smart detection functions for customized monitoring.
-Play back video feeds and find events in the video schedule.

VIGI Security Manager
When you are at home, control your security system from the convenience of your desktop, or laptop. Simply keep a tab on your web browser for easy, quick access to your video feeds.

Specifications

NETWORK

Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS

API

ONVIF

Simultaneous Live View

4 Main Streams & 3 Sub-Streams, or 3 Main Streams & 5 Sub-Streams

GENERAL

Certification

CE, FCC, RCM, BSMI, VCCI, IP67, RoHS

Dimensions( H X W X D )

123 x 123 x 83 mm

Material

Plastic

Weight

195 g

Power Requirements

12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)

General Features

Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening

CAMERA

Image Sensor

1/2.7" Progressive Scan CMOS

Lens

4 mm / 2.8 mm

Aperture

4 mm: F2.4
2.8 mm: F2.0

Lens Mount

M12

Viewing Angle

4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114°
2.8 mm, horizontal FOV: 105°, vertical FOV: 56°, diagonal FOV: 125°

Day/Night Mechanism

IR Cut Filter

IR Working Distance

30m

Minimum Illumination Color:

0.1 Lux @F2.0; 0 Lux with IR

Pan/Tilt Range

Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°

Digital Noise Reduction

3D DNR

WDR

DWDR

VIDEO/IMAGE

Video Compression

Main stream: H.265/H.264
Sub-Stream: H.265/H.264

Frame Rate & Resolutions

Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240

Image Enhancement

BLC/3D DNR/Prevent Overexposure to Infrared Light

Image Settings

Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software

Video Bit Rate

64 Kbps to 6 Mbps

SMART FEATURE-SET

Smart Event

Area Intrusion Detection, Line-Crossing Detection

Basic Event

Motion Detection, Video Tampering Detection, Exception ( illegal login)

Linkage Method

Trigger Notification: ONVIF, HTTPS

INTERFACES

Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port

Button

-

Video Output

-

Manufacturer Part No:
VIGI C400HP-2.8
Brand:
Product Type:
-
UPC
-
Product Family:
VIGI
Shipping Weight:
0.4 kg
PB Part No:
CCTTPL3400
Product Model:
C400
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4 out of 5 Stars Based on 1 Reviews
5 Stars
0
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Filter Results

Do you own this product?

Write a review and go into the draw Win great prizes each month!
Displaying 1 - 1 of 1 reviews

Great camera for price.

Bought two. One in garage other down driveway. Real easy to setup only one wire to run as POE.
Con VIGI Surveillance Manager is Windows only not mac. To change date and time can only do in Manager not in iOS app

P
By: PaulC81 02/08/21
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
