TP-Link VIGI SP9030 Intelligent Solar Power Supply System - 90W Solar Panel, 30Ah/10.8V Battery, 3 x 12V DC Output
Out of stock
TP-Link VIGI SP9030 Intelligent Solar Power Supply System - 90W Solar Panel, 30Ah/10.8V Battery, 3 x 12V DC Output
- Brand: TP-Link
- MPN: VIGI SP9030
- Part #: CCTTPL79030
- UPC:
- Brand: TP-Link
- MPN: VIGI SP9030
- Part #: CCTTPL79030
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Solar Panels





TP-Link VIGI SP9030 Intelligent Solar Power Supply System - 90W Solar Panel, 30Ah/10.8V Battery, 3 x 12V DC Output
- Brand: TP-Link
- MPN: VIGI SP9030
- Part #: CCTTPL79030

Product URL: https://www.pbtech.co.nz/product/CCTTPL79030/TP-Link-VIGI-SP9030-Intelligent-Solar-Power-Supply?srsltid=AfmBOorWmDgdiogxgNXb8Ieup7othbaEDjhOraI2Lat2uhjCnQXRaJHI
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

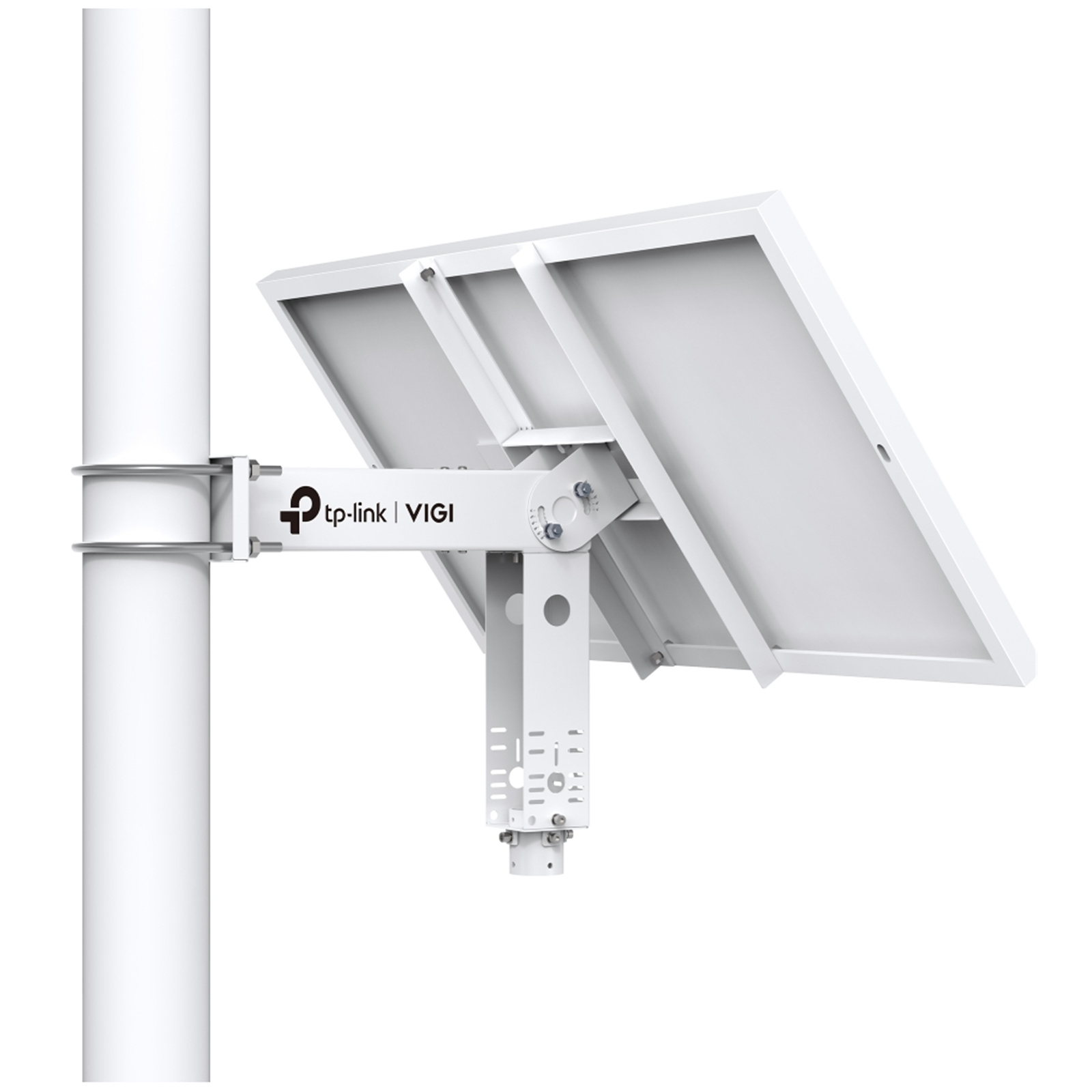

VIGI Intelligent Solar Power Supply System
- 90W Photovoltaic Panel and 30Ah/10.8V Lithium Battery
- Modular Design
- 5°/15°/25°/35°/45°/55° Adjustable Angles
- Intelligent Auxiliary Heating Technology
- Maximum Power Point Tracking (MPPT) Charging Controller
- IP66 Weatherproof
- Remote Management
- Simple Installation

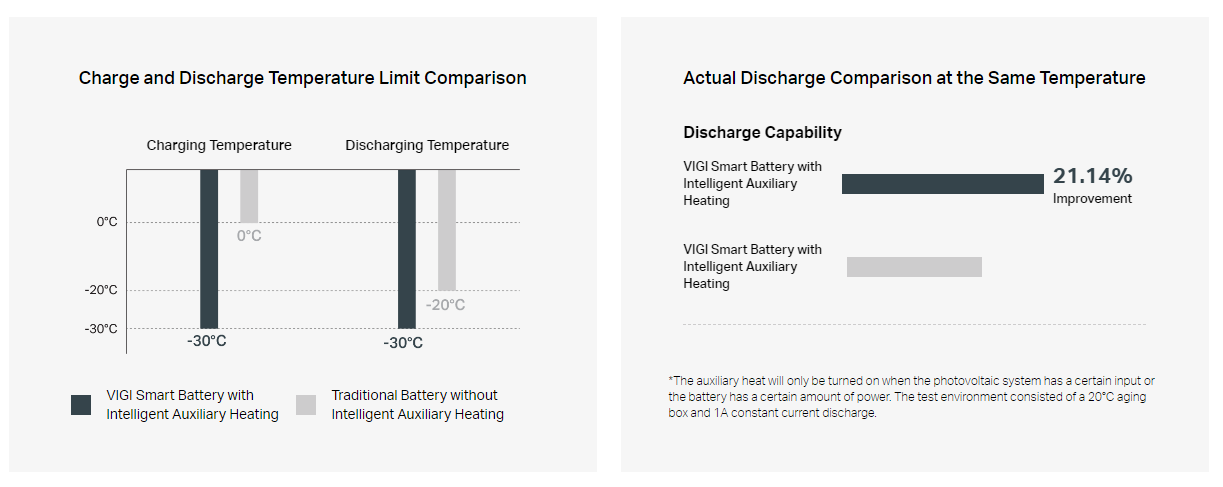

Intelligent Auxiliary Heating Technology
The built-in smart battery supports intelligent auxiliary heating technology, which allows the battery to operate normally across a wide temperature range.

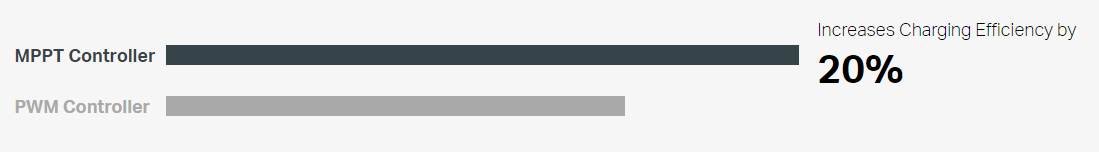

MPPT Controller Boosts Charging Efficiency
An MPPT (Maximum Power Point Tracking) controller optimizes solar panel power, reduce power losses, and increase charging efficiency by 20% compared to PWM (Pulse Width Modulation) controllers.
Specifications
Solar Panel (Photovoltaic Panel)
Power
90 W
Voltage
18 V
Dimensions (L x W x H)
998×516×30 mm (39.3×20.3×1.2 in)
Battery
Type
Lithium
Intelligent Auxiliary Heat
Yes
Battery Capacity
31.2 Ah
Voltage
10.8 V
Max. Output Voltage
12.6 V
Life
More than 500 cycles
Dimension
250×74×74 mm (9.8×2.9×2.9 in)
Charging Condition
- 0°C~45°C
- -30°C~45°C (With intelligent auxiliary heating)
Discharging Condition
- -20°C~60°C
- -30°C~60°C (With intelligent auxiliary heating)
Angle Adjustment (Manual)
Range
5°/15°/25°/35°/45°/55°
HARDWARE
Interface
- 1× 10/100 Mbps RJ45
- 1× Photovoltaic Panel Connector
- 3× 5.5mm DC Power Plugs (#1, #2: 9V-12.6 VDC/2A, #3: 12 VDC/2A)
Indicator LED
- Quantity: 4 (1× SYS Indicator, 1× LAN Indicator, 1× PV Indicator, 1× BAT Indicator)
- Color: Blue
SOFTWARE FEATURES
Load Control
Yes
High and Low Temperature Protection
Yes
Overdischarge Protection
Yes
Power Consumption Statistics
Yes
Displays Real-time Load Status
Yes
Battery Level Display
Yes
Time Zone Selection
Yes
Region Selection
Yes
Schedule Saving
Yes
Firmware Remote Update
Yes
Remote Reboot
Yes
Local LAN Management
Yes
Smart Charging Control
-30°C~5°C
Account Management
Yes
Web Management
Yes
Remote Reset
Yes
Remote Message Push
Yes
OTHERS
Certification
- CB, PSE (Battery)
- CE, FCC, VCCI, IC, IP66
Package Contents
- VIGI SP9030
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Box Dimensions (W X D X H)
1110×615×225 mm (43.7×24.2×8.9 in)
Weight
- Product Weight: 15 kg
- Package Weight: 17.5 kg
Environment
- Operating Temperature: -30°C-60°C (With intelligent auxiliary heating)
- Operating Humidity: 10%~90%RH, Non-condensing
