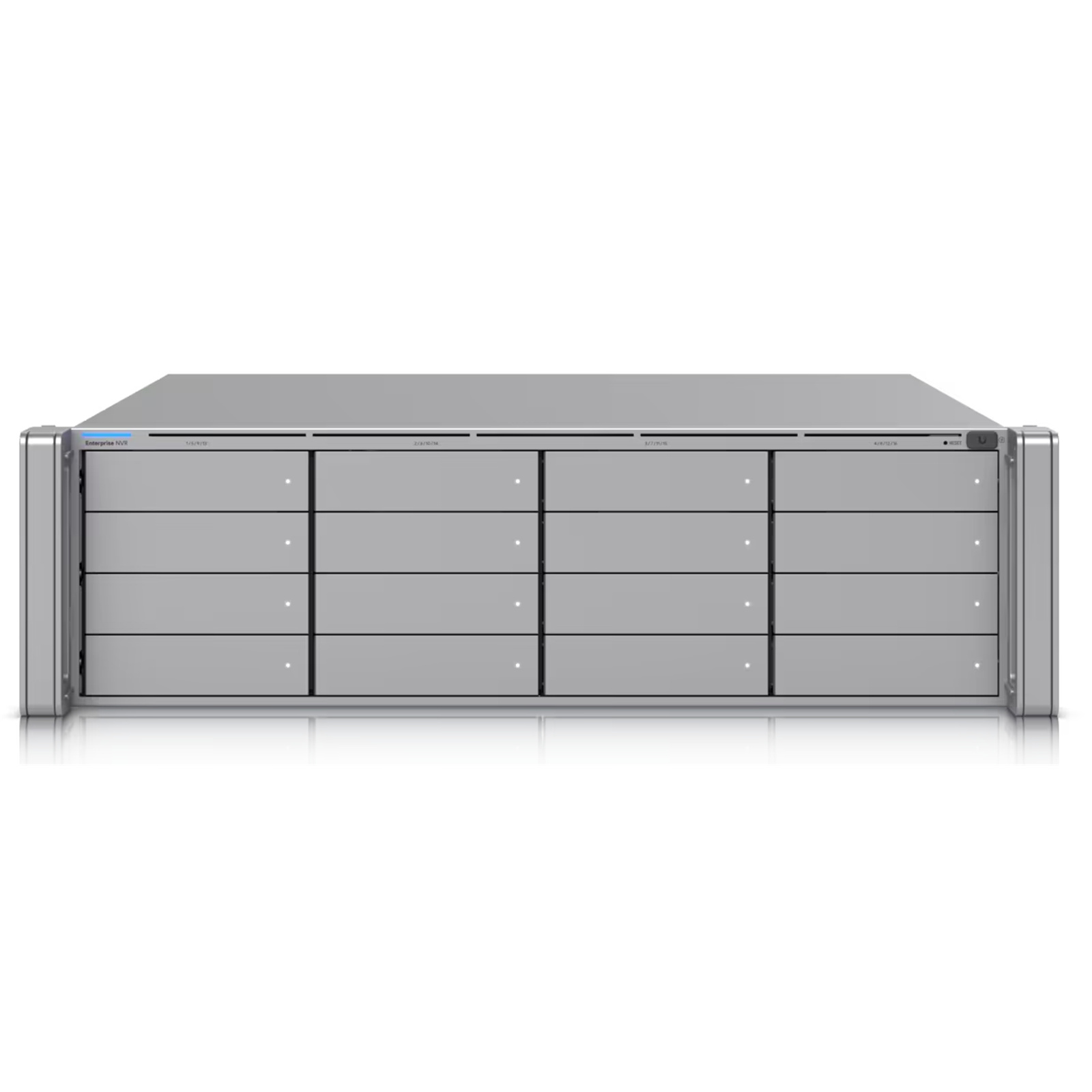

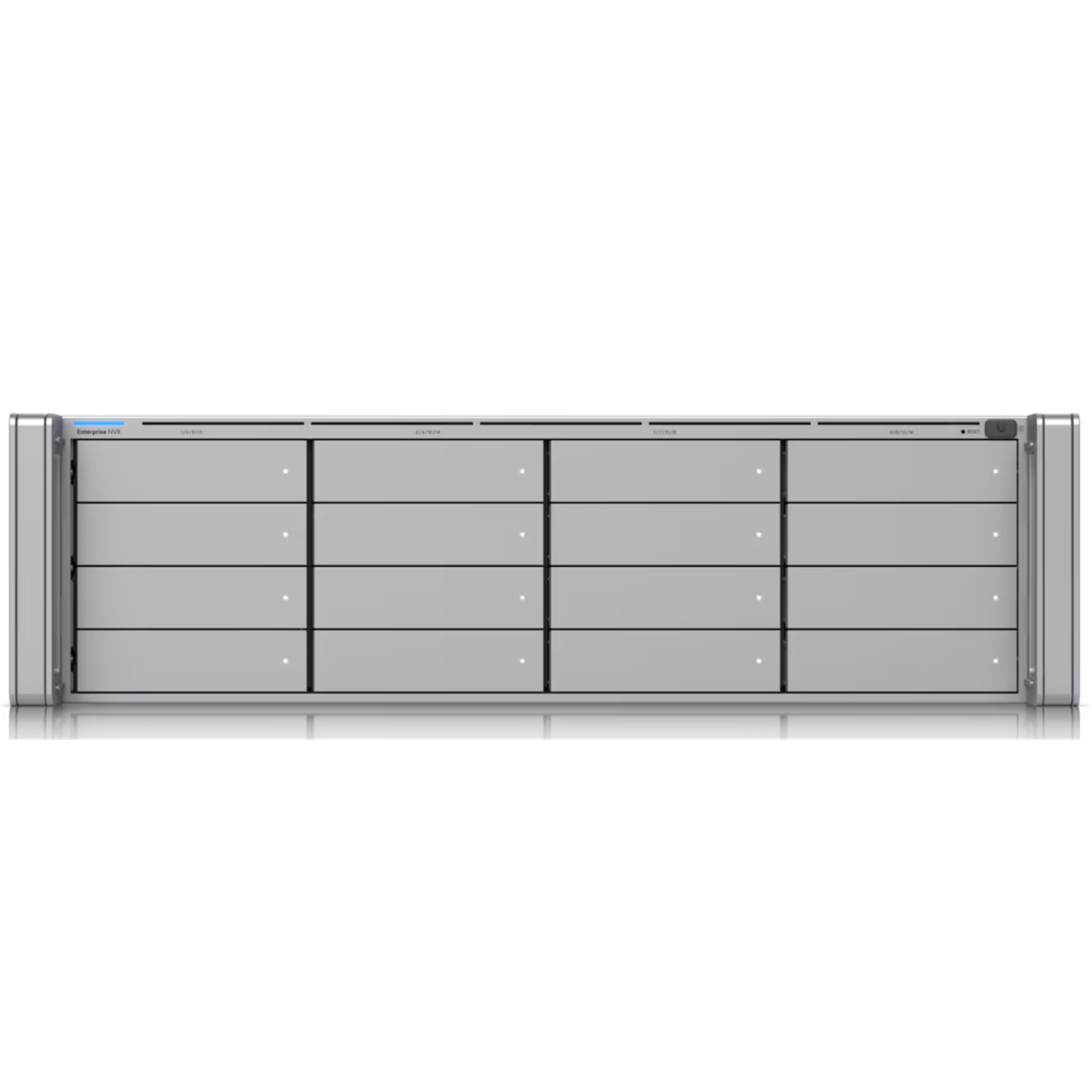

Ubiquiti UniFi Protect ENVR 3U 16-Bay Enterprise Network Video Recorder

This product can only be sold to limited liability companies, local councils, government departments and schools. A limited liability company name or valid council, government department or school name must be entered during the checkout process.

Ubiquiti UniFi Protect ENVR 3U 16-Bay Enterprise Network Video Recorder

  • Brand: Ubiquiti
  • MPN: ENVR
  • Part #: CCTUBI250309
  • UPC: 810084696576
No store stock available.

Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 06 Oct When will I receive it?
Sign in to your commercial account or apply online now to view the price and order this product
  • Brand: Ubiquiti
  • MPN: ENVR
  • Part #: CCTUBI250309
  • UPC: 810084696576

HDD Bays

16

Max Camera Resolution

Not Specified

Max Cameras Supported

Not Specified

Video Recorder Type

NVR

Features

3U NVR with (16) 2.5/3.5" drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.

Specifications

Dimensions

481.4 x 480 x 132 mm
(19 x 18.9 x 5.2")

UniFi Application Suite

Protect

Yes

Access

Yes

Managed Cameras

(210) HD
(140) 2K
(70) 4K

Storage Capacity

(16) 3.5" drive bays

Data Protection

Yes

Vantage Point

Yes

Networking Interface

(2) 10G SFP+
(1) 10 GbE

Power Redundancy

Yes

Form Factor

Rack Mount (3U)

Door Access Support

Yes

Hardware

Hard Drive Capacity

(16) 2.5/3.5" HDD / SSD support

Max. Power Budget for Drives

310W

Max. Power Consumption

410W

Power Method

(2) AC input, 100-240V, 7A Max., 50/60Hz (Redundant, hot-swappable)

Power Supply

Hot-swappable 550W CRPS

Processor

MV-CN10208-A0-CF240AA-C250-SCP

Memory

32 GB

Management

Ethernet

Display

Bezel (Optional)

Weight

Without rails: 16.6 kg (36.6 lb)
With rails: 19.5 kg (43.0 lb)

Enclosure Material

SGCC steel

Mount Material

Aluminum

Slide Rails

482.6 mm (19") four-post racks
Posts depths ranging from 650 to 1,000 mm (25.6-39.4")

Ambient Operating Temperature

-5 to 40° C (23 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Manufacturer Part No:
ENVR
Brand:
Product Type:
Network Video Recorder
UPC
810084696576
Product Family:
UniFi Protect
Shipping Weight:
25.05 kg
PB Part No:
CCTUBI250309
Product Model:
ENVR
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
