Ubiquiti UniFi Protect UVC-AI-Theta-Pro 4MP/2K 360 Panoramic PoE Camera (White)
2K 24FPS/ Two-Way Audio with Optional AI-Theta-Audio
Out of stock
Ubiquiti UniFi Protect UVC-AI-Theta-Pro 4MP/2K 360 Panoramic PoE Camera (White)
2K 24FPS/ Two-Way Audio with Optional AI-Theta-Audio
- Brand: Ubiquiti
- MPN: UVC-AI-THETA-PRO
- Part #: CCTUBI80340
- UPC: 810084692646
- Brand: Ubiquiti
- MPN: UVC-AI-THETA-PRO
- Part #: CCTUBI80340
- UPC: 810084692646
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Wired IP Cameras





Ubiquiti UniFi Protect UVC-AI-Theta-Pro 4MP/2K 360 Panoramic PoE Camera (White) 2K 24FPS/ Two-Way Audio with Optional AI-Theta-Audio
- Brand: Ubiquiti
- MPN: UVC-AI-THETA-PRO
- Part #: CCTUBI80340
- UPC:810084692646

Product URL: https://www.pbtech.co.nz/product/CCTUBI80340/Ubiquiti-UniFi-Protect-UVC-AI-THETA-PRO-8MP4K-360
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Newmarket | 0 | |
Westgate | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

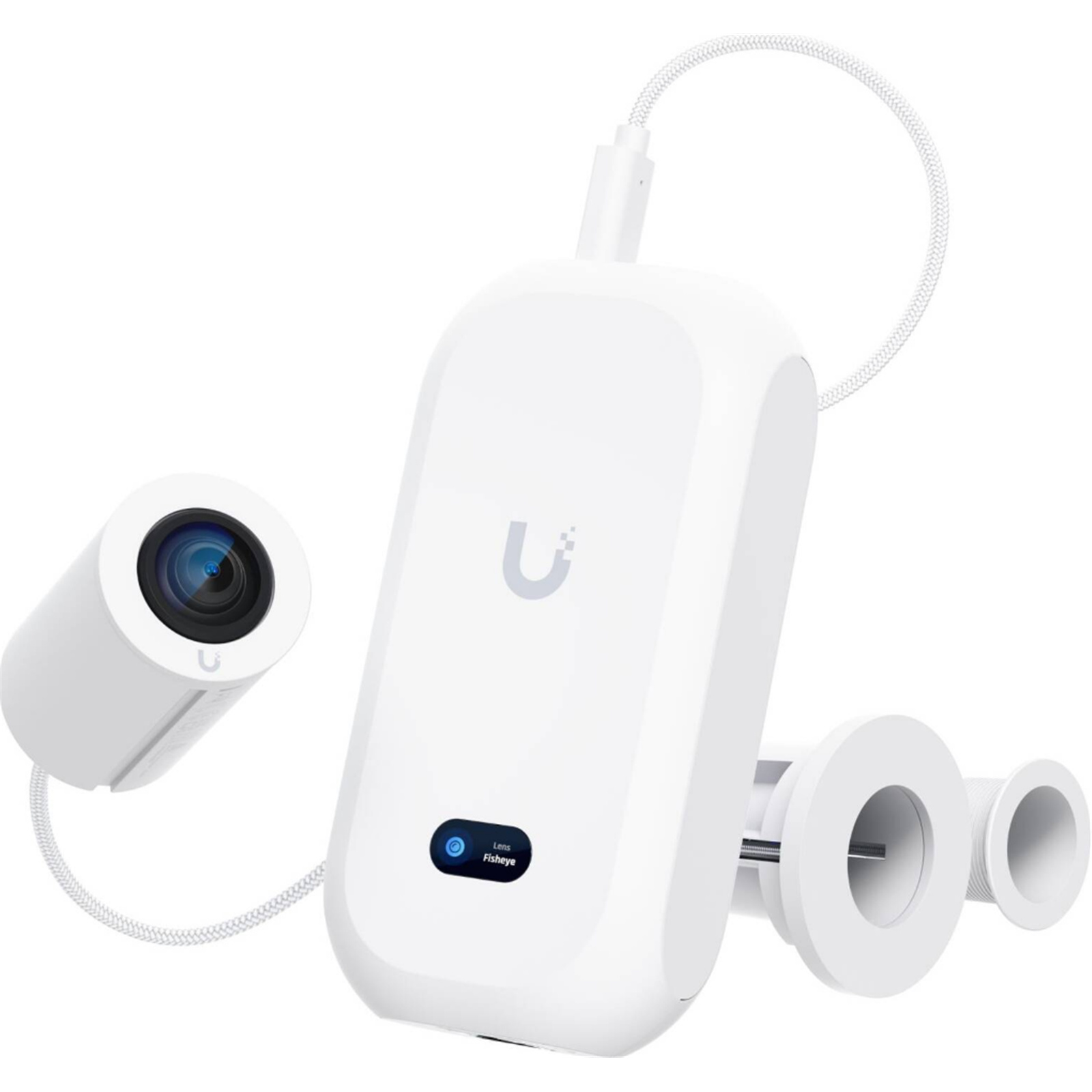

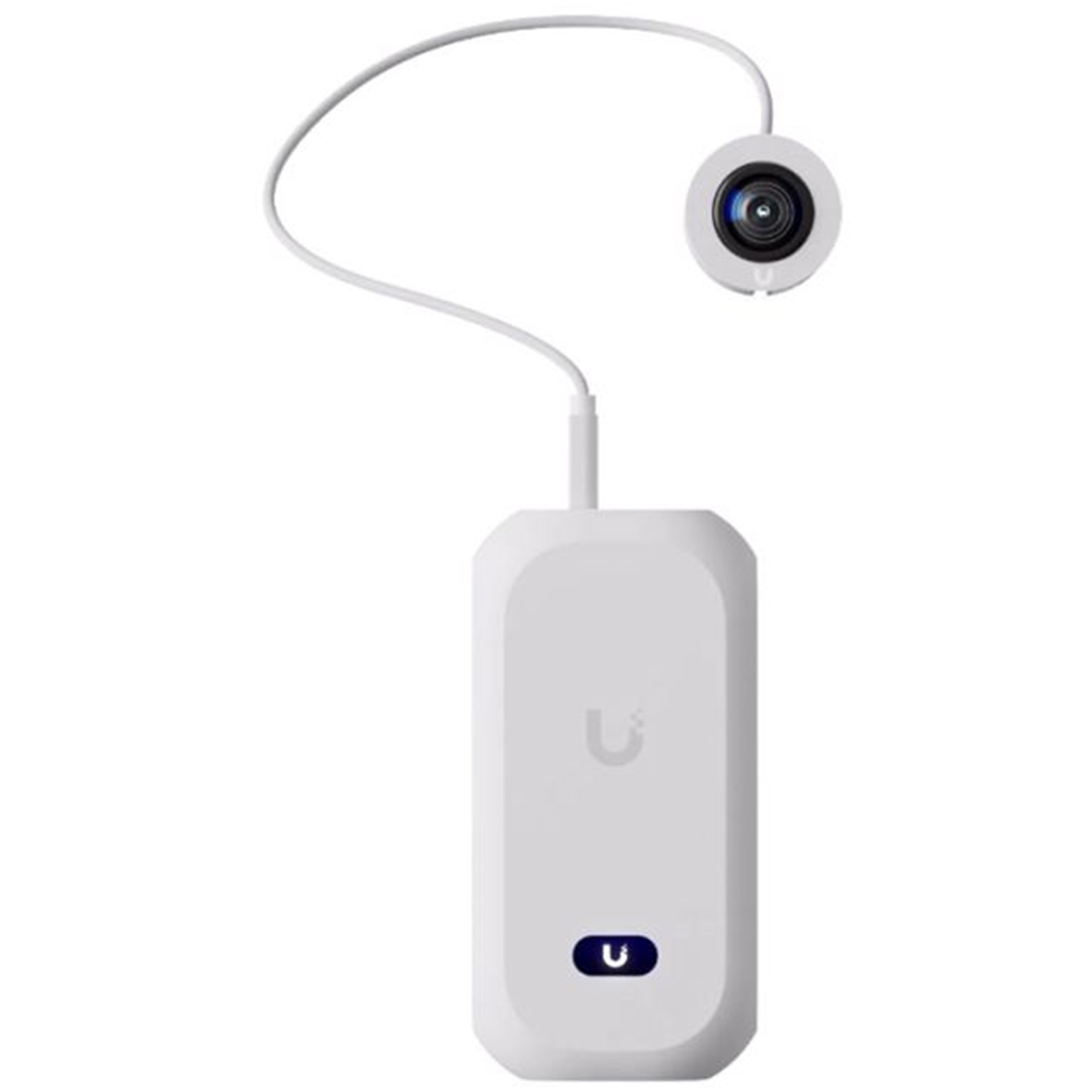

A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.
- Kit includes (1) AI Theta Hub, (1) Pro 360 Lens, (1) Standard Flush Mount, and (1) Pro Flush Mount
- 4K (8MP) resolution with ultra-wide 360° view
- Exceptional image quality with superb low-light performance and enhanced dynamic range
- Advanced AI: Detect people, read license plates, and more*
- Minimal footprint with lens separated from the camera body
- Included Pro Flush Mount allows for mounting lens without access to the rear of a ceiling or wall
- PoE-powered hub that connects to lens with included cable
- Supports optional AI Theta Audio module for two-way audio
Specifications
Mechanical
Dimensions
UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5")
UVC-AI-Theta-ProLens360: Ø36.6 x 58.9 mm (Ø1.4 x 2.3")
UVC-AI-Theta-ProLens360 Flush Mount: Ø54.6 x 60.4 mm (Ø2.2 x 2.4")
Weight
UVC-AI-Theta-Hub: 330 g (11.6 oz)
UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
UVC-AI-Theta-ProLens360: 58 g (2 oz)
UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz)
Enclosure material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate
Mount material
UVC-AI-Theta-Hub: aluminum alloy
UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate
Cable jacket enclosure dimensions
28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3")
Cable jacket enclosure material
PVC
Cable length
1 m (3.3 ft)
Cable diameter
3.7 mm (0.15")
Cable jacket material
Woven fabric
Cable weight
18 g (0.63 oz)
Cable connector type
Theta proprietary
Optics
Sensor
8MP 1/1.8" CMOS
Lens
Fixed focal length
View angle
H: 180°, V: 180°, D: 180°
Video
Resolution
4MP 2160 x 2160 (1:1)
Max. frame rate
24 FPS
Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Power supply
5V DC, 0.5A
System
Processor
Quad-core Arm® Cortex®-A53 based chip
Networking interface
GbE RJ45 port
Max. power consumption
12.5W
Power method
PoE
Supported voltage range
37-57V DC
Output power
5V DC, 1A per port
Display
0.96" color display
Button
Factory reset
Mounting
Wall, ceiling mount
Ambient operating temperature
-20 to 40° C (-4 to 104° F)
Ambient operating humidity
10 to 90% noncondensing
Certifications
FCC, IC, CE
Audio
Microphone
Supports optional AI Theta Audio module for two-way audio (sold separately)
Speaker
Supports optional AI Theta Audio module for two-way audio (Sold separately)
Software
UniFi OS application
UniFi Protect
Mobile app
UniFi Protect iOS™ and Android™
