Ubiquiti UniFi Access Gate Starter Kit (UA-SK-Gate)
Out of stock
Ubiquiti UniFi Access Gate Starter Kit (UA-SK-Gate)
- Brand: Ubiquiti
- MPN: UA-SK-Gate
- Part #: CCTUBI80439
- UPC: 810084692578
- Brand: Ubiquiti
- MPN: UA-SK-Gate
- Part #: CCTUBI80439
- UPC: 810084692578
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Smart Doorbells & Chimes
Eufy C30 2K Outdoor Wire-Free Video Doorbell 5,000mAh Battery -...
TP-Link Tapo D230S1 5MP/2K+ Outdoor Wire-Free Battery Video...
Eufy E340 Wire-Free Solo Video Doorbell 2K Outdoor Dual-Lens -...
Xiaomi Smart Doorbell 3S 3MP/2K Outdoor WiFi Doorbell with Chime...
Eufy S220 2K Outdoor Wire-Free Video Doorbell - Add-on 6500mAh...
Ubiquiti UniFi Access Gate Starter Kit (UA-SK-Gate)
- Brand: Ubiquiti
- MPN: UA-SK-Gate
- Part #: CCTUBI80439
- UPC:810084692578
Product URL: https://www.pbtech.co.nz/product/CCTUBI80439/Ubiquiti-UniFi-Access-Gate-Starter-Kit-UA-SK-Gate
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

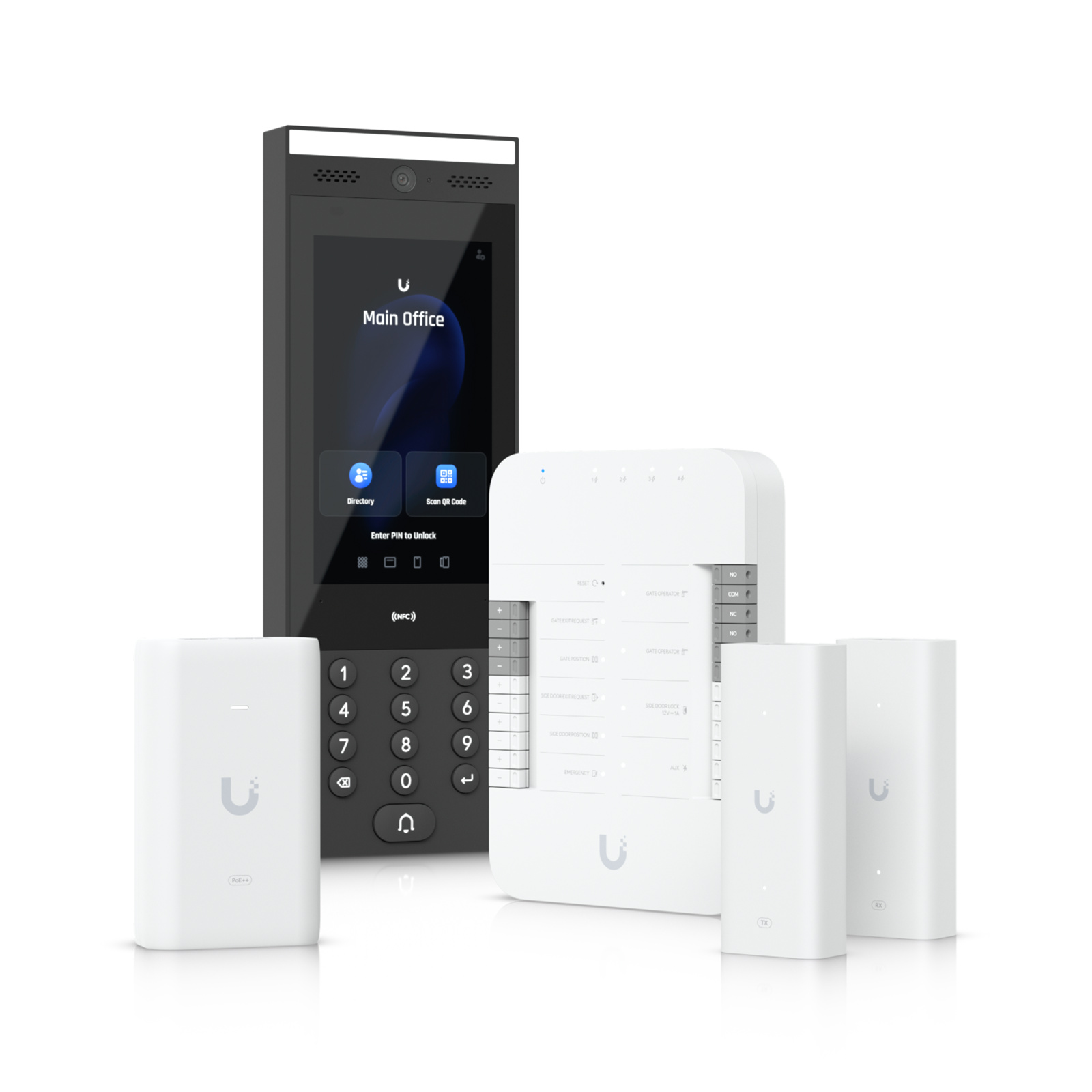

Control a vehicle gate using the connected Intercom and authorize gate access with License Plate Unlock when paired with a compatible Protect AI camera*.
- (1) Gate Hub
- (1) Intercom
- (1) PoE++ adapter
- (2) 2-wire PoE extenders
Specifications
UA-Hub-Gate Mechanical
Dimensions
175 x 126 x 26 mm (6.9 x 5 x 1")
Weight
460 g (1 lb)
Enclosure material
Polycarbonate
Mounting
Din-rail (Included)
Hardware
Networking interface
(5) 10/100/1000 Base-T
Power method
PoE++
Max. power consumption
Without PoE output: 22W
With PoE output: 50W
PoE input
50V DC, 1A
PoE output
PoE passthrough, (4) PoE, 50V DC, Max. 28W
LEDs
White/blue
Button
(1) Factory-reset
Digital input
Gate exit request, gate position, side door exit request, side door position, emergency
Dry output relay
(2) Operator: rated 30V DC, up to 1A
(1) Aux: rated 30V DC, up to 1A
Powered output relay
Side door lock: 12V DC, up to 1A
Operating environment
Indoor use only with device itself
Outdoor use with waterproof junction box
Ambient operating temperature
-30 to 60° C (-22 to 104° F)
Ambient operating humidity
5 to 90% noncondensing
Certifications
CE, FCC, IC
UA-Intercom Mechanical
Dimensions
324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
Weight
Device: 965 g (2.1 lb)
Bracket: 445 g (1 lb)
Enclosure material
Aluminum alloy, UV-stabilized polycarbonate, glass
Mount material
Powder-coated stainless steel
Mounting
Wall mount, adapter to the gooseneck pedestal (Included)
Surface angle mount, flush mount (Optional)
Sunshield kit (Optional)
Weatherproofing
IP65
Hardware
Networking interface
(1) GbE RJ45 port
Connectivity
Bluetooth 4.2
NFC
Power method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Supported voltage range
48V DC
Max. power consumption
13W
ESD/EMP protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
ALS sensor
Camera
3264 x 2448, 8 MP
H: 79.4°, V: 97.5°, D: 118.2°
Display
177 mm (7") diagonal
Resolution
1024 x 600 (16:9)
Display luminance
Max. 1000 nits (typical)
Touch screen technology
Capacitive multi-touch
Microphone
Yes
Speaker
(1) 4 ohm, 2W
LEDs
Amber (Learn more)
Button
(1) Factory-reset
NFC frequency
13.56 MHz
NFC read range
< 30 mm
NFC standards
ISO 14443A, 14443B, 15693
NFC technology
NFC Tag 1,2,3,4,5
MIFARE Classic
MIFARE Plus
MIFARE Ultralight
MIFARE DESFire
Ambient operating temperature
Device: -30 to 60° C (-22 to 140° F)
Display:* -25 to 60° C (-13 to 140° F)
*The display will turn off when the ambient temperature is above/below the display operation temperature, but other functions will remain functional. (Effective after firmware v 1.0.66)
Operating environment
Outdoor use
Ambient operating humidity
5 to 90% noncondensing
UL 294 level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
UL 294 statement
Compliance with IEEE 802.3 specifications was not verified as part of UL 294.
The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
PoE cabling requirements
Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site.
The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm 2 ) for patch cords; 24 AWG (0.21 mm 2 ) for horizontal or riser cable.
CAN/ULC-60839-11-1 Grade
Grade assignment: I
Certifications
CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level
UA-Intercom, V01
UACC-Extender-2Wire-PoE-Tx/Rx Mechanical
Dimensions
40 x 105 x 25 mm (1.6 x 4.1 x 1")
Weight
PoE in: 77 g (2.7 oz)
PoE out: 79 g (2.8 oz)
Enclosure material
Polycarbonate
Mounting material
Polycarbonate
Hardware
Networking interface
(1) 10/100 MbE
(1) Homeplug AV
Power method
PoE++
Max. power consumption
3W (Without PoE output)
PoE input
(1) PoE++, 50V DC, Max. 1.2A
PoE output
(1) PoE+, 48V DC, 0.72A
ESD/EMP protection
Air: ±8kV, contact: ±4kV
LED
White
Ambient operating temperature
-10 to 40° C (14 to 104° F)
Ambient operating humidity
5 to 95% noncondensing
Certifications
CE, FCC, IC
U-PoE++ Specifications
Model
U-PoE++
Dimensions
106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight
210 g (7.4 oz)
Output voltage
48V DC @ 1.25A
LAN activity indicator
No
Gigabit LAN port
Yes
Remote reset capability
No
Reset button
No
Rated voltage
100-240V AC @ 50/60Hz
Input current
1.3A @ 120V AC
0.75A @ 230V AC
Inrush current
<100A peak @ 120V AC
<200A peak @ 230V AC
Efficiency
85+%
Output ripple
1% max.
Switching frequency
65 kHz
Line regulation
= 1%
Load regulation
= 3%
2-pair powering
No
4-pair powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC connector
IEC-320 C6
Data In / PoE
RJ45 shielded socket
Surge protection
Difference and common mode
Clamping protection
11V data, 60V power
Max. surge discharge
1500A (8/20 µs) power
Peak pulse current
36A (10/1000 µs) data
Shunt capacitance
<5 pF data
Response time
<1 ns
Power method
Universal AC input, 100-240V AC, 50/60 Hz
Power supply
AC/DC
Supported voltage range
100-240V AC
Max. PoE+ wattage per port by PSE
60W
Ambient operating temperature
0 to 40° C (32 to 104° F)
Storage temperature
-30 to 70°C (-22 to 158° F)
Ambient operating humidity
10 to 95% noncondensing
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
Software
Management application
UniFi Access: Version 2.1.5 and later
UniFi Protect: Version 4.0.33 and later
