Features
ZKTeco SenseFace 7A Advanced Multi-Biometric Access Control Terminal
SenseFace 7A adopts the latest intelligent engineering facial authentication and in-glass fingerprint technology. It supports fingerprint, facial, card authentication with large capacity and speedy authentication, adopts ultimate antispoofing algorithm for facial authentication against almost all types of fake photos and video attacks which offering secure biometric authentication.
SenseFace 7A is an access control terminal featuring a video intercom function and supports ONVIF protocol. It fully improves the video intercom experience and can be compatible with video intercom indoor unit with SIP protocol (Version 2.0).
Besides, SenseFace 7A supports multiple communication protocols, Its firmware has AC push and can convert to TA push and it is compatible with various AC or TA software. It can change to BEST protocol to link with ZKBio Zlink (AC module).
- Visible Light Facial Authentication Technology and In-glass Fingerprint Authentication
- Attained IP65 Protection Rating With Dustproof and Waterproof
- Multiple Authentication Methods: Face / Fingerprint / RFID / Password
- Available RFID Modules:125KHz ID Card / 13.56 MHz IC Card
- HD Video Door Phone Via SIP Protocol (Version 2.0). It is Compatible With ZKTeco SIP Video Intercom Indoor Monitor (VT07-B01and VT07-B01-W)
- User Data Synchronization: User data can be downloaded/uploaded from one device to another via a USB drive

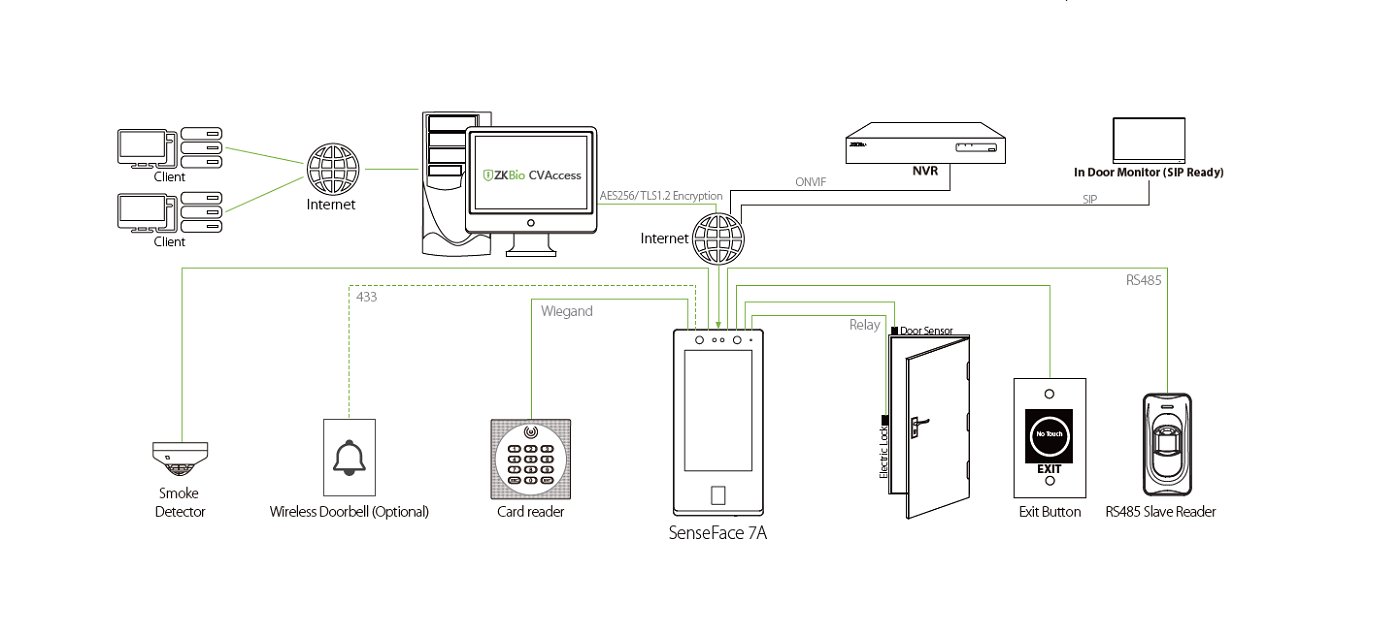

- Advanced access control functions (Wiegand input or output shared; RS485 communication; Electric Lock; Door Sensor; Exit Button)
* Download data using the USB driver and make sure to use the FAT32 format.

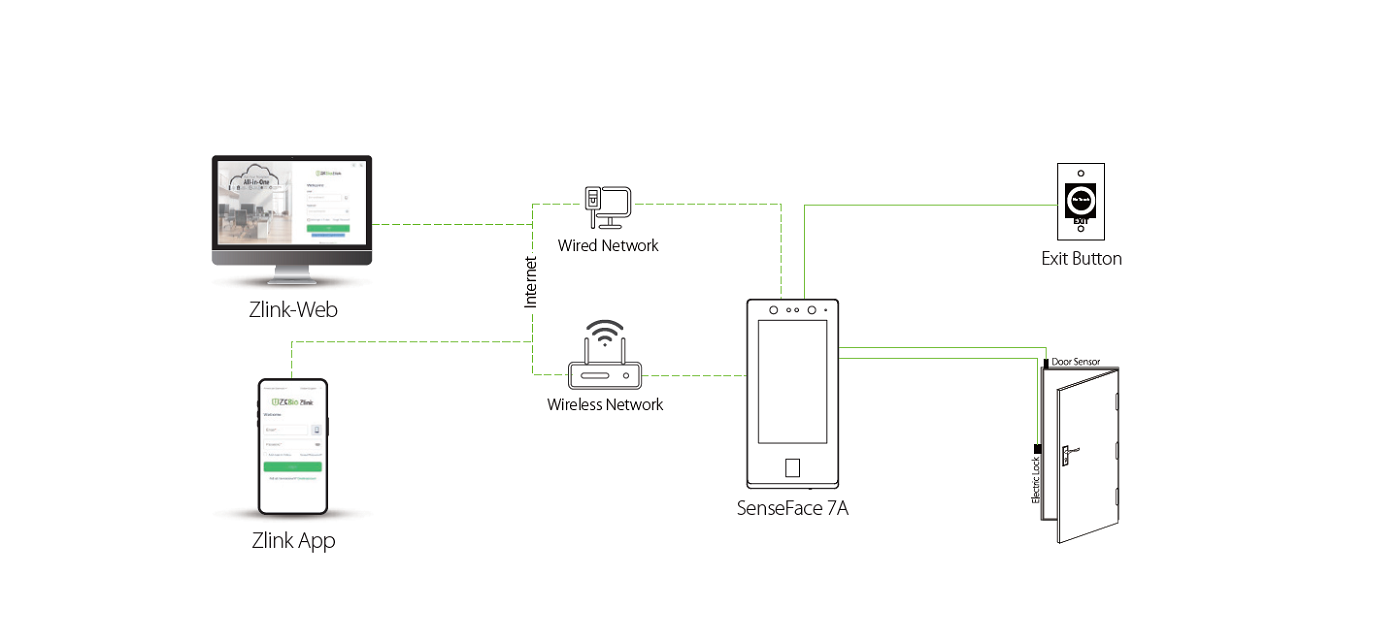

Configuration

BEST Protocol
Specifications
Model
SenseFace 7A
Display
7"@ TFT Color Touch LED Screen (600*1024)
Camera
WDR Binocular Camera @ 1MP
Operation System
Linux
Hardware
CPU: Dual Core@ 1GHz
RAM: 512MB; ROM: 8GB
Speaker: 8 ohm@ 1 W
Microphone: *1 (Sensitivity: -32dB / Omni-directional / Signal-to-Noise Ratio: -32dB / Impedance: 2.2kO)
Supplement Light: No
Fingerprint Sensor: In-Glass Fingerprint (Z-ID)
Authentication method
Fingerprint / Face / Card / Password (Virtual Keypad)
Fingerprint Template Capacity
10,000 (1:N) (Standard)
Face Template Capacity
10,000 (1:N)
Card Capacity
50,000 (1:N) (Standard)
User Capacity
50,000 (1:N) (Standard)
Transaction Capacity
300,000 (1:N)
Max. User Password Length
8 Digits
Biometric Authentication Speed
less than 0.5 sec (Fingerprint)
less than 0.35 sec (Facial Authentication)
Touchless Biometric Authentication Distance
30cm to 200cm (Facial Authentication)
False Acceptance Rate (FAR) %
FAR = 0.01% (Visible Light Facial Authentication)
FAR = 0.0001% (Fingerprint)
False Rejection Rate (FRR) %
FRR = 0.02% (Visible Light Facial Authentication)
FRR = 0.01% (Fingerprint)
Biometric Algorithm
ZKFace V4.0
ZKFingerprint V13.0 (Standard) / V10.0 (Optional)
Card Type
ID Card @ 125 kHz (Standard)
IC Card @ 13.56 MHz (Optional)
Communication
TCP/IP*1
Wi-Fi (IEEE802.11b/g/n/ax) @ 2.4 GHz (Optional)
Wiegand (Input or Output)*1
RS485: ZKTeco RS485*1
USB: Type A (USB Drive Only)*1
Aux Inputs *1, Electric Lock*1, Door Sensor*1, Exit Button*1, 12V Output*1
Standard Functions
ADMS, DST, Photo Capture, Event Photo Capture, Up to 14-digit User ID, Access Levels, Groups, Holidays, Anti-Passback, Record Query, Schedule Bell, Tamper Switch Alarm, Automatic Status Switch, Multiple Authentication Methods, SIP Client (Version 2.0), ONVIF (Compatible with Profile S, Profile T, Profile G, Profile C, Profile Q & Profile A), AC Push and TA Push Protocol Switch, HTTPs / SSH Backend Access, T9 Keyboard (Input)
Optional Functions
IC Card, Wi-Fi, Wireless Doorbell
Access Control Interface
RS485 (RS485 Card Reader / Biometric Reader)
Power Supply
DC 12V 3A (Optional)
Operating Temperature
-5°C to 45°C
Operating Humidity
10% to 90% RH (Non-condensing)
Dimensions
238mm * 115mm * 22.3mm (L*W*H)
Supported Software
Software: ZKBio CVAccess / ZKBioTime
Mobile App.: ZKBio Zlink
Cloud Service: ZKBio Zlink

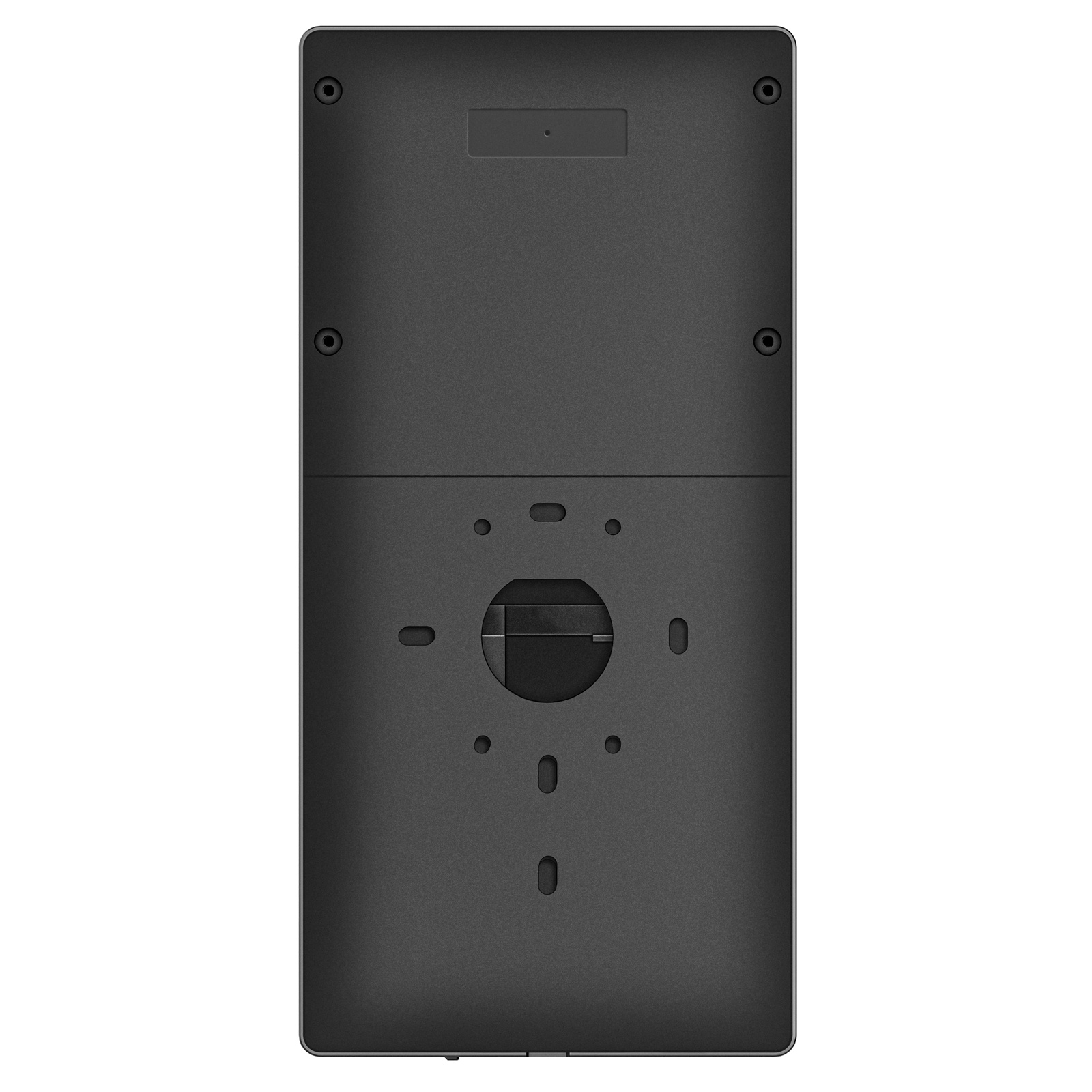

Installation
Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)
Ingress Protection Rating
IP65 (waterproof and dustproof)
Certifications
ISO14001, ISO9001, CE, FCC, RoHS
