be quiet Shadow Base 800 DX White Mid Tower Case Tempered Glass, CPU Cooler Support Upto 180mm, GPU Support Upto 430mm, 7x PCI, 420mm Radiator Supported, Front I/O: 2x USB. 1x Type C, HD Audio

PB Tech price
PB Tech price
$ 260 .00
 +GST
$ 299 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

be quiet Shadow Base 800 DX White Mid Tower Case Tempered Glass, CPU Cooler Support Upto 180mm, GPU Support Upto 430mm, 7x PCI, 420mm Radiator Supported, Front I/O: 2x USB. 1x Type C, HD Audio

Subtle ARGB illumination with integrated ARGB controller!
  • Brand: be quiet
  • MPN: BGW62
  • Part #: CHABQT8021
  • UPC:
1
PB Tech price
$ 260 .00 $ 299 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: be quiet
  • MPN: BGW62
  • Part #: CHABQT8021
  • UPC:

Colour

Black White

Form Factor

EATX

Side Window

Yes

Radiator Support

420mm

Maximum Card Length

430mm

CPU Cooler Height Clearance

180mm

Dedicated 2.5" Bay

4

2.5" / 3.5" Bays

2

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews
White

"Very good case. Surpresses noise as described, Happy chappy !"

KP
By: KennethP26 22/05/25
Verified Owner

Features

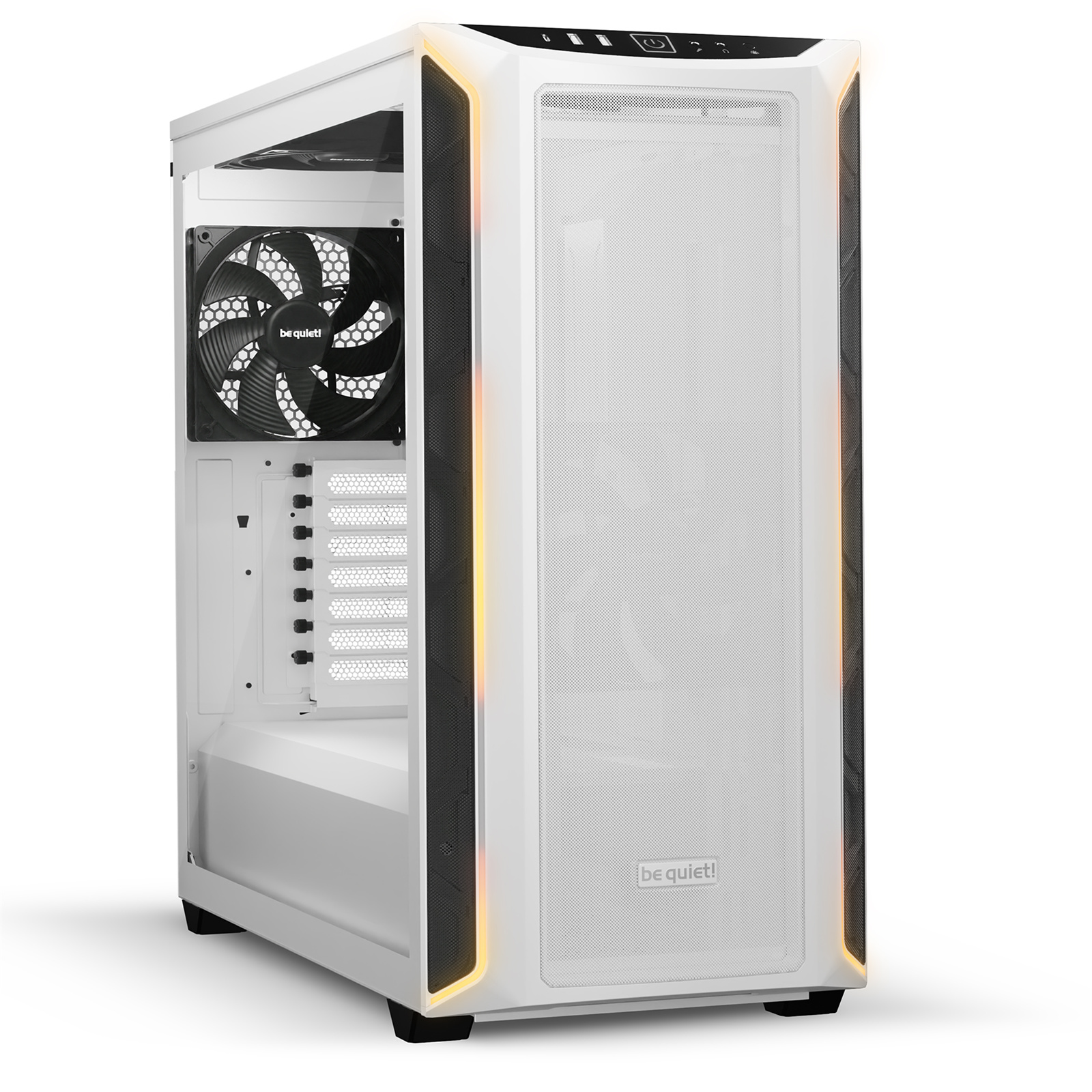

SHADOW BASE 800 DX White - Exceptional airflow, maximum space

Shadow Base 800 DX White is an airflow-optimized midi-tower with ARGB LEDs at the front that offers silent operation with enough space for extensive components such as graphics cards, 420mm radiators or E-ATX motherboards.

- Exceptionally high airflow thanks to an open mesh design
- 3 Pure Wings 3 140mm PWM fans offer high airflow with quiet operation
- Spacious design offers enough room for even the largest components
- Subtle ARGB illumination with integrated ARGB controller
- Simple and tool-less HDD and SSD installation
- Easy to use cable bar for a tidy look
- Tinted and tempered glass side window allows a superb view

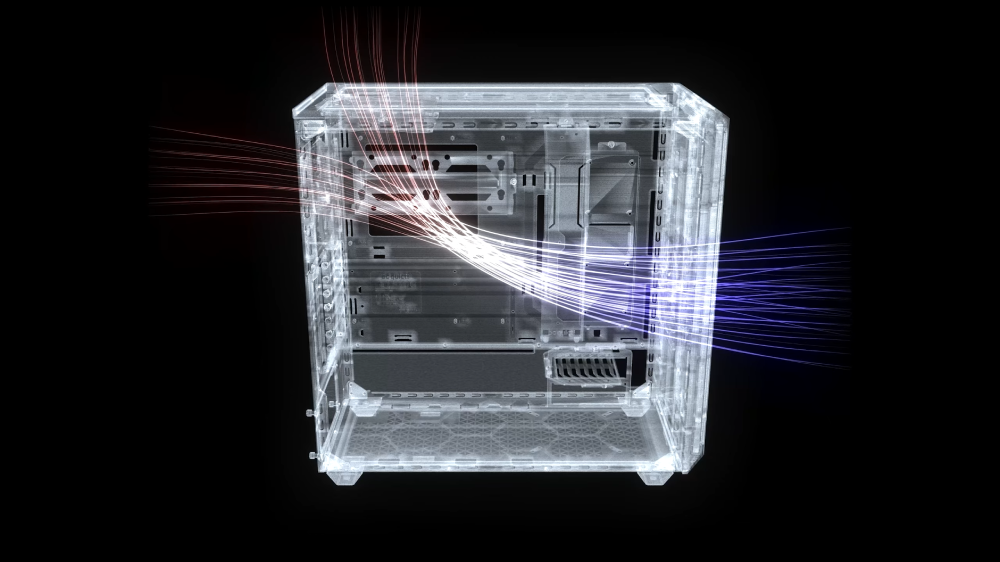

HIGH AIRFLOW AND MAXIMUM PERFORMANCE - Airflow all the way

For all who strive for maximum performance - especially with water-cooled systems - the Shadow Base 800 DX White with its extremely air-permeable front and top cover is the right choice. The dust filter can be easily removed for cleaning.

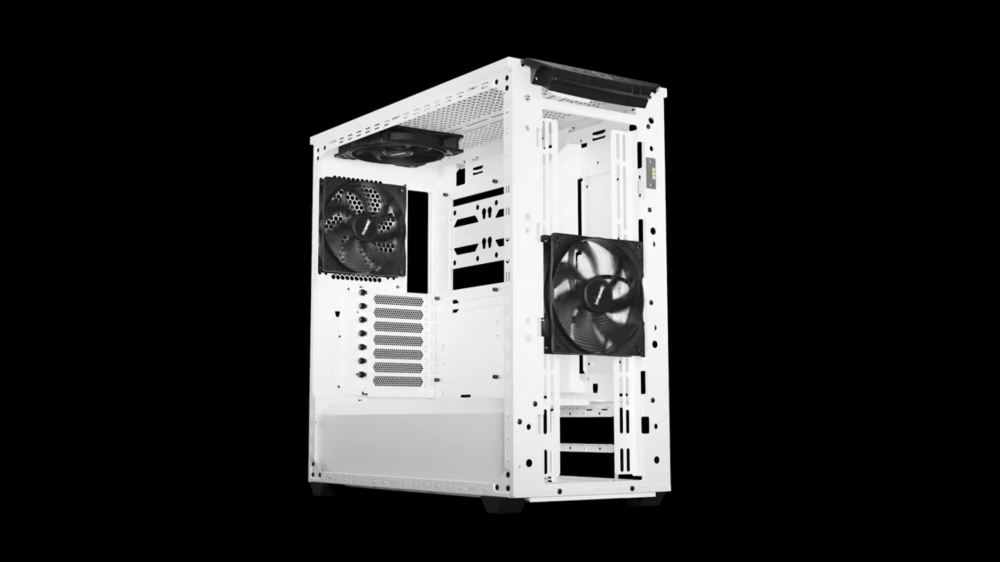

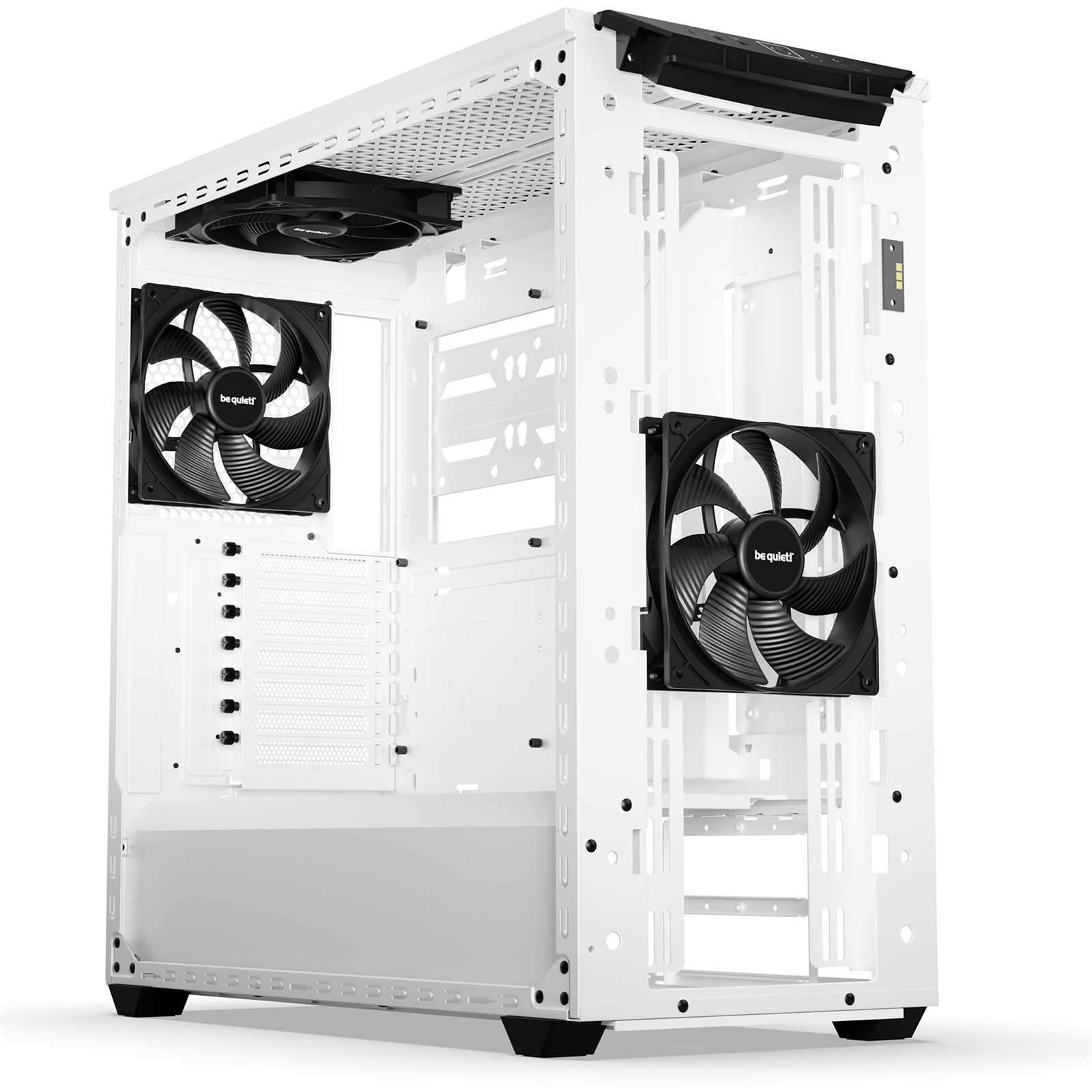

PURE WINGS 3 FANS - Performant, yet quiet operation

With its 3 pre-installed Pure Wings 3 140mm PWM fans, Shadow Base 800 DX White provides enough airflow to cool the most demanding components. Despite their performance, Pure Wings 3 offer quiet operation. Even at maximum speed, the fans operate at only 21.9dB(A).



SIZE MATTERS - Generous dimensions for radiators up to 420mm

With its remarkably large dimensions, Shadow Base 800 DX White sets no limits on creativity. It can accommodate radiators up to 420mm, E-ATX motherboards and even the largest graphics cards.

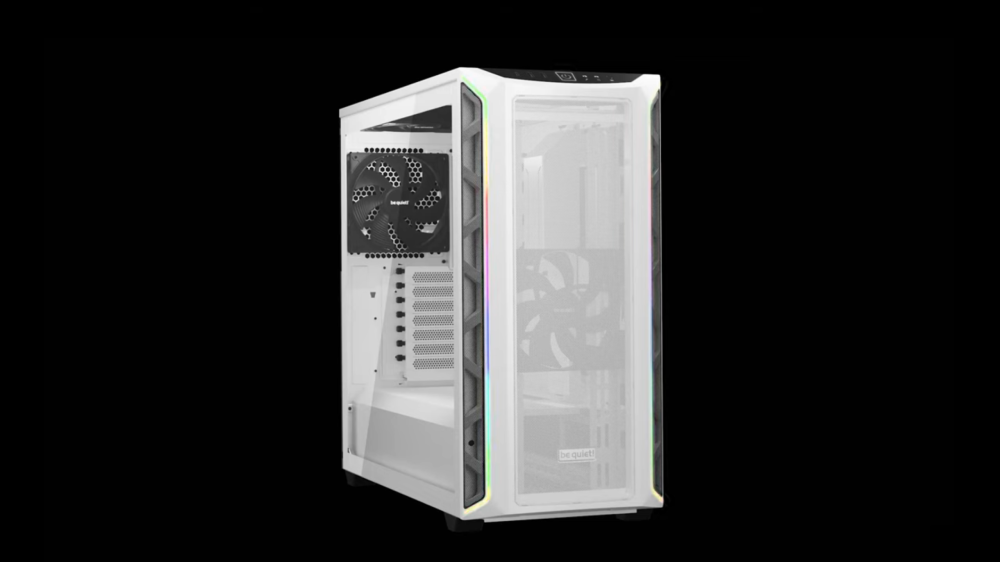

ELEGANT ARGB ILLUMINATION - LED strips at the front

ARGB LEDs at the front panel offer multiple colors and modes to individualize the look of the case. You can optionally synchronize lighting with your motherboard or an ARGB controller.

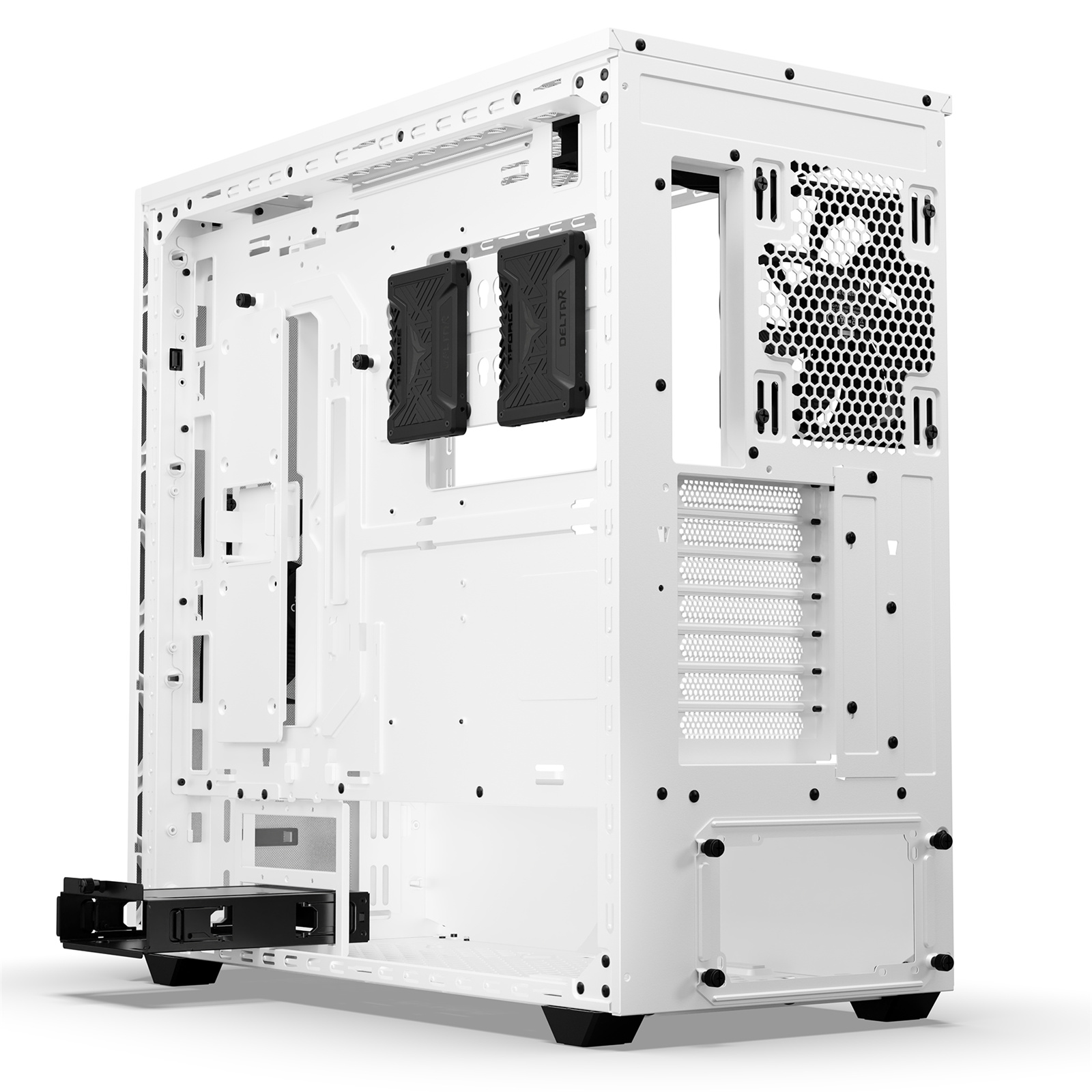

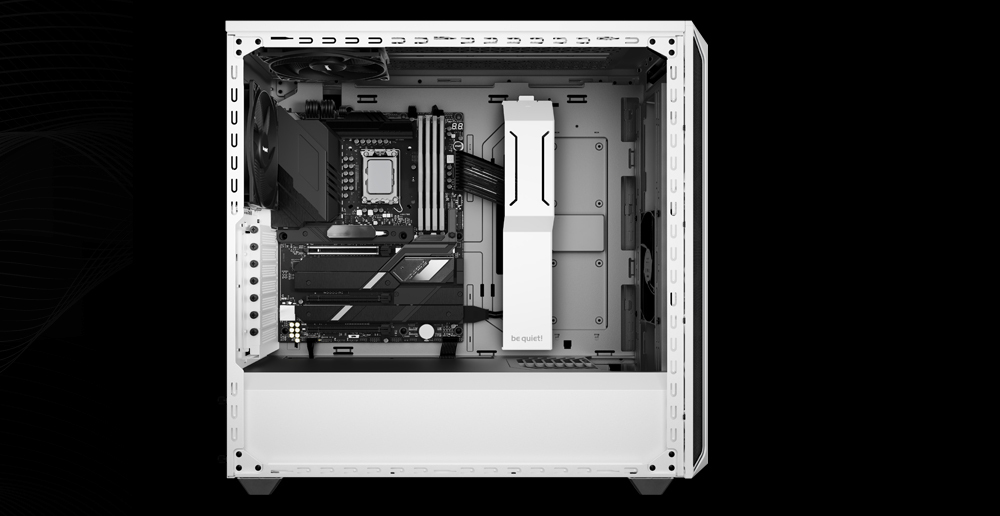

NEAT INTERIOR - Professional Cable Management

No matter the size or number of components built into the Shadow Base 800 DX White, with the cleverly integrated cable bars you can easily avoid annoying clutter. This results in a clean interior.

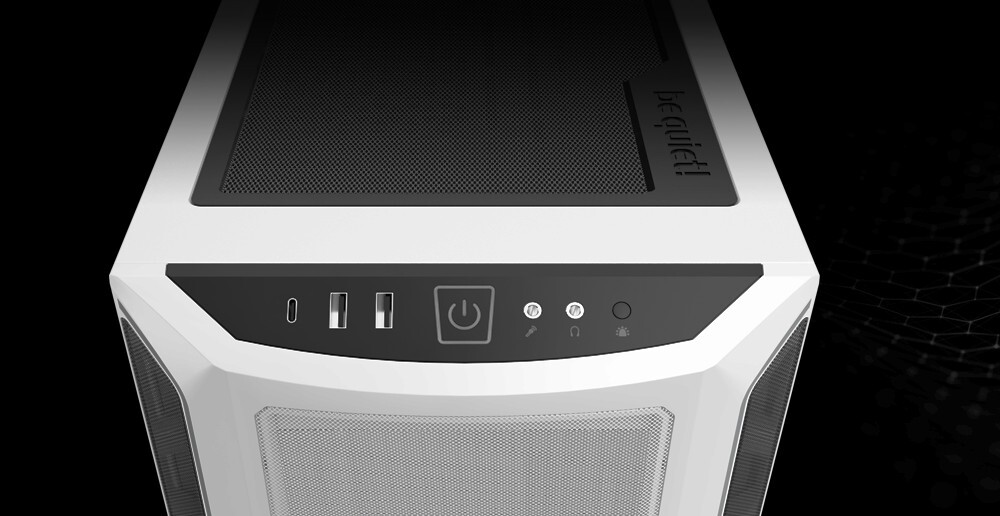

MODERN I/O PORT - State-of-the-art connectivity for your system

A USB 3.2 Gen. 2 Type C port is provided on the front I/O panel, allowing the use of the latest hardware. The 2 USB 3.2 connectors complement the I/O panel and make it a multi-purpose interface for any type of hardware.



TEMPERED GLASS WINDOW - A perfect view inside your PC

The high-quality, fully windowed side panel offers a perfect view of the components inside your PC case. The window is made of tinted and tempered glass with white painted side bars.

Specifications

General data

Model

Shadow Base 800 DX White

Color option

White

Motherboard compatibility

E-ATX / ATX / M-ATX / Mini-ITX

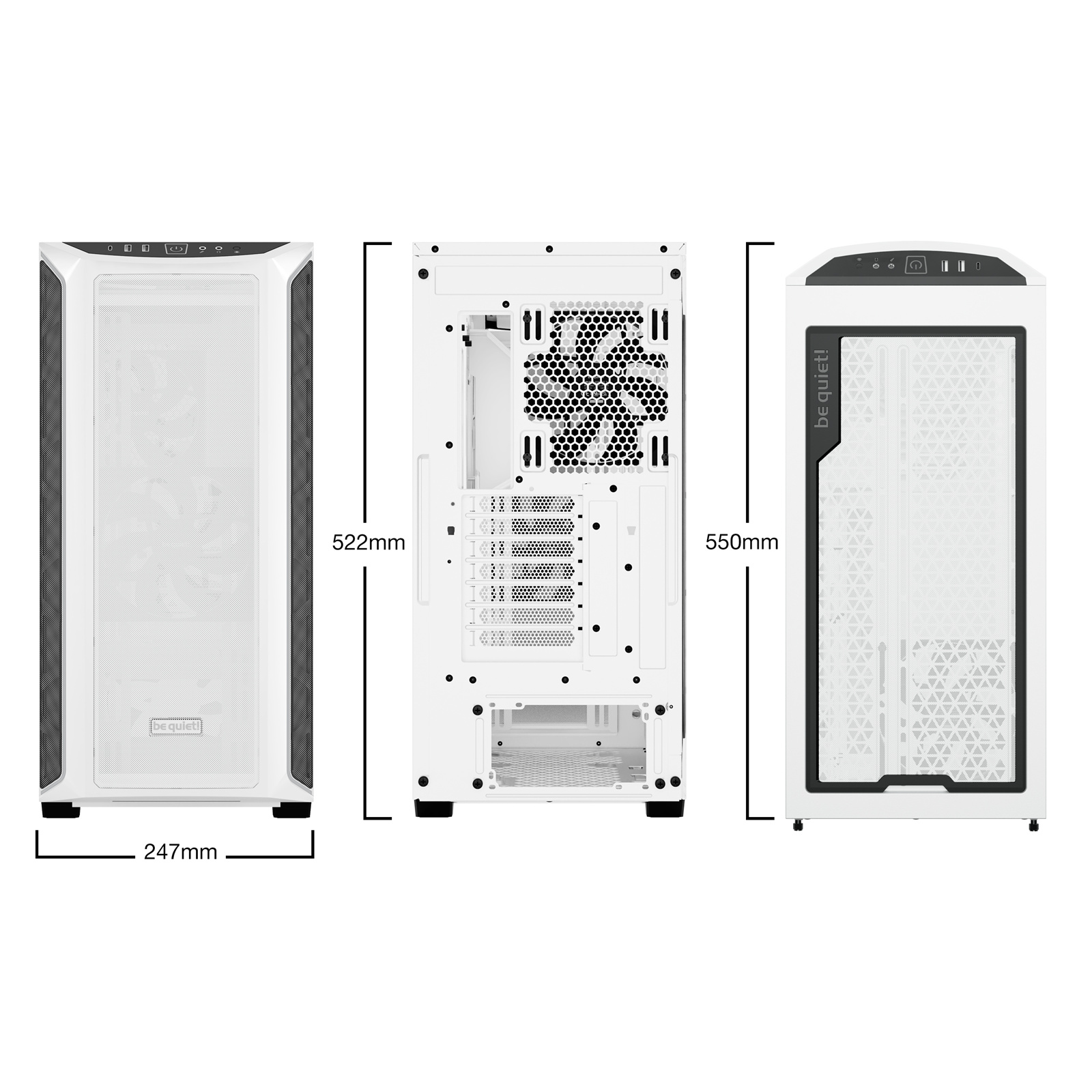

Case size excl. stands (L x W x H), (mm)

550 x 247 x 503

Case size incl. stands (L x W x H), (mm)

550 x 247 x 522

Volume (l)

62.74

PSU form factor

ATX PS/2

Weight (kg)

11.8

Expansion slots

7

Pre-installed fans

Fan at top

1x Pure Wings 3 140mm PWM

Fan at front

1x Pure Wings 3 140mm PWM

Fan at side

-

Fan at rear

1x Pure Wings 3 140mm PWM

Fan at bottom

-

Dimensions (L x W x H), (mm)

Front: 140 x 140 x 25 / Rear: 140 x 140 x 25 / Top: 140 x 140 x 25

Fan speed at 100% PWM / 12V (rpm)

1200

Airflow at 100% PWM / 12V (CFM / m3/h)

57.4 / 97.5

Air Pressure at 100% PWM / 12V (mm H2O)

0.96

Noise level at 100% PWM / 12V (dB(A))

21.9

Voltage range (V DC)

5 - 13.2

Input power (W)

3.6

Input current (A)

0.3

Connector

4-pin PWM

Lifespan (h / 25°C)

80,000

Fan controller

-

Maximum fan installation

Maximum fans

8

Top (mm)

3x 140 / 3x 120

Front (mm)

3x 140 / 3x 120

Side (mm)

-

Rear (mm)

1x 140 / 1x 120

Bottom (mm)

1x 140 / 1x 120

PSU shroud

-

Optional radiator installation

Top (mm)

120 / 140 / 240 / 280 / 360 / 420

Front (mm)

120 / 140 / 240 / 280 / 360 / 420

Side (mm)

-

Rear (mm)

120

Bottom (mm)

-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)

305

Maximum dimensions incl. bottom fan (mm)

260

Graphics card

HDD cage (in height of graphics card) installed (mm)

430

HDD cage (in height of graphics card) removed (mm)

430

Maximum PCIe slots with vertical graphics card (pcs.)

7

Drive bay capacity

5.25 bays (pcs.)

-

3.5 slots (scope of delivery)

2

3.5 slots (max.)

4

2.5 slots (scope of delivery)

4

2.5 slots (max.)

8

Cooling

Max.construction height of CPU cooler unit (mm)

180

Airflow channel

Front / Top / Rear / Bottom

Lighting

LED illumination

Yes

LEDs (pcs.)

40

LED type

ARGB - 5V

LEDs synchronizable with controller/motherboard

Yes

I/O Panel

USB 3.2 Gen. 2 Type C

1

USB 3.2 Type A

2

USB 2.0

-

HD Audio I/O

Mic + Audio

Qi charger / Quick Charging Option

-

Insulation and damping

Top panel insulation mats

-

Front panel insulation mats

-

Side panel insulation mats

Yes

Anti-vibration decoupled HDD

Yes

Anti-vibration decoupled fan

Yes

Anti-vibration decoupled PSU

Yes

Anti-vibration decoupled motherboard-tray

-

Removeable dust filters

Top

-

Front

1

Side

-

Bottom

1

Material

Top cover

ABS

Front panel

ABS

Side panel

Steel

Side panel window

Tempered glass

Stands

ABS

Safety certification

Approvals

CE, UKCA

Environmental directives

RoHS

Yes

Reach

Yes

WEEE

Yes

Triman

Yes

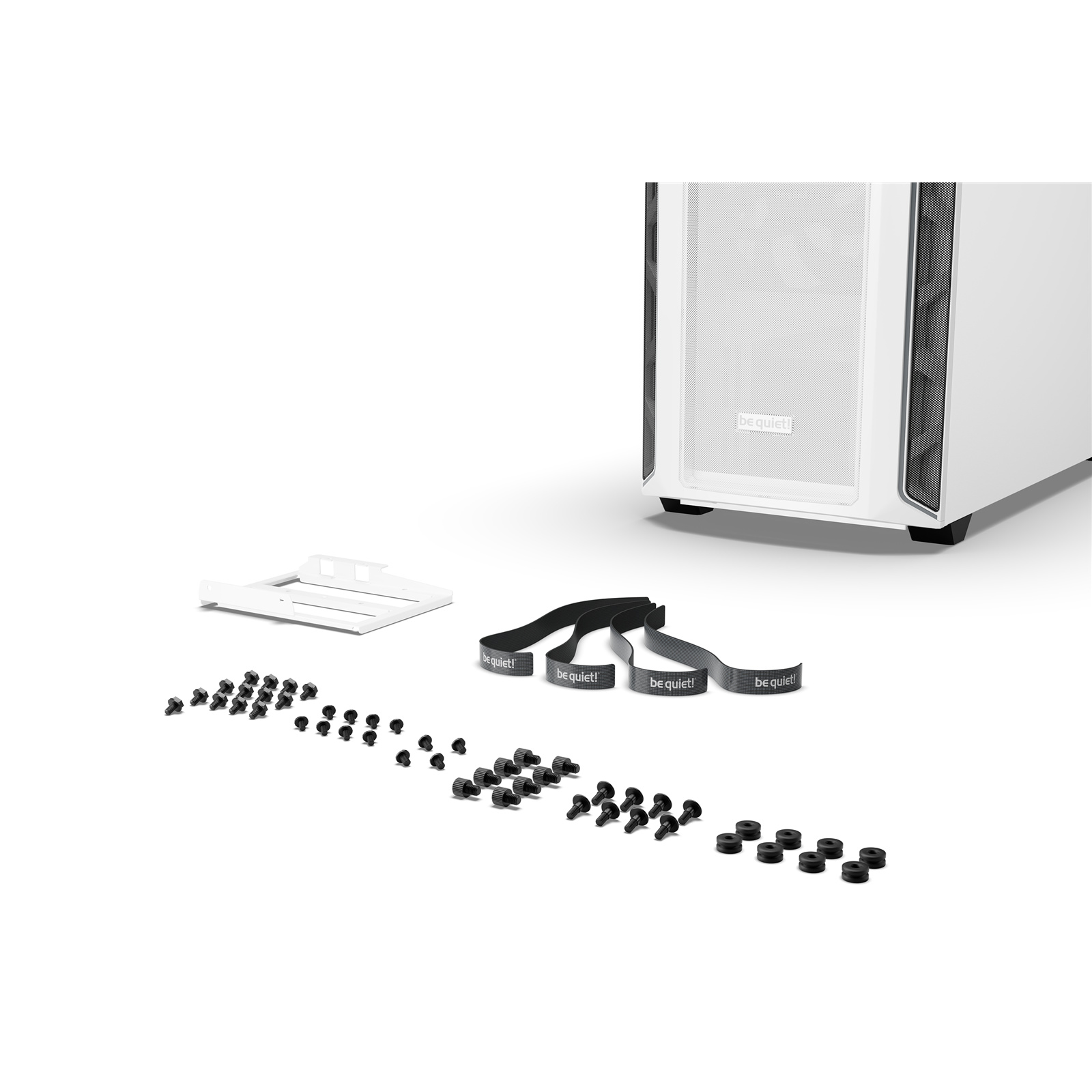

Scope of delivery

Screw set (Drives/Motherboard)

Yes

Cable ties (pcs.)

6 (Velcro) / 4 (Velcro)

Manufacturer Part No:
BGW62
Brand:
Product Type:
Mid Tower Case
UPC
-
Product Family:
Shadow Base
Shipping Weight:
13.3 kg
PB Part No:
CHABQT8021
Product Model:
800 DX White
Warranty: 12 months *
