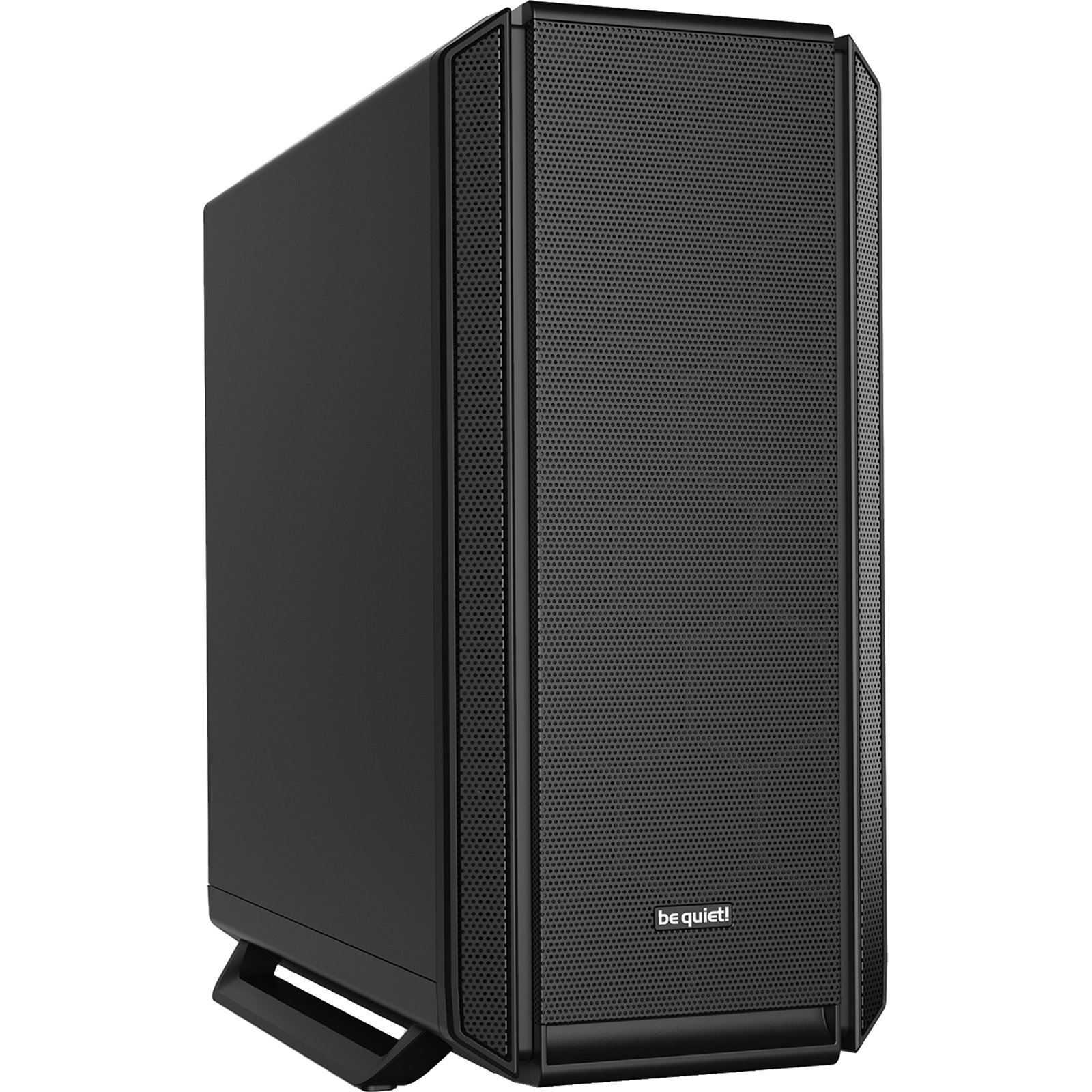

be quiet Silent Base 802 Black Mid Tower Case CPU Cooler Supports Upto 185mm, Graphics Card Supports Upto 432mm, 7+2 (Vertical) X PCI Slots, 360mm Rad Supported, Front: 2X USB, 1X Type C, HD Audio, No PSU

PB Tech price
PB Tech price
$ 239 .13
 +GST
$ 275 .00
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

be quiet Silent Base 802 Black Mid Tower Case CPU Cooler Supports Upto 185mm, Graphics Card Supports Upto 432mm, 7+2 (Vertical) X PCI Slots, 360mm Rad Supported, Front: 2X USB, 1X Type C, HD Audio, No PSU

State-of-the-art I/O-panel with fan controller and USB 3.2 Gen. 2 Type C!
  • Brand: be quiet
  • MPN: BG039
  • Part #: CHABQT8201
  • UPC:
PB Tech price
$ 239 .13 $ 275 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: be quiet
  • MPN: BG039
  • Part #: CHABQT8201
  • UPC:

Colour

Black White

Form Factor

EATX

Side Window

No

Radiator Support

420mm

Maximum Card Length

432mm

CPU Cooler Height Clearance

185mm

Dedicated 2.5" Bay

7

2.5" / 3.5" Bays

3

Product is out of stock. View similar products in-stock at PB Tech

Features





SILENT BASE 802 - Black - EXCELLENT VERSATILITY, PERFORMANCE AND SILENCE

The be quiet! Silent Base 802 Black is the perfect solution for sophisticated users who strive for whisper-quiet operation and maximum performance alike.

- Interchangeable top cover and front panel for either maximum airflow or silent operation
- Three Pure Wings 2 140mm fans
- Extra thick insulation mats for improved noise reduction
- State-of-the-art I/O-panel with fan controller and USB 3.2 Gen. 2 Type C
- Decoupled motherboard tray can be relocated for an inverted layout
- Detachable top bracket ensures easy installation of radiators and fans
- Ready for radiators up to 420mm

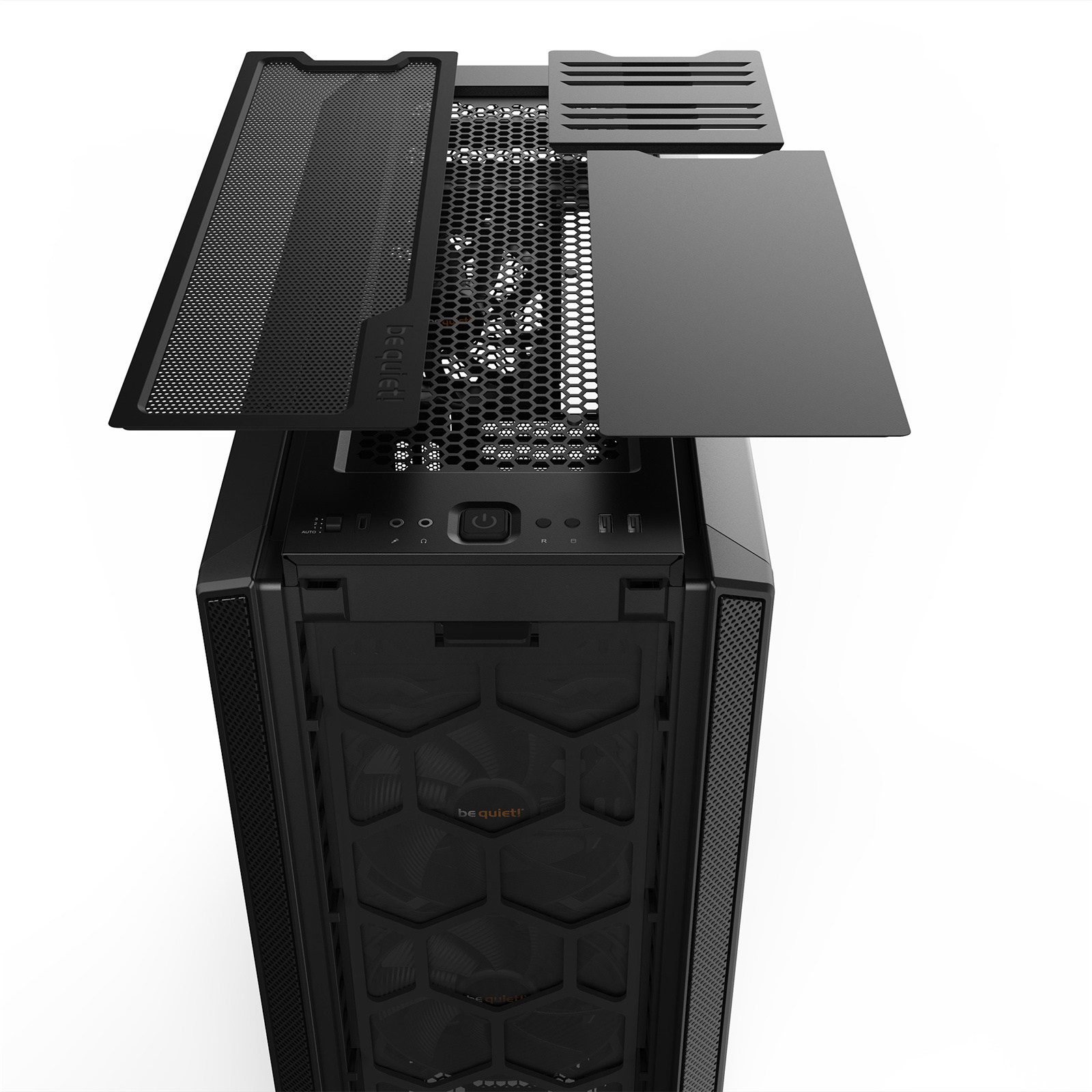

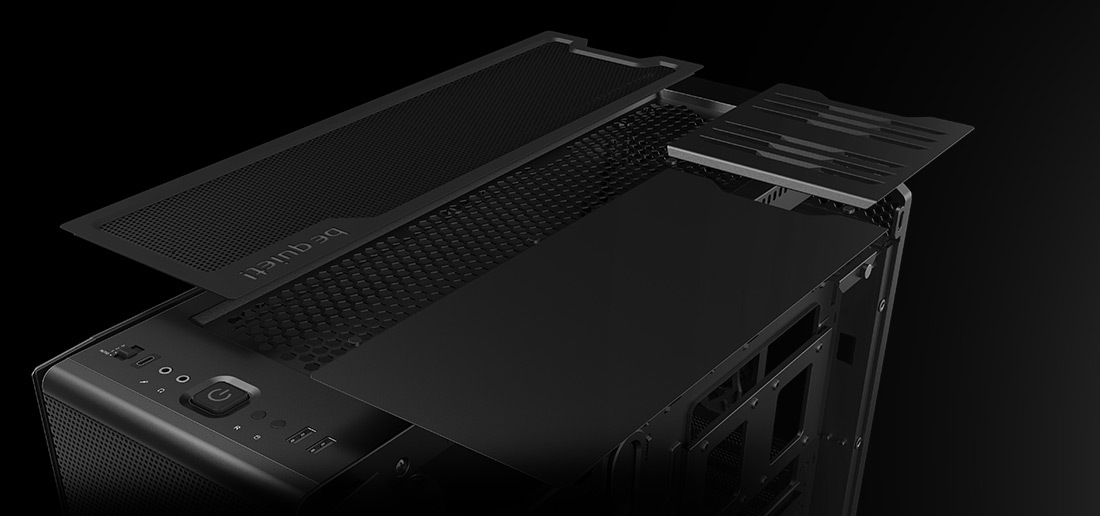

INTERCHANGEABLE TOP COVER - Optimized for air or water cooling

The first of two included top covers perfectly rounds off the design of the Silent Base 802 Black and ensures a silent operation. For all who strive for extremely powerful cooling and especially with water-cooled systems, the highly air-permeable top cover is the right choice.

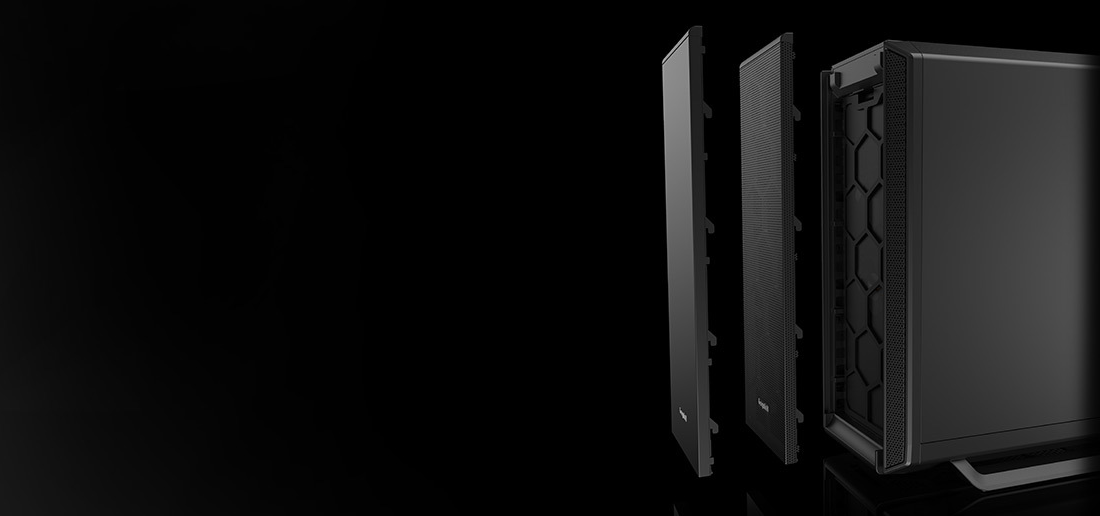

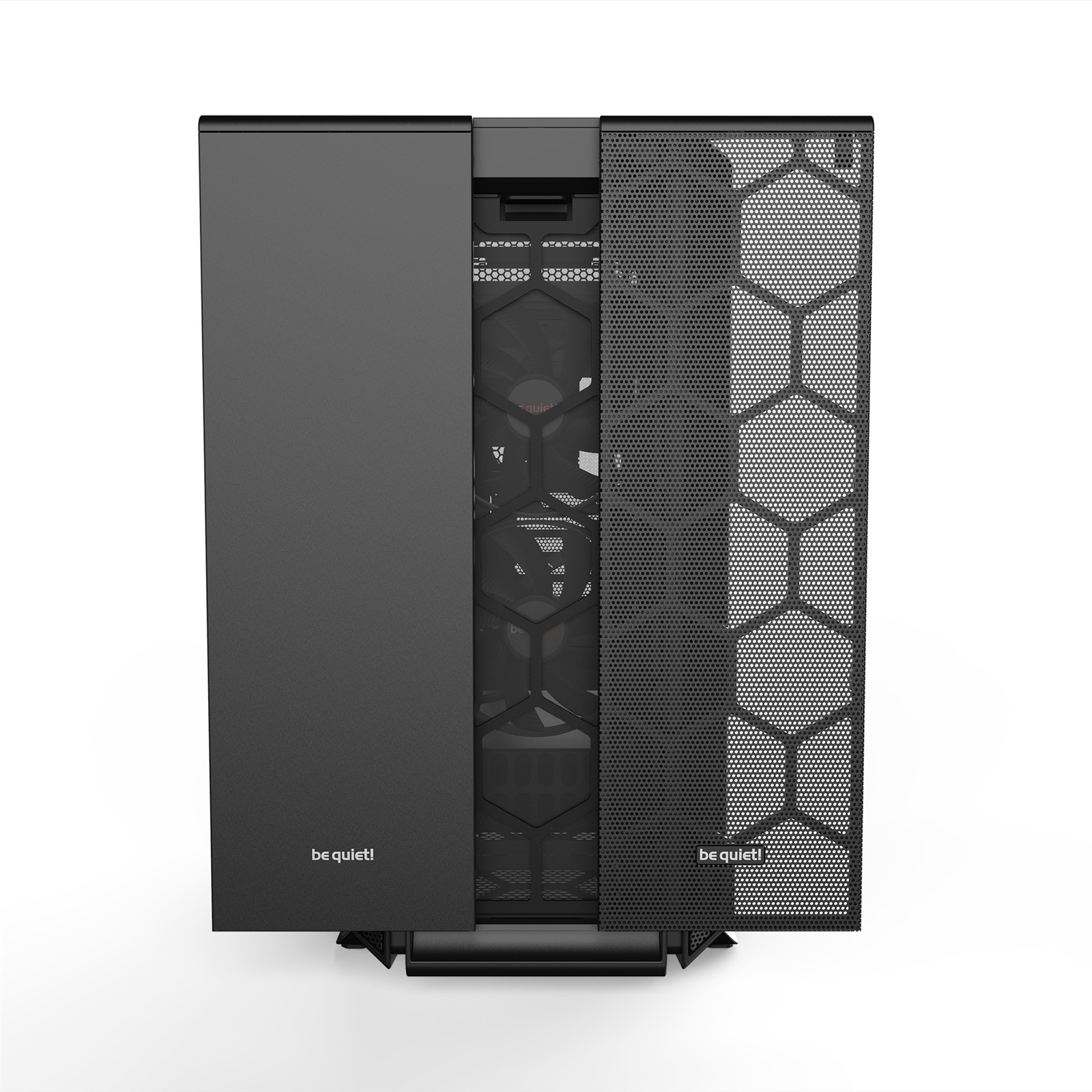

INTERCHANGEABLE FRONTPANEL - Ensures maximum performance or whisper-quiet operation

The airflow front panel provides maximum performance for sophisticated configurations with highest demands for low temperatures. The standard front panel is the perfect choice for silent systems and regular PC configurations. Both panels are included.



THREE PREINSTALLED PURE WINGS 2 - Whisper-quiet operation

Three preinstalled Pure Wings 2 140mm fans with airflow-optimized fan blades ensure perfect airflow and solid cooling no matter if you chose a high airflow or a silence optimized configuration.



SUPERB NOISE DAMPENING - Extra thick insulation for maximum stability and silence

The front and sides are equipped with extra thick dampening mats of up to 10mm, resulting in maximum stability and superb noise dampening capabilities. The decoupled PSU bracket, motherboard tray and HDD cages also minimize vibrations. The full metal body provides stability for the case and improves its haptic.

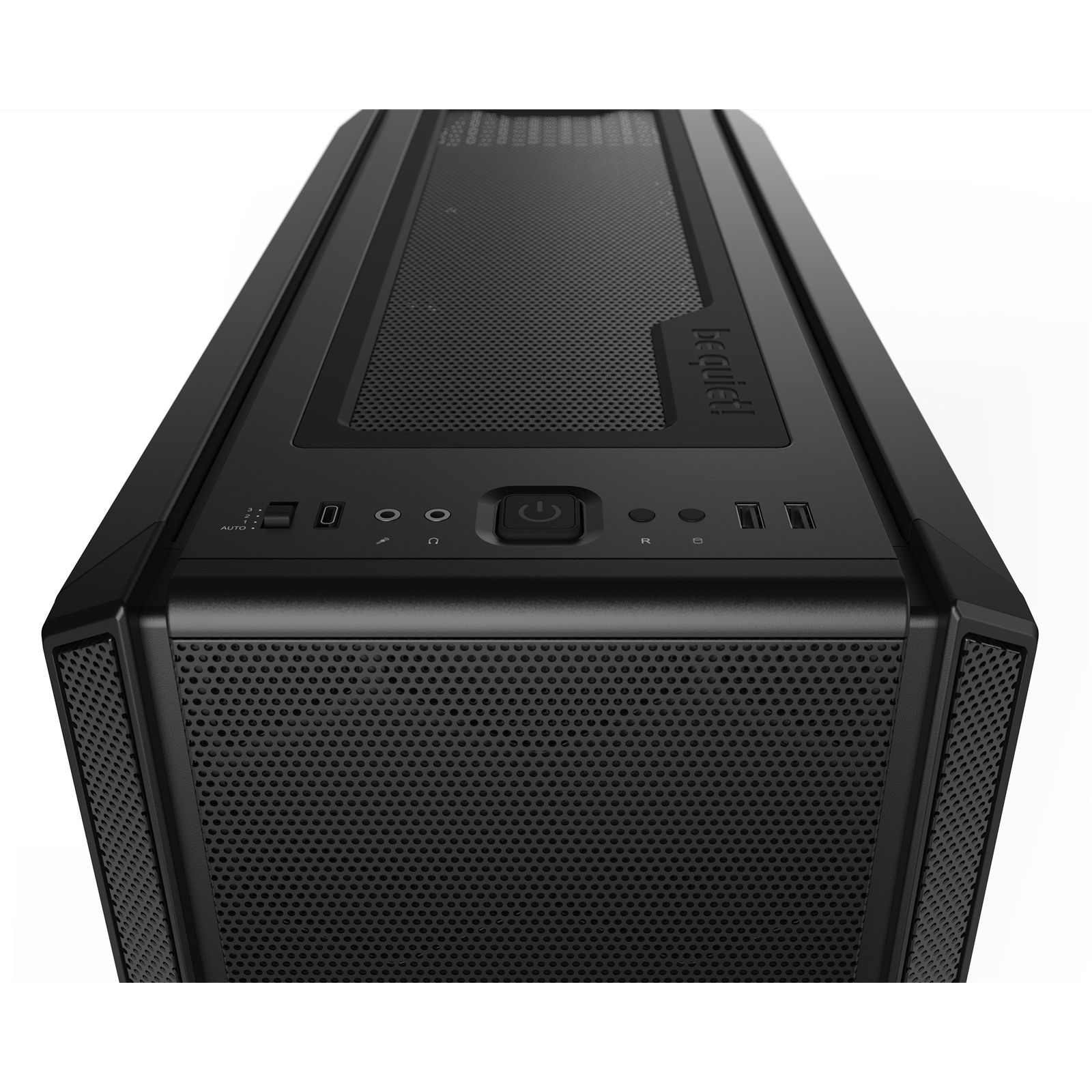

SMART I/O PORT - State-of-the-art technology for your system

A USB 3.2 Gen. 2 Type C connector is provided on the front I/O port and allows usage of the latest hardware. The integrated 4-step fan controller allows the setting of the speed of up to six fans manually or connect all to one PWM signal.

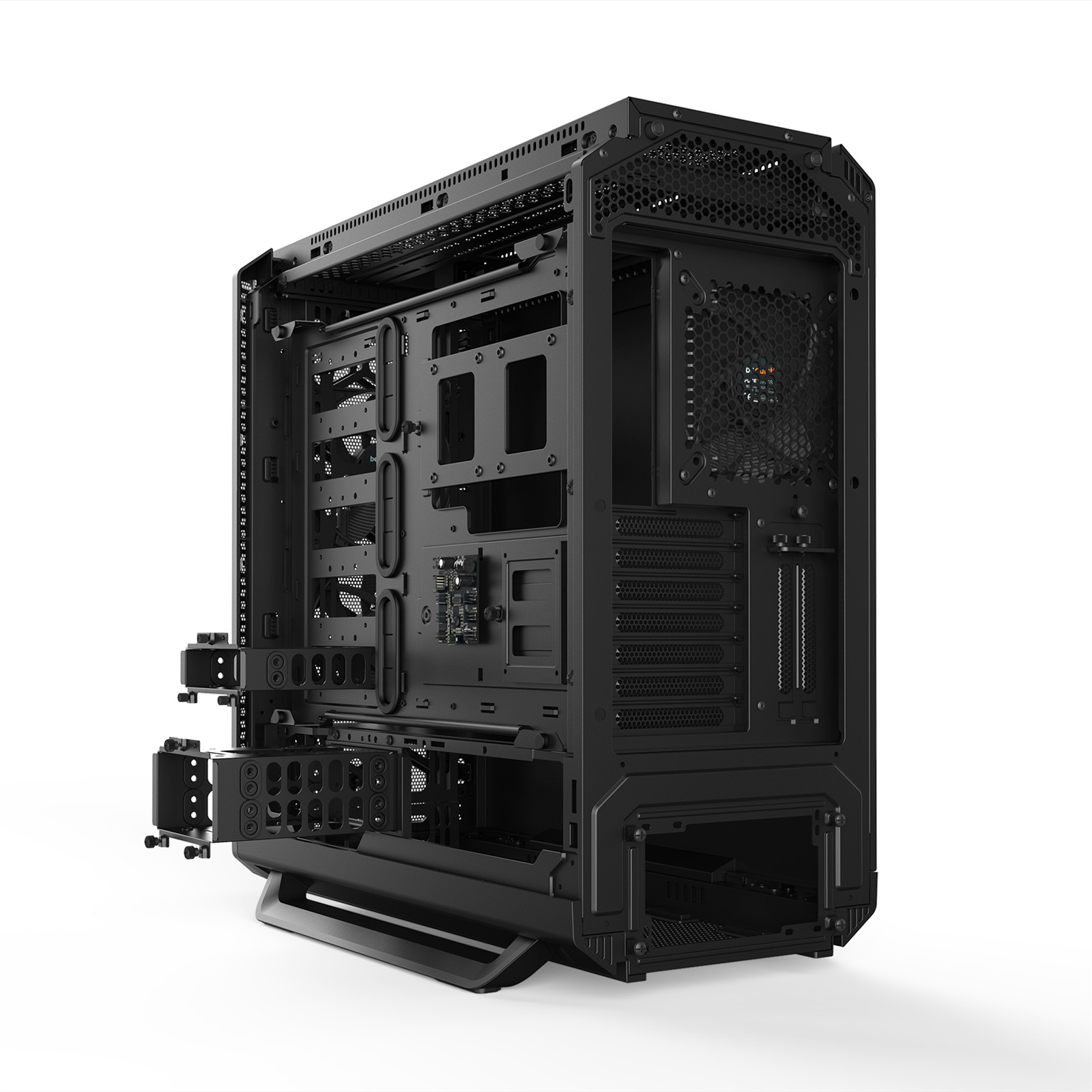

VERSATILE MOTHERBOARD TRAY - Designed to fit individual requirements

The motherboard tray is decoupled and can be installed alongside the left panel in an inverted layout. It is also removable for use as a test bench.

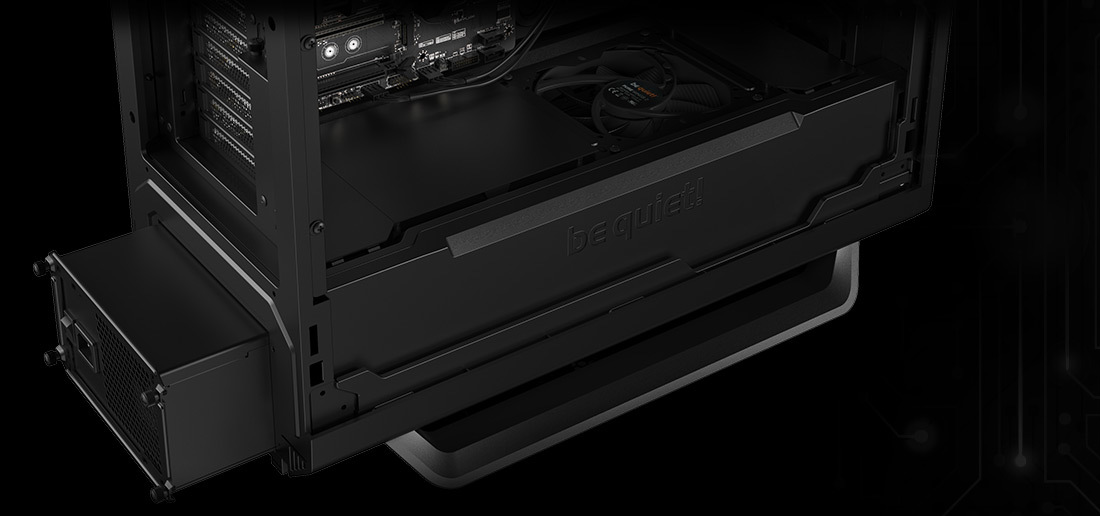

FUNCTIONAL PSU SHROUD - Offering a neat interior

The PSU shroud perfectly covers the cables, PSU and contains a double HDD cage. The cover plates are separately detachable to install a 140mm fan on the top. With the small cover detached a 360mm or 420mm radiator can be installed at the front. Using the PSU bracket the power supply unit can be easily installed from behind.

Specifications

General data

Model

Silent Base 802 Black

PSU form factor

ATX PS/2

Motherboard compatibility

E-ATX (30.5 x 27.5cm) / ATX / M-ATX / Mini-ITX

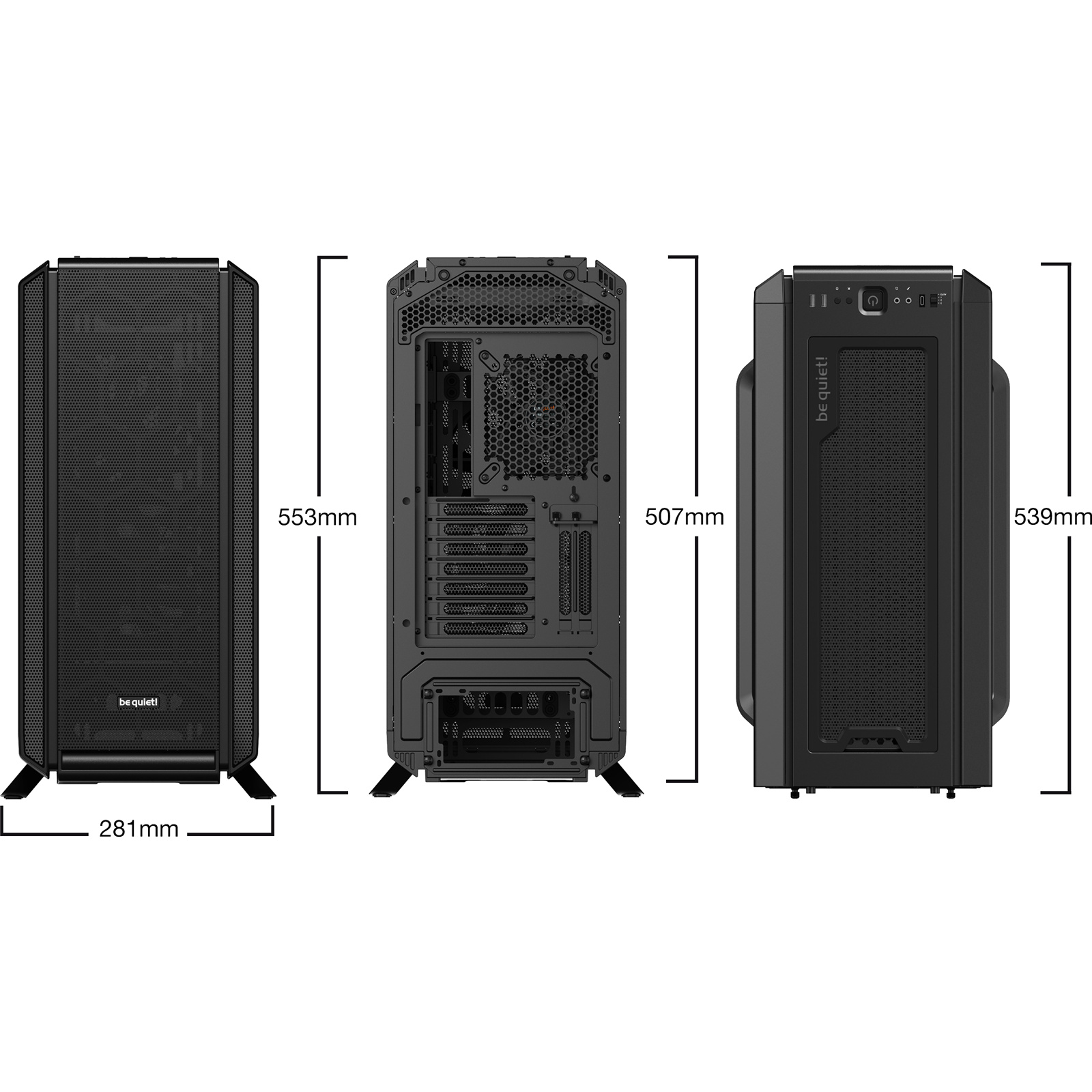

Case size excl. stands (L x W x H), (mm)

539 x 245 x 507

Installation of motherboards with backplate

Yes

Case size incl. stands (L x W x H), (mm)

539 x 281 x 553

Dimensions side panel window (L x W), (mm)

440 x 498

Color option

Black

Weight (kg)

12.59

USB 2.0

-

USB 3.2 Gen. 1

2

USB 3.2 Gen. 2 Type C

1

HD Audio I/O

Mic + Audio

Expansion slots

7 + 2

Fan mounting locations

5

Qi charger / Quick Charging Option

-

Material

Top cover

ABS

Side panel

Steel

Side panel window

-

Front panel

ABS

Stands

ABS

Drive bay capacity

5.25 bays

-

3.5 slots (max.)

7

3.5 slots (scope of delivery)

3

2.5 slots (max.)

15

2.5 slots (scope of delivery)

7

Pre-installed fans

Fan @ top

-

Fan @ front

2x Pure Wings 2 140mm

Fan @ rear

1x Pure Wings 2 140mm

Dimensions (L x W x H), (mm)

Front: 140 x 140 x 25 / Rear: 140 x 140 x 25

Fan speed @ 100% PWM / 12V (rpm)

1000

Noise level @ 100% PWM / 12V (dB(A))

18.8

Airflow @ 100% PWM / 12V (CFM / m3/h)

61.2 / 104

Air Pressure @ 100% PWM / 12V (mm H2O)

0.76

Voltage range (V DC)

5 - 12

Input power (W)

1.44

Input current (A)

0.12

Connector

4-pin

Lifespan (h / 25°C)

80,000

Fan controller

4-step fan controller (6x 3-pin) with PWM Hub

Optional fan installation

Front (mm)

1x 120 / 1x 140

Top (mm)

3x 120 / 3x 140

Bottom (mm)

-

Side panel (mm)

-

PSU shroud

1x 120 / 1x 140

Optional radiator installation

Front (mm)

120 / 140 / 240 / 280 / 360 / 420

Top (mm)

120 / 240 / 360

Bottom (mm)

-

Rear (mm)

120 / 140

Cooling

Max.construction height of CPU cooler unit (mm)

185

Airflow channel

Front / Top / Rear

Lighting

RGB LED illumination

-

LEDs synchronizable with RGB controller/motherboard

-

Expandable RGB controller

-

PSU compatibility

Maximum dimensions excl. bottom fan (mm)

288

Maximum dimensions incl. bottom fan (mm)

288

Graphics card

HDD cage (in height of graphics card) installed (mm)

287

HDD cage (in height of graphics card) removed (mm)

432

Insulation and damping

Top panel insulation mats

Yes

Front panel insulation mats

Yes

Side panel insulation mats

Yes

Anti-vibration decoupled HDD

Yes

Anti-vibration decoupled fan

Yes

Anti-vibration decoupled PSU

Yes

Anti-vibration decoupled motherboard-tray

Yes

Removeable dust filters

Front

1

Bottom

1

Side panel

-

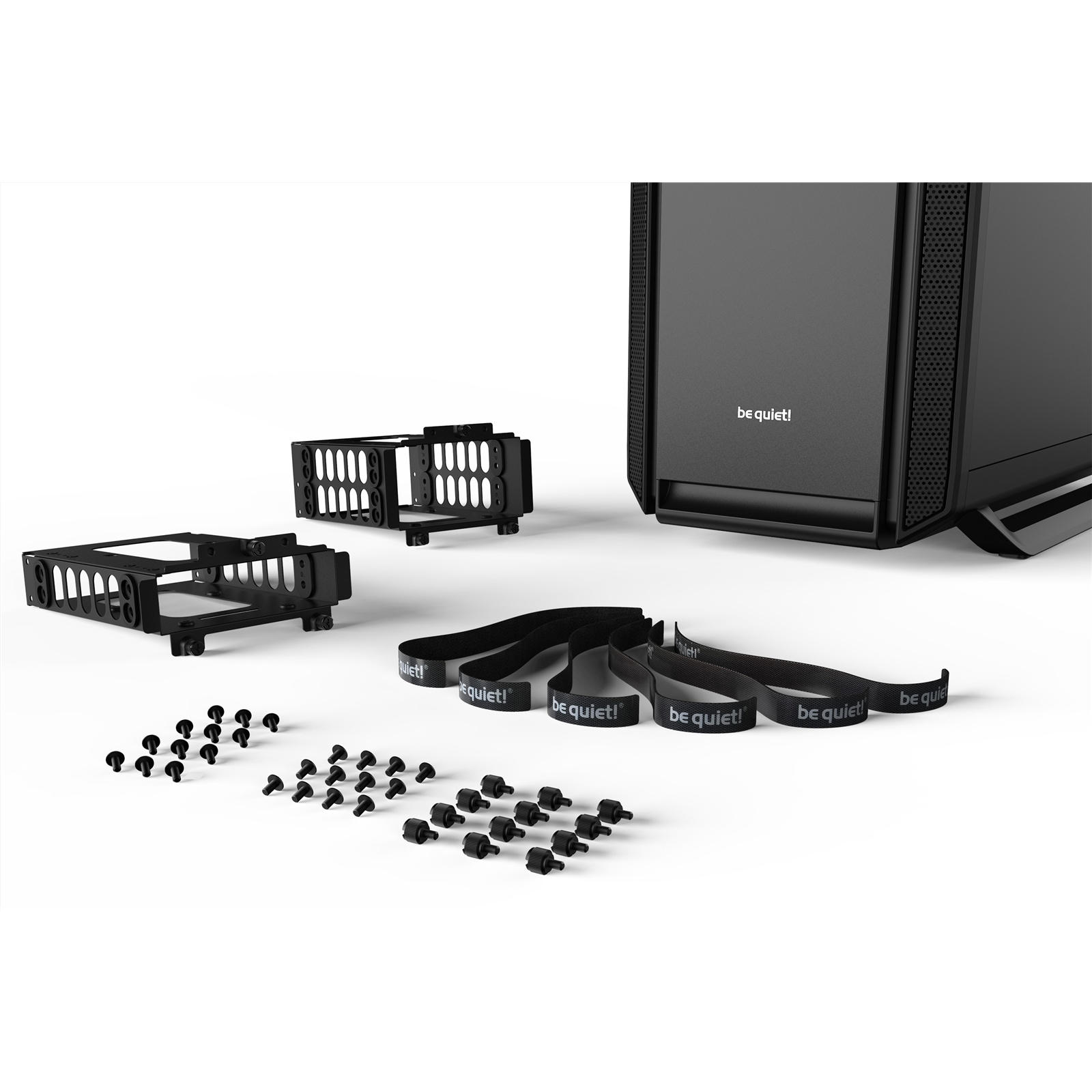

Accessories

Screw set (Drives/Motherboard)

Yes

Standoff (pcs.)

1 (for E-ATX)

Cable ties (pcs.)

6 (Velcro)

Manufacturer Part No:
BG039
Brand:
Product Type:
Mid Tower Case
UPC
-
Product Family:
Silent Base
Shipping Weight:
13.5 kg
PB Part No:
CHABQT8201
Product Model:
802 Black
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
