Dynamix RST47-8X10FP 47RU Server Cabinet 1000mm deep (800x1000x2200mm)FLAT PACK 3x fixed shelves, 4x fans, 25
- Brand: Dynamix
- MPN: RST47-8X10FP
- Part #: CHADNX4703

Product URL: https://www.pbtech.co.nz/product/CHADNX4703/Dynamix-RST47-8X10FP-47RU-Server-Cabinet-1000mm-de
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features

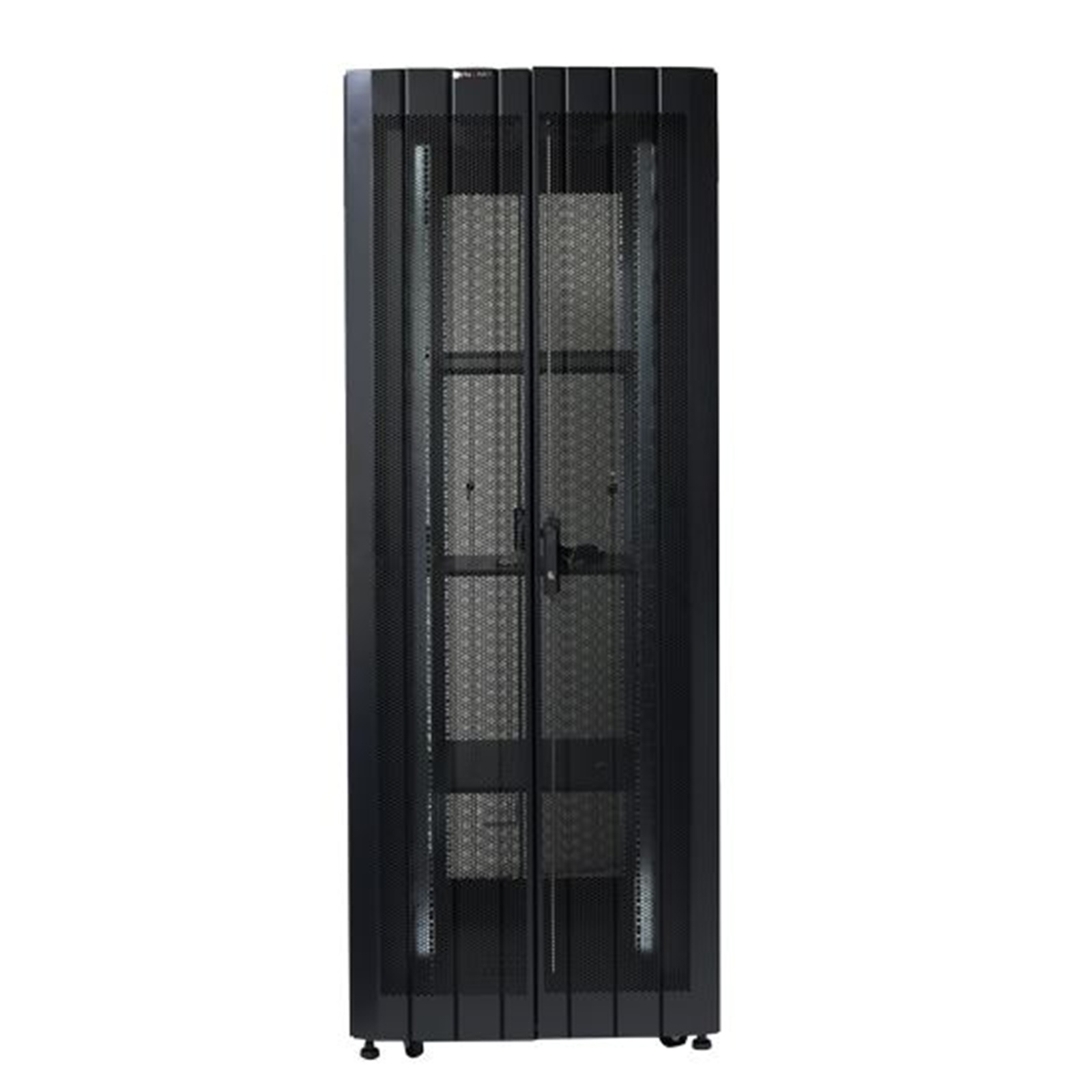

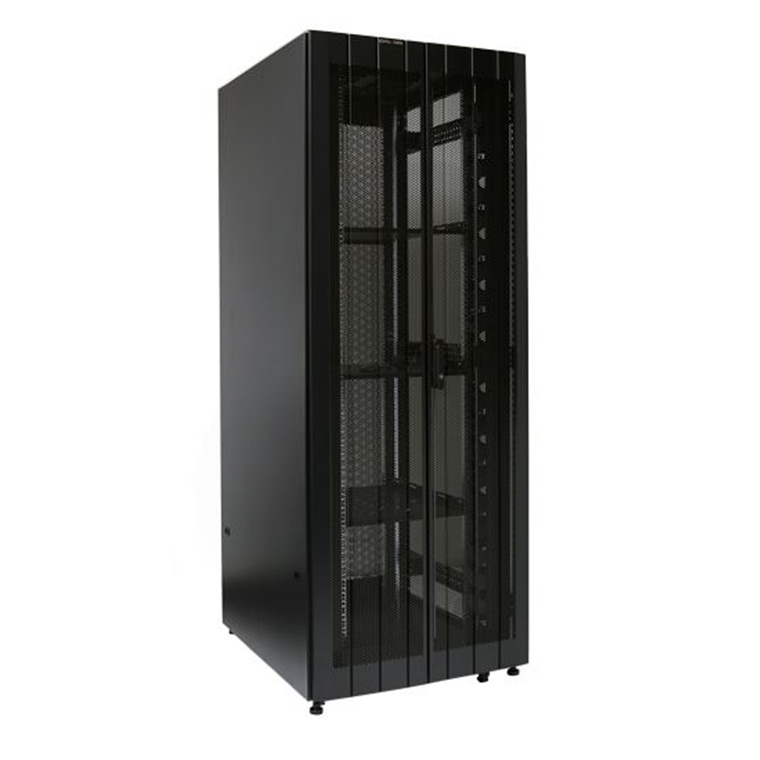

DYNAMIX 47RU Server Cabinet 1000mm Deep (800x1000x2250mm) FLAT PACK 3x fixed shelves, 4x fans, 25x cage nuts, 4x castors, 4x levelling feet Single front & bifold rear mesh doors. 6-Way PDU installed. Black
Features:
- Supplied with fixed shelves, fans, cage nuts, castors and levelling feet
- Static loading: 1500kg
- Width: 600mm, 800mm
- Depth: 900mm, 1000mm, 1200mm
- Removable one piece side panels
- Double pipe profi le frame connected by "3T" system
- Front door hinged on right side
- Front and rear doors are lockable
- Front and rear doors can be opened to 130°
- Vertical mounting profile can be adjusted in 25mm increments
- Optional plinths available to bolt cabinet to floor
- Optional side vertical cable tray available
- Optional baying kit available for cabinet interconnection (RABST)
- Mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm
- Supplied complete or in Fast Assembly Flat Pack format (FP codes)
- Gloss black colour and easy clean surface
- Material: SPCC quality cold rolled steel
- Finish: Degreasing, acid pickling, phosphoric cleaning, powder coated
- Complies with IEC-60297, ANSI/EIA
- RS-310-D, IEC297-2, DIN41491; PART1, DIN41494; PART7, GB/T3047.2-92, IP20 rated
- 2 Year Warranty on cabinet. Subject to use within the static loading specifications and operation within normal environmental conditions
- Jackson 6-Way PDU installed
- 1 Year Warranty on fans
