DEEPCOOL CH510 ATX Mid Tower Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support Upto 380mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 2x USB, HD Audio

PB Tech price
PB Tech price
$ 93 .75
 +GST
$ 107 .81
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

DEEPCOOL CH510 ATX Mid Tower Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support Upto 380mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 2x USB, HD Audio

Install up to a 360mm radiator either on top or in front for water cooling setups!
  • Brand: DEEPCOOL
  • MPN: R-CH510-BKNNE1-G-1
  • Part #: CHADPC2060
  • UPC:
PB Tech price
$ 93 .75 $ 107 .81
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: DEEPCOOL
  • MPN: R-CH510-BKNNE1-G-1
  • Part #: CHADPC2060
  • UPC:

Form Factor

EATX

Side Window

Yes

Radiator Support

360mm

Maximum Card Length

380mm

CPU Cooler Height Clearance

175mm

Colour

Black

Dedicated 2.5" Bay

2

2.5" / 3.5" Bays

2

Product is out of stock. View similar products in-stock at PB Tech

Features

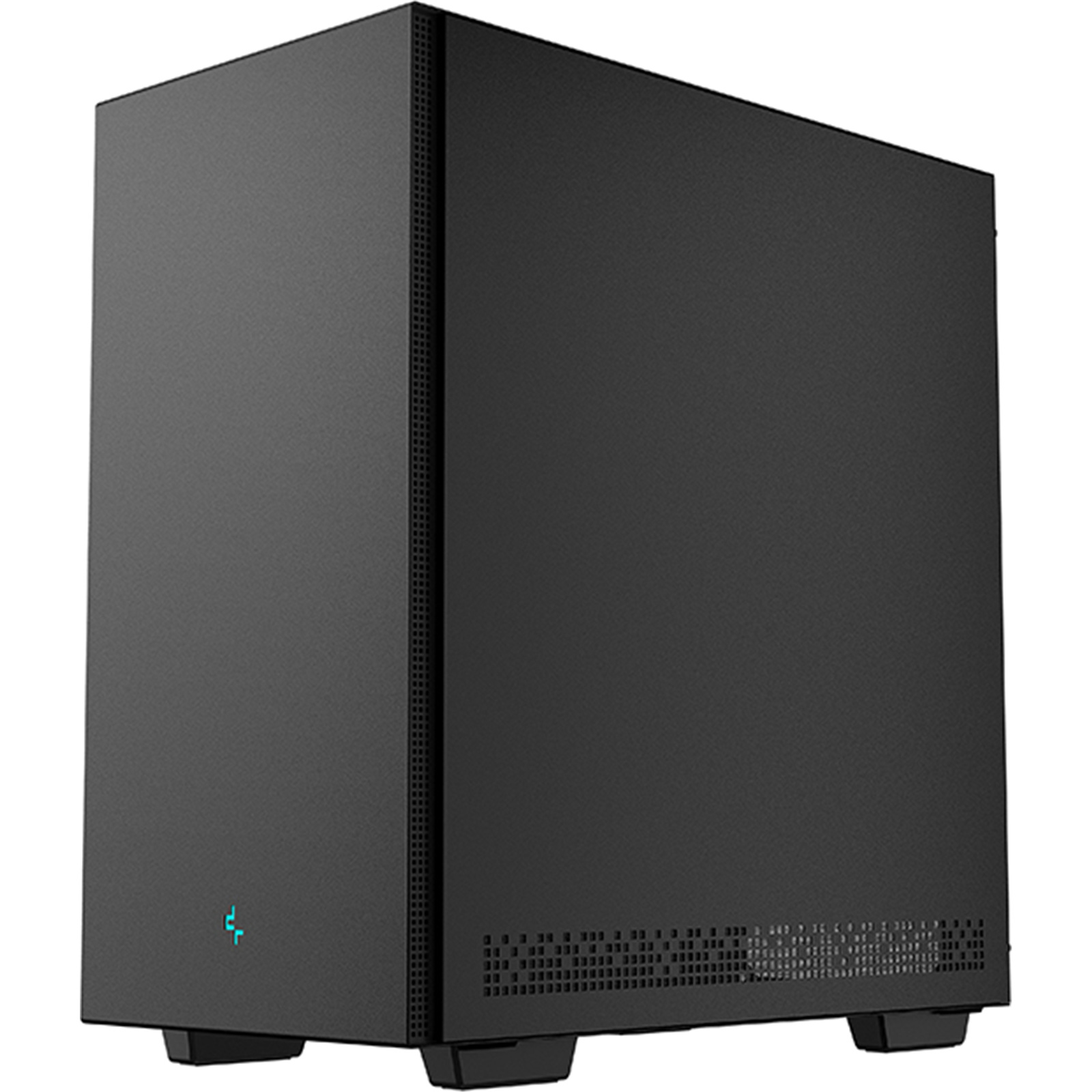

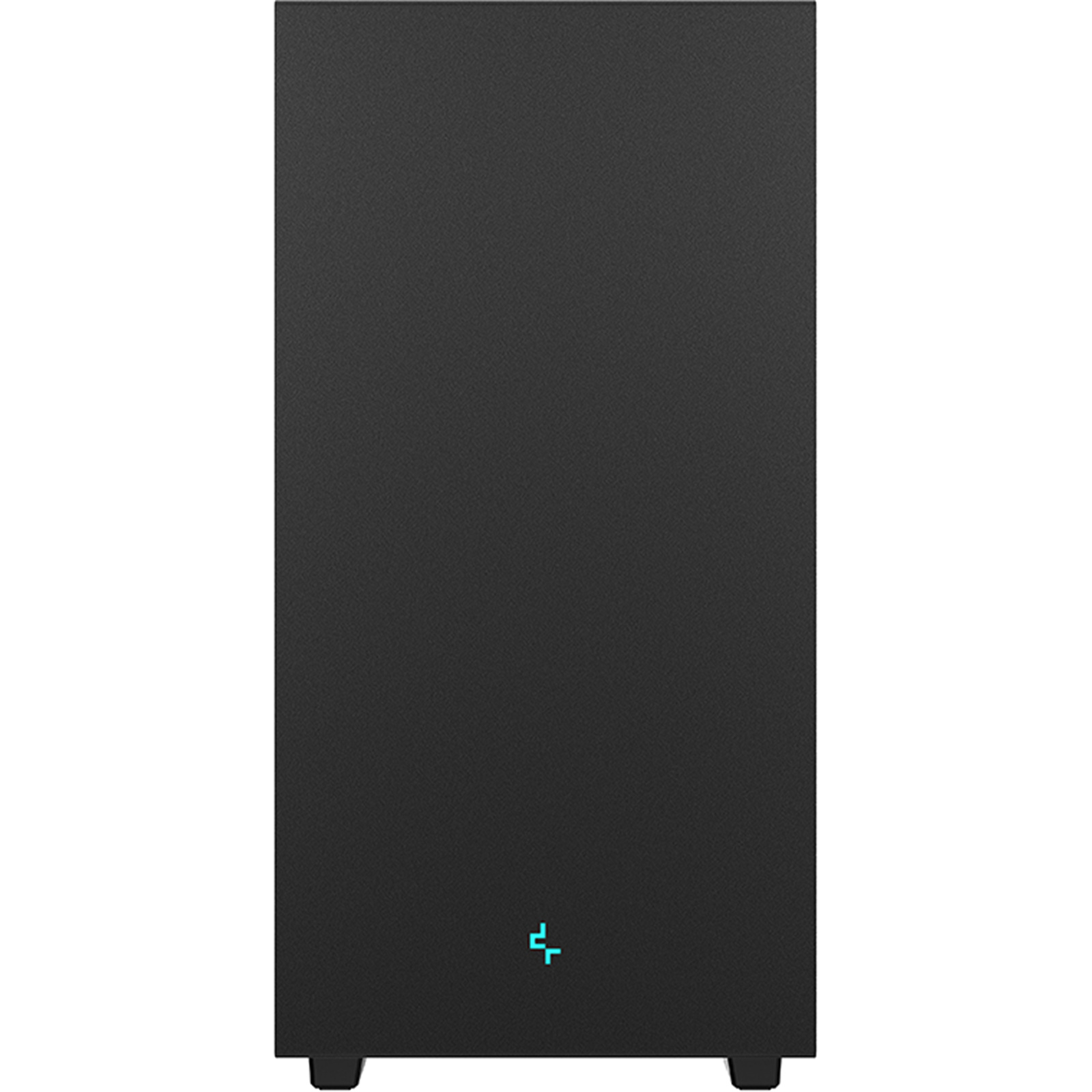

CH510 - Mid-Tower ATX Case

The DeepCool CH510 is a sleek and minimalistic mid-tower ATX case with great component compatibility and extensive cooling capacity support for a truly flexible build experience.



A COMPLETE BUILD EXPERIENCE

The CH510 is an ideal case for any level builder needing a spacious interior and robust features designed for the modern PC gamer.



EXPAND YOUR COOLING

Install up to a 360mm radiator either on top or in front for water cooling setups and support up to 9x 120mm or 5x 140mm cooling fans for proper airflow ventilation that also reaches your GPU.

9 x120mm



5 x140mm



Side Vents



SIMPLY STREAMLINED

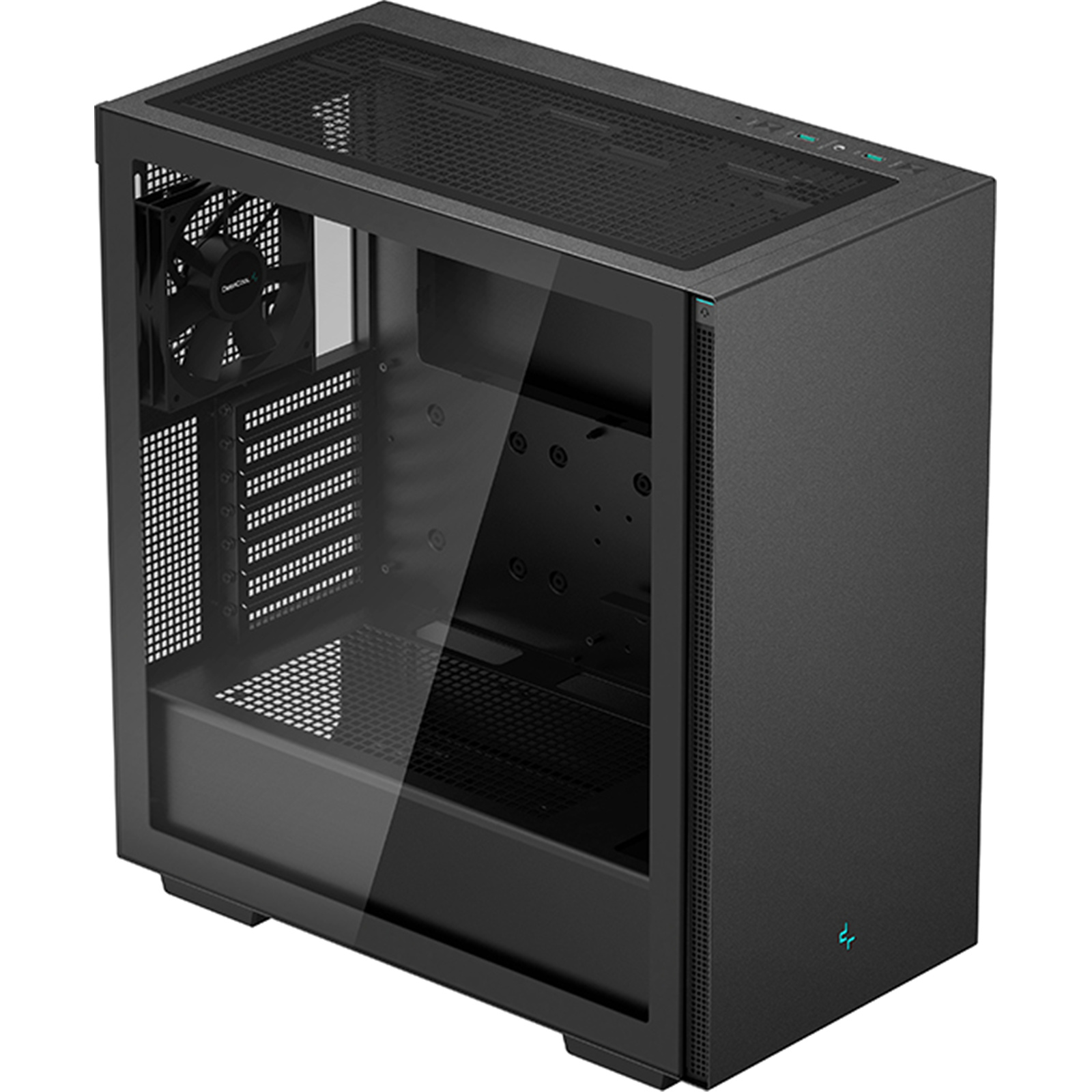

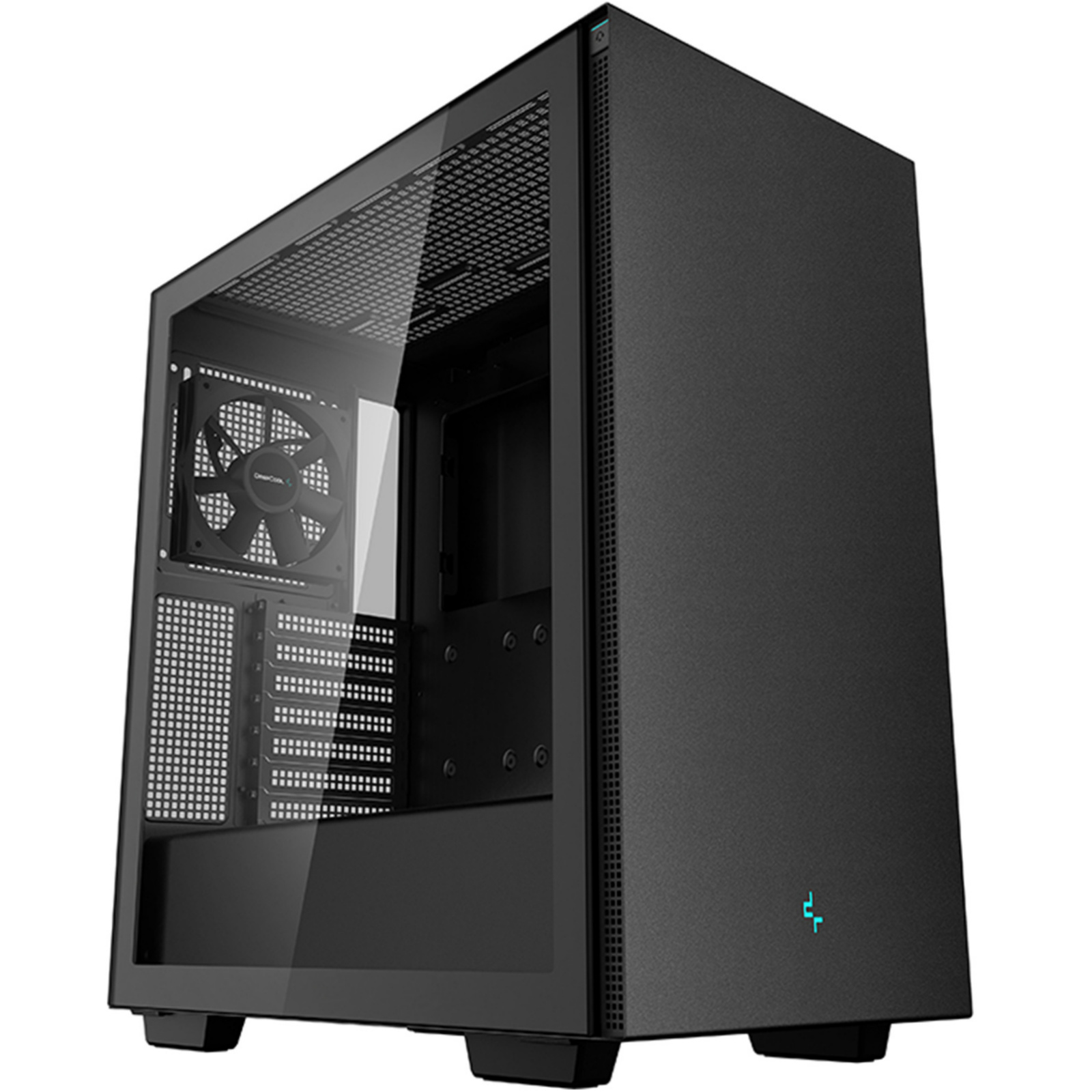

A magnetic tempered glass side panel offers the most convenient way to mount glass panels that includes an optional safety lock for extra security.



WIDE AND SPACIOUS INTERIOR

Maximize potential with flexible configurations that meet the needs of any system setup. With space for large GPUs up to 380mm and CPU coolers up to 175mm in height, the CH510 provides ample space without being too bulky.



THE SUPPORT YOU NEED

The built-in GPU support bracket ensures that your graphics card never has to sag.

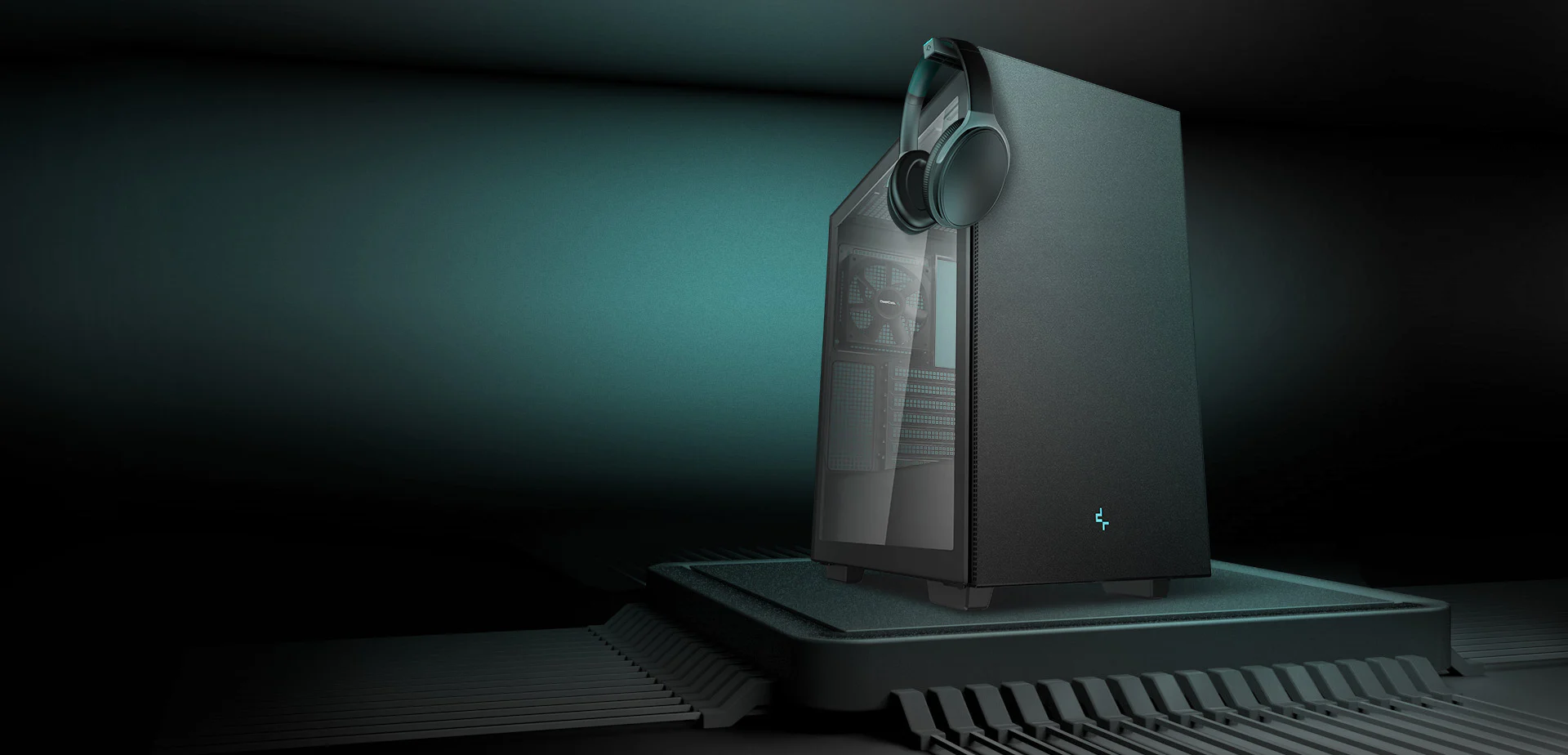

A convenient headset holder can be pulled out from the front panel to help you organize.

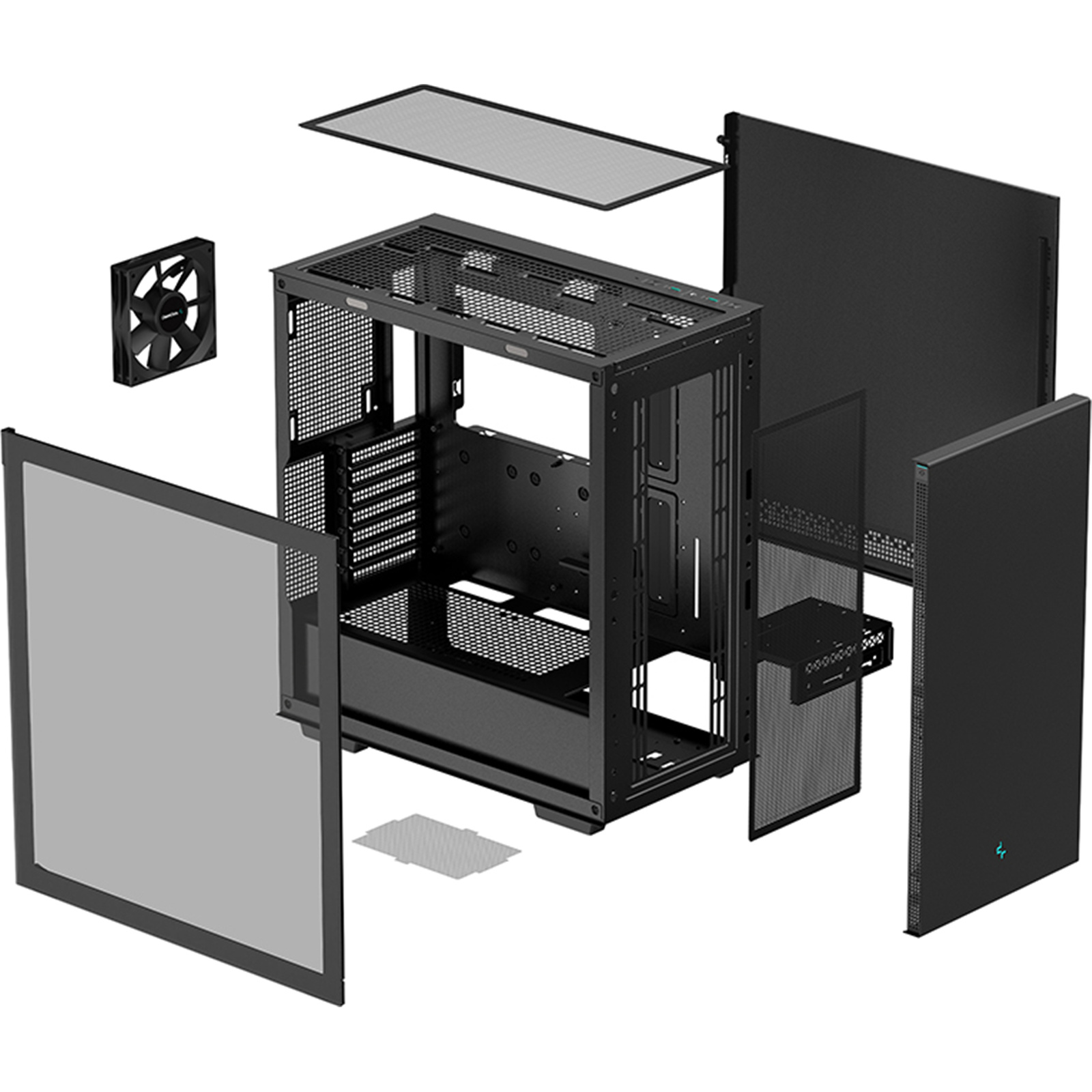

Dedicated dust-filters help keep your system clean.

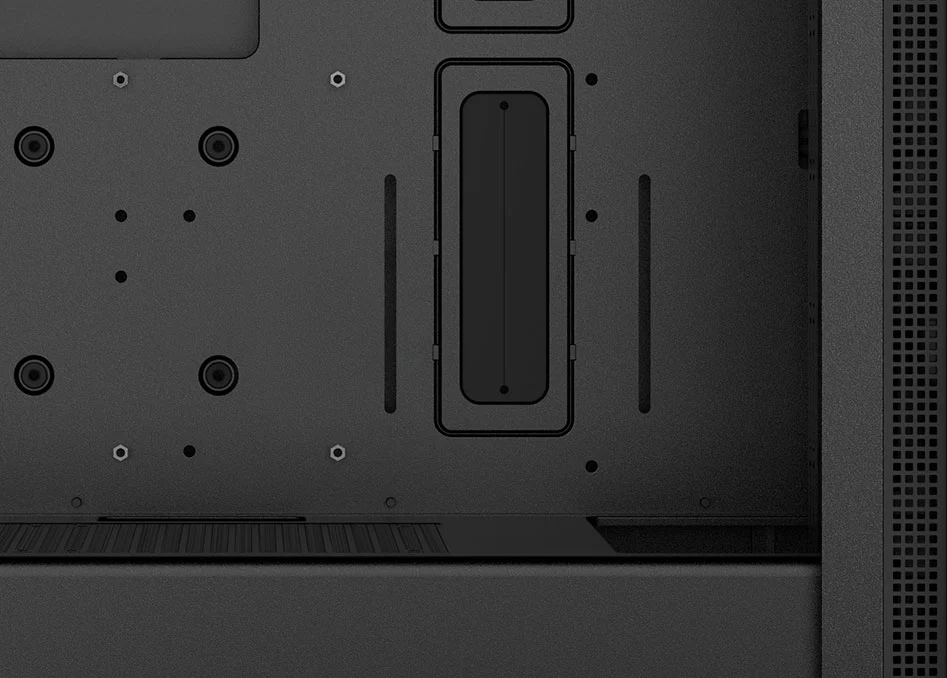

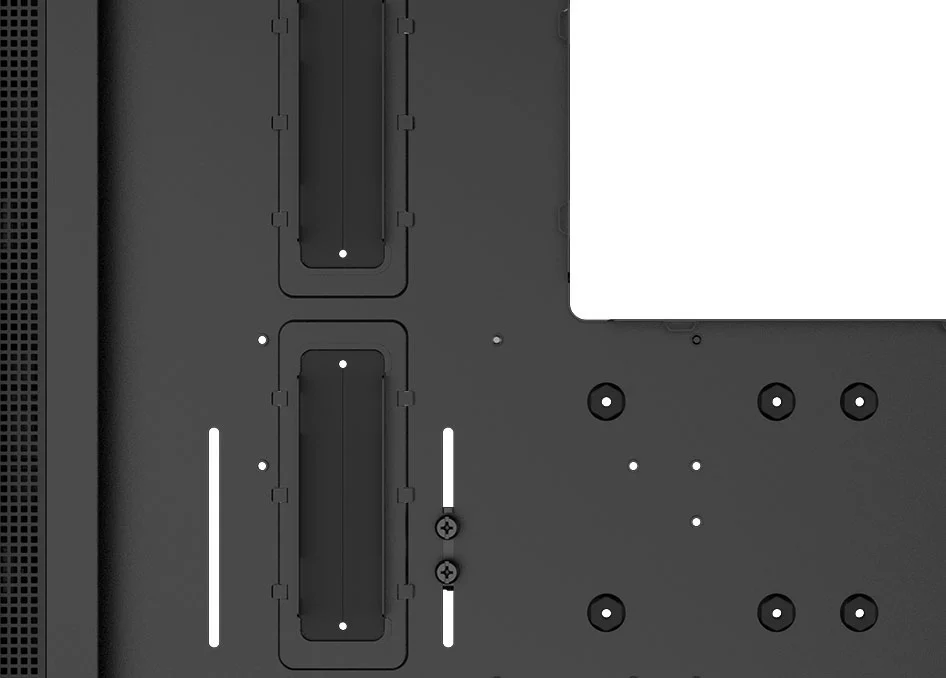

High quality rubber grommets and ample cable space helps manage clutter.



The steel side panel features ventilation for airflow when using PSU shroud fans.

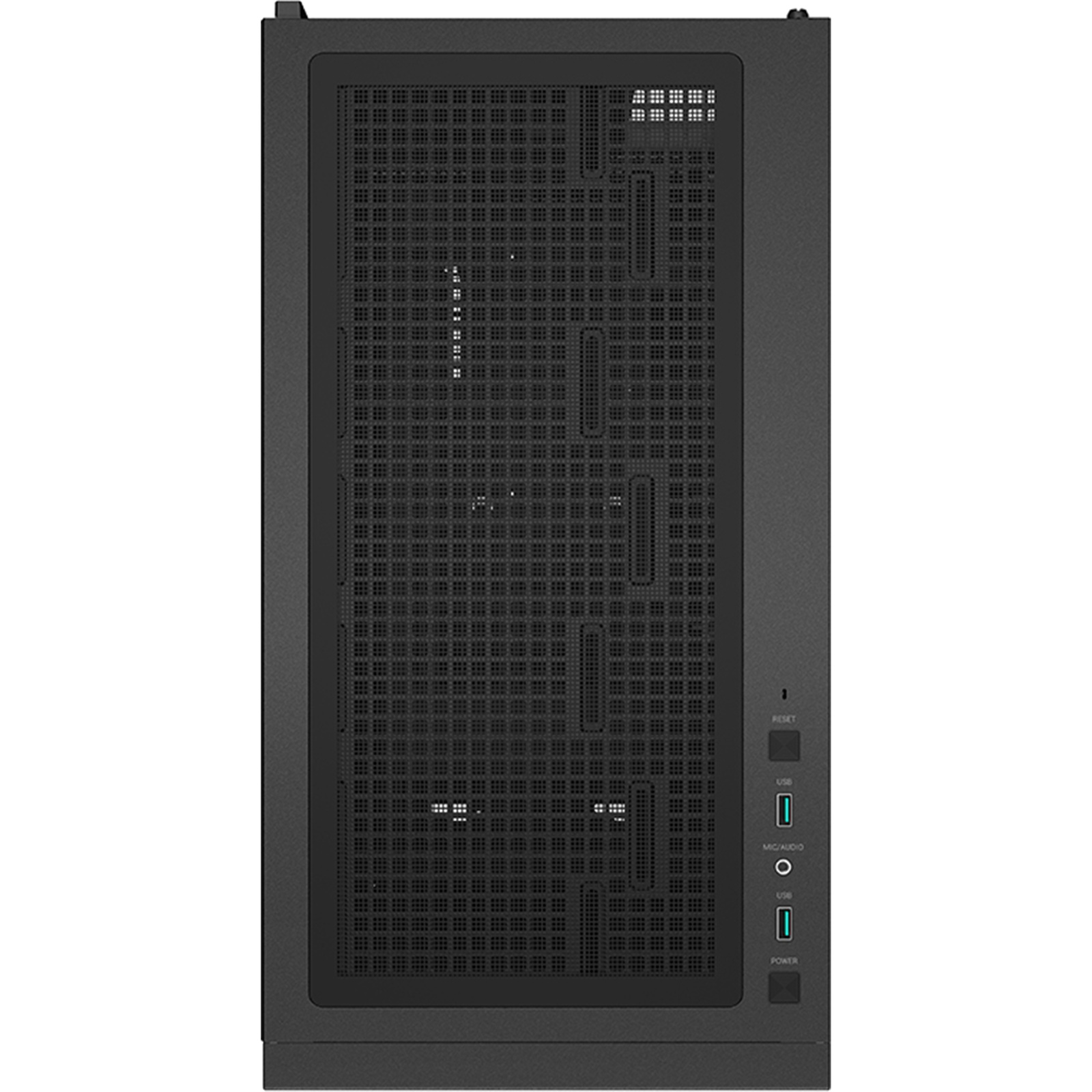

MODULAR FRONT I/O

A standard 2x USB 3.0 sit conveniently at the top for quick-access and features a modular design.

Specifications

Product Dimensions

435×230×471mm(L×W×H)

Net Weight

7.2Kg

Materials

ABS+SPCC+Tempered Glass

Motherboard Support

Mini-ITX / Micro-ATX / ATX / E-ATX

Front I/O Ports

USB3.0×2?Audio×1

3.5" Drive Bays

2

2.5" Drive Bays

2+1

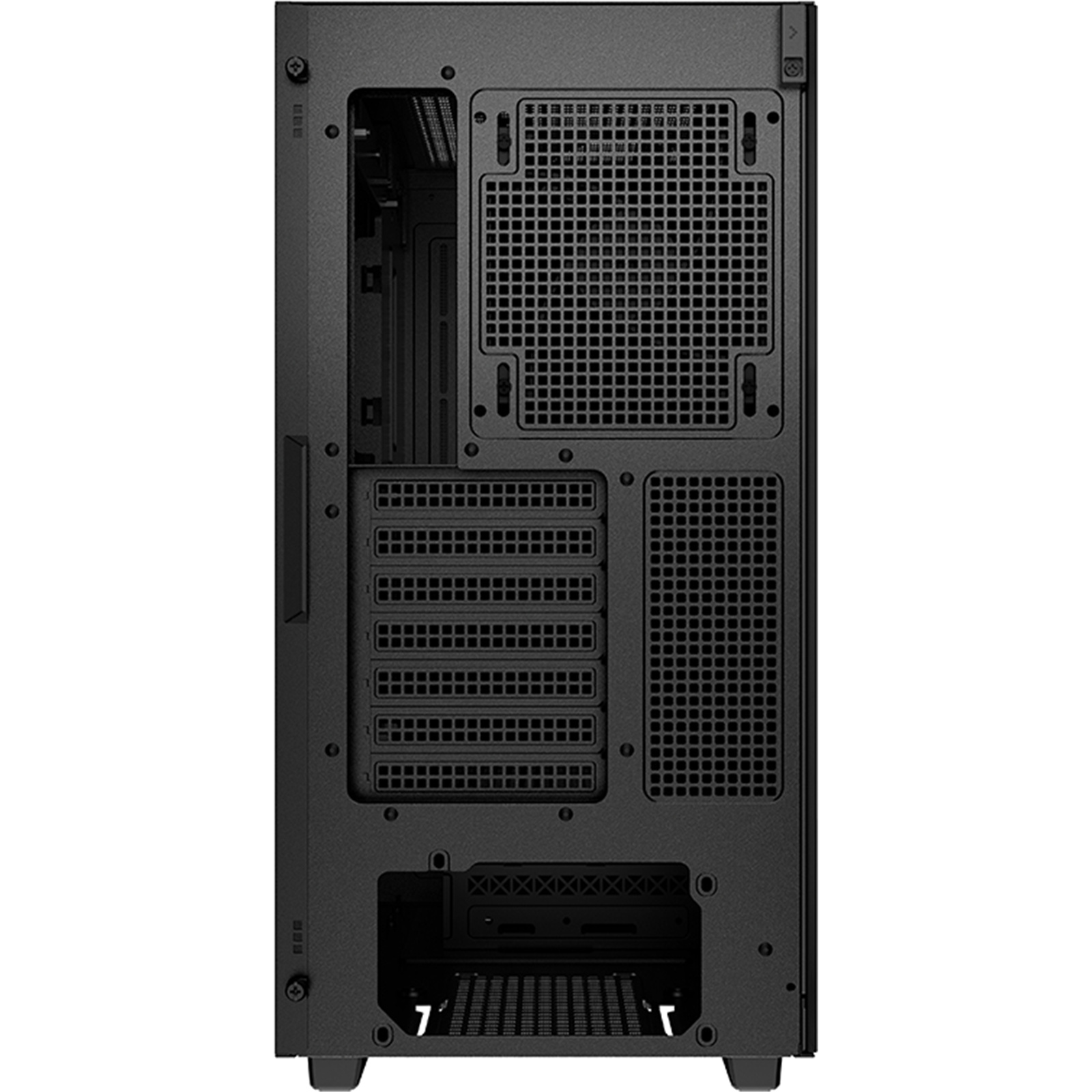

Expansion Slots

7 Slots

Pre-Installed Fans

Rear: 1×120mm

Fan Support

Front: 3×120 / 2×140mm
Top: 3×120 / 2×140mm
Rear: 1×120 / 1×140mm

Radiator Support

Front: 120/140/240/280/360mm
Top: 120/140/240/280/360mm
Rear: 120/140mm

CPU Cooler Height Limit

175mm

GPU Length Limit

380mm

Power Supply Type

ATX PS2 (maximum length: 170mm)

PN Code

R-CH510-BKNNE1-G-1

Manufacturer Part No:
R-CH510-BKNNE1-G-1
Brand:
Product Type:
ATX Mid Tower
UPC
-
Product Family:
CH510
Shipping Weight:
8.35 kg
PB Part No:
CHADPC2060
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
