Jonsbo Z20 Pink/White mATX Mini Tower Gaming Case, With Detachable Carrying Handle, Tempered Glass, CPU Cooler Support Upto 164mm, GPU Support Upto 363mm, 4x PCI Slot, 240mm Radiator Supported, Front I/O: 1x USB 3.2, 1x Type C, HD Audio

PB Tech price
PB Tech price
$ 113 .00
 +GST
$ 129 .95
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Jonsbo Z20 Pink/White mATX Mini Tower Gaming Case, With Detachable Carrying Handle, Tempered Glass, CPU Cooler Support Upto 164mm, GPU Support Upto 363mm, 4x PCI Slot, 240mm Radiator Supported, Front I/O: 1x USB 3.2, 1x Type C, HD Audio

Cool pixel design - in white & pink!
  • Brand: Jonsbo
  • MPN: Z20 WH-Pink
  • Part #: CHAJSB22004
  • UPC: 100094138510
PB Tech price
$ 113 .00 $ 129 .95
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Jonsbo
  • MPN: Z20 WH-Pink
  • Part #: CHAJSB22004
  • UPC: 100094138510

Form Factor

mATX

Side Window

Yes

Radiator Support

240mm

Maximum Card Length

363mm

CPU Cooler Height Clearance

164mm

Colour

Multi-Coloured

Dedicated 2.5" Bay

3

2.5" / 3.5" Bays

1

Product is out of stock. View similar products in-stock at PB Tech

Features



High Performance Hardware Compatibility / Compact Design

Building a compact desktop host is a lot of fun, but there are also a lot of trade-offs to be made. While the size of the chassis shrinks, the compatibility/heat dissipation/installation experience also increases, so only a few experienced users have a clear idea of how to build it and the ability to assemble it. In this regard, we are constantly thinking about how to optimize the design to maintain a compact hardware layout while improving internal hardware compatibility, so that more users can ultimately experience the practicality and fun of miniaturized models:

- Main body size 370mm*186mm*295mm (L*W*H, excluding protruding objects such as carrying handles/foot pads), only about 20L volume
- Integral bending of the outer frame, up to 2mm thick / Equipped with detachable carrying handle
- Compatible with 60mm thick (30mm cooler + fan) performance grade 240 water cooled or 160mm height dual tower air cooled radiators
- Supports high-performance graphics cards up to 363mm in length & full-size Micro-ATX motherboards.
- Supports at least 15cm length ATX PSUs in air-cooled mode and at least 14cm length ATX PSUs in water-cooled mode
- Optimized design for installation experience: flexible and versatile hardware combinations in small spaces



Built with only about 20L of volume, it can be easily placed in various desktop environments

Main body dimensions of 370mm*186mm*295mm (D/W/H, excluding protrusions such as handles/feet) are similar to TX chassis dimensions to achieve compatibility with full-size Micro-ATX motherboards and long graphics cards.

*With handle/footrest protrusions: 382mm*198mm*335mm (D/W/H)



Compatible with full-size Micro-ATX motherboards

Fully meets the demand of high performance hardware system in small volume chassis.



Radiator Support

- Supports 240 high-performance water cooling with radiator thickness =30mm
- Compatible with high-performance air-cooled tower radiators =164mm in height
- Can be equipped with up to 5 cooling fans



Various hardware combinations

Provide a high degree of freedom for system building

- Supports installation of 3 x 2.5-inch SSD
- Supports bottom-mounted 3.5-inch HDD x1
- The length of the power supply needs to be selected according to the specifications of the remaining hardware, usually even when installing longer graphics cards (=363mm):

1. With air-cooled CPU cooler, the power supply can be installed in the first stage (P1), and the length of the power supply can support at least 15cm.
2. When water-cooled CPU cooler is used, the power supply can be installed in the second stage (P2), and the length of the power supply can support at least 14cm.

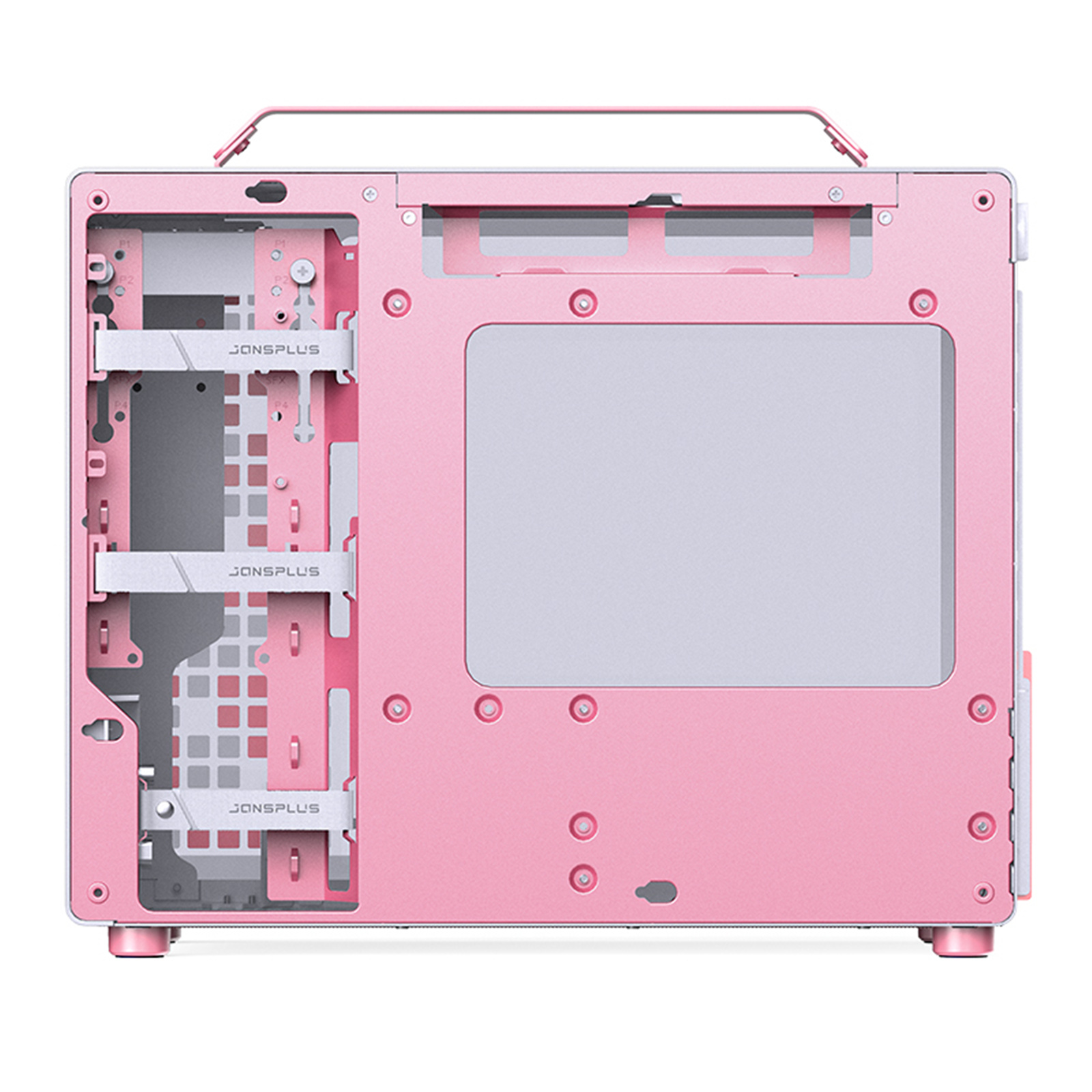

Dedicated 22mm deep back cable routing channel (with 3 Velcro strips to limit cables)

It's often difficult to plan for cable space in a compact chassis, so the Z20 comes with dual cable routing channels on the back and Velcro strips to limit the amount of extra cables that need to be routed, easing cable routing anxiety.

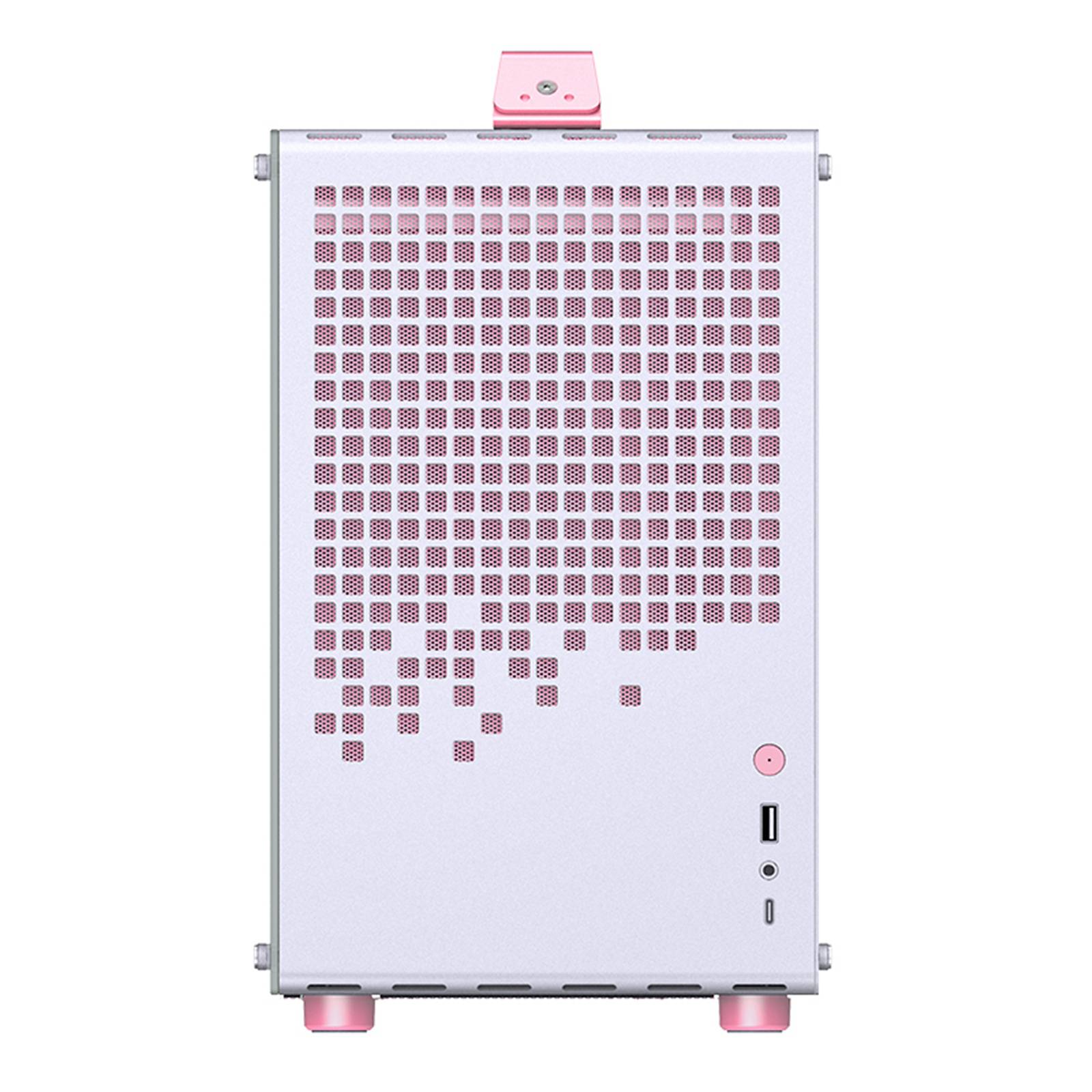

Front I/O interface

- USB 3.2 Gen 1 Type-A 5Gbps
- Earphone&microphone composite audio port
- USB 3.2 Gen 2 Type-C 10Gbps+



Comprehensive Coverage Magnetic Dust Filter

The main air inlet and outlet of the chassis are equipped with magnetic dust filters to isolate the environmental dust and ensure the stable operation of the host for a long time.

* Rear dust filters can be used for rear fan intake (to bring additional cooling airflow to the top cooler to optimize CPU temperature) or rear fanless configurations.

Specifications

Model

Z20

Color

Pink/White

Dimension(w/o handle/feet and other protrusions)

370mm * 186mm* 295mm(depth/width/height)

Dimension  (with handle/feet and other protrusions)

382mm * 198mm* 335mm  (depth/width/height)

Case Material

SPCC Steel, Tempered Glass

Motherboard Support

Mini-ITX / Micro-ATX

Drive Bay

2.5" SSD: up to 3,depends on other hardware configurations
3.5" HDD: up to 1,depends on other hardware configurations

Front IO Port

USB3.2 Gen1 Type-A*1/USB3.2 Gen 2 Type-C*1/AUDIO*1 & MIC*1

FAN

Top: 120mm*2/140mm*2; Rear: 120mm*1/92mm*1; Bottom: 120mm*2/140mm*2, depends on other hardware configurations

Radiator support

Top, up to 240mm

ATX PS2 PSU Clearance

Up to 180mm, recommended length =140mm,depends on other hardware configurations

SFX PSU Support

SFX / SFX-L

CPU Air Cooler Clearance

164mm MAX (Intel CPU)  or 163mm MAX (AMD CPU)

GPU Clearance

Up to 363mm,depends on other hardware configurations

Weight

N.W. 5kg / G.W. 6.5kg

Manufacturer Part No:
Z20 WH-Pink
Brand:
Product Type:
mATX Mini Tower Gaming Case, With Detachable Carrying Handle,
UPC
100094138510
Product Family:
Z20
Shipping Weight:
6.55 kg
PB Part No:
CHAJSB22004
Product Model:
Pink/White
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
