Features
Product Overview

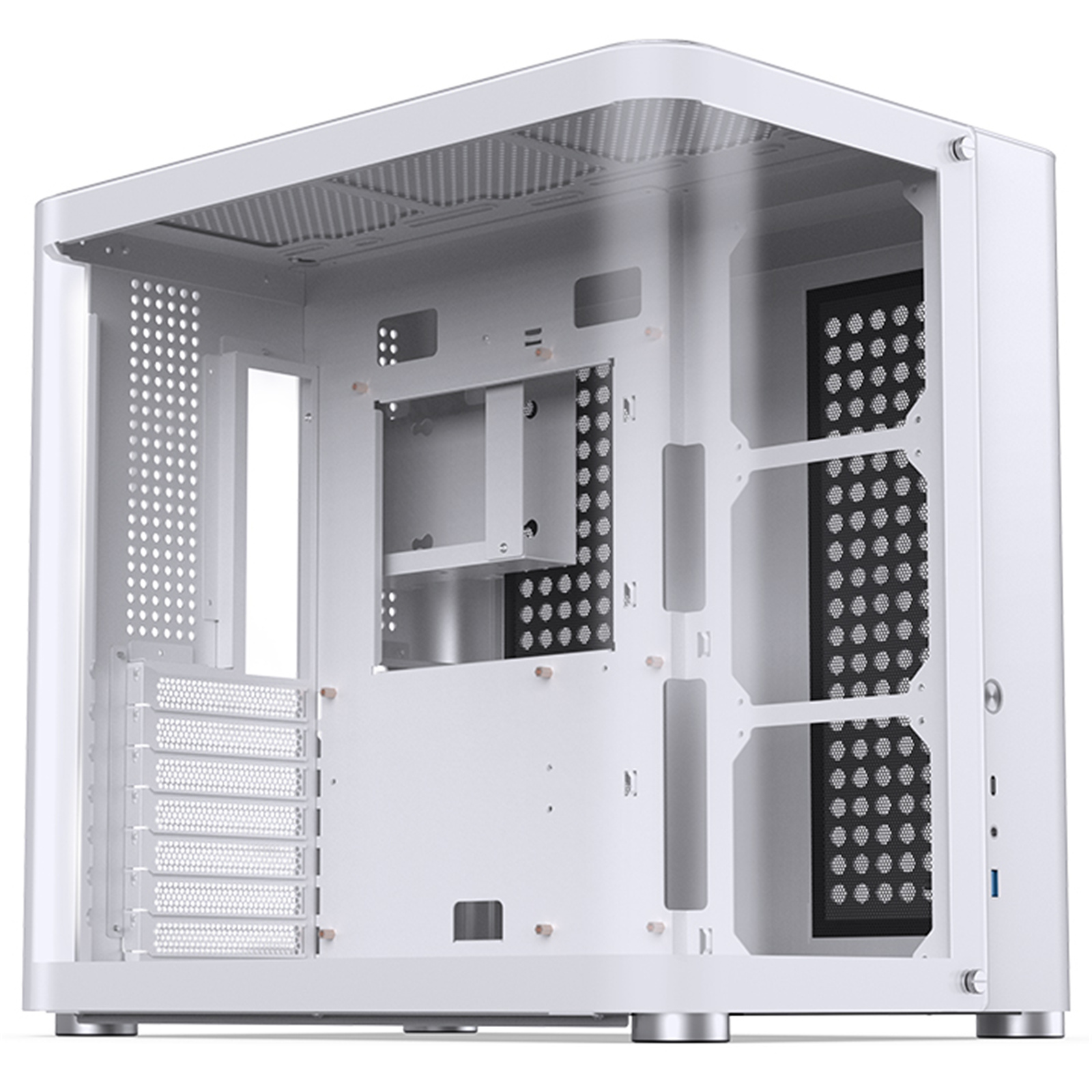

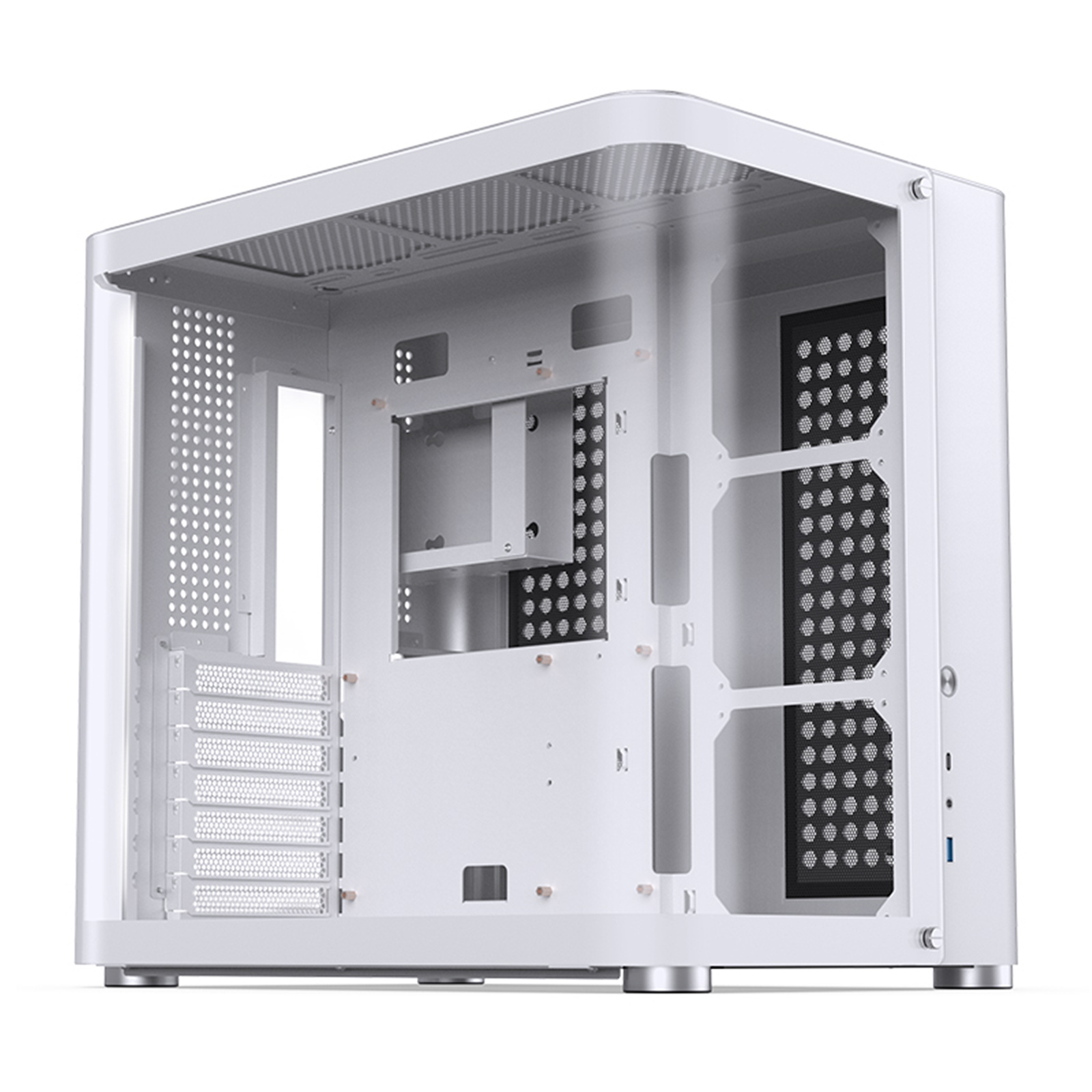

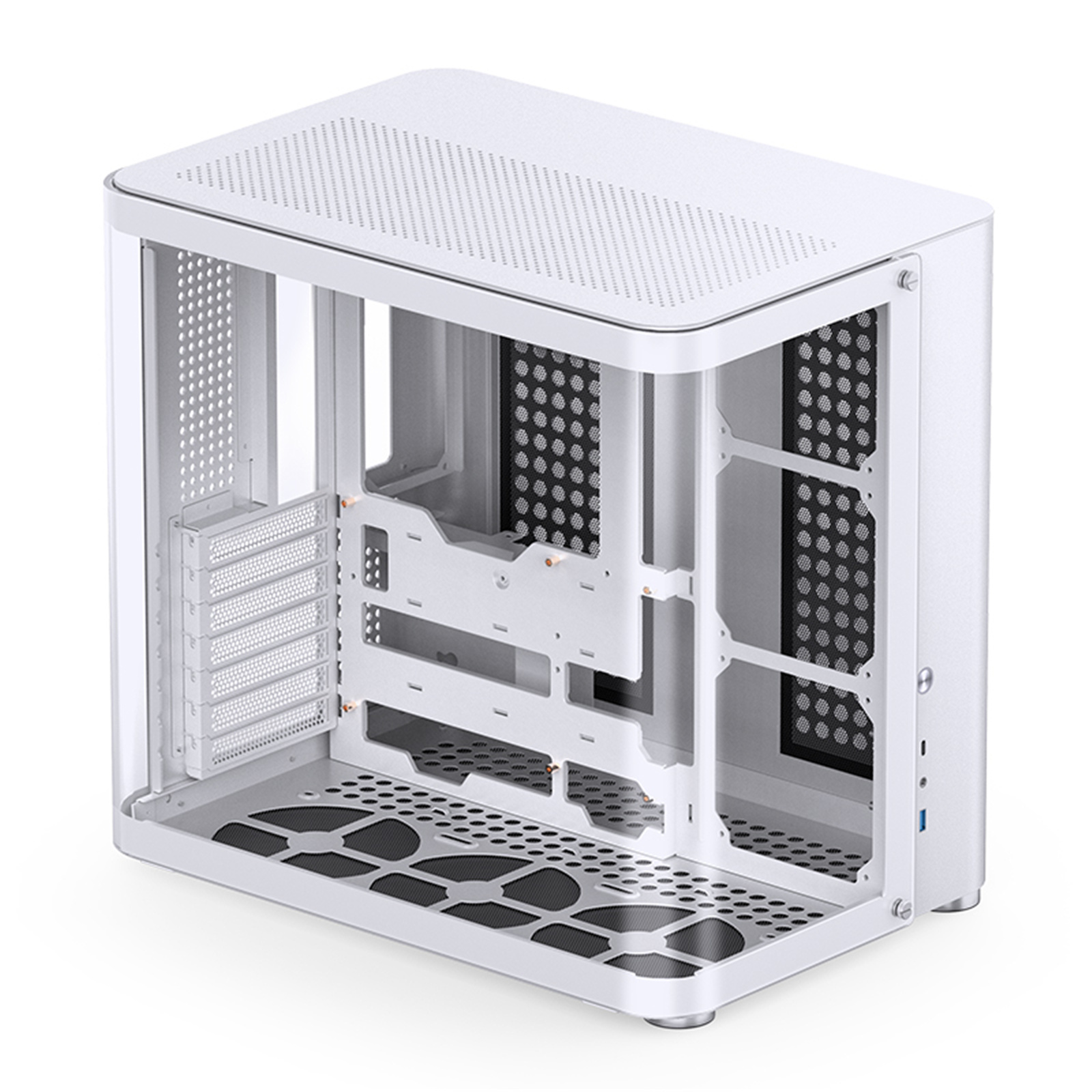

The TK-2, as a sister model of TK-1, also adopts a double curved circular glass 2.5 side view design, which can achieve full display from multiple angles both in hardware and in hand. The multi angle side view design can support more reasonable planning of desktop space through multi angle placement. The motherboard supports ATX version and long graphics cards, with upper and lower fan positions and dual 360 cold exhaust positions supplemented by side 3 fan positions, and multiple combinations for better heat dissipation.
Double bend panoramic glass - Radian Integration
U-shaped hyperbolic glass side transparency
Fully demonstrate the hardware inside the motherboard compartment
Aluminum alloy shell surround surface - Material = texture
The metal texture is delicate and not rough
Elegant arc transition, natural without broken lines
Vertical ascent - No accumulation of heat
9-position fan position, bottom-up airflow can quickly cover the heating hardware, with three side fans installed to balance ventilation and heat dissipation, while also showcasing light effects and embellishments on the front.

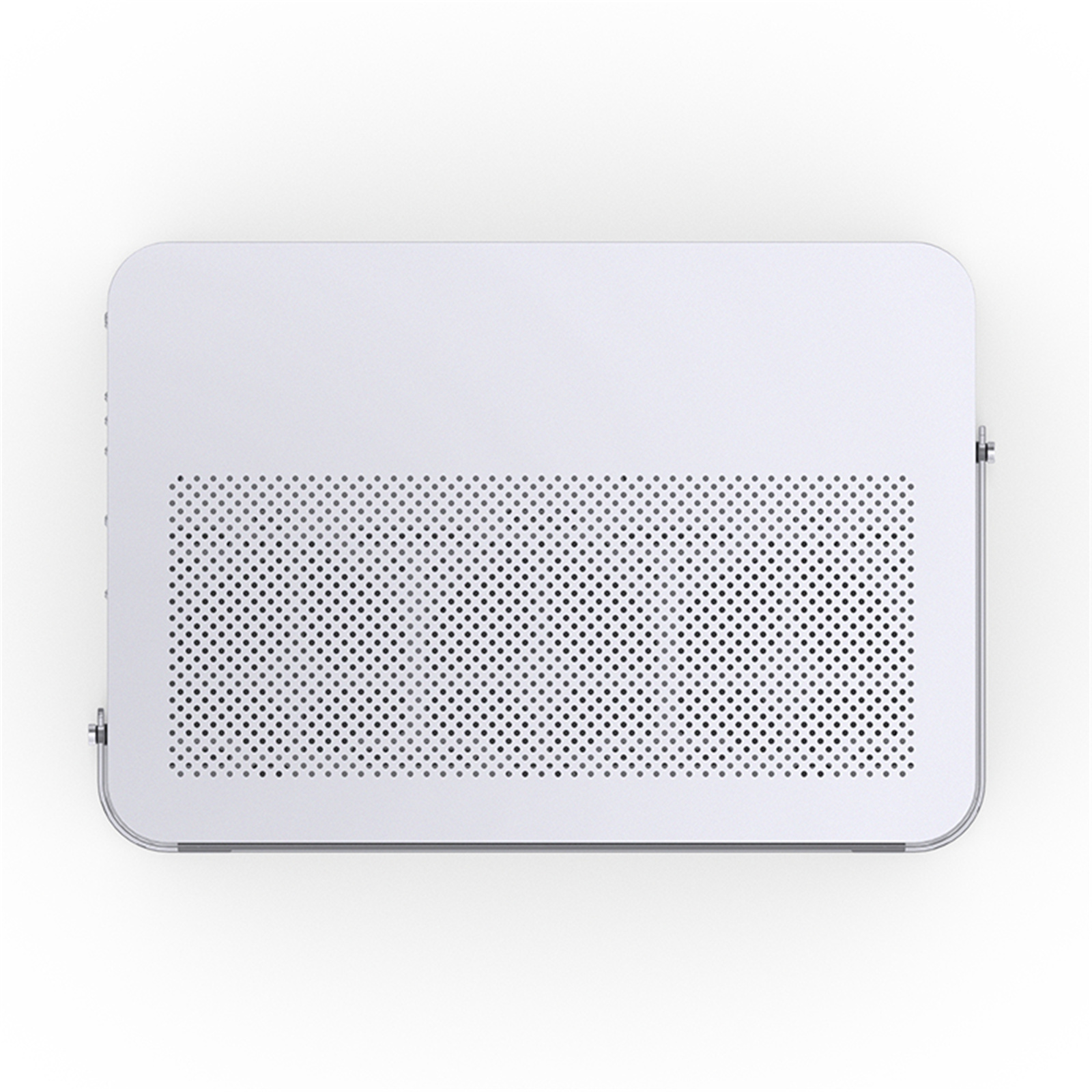

Top: 3 * 120mm fan position/2 * 140mm fan position/360 cold position/280 cold position
Bottom: 3 * 120mm fan position/360 cold row position (length less than 398mm)
Side: 3 * 120mm fan position
Double 360 water-cooled installation position - Quiet and cool
Top plate 360mm * 1 or 280mm * 1 bottom plate 360mm * 1
(The length of the bottom plate water drain is within 398mm, and the installation of the bottom plate water drain will occupy 2.5 PCIE slots at the bottom)
Motherboard compatible with ITX/M-ATX/ATX
Support ITX/M-ATX/ATX motherboard for host construction
Advanced graphics card games are not limited
Graphics card length limit 405mm
Strengthen heat dissipation by blowing cold air directly from the bottom fan
High capacity hard drive storage without anxiety
Supports 3.5 "HDD * 2 hard drive or 2.5 "SSD * 1/3.5" HDD * 1 hard drive

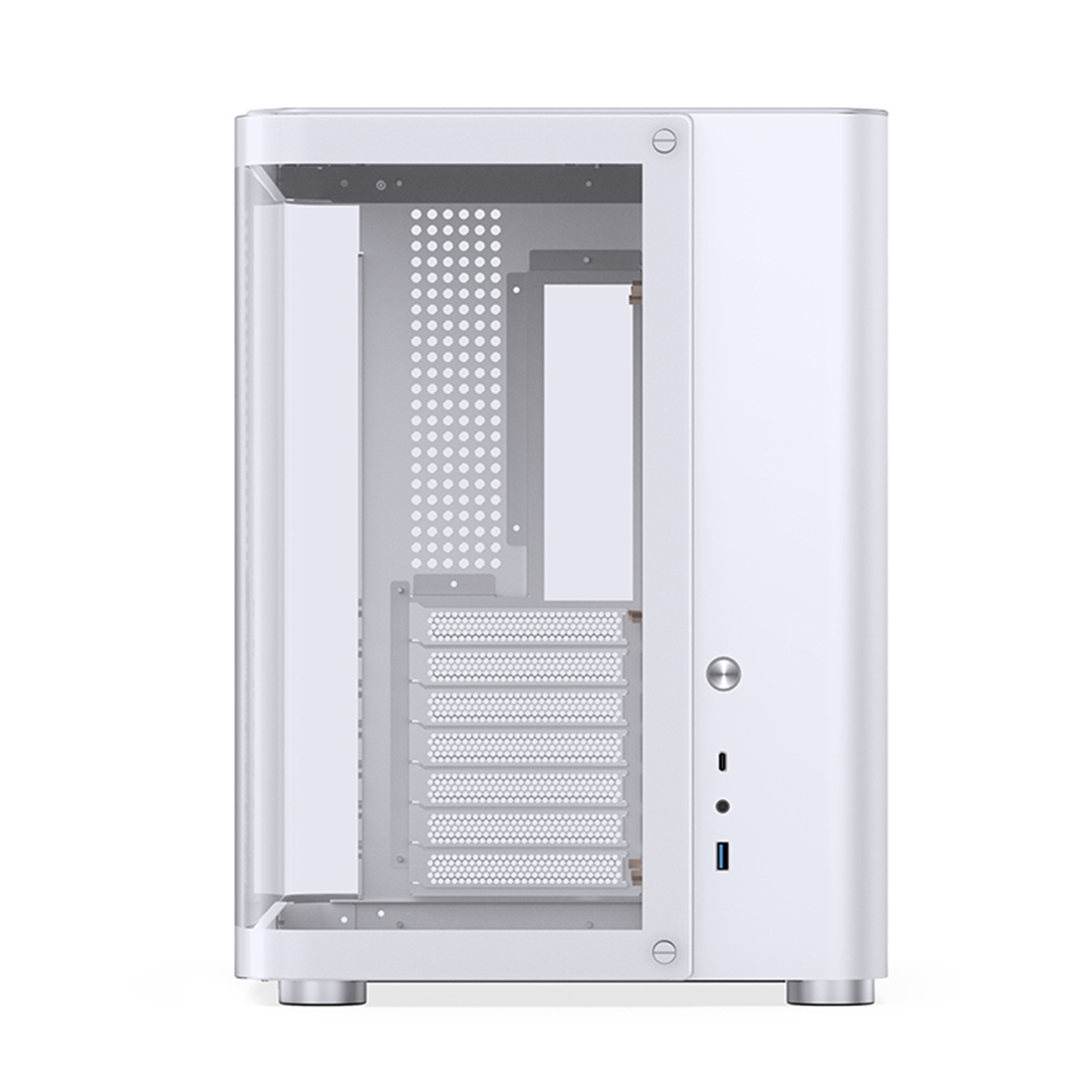

Front Type-C transmission interface
Front USB3.2 Gen2 Type-C (10Gbps) interface reduces transmission latency.
Choose more options with limited power supply
Power supply: ATX = 220mm
Bottom dustproof design
Equipped with dustproof filter at the bottom, regularly cleaned to keep the cabinet clean and tidy
Specifications
Model
TK-2
Color
White
Dimension
300mm (W) * 435mm (D) * 408mm (H)
Material
2.5+1mm steel panel
Motherboard
ITX / M-ATX / ATX
Drive Bay
3.5"HDD*2 or 2.5"SSD*1 / 3.5"HDD*1
Cooling Systerm
Top:120mm*3/140*2(optional); Bottom:120mm*3(optional); Side 120mm*3(optional)
Water Cooling
Top:360mm*1 or 280mm*1(optional); Bottom: 360mm*1(optional)
Power Supply
ATX=220mm
CPU Cooler
165mm
Video Card
=405mm
Front IO Port
USB3.2 Gen2 Type-C*1 / USB3.0*1 / AUDIO*1+MIC*1(2 in 1)
Expansion Slot
7
Weight
Net 8.5kg
