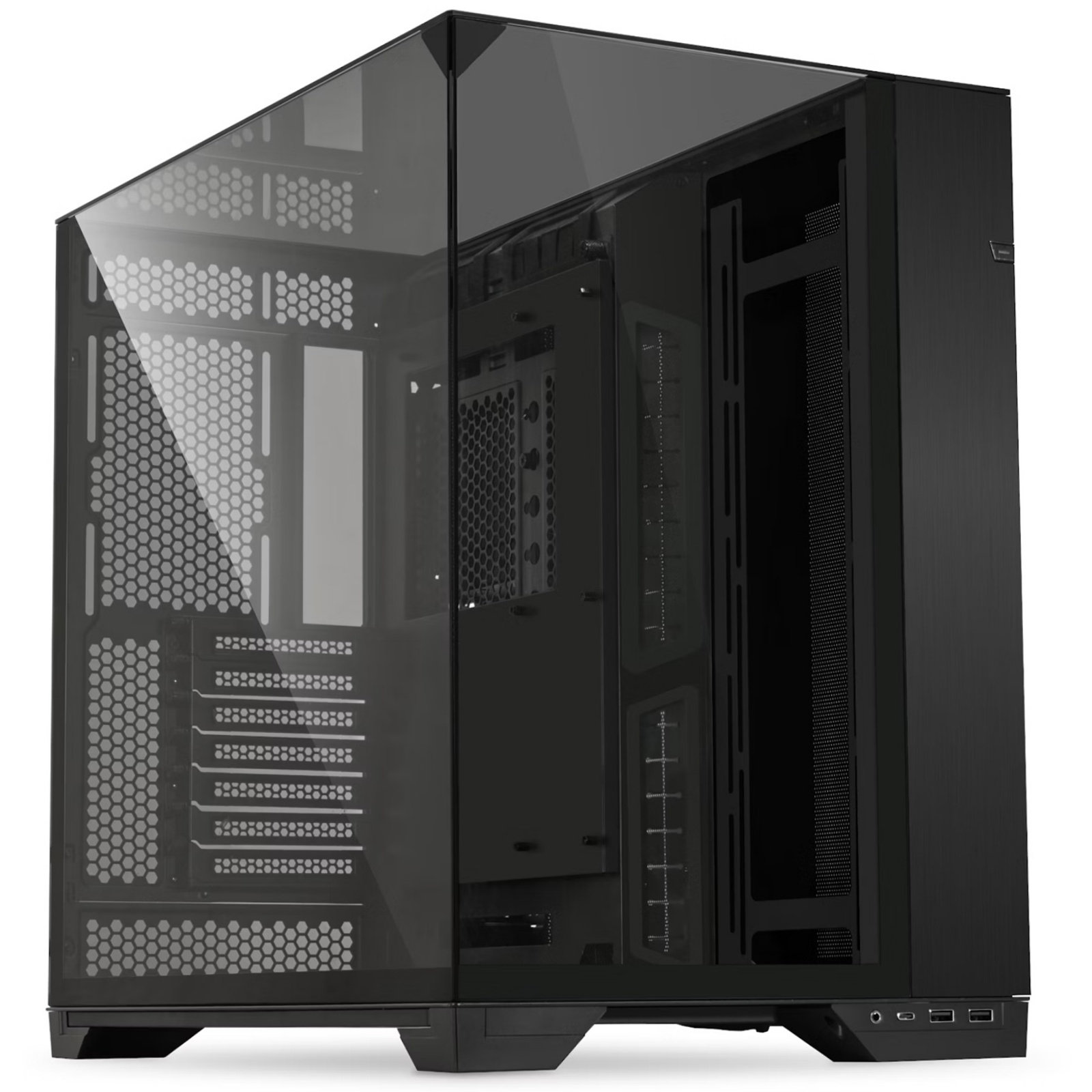

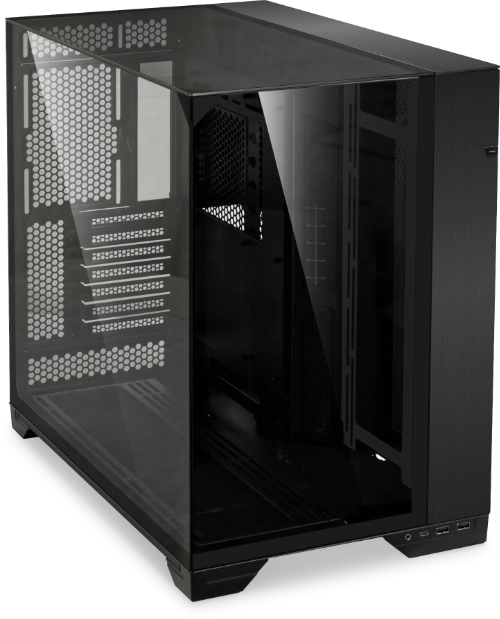

Lian Li O11 VISION Black ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 167mm, GPU Support Up To 455mm, 7x PCI, 360mm Radiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio

PB Tech price
PB Tech price
$ 243 .43
 +GST
$ 279 .94
 inc GST
$243.43  +GST
$279.94

Lian Li O11 VISION Black ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 167mm, GPU Support Up To 455mm, 7x PCI, 360mm Radiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio

Three sides of glass panels provide the most seamless view of components!
  • Brand: Lian Li
  • MPN: G99.O11VX.00
  • Part #: CHALAN2081
  • UPC: 840353044890
PB Tech price
$ 243 .43 $ 279 .94
 +GST  inc GST


Click & Collect: Available from 5 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$243.43  +GST
$279.94

Four payments of $70.69 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $3.40 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

24 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: Lian Li
  • MPN: G99.O11VX.00
  • Part #: CHALAN2081
  • UPC: 840353044890

Colour

Black Chrome White

Form Factor

EATX

Side Window

Yes

Radiator Support

360mm

Maximum Card Length

455mm

CPU Cooler Height Clearance

167mm

Dedicated 2.5" Bay

3

2.5" / 3.5" Bays

2

What PB Tech customers are saying about this product...

See More Reviews
Black

"Honestly, I wasn't going to upgrade my case but I'm glad I did because the cooler I got for my Mobo upgrade would not have fit in my old case, but it fits so well in the Lian Li Vi ...view more"

JE
By: JarethE6 04/12/24
Chrome

"Better display accessories"

LP
By: LinP8 20/09/24
Black

"I upgraded to this case from the 4000D Airflow because I wanted to show off the internals a bit more and just have a great looking system. The case is super easy to build in and ha ...view more"

G
By: Guest 16/09/24

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Lian Li O11 VISION Black ATX MidTower Gaming Case Tempered Glass, CPU...
Lian Li O11 VISION Black ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 167mm, GPU Support Up To 455mm, 7x PCI, 360mm Radiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio
Total:
$ 272 .90
 +GST
$ 313 .84
Buy together and save $1.20 $1.38
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)

$6.50  +GST

$7.48

You save 5% You save 5%
Kingston SNA-BR2/35 2.5" SSD to 3.5" standard bay Mounting Drive Brackets and Screws go for SSDNOW
Kingston SNA-BR2/35 2.5" SSD to 3.5" standard bay Mounting Drive Brackets and Screws go for SSDNOW

$3.84  +GST

$4.42

You save 8% You save 8%

Features



O11 VISION

- Three sides of column-less glass panels provide the most seamless view of components
- Modular and toolless design panels and fan brackets ensure a friendly installation process
- Supports a up to 2 x 360mm radiators + 1 x 240mm radiator and a maximum of 8 fans (11 fans with push-pull setup)
- Features 27mm tall feet and hollowed bottom design to increase cold air intake.
- Dual-chamber layout with cable management compartment and cable holders
- Number of PSU supported : 1



IN COLLABORATION WITH PCMR

LIAN LI joins forces with PC Master Race (PCMR) to present the O11 Vision. By combining LIAN LI's expertise in crafting high-quality, feature-rich cases with PCMR's community of PC enthusiasts, we created a product that builders truly desire. The result is a dual-chamber case with three sides of borderless tempered glass panels that give the clearest view of the system. The O11 Vision embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.



UNOBSTRUCTED HARDWARE SHOWCASE

Display your style and showcase the power of your PC with the O11 Vision, a chassis that features three sides of tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.



BEAUTY IN EVERY ANGLE

Just like the classic O11 series, O11 Vision is available in black and white, crafted from the finest materials, and looks stunning from every angle.

- Brushed Aluminum
- 3mm Tinted Top Tempered Glass
- Inner Corner Silkscreen
- 4mm Tinted Side and Front Tempered Glass
- Black Coated Mesh Panel



BALANCE BETWEEN COOL AND CLEAR

The O11 Vision not only boasts a striking appearance but also doesn't compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis.Offers support for a maximum of 2 x 360 + 1 x 240 radiators, ensuring efficient thermal control.



SEAMLESS BUILD PROCESS

Every bracket and panels are designed for modular and toolless removal, simplifying the build process and allowing for customizable configuration.

Note: The front glass panel is also removable but we do not suggest doing so during the normal installation process.



1 - SOLID STRUCTURE
Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all three side glass panels



2 - TWO-WAYS REVERSIBLE SIDE FAN BRACKET



3 - REMOVABLE BOTTOM FAN BRACKET AND DUST FILTER
Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.



4 - ADJUSTABLE MOTHERBOARD TRAY
Mount the motherboard, CPU pump, and graphics card outside the chassis first to make the installation process easier.



HIGH MODE

Enhance your PC's aesthetics or maximize radiator space, catering to style-conscious users and water-cooling enthusiasts.

RECOMMEND SET UP
Side Intake with push-pull 360mm radiator and 6 x120mm fans
Rear Exhaust with 1 x120mm fan
Bottom Intake with 3 x 140mm fans or radiator



LOW MODE

Enhance your PC's airflow with an extra rear fan while ensuring room for 3 x 140mm fans at the bottom, creating an optimal cooling setup.

RECOMMEND SET UP
Side Intake with push-pull 360mm radiator and 6 x120mm fans
Rear Exhaust with 2 x120mm fans
Bottom Intake with 3 x 140mm fans



EASY TO ACCESS

The front I/O ports are strategically positioned at the bottom of the chassis, ensuring convenient access when the case is placed on a table, all while showcasing its aesthetic appeal.

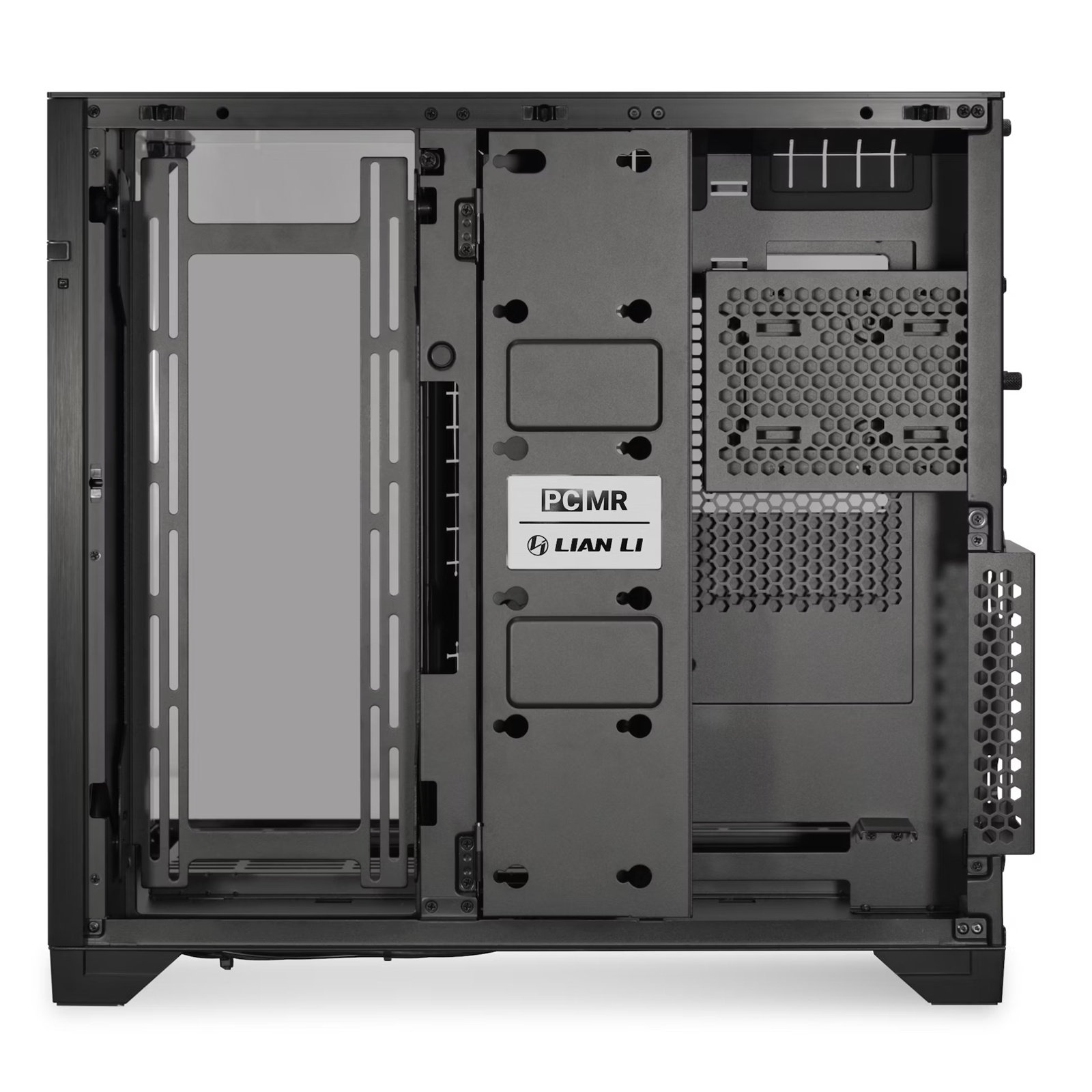

THE CLEAN CABLE MANAGEMENT SOLUTION

To maintain the most aesthetic view in the main chamber, O11 Vision is designed with cable management in mind in the second chamber.



Flexible Cable Clips

Features 2 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.

Bulky cables can be securely held in the cable holder.



Thinner cables can be managed using Velcro straps.



Extended Room

The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.



MULTI-FUNCTION STORAGE BRACKET

Offering the flexibility usage of the bracket for cable routing or a drive installation.

Cable Management Bar

2.5" SSD x 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.



Individual Drive Cage

2.5" SSD x 2 or 3.5" HDD x 2
Each drive cage can be removed to gain space for the cable routing.



COVERING THE GAP

Included 2 silicone covers for low mode configuration to provide a clean look for cable management.

If your O11 Vision doesn't include the silicone grommet set, please get one on AliExpress at a minimal cost. This only affects a small number of users. Thank you for your understanding.



DISPLAY OF YOUR GPU (VG4-4,VG4-4V2 Sold Separately)

LIAN LI's O11 Vision, compatible with its universal vertical GPU kit, offers a professional and attractive build aesthetic through vertical GPU mounting.



Note: Installing the vertical GPU kit in the low mode at the 1st expansion slot covers the GPU top output port with a bracket, and installing at the 2nd expansion slot, will lose the bottom fan mounting space.

Specifications

PRODUCT NAME

O11 Vision

CASE TYPE

Tower Chassis

MODEL

O11VX

COLOR

Black

DIMENSION

(D) 480mm x ( W ) 304mm x (H) 464.5mm

MATERIAL

Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum

MOTHERBOARD SUPPORT

E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX

EXPANSION SLOT

6+1

STORAGE

Behind MB Tray: 3 x 2.5" SSD Hard Drive Cage: 2 X 3.5'' HDD or 2.5'' SSD

GPU LENGTH CLEARANCE

455mm (Max.)

CPU COOLER HEIGHT CLEARANCE

167mm (Max.)

PSU SUPPORT

ATX (Under 220mm)

FAN SUPPORT

Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm

RADIATOR SUPPORT

Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm

I/O PORTS

1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio

DUST FILTER

Bottom × 1

Manufacturer Part No:
G99.O11VX.00
Brand:
Product Type:
ATX MidTower Gaming Case
UPC
840353044890
Product Family:
O11 VISION
Shipping Weight:
6.5 kg
PB Part No:
CHALAN2081
Product Model:
Black
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.8 out of 5 Stars Based on 11 reviews
5 Stars
9
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Great Purchase

Colour: White

Fantastic case, great to work with. Cable management is a breeze with this case and easy to take apart.

ME
By: MadisonE4 02/09/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Glass, on Glass, on Glass Action!

Colour: White

WOW was this case easy to build in, and DAMN does it look good. This was only my second build ever, and my first one took like 8 hours. This, done and dusted in about 3. It looks so beautiful and eye catching with the front, side, and top glass panel. Even while having so much glass, the temps aren't that bad. The bottom has a removable dust filter, so the bottom intake fans can stay clean, and the back panel is about 80% mesh to allow for so much better airflow. You would think missing out on a top mount for an aio or fans would be bad for the airflow, but the allowance of putting 2 120mms fans in the back really helps! The case had so much...view more

SV
By: Shiv 06/01/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Really good generous case

Colour: White

If you are after a fancy looking big case to install white components with ARGB and remote then this is the best choice,
The cable management is great due to the double compartments, no issue to install full size motherboard or very long GPU, or 3 Fans liquid CPU cooler,
Additional fans could be install as the base, so happy with this case, Yes this product is highly recommended

G
By: Guest 29/12/23
0 out of 0 users found this review helpful
Did you find it helpful?

perfect case

Colour: Chrome

Better display accessories

LP
By: LinP8 20/09/24
0 out of 0 users found this review helpful
Did you find it helpful?

Exceptional case

Colour: White

Pros:
Exceptional build quality
Lots of hideaway space for cables
Extra hardware
Great aesthetics
Lots of room
Great value for price
Great customer support for a user-error I had with motherboard and the front power interface.

Cons:
Its heavy but to be expected for quality and full atx size

MS
By: MatthewS4516 12/09/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Awesome case

Colour: Chrome

Awesome case, it is very wide but still a nice case. I was only gutted when it came on sale 2 days later for 40 dollars cheaper

AS
By: AaronS5521 11/07/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Beautiful case

Colour: Black

Built a all black noctua air cooled system with this case. 6 intake and 2 exhaust make it very
high positively pressurized, and chips are staying nice and cool. For me this was the easiest case to build with. Removable mobo tray came really handy and 3 glass panels almost resembles an open system. Only minor issue was that the grommets for the low mode wasn't in the box but lian li sent me a set within a week.

JE
By: JinhoE 22/04/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Good case for CHUNKY gpus.

Colour: White

There is lots of space in the back for cable management.
It's a great way to show off your GPU and builds if you have a vertical GPU mount.
Overall, you would get it if you wanted a good white or black setup.
But sadly, to make it look overall good, you need at least 8 fans.

By: AnthonyZ31 16/02/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

A great looking case

Colour: Black

This case is fantastic and is a quality build with lots of modularity and space for cable management. One thing to note is that the top panel is not vented so you will inevitably have some negative pressure with cooling and will have to front mount an AIO.

JS
By: JoshuaS135 15/01/24
Verified Owner
0 out of 1 user found this review helpful
Did you find it helpful?

What a beaut

Colour: Black

Honestly, I wasn't going to upgrade my case but I'm glad I did because the cooler I got for my Mobo upgrade would not have fit in my old case, but it fits so well in the Lian Li Vision. Love the width!
I don't like that some of the case screws aren't universal. The screws for the glass don't fit the Mobo back plate. So make sure when you put it all back together, you use the right screws for the right holes.

JE
By: JarethE6 04/12/24
0 out of 0 users found this review helpful
Did you find it helpful?

Great PC Case

Colour: Black

I upgraded to this case from the 4000D Airflow because I wanted to show off the internals a bit more and just have a great looking system. The case is super easy to build in and has good cable management options in both the front and back. Also the option for a 360mm AIO Radiator plus an additional 4 Fans allow for good airflow. Overall a well worth upgrade.

G
By: Guest 16/09/24
0 out of 0 users found this review helpful
Did you find it helpful?

Accessories

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Lian Li O11 VISION Black ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 167mm, GPU Support Up To 455mm, 7x PCI, 360mm Radiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio

Three sides of glass panels provide the most seamless view of components!
  • Brand: Lian Li
  • MPN: G99.O11VX.00
  • Part #: CHALAN2081
  • UPC:840353044890
PB Tech price $243.43 Excluding GST PB Tech price $279.94 Including GST

Date Created: 01:48, 06-12-2024
Product URL: https://www.pbtech.co.nz/product/CHALAN2081/Lian-Li-O11-VISION-Black-ATX-MidTower-Gaming-Case
Branch New Stock On Display
Albany 0
Glenfield 0
Queen Street 0
Auckland Uni 0
Newmarket 3
Westgate 0
Penrose 9
Henderson (Express) 1
St Lukes 0
Manukau 0
Hamilton 0
Tauranga 2
New Plymouth 0
Palmerston North 0
Petone 0
Wellington 0
Head Office 30+
Hornby 5
Christchurch Central 0

Features



O11 VISION

- Three sides of column-less glass panels provide the most seamless view of components
- Modular and toolless design panels and fan brackets ensure a friendly installation process
- Supports a up to 2 x 360mm radiators + 1 x 240mm radiator and a maximum of 8 fans (11 fans with push-pull setup)
- Features 27mm tall feet and hollowed bottom design to increase cold air intake.
- Dual-chamber layout with cable management compartment and cable holders
- Number of PSU supported : 1



IN COLLABORATION WITH PCMR

LIAN LI joins forces with PC Master Race (PCMR) to present the O11 Vision. By combining LIAN LI's expertise in crafting high-quality, feature-rich cases with PCMR's community of PC enthusiasts, we created a product that builders truly desire. The result is a dual-chamber case with three sides of borderless tempered glass panels that give the clearest view of the system. The O11 Vision embodies the spirit of LIAN LI and PCMR, providing PC enthusiasts the opportunity to create their finest masterpiece.



UNOBSTRUCTED HARDWARE SHOWCASE

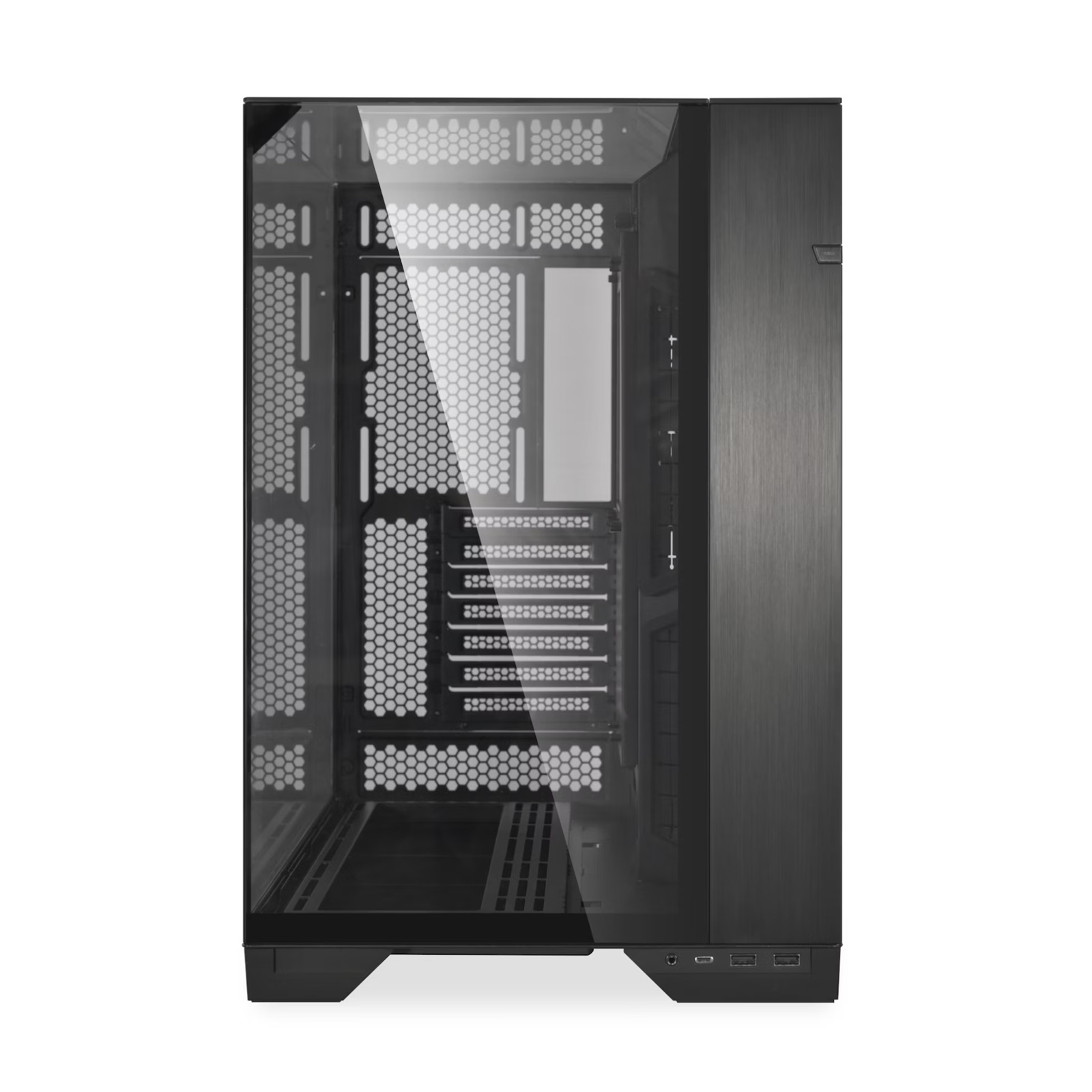

Display your style and showcase the power of your PC with the O11 Vision, a chassis that features three sides of tempered glass panels without any columns or pillars for the ultimate unobstructed view of the system.



BEAUTY IN EVERY ANGLE

Just like the classic O11 series, O11 Vision is available in black and white, crafted from the finest materials, and looks stunning from every angle.

- Brushed Aluminum

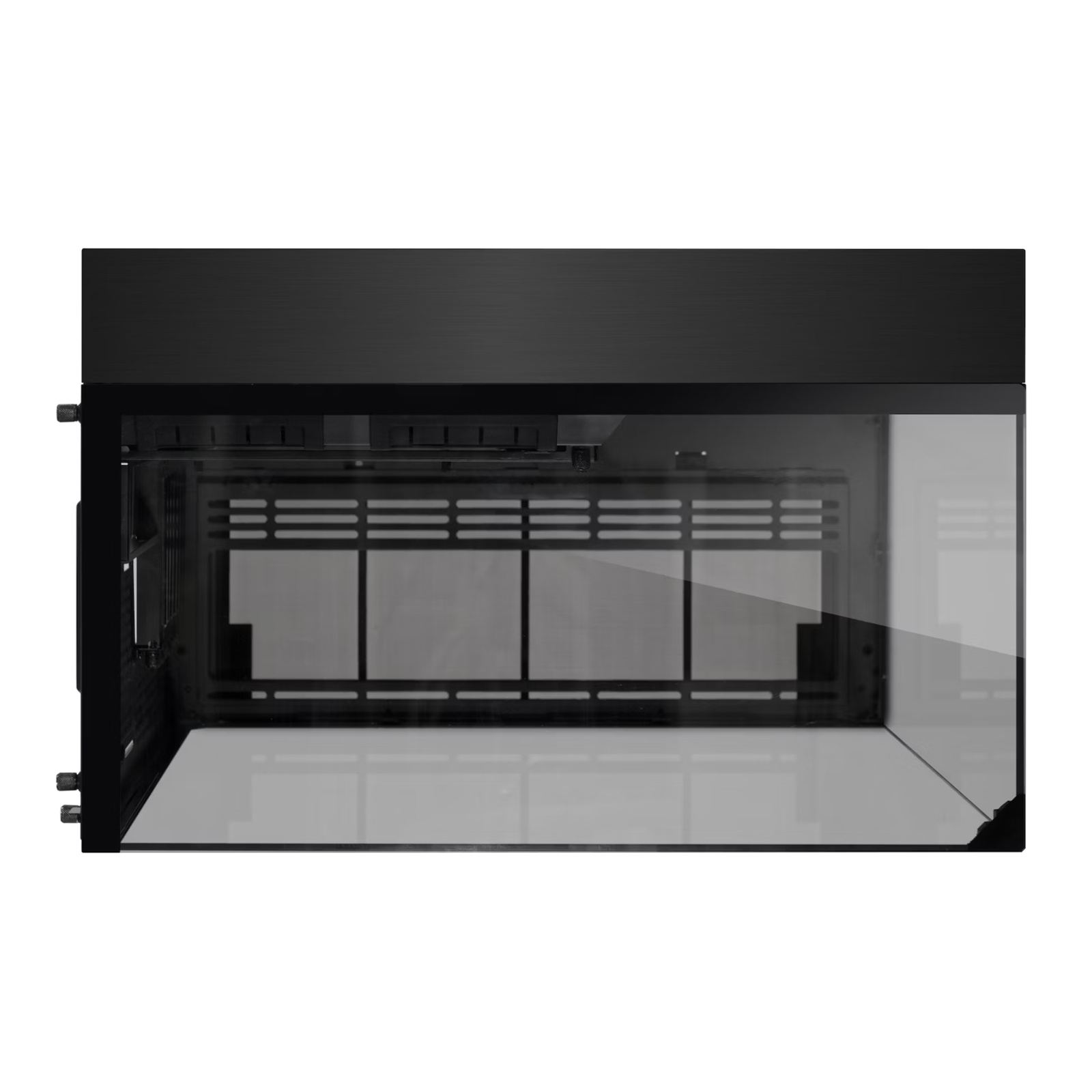

- 3mm Tinted Top Tempered Glass
- Inner Corner Silkscreen
- 4mm Tinted Side and Front Tempered Glass
- Black Coated Mesh Panel



BALANCE BETWEEN COOL AND CLEAR

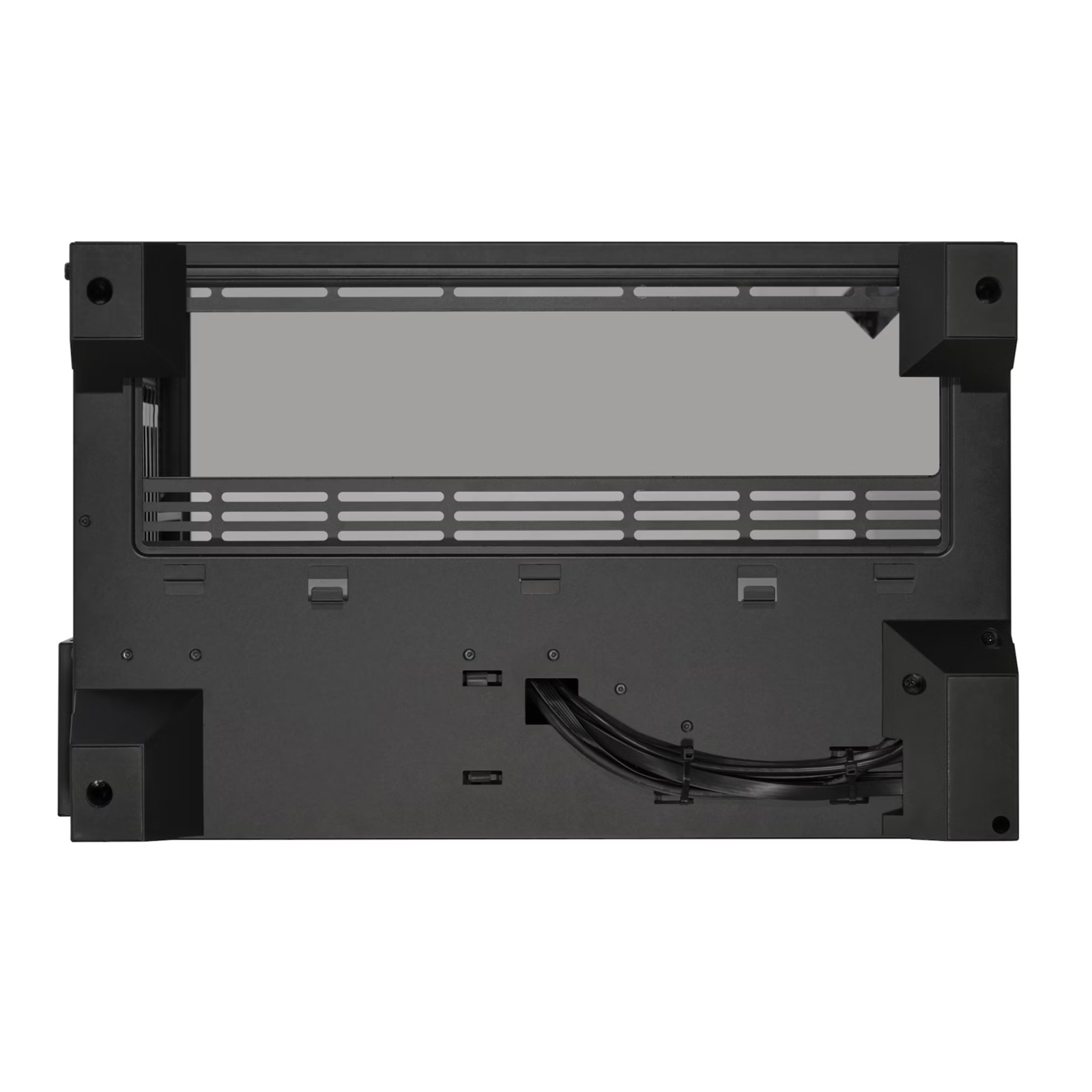

The O11 Vision not only boasts a striking appearance but also doesn't compromise on cooling capabilities thanks to its 27mm tall feet and hollowed out bottom fan bracket with 13mm elevation, ensuring ample airflow intake within the chassis.Offers support for a maximum of 2 x 360 + 1 x 240 radiators, ensuring efficient thermal control.



SEAMLESS BUILD PROCESS

Every bracket and panels are designed for modular and toolless removal, simplifying the build process and allowing for customizable configuration.

Note: The front glass panel is also removable but we do not suggest doing so during the normal installation process.



1 - SOLID STRUCTURE
Strong structural support is designed with robust keys rated for 35kg of force, ensuring unwavering stability for all three side glass panels



2 - TWO-WAYS REVERSIBLE SIDE FAN BRACKET



3 - REMOVABLE BOTTOM FAN BRACKET AND DUST FILTER
Able to remove the fan bracket to install the radiator or fan with ease and clean the dust filter.



4 - ADJUSTABLE MOTHERBOARD TRAY
Mount the motherboard, CPU pump, and graphics card outside the chassis first to make the installation process easier.



HIGH MODE

Enhance your PC's aesthetics or maximize radiator space, catering to style-conscious users and water-cooling enthusiasts.

RECOMMEND SET UP
Side Intake with push-pull 360mm radiator and 6 x120mm fans
Rear Exhaust with 1 x120mm fan
Bottom Intake with 3 x 140mm fans or radiator



LOW MODE

Enhance your PC's airflow with an extra rear fan while ensuring room for 3 x 140mm fans at the bottom, creating an optimal cooling setup.

RECOMMEND SET UP
Side Intake with push-pull 360mm radiator and 6 x120mm fans
Rear Exhaust with 2 x120mm fans
Bottom Intake with 3 x 140mm fans



EASY TO ACCESS

The front I/O ports are strategically positioned at the bottom of the chassis, ensuring convenient access when the case is placed on a table, all while showcasing its aesthetic appeal.



THE CLEAN CABLE MANAGEMENT SOLUTION

To maintain the most aesthetic view in the main chamber, O11 Vision is designed with cable management in mind in the second chamber.



Flexible Cable Clips

Features 2 dual-layer cable clips that can be mounted anywhere along vertical grommets pass through, providing versatility for your cable routing plan.

Bulky cables can be securely held in the cable holder.



Thinner cables can be managed using Velcro straps.



Extended Room

The PSU mounting bracket protrudes 15mm from the rear of the case, allowing extra space for cable management. Additionally, a cable tie point along the rear of the case helps keep the rear I/O cables tidy.



MULTI-FUNCTION STORAGE BRACKET

Offering the flexibility usage of the bracket for cable routing or a drive installation.

Cable Management Bar

2.5" SSD x 3
The removable cable management bar helps tidy up your system and give it a better aesthetic.



Individual Drive Cage

2.5" SSD x 2 or 3.5" HDD x 2
Each drive cage can be removed to gain space for the cable routing.



COVERING THE GAP

Included 2 silicone covers for low mode configuration to provide a clean look for cable management.

If your O11 Vision doesn't include the silicone grommet set, please get one on AliExpress at a minimal cost. This only affects a small number of users. Thank you for your understanding.



DISPLAY OF YOUR GPU (VG4-4,VG4-4V2 Sold Separately)

LIAN LI's O11 Vision, compatible with its universal vertical GPU kit, offers a professional and attractive build aesthetic through vertical GPU mounting.



Note: Installing the vertical GPU kit in the low mode at the 1st expansion slot covers the GPU top output port with a bracket, and installing at the 2nd expansion slot, will lose the bottom fan mounting space.

Specifications

PRODUCT NAME

O11 Vision

CASE TYPE

Tower Chassis

MODEL

O11VX

COLOR

Black

DIMENSION

(D) 480mm x ( W ) 304mm x (H) 464.5mm

MATERIAL

Steel 4.0mm Tempered Glass 3.0mm Tempered Glass Aluminum

MOTHERBOARD SUPPORT

E-ATX (Under 280mm)/ATX/Micro-ATX/Mini-ITX

EXPANSION SLOT

6+1

STORAGE

Behind MB Tray: 3 x 2.5" SSD Hard Drive Cage: 2 X 3.5'' HDD or 2.5'' SSD

GPU LENGTH CLEARANCE

455mm (Max.)

CPU COOLER HEIGHT CLEARANCE

167mm (Max.)

PSU SUPPORT

ATX (Under 220mm)

FAN SUPPORT

Side: 3 x 120mm / 2 x 140mm Bottom: 3 x 120mm / 3 x 140mm Rear:1 or 2 x 120mm

RADIATOR SUPPORT

Side: 360 / 240 / 280mm Bottom: 360 / 240 / 280mm Rear: 240/ 120mm

I/O PORTS

1 x Power Button 1 x Reset Button 2 x USB 3.0 1 x USB Type C 1 x Audio

DUST FILTER

Bottom × 1

Date Created: 01:48, 06-12-2024
Product URL: https://www.pbtech.co.nz/product/CHALAN2081/Lian-Li-O11-VISION-Black-ATX-MidTower-Gaming-Case
