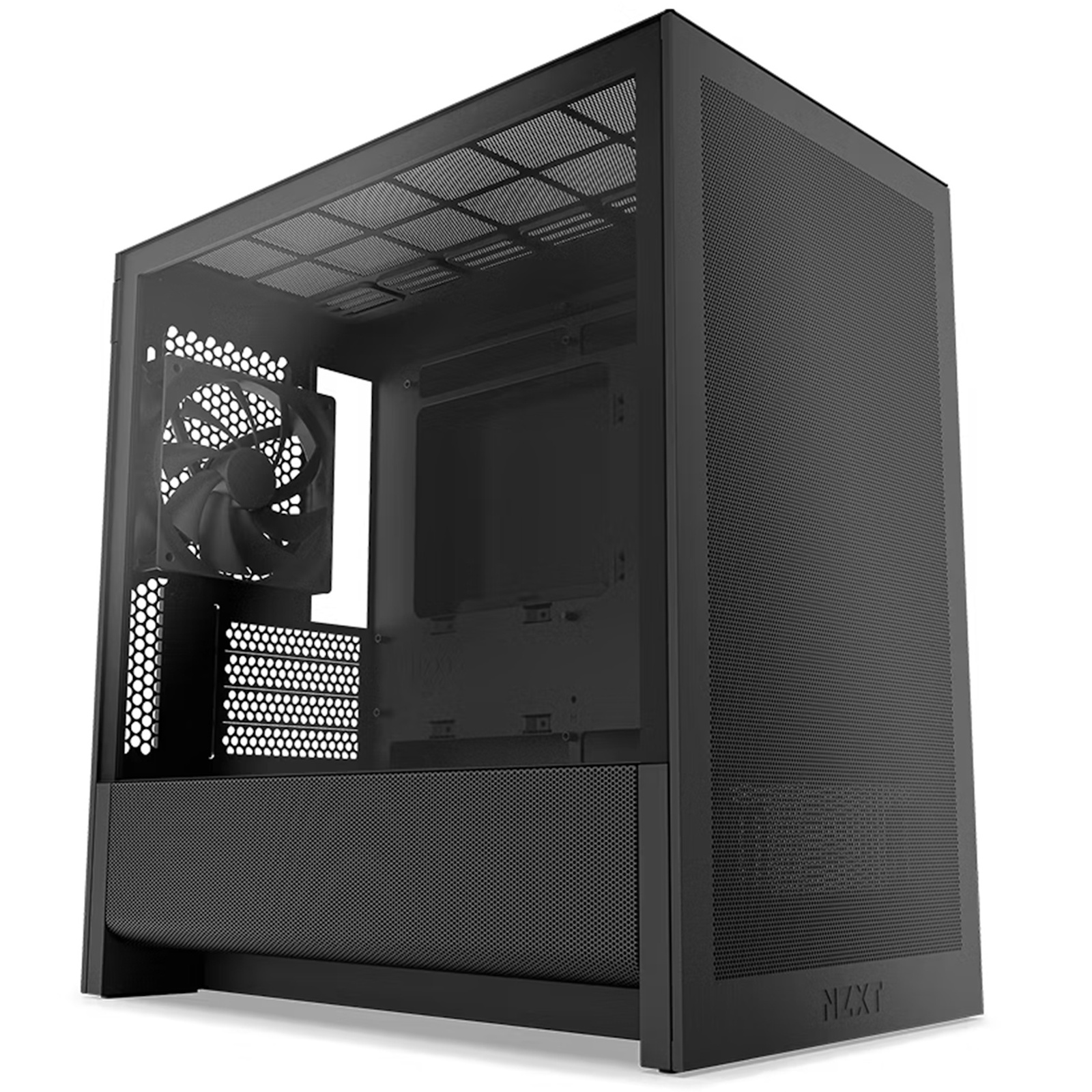

NZXT H3 Black Flow MATX MicroTower Gaming Case Tempered Glass, CPU Cooler Support Upto 170mm, GPU Support Upto 377mm, 4x PCI Slot, 280mm Radiator Supported. Front I/O: 1x USB, 1x Type C, HD Audio

PB Tech price
PB Tech price
$ 99 .00
 +GST
$ 113 .85
 inc GST
$99.00  +GST
$113.85

NZXT H3 Black Flow MATX MicroTower Gaming Case Tempered Glass, CPU Cooler Support Upto 170mm, GPU Support Upto 377mm, 4x PCI Slot, 280mm Radiator Supported. Front I/O: 1x USB, 1x Type C, HD Audio

Space-Saving Design!
  • Brand: NZXT
  • MPN: CC-H31FB-01
  • Part #: CHANZX0310
  • UPC: 810074848046
2
PB Tech price
$ 99 .00 $ 113 .85
 +GST  inc GST


Click & Collect: Available from 4 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$99.00  +GST
$113.85
  • Brand: NZXT
  • MPN: CC-H31FB-01
  • Part #: CHANZX0310
  • UPC: 810074848046

Colour

Black White

Form Factor

mATX

Side Window

Yes

Radiator Support

280mm

Maximum Card Length

377mm

CPU Cooler Height Clearance

170mm

Dedicated 2.5" Bay

1

2.5" / 3.5" Bays

3

What PB Tech customers are saying about this product...

See More Reviews
Black

"Really easy case to build in for my first time build. Has enough room for everything. Not too big and not too small that all the components looked crammed in there.

Mesh vents are ...view more"

OS
By: OscarS426 24/07/25
Verified Owner
Black

"Excellent case, not as small as others but that offers much better options for cable management.

Everything runs extremely cool. Highly recommend looking for someone trying to sh ...view more"

NP
By: NicP7 30/06/25
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the NZXT H3 Black Flow MATX MicroTower Gaming Case Tempered Glass, CPU...
NZXT H3 Black Flow MATX MicroTower Gaming Case Tempered Glass, CPU Cooler Support Upto 170mm, GPU Support Upto 377mm, 4x PCI Slot, 280mm Radiator Supported. Front I/O: 1x USB, 1x Type C, HD Audio
Total:
$ 430 .43
 +GST
$ 494 .99
Buy together and save $8.82 $10.14
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
$199.13 $229.00

$195.76  +GST

$225.12

Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
$109.00 $125.35

$105.00  +GST

$120.75

You save $4 You save $4
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
$12.56 $14.44

$11.54  +GST

$13.27

You save 8% You save 8%

Features

The H3 Flow micro-ATX case combines a space-efficient design with high-performance capability. Designed to support full-sized components, it features ultra-fine mesh panels and a ventilated PSU shroud to maintain consistent, optimized airflow throughout your build.

- Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.

- High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.

- Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.

- Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).

- Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)

- Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.

- Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.

- Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning-no tools required.

Sized Down. Powered Up.

The H3 Flow delivers high-performance airflow in a space-efficient micro-ATX footprint. With fine mesh panels, a ventilated PSU shroud, and support for large components, it keeps powerful parts cool without taking over your desk.

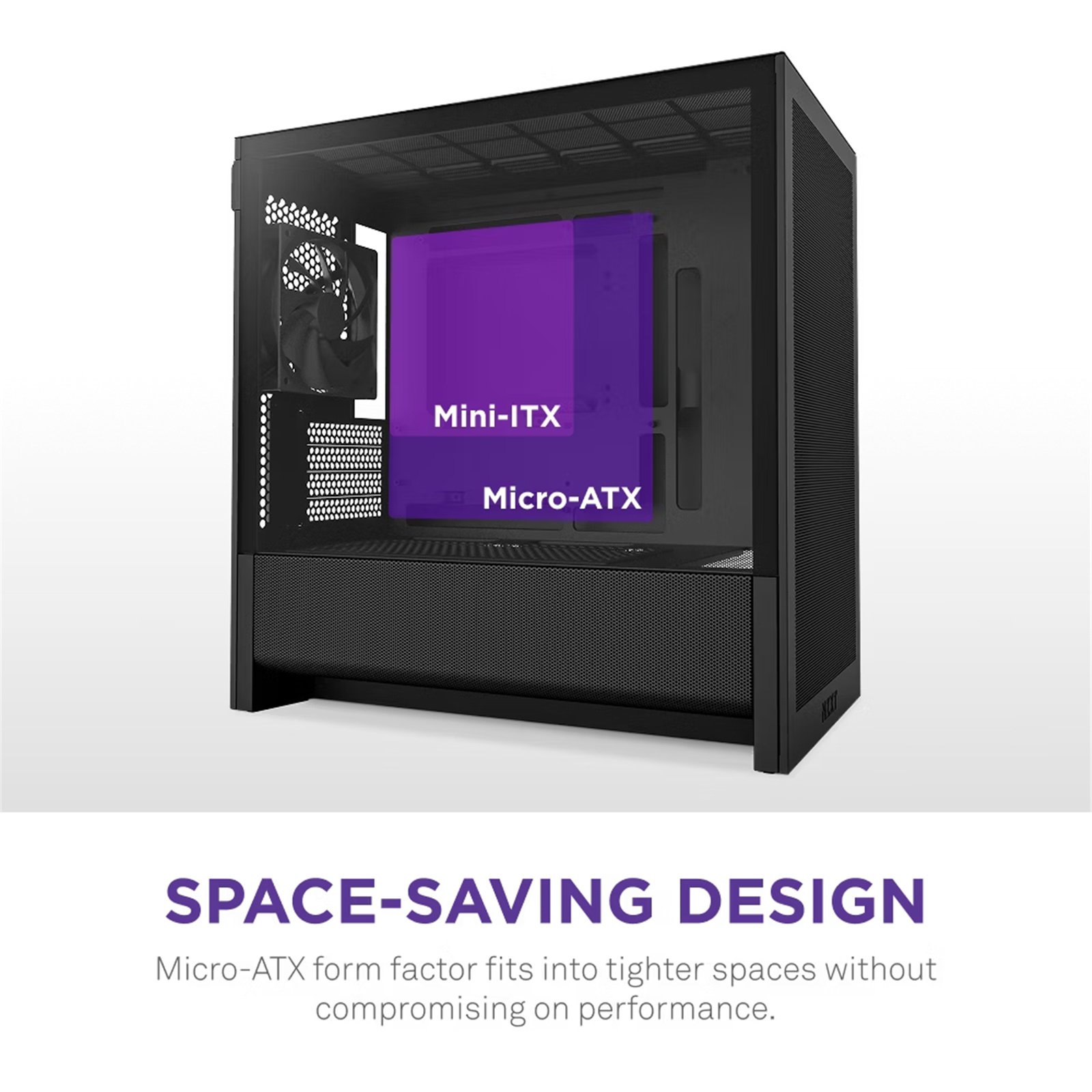

Space-Saving Design

The micro-ATX form factor fits into smaller spaces, maximizing desk space without compromising on performance.

Optimized Airflow

Ultra-fine mesh on the front, top, and sides enhances cooling while filtering dust. The ventilated PSU shroud optimizes intake from bottom-mounted fans.

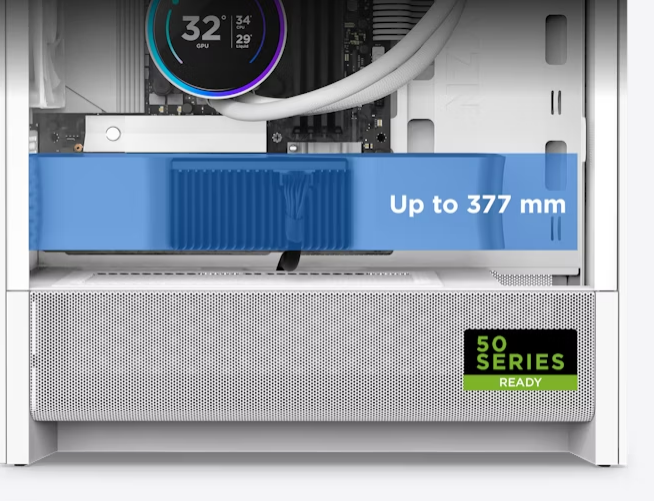

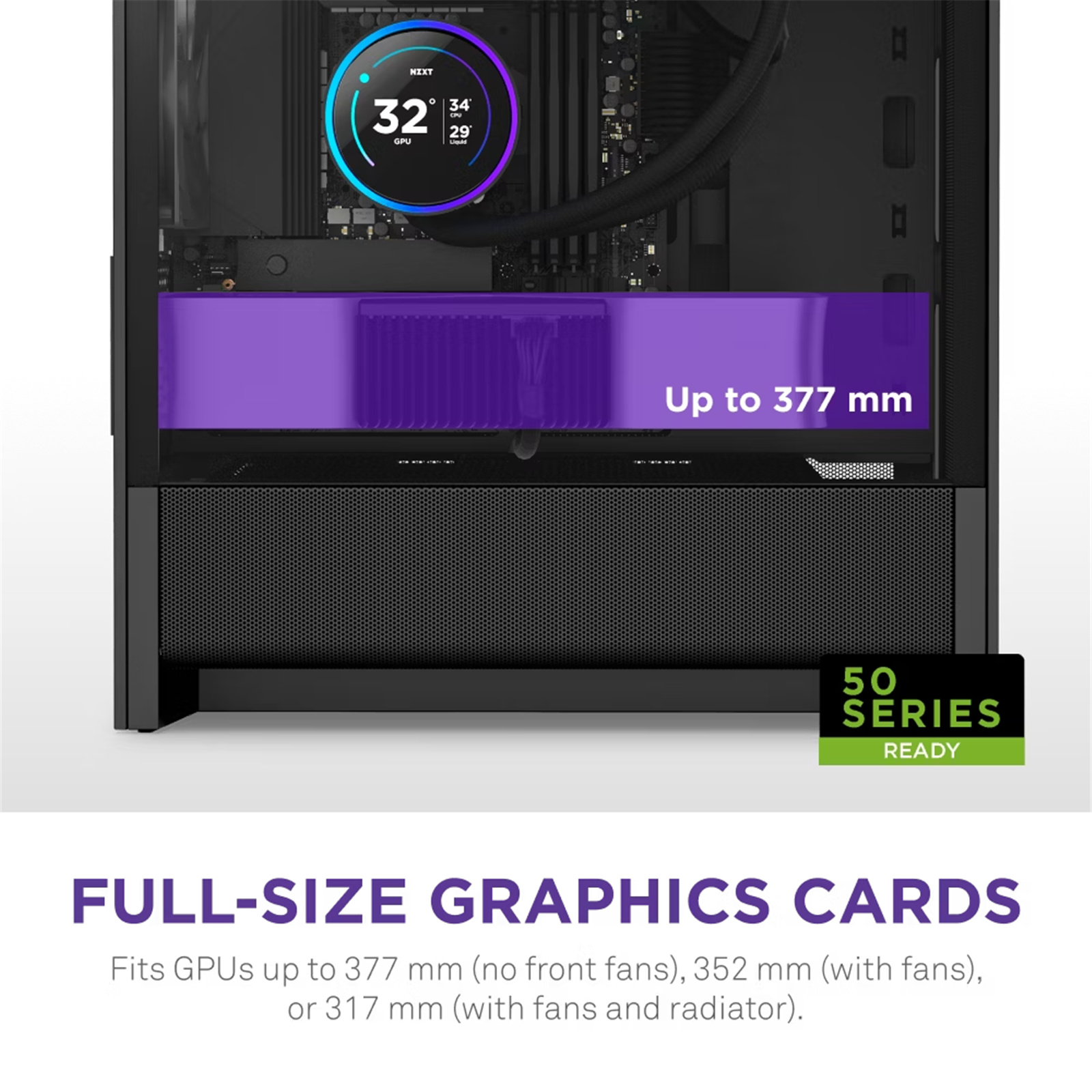

Full-Size GPU Support

Max length of 377 mm (no front fans), 352 mm (with fans), 317 mm (with fans & radiator).

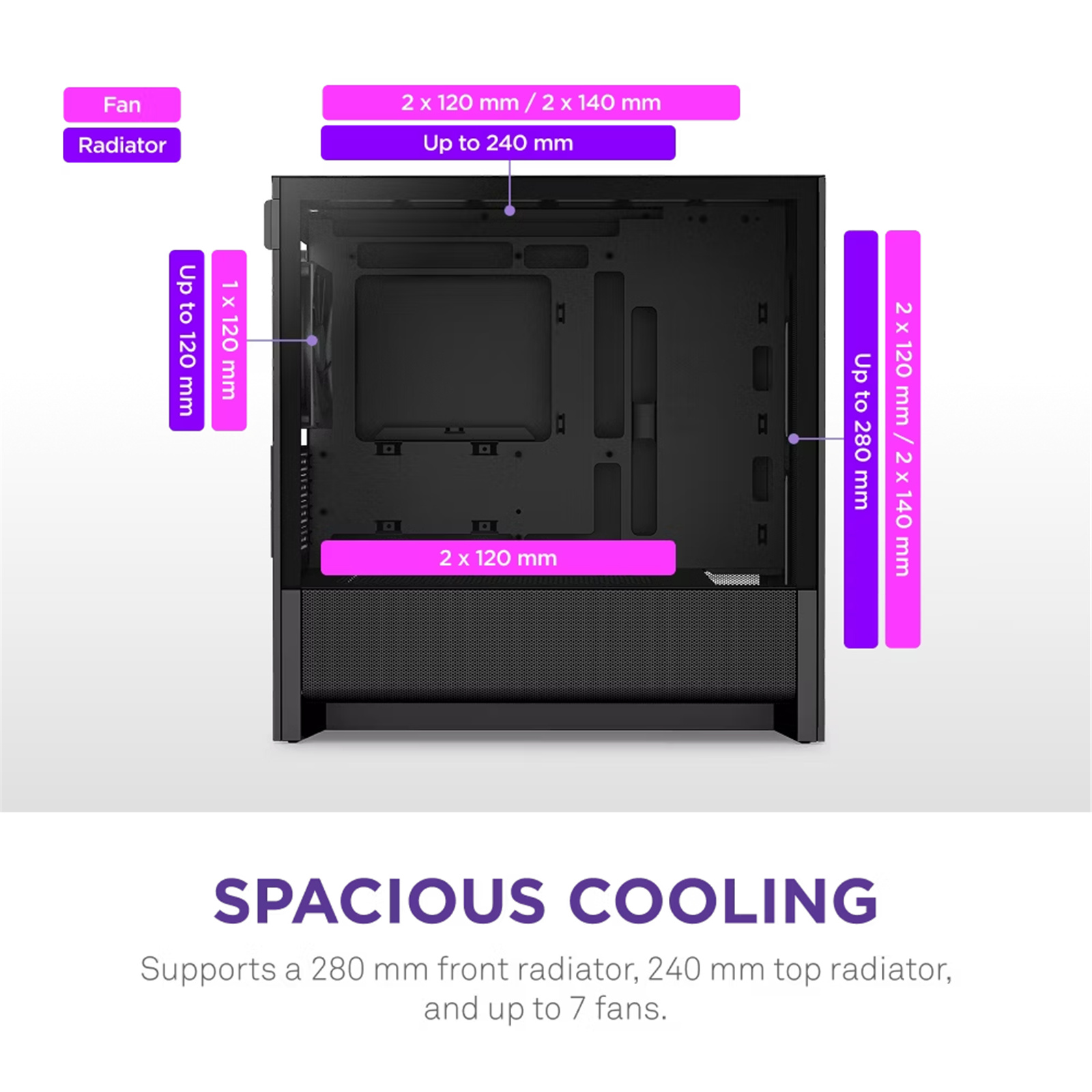

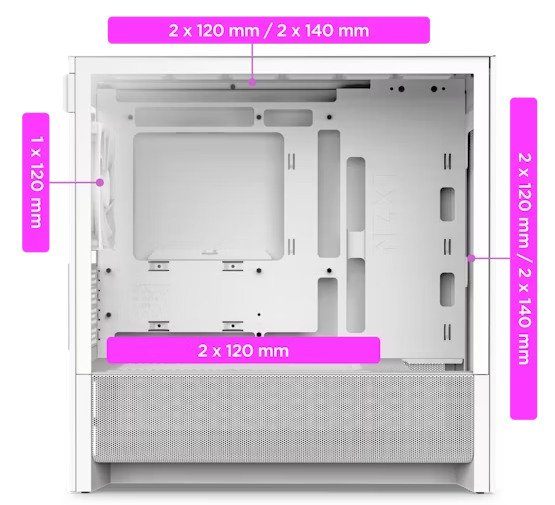

7-Fan Capacity

Supports up to 140 mm fans (two front, two top) and 120 mm fans (two bottom, one rear).

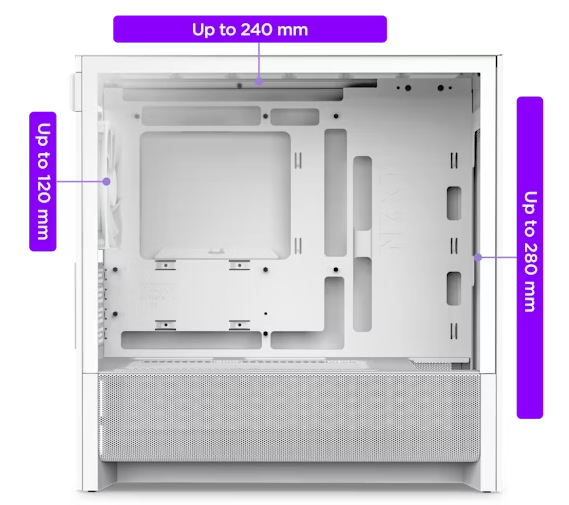

Radiator Ready

Supports a 280 mm front radiator and a 240 mm top radiator for versatile cooling setups.

Back-Connect Ready

Compatible with ASUS BTF and MSI Project Zero motherboards for a clean, cable-free build.

Tool-Free Access

Easily remove panels for building, upgrading, or cleaning.

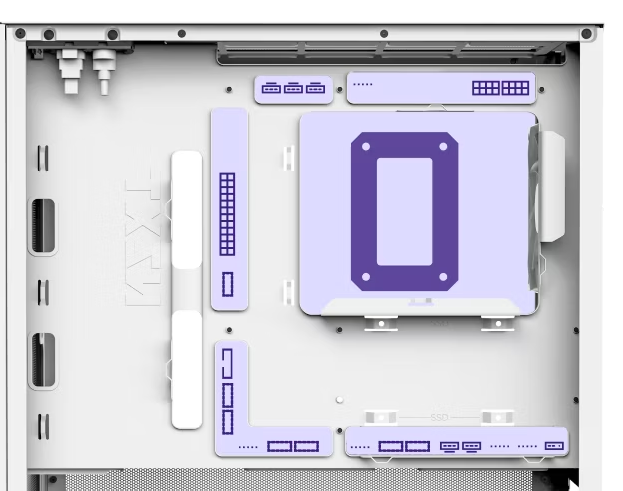

Easy Cable Management

Integrated cable channels and tie-down points make routing clean and simple.

Specifications

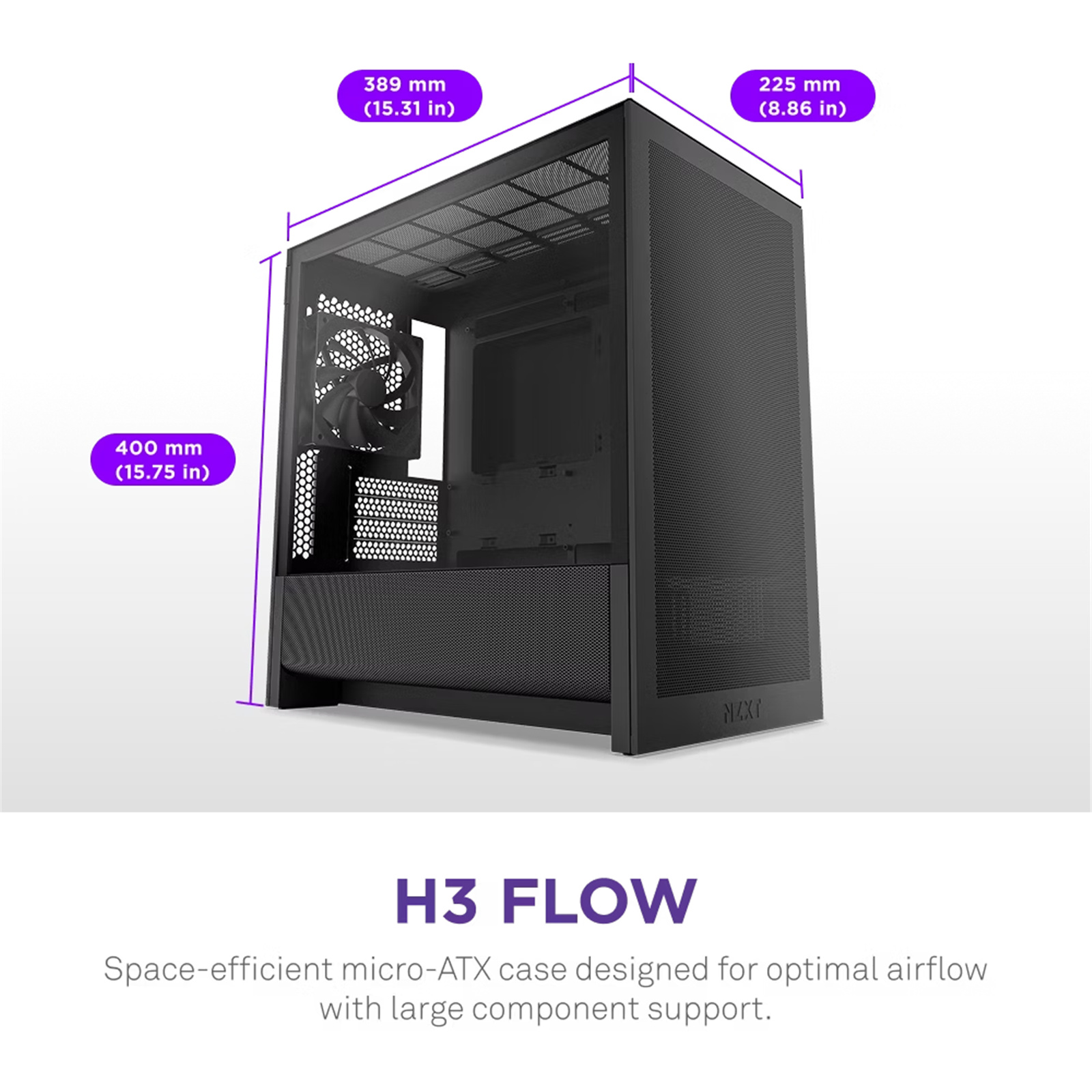

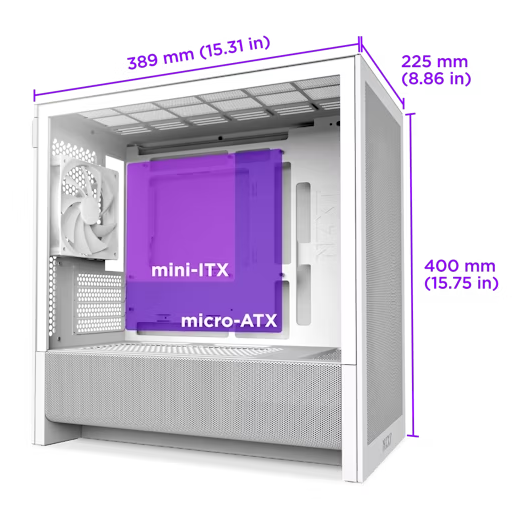

DIMENSIONS

Height (with feet)

400 mm (15.75 in)

Width

225 mm (8.86 in)

Depth

389 mm (15.31 in)

Volume

35.0 L

Weight

4.8 kg (10.58 lb)

GENERAL

Enclosure Type

Micro-ATX Case

Motherboard Compatibility

Micro-ATX, Mini-ITX

Supports Rear-Connecting Motherboards (BTF, Project Zero)

Yes (Micro-ATX)

Materials

SGCC steel, clear tempered glass (white), tinted tempered glass (black)

CLEARANCE

CPU Cooler Height

170 mm

GPU Length

Up to 377 mm (without front fans) / Up to 352 mm (with front fans) / Up to 317 mm (with front radiator and fans)

PSU Length

Up to 185 mm

Cable Routing Space

Up to 31.5 mm

Front Radiator + Fan Thickness

Up to 63 mm

Top Radiator + Fan Thickness

Up to 70 mm

FRONT I/O PORTS

USB 3.2 Type-A

1

USB 3.2 Gen2x2 Type-C

1

EXPANSION SLOTS

Standard

4

Vertical

0

DRIVE BAYS

2.5"

1+2

3.5"

1

FAN SUPPORT

Front

2 x 120 mm / 2 x 140 mm

Top

2 x 120 mm / 2 x 140 mm

Bottom

2 x 120 mm

Rear

1 x 120 mm (1 x F120Q (CV) included)

RADIATOR SUPPORT

Front

Up to 280 mm

Top

Up to 240 mm

FAN SPECS

Model

F120Q (CV)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin

Manufacturer Part No:
CC-H31FB-01
Brand:
Product Type:
MATX MicroTower Gaming Case
UPC
810074848046
Product Family:
H3
Shipping Weight:
4.8 kg
PB Part No:
CHANZX0310
Product Model:
Black Flow
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
