Phanteks XT V3 White MATX Case Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support 430mm, 4x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB, 1x Type C, HD Audio
Phanteks XT V3 White MATX Case Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support 430mm, 4x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB, 1x Type C, HD Audio
- Brand: Phanteks
- MPN: PH-XT325V_DWT01
- Part #: CHAPHA0109
- UPC: 886523303800
- Brand: Phanteks
- MPN: PH-XT325V_DWT01
- Part #: CHAPHA0109
- UPC: 886523303800
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Mini / Micro Tower Cases
Phanteks XT V3 White MATX Case Tempered Glass, CPU Cooler Support Upto 175mm, GPU Support 430mm, 4x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB, 1x Type C, HD Audio
- Brand: Phanteks
- MPN: PH-XT325V_DWT01
- Part #: CHAPHA0109
- UPC:886523303800
Product URL: https://www.pbtech.co.nz/product/CHAPHA0109/Phanteks-XT-V3-White-MATX-Case-Tempered-Glass-CPU
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 30+ | |
| Auckland - East Tamaki Warehouse | 30+ | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features

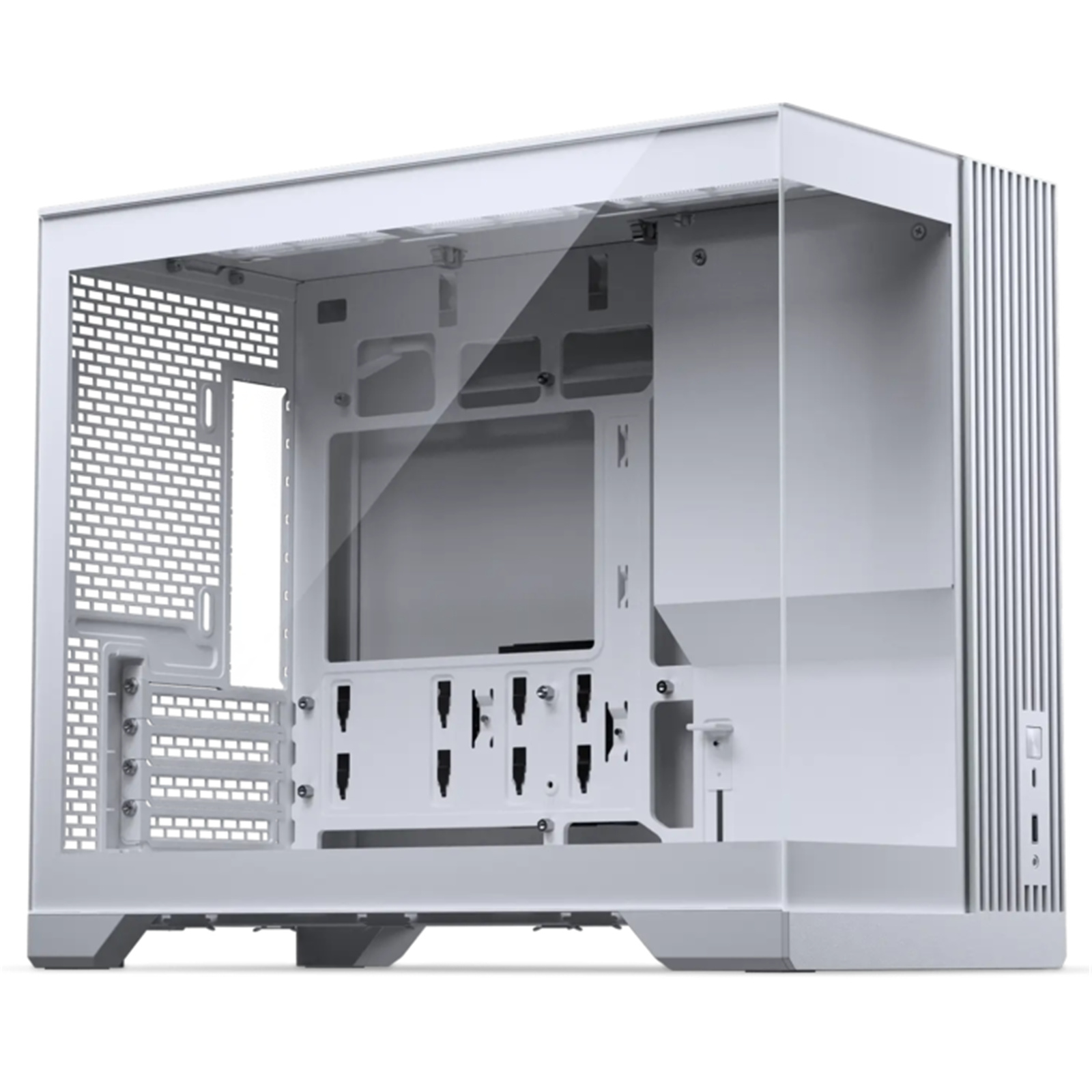

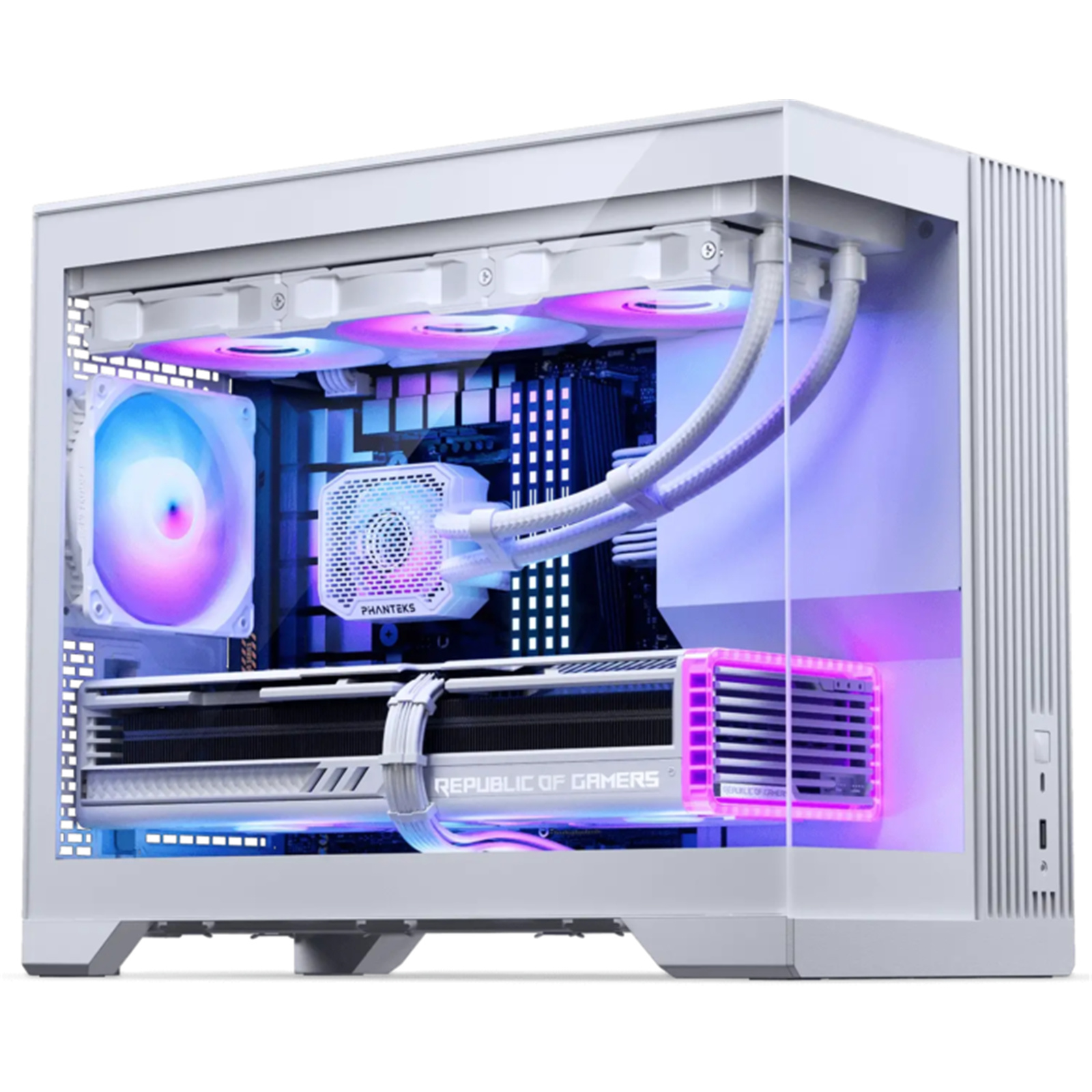

The XT V3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.
With its innovative lay-out and strikingly clean design, the XT V3 is a micro-ATX powerhouse ready for any cooling challenge.
Compact Gaming Chassis

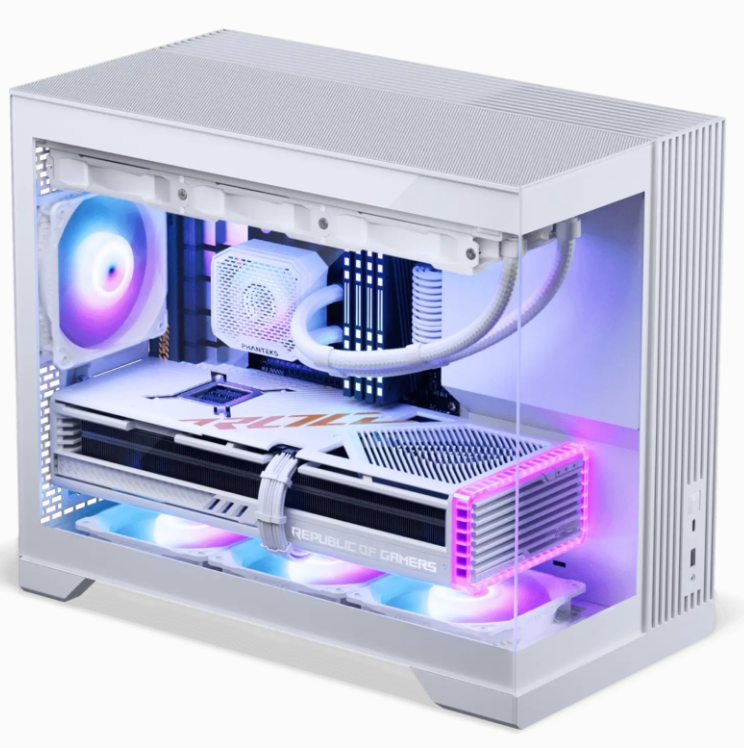

- Supports a total of nine 120 fans for powerful cooling within this compact chassis.
- Dedicated 360 radiator space in the top of the chassis.
- Triple fan locations in the bottom for direct GPU cooling.

Organized by Design

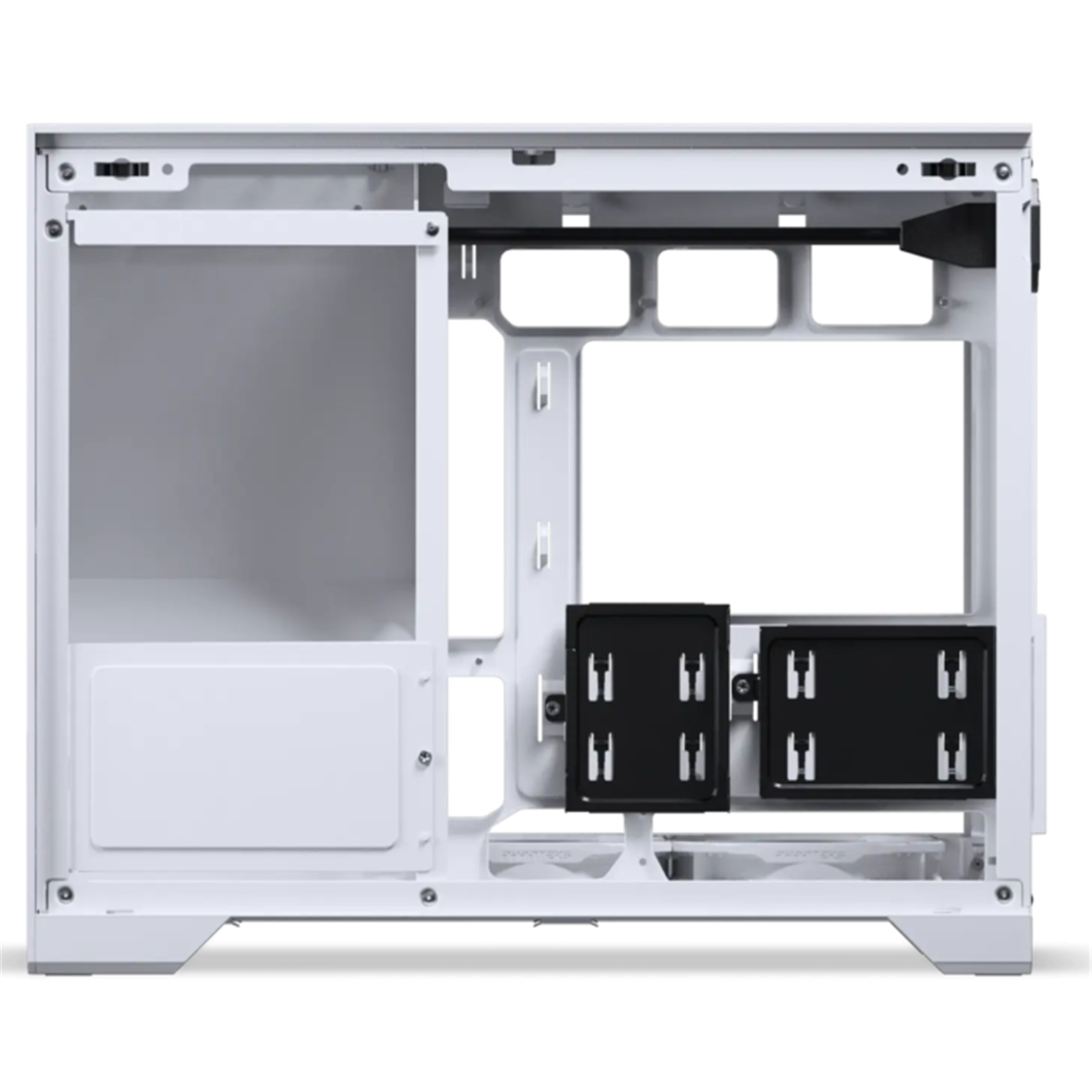

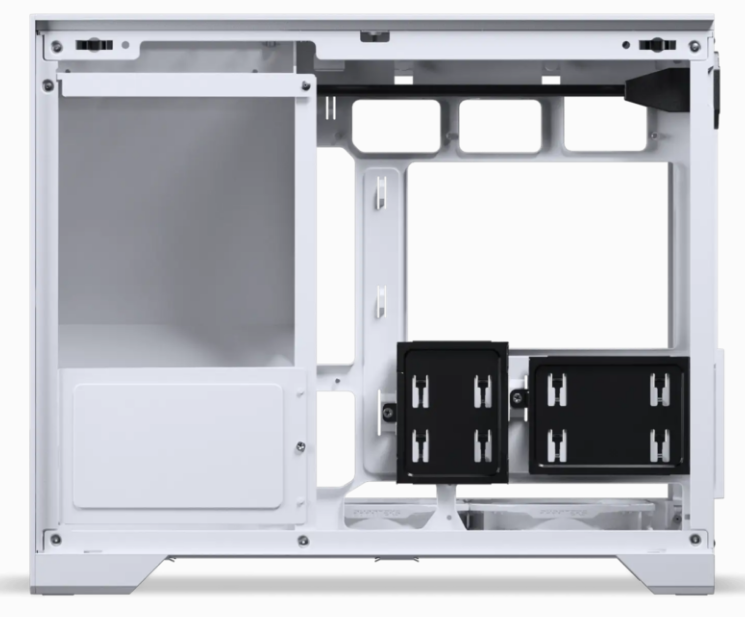

- Spacious cable routing area for clean and efficient management.
- Fully compatible with Rear-Connect mainboards for streamlined builds.

Fan Positions
- 3x 120 mm top fans.
- 1x 120 mm rear fan.
- 3x 120 mm bottom fans.
Radiator Positions
- 1x 360 top radiator up to 410 x 122 x 60 mm

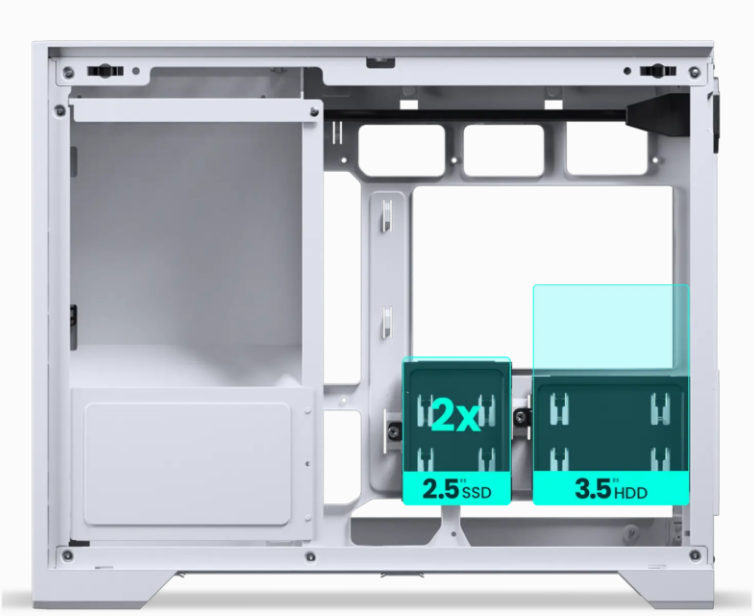

Storage
- SSD Storage Bracket
Supports 2x 2.5″ SSD drives.
- HDD Storage Bracket
Supports 1x 3.5" HDD drive.

Specifications
General
Case Dimensions
460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in
From Factor
Compact microATX tower
Mainboard Support
Micro-ATX | Mini-ITX
Materials
Steel chassis | Tempered glass window | ABS plastic
Color
Black
Expansion Slots
4
Vertical GPU Support
No
Internal 2.5″ Positions
2
+ 1x 3.5″ HDD
Internal 3.5″ Positions
1
+ 2x 2.5″ SSD

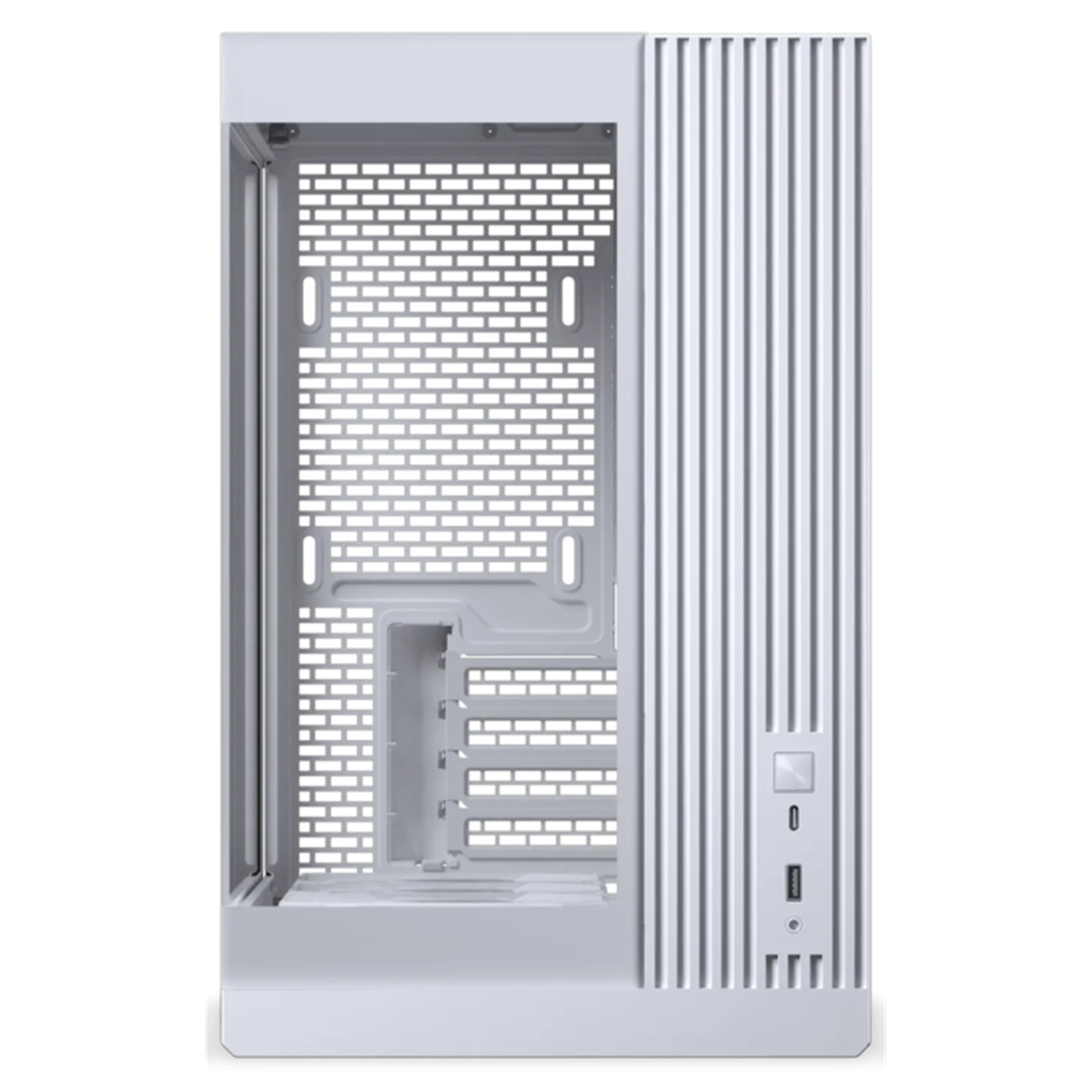

Front I/O
1x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
Power button
Fans 120
Total Fans
7
Top
3
Rear
1
Bottom
3
Radiator 120
Top
Max. 360
Clearance
CPU Cooler Height
175 mm | 6.88 in
GPU Length
430 mm | 15.94 in
Without front fans installed
GPU Width
175 mm | 6.88 in
Power Supply
150 mm | 5.90 in
Top 360 Radiator
Length x Width x Height
410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in
Extra
Net Weight
6.05 kg | 13.33 lbs
Gross Weight
7.20 kg | 15.87 lbs
