Features

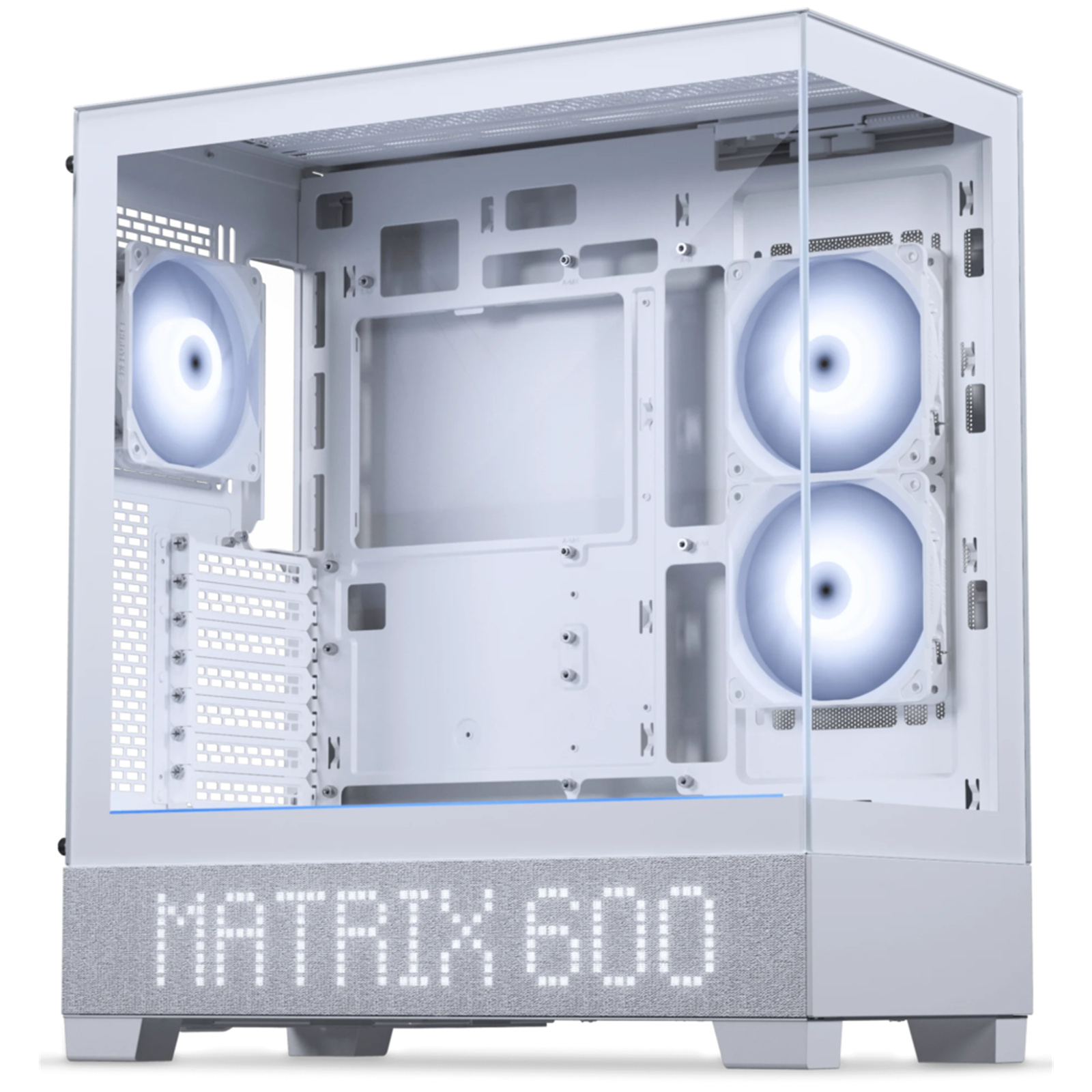

The XT View Matrix combines smart design and modern innovation with a unique 600-LED Matrix Screen elegantly hidden behind the fabric panel, bringing lighting and information to life in a subtle, integrated way.
Built for today's powerful hardware, the XT View Matrix offers exceptional cooling capacity with support for up to 9 fans and dedicated radiator space at the top. Its spacious layout easily fits the largest GPUs, with room to spare for cable management, and supports the latest rear-connector motherboards to achieve a truly zero-cable setup.
System Information, Reimagined
Integrated 600-LED Matrix screen hidden behind the fabric interior for a clean, seamless system display.
- Customize system stats, time, date, lighting effects, and animations through the NexLinq App for Windows.
- Fine mesh fabric covers the Matrix 600 to subtly diffuse the LED light for improved readability and visual depth.
- Hardware-driven Matrix operation ensures smooth visuals with minimal CPU impact.
- Designed as part of the Phanteks NexLinq ecosystem for unified system monitoring and control.

Computing with a View
- Near-seamless glass panels.
- Plenty of space for the most powerful graphics cards.
- Highly durable wear- and UV-resistant fabric.

Cool and Powerful
- Dedicated top 360 radiator space in the top.
- Triple 120mm positions on the midplate for direct GPU cooling.
- Supports a total of 9x 120mm fan locations.

Integrated Lighting
- Smooth and diffuse D-RGB lines run from top to bottom of the Evolv X2.
- 3x built-in D-RGB LED strips are pre-installed and connected.
- The Matrix display visually complements the integrated D-RGB lighting, adding an additional layer of system expression.

Storage
Bottom Storage Bracket
Supports 2x 3.5" HDD drives or 1x 3.5" HDD and 2x 2.5" SSD drives.

Fan Positions
3x 120 mm top fans.
1x 120 mm rear fan.
3x 120 mm bottom fans.

Radiator Positions
Max. 360 top radiator up to 410 x 130 x 38 mm
Max. 120 rear radiator

Specifications
General
Model No.
PH-XT523V1_DWT01
Case Dimensions
454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in
From Factor
Mid-Tower
Mainboard Support
*E-ATX | ATX | Micro-ATX | Mini-ITX
*Up to 280 mm wide
Materials
Steel chassis | Aluminum panels | Tempered glass window | ABS plastic | Mesh fabric
Color
White
Expansion Slots
7
Vertical GPU Support
Yes
Riser cable & bracket sold separately
Internal 2.5″ Positions
2
+ 1x 3.5″ HDD
Internal 3.5″ Positions
2
+ 0x 2.5″ SSD
Front I/O
2x USB 3.0
1x USB-C 3.2 Gen2x2
1x Microphone | Headphone combo
D-RGB color button
D-RGB mode button
Power button
Reset button
Matrix Display
LED Amount
600
Power Input
5V | 4.3A
Fabric Material
Polyester
Connectors
Mainboard USB 2.0 header 500 mm
SATA 500 mm
Fans 120 | 140
Total Fans
9 | 3
Top
3 | 2
Front
- | -
Side
2 | -
Rear
1 | 1
Bottom
3 | -
Radiator 120 | 140
Top
Max. 360 | -
Front
- | -
Side
Max. 240 Only with vertical GPU bracket | -
Rear
- | -
Bottom
- | -
Clearance
CPU Cooler Height
184 mm | 7.24 in
GPU Length
415 mm | 16.33 in
GPU Width
184 mm | 7.24 in
Power Supply
270 mm | 10.62 in
Top 360 Radiator Length x Width x Height
415 x 138 x 60 mm | 16.34 x 5.43 x 2.36 in
Side 240 Radiator Length x Width x Height
305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in Only with vertical GPU bracket
Extra
Net Weight
7.91 kg | 17.44 lbs
Gross Weight
9.51 kg | 20.97 lbs
Scope of Delivery
1x XT View Matrix chassis
1x Storage bracket Pre-installed
Accessory Box
30x Zip ties
1x Stand-off removal tool
1x D-RGB mainboard adapter 500 mm
Screws
30x Mainboard | SSD screws
4x Power supply screws
8x HDD screws
4x Thumb screws
4x Fan Screws 30 mm UNC6-32
1x Mainboard stand-off
