Phanteks NV Series NV7 Tempered Glass Window,DRGB, White CPU Cooler Supports Upto 185mm, GPU Supports Upto 450mm, 360mm Radiator Supported, 8X PCI Slots, Front I/O: 1XType C, 2X USB.
Phanteks NV Series NV7 Tempered Glass Window,DRGB, White CPU Cooler Supports Upto 185mm, GPU Supports Upto 450mm, 360mm Radiator Supported, 8X PCI Slots, Front I/O: 1XType C, 2X USB.
- Brand: Phanteks
- MPN: PH-NV723TG_DMW01
- Part #: CHAPHA0711
- UPC: 886523302797
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"I had never built a PC before, but this case was perfect for a beginner with thumb screws and modular placements, and lots of room to work in. The size also keeps the PC a little c ...view more"
"This PC Case is awe inspiring. It's absolutely gorgeous, has plenty of space to work in, and has amazing cable management and routing for a super clean look. Its built in RGB light ...view more"
"Awesome looking case. Very easy to build."
COMBO DEALS: Buy Together and SAVE!
Cooler Master MasterLiquid 360L Core ARGB 360mm AiO Water Cooling White, Support Intel LGA 1851/...
$149.00 +GST
$171.35
Features
NV7

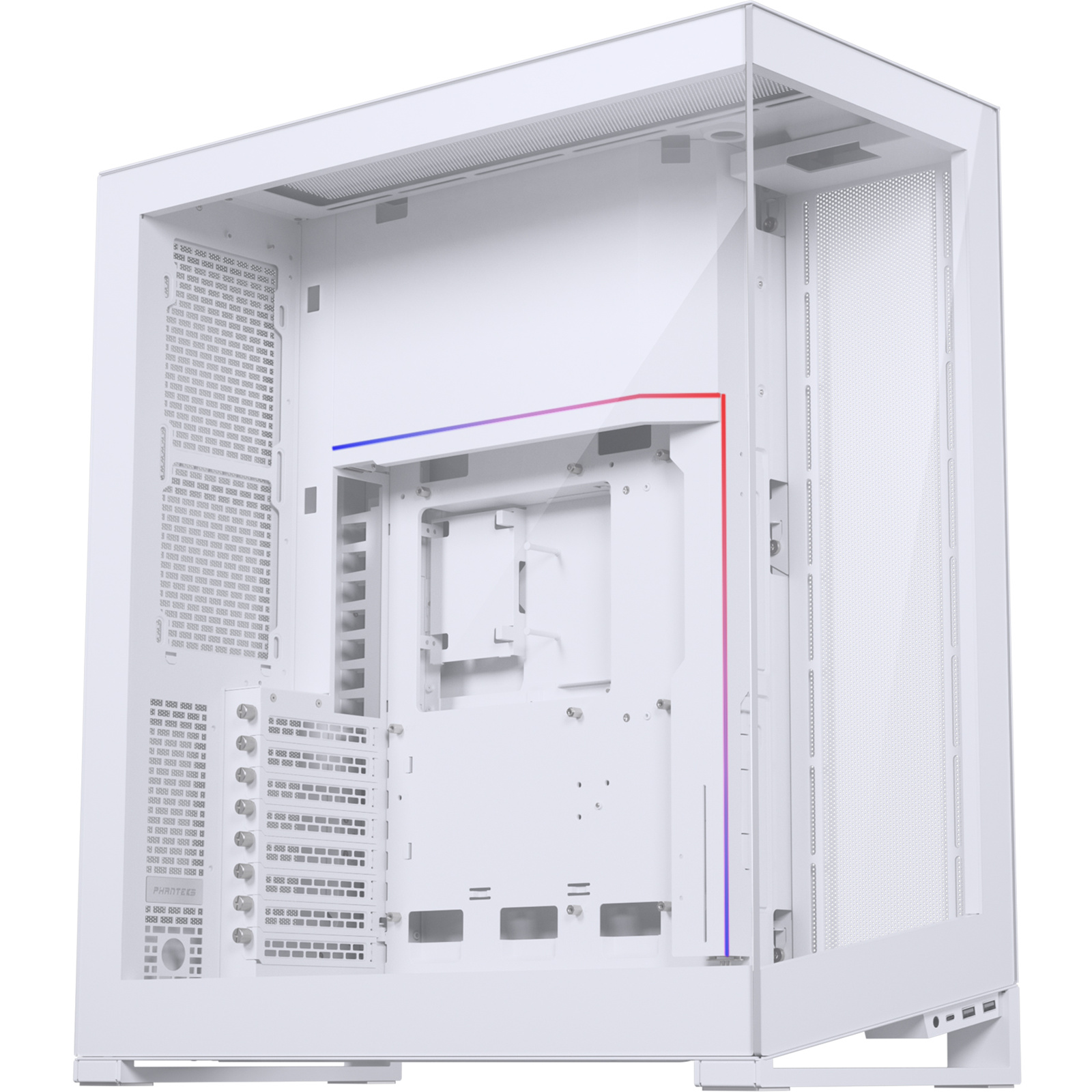

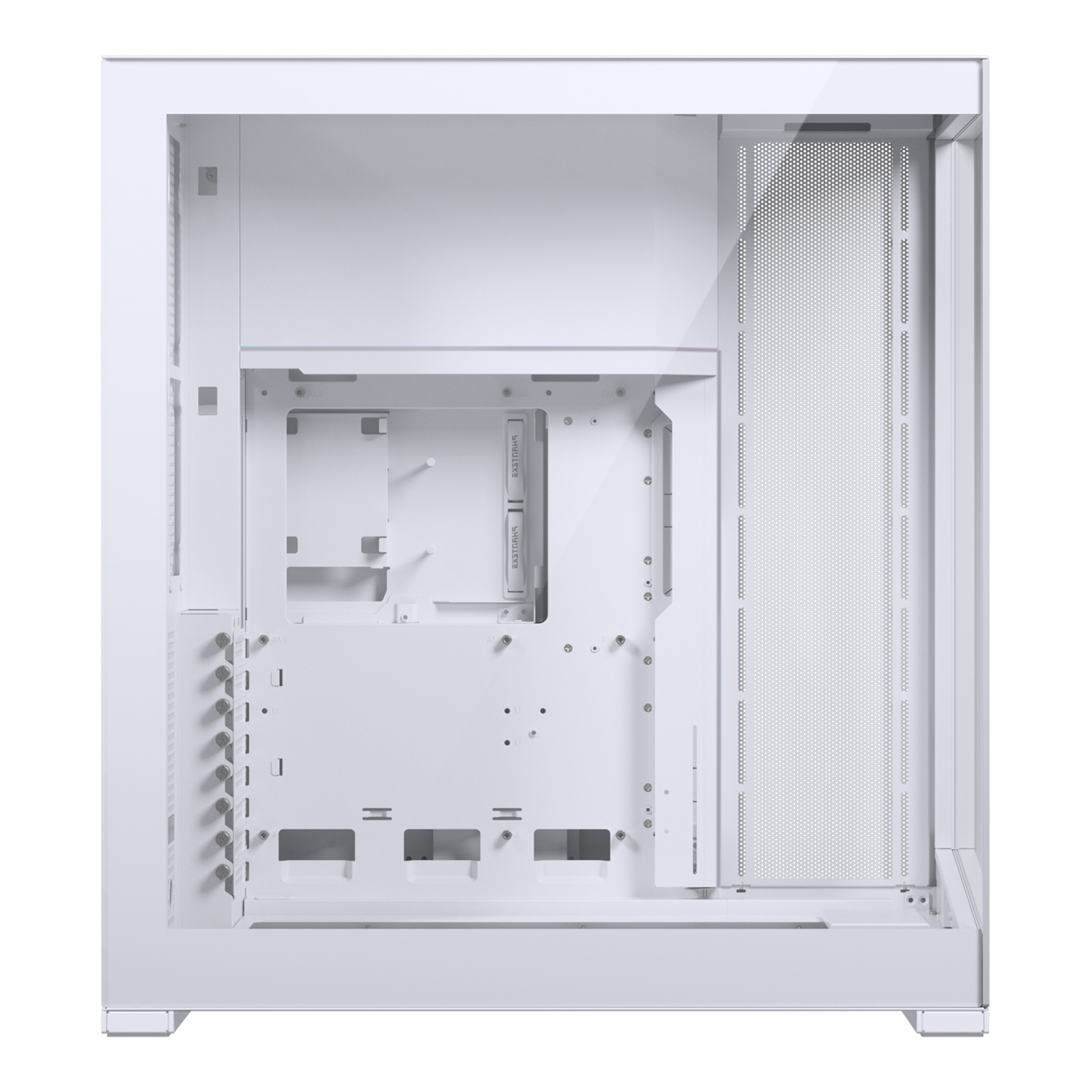

The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.
With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
A PICTURE FRAME FOR YOUR SYSTEM
- Near-seamless glass panels
- The motherboard as a centerpiece of your build
- Fans all around the system with a strong outer frame
- Build to last from thick reinforced steel
PERFORMANCE WITHOUT COMPROMISE
- Direct and dedicated GPU cooling from the bottom

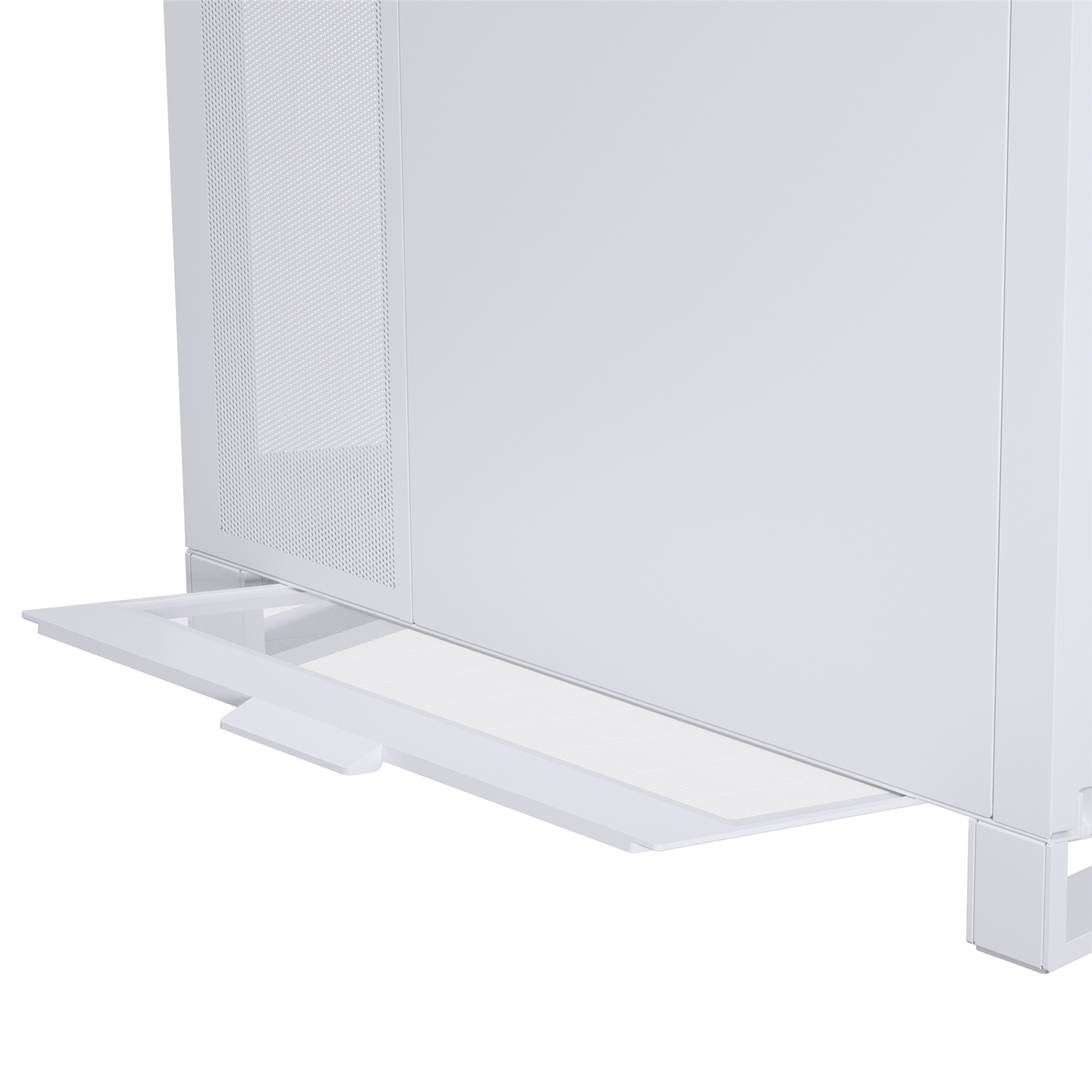

- Immense bottom airflow intake with 65mm clearance
- Ultra-Fine Performance mesh on all external panels
- Extensive cooling supports triple 360 plus a 240 radiator simultaneously
CLEAN EXTERIOR FROM ALL SIDES

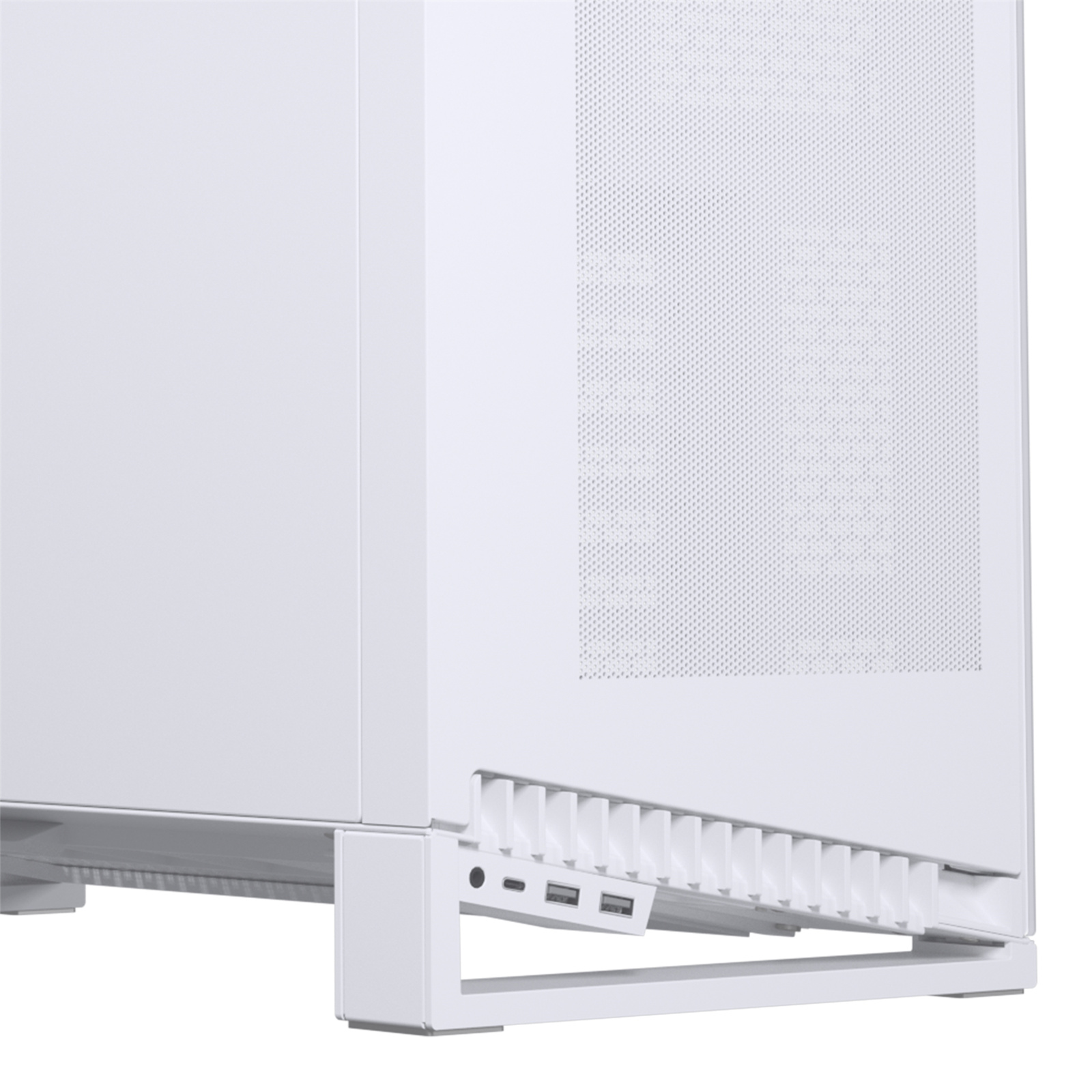

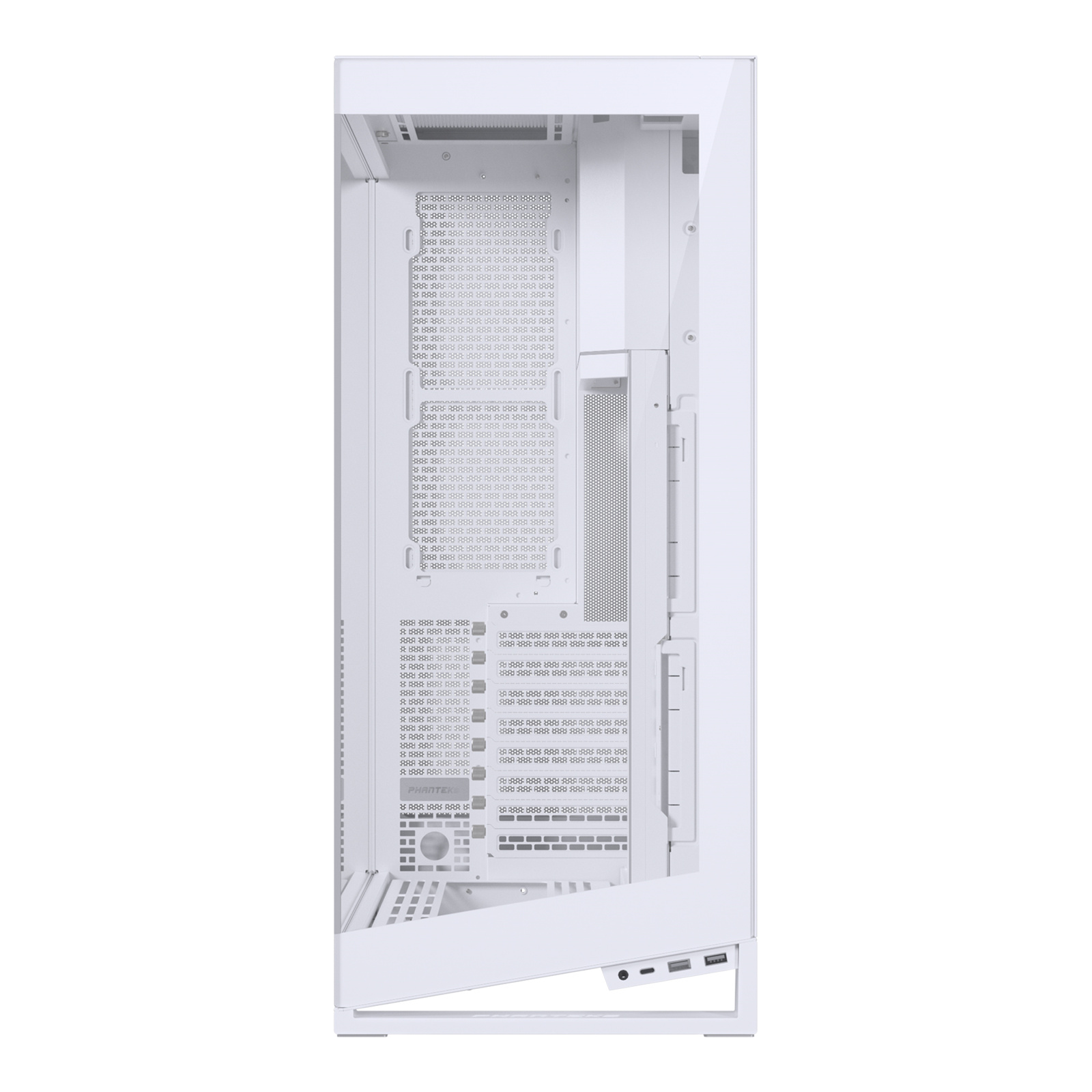

The clean rear door and moveable front IO module allows for multiple placement options
NEXT-LEVEL CABLE MANAGEMENT

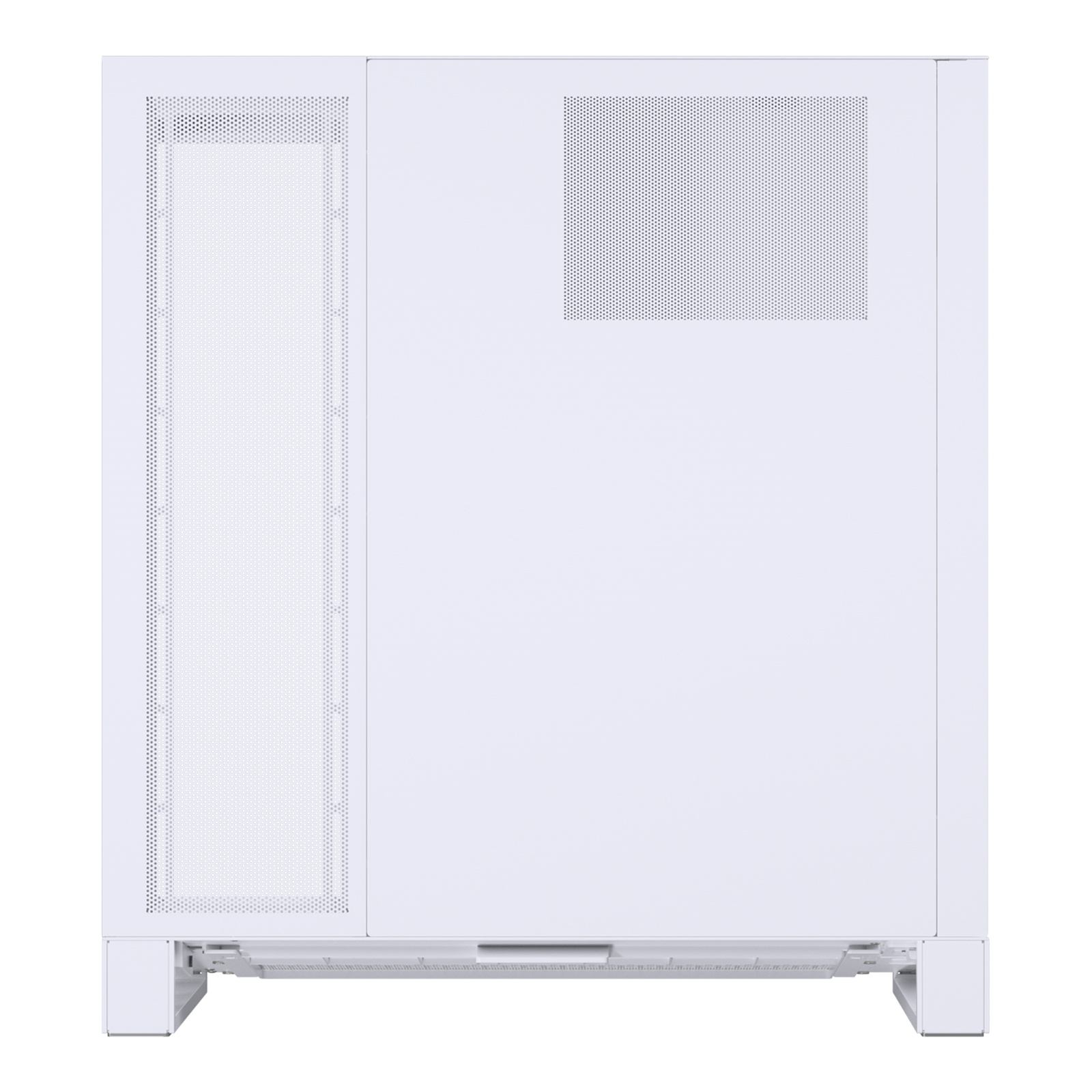

- Rear door swings open to provide easy access
- Unique cable management system for external cables
- Go for a zero-cable setup using the hidden cable exit grommet

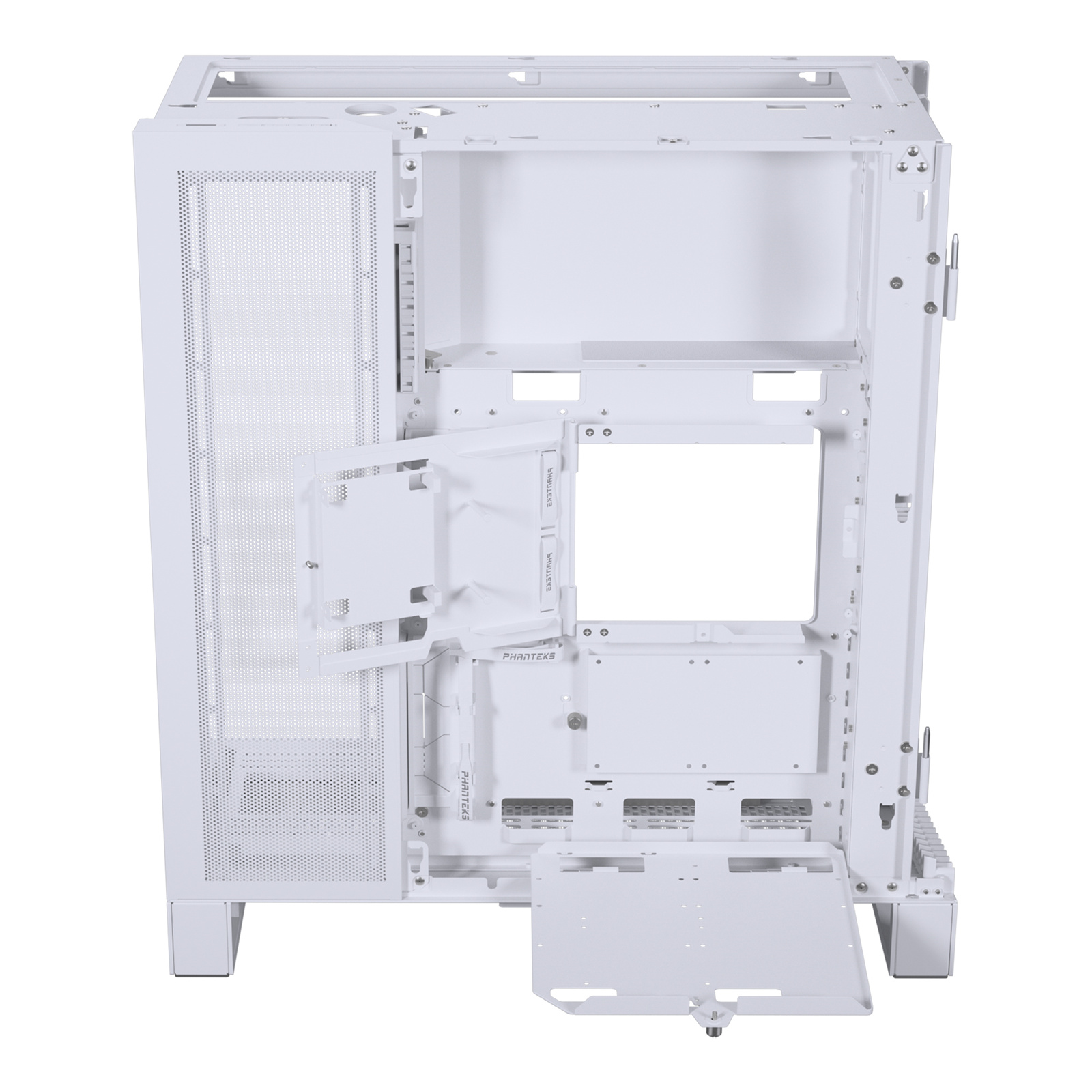

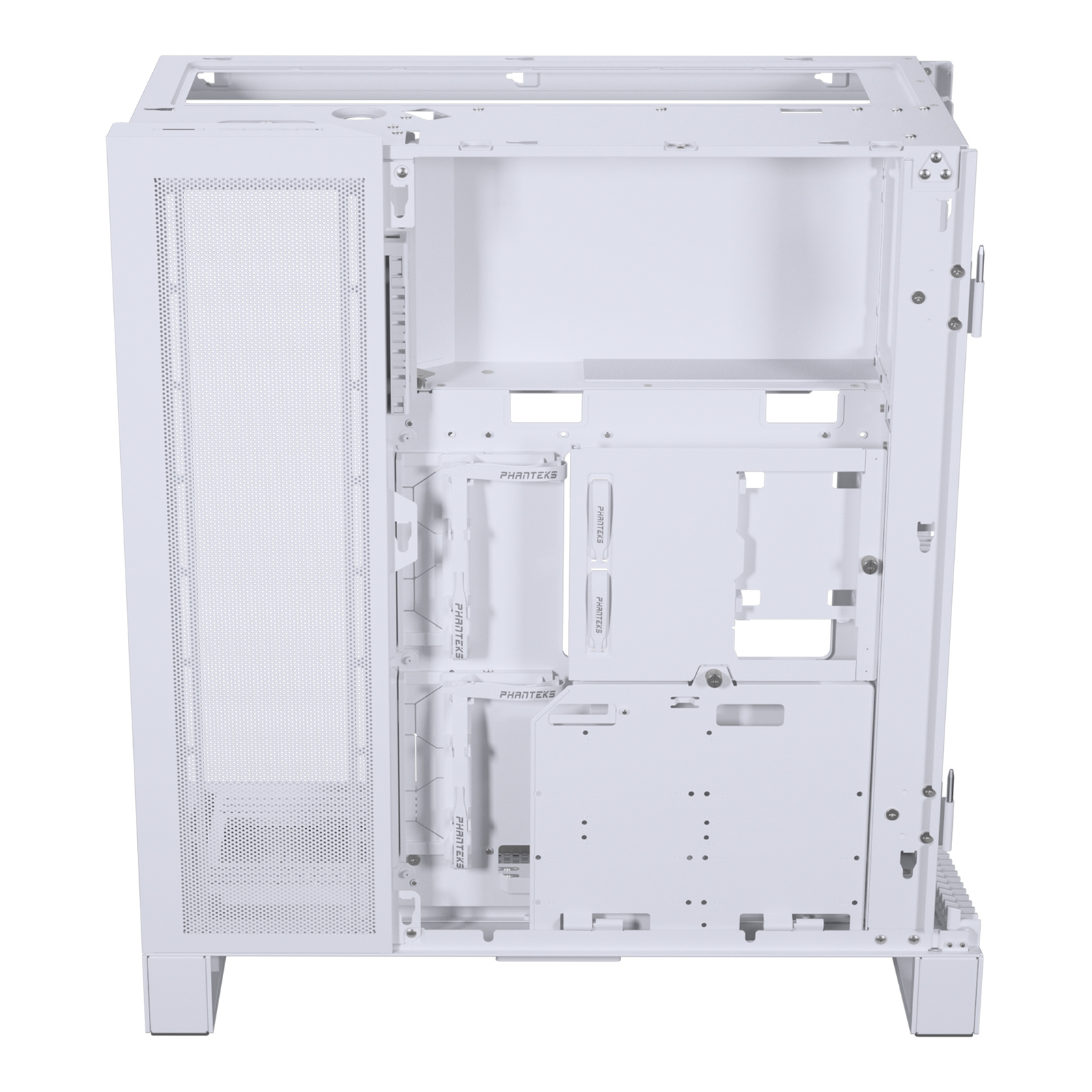

- Cover doors and velcro cable combs easily hide and manage the internal cables
UNIQUE INTERIOR FEATURES
- Integrated D-RGB lighting around the motherboard
- Versatile GPU support bracket prevents sag and securely holds the GPU to the motherboard
NEW GENERATION D-RGB CONTROLLER
- Dual channel output to allow for dual color effects
- A total of 4 output ports and dual Sata power expands the possibilities
- Refined D-RGB lighting effects that just work, no software required
- Optionally, choose for software-control with the included cable
Specifications
Reviews
Do you own this product?
Amazing for a first build
I had never built a PC before, but this case was perfect for a beginner with thumb screws and modular placements, and lots of room to work in. The size also keeps the PC a little cooler. And it looks incredible. If you’re a first timer I’d 100% recommend this case.
A thing of Beauty
I recently upgraded my GPU and although it was ONLY 7mm longer, the tolerance between this GPU and my front mounted AIO in my case at the time meant that I didn't want to risk any issues.
Although I said to myself the last case I bought was meant to be my 'end game' case, GPU manufacturers decided against this, and, I had to bite the bullet and find a new one!
Scouring the net I managed to stumble across this Beauty from Phanteks, absolutely amazing looking case (especially with the Phanteks D30 DRGB fans).
Though the case seems pretty huge, comparing to other cases the sheer size of the NV7 is due to the box shape, looking at other ...view more
A Gorgeous PC Case
This PC Case is awe inspiring. It's absolutely gorgeous, has plenty of space to work in, and has amazing cable management and routing for a super clean look. Its built in RGB lighting controller is excellent as well, especially paired with the d30 Phanteks fans. It is a high price for the case and 12 fans but it is 100% worth it. Its one downside I've found is for top mounting a radiator, make sure the tubes are long enough or you'll have to choose a different mounting position.
Great Case!
Awesome looking case. Very easy to build.
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Related Hardwired Articles
Popular Full Tower Cases
Phanteks Enthoo Pro Black Full Tower Gaming Case With Tempered...
Phanteks Enthoo Pro II Server Edition Full Tower Gaming Case...
Phanteks NV Series NV9 Tempered Glass Window,DRGB, Full Tower,...
Antec C8 ATX MidTower Gaming Case Tempered Glass, CPU Cooler...
Phanteks NV Series NV7 Tempered Glass Window,DRGB, White CPU...
Phanteks NV Series NV7 Tempered Glass Window,DRGB, White CPU Cooler Supports Upto 185mm, GPU Supports Upto 450mm, 360mm Radiator Supported, 8X PCI Slots, Front I/O: 1XType C, 2X USB.
- Brand: Phanteks
- MPN: PH-NV723TG_DMW01
- Part #: CHAPHA0711
- UPC:886523302797
Product URL: https://www.pbtech.co.nz/product/CHAPHA0711/Phanteks-NV-Series-NV7-Tempered-Glass-WindowDRGB-W
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 3 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 1 | |
| Penrose | 7 | |
| Henderson (Express) | 3 | |
| St Lukes | 0 | |
| Manukau | 1 | |
| Hamilton | 3 | |
| Tauranga | 2 | |
| New Plymouth | 1 | |
| Palmerston North | 3 | |
| Petone | 0 | |
| Wellington | 1 | |
| Head Office | 30+ | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
NV7
The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.
With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
A PICTURE FRAME FOR YOUR SYSTEM
- Near-seamless glass panels
- The motherboard as a centerpiece of your build
- Fans all around the system with a strong outer frame
- Build to last from thick reinforced steel
PERFORMANCE WITHOUT COMPROMISE
- Direct and dedicated GPU cooling from the bottom
- Immense bottom airflow intake with 65mm clearance
- Ultra-Fine Performance mesh on all external panels
- Extensive cooling supports triple 360 plus a 240 radiator simultaneously
CLEAN EXTERIOR FROM ALL SIDES
The clean rear door and moveable front IO module allows for multiple placement options
NEXT-LEVEL CABLE MANAGEMENT
- Rear door swings open to provide easy access
- Unique cable management system for external cables
- Go for a zero-cable setup using the hidden cable exit grommet
- Cover doors and velcro cable combs easily hide and manage the internal cables
UNIQUE INTERIOR FEATURES
- Integrated D-RGB lighting around the motherboard
- Versatile GPU support bracket prevents sag and securely holds the GPU to the motherboard
NEW GENERATION D-RGB CONTROLLER
- Dual channel output to allow for dual color effects
- A total of 4 output ports and dual Sata power expands the possibilities
- Refined D-RGB lighting effects that just work, no software required
- Optionally, choose for software-control with the included cable
Specifications
Scope of Delivery
NV7 D-RGB Chassis:
1x SSD/Cable bracket
1x SSD/HDD bracket
1x Two-channel D-RGB Controller
1x Front-IO Module
Top LED Cover
Side LED Cover
Accessory Box:
GPU Support bracket
2x Airflow Covers
D-RGB MB Adapter
6x Zip ties
Microfiber cloth
Screw Assortment Box
Package Dimensions
690 x 345 x 628 mm / 27.2 x 13.6 x 24.7 in
Net Weight
16.90 KG
Gross Weight
19.35 KG
Case Dimensioins (D x W x H)
532 x 253 x 586 mm / 20.9 x 10.0 x 23.1 in
Form Factor
Full Tower
Materials
Steel Chassis, Tempered Glass front and side panels
Motherboard Support
ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide)
Front I/O
1x USB 3.2 GEN 2 Type-C
2x USB 3.0
D-RGB Mode button
D-RGB Colour button
D-RGB Speed button
D-RGB Channel button
Power button
Microphone/headphone Combo
Connectors
Power SW (Power Switch)
Power LED
USB 3.0
USB 3.2 GEN2 Type-E
HD-Audio
2x D-RGB Channel A
2x D-RGB Channel B
D-RGB Motherboard Input
2X SATA Power
D-RGB Controller Output
7A per Channel, 4A per port
Expansion
PCI Slots
8
Internal 3.5" Bay
2 (1x if all SSD positions are used)
Internal 2.5" Bay
6 (4x if both HDD positions are used)
Vertical GPU Support
Yes, with optional bracket PH-VGPUKT4.0_03R
Fan Support
Side Fan
4x 120 mm
Bottom Fan
3x 120 mm / 3x 140 mm
Top Fan
3 x 120 mm
Rear Fan
2 x 120 mm
Radiator Support
Side Radiator
up to 360
Bottom Radiator
up to 360 / up to 280
Top Radiator
up to 360
Rear Radiator
up to 240
Clearances
GPU Length
450 mm / 17.7 in
CPU Cooler Height
185 mm / 7.3 in
PSU Length
255 mm
Side 360 Radiator
Maximum size: 132 x 440 mm
Side 360 Radiator Thickness
65mm (to GPU)
Top 360 Raditor
Maximum size: 132 x 440 mm
Rear 240 Radaitor Maximum size
132 x 320 mm
Bottom Radiator
Maximum size: 140 x 440 mm
