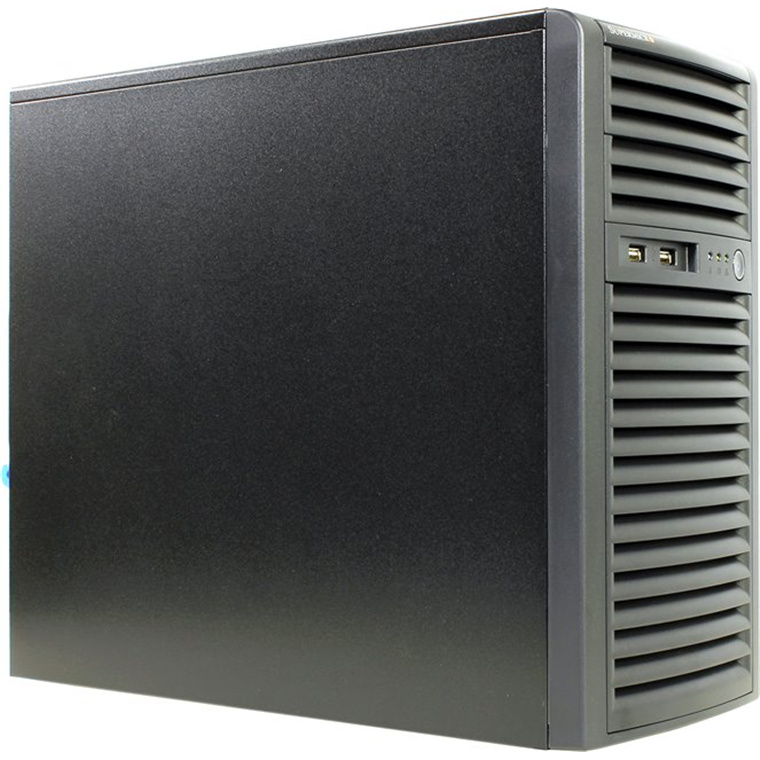

Supermicro mATX Mini-Tower Chassis, 4x 3.5" Internal HDD Bay 90 degree rotatable, 2x 5.25" Bay, 2x Front USB3.0, 400W Gold Efficiency Power Supply, Whisper-quiet 25dB

PB Tech price
PB Tech price
$ 290 .00
 +GST
$ 333 .50
 inc GST

Out of stock

Supermicro mATX Mini-Tower Chassis, 4x 3.5" Internal HDD Bay 90 degree rotatable, 2x 5.25" Bay, 2x Front USB3.0, 400W Gold Efficiency Power Supply, Whisper-quiet 25dB

  • Brand: Supermicro
  • MPN: CSE-731I-404B
  • Part #: CHASPM04026
  • UPC: 672042440184
2
PB Tech price
$ 290 .00 $ 333 .50
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Supermicro
  • MPN: CSE-731I-404B
  • Part #: CHASPM04026
  • UPC: 672042440184

Form Factor

mATX

Side Window

No

Radiator Support

N/A

Maximum Card Length

N/A

CPU Cooler Height Clearance

Not Specified

Colour

Black

Dedicated 2.5" Bay

N/A

2.5" / 3.5" Bays

4

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"One of the better built cases I've worked with and a bargain ...view more"

AR
By: AndrewR85 30/04/24
Verified Owner

"A mostly well thought out design with good cable management. Documentation could be better. The header adapter for power, LEDs etc culd be better too. Not able to connect everyt ...view more"

DB
By: DarylB21 07/08/23
Verified Owner

Features

Key Features

- 90° Rotatable HDD Cage
- Whisper-Quiet (<25dB)
- Kensington Lock Support
- Front I/O Supports 2x USB 3.0
- 1x Optional Front Intake 8cm (2800 RPM) PWM Fan
- Mini-Tower Chassis Supports Micro-ATX Motherboard, Size 9.6" x 9.6"
- 400W Gold Level Certified High-Efficiency Power Supply
- 1x Rear 9cm (2050 RPM) PWM Fan
- 2x 5.25" External HDD Drive Bays & 4x 3.5" Internal HDD Drive Bays

Specifications

Product SKUs

CSE-731i-404B - SuperChassis 731i-404B

Form Factor

Mini-Tower Chassis - supports for maximum motherboard sizes of 9.6" x 9.6"

Processor Support

Dual Intel® and AMD processors

Height

14.25" (362 mm)

Width

7.25" (184 mm)

Depth

16.75" (425 mm)

Net Weight

16 lbs (7.26 kg)

Gross Weight

20 lbs (9.07 kg)

Packaging (W x H x L)

11" (279 mm) x 20" (508 mm) x 21" (533 mm)

Available Color

Black

Expansion Slots

4 full-height & full-length expansion slot(s)

Drive Bays

2 x 5.25" drive bay
4 x 3.5" fixed drive bay

Front Panel

Buttons

Power On/Off button

LEDs

1 Network Activity LEDs
HDD activity LED
Power LED
System Overheat LED

Ports

2x USB 3.0 Port(s)

Systems Cooling

Fans

1 x 9cm (2050 RPM) rear exhaust fan(s)
Optional 1 x 8cm (front) cooling fan

Operating Environment (System)

Operating Temperature Range

5°C - 35°C (41°F - 95°F)

Non-Operating Temperature Range

-40°C - 70°C (-40°F - 158°F)

Operating Relative Humidity Range

8% - 90% (non-condensing)

Non-Operating Relative Humidity Range

5% - 95% (non-condensing)

Power Supply

Power Supply

400W ATX/PS2 Multi-output Power Supply

Power Efficiency

90%

Total Output Power and Input

400W with Input 100 - 240Vac

AC Input Frequency

50-60Hz

Dimensions (L x W x H)

140 x 150 x 86 mm

Output Type

24pin ATX

-12V

Max: 0.37A / Min: 0A

+12V

Max: 12.62A / Min: 0.05A (100Vac - 240Vac)
Max: 12.62A (100Vac - 240Vac)

+5V

Max: 8.75A / Min: 0.2A

+3.3V

Max: 11.48A / Min: 0A

+5Vsb

Max: 2.23A / Min: 0A

Certification

Gold Certified

Power Supply Safety / EMC

CE/EMC
FCC class B
UL/CB
UL/CUL

Manufacturer Part No:
CSE-731I-404B
Brand:
Product Type:
mATX Mini-Tower Chassis,
UPC
672042440184
Product Family:
-
Shipping Weight:
9.7 kg
PB Part No:
CHASPM04026
Product Model:
-
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4 out of 5 Stars Based on 2 reviews
5 Stars
0
4 Stars
2
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Great case for a NAS or Home server

One of the better built cases I've worked with and a bargain given the included PSU. Not as easy to work in as other more mainstream cases but hardly difficult, included cable management items are a great value add and makes future maintenance/upgrades easier.

Only knocking it down 1 point because of the system panel header cable, it uses a proprietary(?) connector found on SuperMicro's own motherboards (Which does have more functionality) and needs the rather unwieldy adapter included in the box to use with consumer boards, which mares the otherwise decent cable management experience as you can't manage it too tightly or else it'll just dis...view more

AR
By: AndrewR85 30/04/24
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Well designed

A mostly well thought out design with good cable management. Documentation could be better. The header adapter for power, LEDs etc culd be better too. Not able to connect everything on the ASRock ATX motherboard I purchased but at least all essential connections can be made.
Love the drive cage assebmbly - very easy to swap out drives if needed.

DB
By: DarylB21 07/08/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
