Silverstone SST-RM52 5U Case Supports Upto SSI-CEB MBD - 8x PCI Slot - Support Dual 360mm Radiator - Front I/O: 2x USB, 1x Type C - ATX / Mini Redundant PSU - Rail Kits: SST-RMS05-22

PB Tech price
PB Tech price
$ 564 .35
 +GST
$ 649 .00
 inc GST

Out of stock

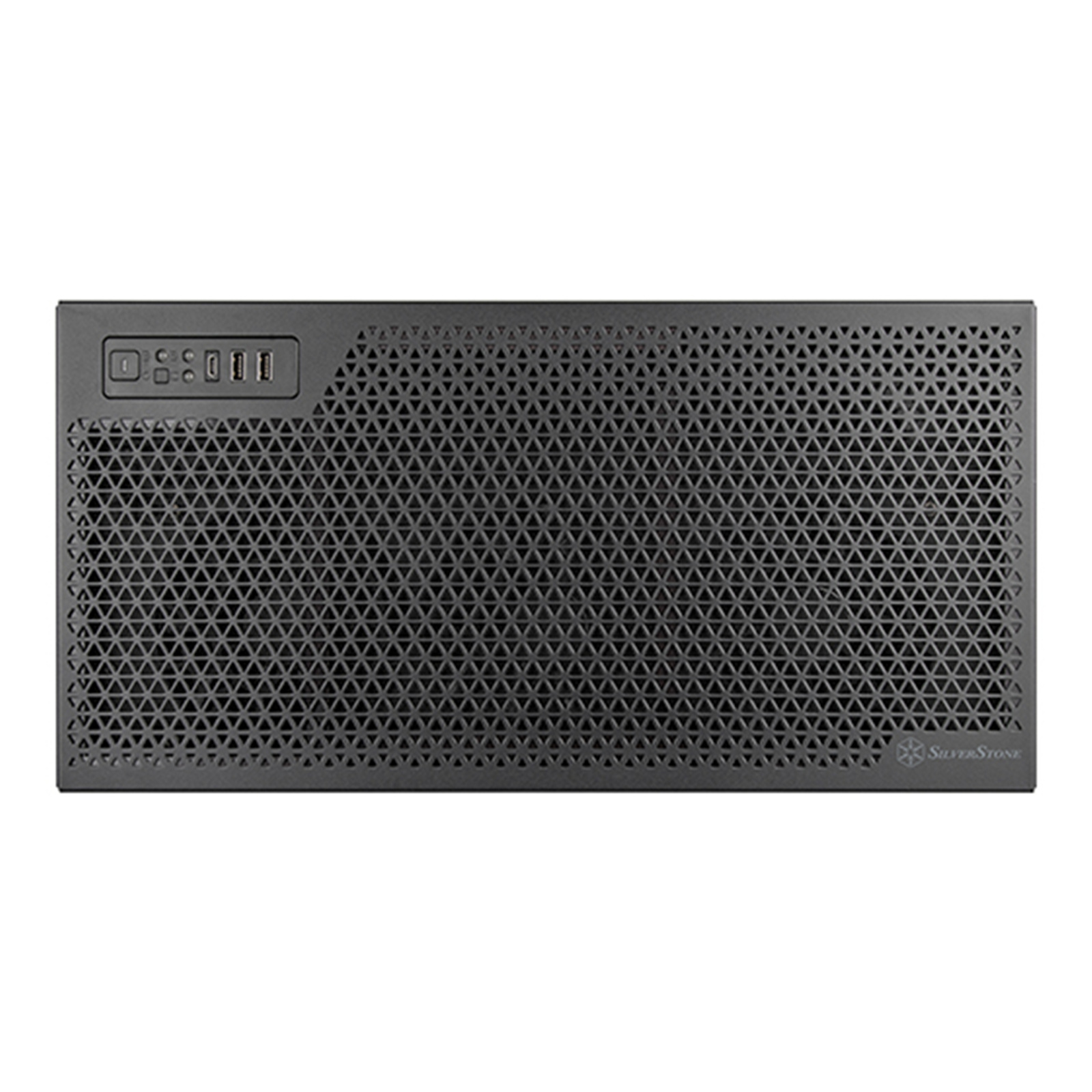

Silverstone SST-RM52 5U Case Supports Upto SSI-CEB MBD - 8x PCI Slot - Support Dual 360mm Radiator - Front I/O: 2x USB, 1x Type C - ATX / Mini Redundant PSU - Rail Kits: SST-RMS05-22

Cooling performance up another notch!
  • Brand: Silverstone
  • MPN: SST-RM52
  • Part #: CHASVT905520
  • UPC: 844761023836
1
PB Tech price
$ 564 .35 $ 649 .00
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?
  • Brand: Silverstone
  • MPN: SST-RM52
  • Part #: CHASVT905520
  • UPC: 844761023836

Form Factor

SSI EEB

Side Window

No

Radiator Support

360mm

Maximum Card Length

512mm

CPU Cooler Height Clearance

192mm

Colour

Black

Dedicated 2.5" Bay

Not Specified

2.5" / 3.5" Bays

4

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"Perfect size to fit larger hardware and great range of configuration options, overall a really well though-out and designed case. Can highly recommend the RMS05-22 rails for rackmo ...view more"

LK
By: LeighK2 19/11/24
Verified Owner

Features

RM52

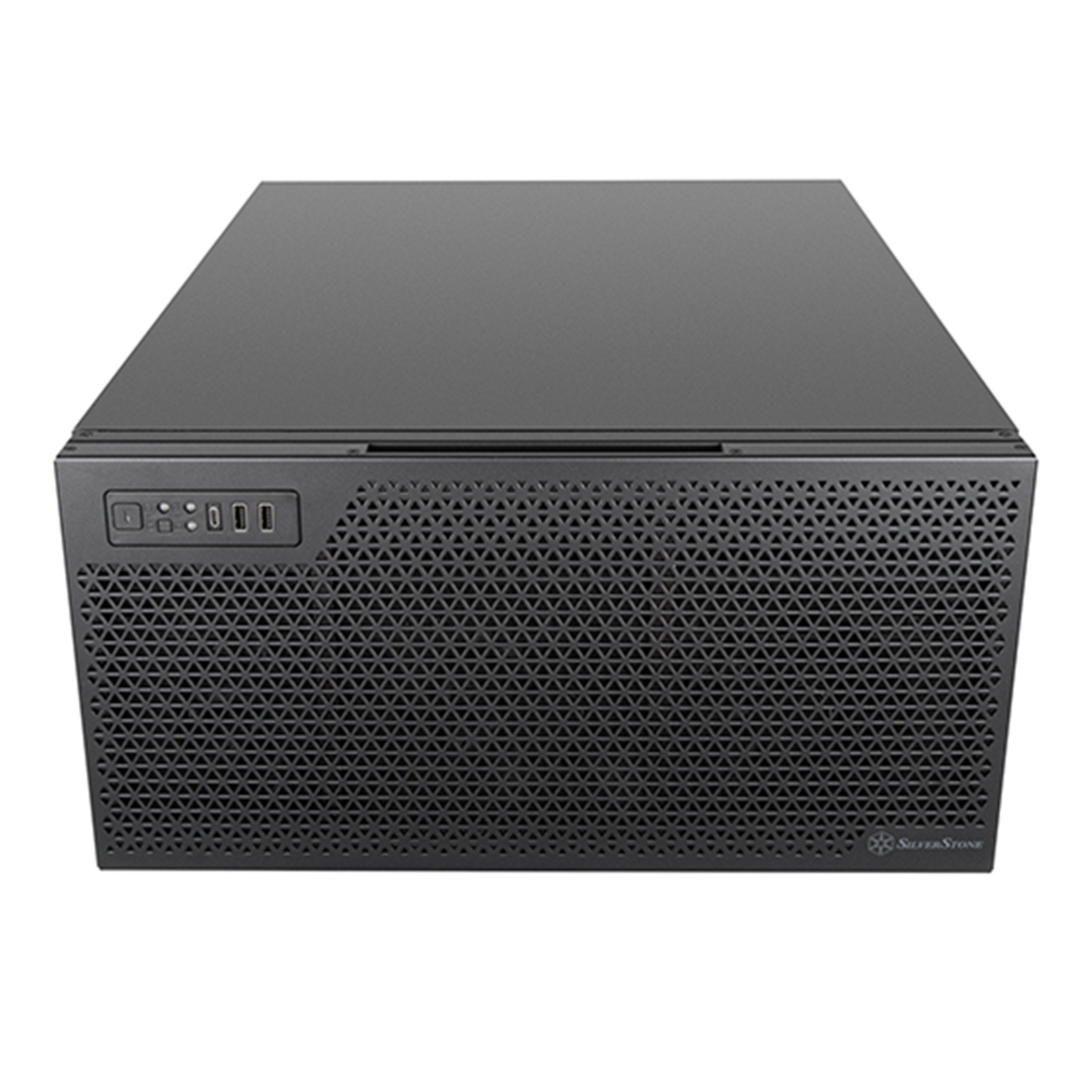

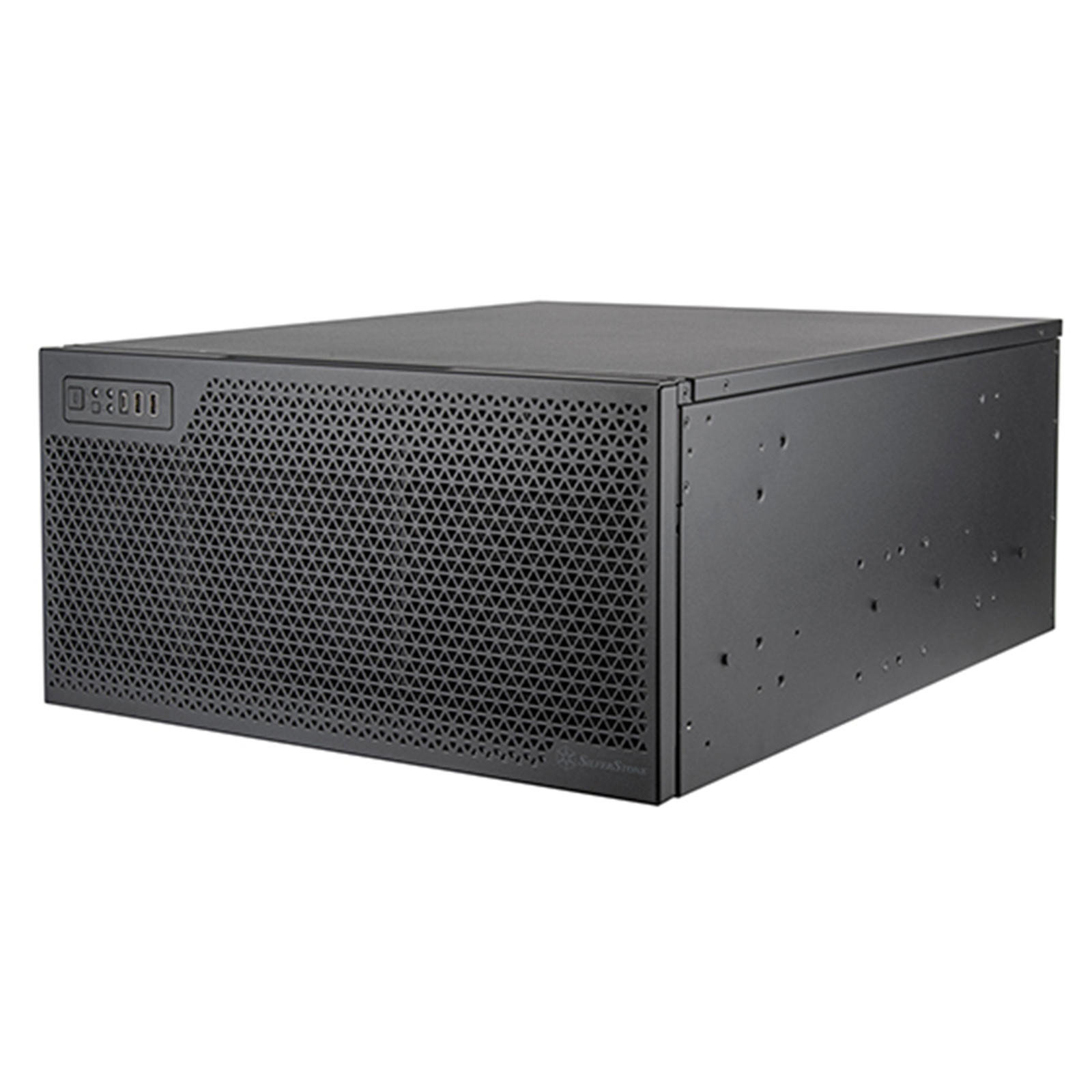

5U rackmount server chassis with dual 360mm liquid cooling compatibility

- Supports up to SSI-EEB motherboards
- Supports dual 360mm liquid cooling radiators

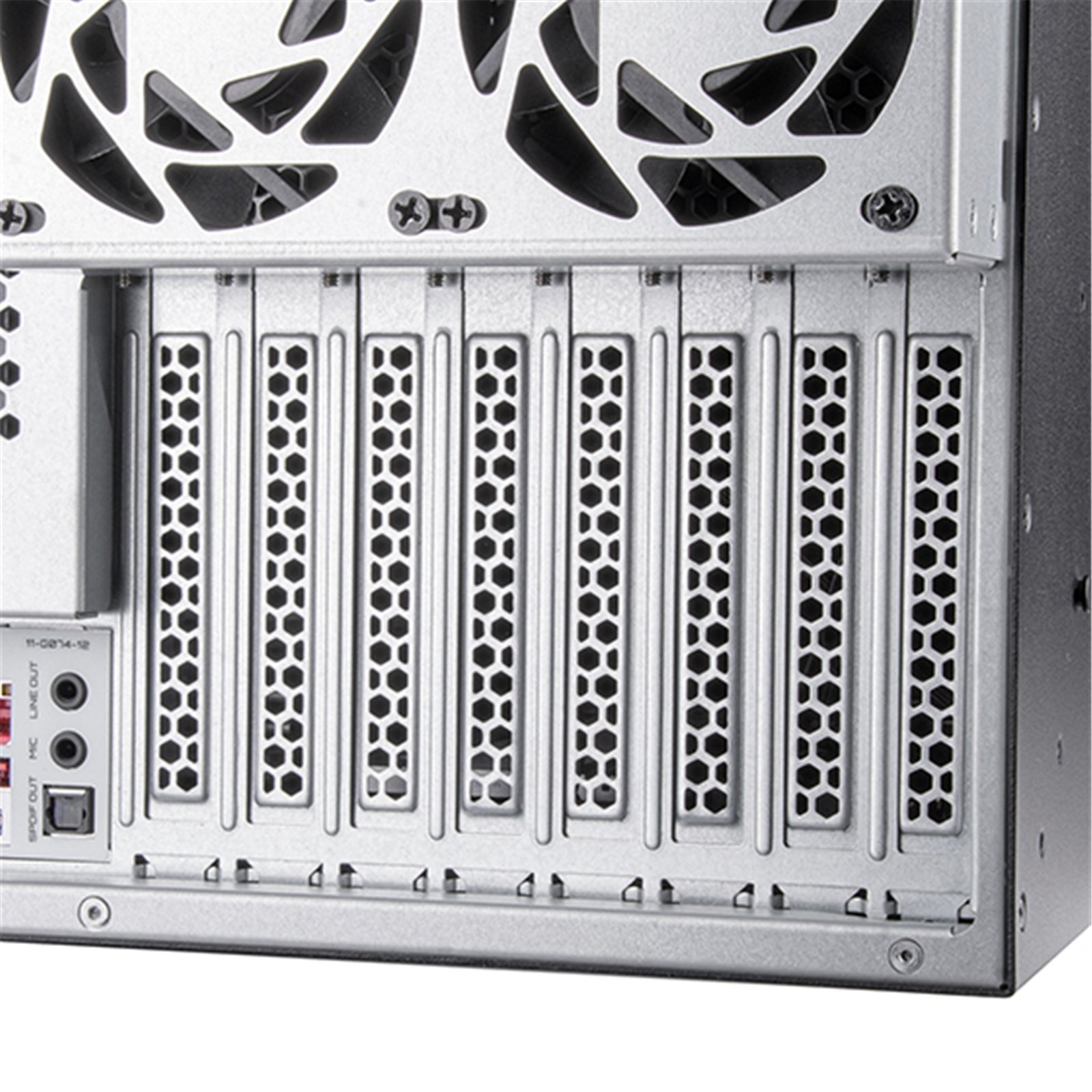

- 8 PCI expansion slots
- Reserved sliding rail mounting holes for quick rail installation
- Includes one USB Type-C interface

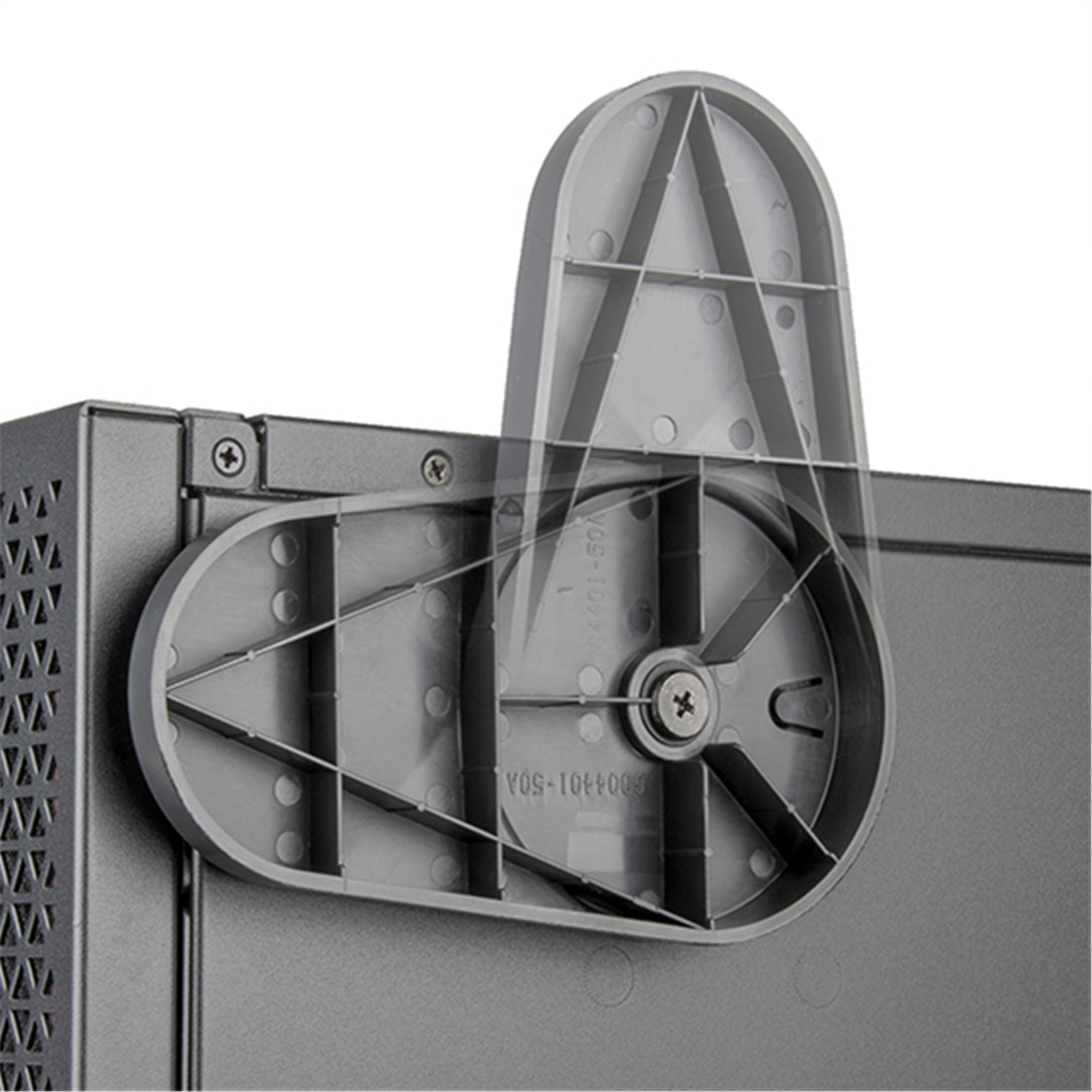

- Upright or horizontal placement flexibility

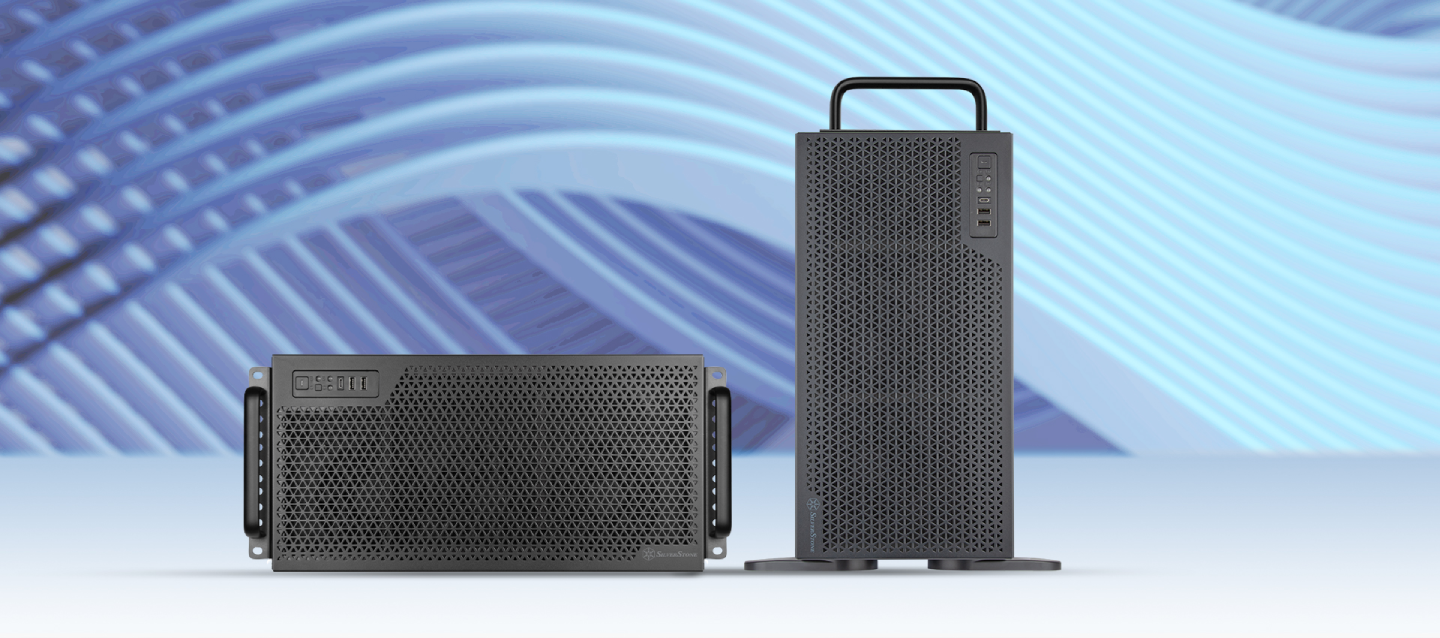

Dual-purpose chassis - Industrial / Home

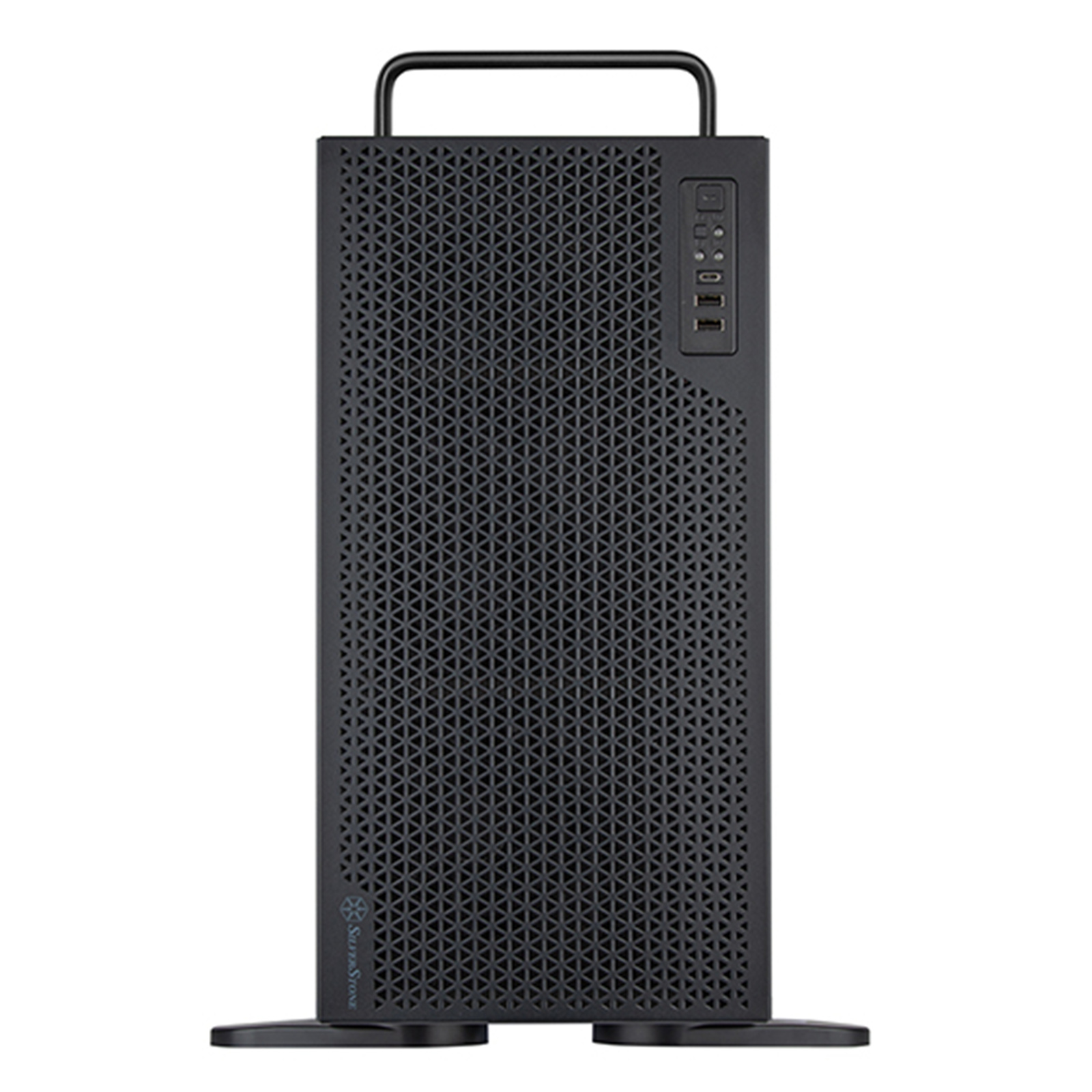

Designed for industrial rackmount or high-end home system usage, which can be placed in vertical or horizontal orientations.

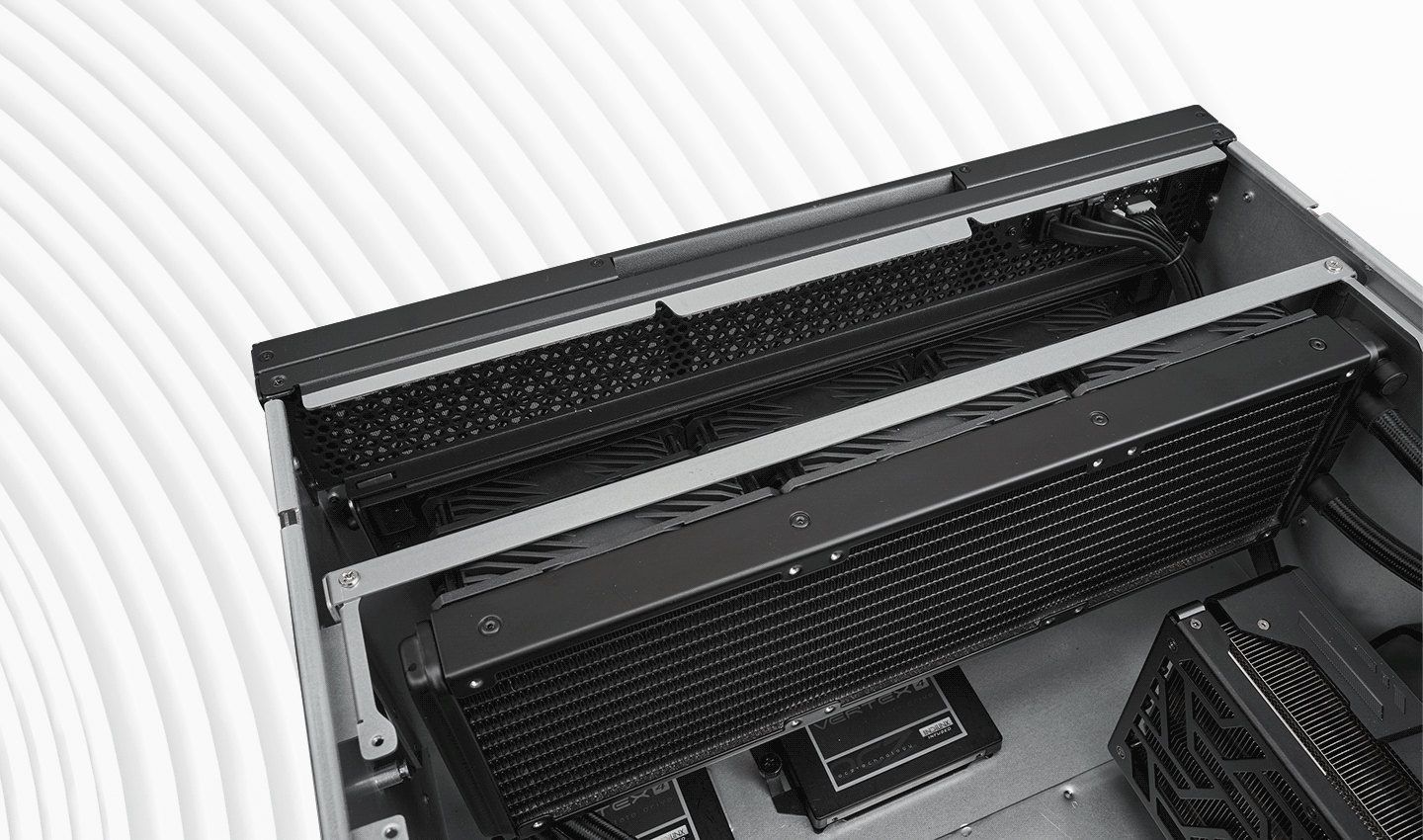

Cooling performance up another notch!

SilverStone's unwavering commitment to achieving superior cooling performance is evident in the RM52, which boasts dual 360mm radiator compatibility, a notable improvement over the single 360mm radiator featured in its predecessor.



Tremendous hardware versatility

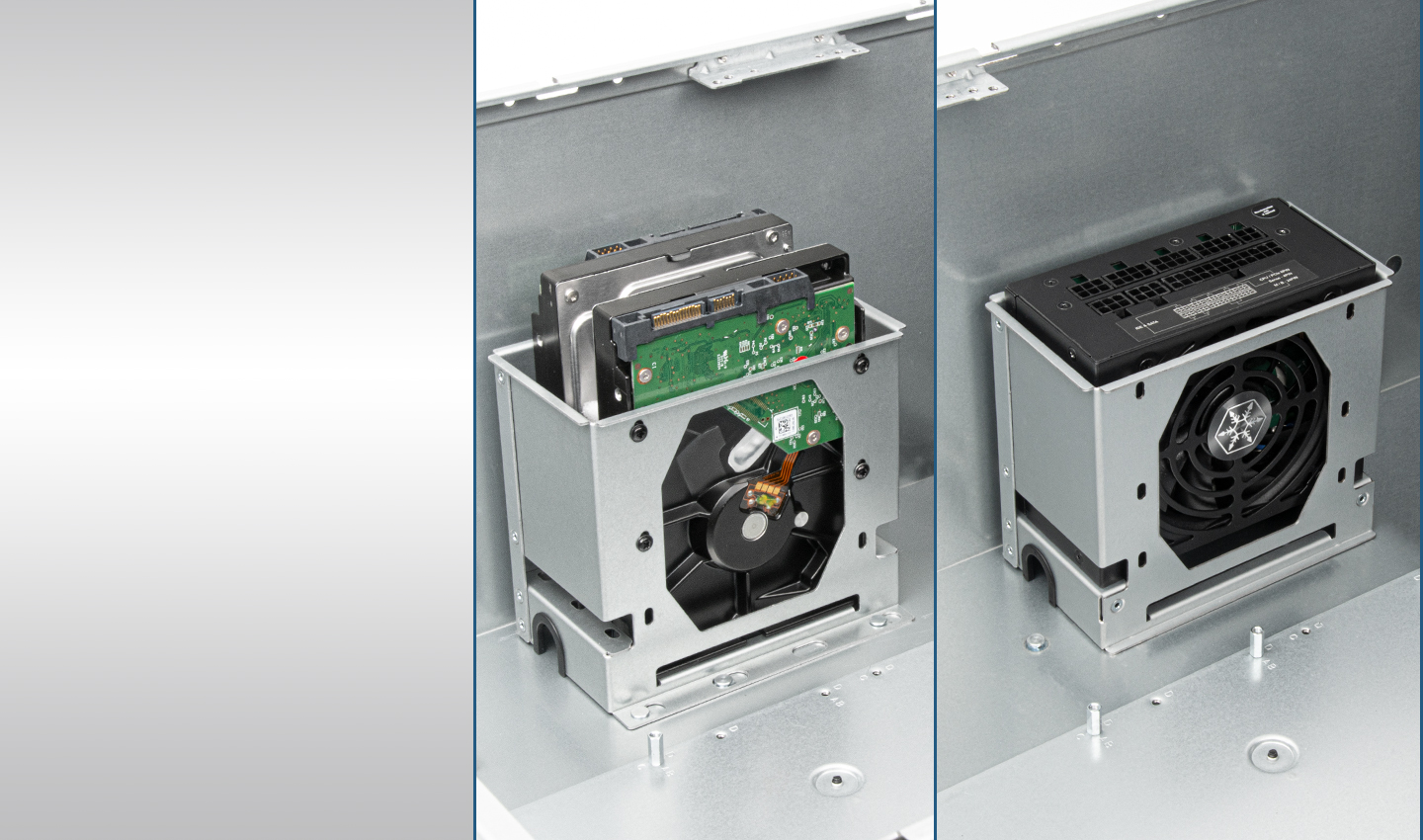

An internal 3.5" drive cage allows the installation of 2 x 3.5" HDDs. If it's to be left unoccupied, enables the option of installing a secondary PSU in SFX form factor



Excellent space maximization

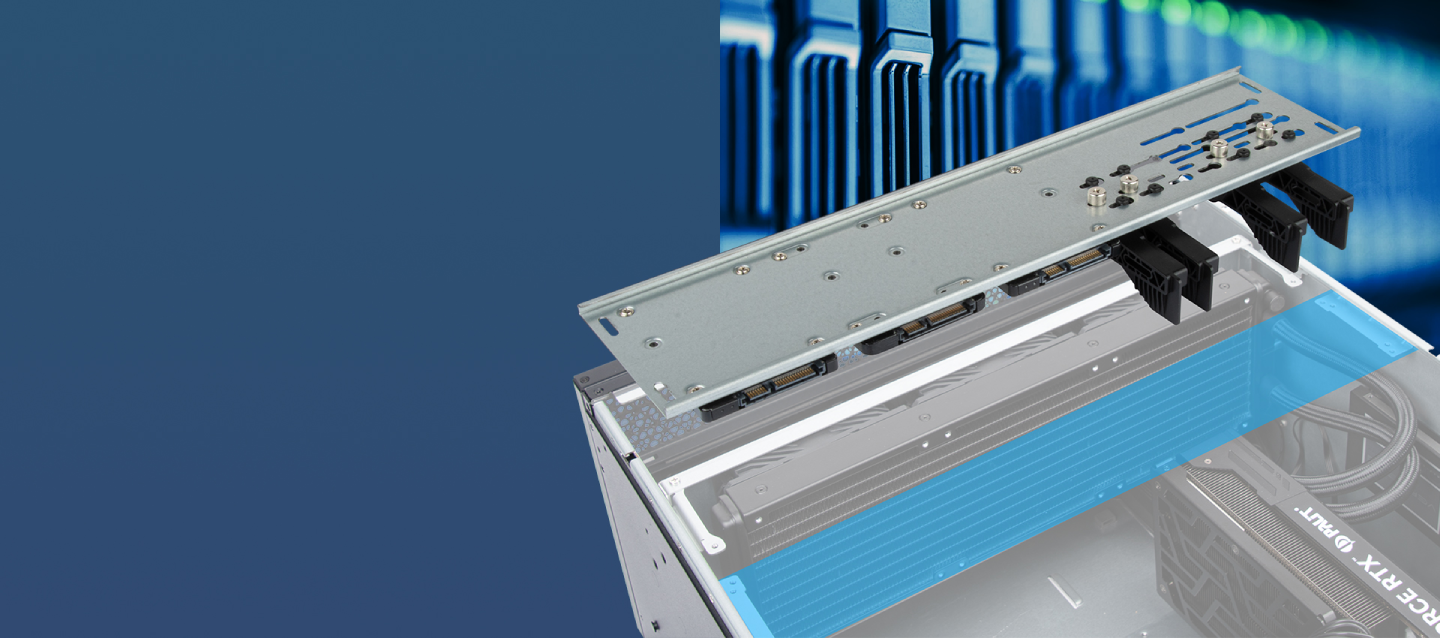

To avoid any unforeseen damages to either the motherboard or the graphics cards, an expansion card retainer with storage drive mounting holes is included to prevent sagging of graphics cards
while maximizing space utilization

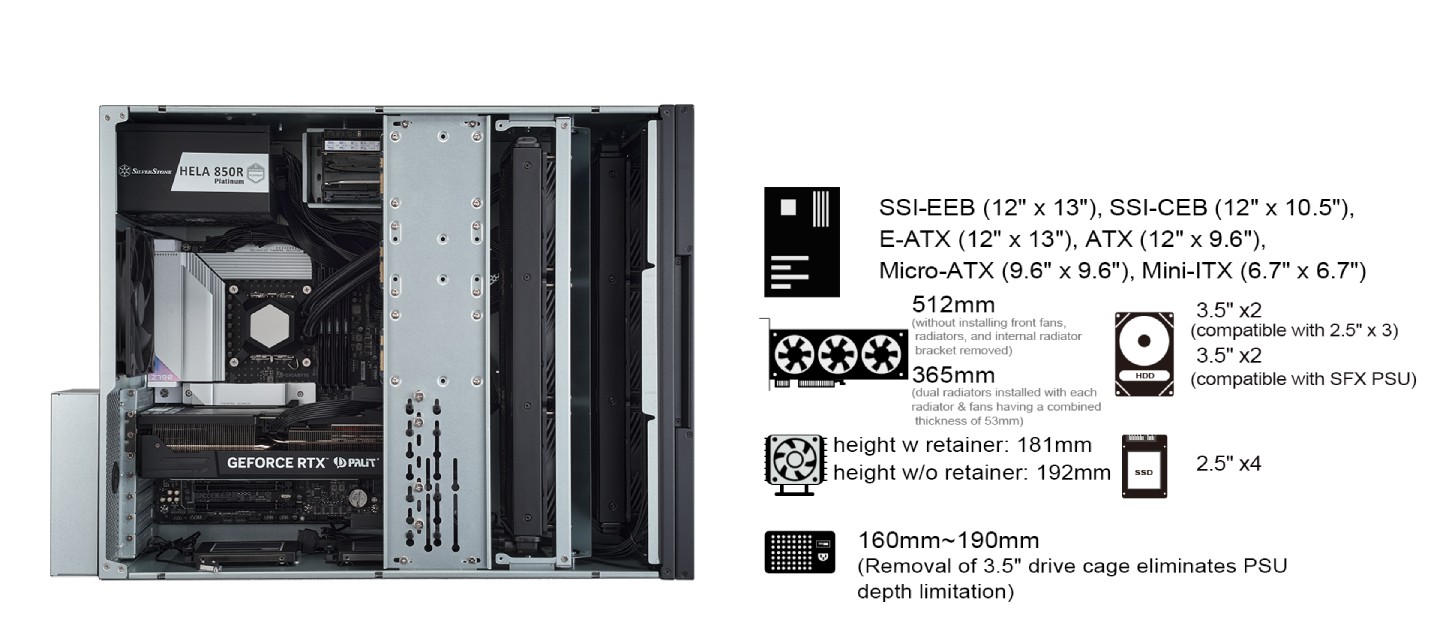

Highly versatile internal layout

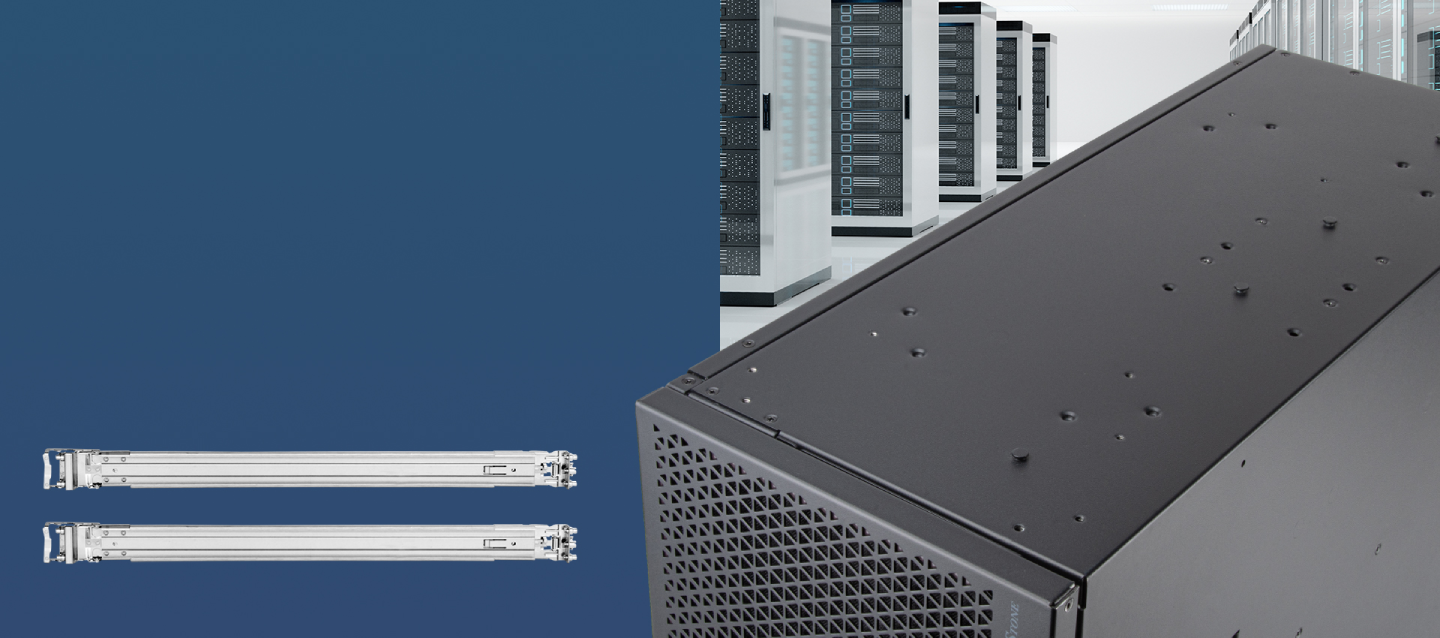

Easy rack accessibility

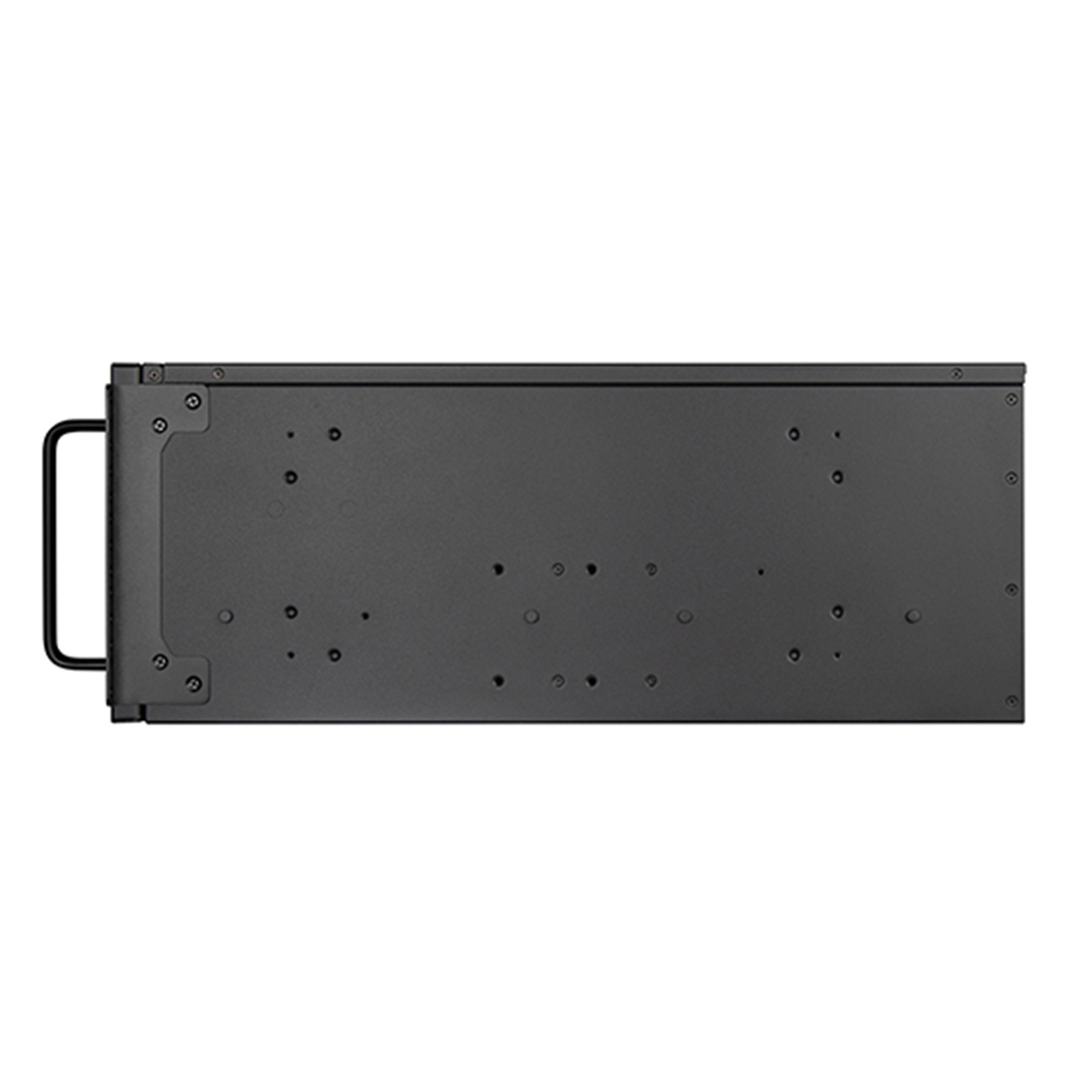

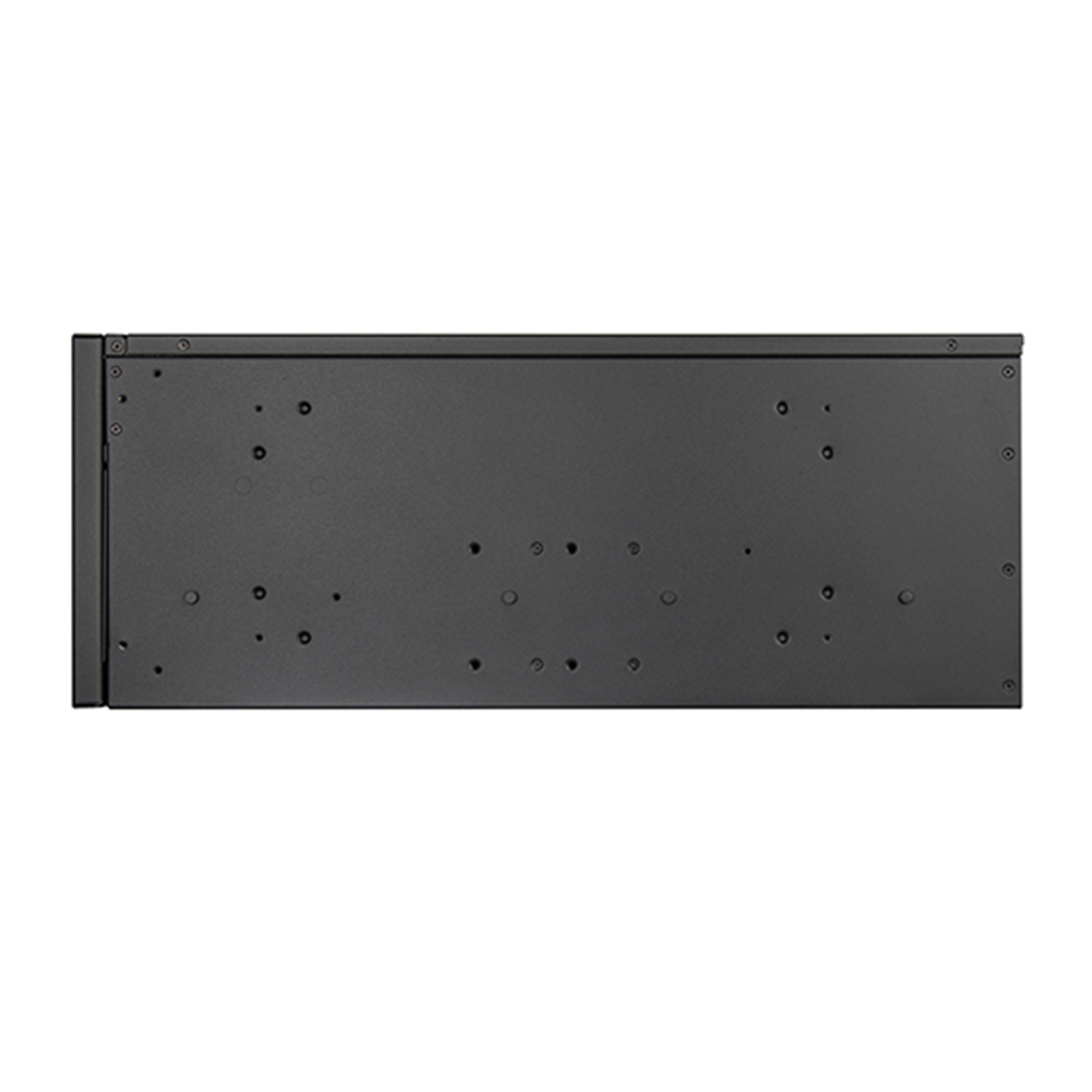

Server rack sliding rails can be easily fitted onto the chassis with the reserved mounting holes.

*SST-RMS05-22(sold separately)

Specifications

Model No.

SST-RM52

Chassis form factor

5U

Motherboard

SSI-EEB, SSI-CEB, Extended ATX, ATX, Micro-ATX, Mini-ITX

Material

Steel

Drive Bay

Internal
3.5" x 2 (compatible with 2.5" x 3) + 3.5" x 2 (compatible with SFX PSU)

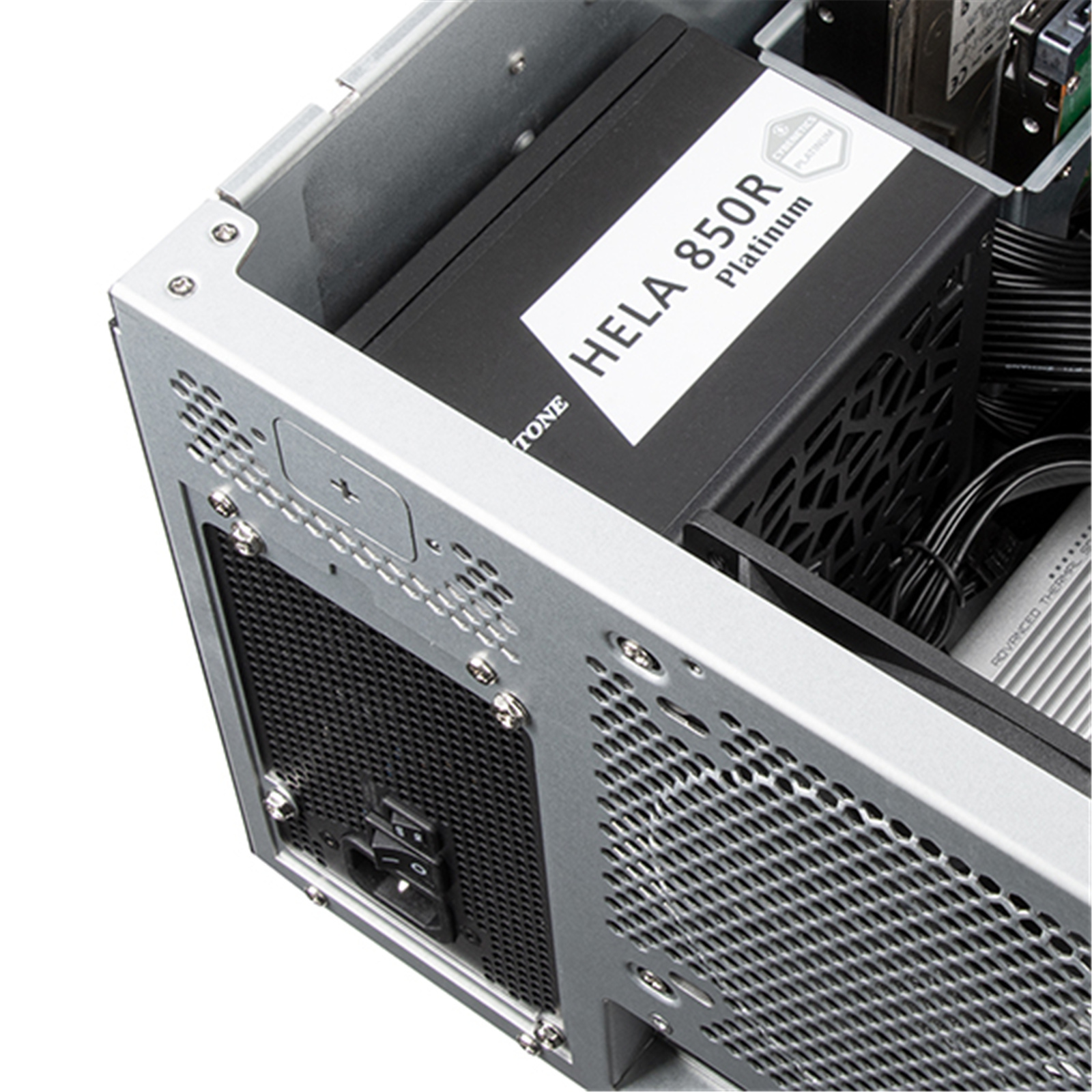

Power Supply

Primary PSU slot: PS2 (ATX) / Mini Redundant
Secondary PSU slot: SFX (occupies 3.5" bracket)

Limitation of PSU

160mm~190mm
(Removal of 3.5" drive cage eliminates PSU depth limitation)

Cooling system

Front
120mm x 6

Rear
Rear I/O:
120mm x 1 / 140mm x 1 (1 x 140mm fan included)

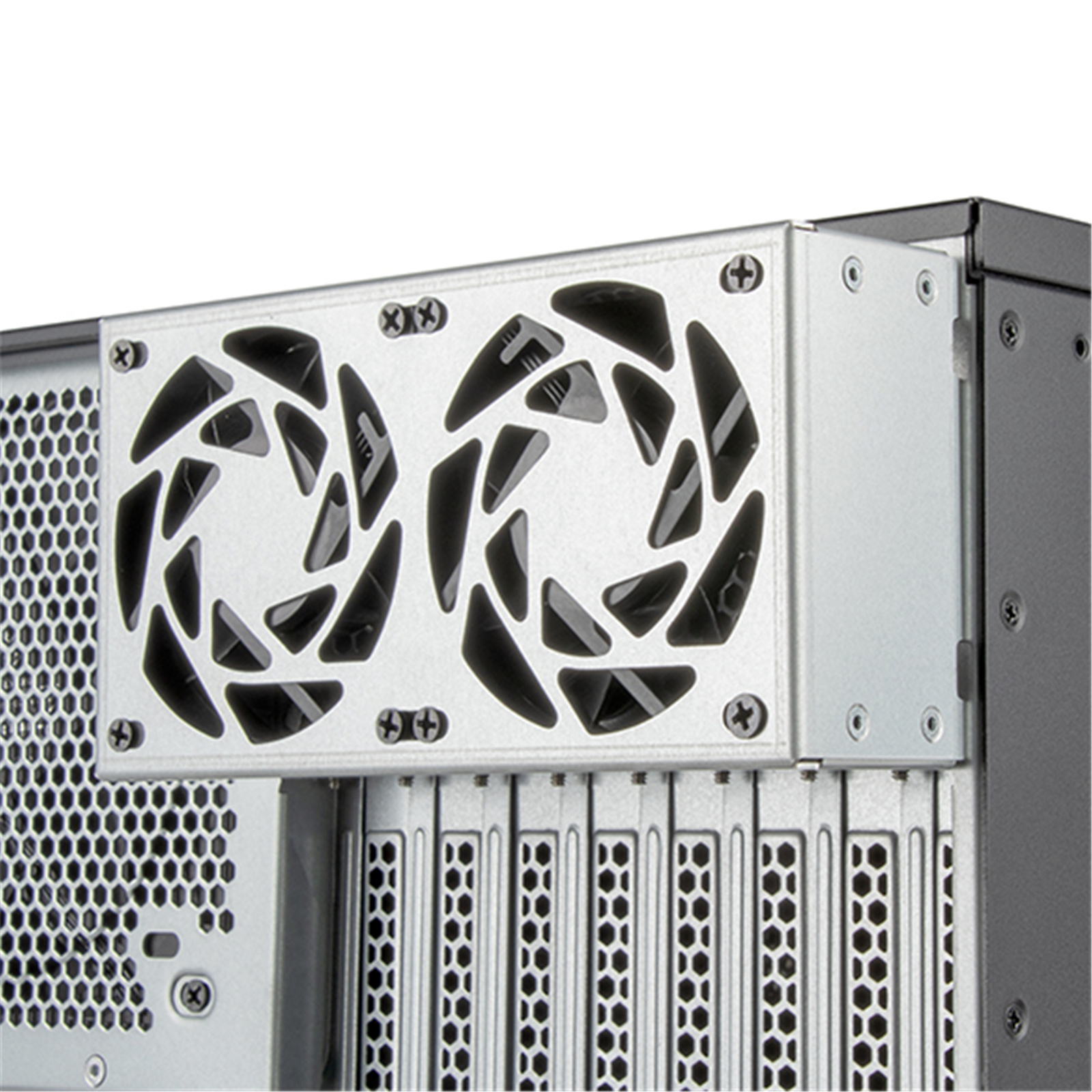

Rear fan cage:
80mm x 2 (2 x 80mm fans included)

Radiator support

Front
120mm x 4 / 360mm x 2

Rear
120mm x 1

Limitation of CPU cooler

Height w/ expansion card retainer: 181mm
Height w/o expansion card retainer: 192mm

Expansion card

Length: 512mm (without installing front fans, radiators, and internal radiator bracket removed) / 365mm (dual radiators installed with each radiator with fans having a combined thickness of 53mm) *
Width w/ expansion card retainer: 160mm
Width w/o expansion card retainer: 198mm

Expansion Slot

8

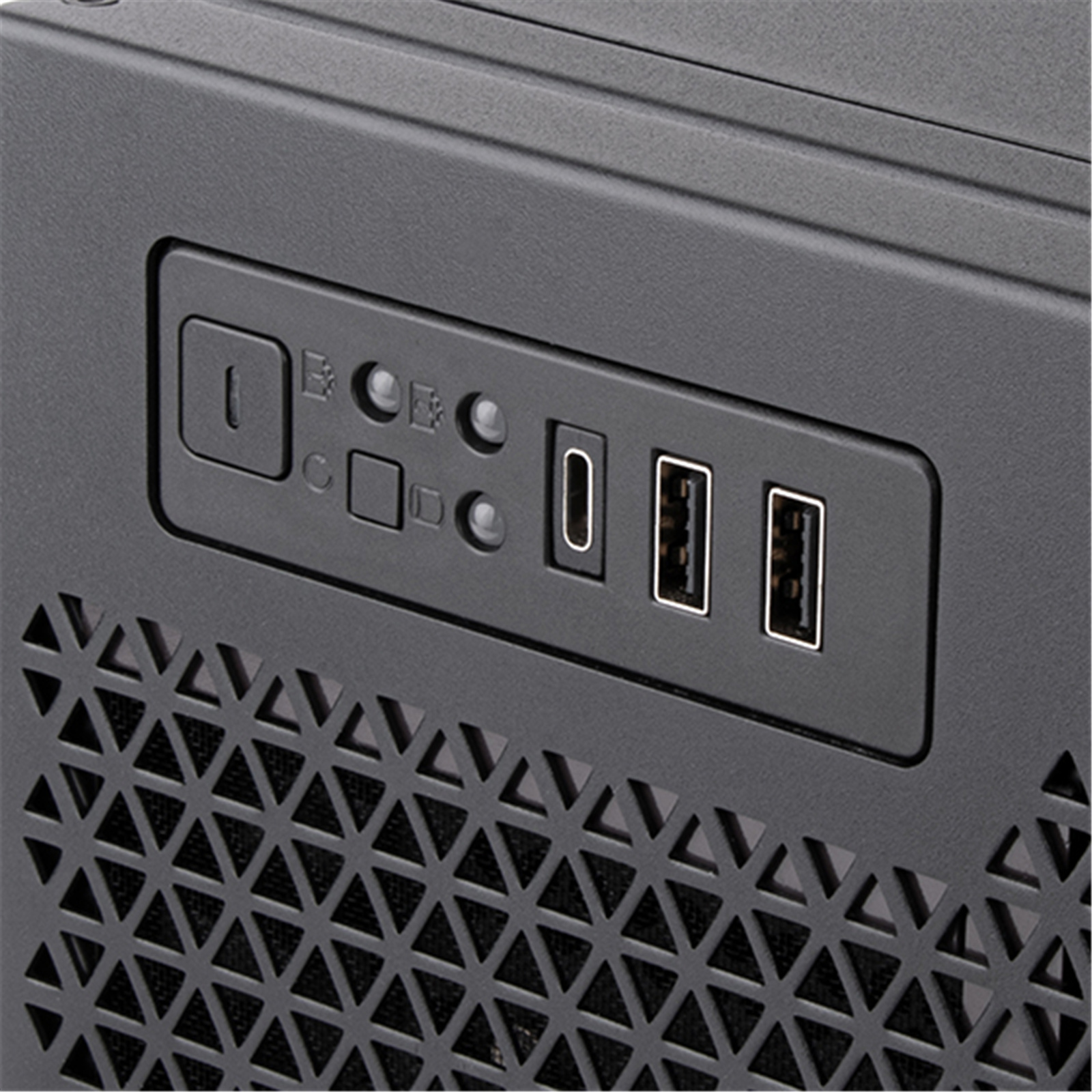

Front I/O Port

USB Type-C x 1
USB 3.0 x 2

LED indicator

Power status x 1
HDD activity x 1
LAN activity x 2

Dimension

Incl. rear fan cage: 440mm (W) x 220mm (H) x 605mm (D), 58.56 liters
Excl. rear fan cage: 440mm (W) x 220mm (H) x 560mm (D), 54.21 liters
Incl. rear fan cage: 17.3" (W), 8.66" (H), 23.82" (D)
Excl. rear fan cage: 17.3" (W), 8.66" (H), 22.05" (D)

Net Weight

11.45 kg

Extra

Side switch for chassis intrusion security

Manufacturer Part No:
SST-RM52
Brand:
Product Type:
-
UPC
844761023836
Product Family:
SST-RM52
Shipping Weight:
17.37 kg
PB Part No:
CHASVT905520
Product Model:
5U Case
Warranty: 12 months *
