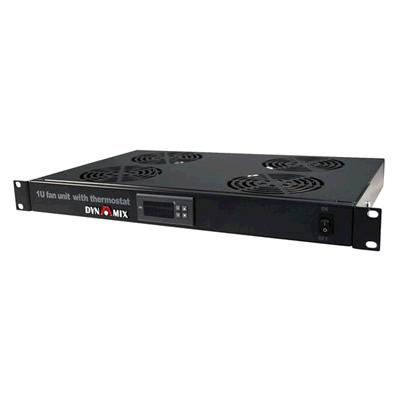

Dynamix 1U Fan Unit w/ Digital Thermostat. 4 fans 19" installation

Dynamix 1U Fan Unit w/ Digital Thermostat. 4 fans 19" installation
  • Overview
  • Features
  • Reviews

Generating Print Page

Dynamix 1U Fan Unit w/ Digital Thermostat. 4 fans 19" installation

Dynamix 1U Fan Unit w/ Digital Thermostat. 4 fans 19" installation

Features

Feautures:
? Simple structure, easy installation
? Easy cabling & operation
? Disturbing resistance, reliable
? 2-way output
Function:
? Adjusts inner cabinets temperature by intelligent control through fan unit.
Degree of protection:
? IP23

S/N
Specification
Parameter
1
Temperature Range
0�C~50�C
2
Input
PTC 10KO
3
Output
2-way output
4
Consumption
3W
5
Power supply
220VAC
6
Accuracy
�1�
7
Display
2 way 8 section digital pipe, red
8
Ambient temperature
-10�~70�
9
Maintain temperature
-20�80�
10
Ambient humidity
=5% RH
11
Installation
19? standard


Instructions
I.Connection / wiring
Steps:
1. Connect the temperature sensor to the sensor of temperature controlling unit.
2. Connect the outside fan to the fan plug with special cable.
3. Connect the outside power to the power plug of temperature controlling unit with special cable.
II.Operation
When all the connection steps above have been completed and it has been confirmed that the connection is ok, then switch on the temperature controller and adjust the control parameter to the appropriate temperature.

Specifications

Manufacturer Part No: RAFT-DT Brand: Dynamix Product Type: -
UPC - Product Family: - Shipping Weight: 5.833 kg
PB Part No: CHSDNX0001 Product Model: -

Warranty: 24 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
