Features

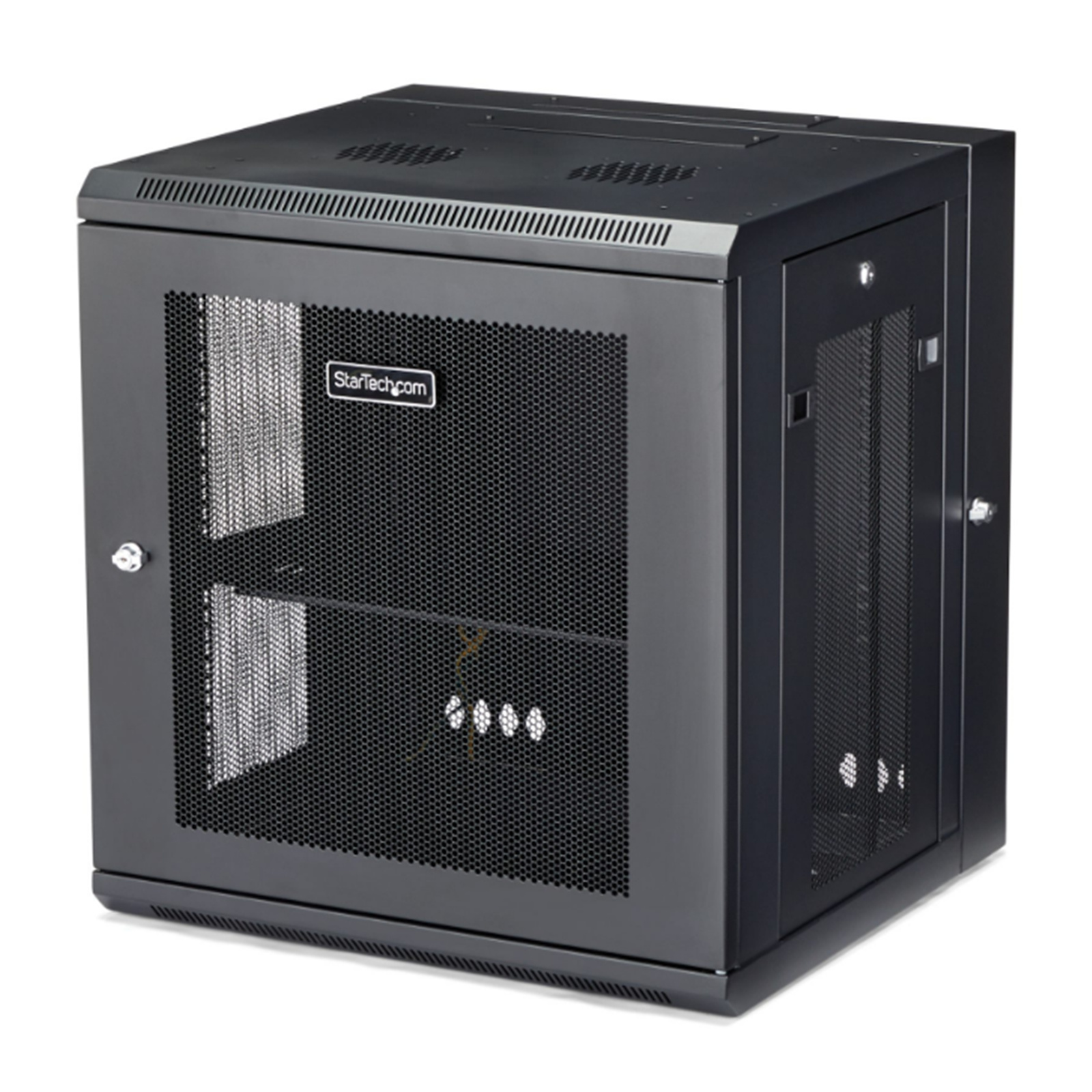

This 12U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure that has a hinged rear door for easy access to your equipment. The enclosure features adjustable mounting depth from 2 to 16 in. to provide a robust storage solution for your rack-mount equipment.
To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).
Save space in your office or server room
Save valuable floor space by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.
Easily access your servers and network equipment
The wall-mount network rack makes it easy to access your equipment and cabling, with a rear hinge that swings the enclosure away from the wall. By flipping the enclosure 180 degrees upon installation, you can reverse the direction of the hinge so that the enclosure can swing open from left or the right, depending on your preference.
The 12U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.
For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.
Securely protect your equipment
This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.
To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.
For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.
Specifications
Hardware
Special Features
Adjustable Mounting Rails
Built-in Cable Management
Grounding Lug(s)
Ships Fully Assembled
U-Markings
Wall-Mountable with Rear Access Hinges
Fan Options
Four Optional Fans: 120 mm
Industry Standards
EIA/ECA-310-E
Mounting Hole Types
Square (For Cage Nut),Threaded Hole
Mounting Rail Profile
L-Shape
Rack Type
4-Post
U Height
12U
Frame Type
Enclosed Cabinet
Wallmountable
Yes
Packaging Information
Flat Pack (Assembly Required)
No
Package Length
24.6 in [62.5 cm]
Package Width
26.6 in [67.5 cm]
Package Height
28.3 in [72.0 cm]
Shipping (Package) Weight
72.0 lb [32.7 kg]
Performance
Weight Capacity
198.4 lb [90 kg]
Physical Characteristics
Front Door Features
Secure Key Lock with Reversible and Removable Front Door
Side Panel Features
Secure Key Lock with Removable Side Panels
Rear Door Features
Secure Key Lock
Side Panel Construction
Steel Mesh
Front Door Construction
Steel Mesh
Rear Door Construction
Steel
Color
Black
Product Measurements
Weight of Product
63.7 lb [28.9 kg]
Internal Width
23.4 in [59.5 cm]
Internal Depth
21.5 in [54.5 cm]
Product Length
21.7 in [55.0 cm]
Product Width
24.0 in [61.0 cm]
Product Height
25.2 in [64.0 cm]
Maximum Mounting Depth
15.7 in [40 cm]
Minimum Mounting Depth
2.4 in [6 cm]
What's in the Box
Included in Package
1 - wall-mount enclosure
1 - 1U shelf
1 - roll of hook-and-loop fastener
50 - 12-24 cage nuts
50 - 12-24 screws
2 - door keys
2 - side panel keys
1 - instruction manual
