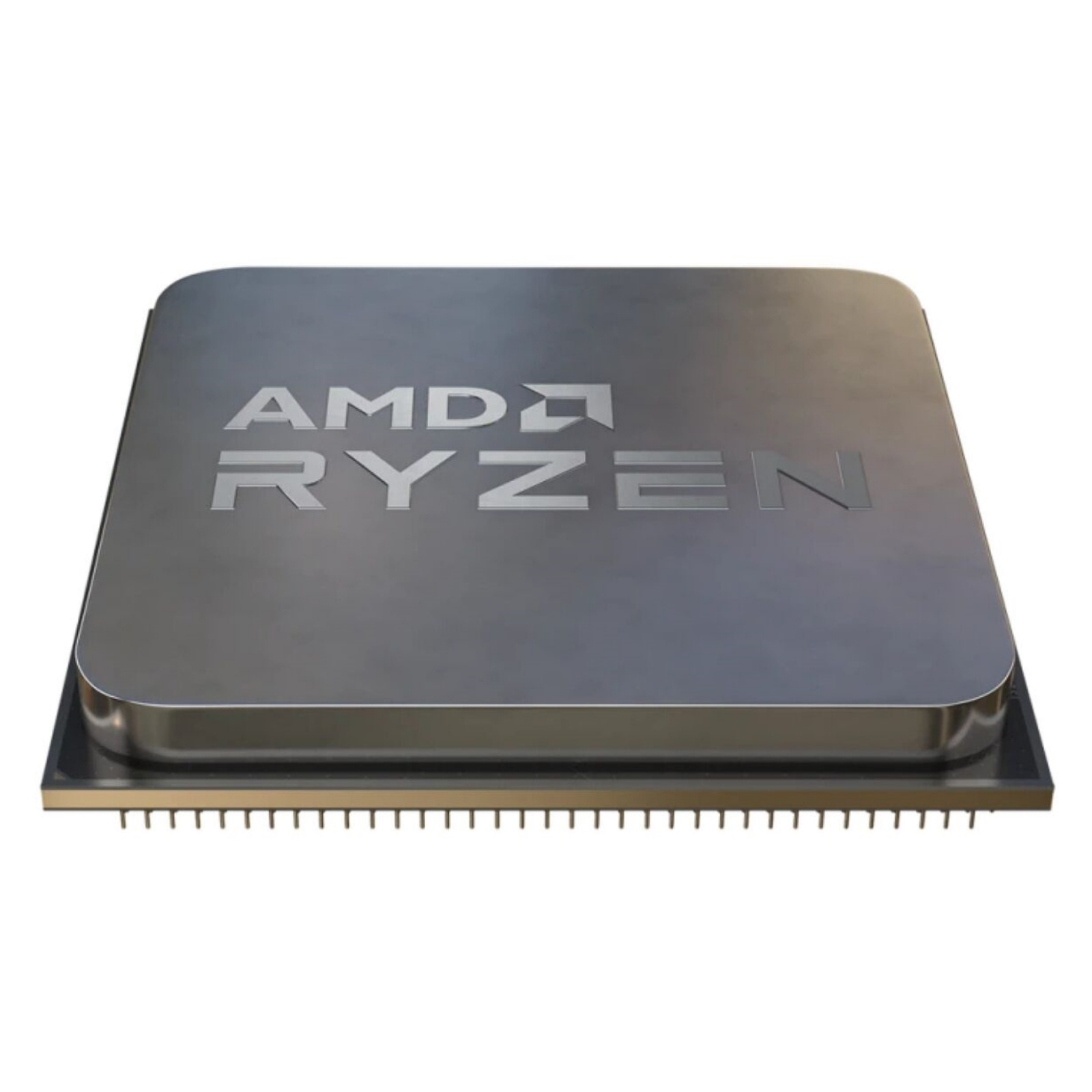

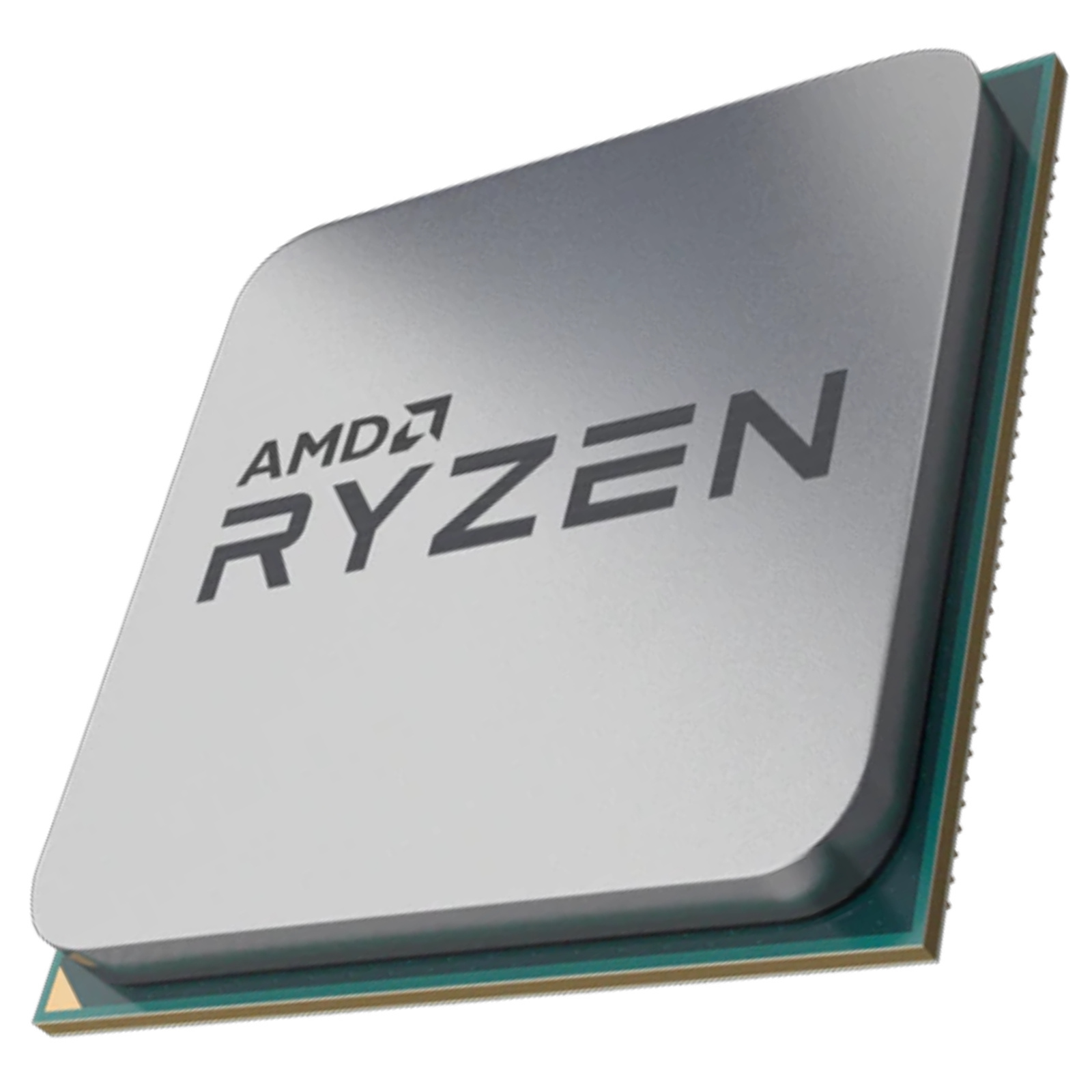

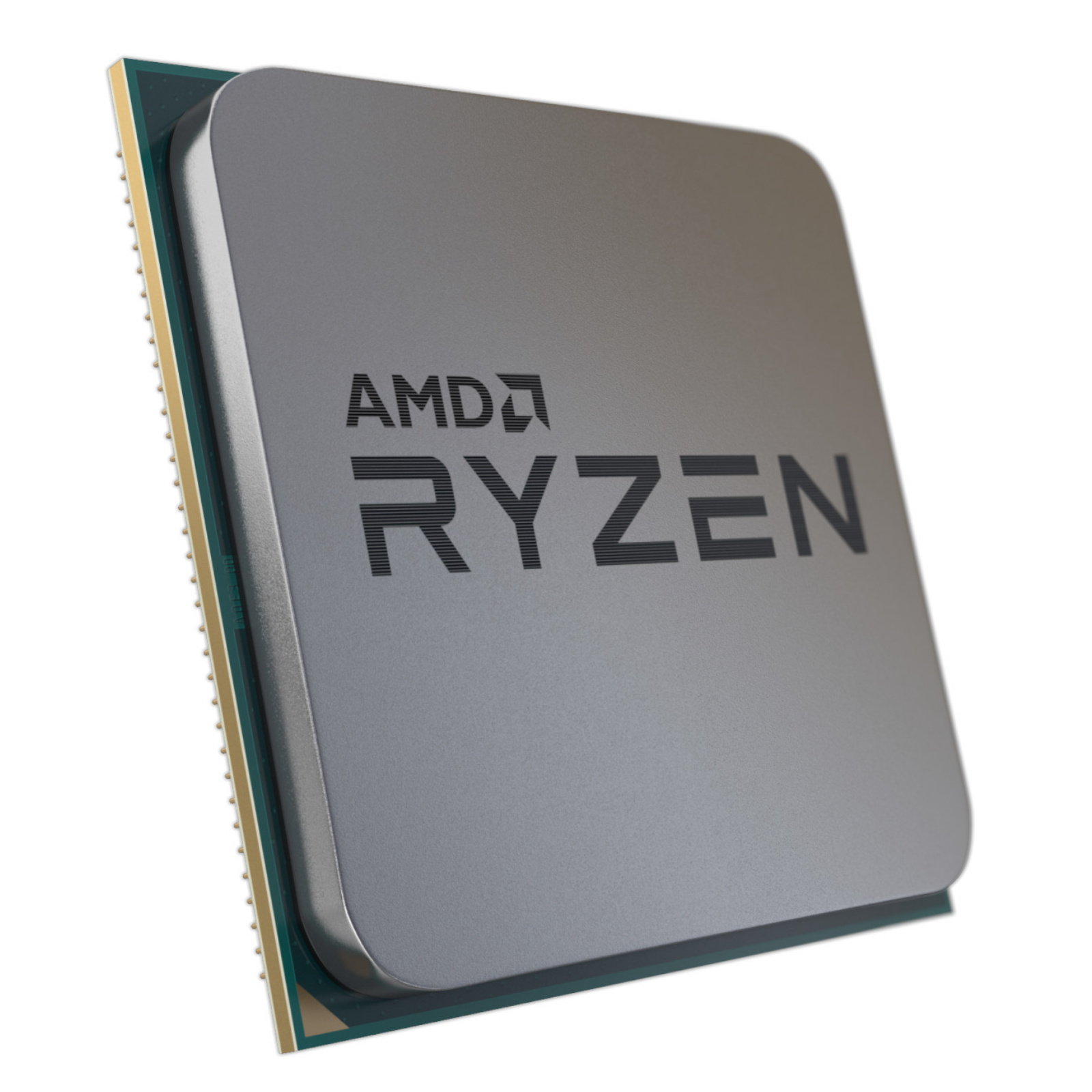

AMD Ryzen 7 5800XT CPU

8 Core / 16 Thread - Max Boost 4.8GHz - 36MB Cache - AM4 Socket - 105W TDP - Wraith Prism Heatsink

PB Tech price
PB Tech price
$ 399 .00
 +GST
$ 458 .85
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

AMD Ryzen 7 5800XT CPU

8 Core / 16 Thread - Max Boost 4.8GHz - 36MB Cache - AM4 Socket - 105W TDP - Wraith Prism Heatsink

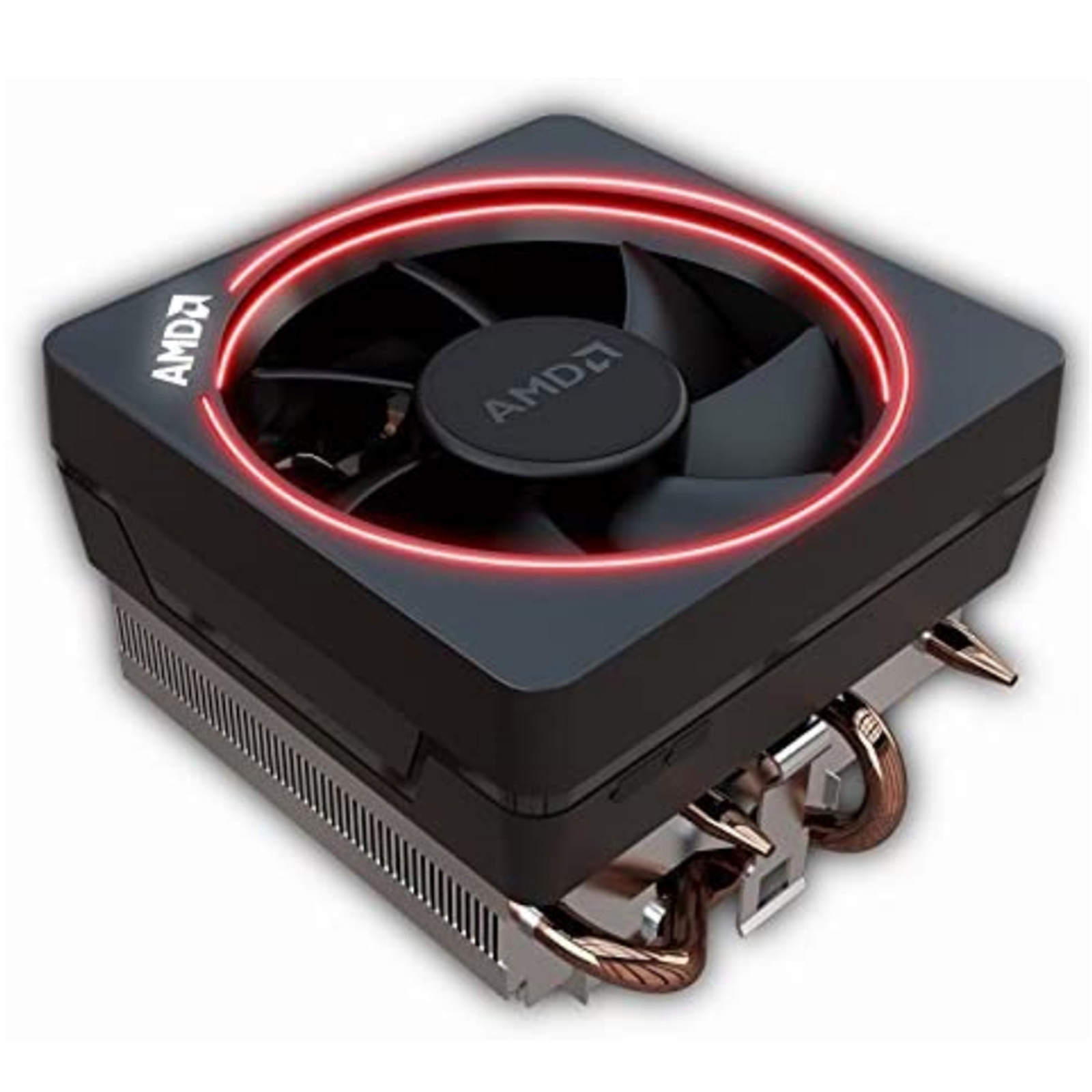

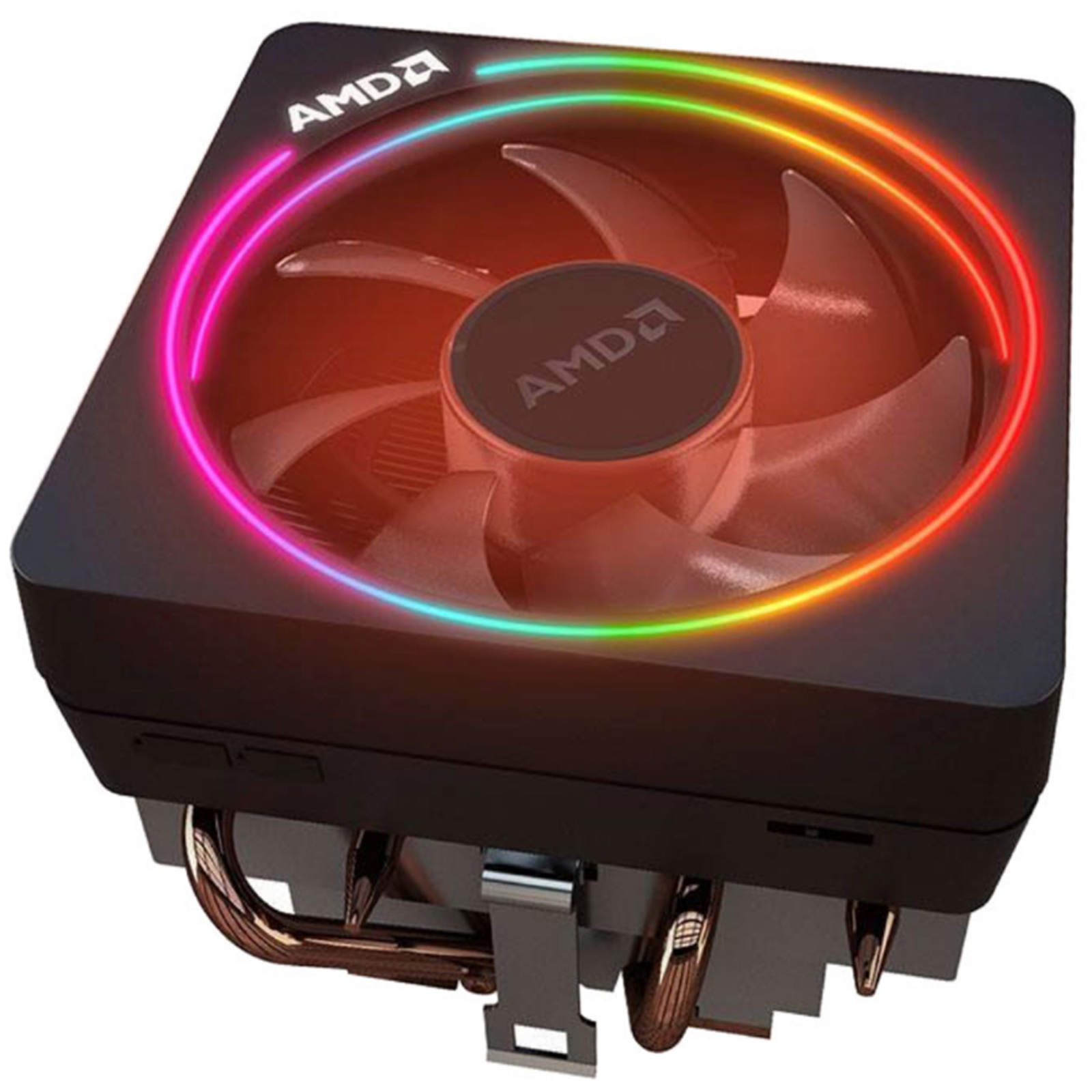

Includes AMD Wraith PRISM RGB Cooler!
  • Brand: AMD
  • MPN: 100-100001582BOX
  • Part #: CPUAMD05800XT
  • UPC: 730143316576
PB Tech price
$ 399 .00 $ 458 .85
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: AMD
  • MPN: 100-100001582BOX
  • Part #: CPUAMD05800XT
  • UPC: 730143316576

CPU Family

AMD Ryzen 7

CPU Socket

AMD AM4

Number of Cores

8

CPU Cooler Included

Yes

Integrated Graphics

No

TDP

105W

Unlocked

Yes

Features

The World's Best Gaming Processor

8 cores to power through gaming, streaming and more.



The Fastest in the Game

Get the high-speed gaming performance of the world's best desktop processor.



AMD StoreMI Technology

A fast and easy way to expand and accelerate the storage in a desktop PC with an AMD Ryzen™ processor.



AMD Ryzen™ Master Utility

The Simple and Powerful Overclocking Utility for AMD Ryzen™ processors.�



AMD Ryzen™ VR-Ready Premium

For the best possible VR experiences, AMD offers select Ryzen™ VR-Ready Premium processors.

Specifications

General Specifications

Name

AMD Ryzen™ 7 5800XT

Family

Ryzen

Series

Ryzen 5000 Series

Form Factor

Boxed Processor , Desktops

Market Segment

Enthusiast Desktop

Consumer Use

Yes

Commercial Use

No

Regional Availability

Global

Former Codename

Vermeer

Architecture

Zen 3

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 4.8 GHz

Base Clock

3.8 GHz

L1 Cache

512 KB

L2 Cache

4 MB

L3 Cache

32 MB

Default TDP

105W

Processor Technology for CPU Cores

TSMC 7nm FinFET

Processor Technology for I/O Die

12nm (Globalfoundries)

CPU Compute Die (CCD) Size

74mm²

I/O Die (IOD) Size

125mm²

Package Die Count

2

Unlocked for Overclocking

Yes

CPU Socket

AM4

Supporting Chipsets

X570 , B550 , A520 , X470 , B450

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

AMD Wraith Prism

Max. Operating Temperature (Tjmax)

90°C

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 3.2 Gen 1 (5Gbps) Ports

0

Native USB 2.0 (480Mbps) Ports

0

Native SATA Ports

2

PCI Express® Version

PCIe® 4.0

Native PCIe® Lanes (Total/Usable)

24 , 20

Additional Usable PCIe Lanes from Motherboard

amd_x570 16x Gen 4
amd_x470 2x Gen 3, 8x Gen 2

NVMe Support

Boot , RAID0 , RAID1 , RAID10

System Memory Type

DDR4

Memory Channels

2

Max. Memory

128 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Graphics Model

Discrete Graphics Card Required

Key Features

Supported Technologies

AMD Zen 3 Core Architecture , AMD StoreMI Technology , AMD Ryzen™ Master Utility , AMD Ryzen™ VR-Ready Premium

Manufacturer Part No:
100-100001582BOX
Brand:
AMD
Product Type:
CPU
UPC
730143316576
Product Family:
Ryzen 7
Shipping Weight:
0.8 kg
PB Part No:
CPUAMD05800XT
Product Model:
5800XT
