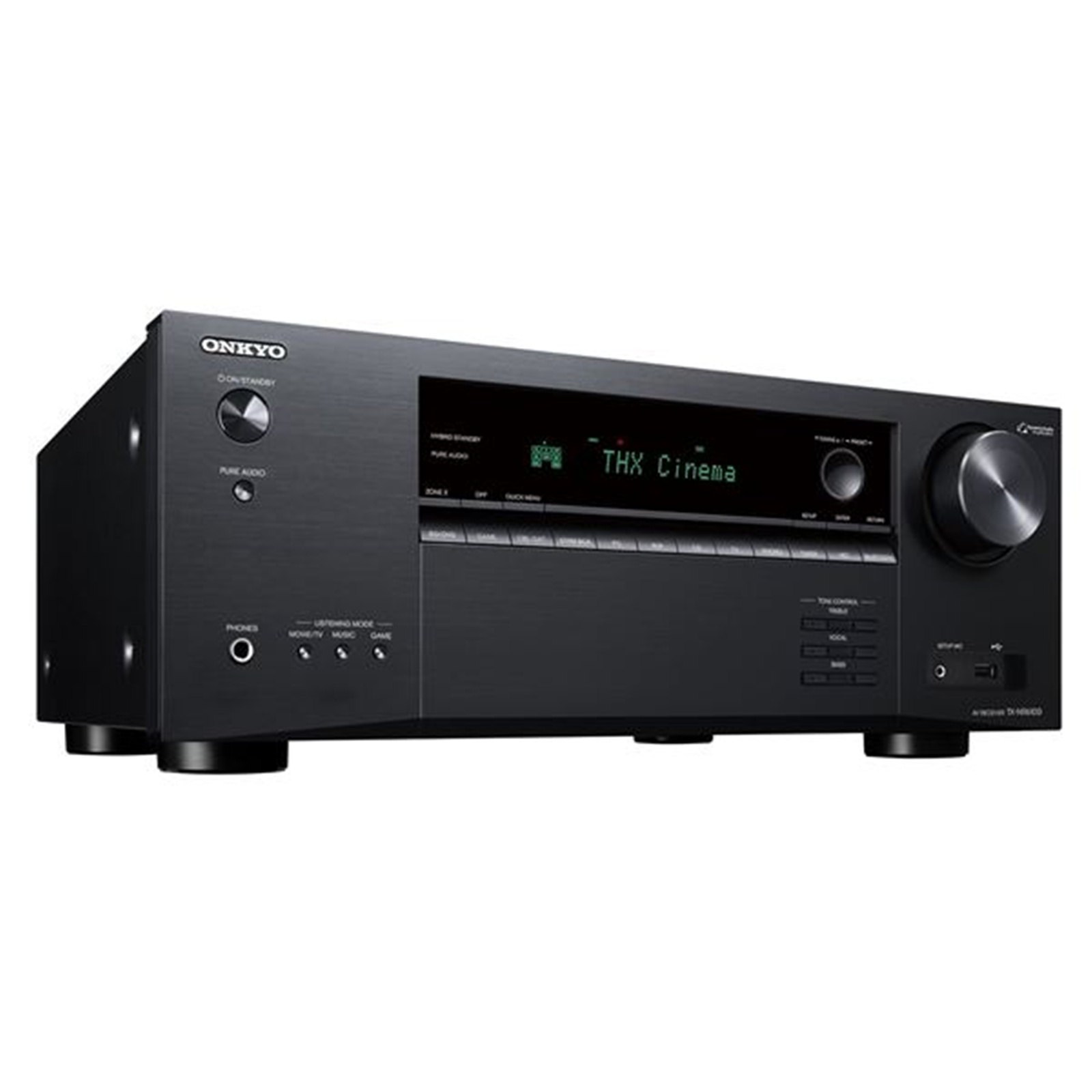

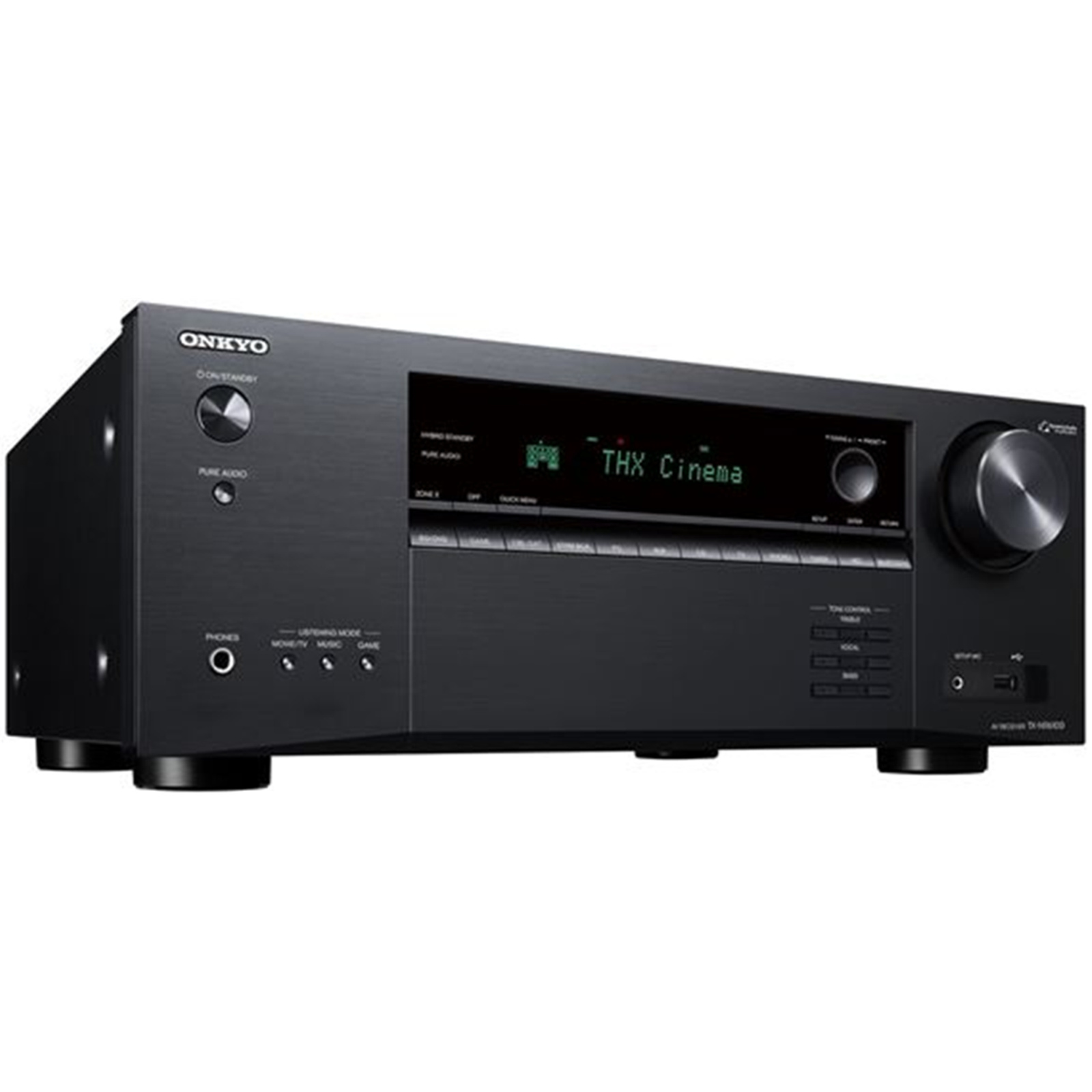

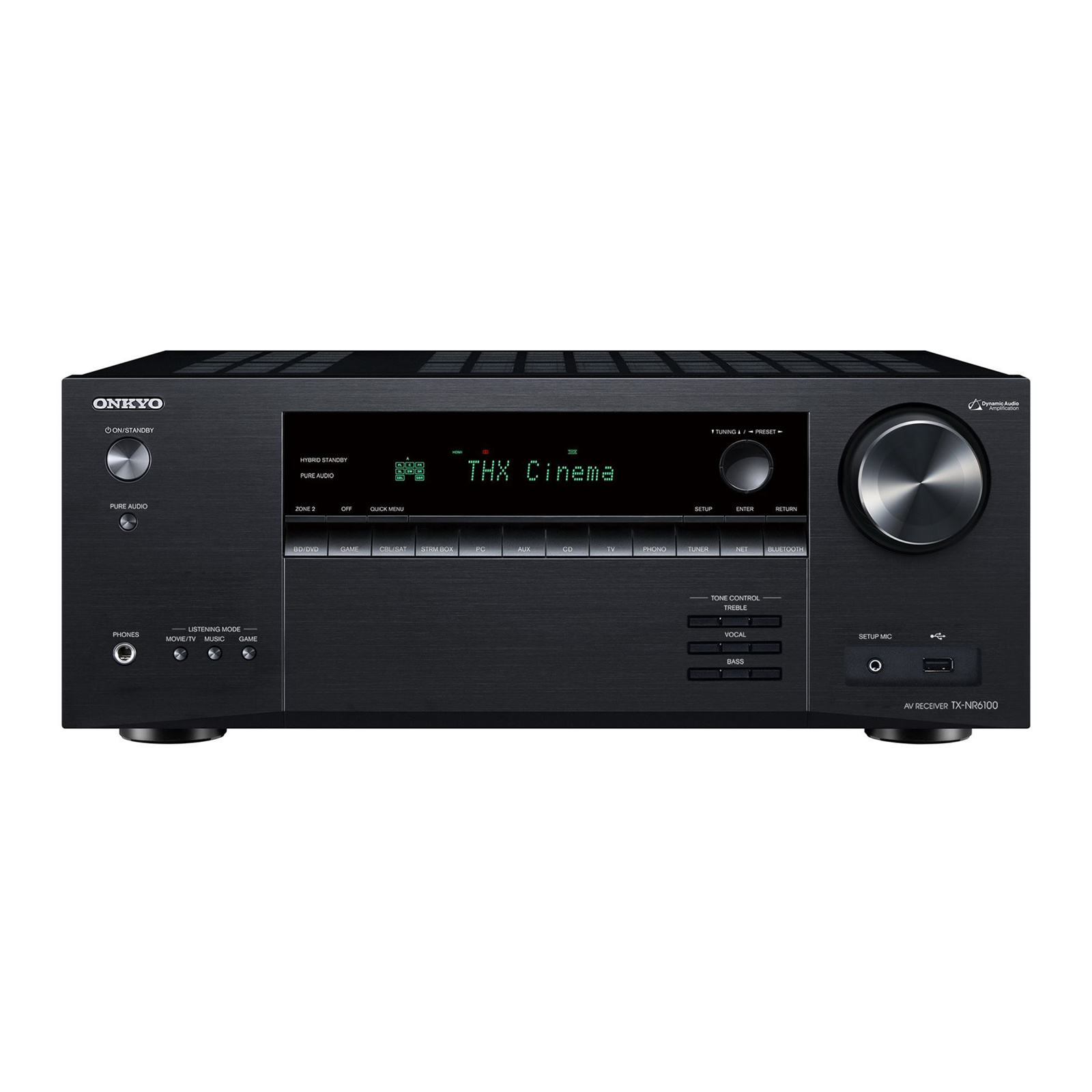

Onkyo TXNR6100B 7.2 CH Home theatre receiver 2 zones audio and video with main HDMI out 8K.

ONKYO 7.2 Channel Home Theatre Network AV Receiver Amplifier. 210

Building key noise-reduction refinements into THX® Certified Select high-current amplification, the TX-NR6100 sets the bar for reference sound while bringing 8K/60p and HDR10+ video to your compatible display over HDMI®. Enjoy Dolby Atmos® and DTS:X ® soundtracks through your height-enabled surround system or use up mixing and virtualization solutions from DTS® and Dolby® to create a 3D sound field from any layout. Cue and control music around your home with voice assistants Hey Google or Alexa, and connect a second display via HDMI Sub/Zone 2 output. Chromecast built-in™, AirPlay 2, DTS Play-Fi®, and Works with Sonos cover every multi-room situation, and if you connect passive loudspeakers, you can switch between a 7.2/5.2.2-ch and 5.2-ch + Zone 2 layout. Features such as a quality MM phono equalizer and bi-directional Bluetooth® wireless technology make this value proposition even more persuasive.

The Onkyo TX-6100 7.2-Channel AV Receiver delivers precision sound and images with an emphasis on an enhanced gaming experience, own your opponents with HDMI 2.1 enhancements for gamers.

BI-DIRECTIONAL BLUETOOTH WIRELESS TECHNOLOGY

This Onkyo AVR can send and receive audio via Bluetooth wireless technology. Stream from your device to the receiver using SBC or AAC codecs, or transmit audio playing through the AVR to compatible wireless headphones using SBC, aptX™, or aptX HD codecs including 24-bit audio over aptX HD. The improved data transfer capabilities of the latest generation of Bluetooth ensure clear and reliable sound reproduction so you hear your favourite songs just as the recording engineer intended.

This SMART AV Receiver™

Delivers an unparalleled movie, music, and gaming experience to your living room.

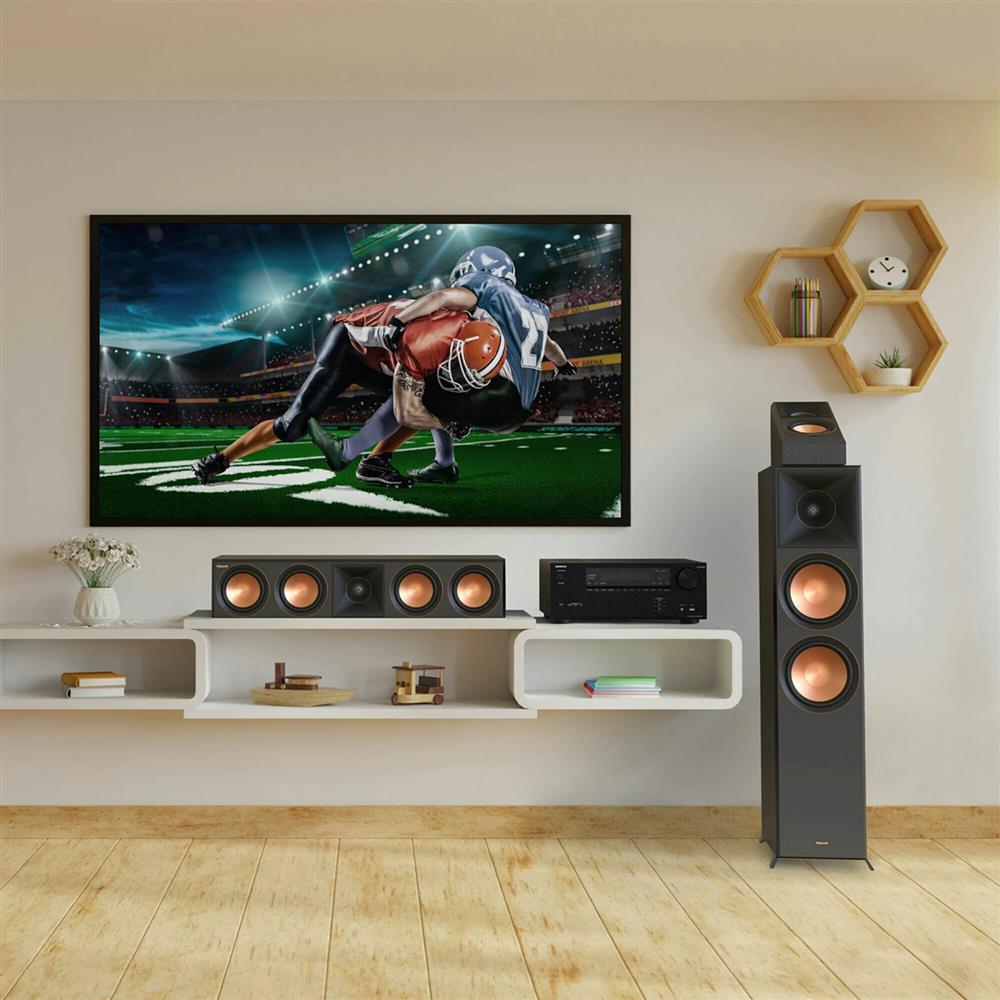

Klipsch Optimize Mode

Klipsch Optimize Mode allows you to easily integrate your Klipsch Reference and Reference Premiere speakers seamlessly with your Onkyo AV receiver. Klipsch and Onkyo teamed up to implement the precise crossover values for specific new Reference Premiere speakers. Now, you can simply select the model speakers you'll be using for each channel, and the optimized crossover setting will be automatically applied.

THX Certified

In 1993, Onkyo became the first consumer electronics brand to be THX-certified. With literally thousands of tests, before earning the THX-certification logo: no matter what input is used, no matter what combination of the many built-in features for the AVR, preamplifier, or amplifier, there can be absolutely nothing added, nothing taken away from the source material. The TX-NR6100 offers four distinct THX listening modes: cinema, gaming, music, and surround EX.

Discrete Zone 2 HDMI Switching

Set up different Ultra High-Definition entertainment options with up to 8K @ 60Hz resolution* in two different rooms from your Onkyo receiver. Watch a movie in the home theater, while the kids watch cartoons in their playroom.*

Ultimate 4K Gaming Experience

Own your opponents with HDMI 2.1 enhancements for gamers: 8K @ 60Hz HDR pass-through enables ultra-fast motion -VRR (Variable Refresh Rate) eliminates lag, stutter, and frame-tearing for fluid gameplay. - ALLM (Auto Low Latency Mode) optimizes latency from source to screen - QFT (Quick Frame Transport) limits lag for a smoother experience.

Built-In Streaming Services

Access to Spotify®, TIDAL, Deezer, and TuneIn are built into the system. Use dedicated apps (where available) or the free Onkyo Control App for Apple and Android devices to find and play music.

*8K @ 60Hz is only valid for Zone 1/Zone 2 and will only produce 4K @ 120Hz resolution when two separate HDMI sources are used.

- 210W/Ch THX® Certified Select DAA system
- 5.2.2-ch Dolby Atmos® and DTS:X® playback
- SMART AV Receiver™ Works with Sonos*1, Chromecast built-in™, AirPlay 2, and DTS Play-Fi®; includes Spotify®, Amazon Music HD*2, Pandora®, TIDAL, Deezer, and TuneIn streaming services*3
- Works with Hey Google or Alexa*4
- Stream over 5GHz/2.4GHz dual-band Wi-Fi® supporting the 802.11ac standard*5
- HDMI® inputs 1-3 and Main/Sub outputs support 8K @ 60p (4:2:0/10-bit), 8K @ 30p (4:4:4/10-bit), 4K @ 120p (4:4:4/10-bit) video pass-through
- HDMI terminals*6 support HDR10+, Dolby Vision and BT.2020 colour; VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport) passthrough; eARC (Main Out), and HDCP - 2.3
- HDMI Sub/Zone 2 Out for media transmission to a projector, gaming monitor, or TV
- Send or receive audio via Bluetooth® wireless technology (RX mode: SBC/AAC, TX mode: SBC/Qualcomm® aptX™/ aptX HD)
- Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
- Zone 2/Zone B line-out (analog RCA) with Zone 2 DAC supports independent or synced D/A playback (including HDMI/SPDIF/NET*6) on compatible audio systems
- AccuEQ with AccuReflex™ and subwoofer EQ
- 210W/Ch (6 ohms, 1kHz, 10% THD, 1 channel driven), 100W/Ch (8 ohms, 20Hz-20kHz, 0.08% THD, 2 channels driven, FTC)
- THX Certified Select
- Onkyo Dynamic Audio Amplification (DAA)
- Discrete 2-stage non-phase-shift amplifier circuitry
- Custom High-Current Low-Noise Power Transformer
- Large custom-made audio-grade power capacitors
- Strengthened power supply line supports high-current dynamics
- Refined chassis, HDMI board, DAC, Digital/Analog inputs, power-amp grounds and power lines
- An isolated network module reduces high-frequency signal interference on audio circuitry
- High current capability drives 4-ohm loads through 7 channels
- Precision 192kHz/24-bit D/A conversion for Hi-Res Audio
- VLSC™ (Vector Linear Shaping Circuitry) filtering (Front L/R)
- PLL (Phase Locked Loop) anti-jitter technology for SPDIF audio
- Tone controls (bass/treble) for front L/R channels
