The ExpressCage MB326SP-B brings to you our highly consumer-friendly enclosure made for anyone that requires high storage density. The MB326SP-B fits up to 6 x 2.5" SATA/SAS HDD/SSD (5mm - 9.5mm) into a single external 5.25" bay with the ability to hot swap for easy drive replacement. The ExpressCage name reflects the tool-less drive installation design that makes installing your drive just as simple as a tray-less device, and optional bottom tray screw holes are provided for extra protection and added stability. With dual 40mm cooling fans placed behind the unit and all around ventilation, your drives will stay cooler than the Arctic. The fan speed slider switch lets you choose between HIGH, LOW, or AUTO smart cooling, so you can set it based on your preference. The ExpressCage MB326SP-B combined the stability of a tray system and the convenience of a tray-less system, makes it the perfect storage enclosure for power users and system builders.
Utilize the Standard 5.25" Bay
Bringing high density 2.5" storage array into a desktop computer system, ICY DOCK's ExpressCage MB326SP-B turns any standard external 5.25" bay into a hot-swappable drive enclosure cage and fits up to 6 x 2.5" SAS / SATA HDD/SSD between 5mm to 9.5mm in height. The MB326SP-B supports SATA III 6Gbps and is backward compatible with SATA II and SATA I drives. In addition, our active power feature keeps your enclosure powered down until a drive is inserted minimizing energy usage.

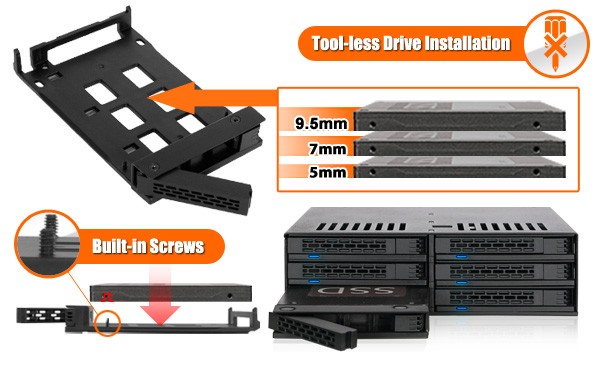

Innovative ExpressTray Design
The magic of our ExpressTray simplifies the drive installation process, offering a more flexible, hassle-free drive installation and maintenance. To install a new drive, just place the hard drives or SSDs on the ExpressTray and then insert the tray into the ExpressCage and you are ready to go. To remove drive, you simply need to reverse the process. Pull on the rear tab of the tray to free up the drive and then remove the drive. Our reinforced latching system located on the ExpressTray is made extremely durable so you won't have issues with them further down the road.

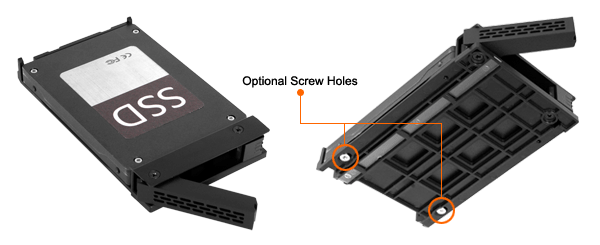

Furthermore, for applications where require extra drive stability and security, an optional bottom tray screw holes are provided for added drive protection. Ventilated slots in front of and beneath the tray help keep airflow extremely efficient to keep your drives icy cool.
Features upon Features
Through careful planning and design, we've incorporated the most desired features into our ExpressCage MB326SP-B.
Dual 40mm cooling fans located rear of the unit keeps your drives cool by ventilating all 6 drives and dissipating heat through air vents surrounding the unit. Control the amount of air flow with included fan speed slide switch. Set the fan to HIGH for maximum airflow, LOW for whisper quiet operations, or AUTO for smart cooling (determines the temperature of the drive and changes the fan's RPM accordingly to keep your drives cool).
If the preinstalled fans are not your preferred choice, we've made it easily upgradable with any standard 40mm fan with 3pin header. Choose your favorite aftermarket fan and install it into our ExpressCage MB326SP-B with no effort at all.
Additionally, each bay has its own indicator light to notify you of any hard drive activity. Soft-blue LEDs makes it easier to sense when the drives are in use without straining your eyes. Locking latch support for both 7pin SATA and 15pin power connectors secures your connection so they'll never slip out of place. (Requires cable with supporting locking latch features as well)
Specifications
Model Number : MB326SP-B
Color : Black
Host Interface : 6 x 7pin SATA
Drive Fit : 6 x 2.5" SATA or SAS (single channel) HDD/SSD
Compatible Drive Heights : 5mm, 7mm & 9.5mm
Device Fit : Single 5.25" half height device bay
Transfer Rate : Up to 6 Gb/sec. (depending on hard drive speed)
Power Input : 2 x 15pin SATA power port
Insert& Extract connection Via : Direct SAS/ SATA hard drive connection
Warranty:
12 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Reviews
There are currently no reviews for this product
Do you own this product?
Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
7 day right of exchange
If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.
To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.
If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.
Hassle free warranty service
If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.
If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.
Returning a product / making a warranty claim
To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).
Date Created: 23:54, 01-11-2025 Product URL: https://www.pbtech.co.nz/product/ENCICY5146/ICY-Dock-MB326SP-B-ExpressCage-MB326SP-B-6-Bay-25
Branch
New Stock
On Display
Auckland - Albany
0
Auckland - Glenfield
0
Auckland - Queen Street
0
Auckland - Auckland Uni
0
Auckland - Westgate
0
Auckland - Penrose
0
Auckland - Henderson (Express)
0
Auckland - St Lukes
0
Auckland - Manukau
0
Hamilton
0
Tauranga
0
New Plymouth
0
Palmerston North
0
Petone
0
Wellington
0
Auckland - Head Office
0
Auckland - East Tamaki Warehouse
0
Christchurch - Hornby
0
Christchurch - Christchurch Central
0
Dunedin
0
Features
The ExpressCage MB326SP-B brings to you our highly consumer-friendly enclosure made for anyone that requires high storage density. The MB326SP-B fits up to 6 x 2.5" SATA/SAS HDD/SSD (5mm - 9.5mm) into a single external 5.25" bay with the ability to hot swap for easy drive replacement. The ExpressCage name reflects the tool-less drive installation design that makes installing your drive just as simple as a tray-less device, and optional bottom tray screw holes are provided for extra protection and added stability. With dual 40mm cooling fans placed behind the unit and all around ventilation, your drives will stay cooler than the Arctic. The fan speed slider switch lets you choose between HIGH, LOW, or AUTO smart cooling, so you can set it based on your preference. The ExpressCage MB326SP-B combined the stability of a tray system and the convenience of a tray-less system, makes it the perfect storage enclosure for power users and system builders.
Utilize the Standard 5.25" Bay
Bringing high density 2.5" storage array into a desktop computer system, ICY DOCK's ExpressCage MB326SP-B turns any standard external 5.25" bay into a hot-swappable drive enclosure cage and fits up to 6 x 2.5" SAS / SATA HDD/SSD between 5mm to 9.5mm in height. The MB326SP-B supports SATA III 6Gbps and is backward compatible with SATA II and SATA I drives. In addition, our active power feature keeps your enclosure powered down until a drive is inserted minimizing energy usage.
Innovative ExpressTray Design
The magic of our ExpressTray simplifies the drive installation process, offering a more flexible, hassle-free drive installation and maintenance. To install a new drive, just place the hard drives or SSDs on the ExpressTray and then insert the tray into the ExpressCage and you are ready to go. To remove drive, you simply need to reverse the process. Pull on the rear tab of the tray to free up the drive and then remove the drive. Our reinforced latching system located on the ExpressTray is made extremely durable so you won't have issues with them further down the road.
Furthermore, for applications where require extra drive stability and security, an optional bottom tray screw holes are provided for added drive protection. Ventilated slots in front of and beneath the tray help keep airflow extremely efficient to keep your drives icy cool.
Features upon Features
Through careful planning and design, we've incorporated the most desired features into our ExpressCage MB326SP-B.
Dual 40mm cooling fans located rear of the unit keeps your drives cool by ventilating all 6 drives and dissipating heat through air vents surrounding the unit. Control the amount of air flow with included fan speed slide switch. Set the fan to HIGH for maximum airflow, LOW for whisper quiet operations, or AUTO for smart cooling (determines the temperature of the drive and changes the fan's RPM accordingly to keep your drives cool).
If the preinstalled fans are not your preferred choice, we've made it easily upgradable with any standard 40mm fan with 3pin header. Choose your favorite aftermarket fan and install it into our ExpressCage MB326SP-B with no effort at all.
Additionally, each bay has its own indicator light to notify you of any hard drive activity. Soft-blue LEDs makes it easier to sense when the drives are in use without straining your eyes. Locking latch support for both 7pin SATA and 15pin power connectors secures your connection so they'll never slip out of place. (Requires cable with supporting locking latch features as well)
Specifications
Model Number : MB326SP-B
Color : Black
Host Interface : 6 x 7pin SATA
Drive Fit : 6 x 2.5" SATA or SAS (single channel) HDD/SSD
Compatible Drive Heights : 5mm, 7mm & 9.5mm
Device Fit : Single 5.25" half height device bay
Transfer Rate : Up to 6 Gb/sec. (depending on hard drive speed)
Power Input : 2 x 15pin SATA power port
Insert& Extract connection Via : Direct SAS/ SATA hard drive connection
Structure : Plastic and metal
Drive Cooling : 2 x 40mm rear cooling fan
Fan Speed Control : High / Low / Auto Switch
Power Indicator : Solid blue LED
HDD Access Indicator : Blinking blue LED
Dimension (L x W x H) : 145.8 x 41.3 x 146.5mm
Weight : 438g
