Orico Transparent M.2 NVME USB3.1 Gen.2 USB-C SSD Enclosure - Silver

From a USB 3.1 Gen 2 port (in theory up tp 10Gbps) the Windows 10
Handy when upgrading M.2 NVMe drives by cloning.
Test results using Crystak DiskMark with Samsung 970 EVO Plus NVMe M.2 drive:

CrystalDiskMark 8.0.4 x64 (C) 2007-2021 hiyohiyo
Crystal Dew World: https://crystalmark.info/
------------------------------------------------------------------------------
* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes
[Read]
SEQ 1MiB (Q= 8, T= 1): 862.680 MB/s [ 822.7 IOPS] < 9707.56 us>
SEQ 128KiB (Q= 32, T= 1): 605.270 MB/s [ 46...view more From a USB 3.1 Gen 2 port (in theory up tp 10Gbps) the Windows 10
Handy when upgrading M.2 NVMe drives by cloning.
Test results using Crystak DiskMark with Samsung 970 EVO Plus NVMe M.2 drive:

CrystalDiskMark 8.0.4 x64 (C) 2007-2021 hiyohiyo
Crystal Dew World: https://crystalmark.info/
------------------------------------------------------------------------------
* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes
[Read]
SEQ 1MiB (Q= 8, T= 1): 862.680 MB/s [ 822.7 IOPS] < 9707.56 us>
SEQ 128KiB (Q= 32, T= 1): 605.270 MB/s [ 4617.8 IOPS] < 6920.68 us>
RND 4KiB (Q= 32, T=16): 31.051 MB/s [ 7580.8 IOPS] < 66895.36 us>
RND 4KiB (Q= 1, T= 1): 28.841 MB/s [ 7041.3 IOPS] < 141.74 us>
[Write]
SEQ 1MiB (Q= 8, T= 1): 833.713 MB/s [ 795.1 IOPS] < 10025.28 us>
SEQ 128KiB (Q= 32, T= 1): 589.183 MB/s [ 4495.1 IOPS] < 7103.02 us>
RND 4KiB (Q= 32, T=16): 48.520 MB/s [ 11845.7 IOPS] < 42873.95 us>
RND 4KiB (Q= 1, T= 1): 41.818 MB/s [ 10209.5 IOPS] < 97.71 us>

Compared to a 500GB SATA III drive in ADATA external USB 3.1 Gen 2 port:
* MB/s = 1,000,000 bytes/s [SATA/600 = 600,000,000 bytes/s]
* KB = 1000 bytes, KiB = 1024 bytes
[Read]
SEQ 1MiB (Q= 8, T= 1): 68.499 MB/s [ 65.3 IOPS] <120876.63 us>
SEQ 128KiB (Q= 32, T= 1): 67.850 MB/s [ 517.7 IOPS] < 41262.49 us>
RND 4KiB (Q= 32, T=16): 0.505 MB/s [ 123.3 IOPS] <849629.78 us>
RND 4KiB (Q= 1, T= 1): 0.458 MB/s [ 111.8 IOPS] < 8912.43 us>
[Write]
SEQ 1MiB (Q= 8, T= 1): 67.045 MB/s [ 63.9 IOPS] <120543.70 us>
SEQ 128KiB (Q= 32, T= 1): 68.083 MB/s [ 519.4 IOPS] < 42198.14 us>
RND 4KiB (Q= 32, T=16): 0.678 MB/s [ 165.5 IOPS] <683463.78 us>
RND 4KiB (Q= 1, T= 1): 0.679 MB/s [ 165.8 IOPS] < 6015.30 us>

It gets pretty hot, but it should be fine.
You also have to set up the SSD, but it's pretty easy if you know what your doing.
Little bit worried about the cover sliding off in my bag.
Also connecting the usb type c to my phone did not work which would have been cool. It gets pretty hot, but it should be fine.
You also have to set up the SSD, but it's pretty easy if you know what your doing.
Little bit worried about the cover sliding off in my bag.
Also connecting the usb type c to my phone did not work which would have been cool.

Quick and easy to set up and works ok. Gets quite hot but that's expected when you push the drive. Unfortunately only got 5Gbps (660 MB/s) even though connected via Type-C to Type-C cable to a Type-C USB 3.2 Gen2x2 port with a 5000 MB/s read speed internal drive and 2400 MB/s write speed drive set up in the Orico enclosure. Quick and easy to set up and works ok. Gets quite hot but that's expected when you push the drive. Unfortunately only got 5Gbps (660 MB/s) even though connected via Type-C to Type-C cable to a Type-C USB 3.2 Gen2x2 port with a 5000 MB/s read speed internal drive and 2400 MB/s write speed drive set up in the Orico enclosure.

Bought this to reuse my old M.2 drive when I bought a new one. It's now my go to external drive for movies and TV shows. Bought this to reuse my old M.2 drive when I bought a new one. It's now my go to external drive for movies and TV shows.

By: Lillian_G 03/11/21

Verified Owner

Mounting the M.2 drive was easy and the device worked perfectly without issue. Plug and play, no other setup required. Mounting the M.2 drive was easy and the device worked perfectly without issue. Plug and play, no other setup required.

Useful Item - great to use Useful Item - great to use

I have numerous M.2 enclosures and these are my favourite.
They are solid, have a built in heatsink and retain the M.2 drive securely.

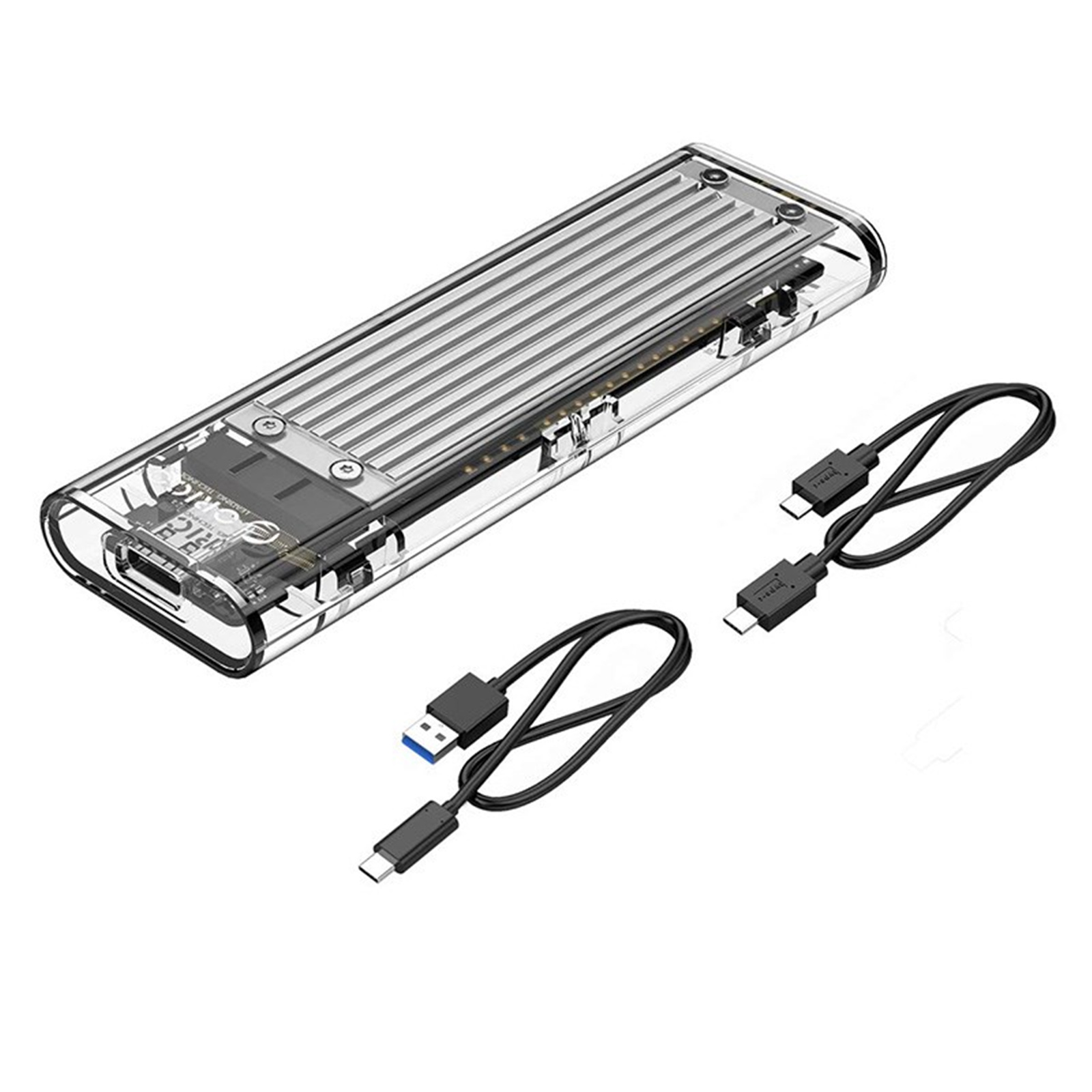

No tools required to install the drive and it comes with both a USB A and USB C cable. I have numerous M.2 enclosures and these are my favourite.
They are solid, have a built in heatsink and retain the M.2 drive securely.
No tools required to install the drive and it comes with both a USB A and USB C cable.

I bought this to do some disk cloning, it overheats and disconnects, no reliable. I bought this to do some disk cloning, it overheats and disconnects, no reliable.

Easy to use, and very fast access to SSD. Perfect for quick access to an SSD.
Just don't bother trying to put the SSD in the enclosure, it works fine without it. Easy to use, and very fast access to SSD. Perfect for quick access to an SSD.
Just don't bother trying to put the SSD in the enclosure, it works fine without it.

Great device and has terrific performance if you use the correct cables. Many generic USB-C cables only support USB2 speeds. Using the included cables this provided a high speed connection to test and backup some old NVMe devices. Great device and has terrific performance if you use the correct cables. Many generic USB-C cables only support USB2 speeds. Using the included cables this provided a high speed connection to test and backup some old NVMe devices.

Works well, was easy to setup & pretty much plug n play.
Probably more than I wanted to pay. But i guess that is the going rate. Works well, was easy to setup & pretty much plug n play.
Probably more than I wanted to pay. But i guess that is the going rate.

Works perfectly, carried it around in my bag for over a year, hasn't come apart and is pretty durable.
The transparent plastic looks pretty cool and the heatsink absorbs the heat of the ssd pretty well. Works perfectly, carried it around in my bag for over a year, hasn't come apart and is pretty durable.
The transparent plastic looks pretty cool and the heatsink absorbs the heat of the ssd pretty well.
