StarTech.com HSB220SAT25B 2 Drive 2.5in Trayless SATA Mobile Rack

PB Tech price
PB Tech price
$ 100 .87
 +GST
$ 116 .00
 inc GST
$100.87  +GST
$116.00

StarTech.com HSB220SAT25B 2 Drive 2.5in Trayless SATA Mobile Rack

  • Brand: StarTech.com
  • MPN: HSB220SAT25B
  • Part #: ENCSTT1597317
  • UPC: 065030827980
1
PB Tech price
$ 100 .87 $ 116 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$100.87  +GST
$116.00
  • Brand: StarTech.com
  • MPN: HSB220SAT25B
  • Part #: ENCSTT1597317
  • UPC: 065030827980

Drive Bays

2 Bays

Tool Free

No

What PB Tech customers are saying about this product...

See More Reviews

"Can't speak highly enough of the ease with which this was in ...view more"

HM
By: HamishM65 20/01/20
Verified Owner

Features

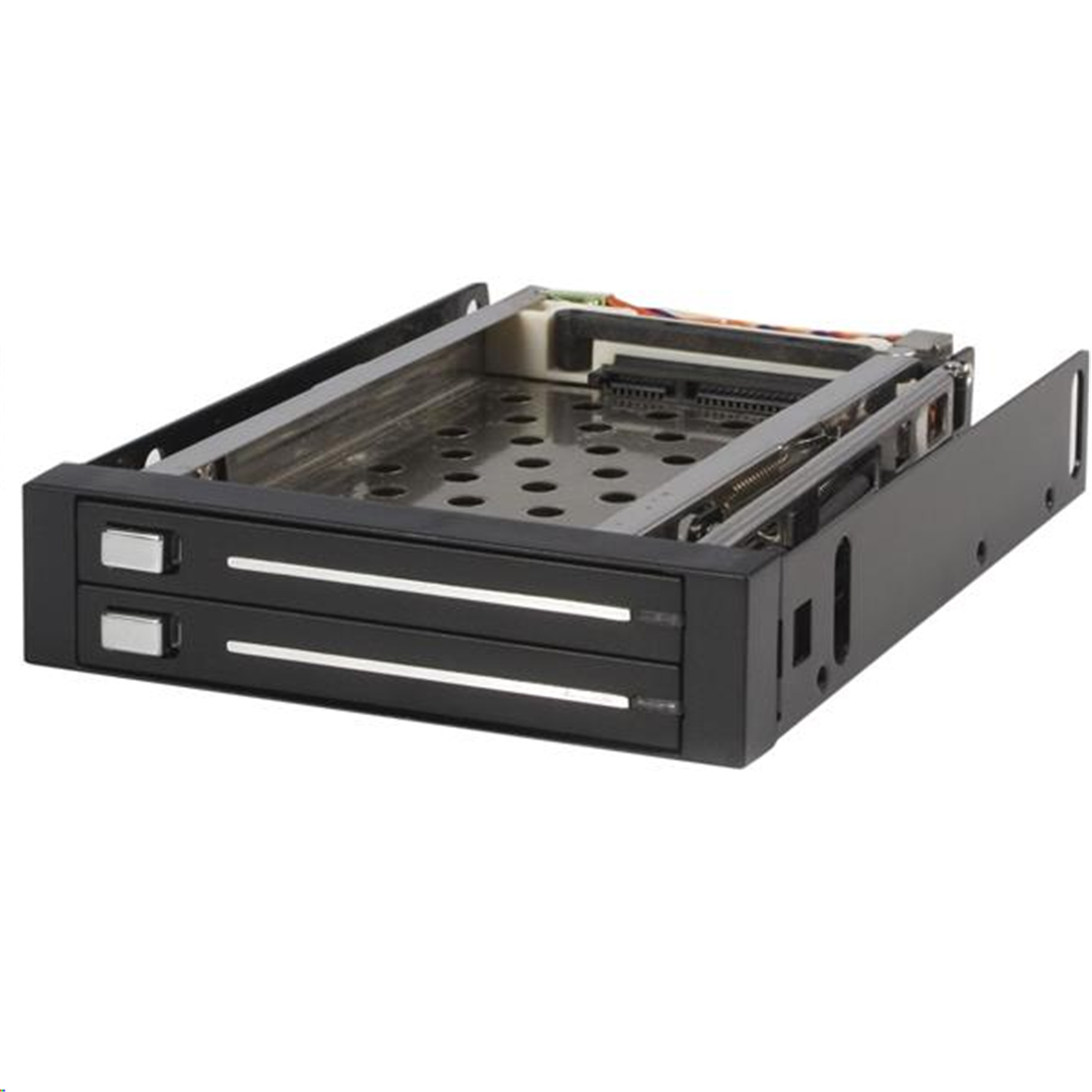

This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay. Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.


The StarTech.com Advantage


- Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
- Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design
- Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay

Specifications

Compatible Drive Types

SATA

Drive Size

2.5in

Key Lock

No

Number of Drives

2

Hot Swap Capability

Yes

Max Drive Capacity

Tested up to 500GB per drive

Type and Rate

SATA III (6 Gbps)

Connector Type(s)

2 - SATA (7 pin, Data) Receptacle
2 - SATA Power (15 pin) Receptacle
2 - SP4 (4 pin, Small Drive Power) Male

Drive Connectors

2 - SATA (7 pin, Data) Receptacle
2 - SATA Power (15 pin) Receptacle

Host Connectors

2 - SATA (7 pin, Data) Plug
2 - SATA Power (15 pin) Plug

OS Compatibility

OS independent; No software or drivers required

LED Indicators

1 - Power/Drive Activity

Color

Black

Enclosure Type

Aluminum

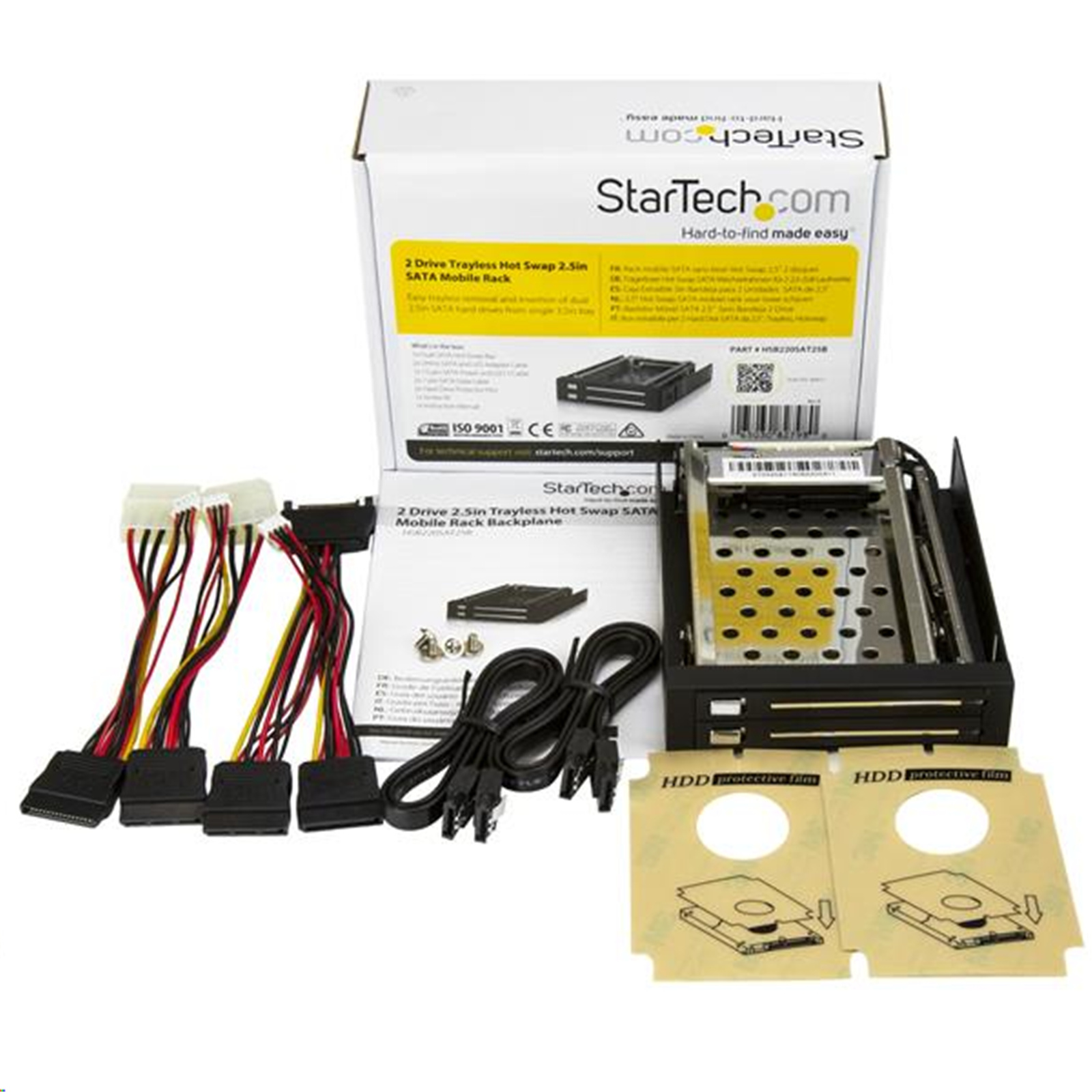

Included in Package

1 - dual SATA hot-swap bay
2 - LP4 to SATA and LED adapter cable
1 - 15-pin SATA power and LED Y cable
2 - 7-pin SATA data cable
2 - hard drive protector film
1 - screw kit
1 - instruction manual

Manufacturer Part No:
HSB220SAT25B
Brand:
Product Type:
-
UPC
065030827980
Product Family:
-
Shipping Weight:
0.649 kg
PB Part No:
ENCSTT1597317
Product Model:
HSB220SAT25B
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 1 review
5 Stars
1
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Cables & Screws in the Box

Can't speak highly enough of the ease with which this was installed. Removed the plate over the 2.5 drive bay, populated the rack with an SSD and supplied power and SATA cables, slid it in, secured it with the supplied screws, replaced the covers, powered it up and did the usual introduction of hardware to Windows 10 and boom!

Amazing, space for another, and removable. When did this sort of thing get so easy, cheap and useful!

If there are cons, I'm yet to find them.

HM
By: HamishM65 20/01/20
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?
