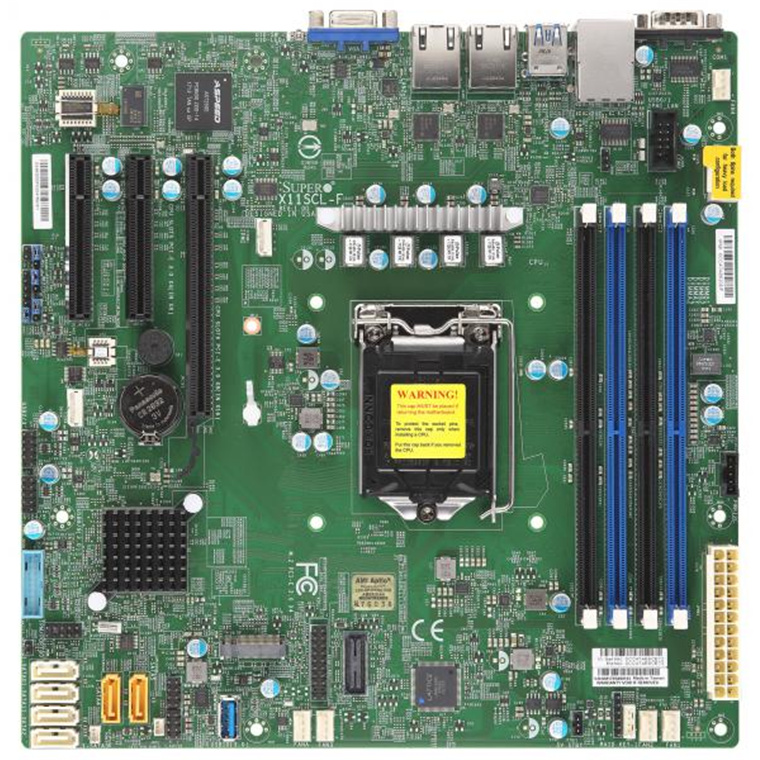

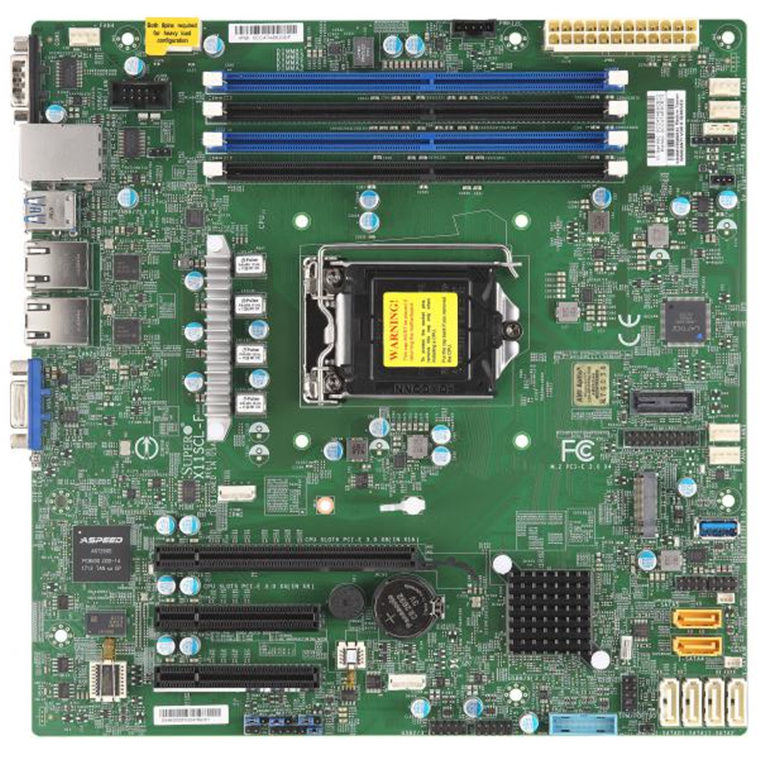

Supermicro Remanufactured X11SCL-F Server Board, mATX, LGA1151, C242, 4 DIMM, 2x GbE, 6x SATA3, 5x USB3.1, 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x4, 1x VGA, IPMI, 1x M.2 /PB 6 mths warranty
Out of stock
Supermicro Remanufactured X11SCL-F Server Board, mATX, LGA1151, C242, 4 DIMM, 2x GbE, 6x SATA3, 5x USB3.1, 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x4, 1x VGA, IPMI, 1x M.2 /PB 6 mths warranty
- Brand: Supermicro
- MPN: EXMBDSPMX11131
- Part #: EXMBDSPMX11131
- UPC:
- Brand: Supermicro
- MPN: EXMBDSPMX11131
- Part #: EXMBDSPMX11131
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Motherboards
MSI PRO B760M-A WIFI mATX Motherboard For Intel 12th/13th/14th...
ASRock B550M WIFI SE MATX Motherboard For AMD Ryzen 3rd Gen 5000...
MSI PRO B650M-A WIFI mATX Motherboard For AMD Ryzen 7000/8000...
MSI MAG B550M PRO-VDH WIFI mATX Motherboard For AMD 3rd Gen 5000...
ASUS TUF GAMING B650E-E WIFI ATX Motherboard For AMD Ryzen 7000...
Supermicro Remanufactured X11SCL-F Server Board, mATX, LGA1151, C242, 4 DIMM, 2x GbE, 6x SATA3, 5x USB3.1, 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x4, 1x VGA, IPMI, 1x M.2 /PB 6 mths warranty
- Brand: Supermicro
- MPN: EXMBDSPMX11131
- Part #: EXMBDSPMX11131
Product URL: https://www.pbtech.co.nz/product/EXMBDSPMX11131/Supermicro-Remanufactured-X11SCL-F-Server-Board-mA
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
- 8th/9th Generation Intel Core i3/Pentium /Celeron Processor, Intel Xeon E-2100 Processor, Intel Xeon E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
- Support up to 6 Cores
- Intel C242 chipset
- Up to 128GB DDR4 2666MHz ECC UDIMM; 4 DIMM slots
- Expansion slots:
1 PCI-E 3.0 x8 (in x16),
2 PCI-E 3.0 x4 (in x8)
- Dual GbE LAN with Intel i210-AT
- 6 SATA3 (6Gbps) ports;
RAID 0, 1, 5, 10
- M.2 NGFF connector
- I/O: 1 VGA, 2 COM, 2 SuperDOM, and TPM header
Specifications
MBD-X11SCL-F
X11SCL-F
Physical Stats
Form Factor
microATX
Dimensions
9.6" x 9.6" (24.38cm x 24.38cm)
Processor/Cache
CPU
8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor
Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP
Cores / Cache
6 cores, 12 threads
Note
BIOS version 1.0b or above is required to support Intel® Xeon® E-2200 and 9th Generation Intel® Core? i3/Pentium®/Celeron® Processors
System Memory
Memory Capacity
Up to 128GB Unbuffered ECC UDIMM, DDR4-2666MHz, in 4 DIMM slots
Memory Type
2667/2400/2133MHz ECC DDR4 SDRAM 72-bit
DIMM Sizes
4GB, 8GB, 16GB, 32GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
On-Board Devices
Chipset
Intel® C242
SATA
Intel® C242 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2500
Network Controllers
Dual LAN with 1GbE with Intel® I210
Graphics
ASPEED AST2500 BMC
Input / Output
USB
6 USB 2.0 ports (2 rear + 4 via headers)
5 USB 3.1 Gen1 ports (2 Rears Type A, 2 via headers, 1 Type A)
Video Output
1 VGA port
Serial Port / Header
2 COM Ports (1 rear, 1 header)
TPM
1 TPM Header
Expansion Slots
PCI-E
1 PCI-E 3.0 x8 (in x16 slot),
2 PCI-E 3.0 x4 (in x8 slot)
M.2
M.2 Interface: 1 PCI-E 3.0 x4
Form Factor: 2280/22110
Key: M-Key
Double Height Connector
System BIOS
BIOS Type
UEFI 256Mb
BIOS Features
ACPI 6.0
SMBIOS 2.7
Plug and Play (PnP)
RTC (Real Time Clock) Wakeup
UEFI 2.7
USB Keyboard support
PCI 3.0
Management
Software
IPMI2.0, KVM with dedicated LAN, SSM, SUM, SuperDoctor® 5
Power Configurations
ACPI Power Management
Power-on mode for AC power recovery
PC Health Monitoring
Voltage
+12V, +3.3V, +5V, +5V standby, 5 -fan status, Chassis intrusion header, Chipset Voltage, Memory Voltages, Monitors CPU voltages, Supports system management utility, System level control, VBAT
Temperature
Thermal Monitor 2 (TM2) support, CPU thermal trip support, PECI, Monitoring for CPU and chassis environment
LED
CPU / System Overheat LED, UID/Remote UID
Other Features
ACPI power management, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, M.2 NGFF connector, UID, WOL
Operating Environment
Operating Temperature Range
0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
5% - 95% (non-condensing)
