be quiet Silent Wings 4 Black 120mm PWM

PB Tech price
PB Tech price
$ 33 .04
 +GST
$ 38 .00
 inc GST
$33.04  +GST
$38.00  inc GST

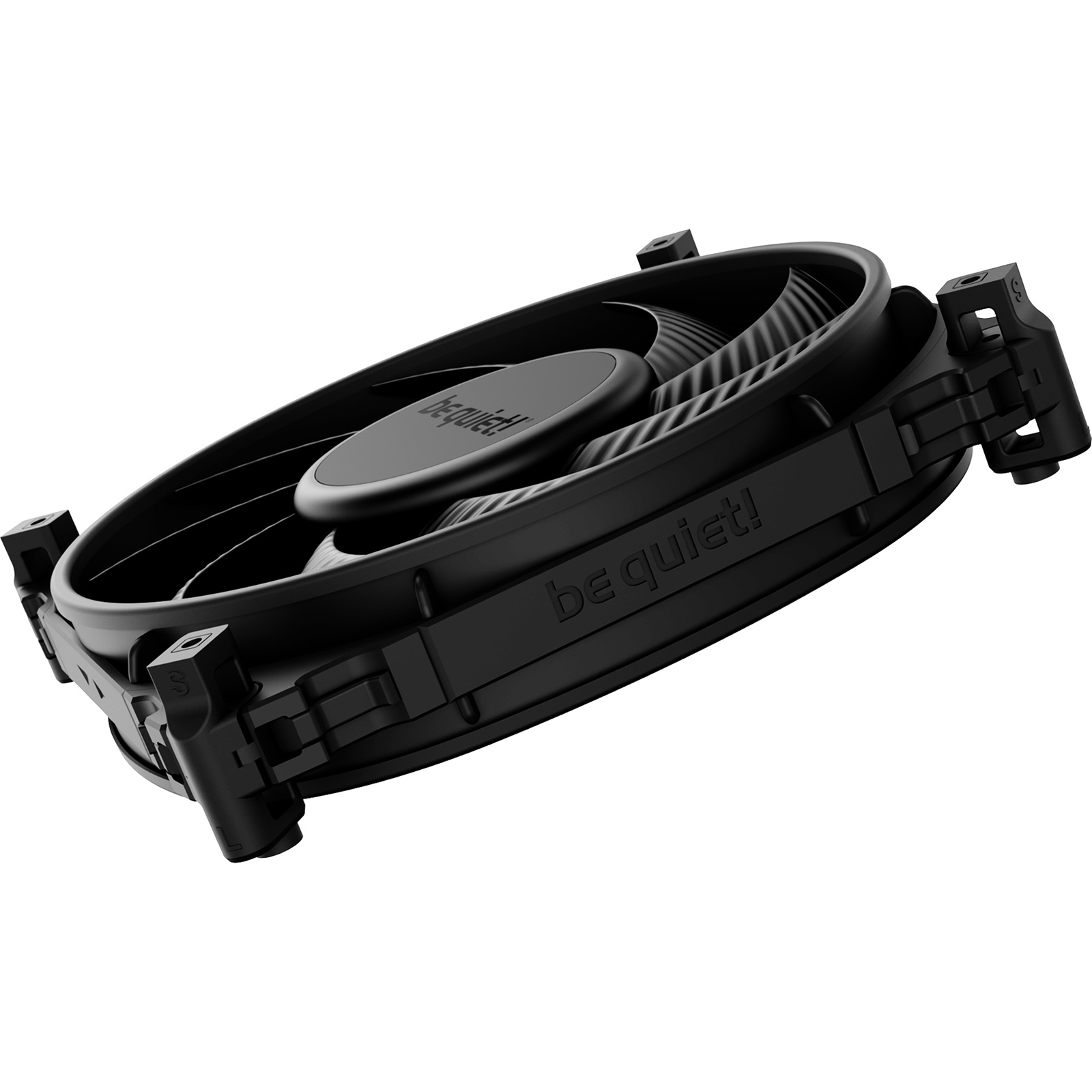

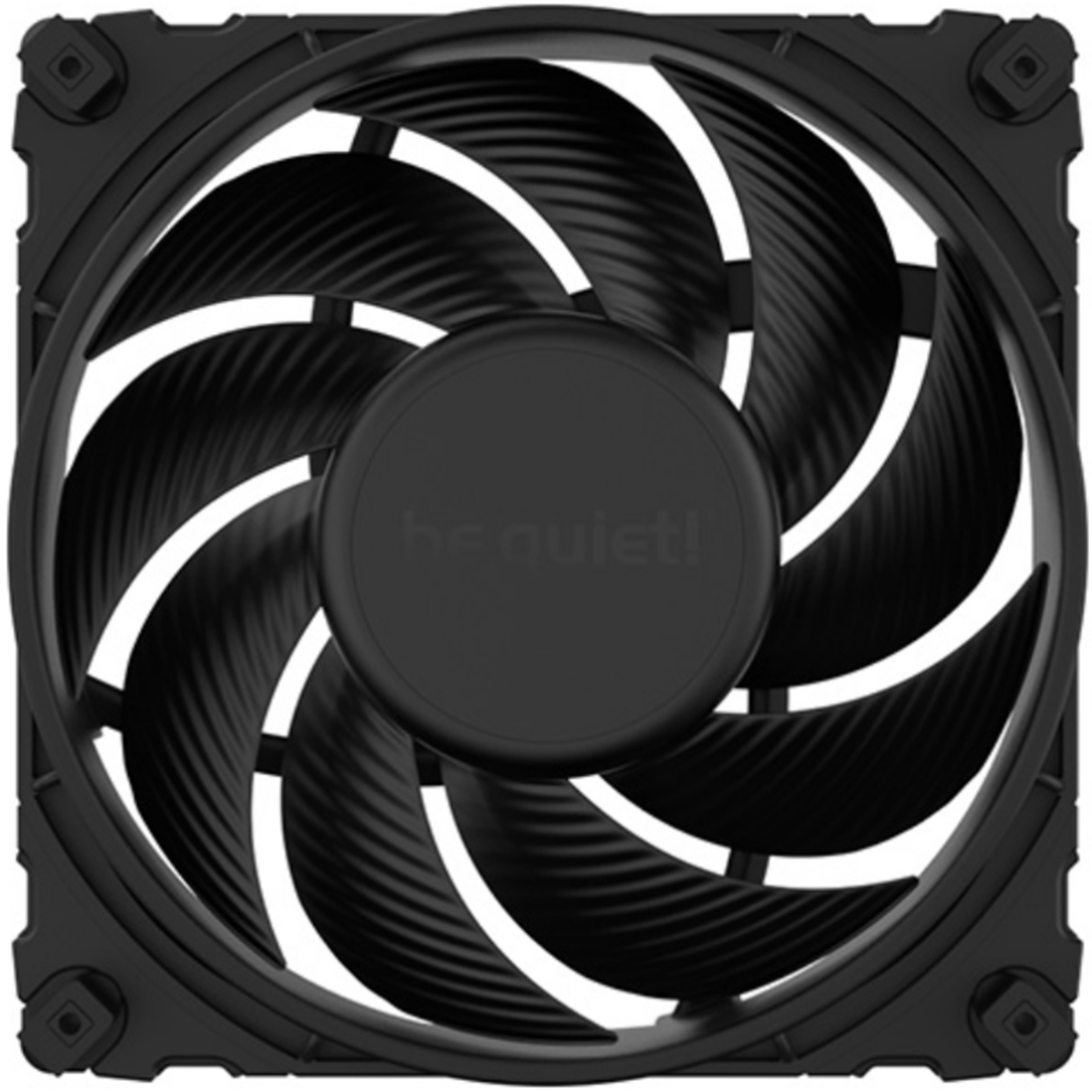

be quiet Silent Wings 4 Black 120mm PWM

  • Brand: be quiet
  • MPN: BL093
  • Part #: FANBQT3210
  • UPC:
3
PB Tech price
$ 33 .04 $ 38 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 22 Jul When will I receive it?
$33.04  +GST
$38.00  inc GST

Six easy payments of $6.52 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $9.74 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

  • Brand: be quiet
  • MPN: BL093
  • Part #: FANBQT3210
  • UPC:

Fan Size

120mm

CPU Air Cooler Height

N/A

Number of Fans

1

LED Colour

N/A

Radiator Size

N/A

Bearing Type Variation

Fluid Bearing

Sound Level (Roughly)

19dB

Similar in-stock products available at PB Tech right now

What PB Tech customers are saying about this product...

See More Reviews

"I was really happy with these fans.

The build quality is ...view more"

TS
By: ThomasS974 20/11/23
Verified Owner

"Amazing fan! Super quiet! Easy to install. Simply the best! Highly recommended! =D"

TG
By: Tensai101G 13/05/23
Verified Owner

"This is second time I have used these case fans, robust, quiet and good looking not cheap but worth it."

PJ
By: PetaJ5 12/01/23
Verified Owner

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the be quiet Silent Wings 4 Black 120mm PWM
be quiet Silent Wings 4 Black 120mm PWM
Total:
$ 42 .60
 +GST
$ 48 .99
 inc GST

Features





SILENT WINGS 4 120mm PWM - NO COMPROMISE SILENCE AND PERFORMANCE

Silent Wings 4 120mm PWM combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.

- Optimized fan blades for the highest performance on heat sinks
- Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
- Virtually inaudible operation at regular speed
- 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
- Anti-vibration mounting with push pins and screwed installation option
- Super-long lifespan of up to 300,000h
- Elegant look with high-grade fan sticker in an all-black design

NO COMPROMISE SILENCE AND PERFORMANCE - Equally quiet and performant operation

Silent Wings 4 120mm PWM is the fan of choice for all possible operations. Be it in a case, on radiators or heat sinks - Features like the silence-optimized fan blades and the funnel shaped fan frame make Silent Wings 4 120mm PWM a fan that makes no compromises between virtually inaudible operation and high performance.



OPTIMIZED FOR HIGH-END PERFORMANCE - Minimum tolerances for maximum air pressure

Silent Wings 4 120mm PWM makes for extraordinary air pressure and, therefore, significant increases in the system's performance. The decreased distance between the fan blades and the frame makes it possible. By that, the Silent Wings 4 120mm PWM allows the user to run even the most demanding applications.



DIFFERENT MOUNTING OPTIONS - For any purpose

Silent Wings 4 120mm PWM has 2 mounting options in the scope of delivery. The pre-installed anti-vibration mounting reduces noise-generating vibrations to a minimum. For radiators and heat sinks, the plastic mounting is the first choice. Both solutions have in common that they enable virtually inaudible operation at regular speed.



6-POLE FAN MOTOR - The key for virtually inaudible operation when needed

6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 18.9dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated in mid-speed.



FLUID-DYNAMIC BEARING - For a sustainable operation

The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings 4 120mm PWM.



ELEGANT LOOK - Magnificent appearance from all angles

Be it as a radiator fan or in the case: Silent Wings 4 120mm PWM always makes a good impression. The all-black design combined with the high-grade fan sticker makes the fan shine in any system. This makes Silent Wings 4 120mm PWM a high performant and an incredibly good-looking fan.

Specifications

Mechanical specifications

Dimensions (L x W x H), (mm)

120 x 120 x 25

Bearing technology

FDB

Motor technology

6-pole fan motor

Weight incl. fixed cables (kg)

0.190

Push pin fixing

Yes

Screw fixing

Yes

Cables / Connectors

Y-cable for lighting signal

-

Lighting connector

-

Connector

4-pin PWM

Cable length (mm)

500

Cable sleeve

Yes

Performance / Noise

Fan speed @ 100% PWM / 12V (rpm)

1600

Air Flow @ 100% PWM / 12V (CFM / m3/h)

48.7 / 82.74

Air Pressure @ 100% PWM / 12V (mm H2O)

1.79

Noise level @ 100% PWM / 12V (dB(A))

18.9

Lifespan (h / 25°C)

300,000

Electrical specifications

Rated Voltage DC (V)

12

Operating Voltage DC (V)

5 - 13.2

Current consumption (A)

0.12

Safety current (A)

0.13

Input power (W)

1.44

Rated Current LED (A)

-

Accessories

3-pin to 4-pin 12V-connector

-

12V to 7V adapter

Yes

12V to 5V adapter

Yes

Screws

4

Push pins

4

hard plastic washer

-

Others

Rubber & hard plastic mountings

Safety certification

Approvals

CE / RoHs / RU / UKCA / TÜV / WEEE

Manufacturer Part No:
BL093
Brand:
Product Type:
Black
UPC
-
Product Family:
Silent Wings 4
Shipping Weight:
0.45 kg
PB Part No:
FANBQT3210
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
