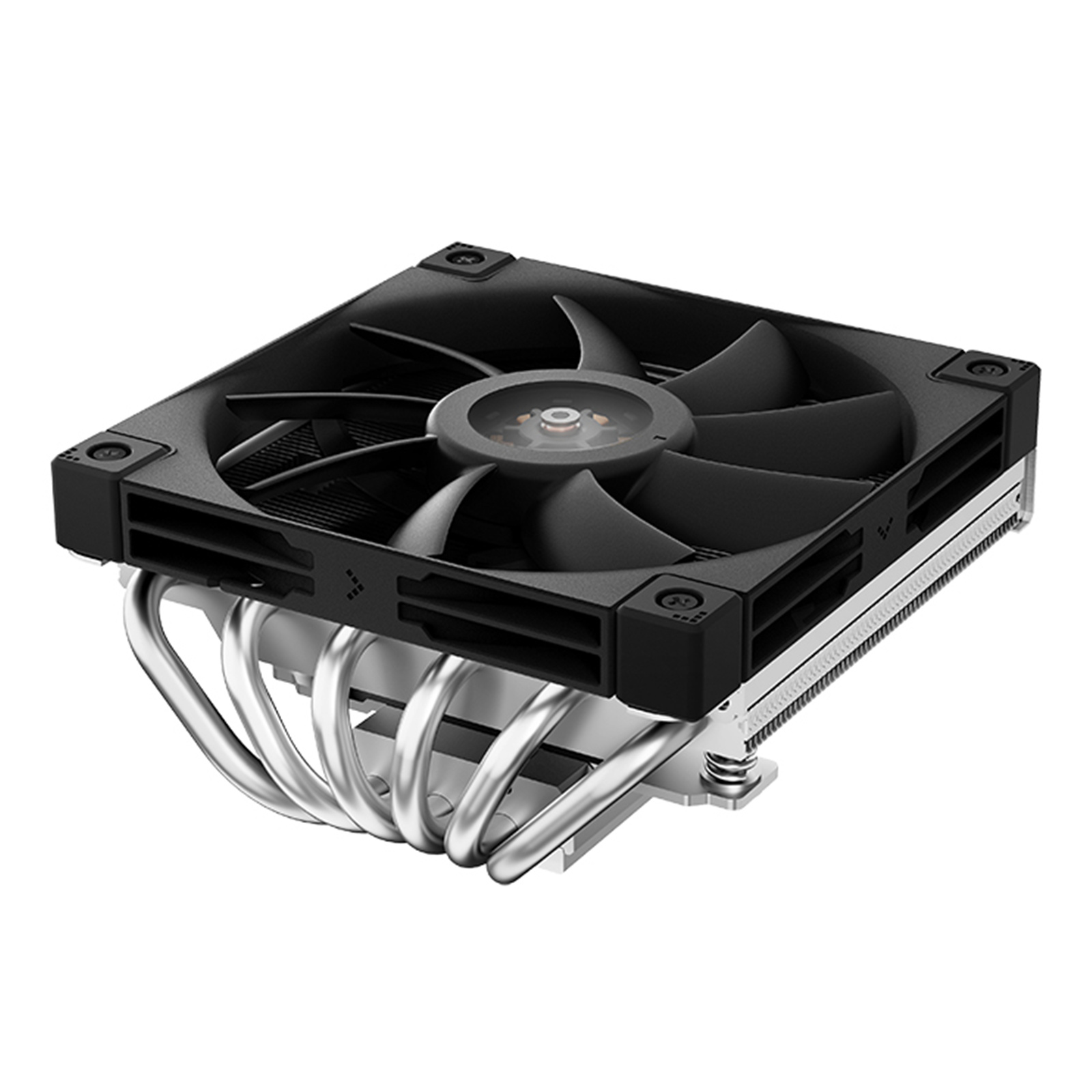

DEEPCOOL AN600 67mm CPU cooler

Special price
Special price
$ 83 .15
 +GST
$ 95 .62
 inc GST
$83.15  +GST
$95.62

DEEPCOOL AN600 67mm CPU cooler

  • Brand: DEEPCOOL
  • MPN: R-AN600-BKNNMN-G
  • Part #: FANDPC1005306
  • UPC: 6933412728146
Special price
$ 83 .15 $ 95 .62
 +GST  inc GST

Ends in --, while stocks last!

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 03 Dec When will I receive it?
$83.15  +GST
$95.62

Four payments of $24.14 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: DEEPCOOL
  • MPN: R-AN600-BKNNMN-G
  • Part #: FANDPC1005306
  • UPC: 6933412728146

Fan Size

120mm

Colour

Multi-Coloured

Number of Fans

1

CPU Air Cooler Height

67mm

Radiator Size

N/A

LED Colour

White

Reversed Fan Blade

No

Sound Level (Roughly)

24dB

Features

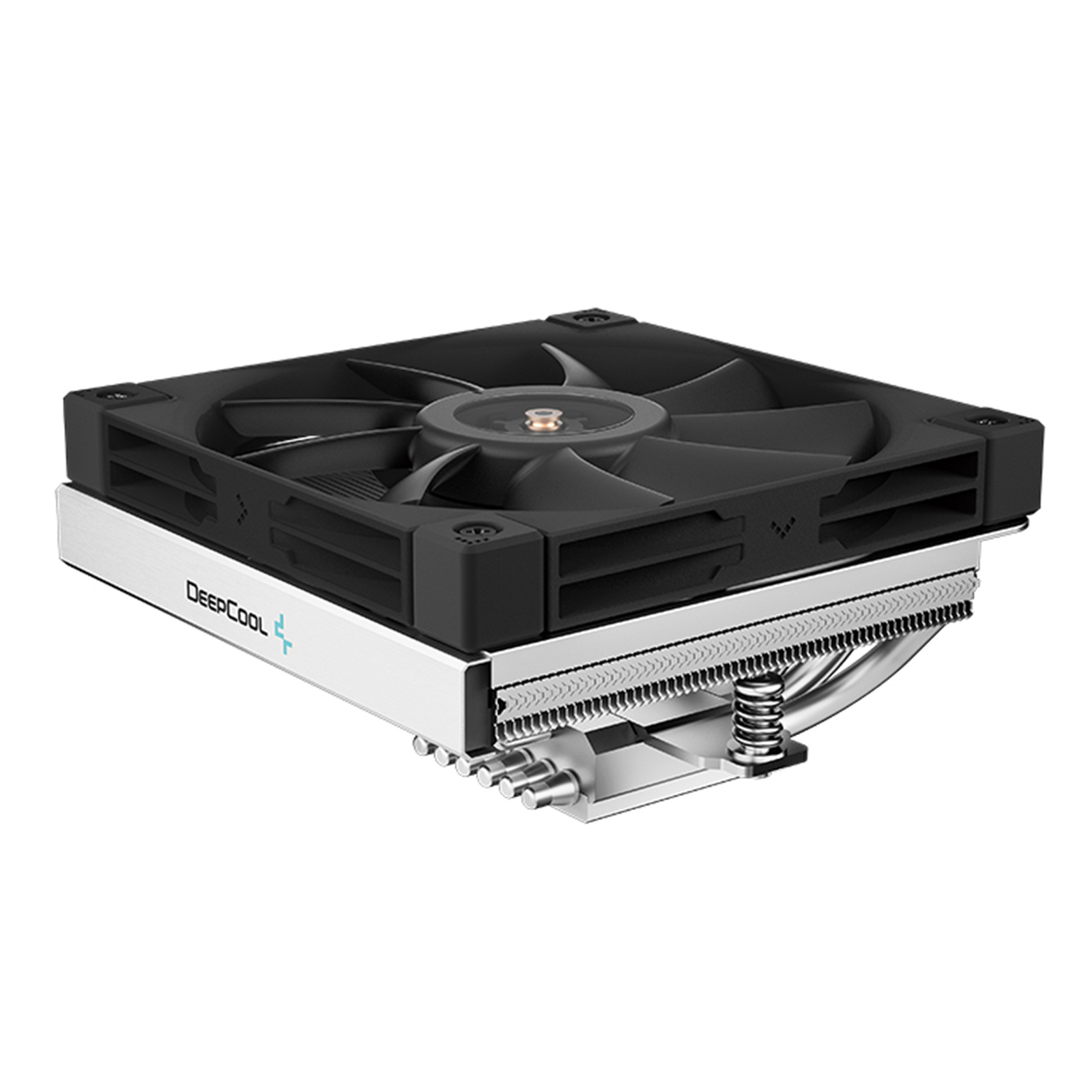

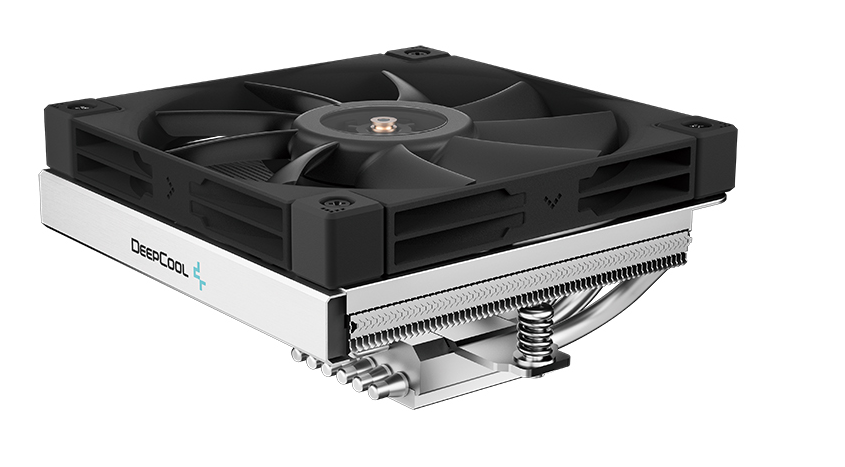

DeepCool AN600 CPU Air Cooler

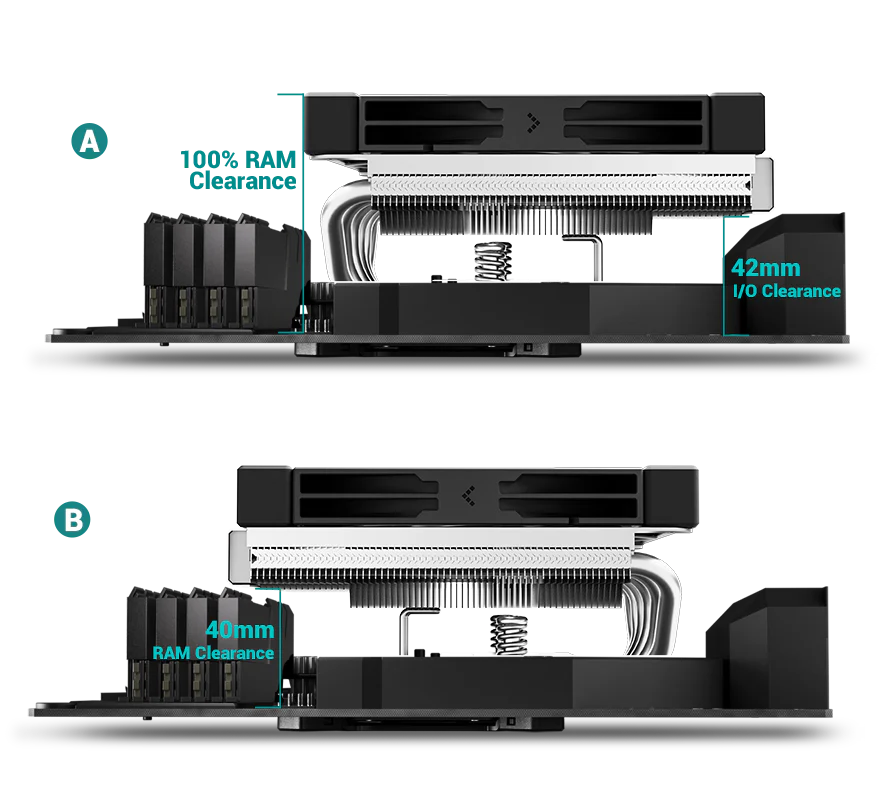

The AN600 is a low-profile CPU cooler that provides 180W of cooling to the CPU while also cooling the RAM modules. Making full use of a 120mm high airflow fan and an overhanging design, the AN600 actively cools RAM modules up to 40mm tall, while being compatible with ITX motherboards.



Keeping Things Cool

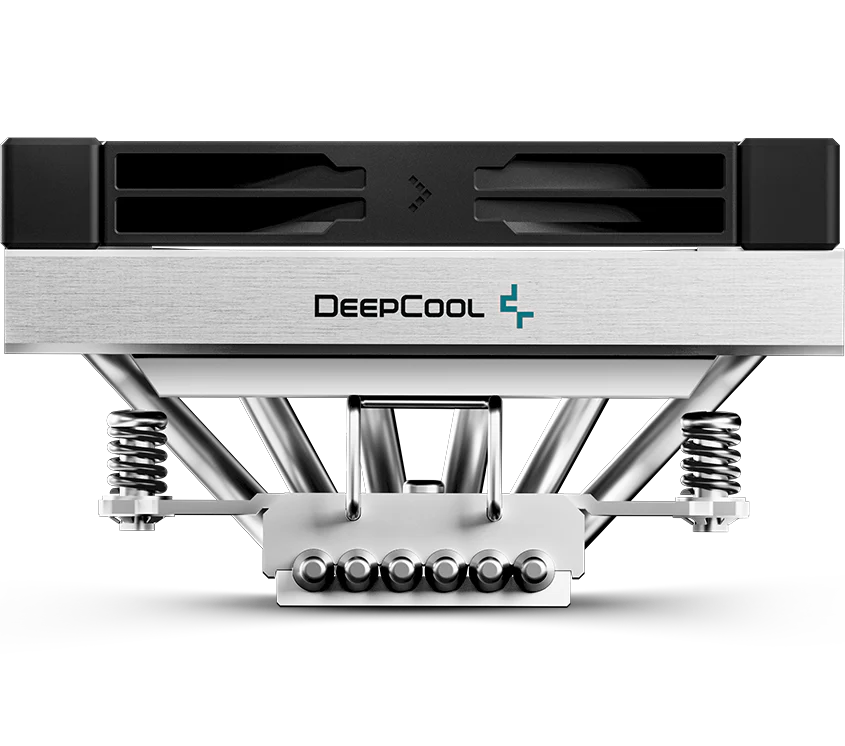

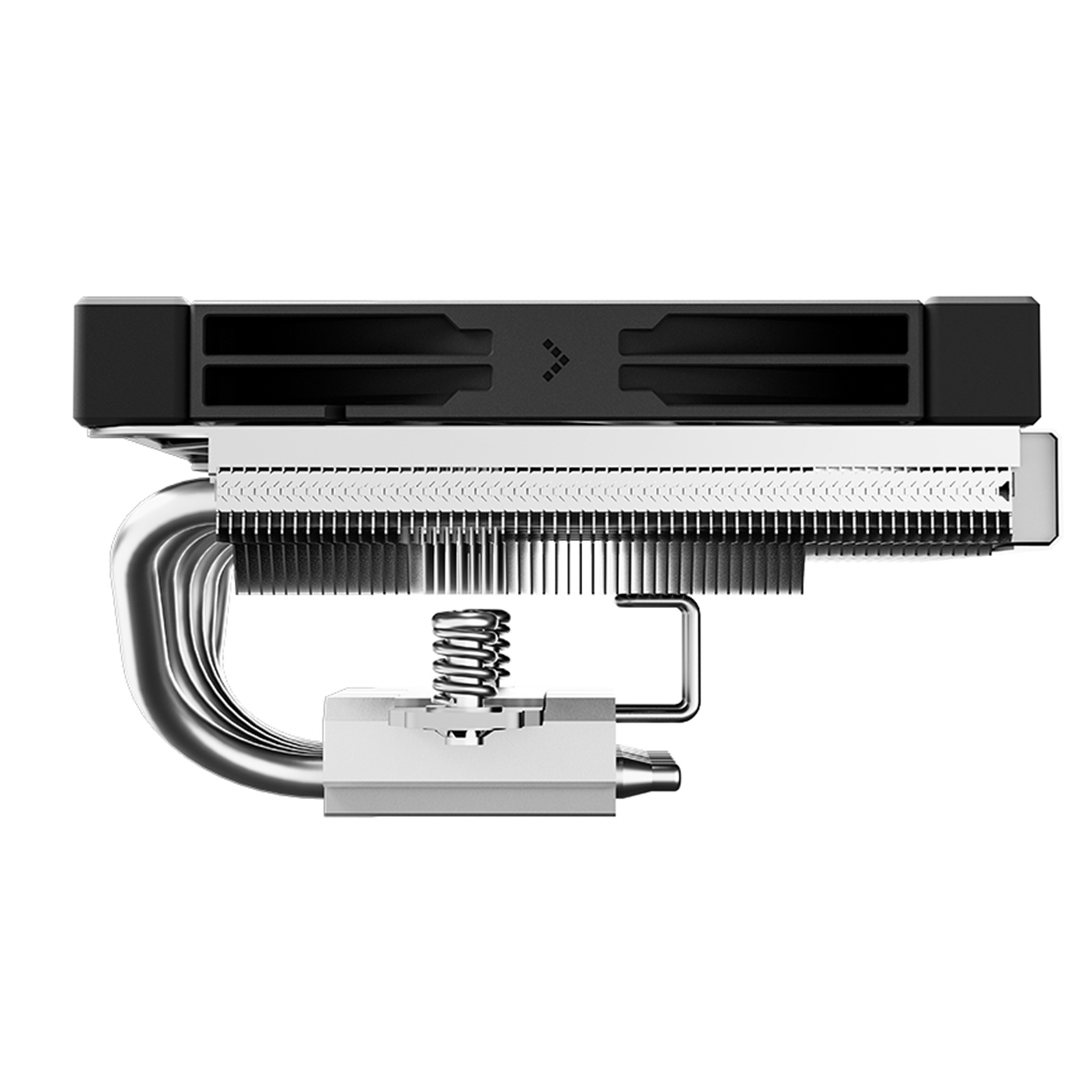

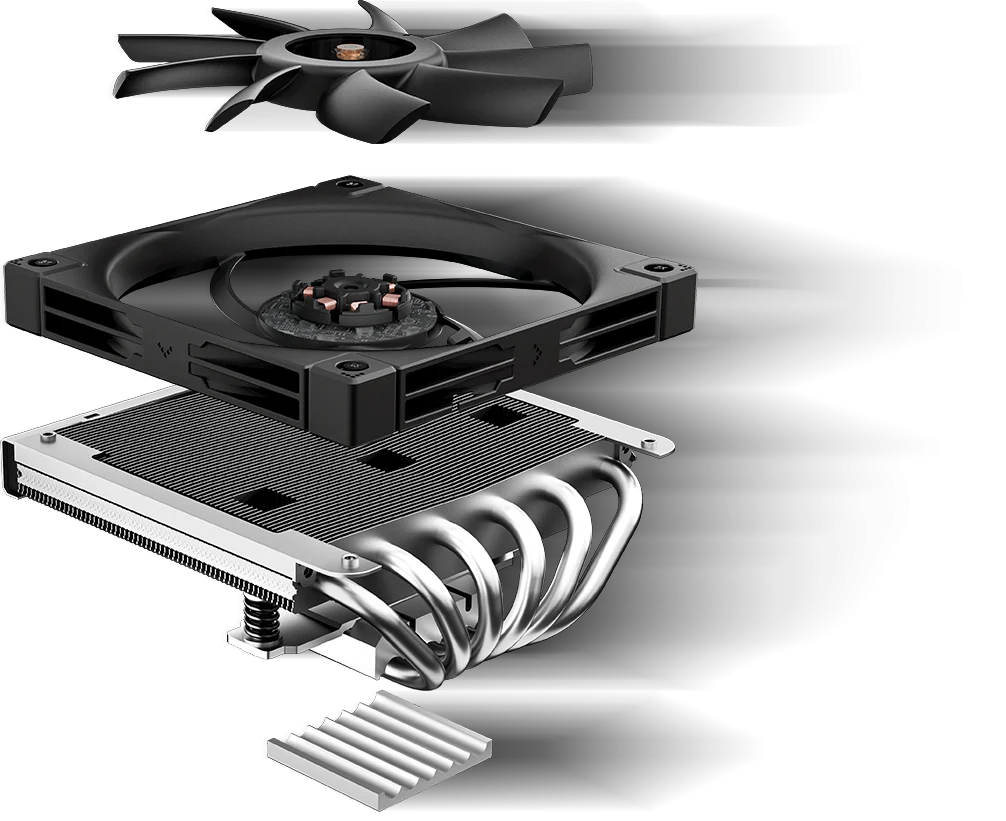

Utilizing 62 aluminum fins, a slim profile 120mm fan, 6 optimized heatpipes, and a raised copper coldplate, the AN600 packs a lot of cooling potential in a short 67mm tall CPU cooler.



More Than A CPU Cooler

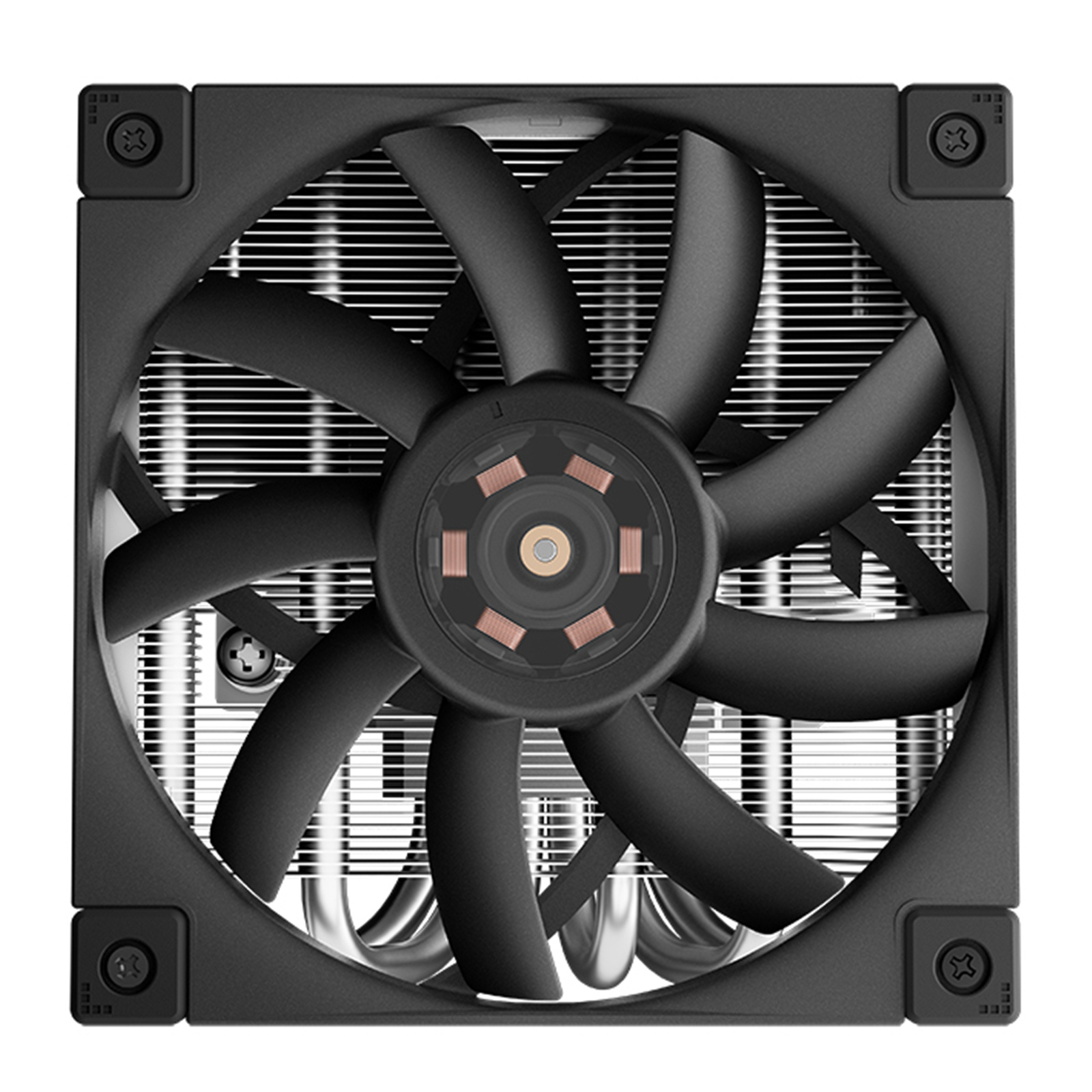

Taking full advantage of the slim 120mm PWM-enabled FDB fan and a top-down air flow, the AN600 pushes massive amounts of air through the fin array and down onto the RAM and VRMs below. The visible 6 stators ensure all of this is accomplished while staying under 24.4 dB(A). A low-noise adapter cable is included.



Simplified Support

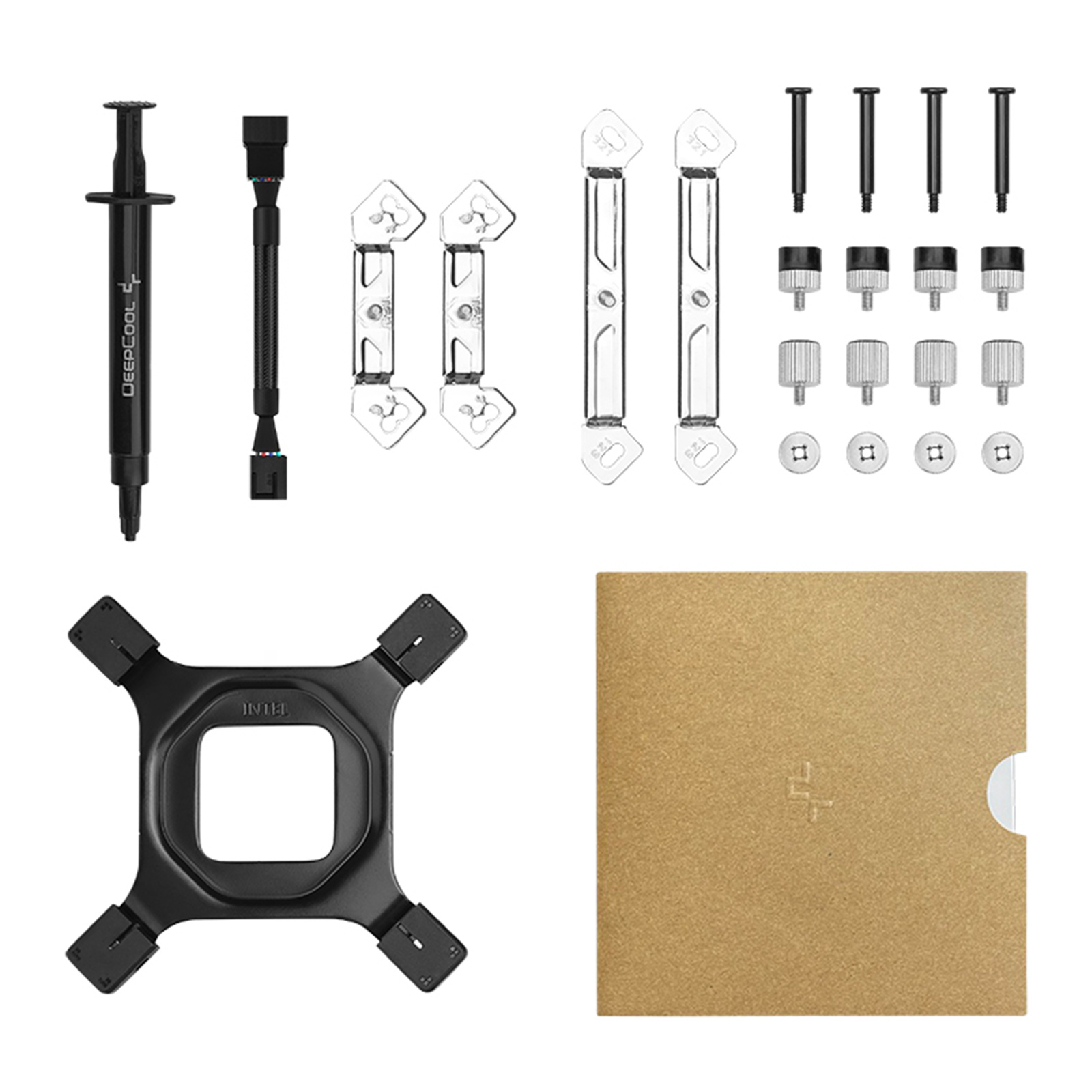

The all-metal back plate is easy to install and evenly distributes pressure from the rear of the motherboard, while providing reinforcement behind the CPU socket.

Specifications

Product Dimensions (L×W×H)

122 x 120 x 67 mm

Heatsink Dimensions(L×W×H

121 x 120 x 52 mm

Net Weight

628 g

Heatpipe

Ø6 mm x 6 pcs

Fan Dimensions

120 x 120 x 15 mm

Fan Speed

500~1850 RPM±10%

Fan Airflow

61.56 CFM

Fan Air Pressure

1.97 mmAq

Fan Noise

= 24.4 dB(A)

Fan Speed (with LSP)

500~1250 RPM±10%

Fan Airflow (with LSP)

41.51 CFM

Fan Air Pressure (with LSP)

1.19 mmAq

Fan Noise (with LSP)

= 20 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Fluid Dynamic Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.27 A

Fan Power Consumption

3.24 W

LED Type

White LED

Application For

Intel: LGA1700/1200/1151/1150/1155, AMD: AM5/AM4

Manufacturer Part No:
R-AN600-BKNNMN-G
Brand:
Product Type:
-
UPC
6933412728146
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
FANDPC1005306
Product Model:
-
Warranty: Not applicable
