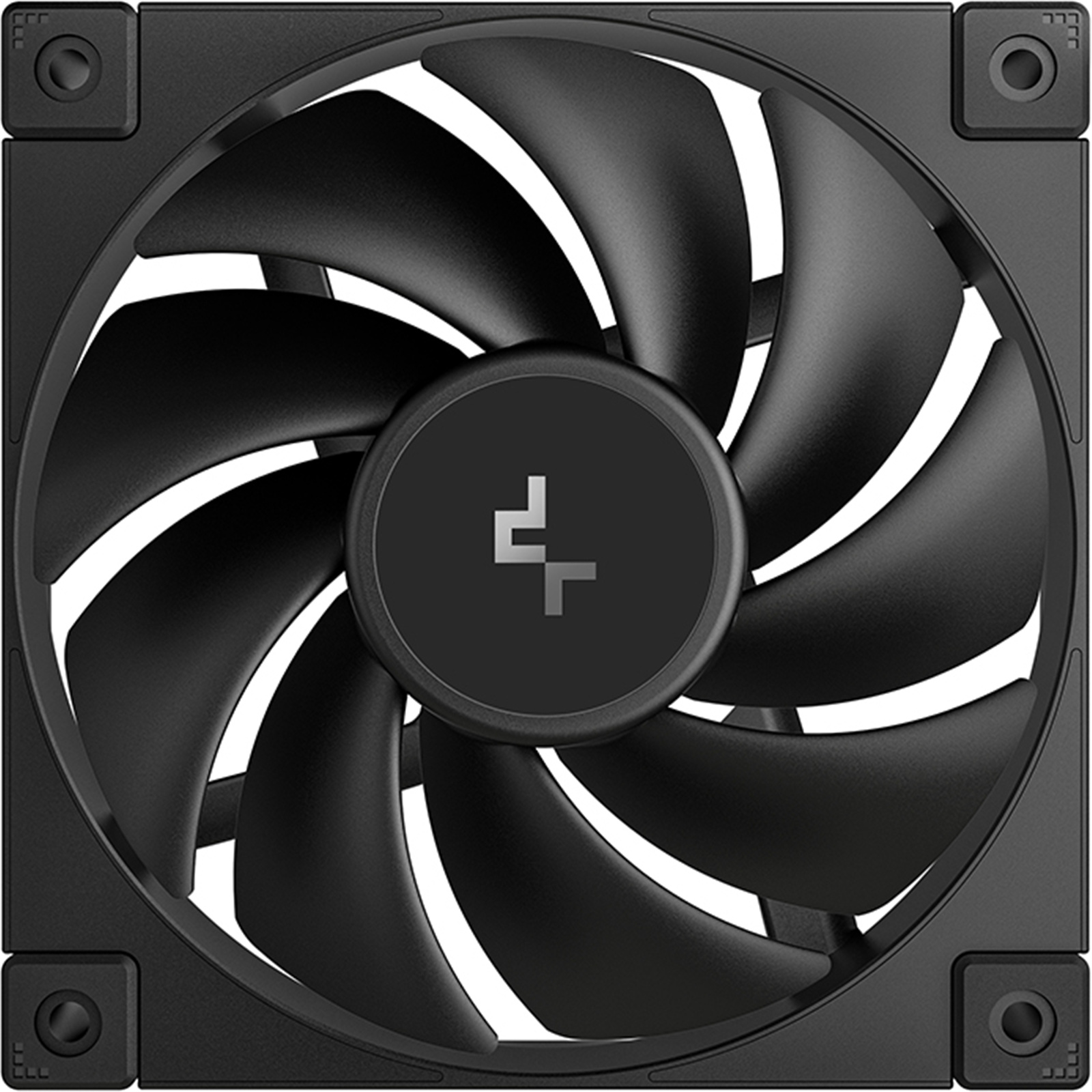

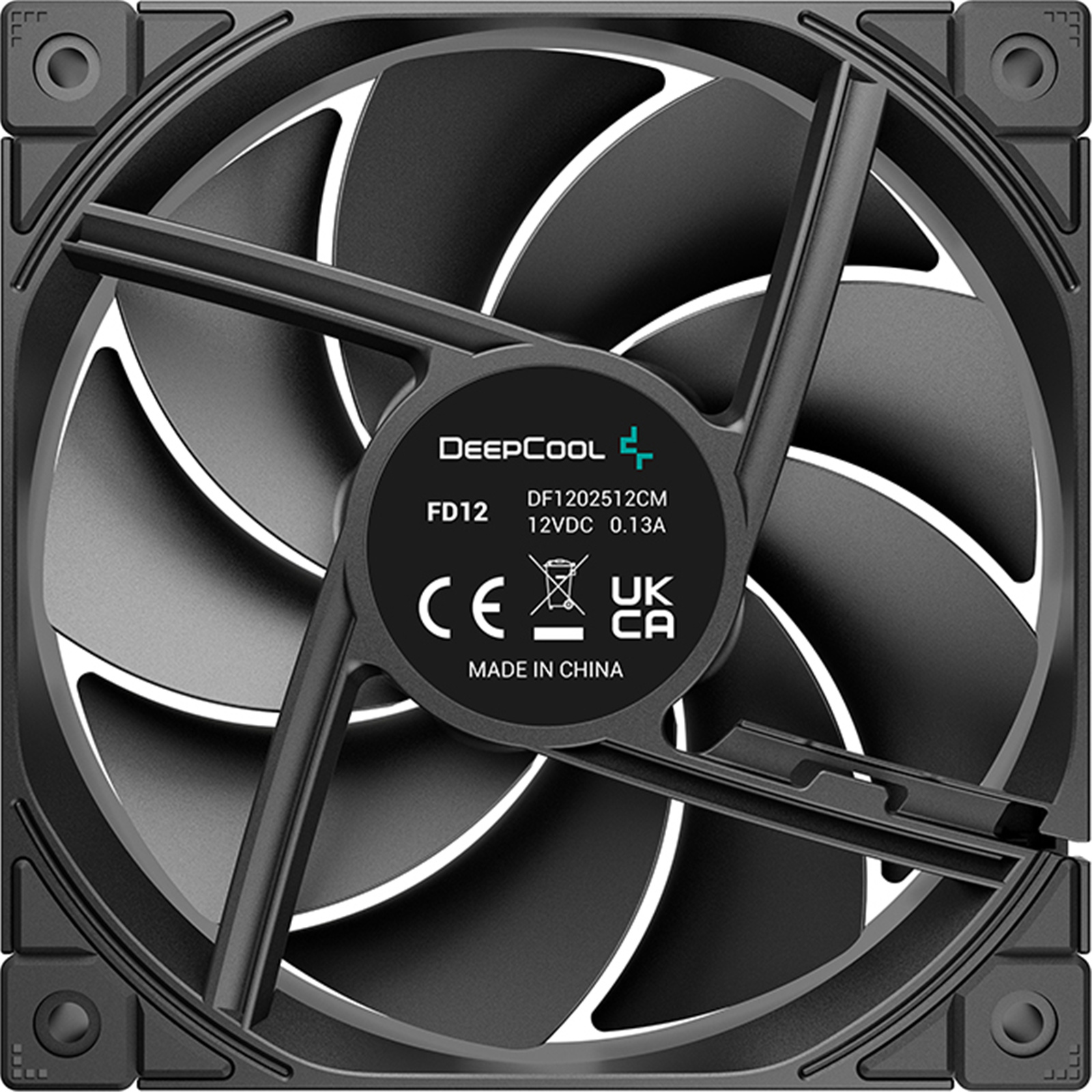

DEEPCOOL FD12 Black 120mm PWM Case Cooling Fan,

PB Tech price
PB Tech price
$ 19 .00
 +GST
$ 21 .85
 inc GST
$19.00  +GST
$21.85

DEEPCOOL FD12 Black 120mm PWM Case Cooling Fan,

Simple and Clean
  • Brand: DEEPCOOL
  • MPN: R-FD12-BKNPN1-G
  • Part #: FANDPC2131
  • UPC:
PB Tech price
$ 19 .00 $ 21 .85
 +GST  inc GST


Click & Collect: Available from 5 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$19.00  +GST
$21.85
  • Brand: DEEPCOOL
  • MPN: R-FD12-BKNPN1-G
  • Part #: FANDPC2131
  • UPC:

Fan Size

120mm

Colour

Black

Number of Fans

1

CPU Air Cooler Height

N/A

Radiator Size

N/A

LED Colour

N/A

Reversed Fan Blade

No

Sound Level (Roughly)

28dB

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the DEEPCOOL FD12 Black 120mm PWM Case Cooling Fan,
DEEPCOOL FD12 Black 120mm PWM Case Cooling Fan,
Total:
$ 85 .92
 +GST
$ 98 .81
Buy together and save $8.61 $9.90
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)

$6.50  +GST

$7.48

You save 5% You save 5%
ProsKit SD-9857M DIY Tool 57 IN 1 Screwdriver Set For Cell Phone, Notebook, Electronic Field, Home, Office, Bike and More
ProsKit SD-9857M DIY Tool 57 IN 1 Screwdriver Set For Cell Phone, Notebook, Electronic Field, Home, Office, Bike and More
$36.51 $41.99

$29.75  +GST

$34.21

You save 18% You save 18%
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
$12.56 $14.44

$11.54  +GST

$13.27

You save 8% You save 8%

Features

FD12 - SIMPLE AND CLEAN

The new DeepCool FD12 performance fans are the next evolution of the popular FK120 cooling fans. Revamped with a clean daisy chain cable and secure connectors, as well as a more durable and cleaner-looking frame.



NEXT WAVE OF DAISY CHAINS

Outfitted with an easy-to-manage 8-pin cable that can be chained to each of the FD fans, this greatly reduces the mess of fan wires that need to be managed.



SECURE CONNECTION

The 8-pin connectors in the fan frames have been greatly improved to utilize a block-shaped connection rather than the straight line found with the FC series. Quick, secure, and simple.



COOLING YOU CAN TRUST

Equipped with a long-life hydraulic bearing. The FD12 PWM fans boast exceptional cooling specs while remaining relatively quiet.

- 400-2050 RPM±10% Fan Speed
- 64.2 CFM Air Volume
- 2.49 mmAq Static Pressure
- =27.6 dB(A) Fan Noise



ENHANCED MATERIALS

By utilizing an enhanced composite material based on PBT for the frames and polycarbonate for the fan blades, the entire fan assembly is extremely consistent and has a quieter overall sound profile.



REDUCED VIBRATIONS

Full-coverage rubber pads at each corner guarantee minimal fan vibration and ensure that noises resulting from uneven mounting pressure are minimized.

Specifications

Fan Dimensions

120×120×25 mm(L×W×H)

Net Weight

175g

Fan Speed

400~2050 RPM±10%

Fan Airflow

64.2 CFM

Fan Air Pressure

2.49 mmAq

Fan Noise

=27.6 dB(A)

Fan Connector

4-pin PWM

Bearing Type

Hydro Bearing

Fan Rated Voltage

12 VDC

Fan Rated Current

0.13A

Fan Power Consumption

1.56 W

P/N

R-FD12-BKNPN1-G

Manufacturer Part No:
R-FD12-BKNPN1-G
Brand:
Product Type:
-
UPC
-
Product Family:
FD12
Shipping Weight:
0.2 kg
PB Part No:
FANDPC2131
Product Model:
Black
Warranty: 12 months *
