Jonsbo CR-1400 Standard Black CPU Cooling Fan, PWM, D-TDP180W, For Intel LGA 1851/1700/1200/115X ; AMD AM4/AM5
Out of stock
Jonsbo CR-1400 Standard Black CPU Cooling Fan, PWM, D-TDP180W, For Intel LGA 1851/1700/1200/115X ; AMD AM4/AM5
- Brand: Jonsbo
- MPN: CR-1400 EVO Standard
- Part #: FANJSB41404
- UPC: 100056467083
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"easy to assemble and attach cooling a 5900x AM4 socket nicely"
"I have a cool CPU"
"Purchase this fan because I had a height restriction wasn't interested in the RGB but to also find out it had a 180 thermal rating was fantastic.
Great value and quality, I do rec ...view more"
Features
SILENT SERIES - CR-1400 EVO
90MM SINGLE TOWER COOLER
- Significant upgrades to iterative performance
- Low-noise design trend to optimise noise friendliness
- Nickel plated anti-oxidation coating on heat pipes
- New through-bar fasteners
Product overview
The CR1400EVO series newly defines the appearance design language and adds multiple versions to choose from, taking into account different application scenarios, 130mm height size to complement the MINI chassis, significantly upgraded cooling performance, low noise design tendency, optimized noise friendliness, nickel-plated heat pipes to prevent oxidation and oxidation, new through-bar fasteners, redefining the new benchmark of MINI cooler products.
New performance iteration
Optimising heat pipe performance
25% improvement in heat pipe load solving efficiency

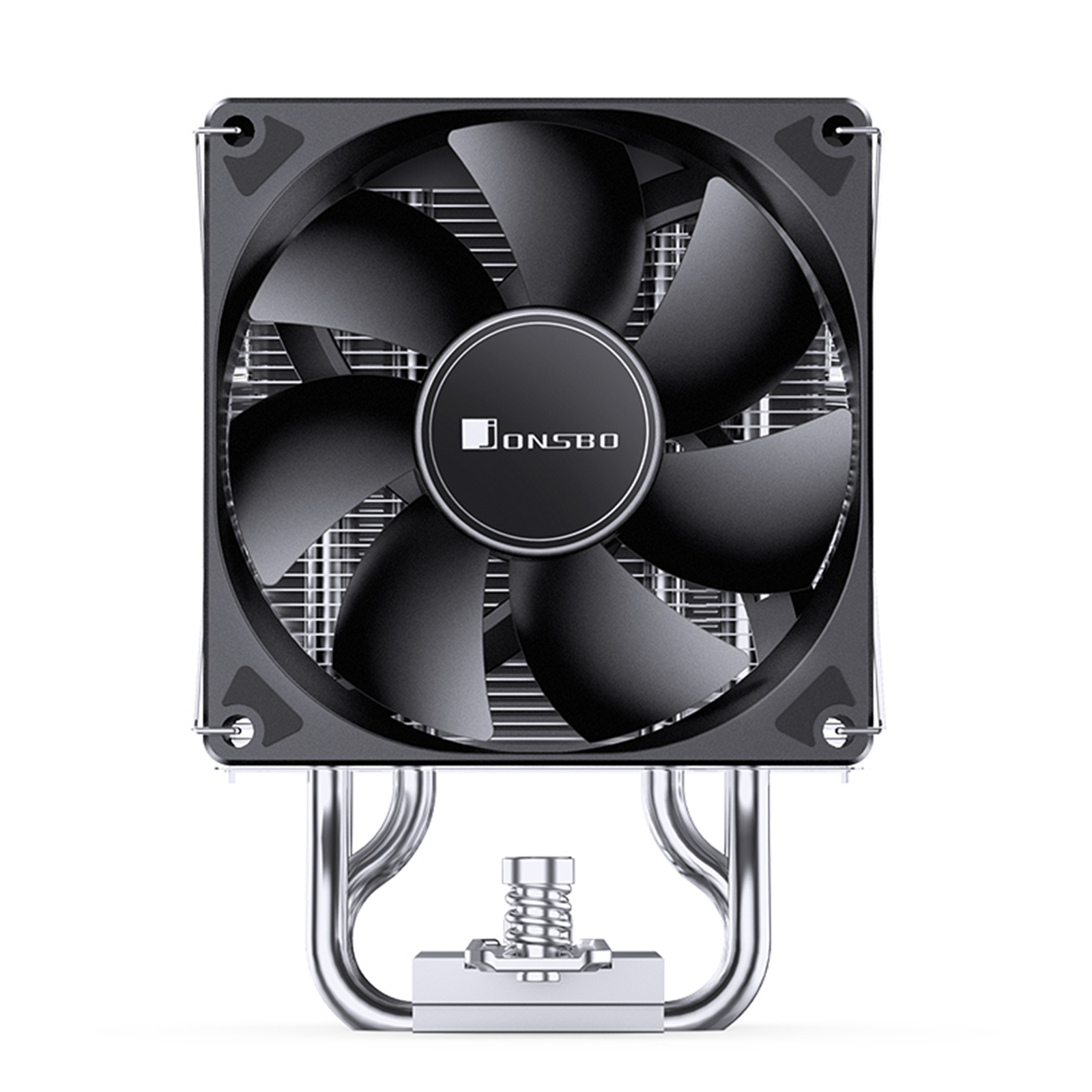

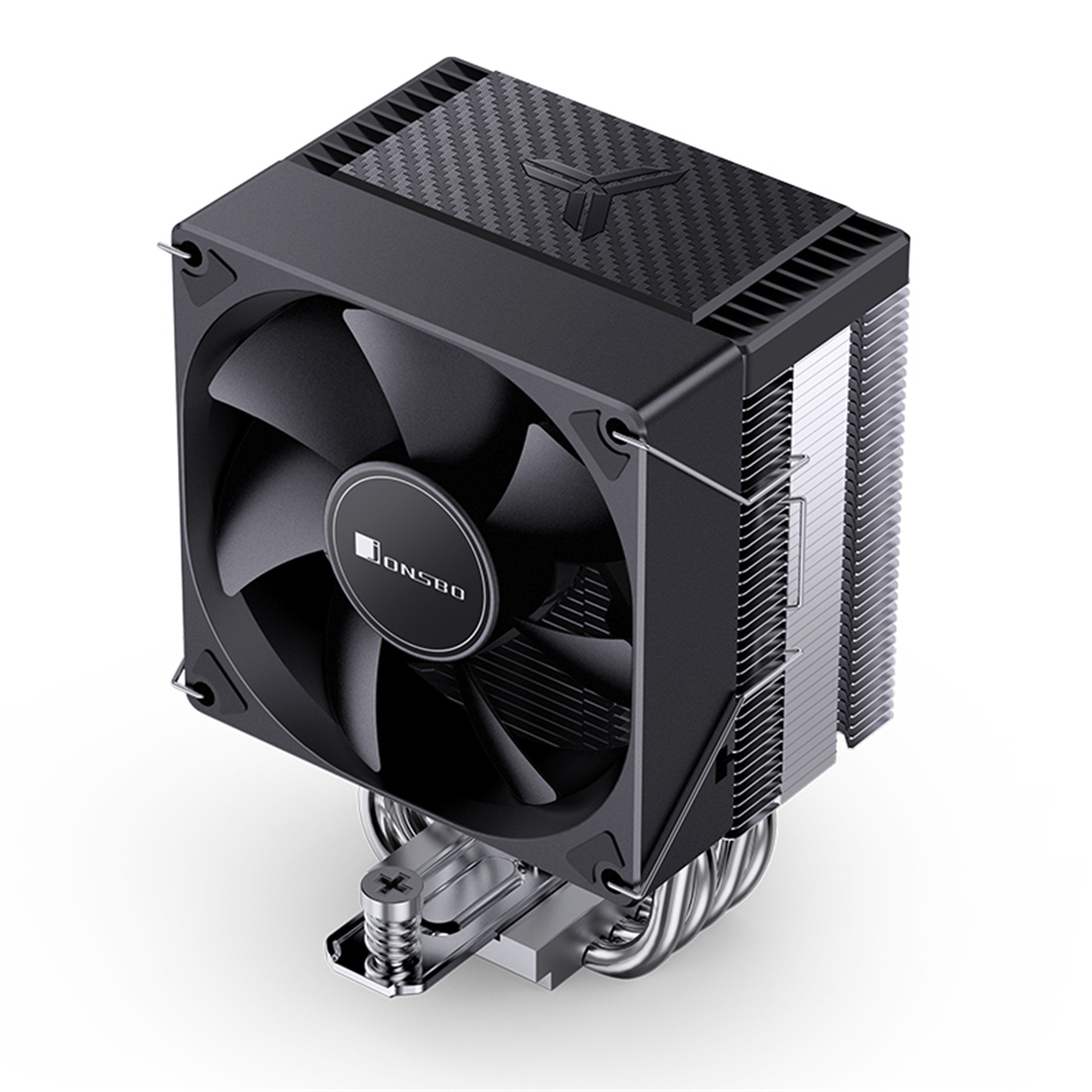

New fan iteration
9CM minimalist appearance
New low-noise design with sickle-shaped fan blades
The new look iteration
Top corrugated grille with light transmission channels
Large area carbon fiber sun textured texture

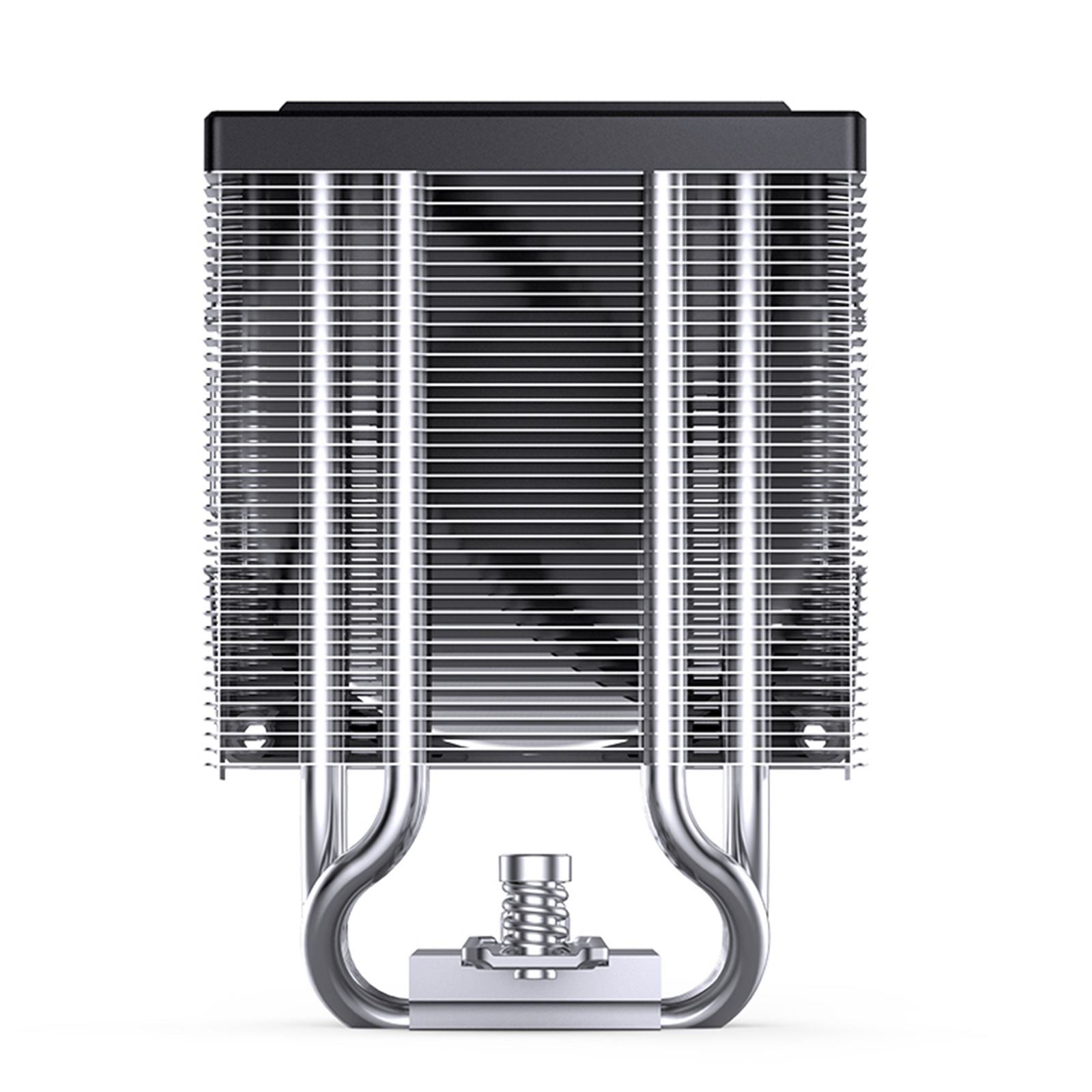

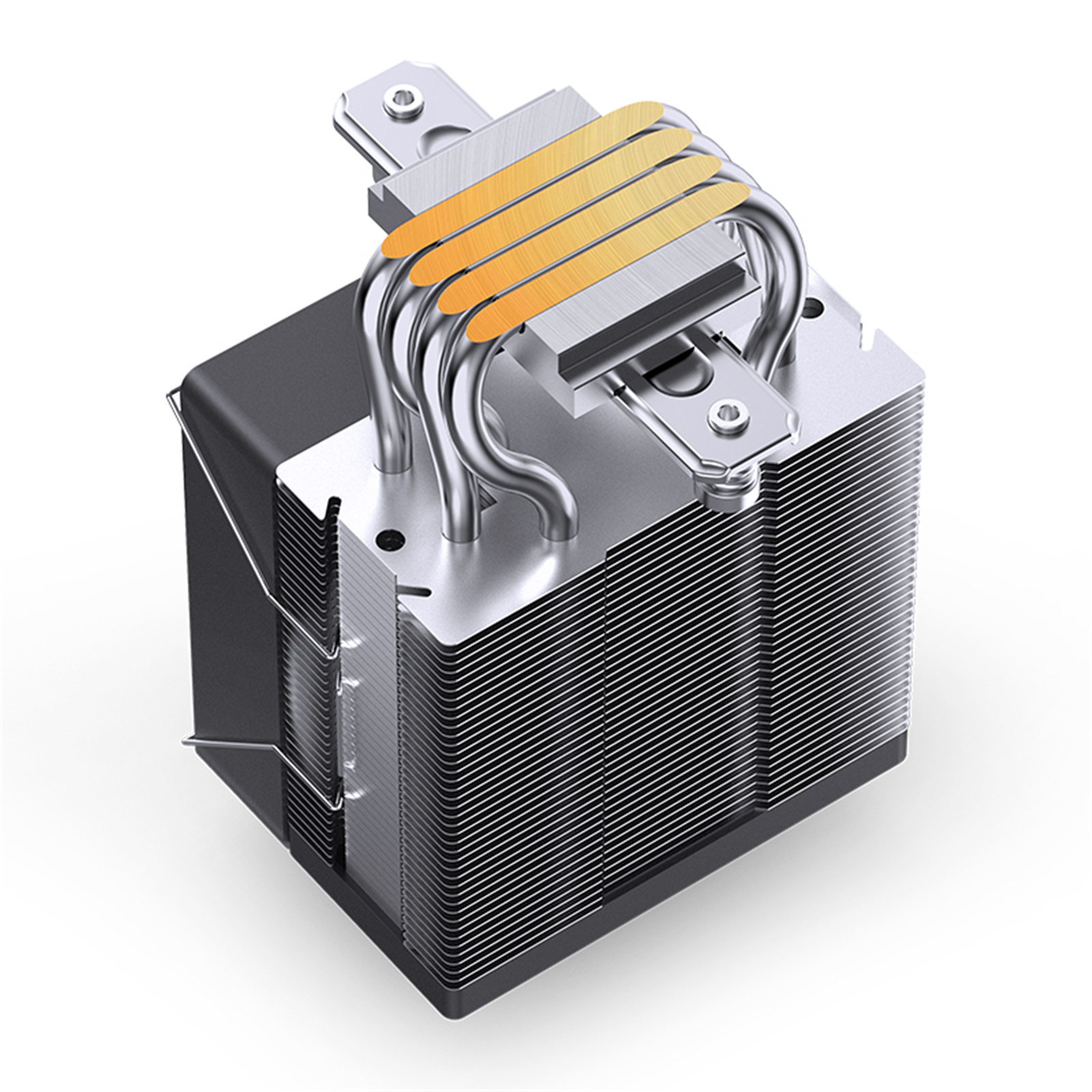

New heat pipe
Nickel plated heat pipes against oxidation
A new way of laying out
Better for heat transfer

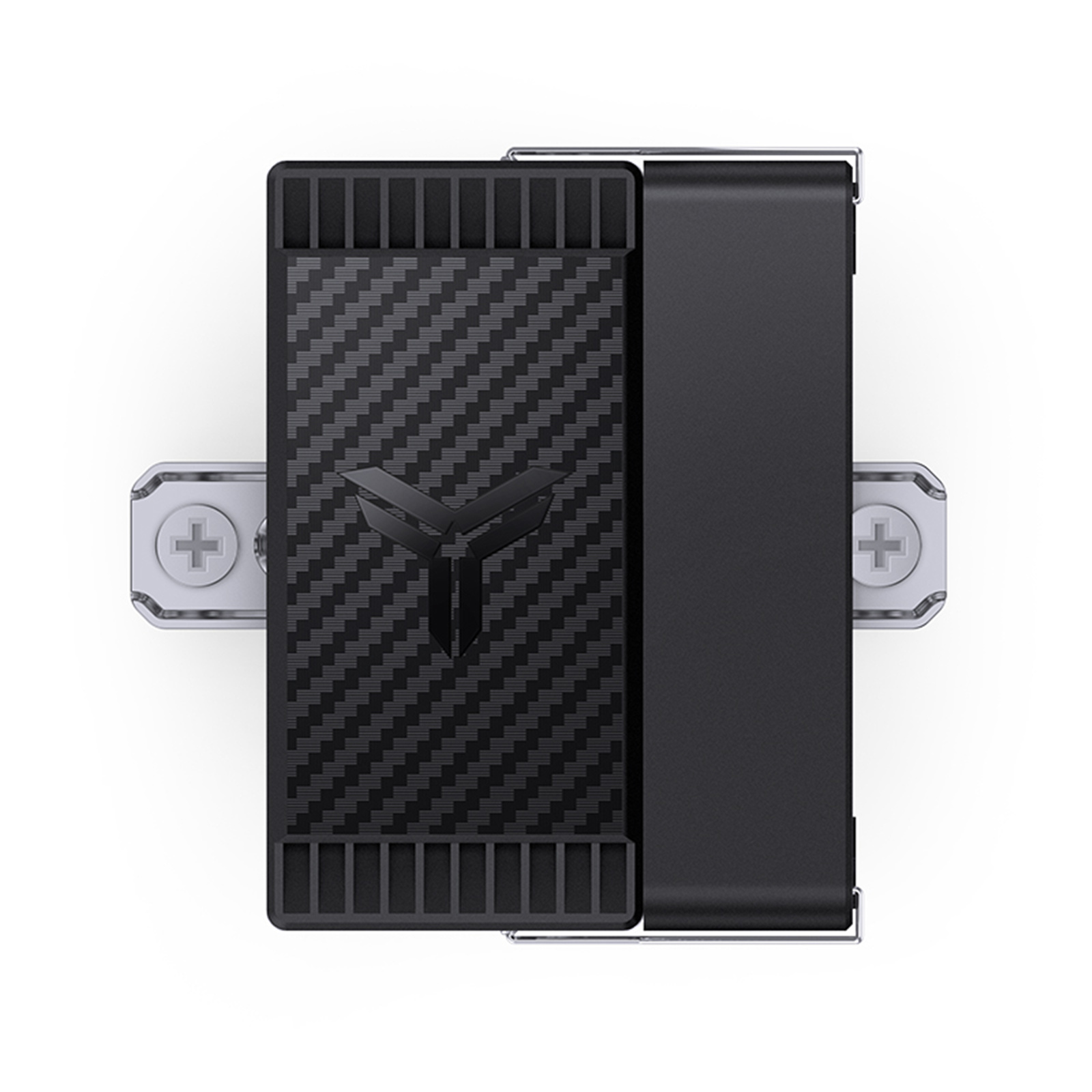

New integrated top cover
Carbon fibre sunburst texture over the end of the heat pipe to enhance the overall simplicity

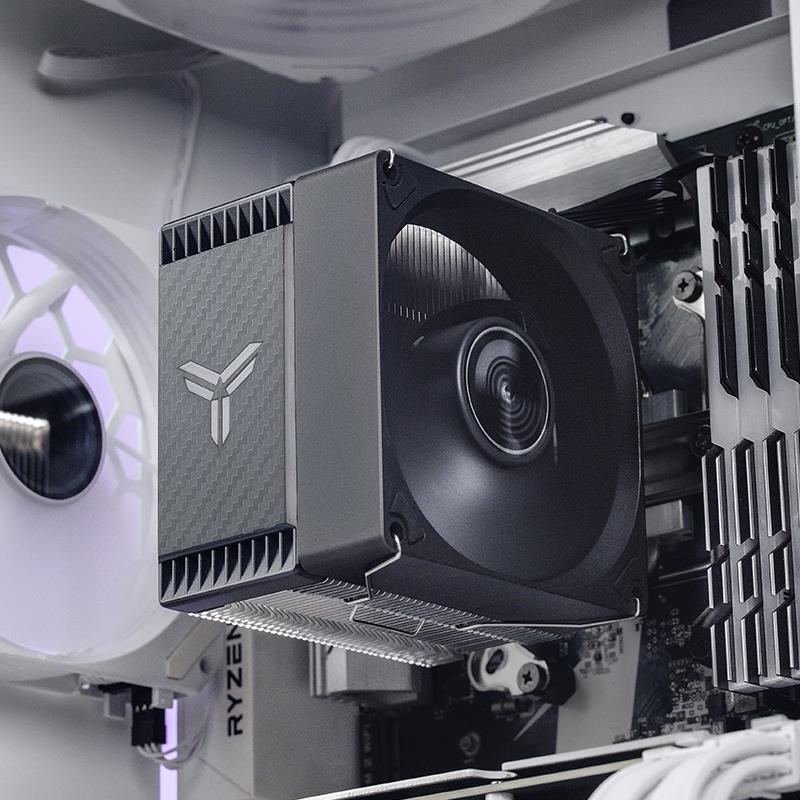

No blocking of the memory position

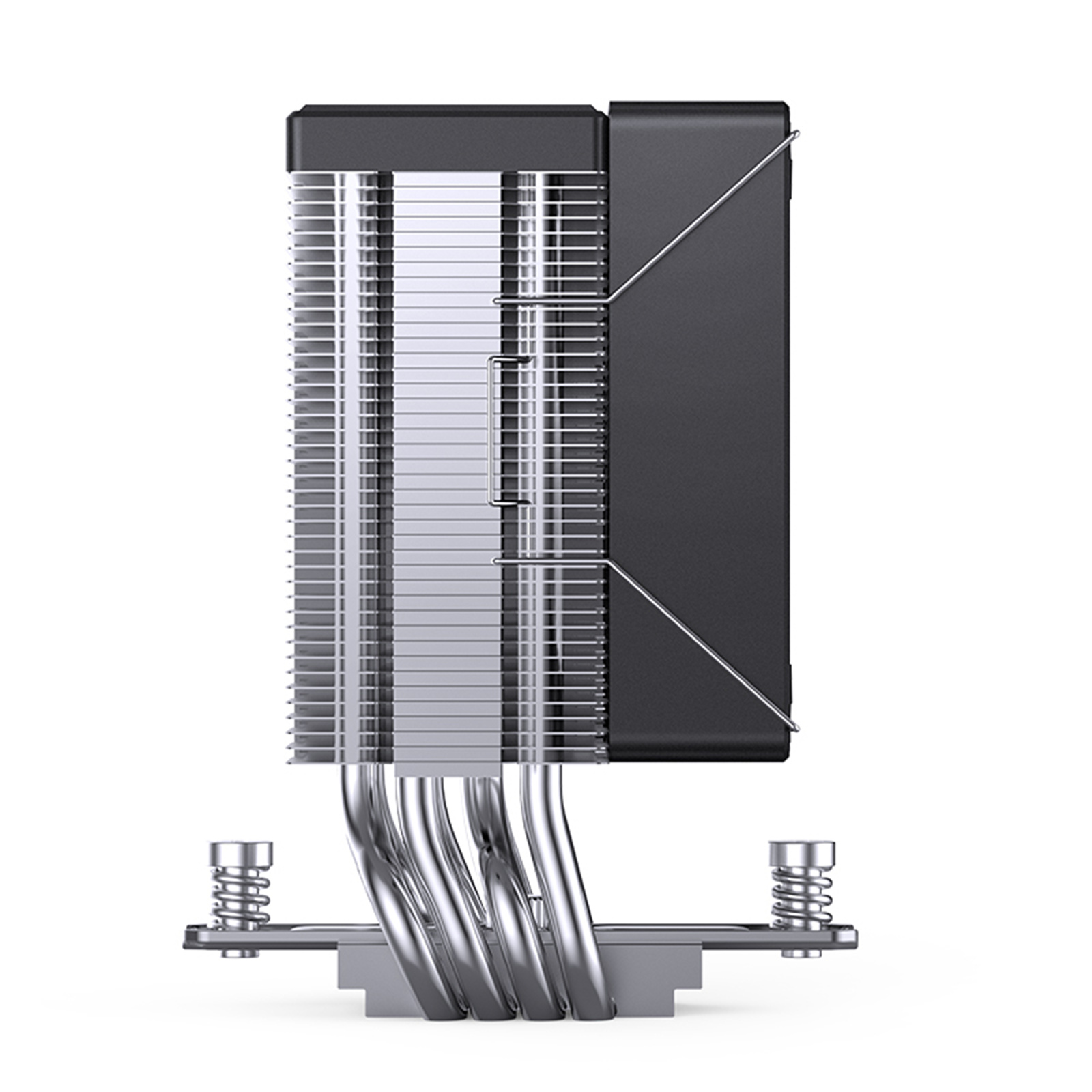

Crooked neck heatpipe avoids memory, Full display of memory (light effect)

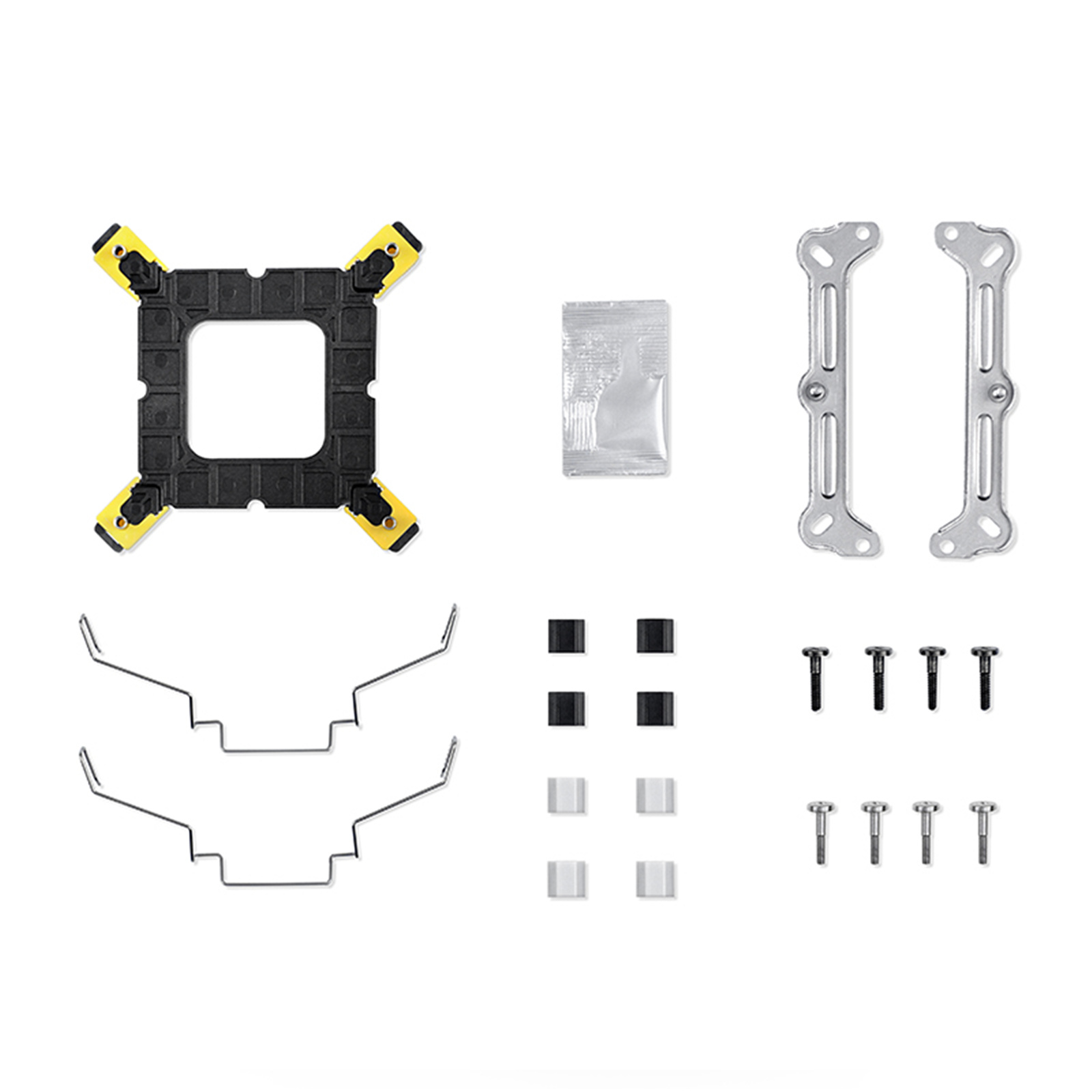

Quick and easy installation without removing
Specifications
Reviews
Do you own this product?
Good performer
Stock intel RM1 on 12400f - stress test with Aida64 peak temp 80C, but generally hovered around 75C
With Jonsbo cooler and Noctua NT-H2 thermal paste = peak temp 60C, but generally hovered around 55C
Great result. Decently quiet also.
4 heat pipes seems to work well.
Take your time with the install to get a good mount. Initially leave the mounting screws just loose enough of the two brackets the cooler mounts onto. Then set the cooler onto the brackets and screw it down a couple of turns to let the bracketry move to their settling point, then tightened the two brackets down. Removed cooler, pasted cpu. Then mounted cooler.
Awsome CPU fan
Love the RGB and surprisingly quiet, unless your cpu is running hot with multiple applications then of course it gets a little loud at max speed.
But for it's price it's unbeatable.
Nothing Fancy but does the trick
Stock cooler was making a bit more noise than normal, and temps were running high, especially when gaming.
Chucked this in, temps all down again, came with some thermal paste. Install was straight forward.
And looks good in black, I'm not a fan (haha) of LED's
A great purchase for the price does the job as advertised
easy to assemble and attach cooling a 5900x AM4 socket nicely
It does what is supposed to
I have a cool CPU
Perfect size and performance
Purchase this fan because I had a height restriction wasn't interested in the RGB but to also find out it had a 180 thermal rating was fantastic.
Great value and quality, I do recommend this.
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Air Cooling
DEEPCOOL AK400 Black CPU Cooler 1x 120mm Fan, 155mm Clearance,...
NOCTUA NH-D15 Chromax Black CPU Cooler 2x 140mm PWN Fans, 165mm...
DEEPCOOL AG200 CPU Cooler 1x 92mm Fan, 133mm Clearance, Support...
DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support...
NOCTUA NH-D15 CPU Cooler 2x 140mm PWN Fans, 165mm Clearance,...
Jonsbo CR-1400 Standard Black CPU Cooling Fan, PWM, D-TDP180W, For Intel LGA 1851/1700/1200/115X ; AMD AM4/AM5
- Brand: Jonsbo
- MPN: CR-1400 EVO Standard
- Part #: FANJSB41404
- UPC:100056467083
Product URL: https://www.pbtech.co.nz/product/FANJSB41404/Jonsbo-CR-1400-Standard-Black-CPU-Cooling-Fan-PWM
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
SILENT SERIES - CR-1400 EVO
90MM SINGLE TOWER COOLER
- Significant upgrades to iterative performance
- Low-noise design trend to optimise noise friendliness
- Nickel plated anti-oxidation coating on heat pipes
- New through-bar fasteners
Product overview
The CR1400EVO series newly defines the appearance design language and adds multiple versions to choose from, taking into account different application scenarios, 130mm height size to complement the MINI chassis, significantly upgraded cooling performance, low noise design tendency, optimized noise friendliness, nickel-plated heat pipes to prevent oxidation and oxidation, new through-bar fasteners, redefining the new benchmark of MINI cooler products.
New performance iteration
Optimising heat pipe performance
25% improvement in heat pipe load solving efficiency
New fan iteration
9CM minimalist appearance
New low-noise design with sickle-shaped fan blades
The new look iteration
Top corrugated grille with light transmission channels
Large area carbon fiber sun textured texture
New heat pipe
Nickel plated heat pipes against oxidation
A new way of laying out
Better for heat transfer
New integrated top cover
Carbon fibre sunburst texture over the end of the heat pipe to enhance the overall simplicity
No blocking of the memory position
Crooked neck heatpipe avoids memory, Full display of memory (light effect)
Quick and easy installation without removing
Specifications
Model
CR-1400 V2 ARGB Black
Dimensions
92 mm(L)*70mm(W)*133mm(H)
Heatpipe size
F6mm*4 PCS
D-TDP
180W
Fan Dimensions
92mm* 92mm* 25mm
Fan Speed
800-2200RPM(±10%)
Fan Air Flow
11.95-38.2CFM(MAX)
Fan Air Pressure
0.25-2.0mmH2O(MAX)
Fan Noise Level
22.3-33.8dB(A)(MAX)
Fan Bearing Type
Hydraulic bearing
Fan MTTF
=40000h @25?
Connector
FAN 4PIN PWM / LED 3PIN ARGB
Rated Current
Fan 0.19A(MAX)
LED 0.37A(MAX)
Rated Voltage
Fan 12V
LED 5V
Power Consumption
Fan 2.28W(MAX)
LED 1.85W(MAX)
Scope of Application
INTEL: LGA 1700/1200/115X
AMD: AM4/AM5
