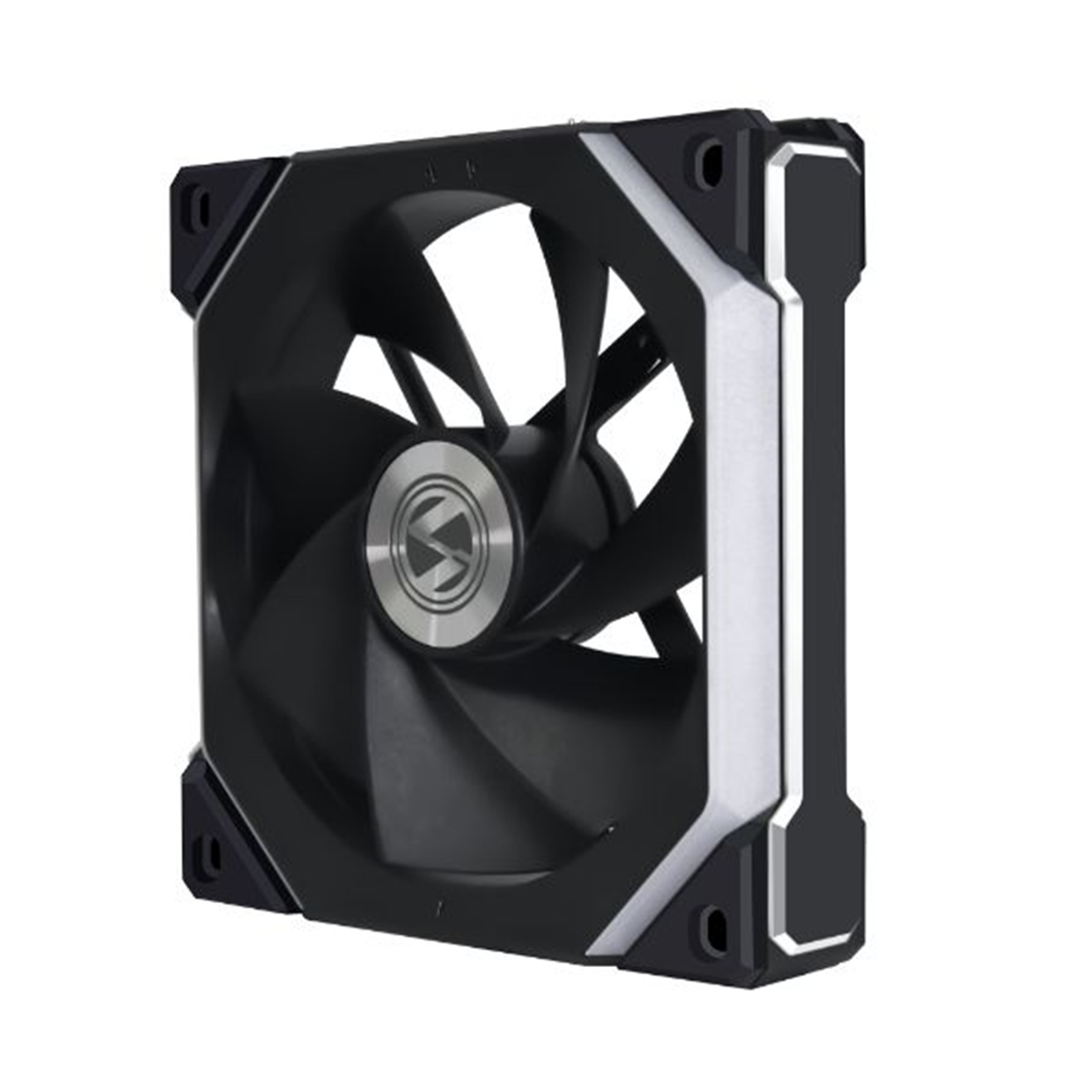

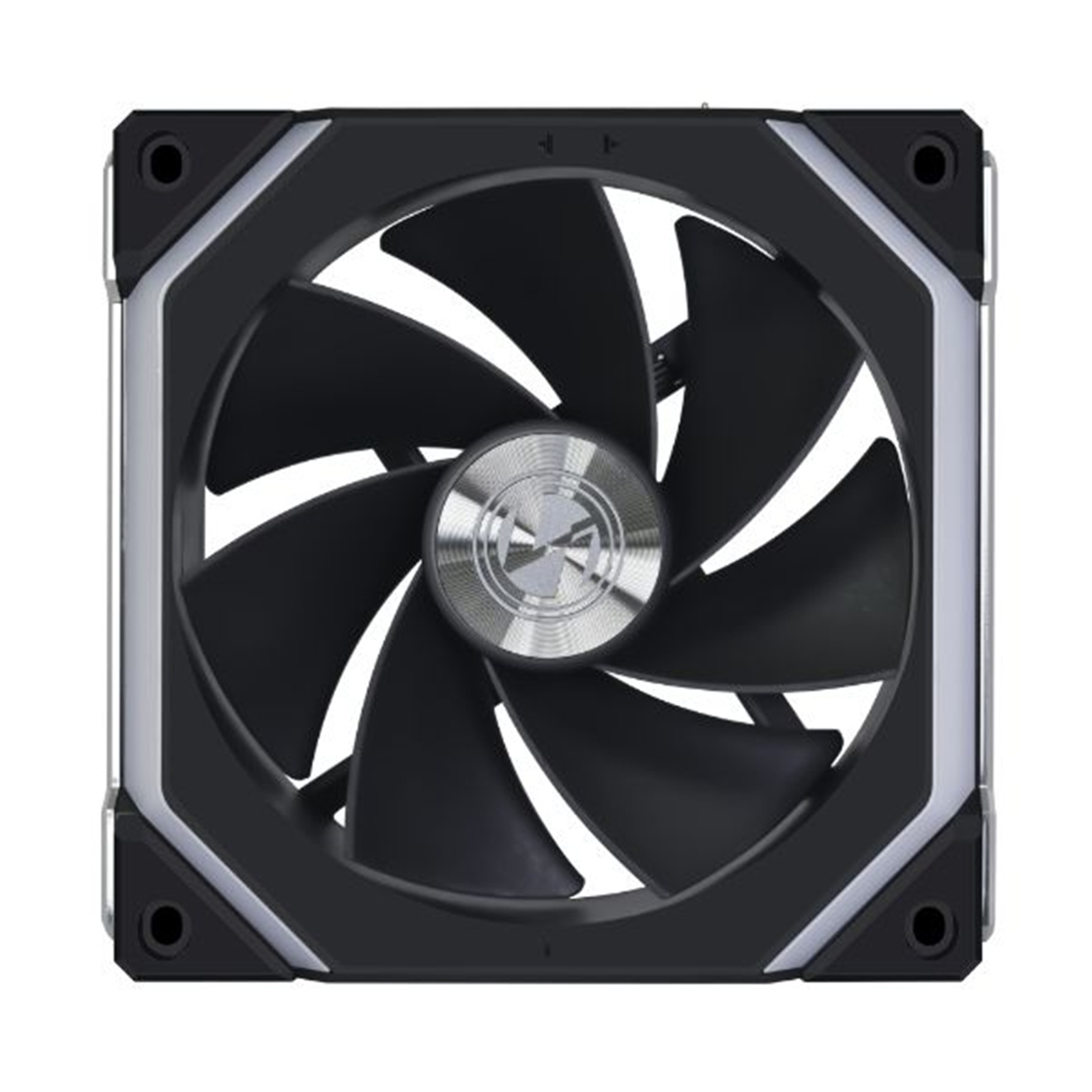

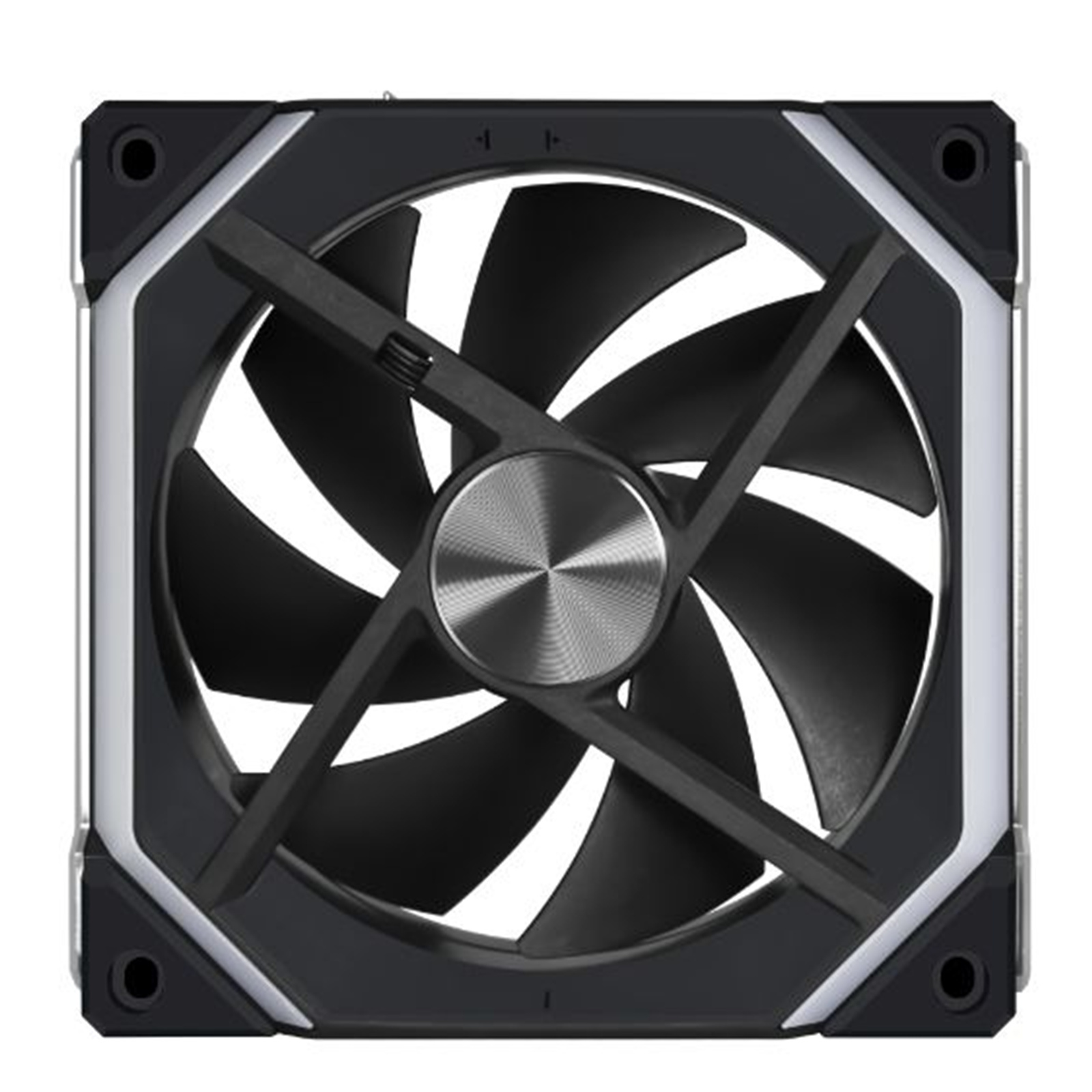

Lian Li UNI FAN SL120 V2 Reverse Blade Digital Addressable RGB 120 Fan Single pack, Black

Hot price
Hot price
$ 31 .30
 +GST
$ 36 .00
 inc GST
$31.30  +GST
$36.00

Lian Li UNI FAN SL120 V2 Reverse Blade Digital Addressable RGB 120 Fan Single pack, Black

Awesome lighting effects and quiet operation
  • Brand: Lian Li
  • MPN: G99.12RSLV21B.00
  • Part #: FANLAN0023A
  • UPC: 840353044777
1
Hot price
$ 31 .30 $ 36 .00
 +GST  inc GST

Ends in --, while stocks last!


Click & Collect: Available from 3 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$31.30  +GST
$36.00

Four payments of $9.09 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Lian Li
  • MPN: G99.12RSLV21B.00
  • Part #: FANLAN0023A
  • UPC: 840353044777

Fan Size

120mm

CPU Air Cooler Height

N/A

Number of Fans

1

LED Colour

RGB

Radiator Size

N/A

Bearing Type Variation

Fluid Bearing

Sound Level (Roughly)

32dB

What PB Tech customers are saying about this product...

See More Reviews

"Looks great, easiest fans I ever installed."

MS
By: MathewS8372 19/08/24
Verified Owner

Features

UNI FAN SL120 V2 REVERSE BLADE

- Reversed blade that can act as an intake fan with the front view
- Ability of daisy chain design to connect 2 clusters of fans.
- Removable interlocking keys to provide better radiator clearance.
- Start/stop fan RPM support for a quieter environment.
- Smooth side lighting for with stylish aesthetic.



CONSISTENT APPEARANCE

View the fan front way no matter intake or exhaust way.



UPGRADED MODULARITY

UNI FAN SL V2 reverse blade features an interlocking system to connect up to 6 fans in two clusters to a single controller port, making fans installation and cable management a simple job.



PLUG-IN POWER CABLE MODULE
Flush with fan frame, reduces clearance issues.



SLIDE-IN MECHANISM
Pin-to-pad contact, daisy-chaining the fan into a simple cluster.



REMOVABLE KEY
Remove the interlocking key to improve compatibility.



SINGLE CABLE TO CONTROLLER (INCLUDED IN 3 PACK UNI FAN SL120-V2)
Combines fan power and LED signal into one cable, reduces cable clutter.



EXTENSION CABLE (INCLUDED IN 3 PACK UNI FAN SL120-V2)
Bridges 2 fan clusters for a minimalistic cable solution.



UNCOMPROMISED PERFORMANCE

The UNI FAN SLV2 reverse blade operates with a slightly higher noise level with a better airflow compared to the original UNI FAN SLV2.

- AIRFLOW 64.4 CFM
- STATIC PRESSURE 2.19 mmH2O
- NOISE 32 dBA
- SPEED 0, 250-2000 RPM

1. REVERSED BLADE
Blade in the other way around

2. MAGNETIC FRAME
To provide extra support for fan blades

3. MAGNETIC RUBBER RING
To ensure extreme stability

4. FLUID DYNAMIC BEARING (FDB)
To effectively reduce the internal friction for improved durability

5. CIRCLIP
To secure the fan blades in place

6. STATOR
To provide a rotating magnetic field that generates momentum

7. EXTRA MAGNETIC FORCE
To support the fan blades and reduce vibration levels, thus ensuring a low noise level while in operation

8. RUBBER PADS
To reduce vibrations and ensure extremely low noise levels

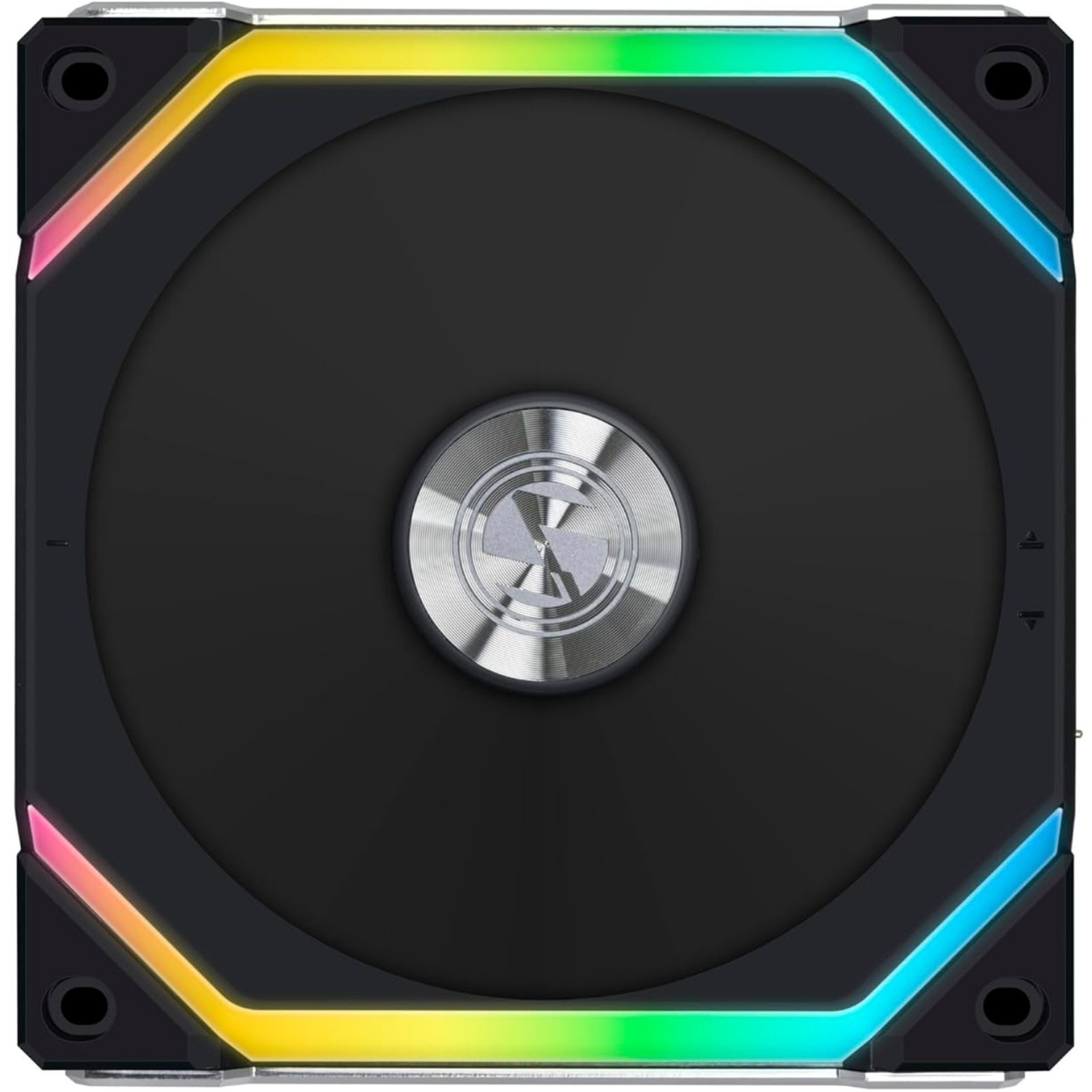

SOPHISTICATED LIGHTING DESIGN - DETAIL ORIENTED

The cut edge of the rubber pads is designed to create a smoother curve along the light diffuser.



CONTINUOUS LED CHANNEL

The light gap between the two fans when interlocked together has been reduced from 5.6mm to 3mm, sketching out the elegant lighting effects.



L-CONNECT 3 SOFTWARE TO CONTROL UNI FAN SL V2 REVERSE BLADE FANS

Control and preview with precision the lighting effect of the UNI FAN SL V2 reverse blade fans with the new L-Connect interface.

Note: Only available when connecting via a UNI FAN SL-V2 controller, controller is sold separately or included in triple pack regular fan.

1. Select lighting effects or set as merge mode
2. Set personalized color / brightness / speed / direction

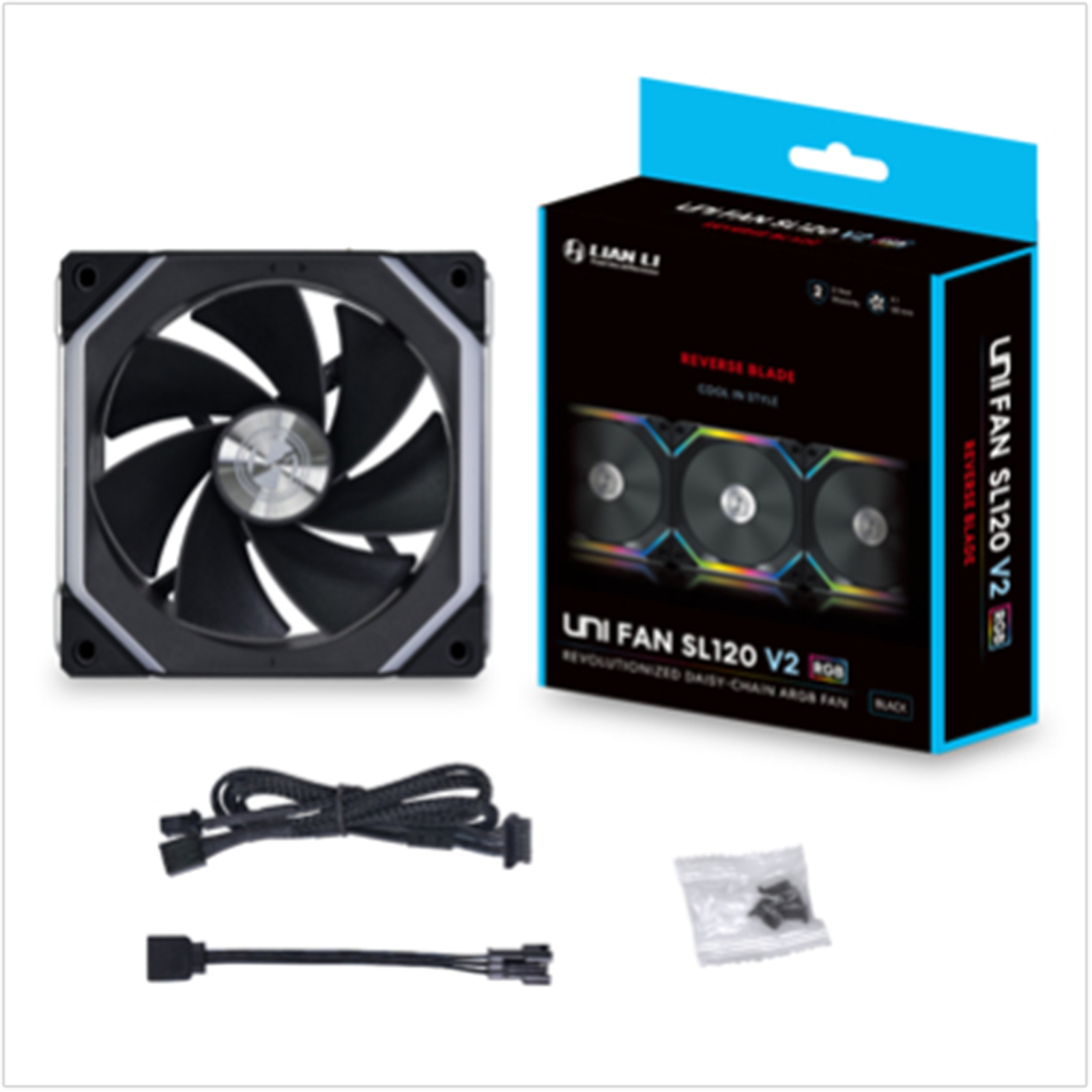

PACKAGE CONTENT

Specifications

PRODUCT NAME

UNI FAN SL120 V2 REVERSE BLADE

MODEL

UF-RSL120V2-1B BLACK

COLOR

Black

NUMBER OF FANS

1

CONTROLLER

No

CONNECTOR TYPE

1 × 4-PIN PWM + 3-PIN ARGB

MATERIAL

PBT/PC/Aluminum

FAN DIMENSION

120 X 120 X 28 (mm)

RATED VOLTAGE

DC 12V (FAN) & 5V (LED)

FAN SPEED

0, 250~2000 RPM

MAX. AIR PRESSURE

2.59 mmH2O (Maximum)

MAX. AIRFLOW

64.5 CFM (Maximum)

ACOUSTIC NOISE

32 dB(A) Max

LOCKED CURRENT

0 (Automatic Protection)

BEARING TYPE

Fluid Dynamic Bearing (FDB)

OPERATE VOLTAGE

DC12V & 5V

START-UP VOLTAGE

?5 V

INPUT POWER

0.17A

INPUT POWER

2.04W

Manufacturer Part No:
G99.12RSLV21B.00
Brand:
Product Type:
Reverse Blade
UPC
840353044777
Product Family:
UNI FAN
Shipping Weight:
0.27 kg
PB Part No:
FANLAN0023A
Product Model:
SL120 V2
Warranty: 12 months *
