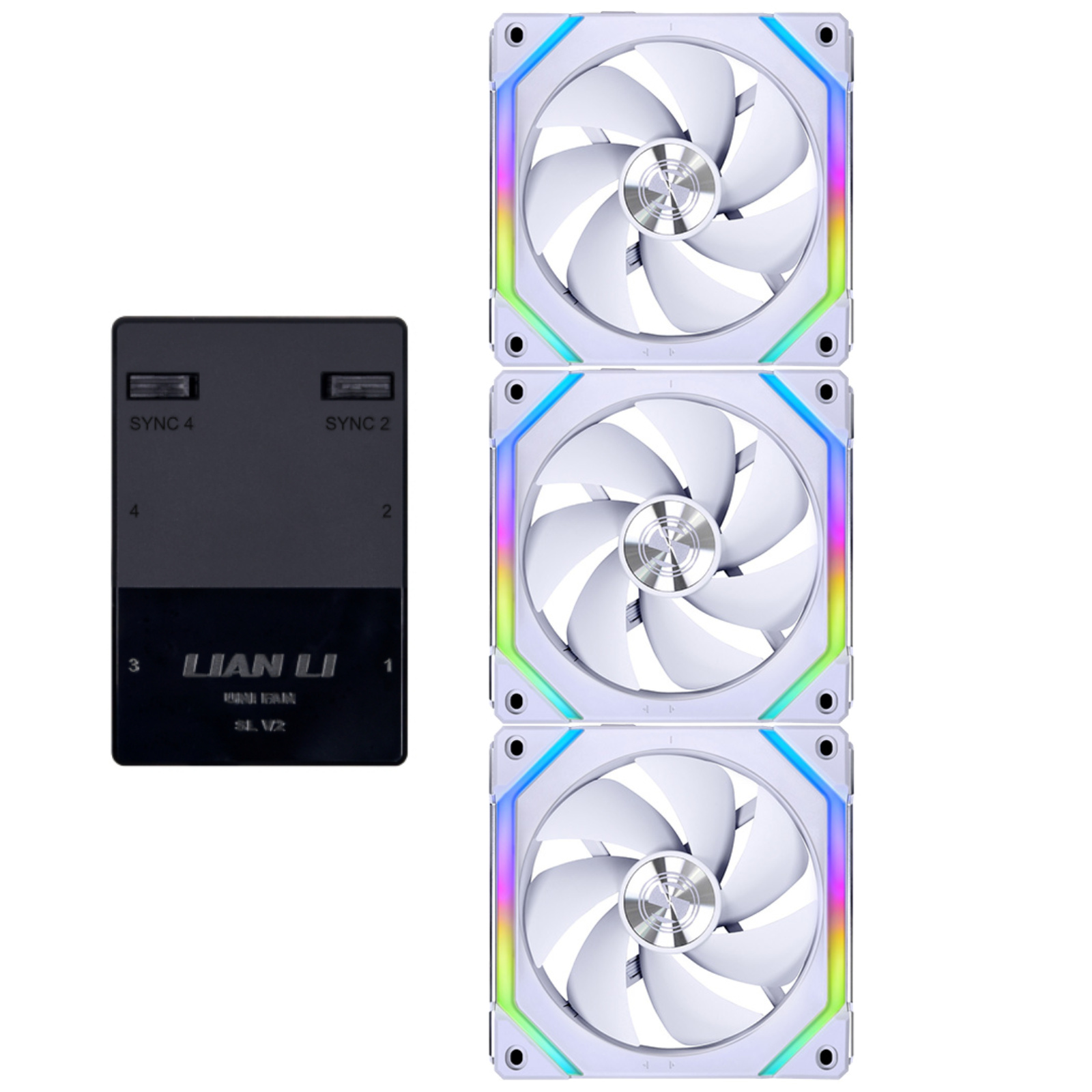

Lian Li UNI FAN SL120 V2 White Digital Addressable RGB 120 Fan with Controller, 3 Pack,
Lian Li UNI FAN SL120 V2 White Digital Addressable RGB 120 Fan with Controller, 3 Pack,
- Brand: Lian Li
- MPN: G99.12SLV23W.00
- Part #: FANLAN0024
- UPC: 840353043404
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"Look great easy to use and cool the PC amazing."
"These fans have amazing lighting and amazing customization in the software. It makes it easier with the Fan hub and would purchase for future builds."
"Clean and easy install. And they look great."
COMBO DEALS: Buy Together and SAVE!
GGPC Gaming PC Braided Cable Kit Pack, (White, 40cm), Set of 5 Cables. Includes 1 x 20+4 Pin, 2 x 6...
$40.00 +GST
$46.00
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste...
$19.13 +GST
$22.00
Dynamix CAB150B Cable Tie 150mm x 2.5mm Bag of 100 self-locking Nylon cable tie Black Colour
$2.48 +GST
$2.85
Posh TA-001 ESD Anti Static Wrist Strap Band - 1.8M (Blue)
$6.50 +GST
$7.48
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Case Fans
Lian Li UNI FAN SL120 V2 White Digital Addressable RGB 120 Fan with Controller, 3 Pack,
- Brand: Lian Li
- MPN: G99.12SLV23W.00
- Part #: FANLAN0024
- UPC:840353043404
Product URL: https://www.pbtech.co.nz/product/FANLAN0024/Lian-Li-UNI-FAN-SL120-V2-White-Digital-Addressable
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 2 | |
Auckland Uni | 0 | |
Newmarket | 1 | |
Westgate | 0 | |
Penrose | 5 | |
Henderson (Express) | 1 | |
St Lukes | 3 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 2 | |
Petone | 0 | |
Wellington | 3 | |
Head Office | 20+ | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
Upgraded modularity
The Lian Li SL120 V2 features a revised interlocking style to connect up to 6 fans in two clusters to a single controller port, making cable management simpler.
Extension cable
With the new 18cm extension cable, the ability to bridge two clusters of fans to create a 3+3 daisy-chained cluster is offered. These 6 fans can then be connected to a single port on the SL V2 UNI HUB controller. The new daisy-chaining solution reduces the number of cables needing to be managed at the back of the case and enables new lighting effects which can be continuous between the two bridged clusters.
Note: Each port can support up to 6 fans while the maximum number of fans supported by the controller is 16.
Plug-in power cable module
The cable module is designed to plug in and sit flush with the fan frame, which doesn't require extra space for the module and reduces clearance issues with radiator fittings.
Removable key
The interlocking keys on each frame are removable to improve compatibility with radiator fittings.
Improved performance

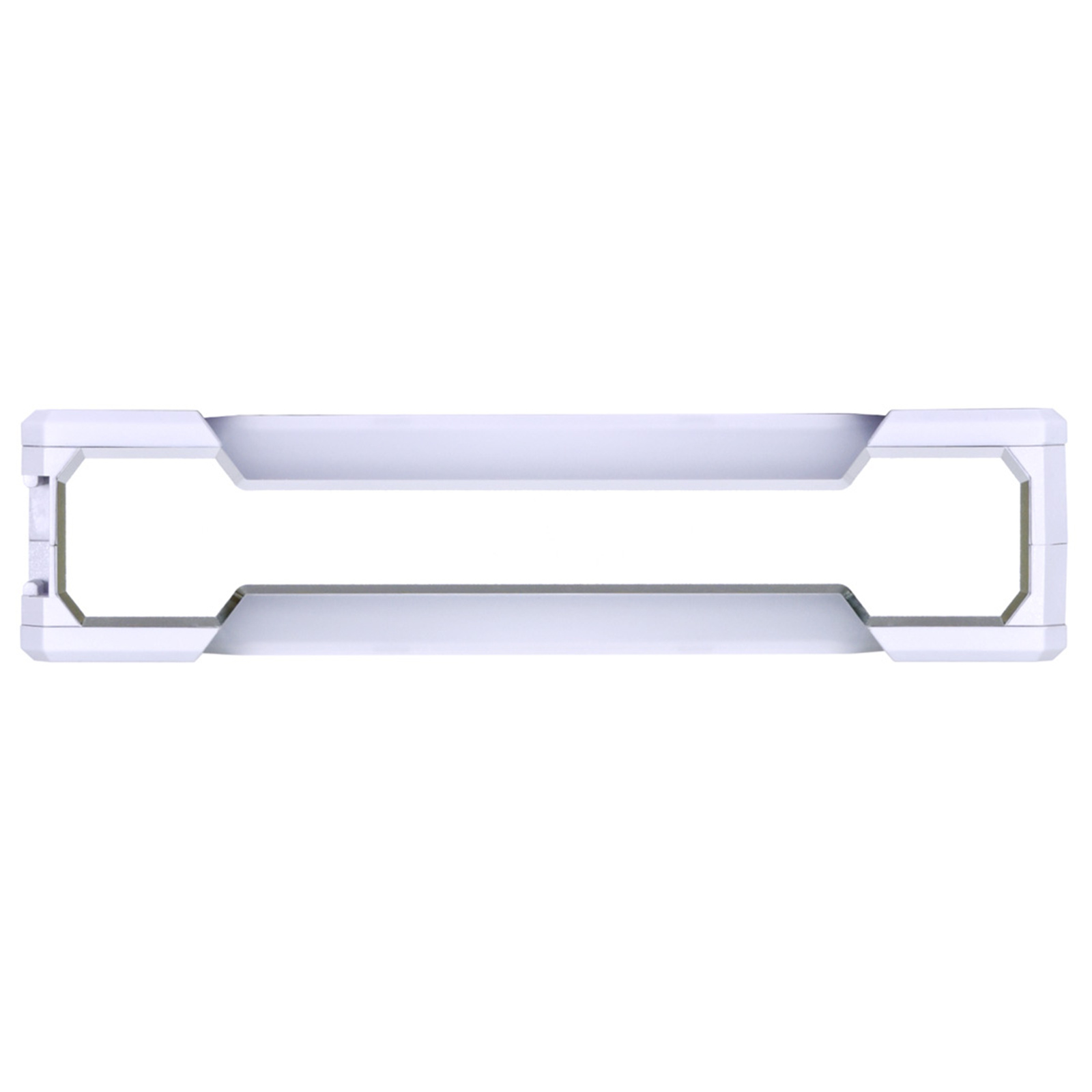

Thanks to a slight increase to a 28mm thick frame, the SL120 V2 features a 10% airflow optimisation compared to the SL120 V1, which creates a great balance of airflow and static pressure.
- Airflow: 64.5 CFM
- Static Pressure: 2.59 mm H2O
- Noise: 29.2 dBA
- Speed: 0, 250-2000 RPM
Detail oriented
The cut edge of the rubber pads is designed to create a smoother curve along the light diffuser.
Continuous LED channel
The light gap between the two fans when interlocked together has been reduced from 5.6mm to 3mm, stretching out the elegant lighting effects.
Dazzling at all angles
The centre of the rear fan has been decorated with an aluminium medallion for an aesthetic look in any orientation.
More lighting effects
New lighting effects have been developed for the updated version of the SL fans, offering more lighting options: render, tunnel, voice and groove.
Merging lighting effects
A merge function is available to allow lighting effects to flow not only across a single cluster but across the whole system.
Simple connection with controller
The all-new cable module and UNI HUB controller simplifies cable management and provides efficient power to the fans.
16 Fans in one go
The included fan controller in the triple pack can support up to 16 fans and 2 SM-type connected devices.
Note: Please lower the brightness of static white when connecting more than 9 SL V2 fans synchronised to the motherboard. Failing to do so may cause inaccurate colours.
Note: Only included with the triple pack.
Only one cable
Combining both the power cable and lighting cable into a single one, the cable module uses a 7-pin connector to connect to the controller, efficiently reducing the number of cables cluttering the PC build.
Direct to motherboard
The single pack includes a cable module that features a 4-pin PWM and 3-pin SM-type ARGB cable (3P to 3P 5V ARGB cable is included) to connect directly to the motherboard.
L-Connect 3 software to control the SL V2 fans
Precisely control and preview the lighting effects of the SL V2 fans with the new L-connect interface.
Specifications
Model
SL120V2-3-WH
Colour
White
Number of Fans
3
Controller
Yes
Connector Type
4 x 7-pin (Power Cable)
2 x Extension Cable
Material
PBT/PC/Aluminium
Rated Voltage
DC 12V (Fan) & 5V (LED)
Fan Dimensions
120 x 120 x 28mm
Fan Speed
0, 250~2000 RPM
Max. Air Pressure
2.59mm H2O (Maximum)
Max. Airflow
64.5 CFM (Maximum)
Acoustic Noise
29.2 dB(A) (Max)
Locked Current
0 (Automatic Protection)
Bearing Type
Fluid Dynamic Bearing
Operating Voltage
DC12V & 5V
Start-Up Voltage
= 5V
Input Current
0.17A
Input Power
2.04W
