Lian Li UNI FAN SL120 LCD Reverse Digital Addressable RGB 120 Fan, Reverse 3 Pack With Controller, White

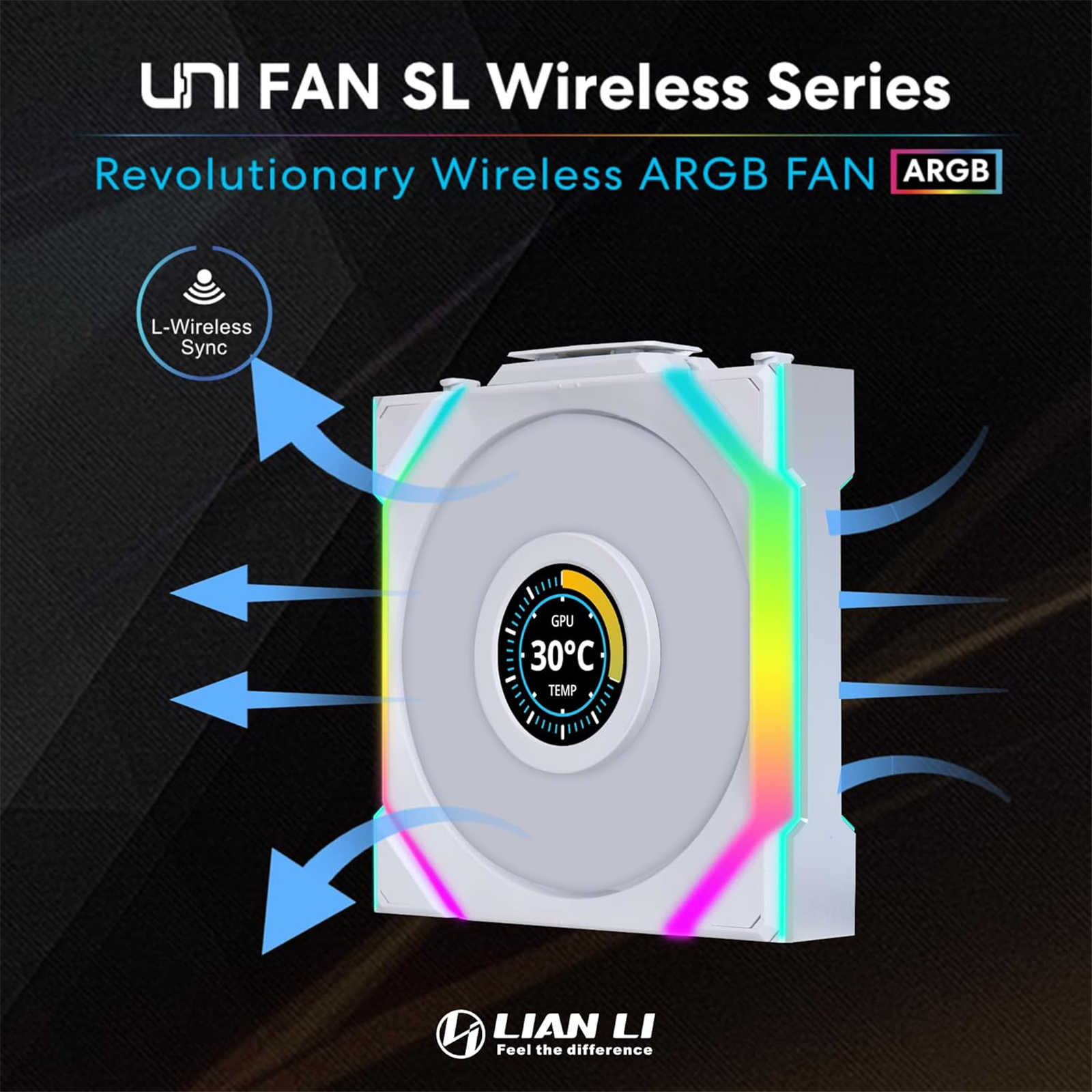

UNI FAN SL Wireless Series - Revolutionary Wireless ARGB FAN

The UNI FAN SL Wireless series has made another revolutionary breakthrough in making cable management easier and unifying controllers across different devices. The UNI FAN SL Wireless utilizes a 2.4 GHz wireless signal to control its lighting effects and fan speed to further improve your PC building experience.

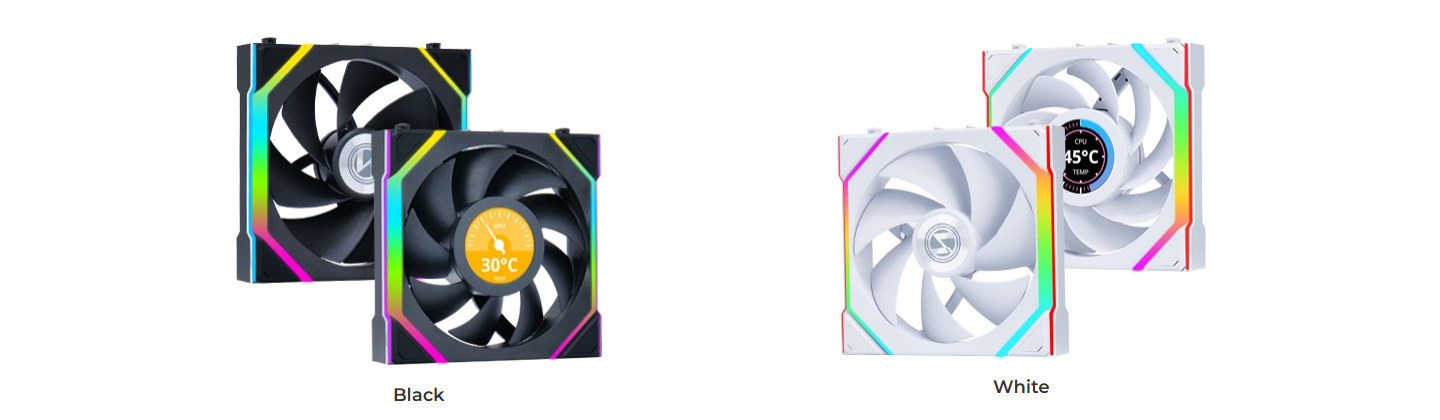

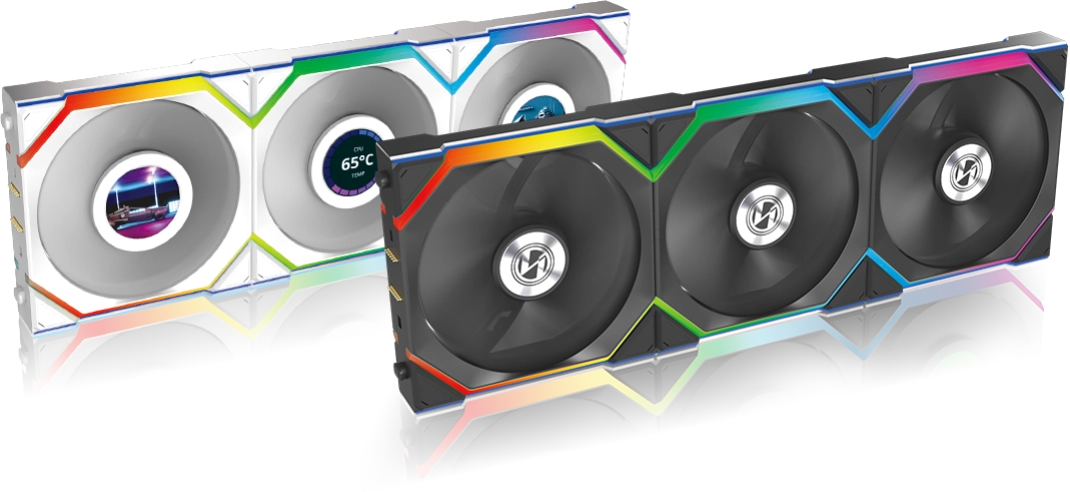

AVAILABLE IN TWO VARIATIONS - TWO ORIENTATIONS - TWO COLORS

UNI FAN Wireless Series includes both LCD and LED versions. Both are available in black and white, with options for standard and reverse blade configurations meeting the diverse needs of users.

Note: The fan is slightly wider and thicker than standard 120mm fans at 120×124.5x28mm. Please ensure your PC chassis is compatible.

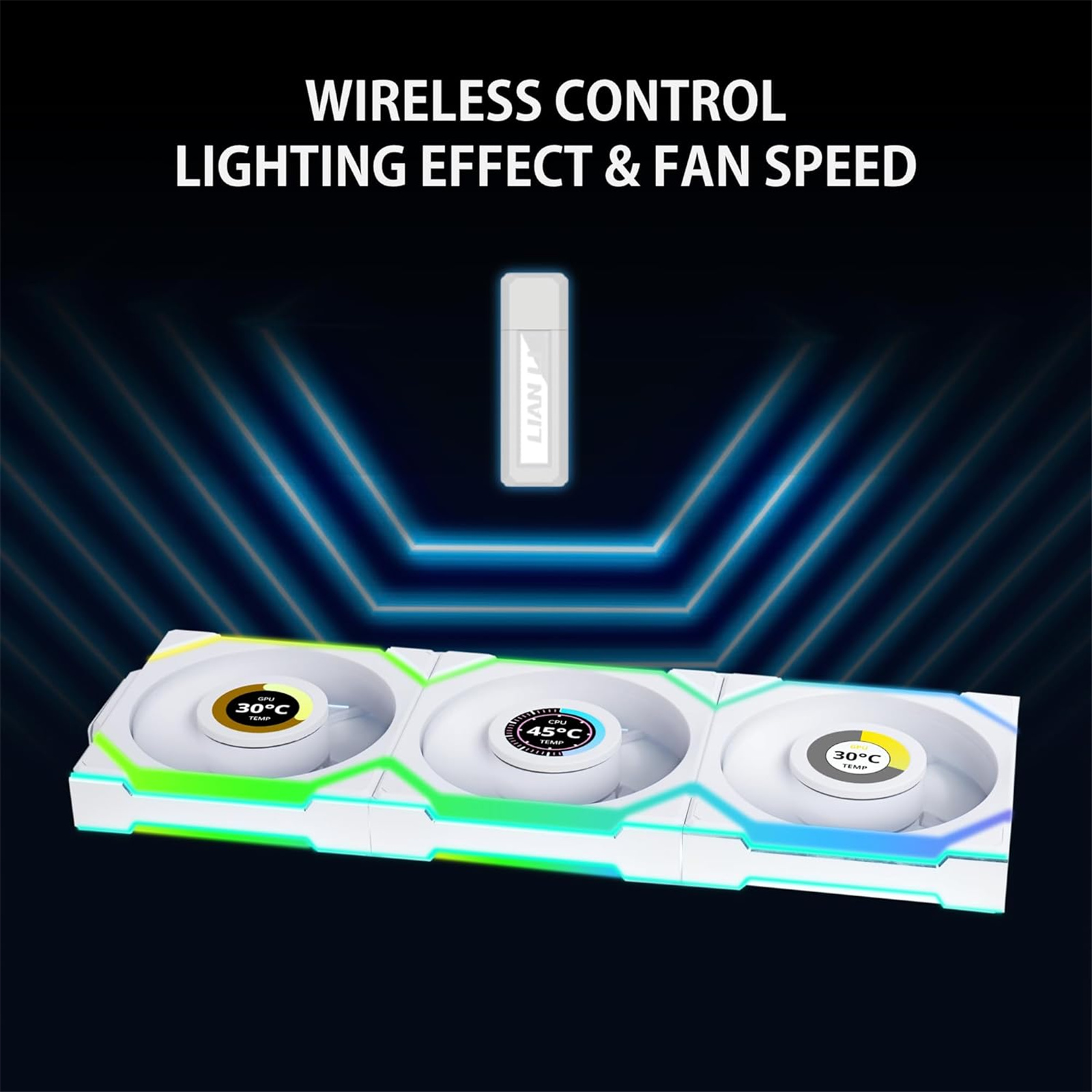

WIRELESS CONTROL, EASY INSTALLATION

The revolutionary 2.4GHz L-wireless controller greatly simplifies the installation experience of UNI FAN SL Wireless Series.

L-WIRELESS CONTROLLER

Included in these models: 12SLLCD1W3B, 12SLLCD1W3W, 12RSLLCD1W3B, 12RSLLCD1W3W, 12SL1W3B, 12SL1W3W, 12RSL1W3B, 12RSL1W3W, PW24-1W-T, RF-T-B, RF-T-W

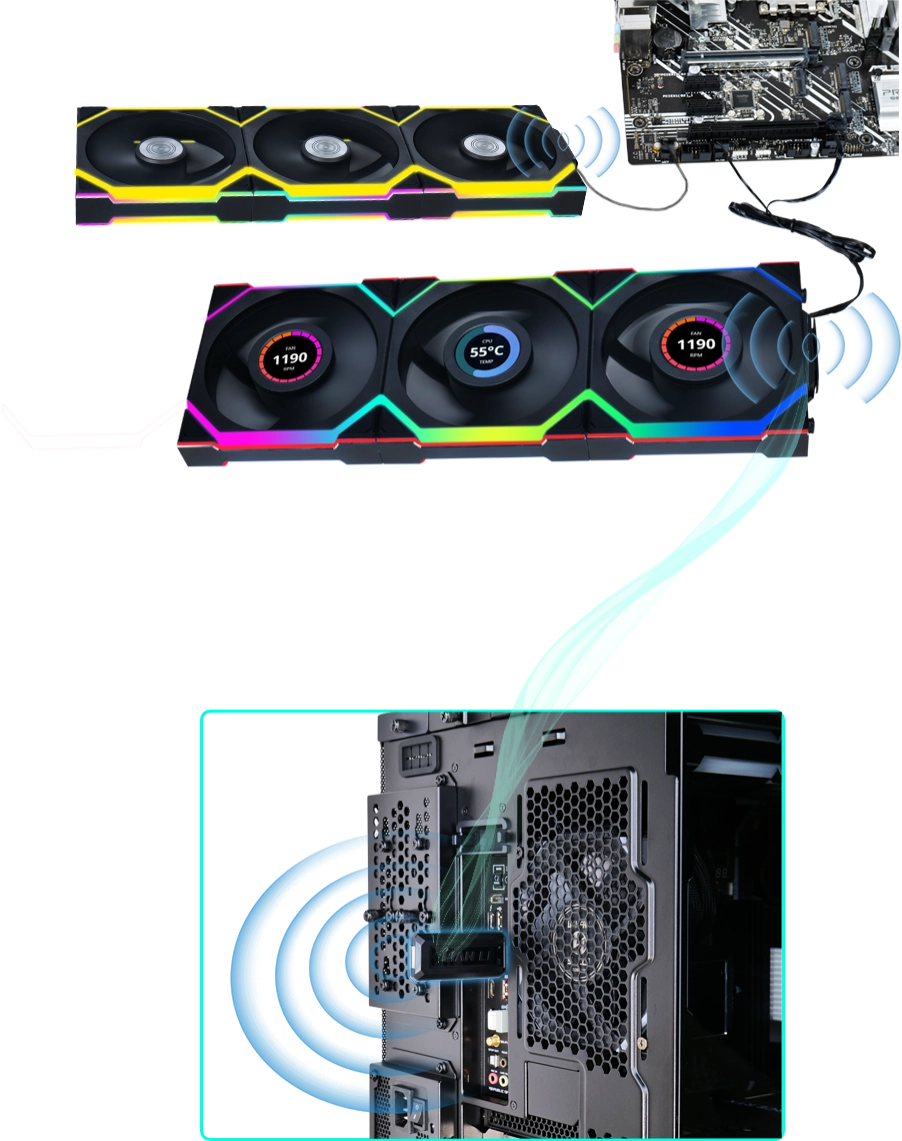

Based on user experience and continuous research, we newly designed a L-Wireless controller. The L-Wireless controller connects to the motherboard, and transmits a 2.4GHz signal to the fan, enabling the wireless control of the LED lighting effects and fan speed for the UNI FAN SL Wireless Series.

*Note: LCD still needs to transmit through a USB 9-pin cable.

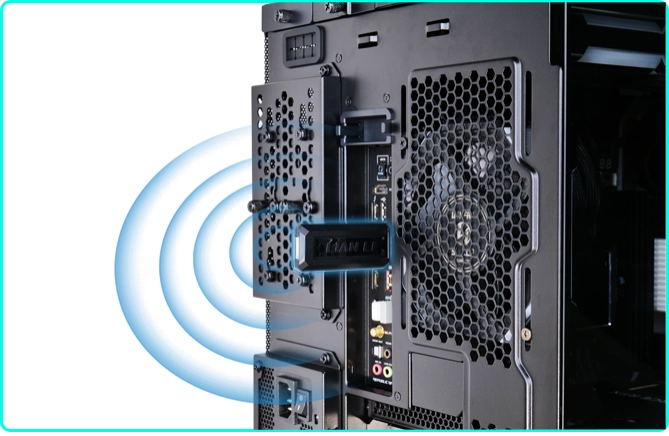

Connect to USB Type A port

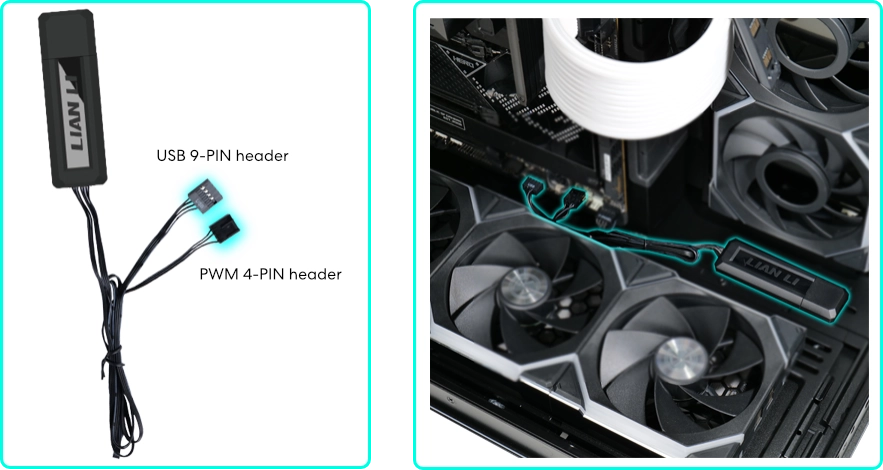

Connect to 9-pin port on motherboard

Note: To synchronize the fan speed with the motherboard, please use the second connection method and ensure that the PWM cable from the controller is connected to the motherboard for proper functionality.

Switch to PWM fan and full speed mode in the Bios.

Power each group of fans by connecting the PWM cable on the receiver to the motherboard (the LCD version also requires a separate USB connection for signal transmission). The cable length can be shorten by winding it around the organizer on the receiver.

Note: The LED and LCD version use a different receiver, for the mix cluster, please use the LCD version receiver.

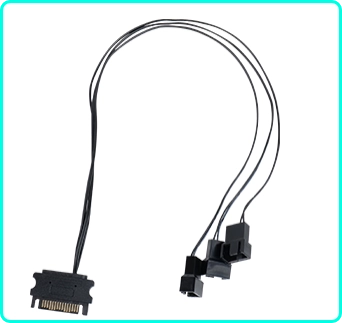

Note: If the motherboard 4-pin PWM ports' power is insufficient (below 1A) and the fan shows a flickering white light upon startup, this indicates unstable power from the motherboard. In this case, please connect the cable to a different 4-pin PWM port on the motherboard or use the included 12V to SATA adapter from the triple-pack.

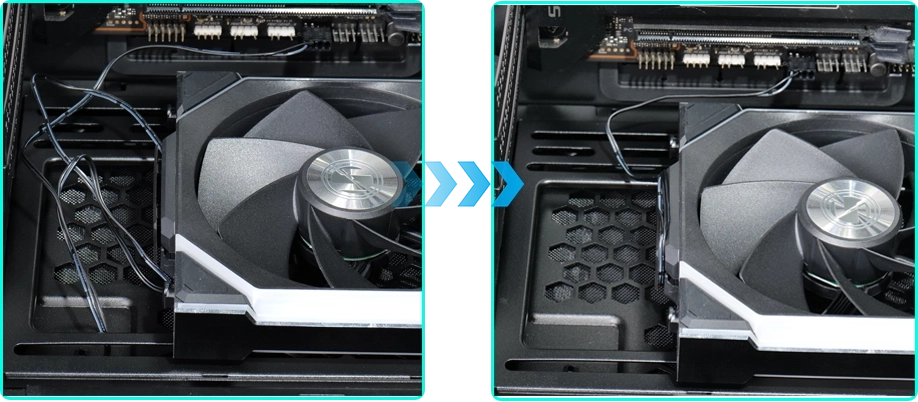

Adopting a wireless solution minimizes the number of cables, and simplifies cable management while avoiding occupying the few available USB 2.0 ports on the motherboard. This allows users to connect more devices without restriction.

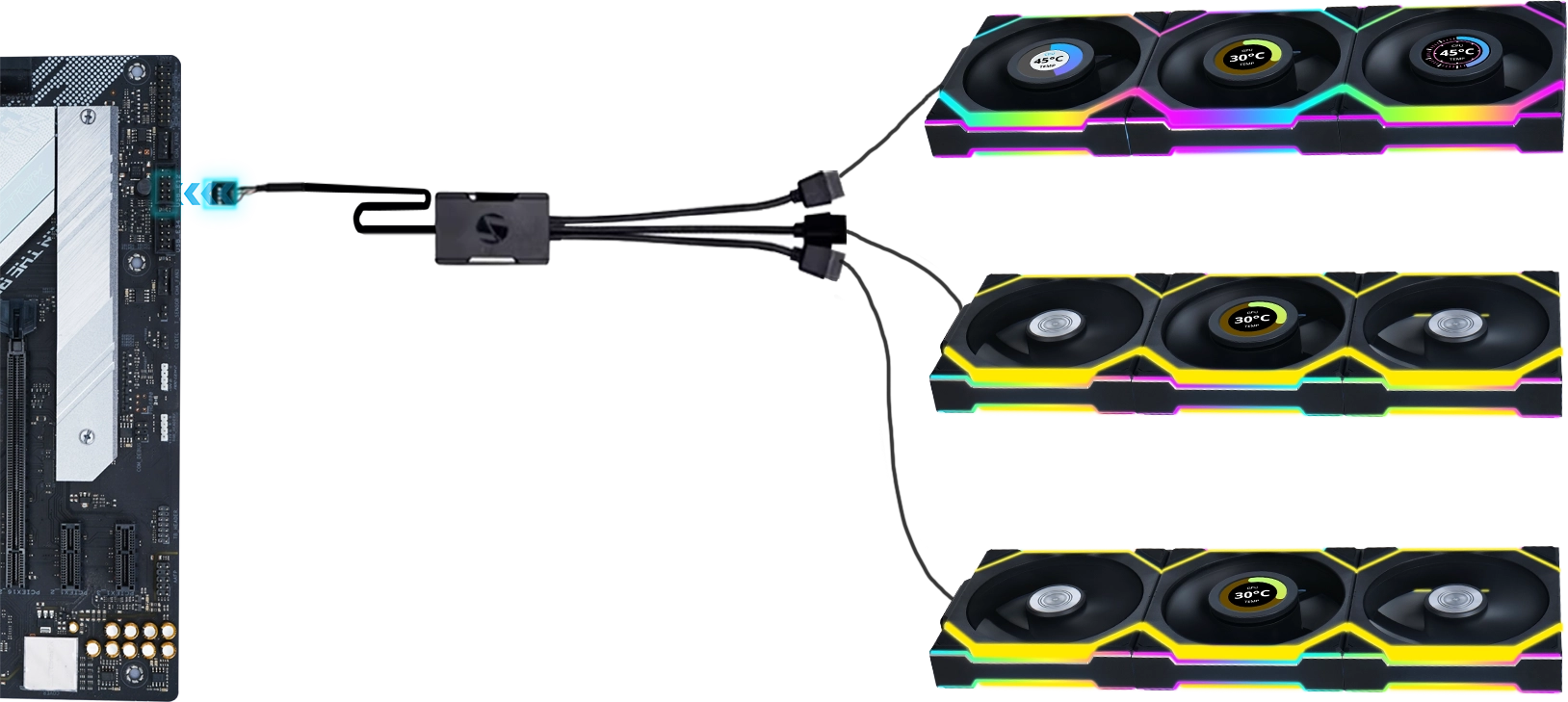

The transmission logic between the USB port and the LCD has been optimized, enabling the use of an additional USB splitter cable to the USB 2.0 or 3.0 port on the motherboard:

- B splitter cable without SATA for additional power (e.g., LIAN LI USB 2.0 1-to-3 HUB): Supports up to 6 SL LCD wireless fans.
- B splitter cable with SATA for additional power (e.g., LIAN LI Edge PSU hub): Supports up to 9 SL LCD wireless fans.

Furthermore, a single motherboard can support up to 20 UNI FAN SL LCD wireless fans.

SIMULTANEOUS CONTROL

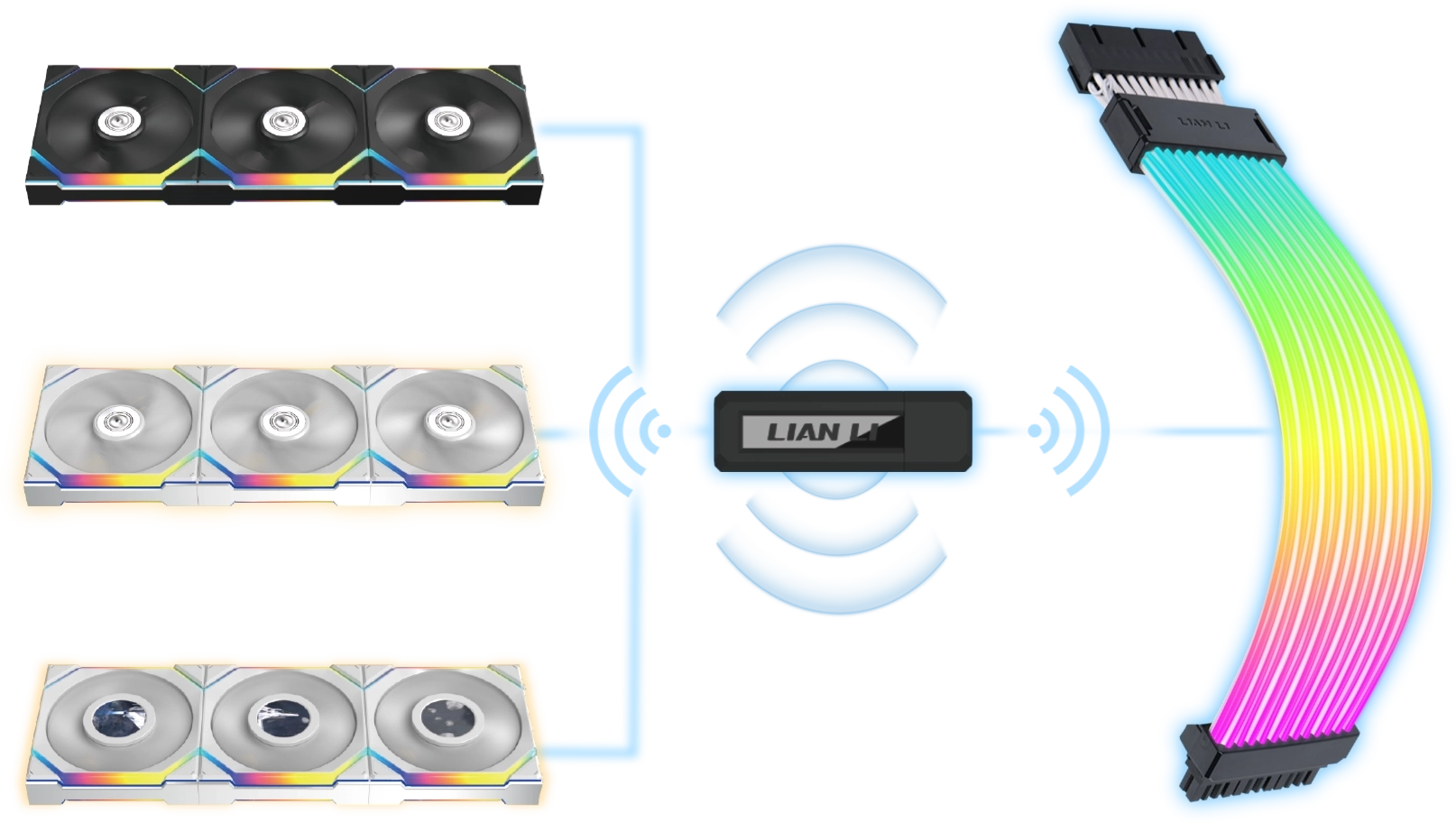

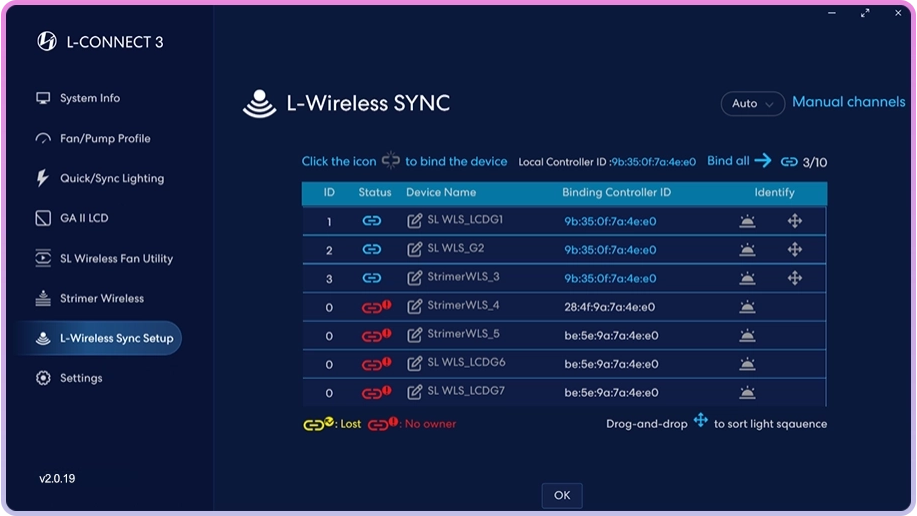

This powerful controller supports the transmission of 10 channels simultaneously.

Note: The controller supports the Strimer Wireless Series as well.

Each group of fans occupies one channel, ensuring stable control for multiple groups of fans, all within the installation limits of your standard PC. Plus, it's fully compatible with the latest Strimer Wireless, allowing you to use the extra channels for other devices.

In the future, the L-Wireless Controller will also be compatible with all LIAN LI wireless devices. With this controller, you can create a stunning and streamlined LIAN LI ecosystem that combines beauty and simplicity!

PERSONALIZED REMIX, STYLE ON DISPLAY

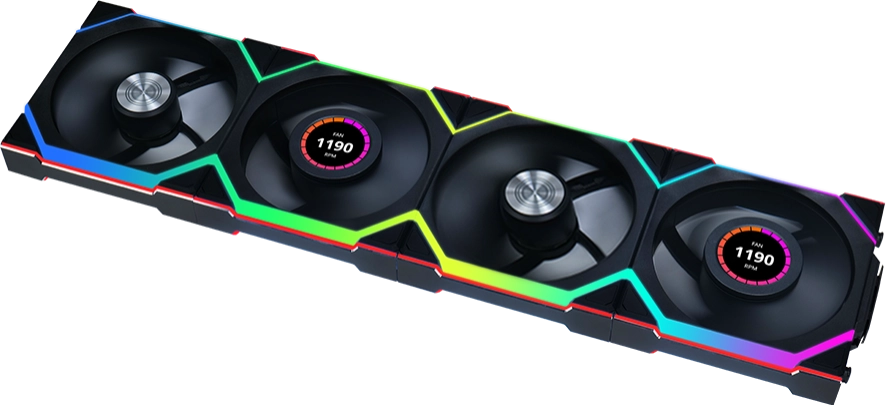

UNI FAN SL Wireless LED and LCD now can be mix-matched into a group, empowering users to unleash their creativity and freely combine them.**

L-Wireless controller now supports a maximum of 4 SL Wireless fans in each group. The specific details are as follows:

A group of 4 fans:
LCD x 2 + LED x 2
LCD x 3 + LED x 1**
LED x 4

A group of 3 fans:
LCD x 3

ADDITIONAL LIGHT STRIP, ENHANCED VISUAL EXPERIENCE

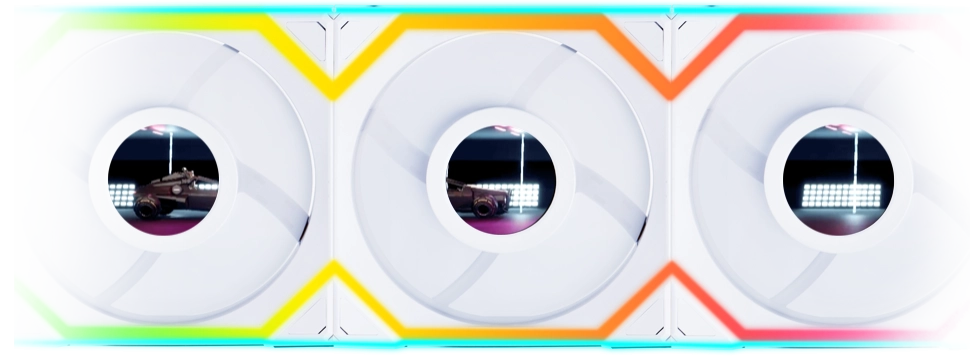

The UNI FAN SL Wireless series not only shows innovation in functionality but also enhances its visual appeal. Each side of the fan now features an additional light strip, increasing the total number of LEDs to 40. This enables duo-zoned lighting adjustments, delivering a more dynamic and versatile visual experience that truly stands out.

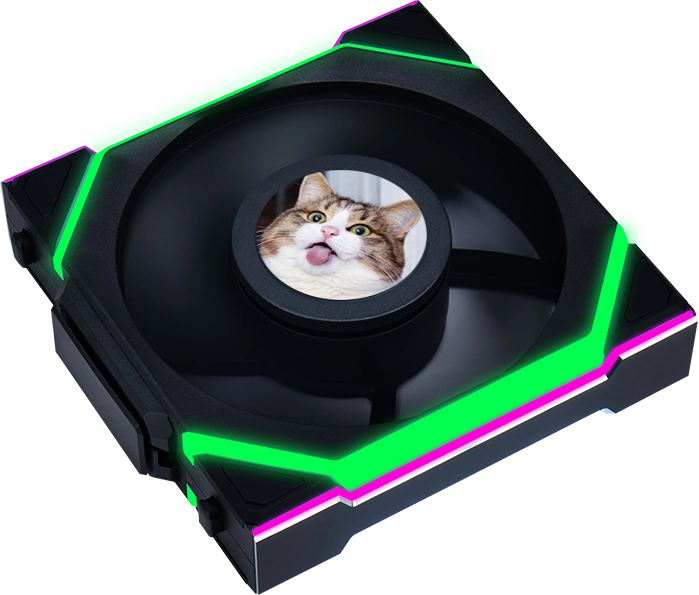

PRACTICAL AND STYLISH LCD SCREEN

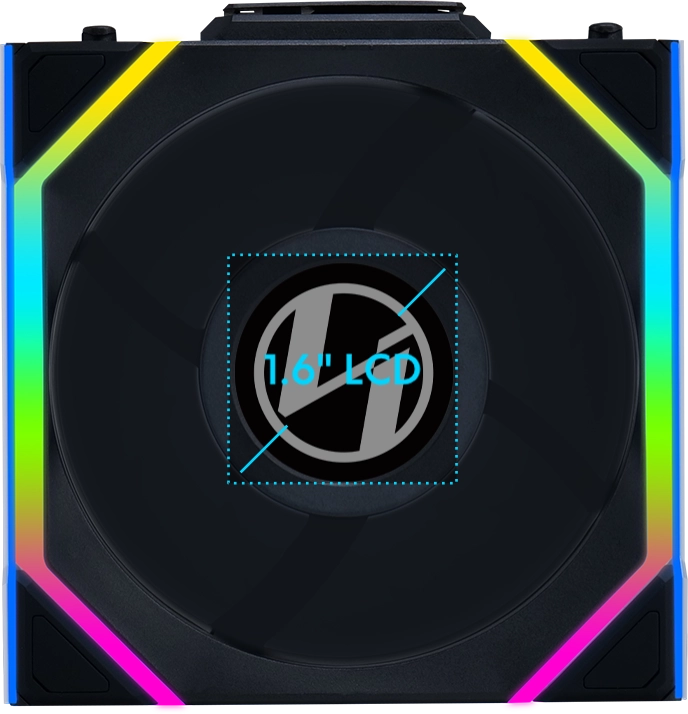

Building on the unique design of the UNI FAN TL LCD, the world's first LCD-integrated fan, the UNI FAN SL Wireless LCD features the same 1.6" LCD screen. With seamless integration into the L-Connect 3 software, users have the flexibility to customize the display to showcase their preferred content, offering a highly personalized experience.

- 1.6'' LCD
- IPS Type Display
- 500 (TYP) nits Brightness
- 400x400 Resolution
- SRGB 24-bit Full color

PERFORMANCE DETAIL AT A GLANCE

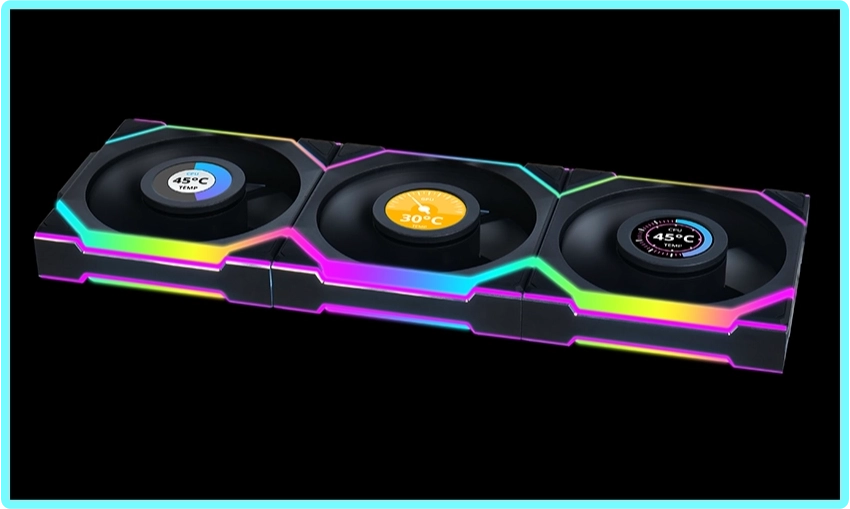

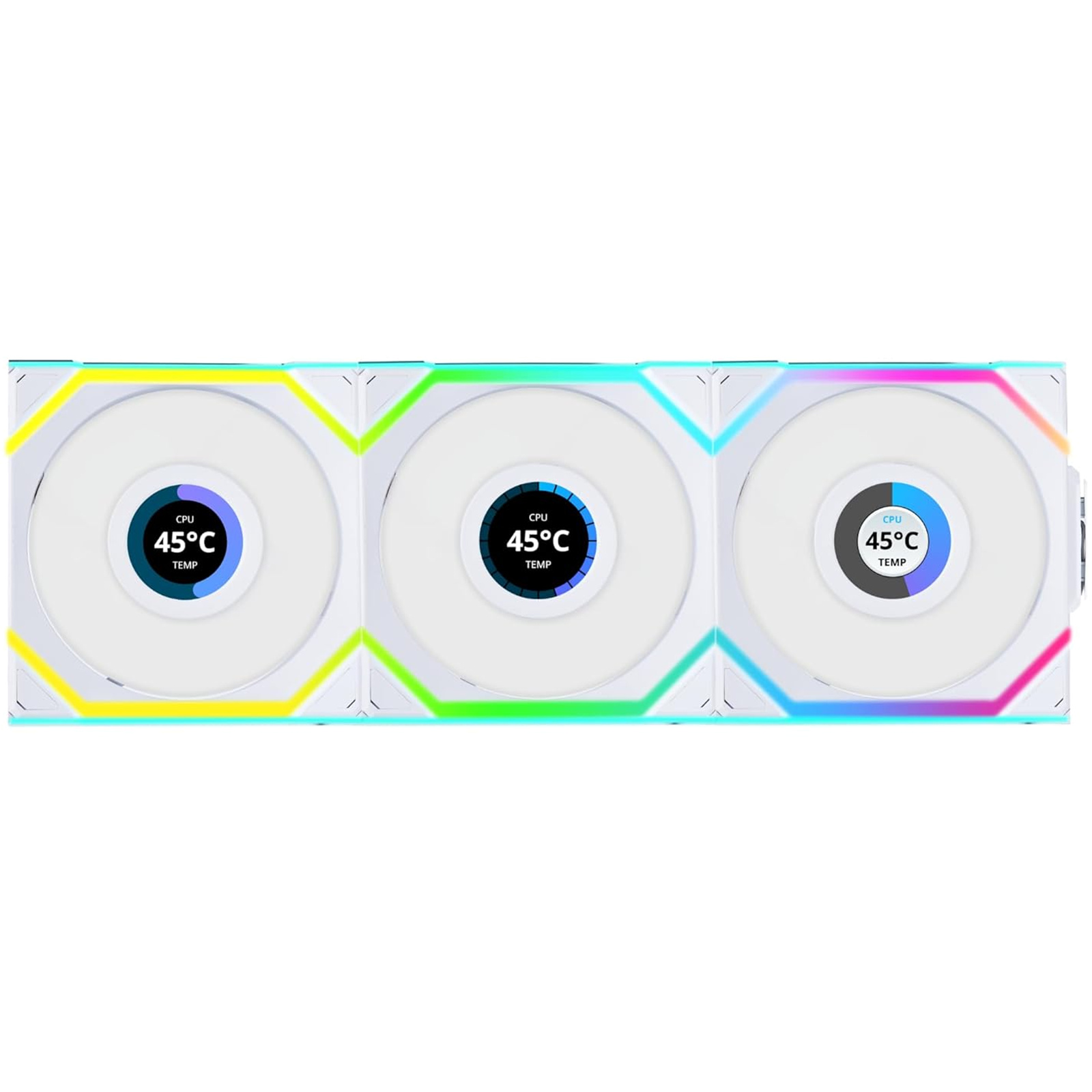

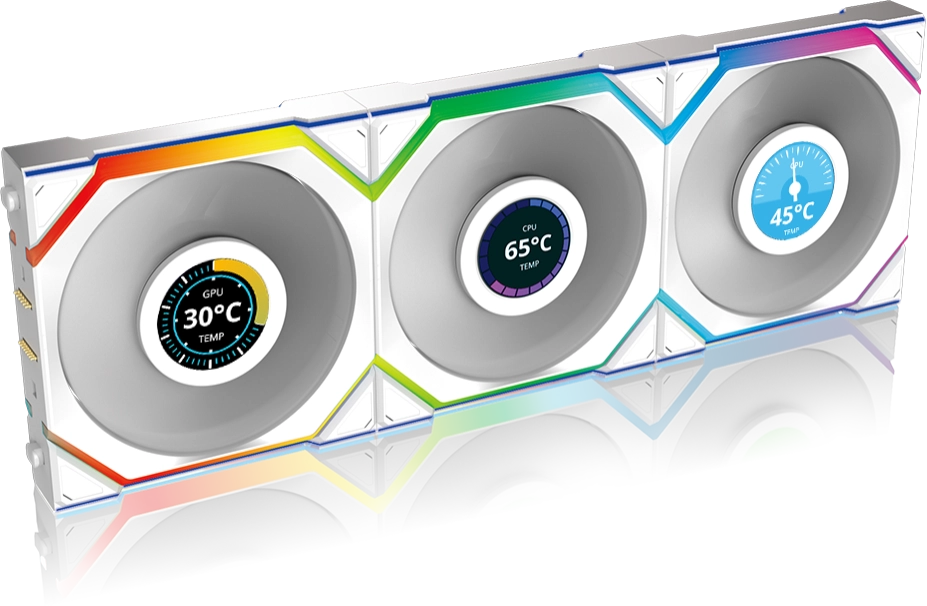

Monitor the temperature and load of your CPU and GPU, as well as the fan speed, instantly with built-in hardware monitor dashboards on the screen. In a scenario of a cluster of 3 LCD fans, you can simultaneously monitor a variety of data, stay informed and in control of your system.

Preset Animations
L-Connect 3 offers several preset animations. Whether your fans are arranged vertically or horizontally, there are corresponding animation effects available for you to use.

Upload Your Style
Elevate your system's style by uploading your own personalized MP4 / GIF / JPG / PNG. You can also take advantage of the screen record/screen shot function to make content uploading easier than ever.

BREEZE YOUR SYSTEM

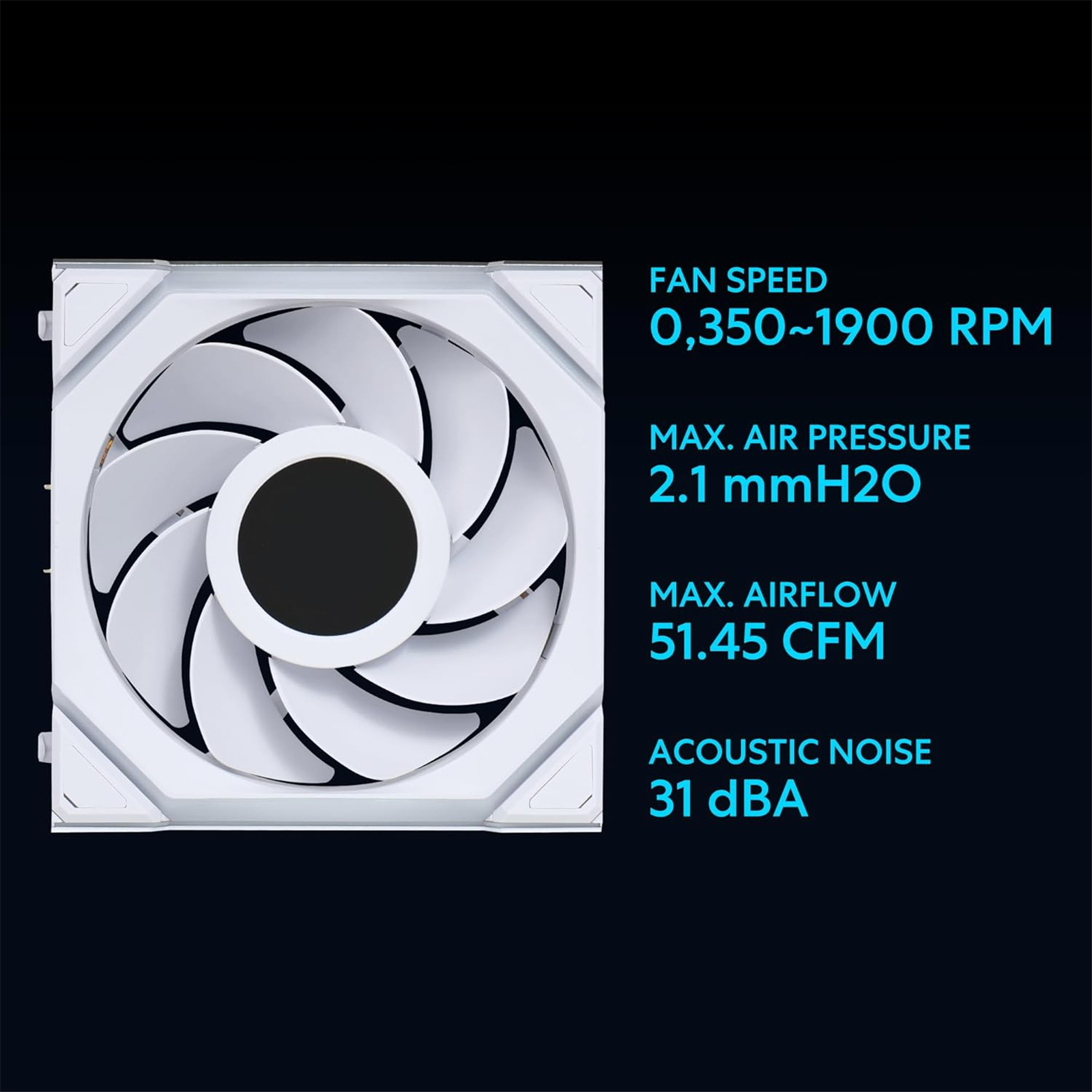

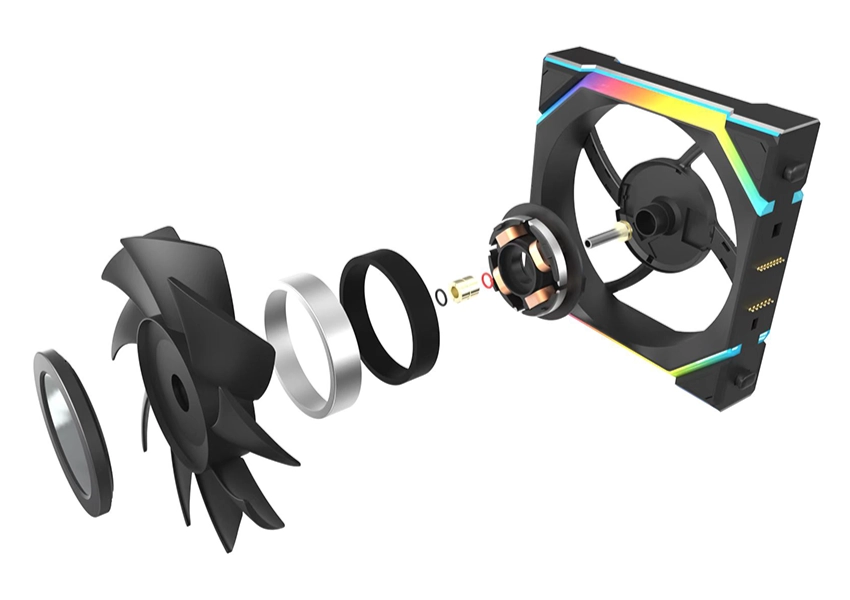

UNI FAN SL Wireless series features FDB bearing, ensuring long-term high-speed operation at a lower noise level. LCD and LED versions can reach fan speeds of up to 1900 RPM and 2100 RPM, respectively.

SEAMLESS SOFTWARE

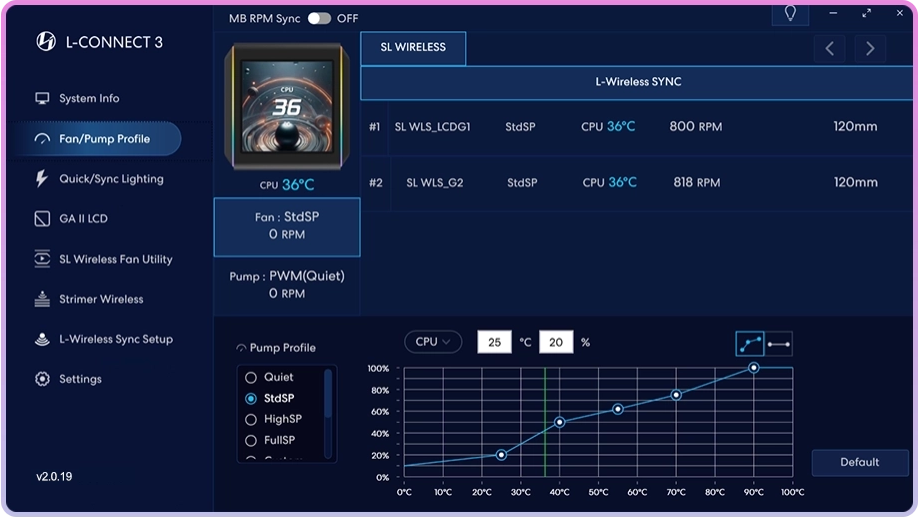

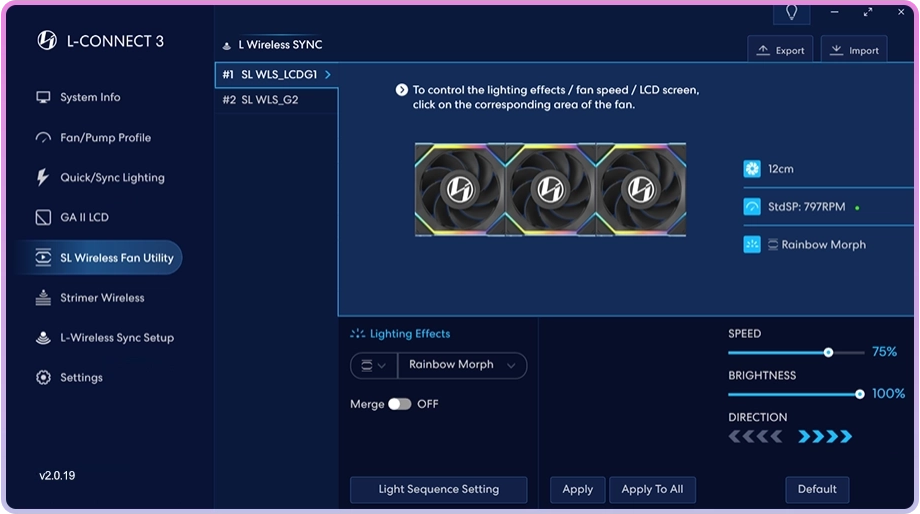

L-Connect 3 offers complete control over the UNI FAN series, including the lighting effects, fan speed, and LCD screen.

The fan speed can be automatically adjusted based on the temperature or manually set the RPM fan curve.

L-Connect 3 offers a variety of features, such as grouping, naming, and sorting fans for more intuitive management, providing diverse functionality and user-friendly design.
