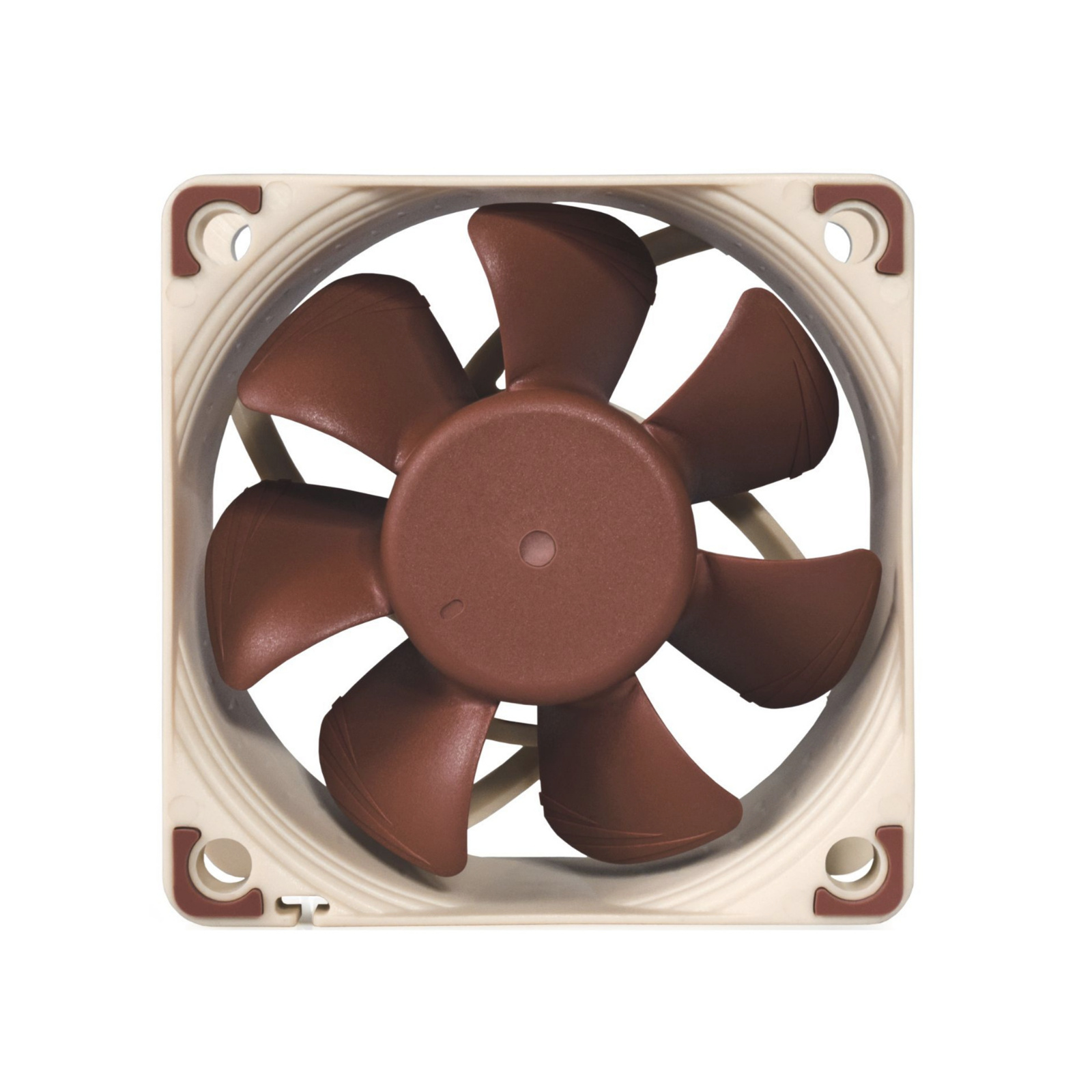

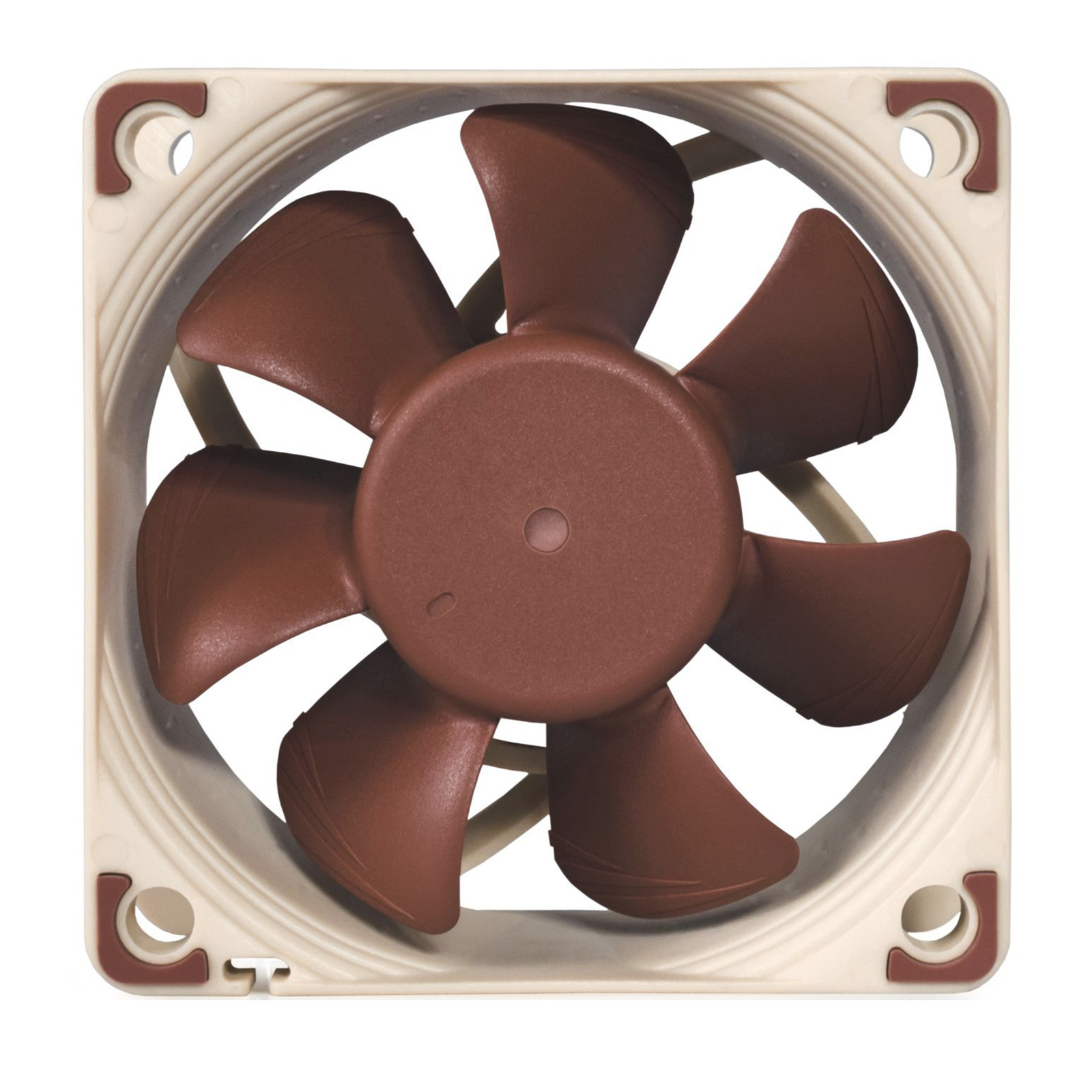

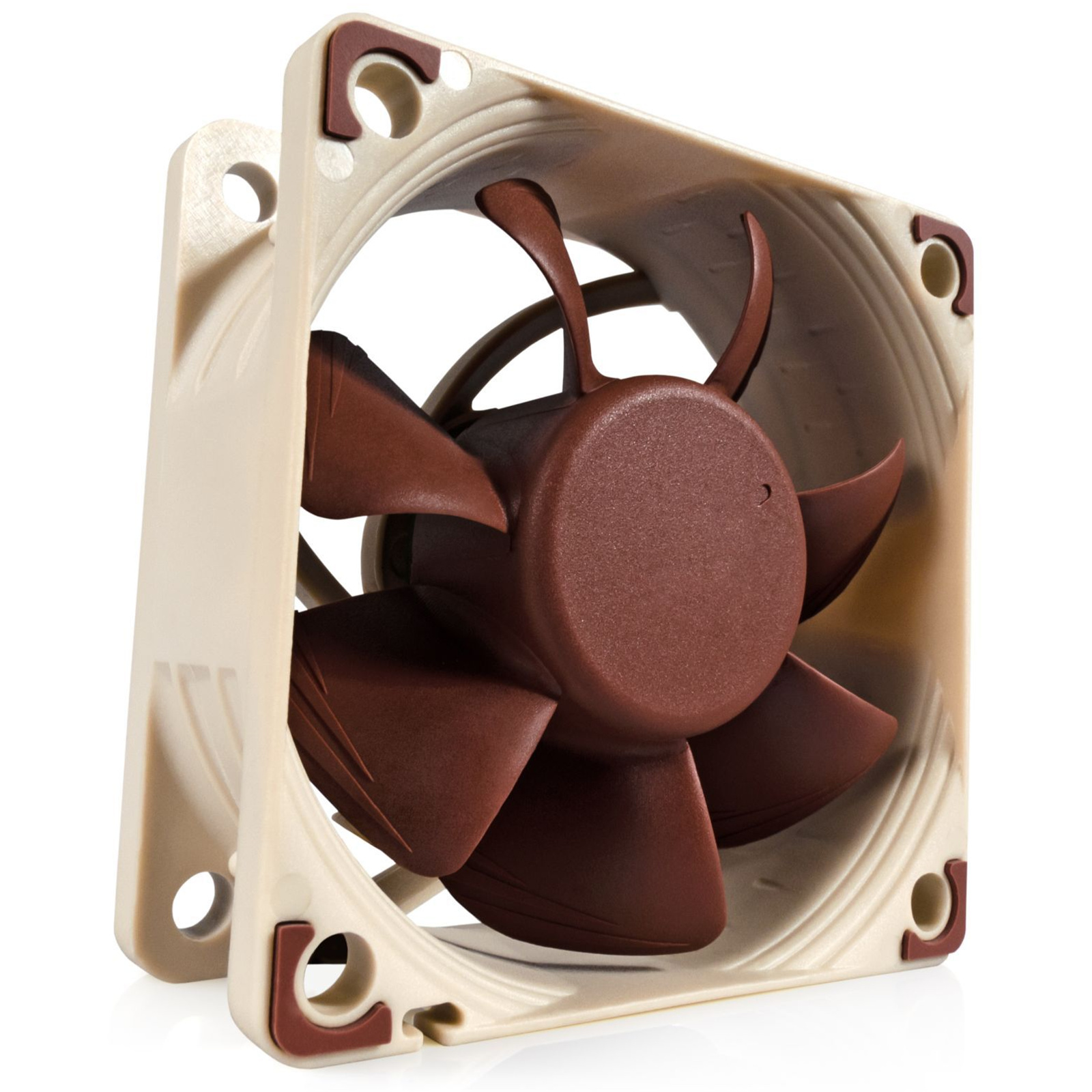

NOCTUA NF-A6x25-PWM 3000RPM 60mm Fan
NOCTUA NF-A6x25-PWM 3000RPM 60mm Fan
- Brand: NOCTUA
- MPN: NF-A6x25-PWM
- Part #: FANNOC0600
- UPC: 842431012524
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews"High-quality product. Would certainly recommend it. I used it to replace a noisy old fan in an amplifier."
COMBO DEALS: Buy Together and SAVE!
Samsung 980 1TB M.2 NVMe Internal SSD PCIe 3.0 - Up to 3500MB/s Read - Up to 3000MB/s Write - 500K...
$149.00 +GST
$171.35
Panasonic CR-2032PG/2B Battery 3V Lithium 2032 Lithium Coin Battery 3V 2Pack 220 mAh Button Cell -...
$2.80 +GST
$3.22
Features
NF-A6X25 PWM
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua's AAO frame, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua's custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2100rpm. Its superb running smoothness, SSO2 bearing and Noctua's trusted premium quality make it an elite choice for the highest demands.
Reduced motor hub size
Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.
Flow Acceleration Channels
The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
SSO2 bearing
The NF-A6x25 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A6x25 PWM uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Low-Noise Adaptor
The NF-A6x25 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 3000 to 2100rpm. The L.N.A. can be used either to run the fan at a fixed speed of 2100rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A6x25 PWM fan to the same PWM fan header for automatic control.
Specifications
Reviews
Do you own this product?
High quality product.
High-quality product.
Would certainly recommend it.

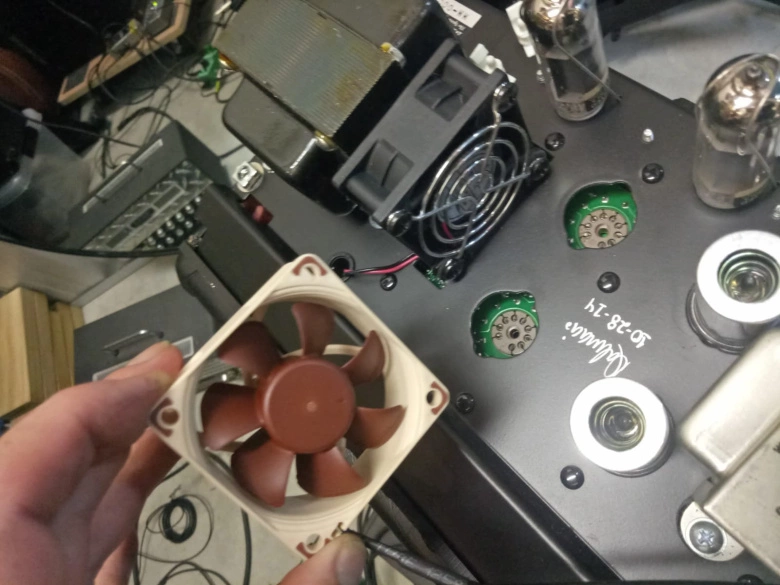

I used it to replace a noisy old fan in an amplifier.
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Related Hardwired Articles
Popular Case Fans
DEEPCOOL FC120 Black 3 Pack 120mm A-RGB PWM Case Cooling Fan, Low...
Lian Li UNI FAN SL Infinity Digital Addressable RGB 120 Fan, 3...
NOCTUA 120mm NF-A12x25 PWM Upto 2000RPM Case Fan
Corsair SP Series SP120 RGB ELITE 120mm RGB LED Fan with AirGuide...
Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB...
_20241004123114.webp)
NOCTUA NF-A6x25-PWM 3000RPM 60mm Fan
- Brand: NOCTUA
- MPN: NF-A6x25-PWM
- Part #: FANNOC0600
- UPC:842431012524
Product URL: https://www.pbtech.co.nz/product/FANNOC0600/NOCTUA-NF-A6x25-PWM-3000RPM-60mm-Fan?is-review=1
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 0 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 11 | |
| Henderson (Express) | 2 | |
| St Lukes | 0 | |
| Manukau | 0 | |
| Hamilton | 1 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 20+ | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
NF-A6X25 PWM
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua's AAO frame, the NF-A6x25 is a highly optimised, premium quality quiet fan in 60x25mm size. The PWM version sports Noctua's custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers and comes with a Low-Noise-Adaptor to reduce the maximum speed during PWM control from 3000 to 2100rpm. Its superb running smoothness, SSO2 bearing and Noctua's trusted premium quality make it an elite choice for the highest demands.
Reduced motor hub size
Thanks to its streamlined, compact motor design, the NF-A6x25's motor hub is smaller than with conventional 6cm fans. This allows for more blade surface area and thus contributes to the NF-A6x25's superior airflow and pressure performance.
Flow Acceleration Channels
The NF-A6x25 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame
Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design
Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures
With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads
Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
SSO2 bearing
The NF-A6x25 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Custom-designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-A6x25 PWM uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Stops at 0% PWM
When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
Low-Noise Adaptor
The NF-A6x25 PWM is supplied with a (L.N.A.) that reduces the maximum fan speed from 3000 to 2100rpm. The L.N.A. can be used either to run the fan at a fixed speed of 2100rpm or to cap the maximum speed when using automatic PWM control.
Extensive cabling options
The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and a 4-pin y-cable allows the connection of a second NF-A6x25 PWM fan to the same PWM fan header for automatic control.
Specifications
Size
60x60x25 mm
Mounting hole spacing
50x50 mm
Connector & pin-configuration
4-pin PWM
Cable length
20cm + 30cm NA-EC1 extension cable
Bearing
SSO2
Blade geometry
A-Series with Flow Acceleration Channels
Frame technology
AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%)
3000 RPM
Rotational speed with L.N.A. (+/- 10%)
2300 RPM
Min. rotational speed @ 20% PWM (+/-20%)
550 RPM
Airflow
29,2 m³/h
Airflow with L.N.A.
22,6 m³/h
Acoustical noise
19,3 dB(A)
Acoustical noise with L.N.A.
13,7 dB(A)
Static pressure
2,18 mm H2O
Static pressure with L.N.A.
1,29 mm H2O
Input power (typical)
1,06 W
Input power (max.)
0,96 W
Input current (typical)
0,09 A
Max. input current
0,08 A
Operating voltage
12 V
MTTF
> 150.000 h

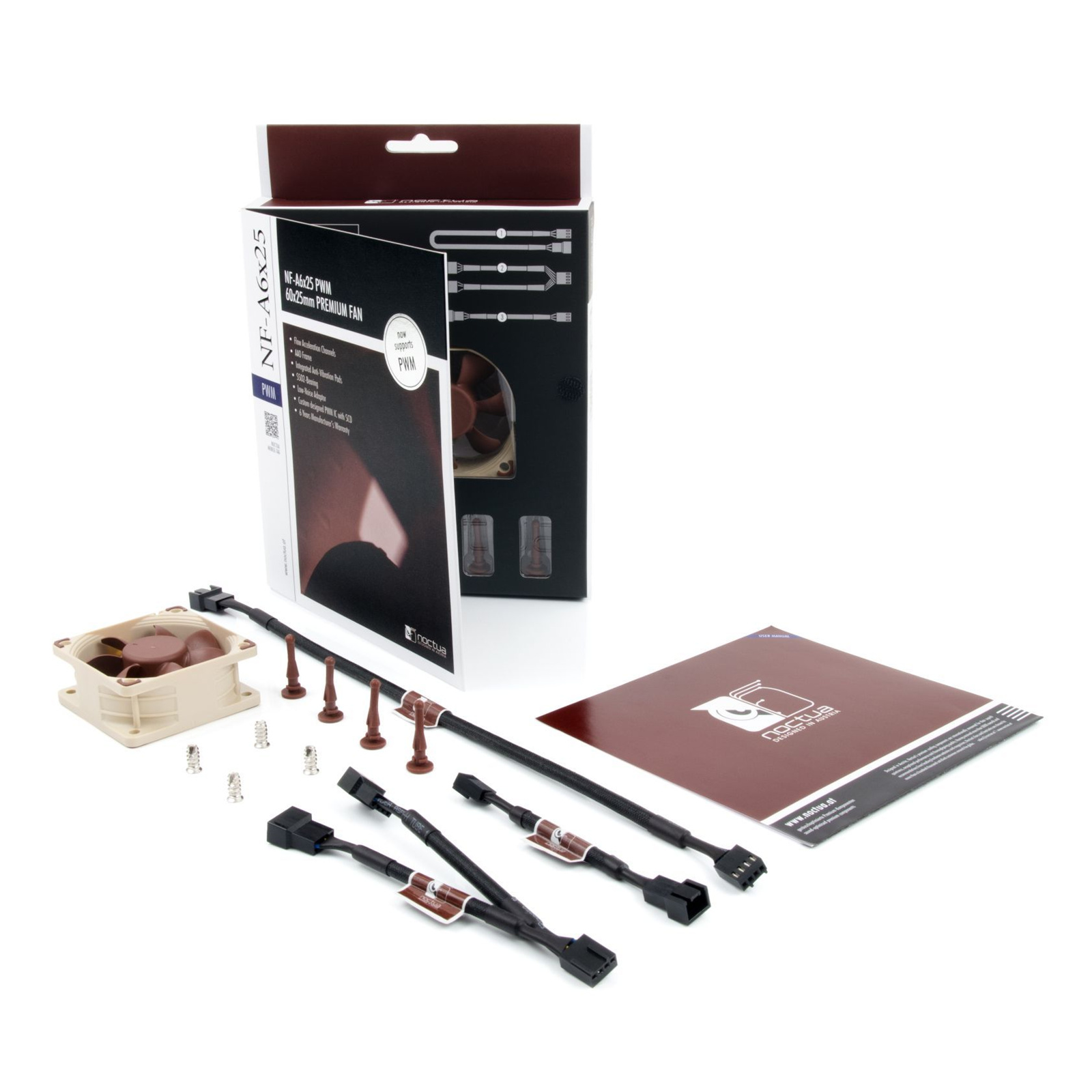

Scope of delivery
Low-Noise Adaptor (L.N.A.)
4-Pin Y-Cable
30cm Extension Cable
4 Vibration-Compensators
4 Fan Screws
