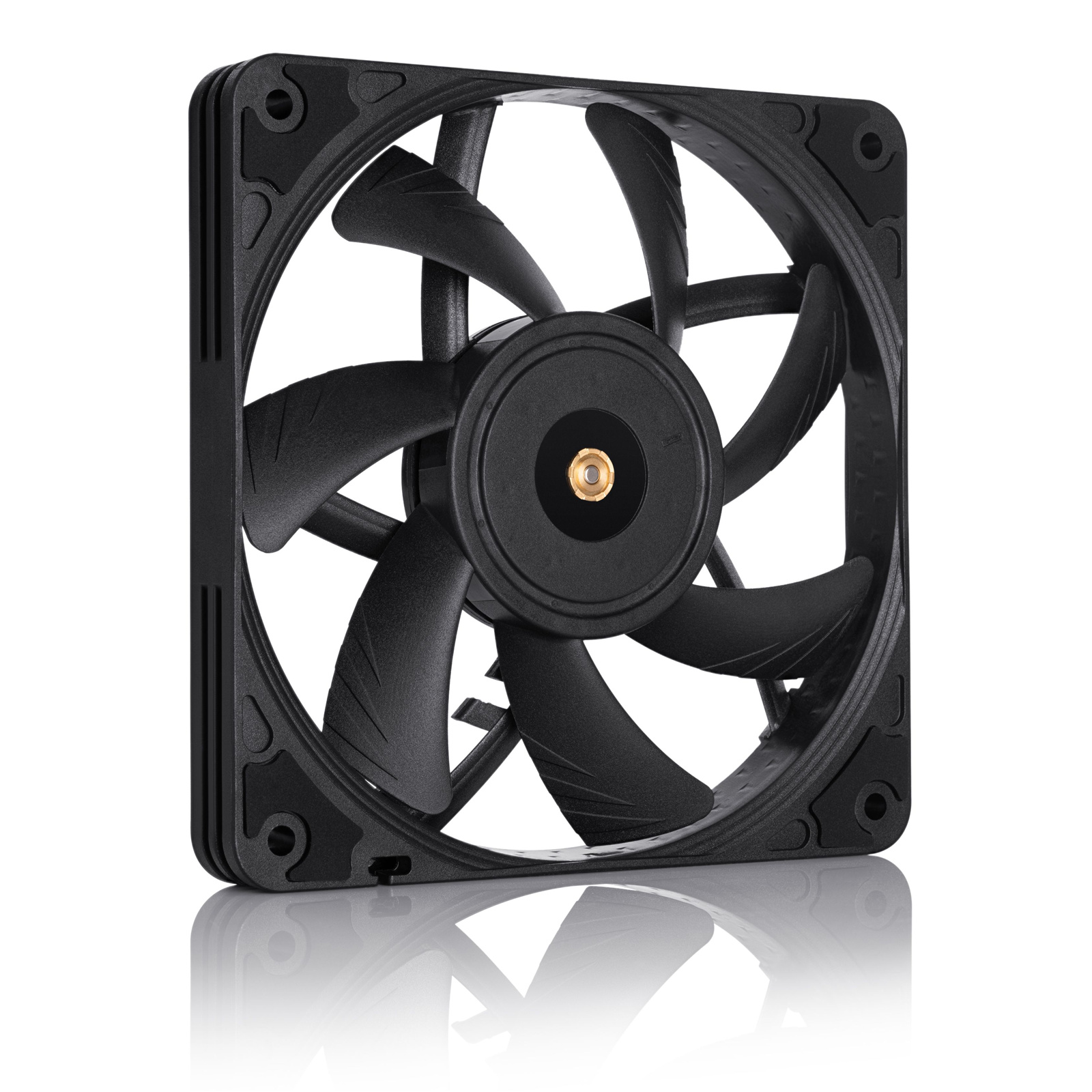

NOCTUA Noctua 120mm NF-A12x15 PWM 1850RPM Chromax Black Fan, 15mm Slim

NOCTUA Noctua 120mm NF-A12x15 PWM 1850RPM Chromax Black Fan, 15mm Slim
PB Tech price: PB Tech price:
$41 73  +GST $47 99  inc GST

Generating Print Page
Home PC Parts Cooling Case Fans NOCTUA Noctua 120mm NF-A12x15 PWM...

NOCTUA Noctua 120mm NF-A12x15 PWM 1850RPM Chromax Black Fan, 15mm Slim

Part #: FANNOC1218
PB Tech price: PB Tech price:
$41 73 $47 99
 +GST  inc GST


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 10/12/2021 When will I receive it?

Six easy payments of $8.24 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $9.89 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

  • Brand: NOCTUA
  • MPN: NF-A12x15-PWM-CH-BK-S
  • Part #: FANNOC1218
  • UPC: 841501110467
  • Bearing Type Variation: N/A
  • Fan Size: 120mm
  • LED Colour: N/A
  • Number of Fans: 1
  • Radiator Size: N/A
  • Sound Level (Roughly): 24dB
  • View more

Features



Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A12x15 has established itself as a default choice when it comes to premium-quality slim 120mm fans. The chromax.black.swap edition combines the NF-A12x15's signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua's trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF, the NF-12x15 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.

Award-winning NF-A12x15 design

Having received dozens of recommendations from the international press, Noctua's NF-A12x15 has become a proven premium choice for slim 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.



chromax.black.swap edition

Maximising colour choices, the NF-A12x15 chromax.black.swap fan can be colour-customised using the included self-adhesive anti-vibration pads as well as optional coloured cables. This makes it ideal for enthusiasts looking for a true premium-grade fan that can be colour-coordinated with popular build themes such as all black, black & white or black & red.

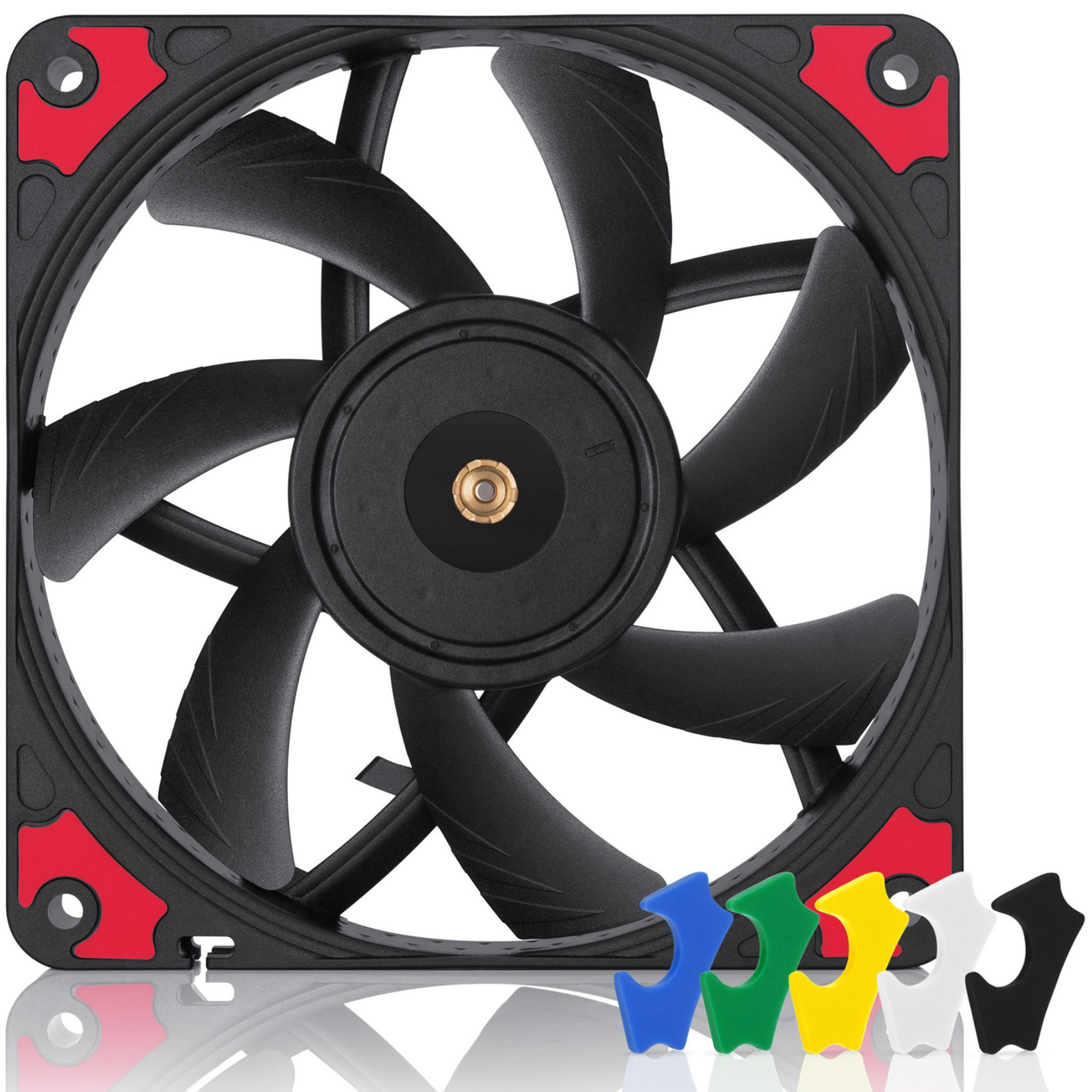

Self-adhesive anti-vibration pads in 6 colours

The NF-A12x15 PWM chromax.black.swap comes with 8 swappable, self-adhesive anti-vibration pads in black, white, red, blue, green and yellow respectively, which allow the fan to be fully colour-customised in order to coordinate it with other components or popular build schemes.



Optional coloured cables

Noctua's chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.



15mm slim design

Having a thickness of only 15mm, the NF-A12x15 is much slimmer than standard 120x25mm fans. This makes it ideal for typical slim fan applications such as low-profile CPU coolers as well as for freeing up space by replacing standard 120x25mm fans on tower coolers, radiators or in PC cases.



Metal-reinforced motor hub

With many larger-diameter slim fan designs, the shorter axis and bearing lead to a reduced running stability and lifespan. The NF-A12x15 uses a metal-reinforced motor hub, a measure typically found in high-speed industrial fans, in order to guarantee Noctua's signature stability and longevity.



Flow Acceleration Channels

The NF-A12x15 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.



AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.



Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.



Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.



SSO2 bearing

The NF-A12x15 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.



Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.



Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.

Specifications

Size

120x120x15 mm

Mounting hole spacing

105x105 mm

Connector & pin-configuration

4-pin PWM

Cable length

1cm + 30cm NA-EC1 extension cable

Bearing

SSO2

Blade geometry

A-Series with Flow Acceleration Channels

Frame technology

AAO (Advanced Acoustic Optimisation)

Rotational speed (+/- 10%)

1850 RPM

Min. rotational speed (PWM, +/-20%)

450 RPM

Airflow

94,2 m³/h

Acoustical noise

23,9 dB(A)

Static pressure

1,53 mm H2O

Max. input power

1,56 W

Max. input current

0,13 A

Operating voltage

12 V

Voltage PWM signal

5 V

MTTF

> 150.000 h

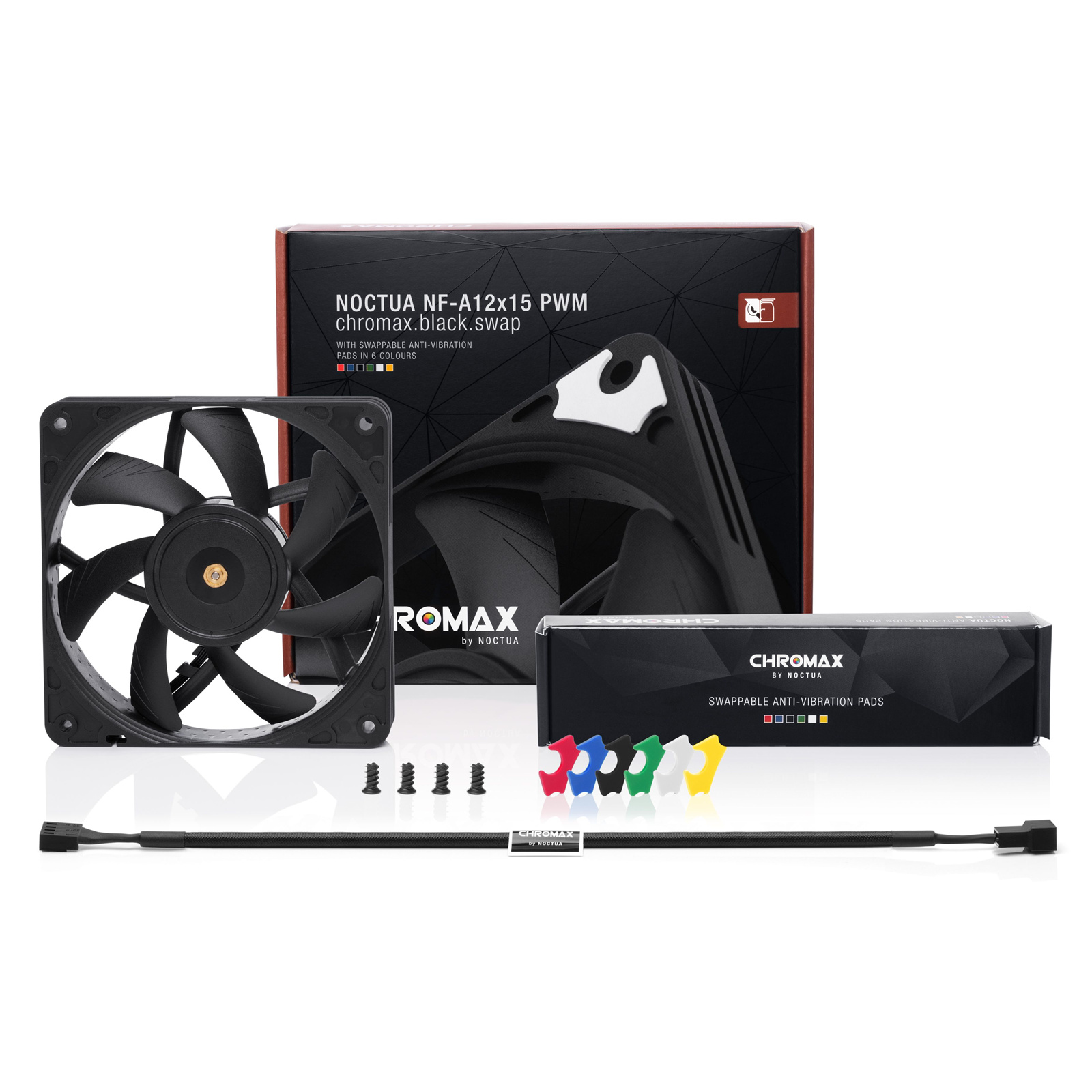

Scope of delivery

8x NA-AVP7 chromax.black anti-vibration pads
8x NA-AVP7 chromax.blue anti-vibration pads
8x NA-AVP7 chromax.green anti-vibration pads
8x NA-AVP7 chromax.red anti-vibration pads
8x NA-AVP7 chromax.white anti-vibration pads
8x NA-AVP7 chromax.yellow anti-vibration pads
4x fan screws

Manufacturer Part No:
NF-A12x15-PWM-CH-BK-S
Brand:
Product Type:
-
UPC
841501110467
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
FANNOC1218
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
