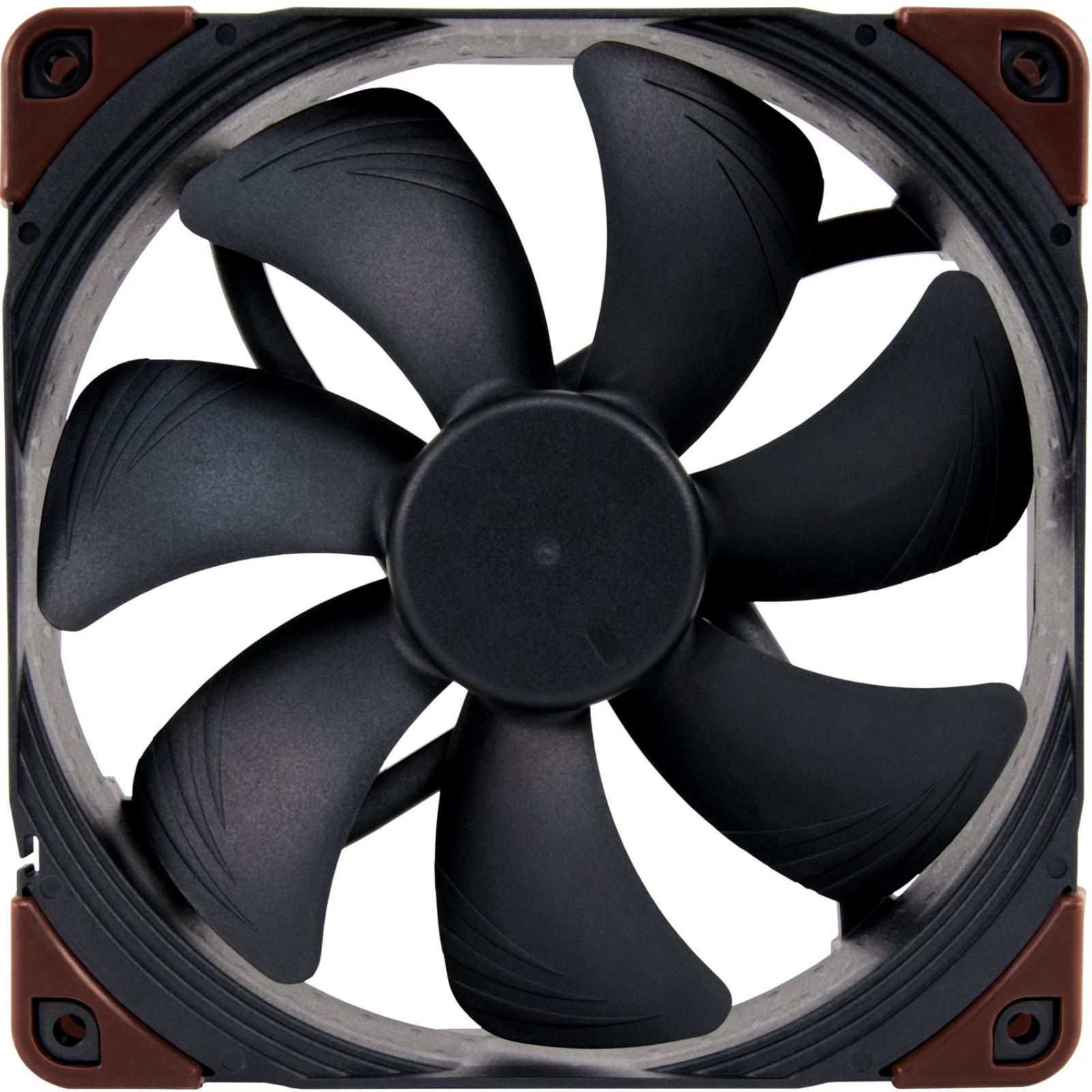

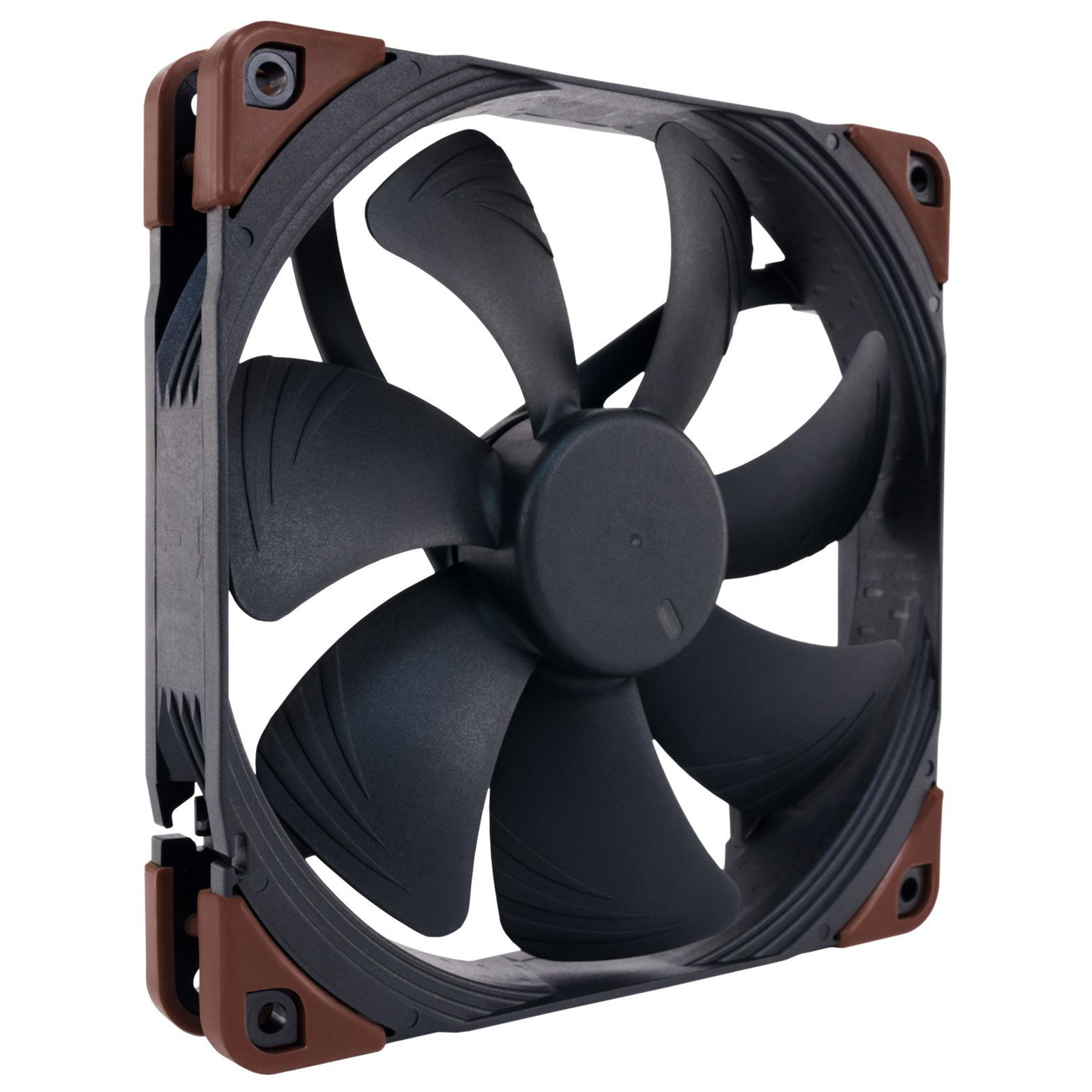

NOCTUA 140mm NF-A14 industrial PPC IP67 PWM (Max 2000RPM) Case Fan

PB Tech price
PB Tech price
$ 42 .60
 +GST
$ 48 .99
 inc GST

Out of stock

NOCTUA 140mm NF-A14 industrial PPC IP67 PWM (Max 2000RPM) Case Fan

  • Brand: NOCTUA
  • MPN: NF-A14-iPPC-2000-IP67
  • Part #: FANNOC1413
  • UPC: 842431014405
2
PB Tech price
$ 42 .60 $ 48 .99
 +GST  inc GST

No store stock available. See in-stock alternatives

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: NOCTUA
  • MPN: NF-A14-iPPC-2000-IP67
  • Part #: FANNOC1413
  • UPC: 842431014405

Fan Size

140mm

Colour

Black

Number of Fans

1

CPU Air Cooler Height

N/A

Radiator Size

N/A

LED Colour

N/A

Reversed Fan Blade

No

Sound Level (Roughly)

32dB

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"This fan seems to do the job quite well.

it's PWM (pulse ...view more"

JR
By: JamesR947 29/04/23
Verified Owner

"The computer noise was reduced to the point I need to see if the light is on. :D I am really happy."

G
By: Guest 23/07/21

Features

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-A14 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-A14 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-A14 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua™s trusted reliability and 6 years manufacturer™s warranty, the NF-A14 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Award-winning NF-A14 design

Having received more than 100 awards and recommendations from the international press, Noctua™s NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.

2000rpm industrialPPC version

Thanks to its elevated 2000rpm top speed, the NF-A14 industrialPPC-2000 provides a significant performance boost over the 1500rpm retail version. Combined with the industrialPPC series™ robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.

Three-phase motor design

While most axial fans use single-phase motors with 4 slots, Noctua™s industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.

Class-leading energy efficiency

While the standard NF-A14 is one of the most energy efficient 1500rpm 140mm fans on the market, the industrialPPC version™s three-phase motor provides a further 10% reduction in power consumption when compared at 2000rpm.

Fibre-glass reinforced polyamide construction

Both the impeller and the frame of Noctua™s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua™s standard fibre-glass reinforced PBT fans.

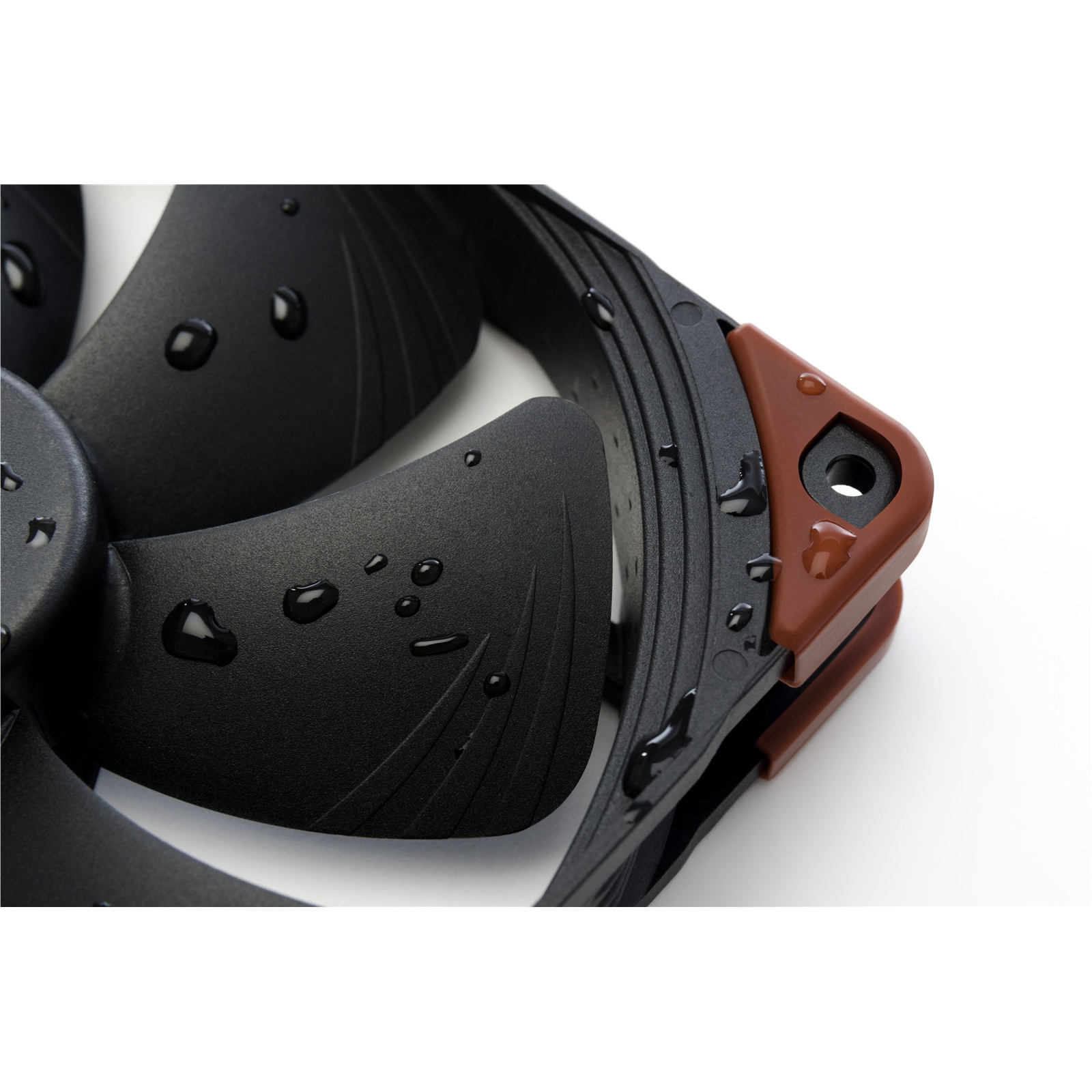

Certified IP67 water- and dust protection

The motor and PCB of the IP67 version are completely cast in a special, highly heat conductive resin that combines thoroughgoing protection and effective motor heat dissipation. Complying with the ingress protection rating IP67, this fan is not only fully dust tight but also completely waterproof up to 1m water depth.

Flow Acceleration Channels

The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.

AAO Frame

Noctua™s AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua™s proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan™s performance/noise efficiency.

Stepped Inlet Design

Noctua™s Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space restricted environments.

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.

SSO2 Bearing

The NF-A14 industrialPPC features the further optimised second generation of Noctua™s renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-A14 industrialPPC sports a CNC milled bearing shell made entirely from brass.

Custom designed PWM IC with SCD

Supporting fully automatic PWM speed control, the NF-A14 industrialPPC uses Noctua™s custom designed NE-FD2 PWM IC for three-phase motors. The NE-FD2 integrates Noctua™s proprietary Smooth Commutation Drive (SCD) technology, which suppresses PWM switching noises and thus makes the fan quieter at lower speeds.

Specifications

Size

140x140x25 mm

Connector

4-pin PWM

Bearing

SSO2

Blade Geometry

A series with Flow Acceleration Channels

Frame Technology

AAO (Advanced Acoustic Optimisation)

Rotational Speed (+/- 10%)

2000 RPM

Min. Rotational Speed (PWM, +/-20%)

500 RPM

Airflow

182,5 m/h

Acoustical Noise

31,5 dB(A)

Static Pressure

4,18 mm H2O

Max. Input Power

2,16 W

Max. Input Current

0,18 A

Voltage

12 V

MTBF

> 150.000 h

Scope of Delivery

Fan
   4 Fan Screws

Ingress Protection

IP67

Material

Fibre-glass reinforced polyamide

Motor type

Three-phase

Manufacturer Part No:
NF-A14-iPPC-2000-IP67
Brand:
Product Type:
-
UPC
842431014405
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
FANNOC1413
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
