NOCTUA NH-D15S Chromax Black CPU Cooler 1x 140mm PWM Fan, 160mm Clearance, Support Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

Special price
Special price
$ 142 .60
 +GST
$ 163 .99
 inc GST
$142.60  +GST
$163.99  inc GST

NOCTUA NH-D15S Chromax Black CPU Cooler 1x 140mm PWM Fan, 160mm Clearance, Support Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4

Sleek black NH-D15S heatsink!
  • Brand: NOCTUA
  • MPN: NH-D15S-CH-BK
  • Part #: FANNOC4112
  • UPC: 841501100239
13
Special price
$ 142 .60 $ 163 .99
 +GST  inc GST

Part of Tech Frenzy!
Ends in --, while stocks last!


Click & Collect: Available from 18 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$142.60  +GST
$163.99  inc GST

Six easy payments of $28.15 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $42.02 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

  • Brand: NOCTUA
  • MPN: NH-D15S-CH-BK
  • Part #: FANNOC4112
  • UPC: 841501100239

Fan Size

140mm

CPU Air Cooler Height

160mm

Number of Fans

1

LED Colour

N/A

Radiator Size

N/A

Bearing Type Variation

N/A

Sound Level (Roughly)

Adjustable

What PB Tech customers are saying about this product...

See More Reviews

"It's massive but works oh so well. My PC runs totally silent with this during normal day to day work."

AE
By: AndrewE31 20/10/23

"Built a PC for a friend, used this in it and I'm jealous. Puts my AIO 240mm water cooler in its place and damn near silent"

SG
By: ScottG94 19/10/23
Verified Owner

"Noctua is always high quality, and this cooler is no exception. It is pretty massive though, and very likely will cover your RAM, so don't intend on showing off your RGB if you ins ...view more"

BM
By: BlairM531 31/07/23
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the NOCTUA NH-D15S Chromax Black CPU Cooler 1x 140mm PWM Fan, 160mm...
NOCTUA NH-D15S Chromax Black CPU Cooler 1x 140mm PWM Fan, 160mm Clearance, Support Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4
Total:
$ 357 .39
 +GST
$ 411 .00
 inc GST
Buy together and save $4.01 $4.61
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste Made With 99.9% Pure Silver
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste Made With 99.9% Pure Silver
$18.82 $21.64

$16.35  +GST

$18.80  inc GST

You save 13% You save 13%
Samsung 870 EVO 1TB 2.5" Internal SSD V-NAND - SATA3 6GB/s - Up to 560MB/s Read - Up to 530MB/s Write - 7mm - 5 Years Warranty
Samsung 870 EVO 1TB 2.5" Internal SSD V-NAND - SATA3 6GB/s - Up to 560MB/s Read - Up to 530MB/s Write - 7mm - 5 Years Warranty

$153.62  +GST

$176.66  inc GST

Dynamix CK-AD400 400ml Air Duster, Non-Flammable high-pressure dust removal system (compressed air Spray) ST1004
Dynamix CK-AD400 400ml Air Duster, Non-Flammable high-pressure dust removal system (compressed air Spray) ST1004

$11.82  +GST

$13.59  inc GST

You save 5% You save 5%

Features

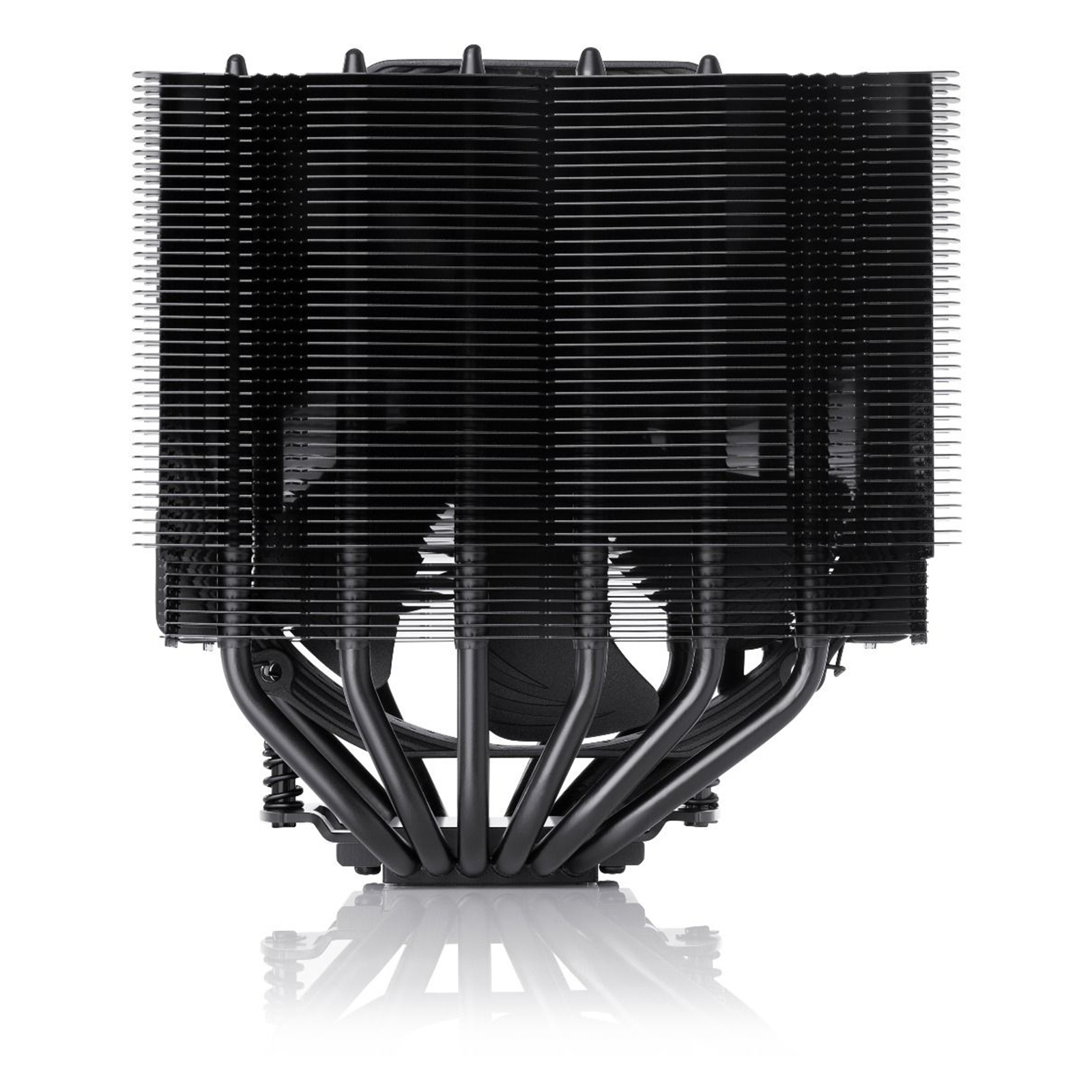

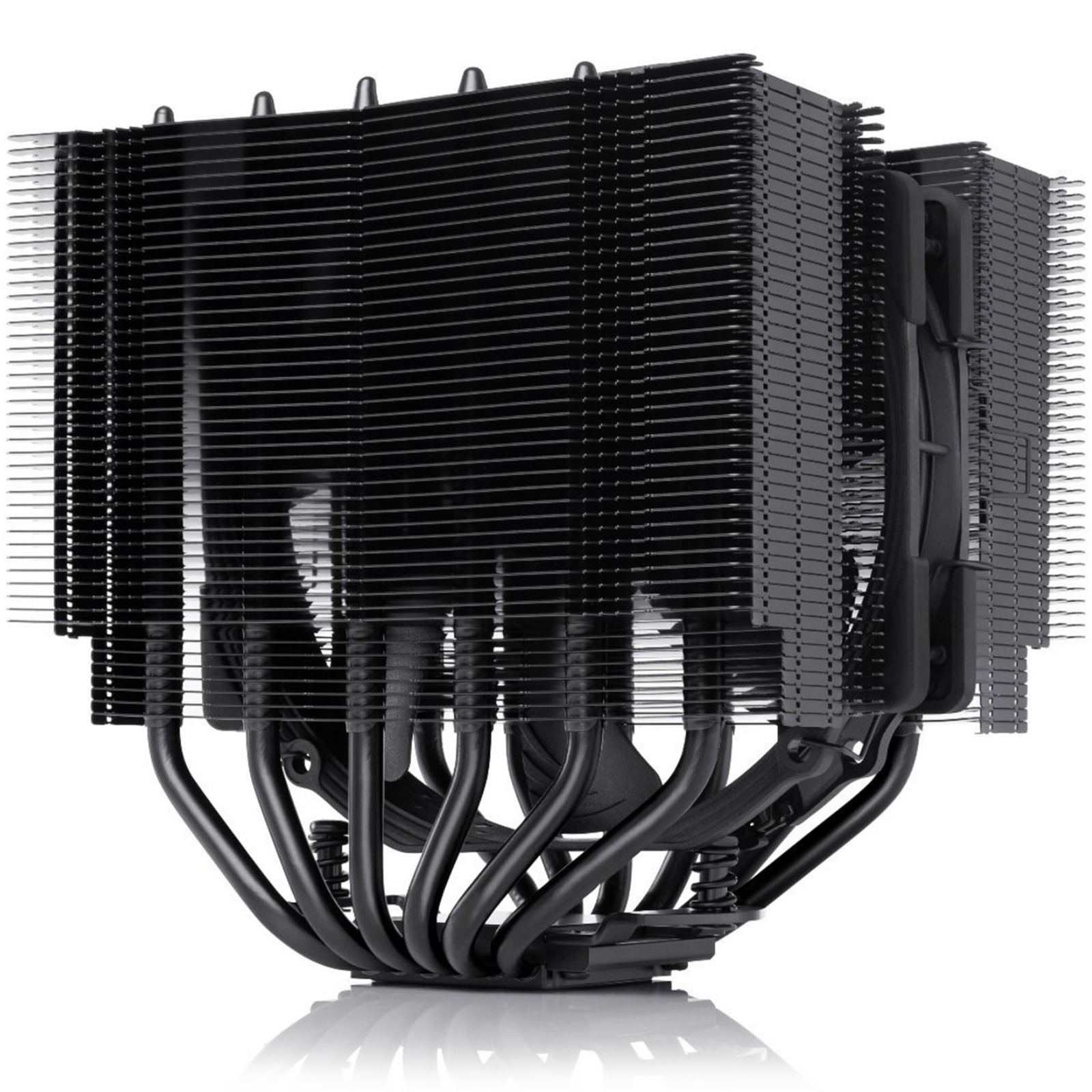

The NH-D15S chromax.black is an all-black version of Noctua's award-winning NH-D15S premium-quality quiet CPU cooler. Thanks to the same asymmetrical dual-tower heatsink design and single NF-A15 PWM fan, it stays true to the NH-D15S's successful formula of fusing dual-tower performance with excellent RAM, case and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ multi-socket mounting system, Noctua's enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer's warranty, the NH-D15S chromax.black is a premium choice for customers who seek a highly compatible dual-tower heatsink that looks just as great as it cools.

Award-winning NH-D15S cooler

Tens of thousands of enthusiast users all over the world swear by the NH-D15S's quality and performance. Recommended by more than 150 international hardware websites and magazines, it is renowned for its unique blend of dual-tower performance and excellent compatibility.

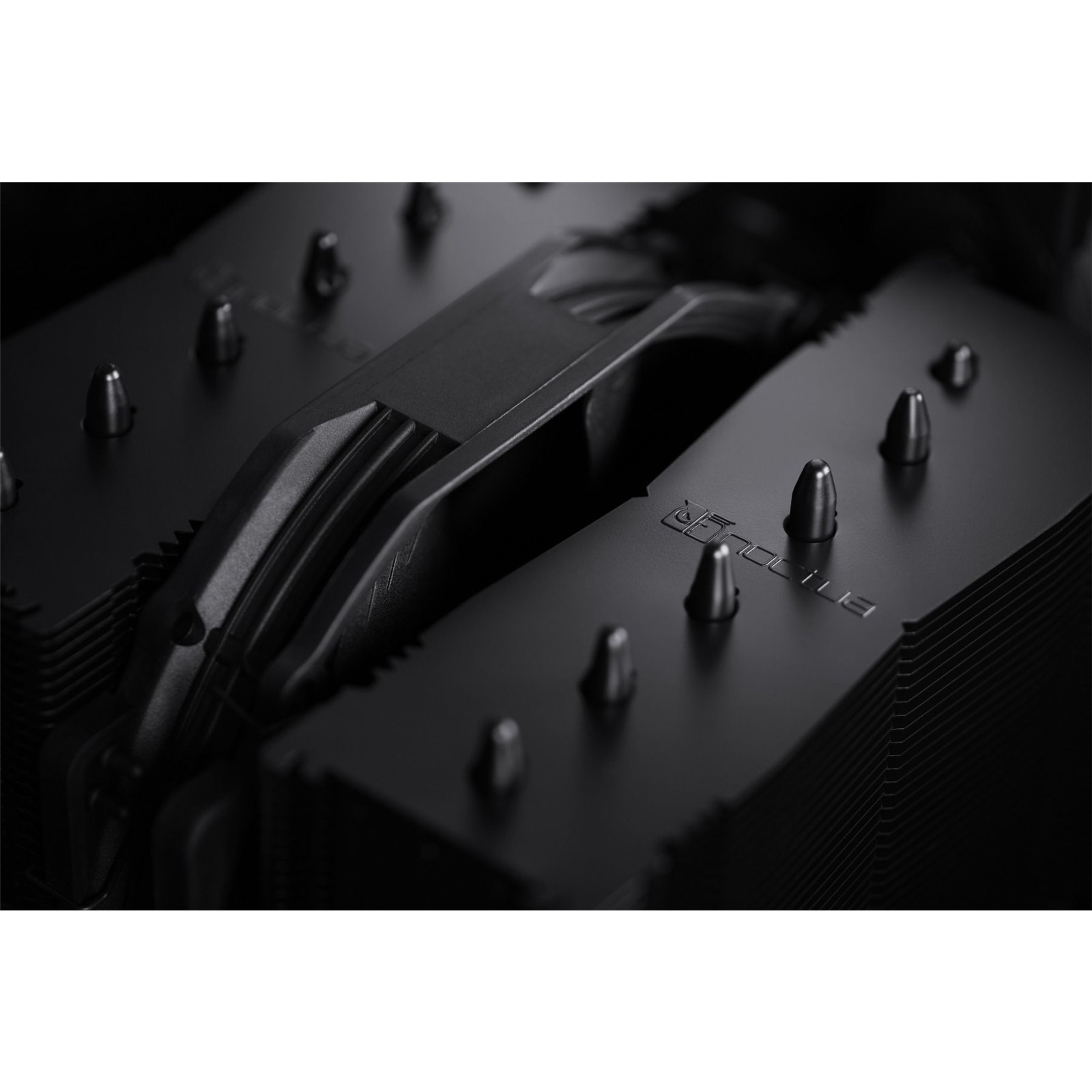

chromax.black design

The NH-D15S chromax.black is black from head to toe: featuring a black coated heatsink, black fans with black anti-vibration-pads, black fan clips and black mounting parts, it's right at home in all-black builds and easy to integrate with other colour schemes.

Colour-customisable

Using the optional NA-HC3 and NA-HC4 heatsink covers as well as the NA-SAVP3 anti-vibration pads (available in black, blue, green, red, yellow, white), the NH-D15S chromax.black can be fully customised to fit popular build colour schemes such as black and red or black and white.

High-compatibility version of NH-D15

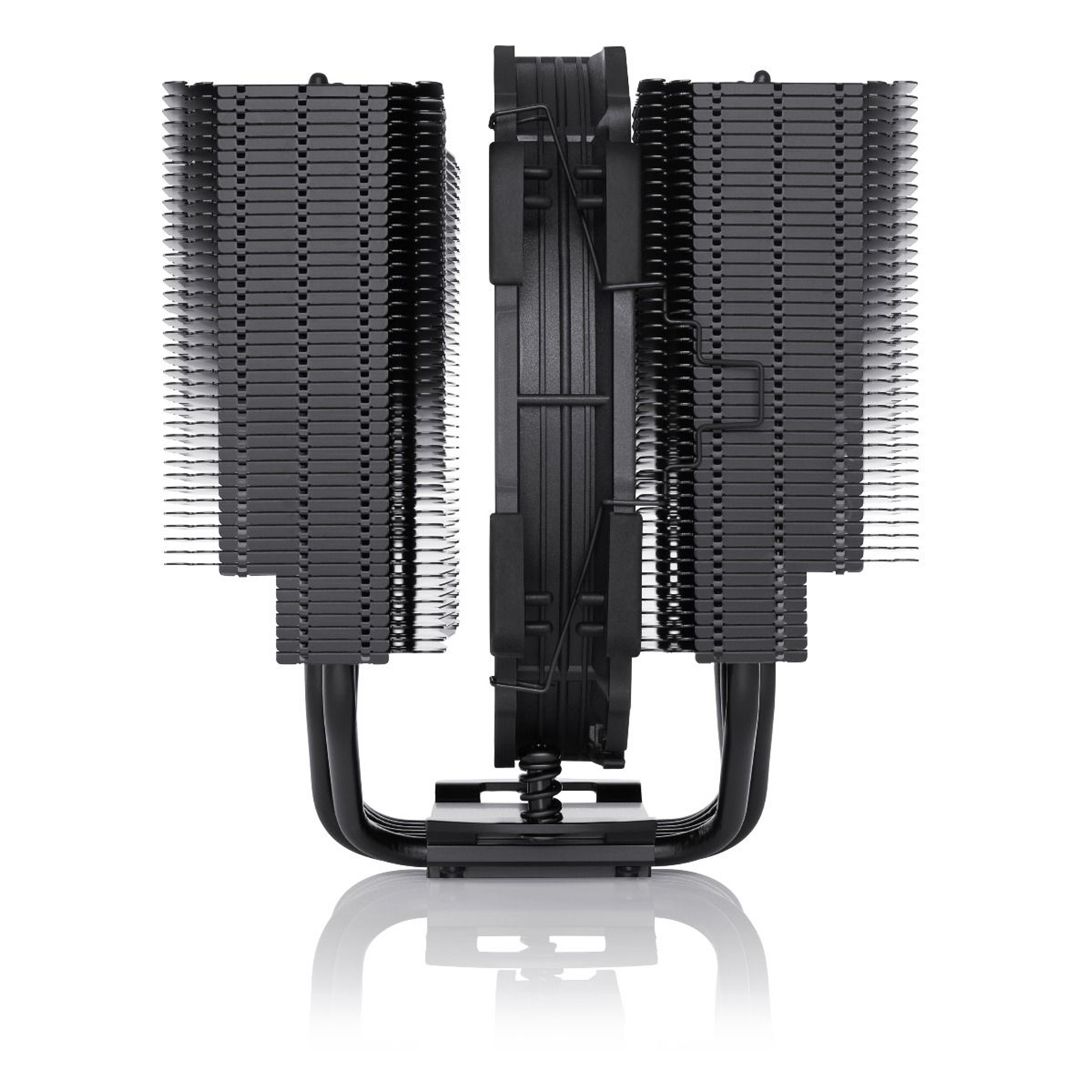

Compared to the award-winning NH-D15, the S-version uses an off-set, asymmetrical layout and a single instead of dual NF-A15 fans. This allows the NH-D15S to provide state-of-the-art heatsink performance while maintaining superior RAM and PCIe compatibility.

Excellent RAM compatibility

Thanks to its recessed lower fins, the NH-D15S provides 65mm clearance for RAM with tall heatspreaders or RGB illumination, making it compatible with most high-end modules on the market. As the lower fins are recessed on both sides of the heatsink, compatibility is excellent not only on LGA115x and AMD, but also on LGA20xx where there are RAM slots on both sides of the socket.

Asymmetrical layout for better PCIe compatibility

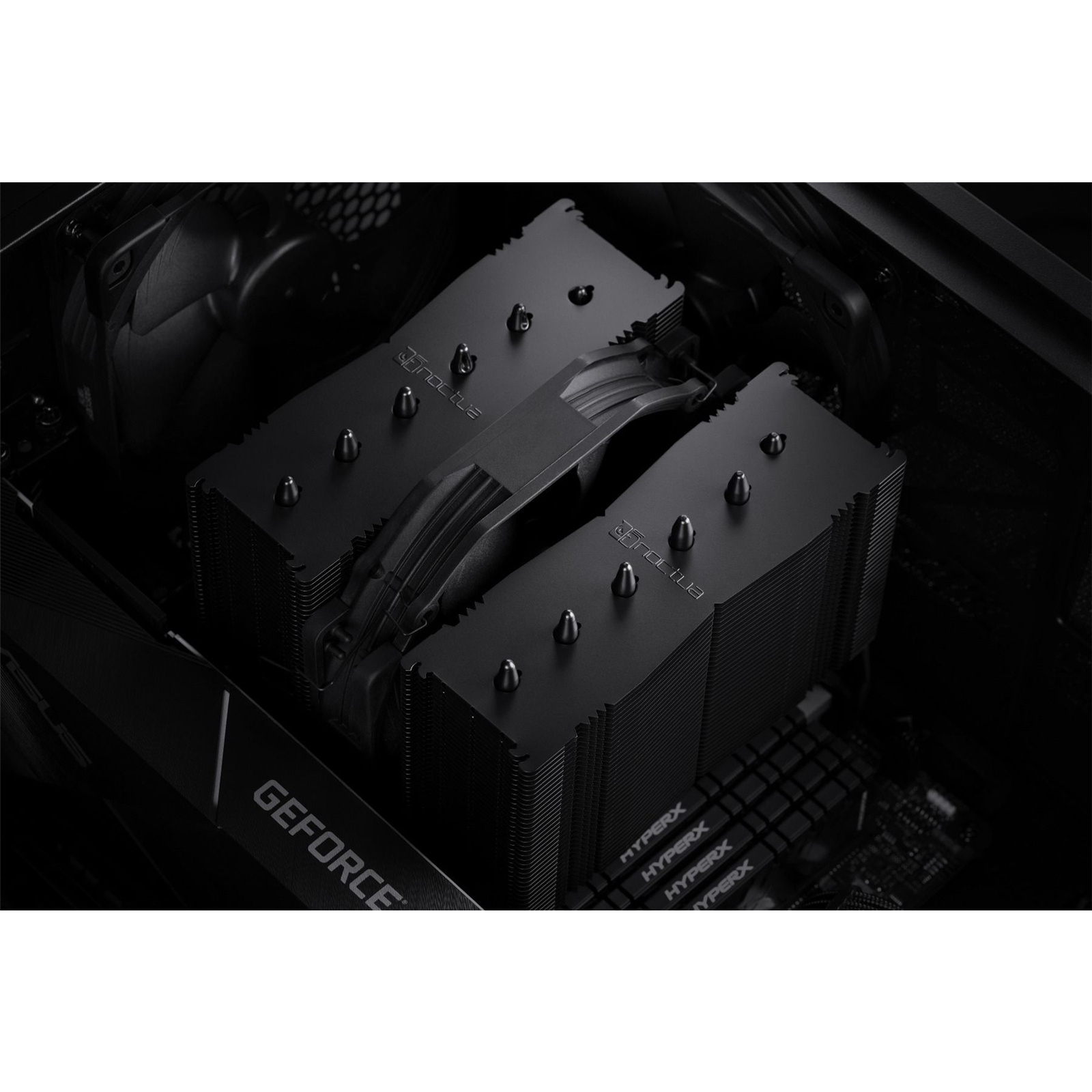

As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-D15S is off-set towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current µATX and ATX motherboards.*

NF-A15 140mm fan

Complying with Noctua's AAO standard and featuring sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A15 has quickly built up a reputation as one of the best 140mm fans on the market.

Dual-fan ready

Using the supplied extra fan clips, the NH-D15S can be upgraded with either a second round-frame 140mm fan with 120mm mounting holes (such as the NF-A15) for maximum performance or a common 120mm fan (such as the NF-F12) for improving performance while maintaining compatibility with RAM modules of up to 45mm height.

PWM support and Low-Noise Adaptor

The NF-A15 premium fan supplied with the NH-D15S supports PWM for convenient automatic speed control through the motherboard. In addition, the maximum fan speed can be reduced from 1500 to 1200rpm using the supplied Low-Noise Adaptor for even quieter operation.

Excellent component cooling

Extending below the fin-stacks, the large NF-A15 fan not only contributes to the superb CPU cooling capabilities of the NH-D15S but also provides massive airflow over surrounding motherboard components and heatsinks, thus ensuring excellent component cooling performance.

SecuFirm2™ multi-socket mounting system

Noctua's SecuFirm2™ mounting systems have become synonymous with quality, safety and easy installation. Supporting Intel LGA115x (LGA1150, LGA1151, LGA1155, LGA1156), LGA1200 and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1, the SecuFirm2™ mounting included with the NH-D15S is straightforward to install, provides perfect contact pressure and will stand the test of time even under heavy use.

Compatibility with past and future sockets

Thanks to Noctua's SecuFirm™ ecosystem, the NH-D15S can be made compatible with the older LGA1366 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-D15S a safe long-term investment.

NT-H1 thermal compound

Noctua's much-acclaimed NT-H1 is a pro-grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability. Chosen again and again by overclockers and enthusiast users worldwide, it has established itself as a benchmark for premium-quality thermal compounds.

Soldered interface between heatpipes and fins

With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-D15S's fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn't deteriorate even after many years of usage.

Specifications

Cooler Specification

Socket compatibility

Intel LGA 1700, 2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4

Height (without fan)

160 mm

Width (without fan)

150 mm

Depth (without fan)

135 mm

Height (with fan)

160 mm

Width (with fan)

150 mm

Depth (with fan)

135 mm

Weight (with fan)

1150 g

Material

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Max. TDP

see CPU compatibility list

Fan compatibility

140x150x25 (with 120mm mounting holes), 140x140x25 (with 120mm mounting holes), 120x120x25

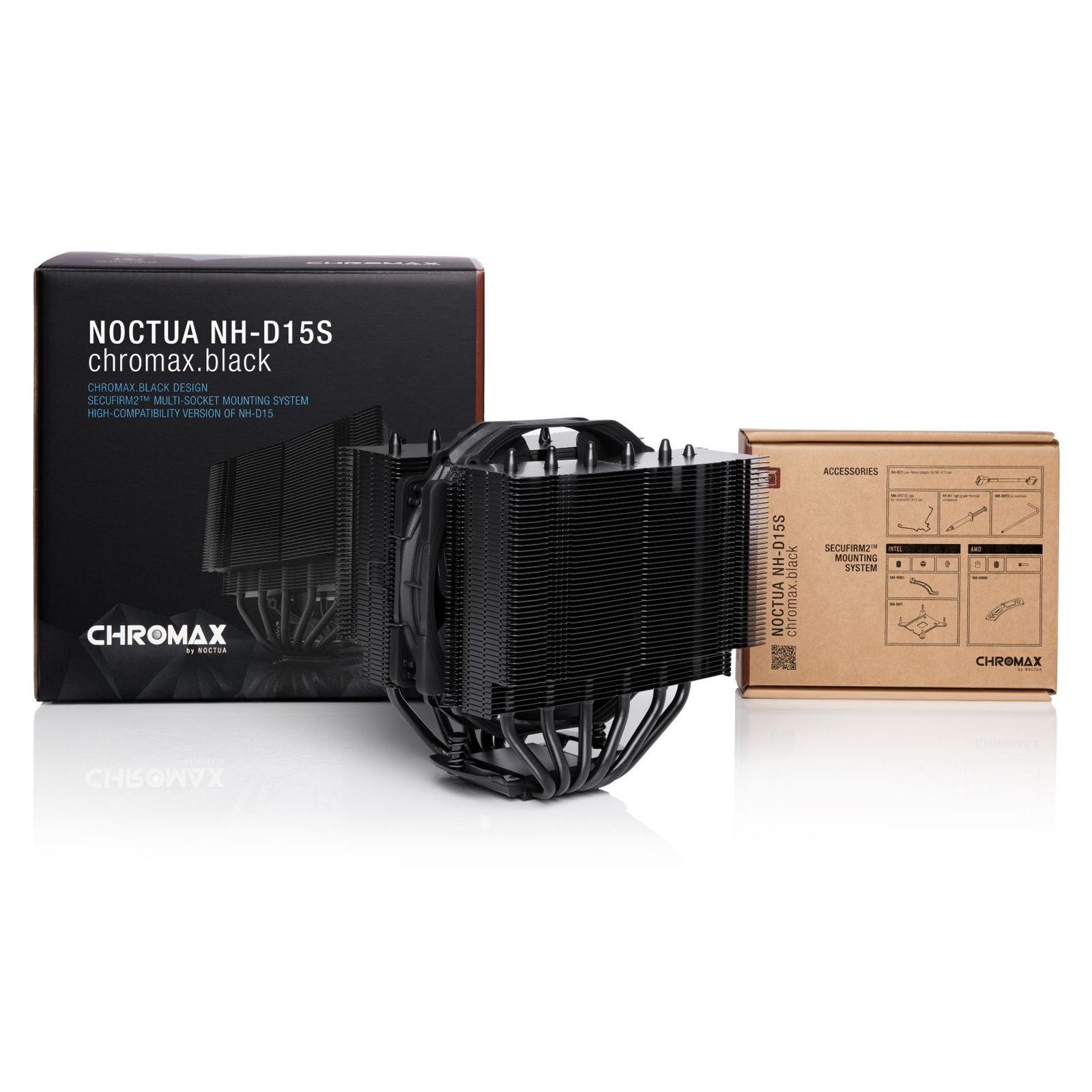

Scope of delivery

Black NH-D15S heatsink
NF-A15 HS-PWM chromax.black premium fan
NA-RC7 Low-Noise Adaptor (L.N.A)
NT-H1 high-grade thermal compound
Black SecuFirm2™ mounting kit
Black fan-clips for second NF-A15
Noctua Metal Case-Badge

FAN Specification

Model

NF-A15 HS-PWM chromax.black

Bearing

SSO2

Max. rotational speed (+/- 10%)

1500 RPM

Max. rotational speed with L.N.A. (+/- 10%)

1200 RPM

Min. rotational speed (PWM, +/-20%)

300 RPM

Max. airflow

140,2 m³/h

Max. airflow with L.N.A.

115,5 m³/h

Max. acoustical noise

24,6 dB(A)

Max. acoustical noise with L.N.A.

19,2 dB(A)

Input power

1,56 W

Voltage range

12 V

MTTF

> 150.000 h

Manufacturer Part No:
NH-D15S-CH-BK
Brand:
Product Type:
CPU Cooler
UPC
841501100239
Product Family:
NH-D15S
Shipping Weight:
1.95 kg
PB Part No:
FANNOC4112
Product Model:
Chromax Black
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
