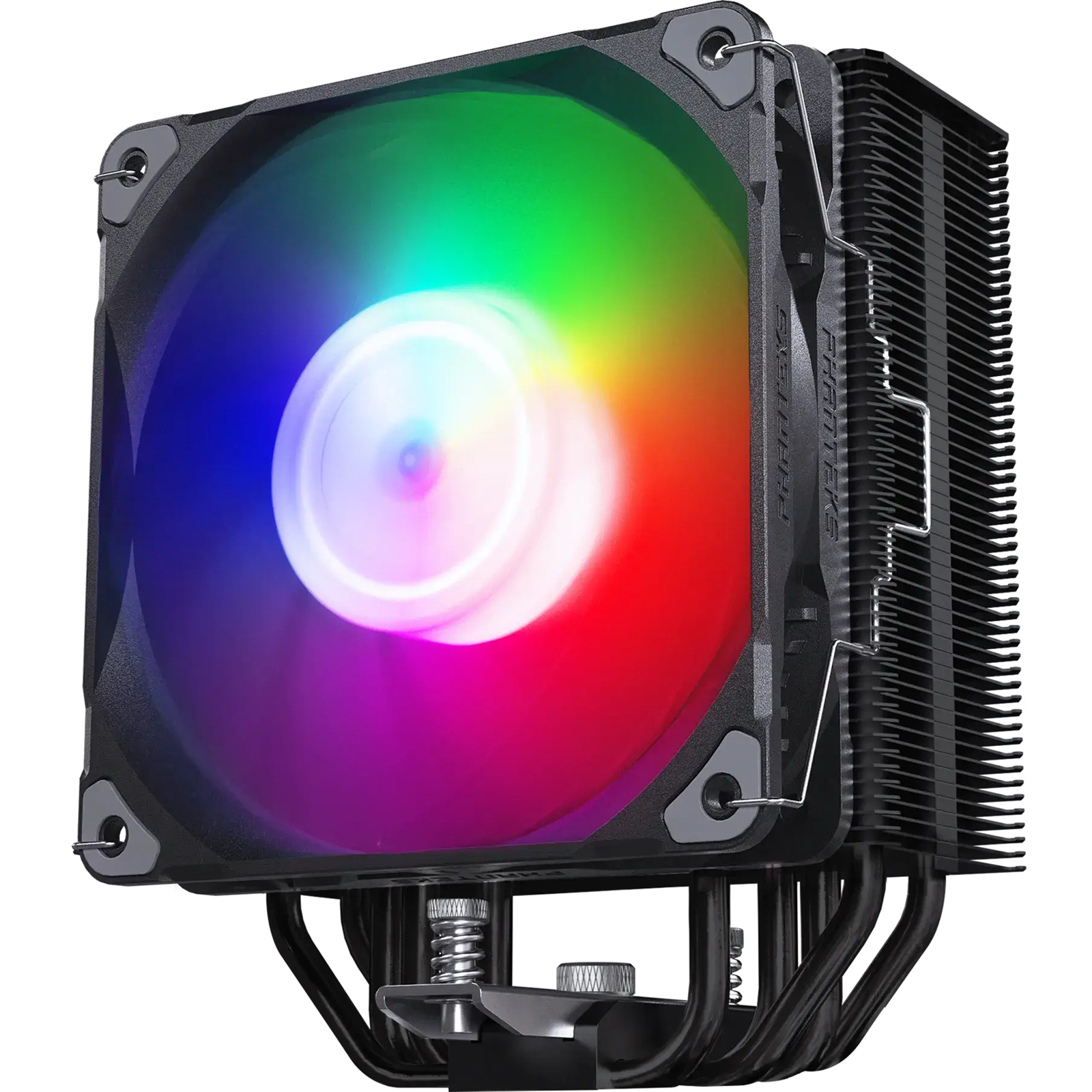

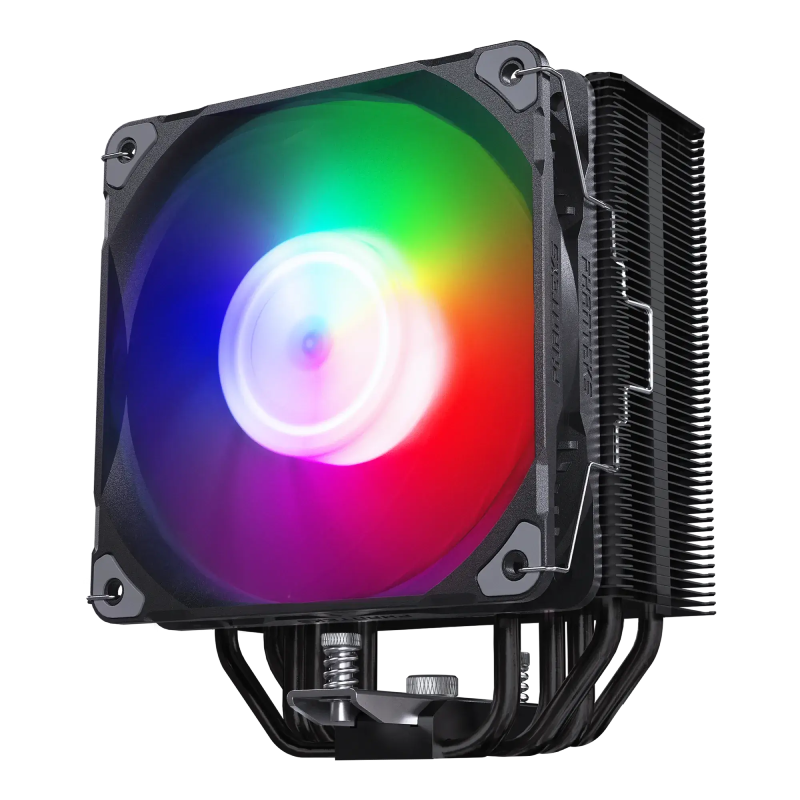

Phanteks Polar ST5 CPU Cooler with 1x 120mm PWM DRGB Fan for Intel Socket LGA 1851/ 1700 / 115X / 1200, AMD AM5 / AM4
Out of stock
Phanteks Polar ST5 CPU Cooler with 1x 120mm PWM DRGB Fan for Intel Socket LGA 1851/ 1700 / 115X / 1200, AMD AM5 / AM4
- Brand: Phanteks
- MPN: PH-TC12ST5_DBK01
- Part #: FANPHA0011
- UPC: 886523703112
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"My cpu used to idle at 65-70 degrees and under load went to 100+ after installing this cooler I idle around 30 degrees and under load it doesnt go over 55. Very happy. Well worth t ...view more"
"High-quality budget cooler. Phanteks never lets me down. It keeps my 65w chip cool with ease with temps 30c idle and 50c under load. Also the fan is extremely quiet with good RGB."
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Air Cooling





Phanteks Polar ST5 CPU Cooler with 1x 120mm PWM DRGB Fan for Intel Socket LGA 1851/ 1700 / 115X / 1200, AMD AM5 / AM4
- Brand: Phanteks
- MPN: PH-TC12ST5_DBK01
- Part #: FANPHA0011
- UPC:886523703112

Product URL: https://www.pbtech.co.nz/product/FANPHA0011/Phanteks-Polar-ST5-CPU-Cooler-with-1x-120mm-PWM-DR
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features

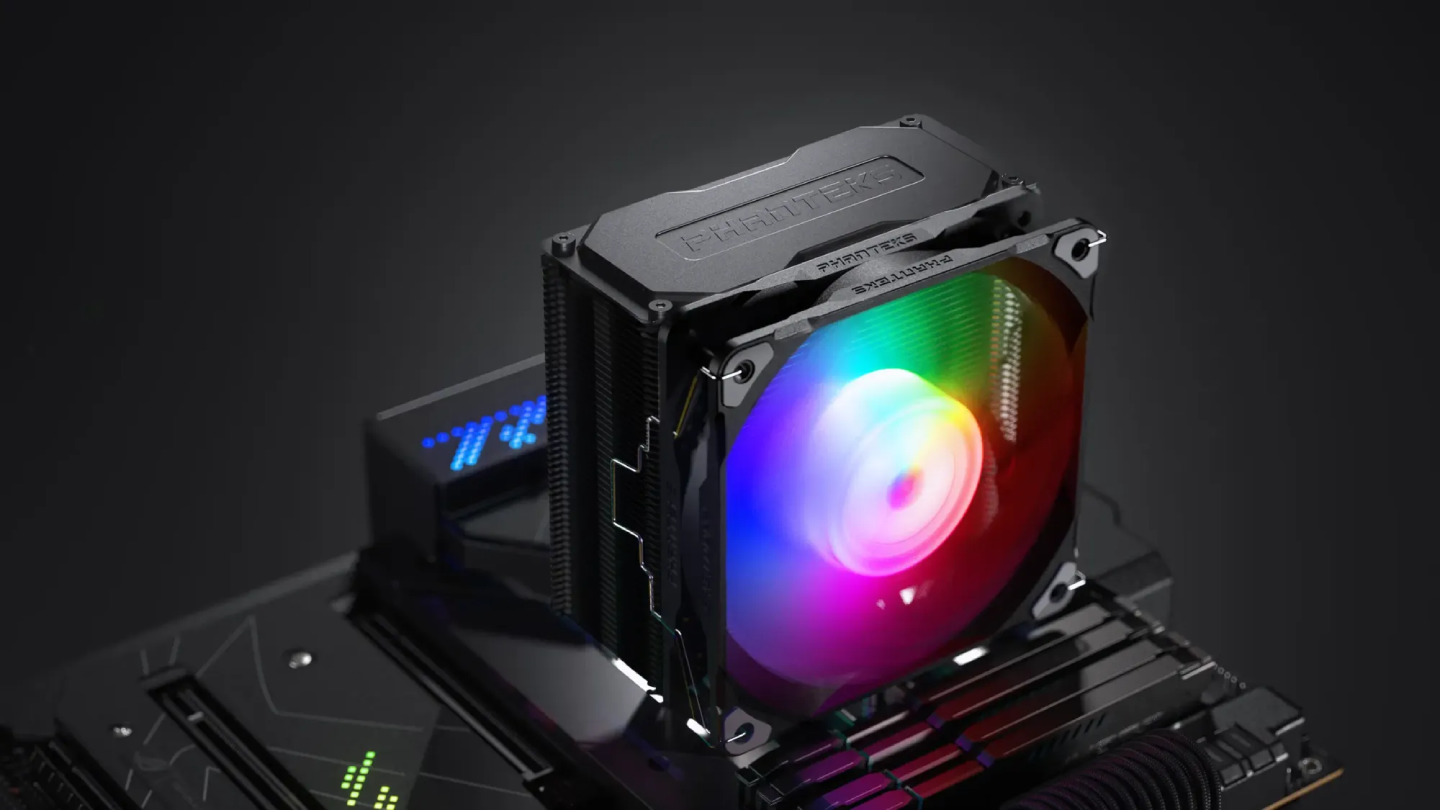

POLAR ST5 - PERFORMANCE WITH EXCEPTIONAL VALUE

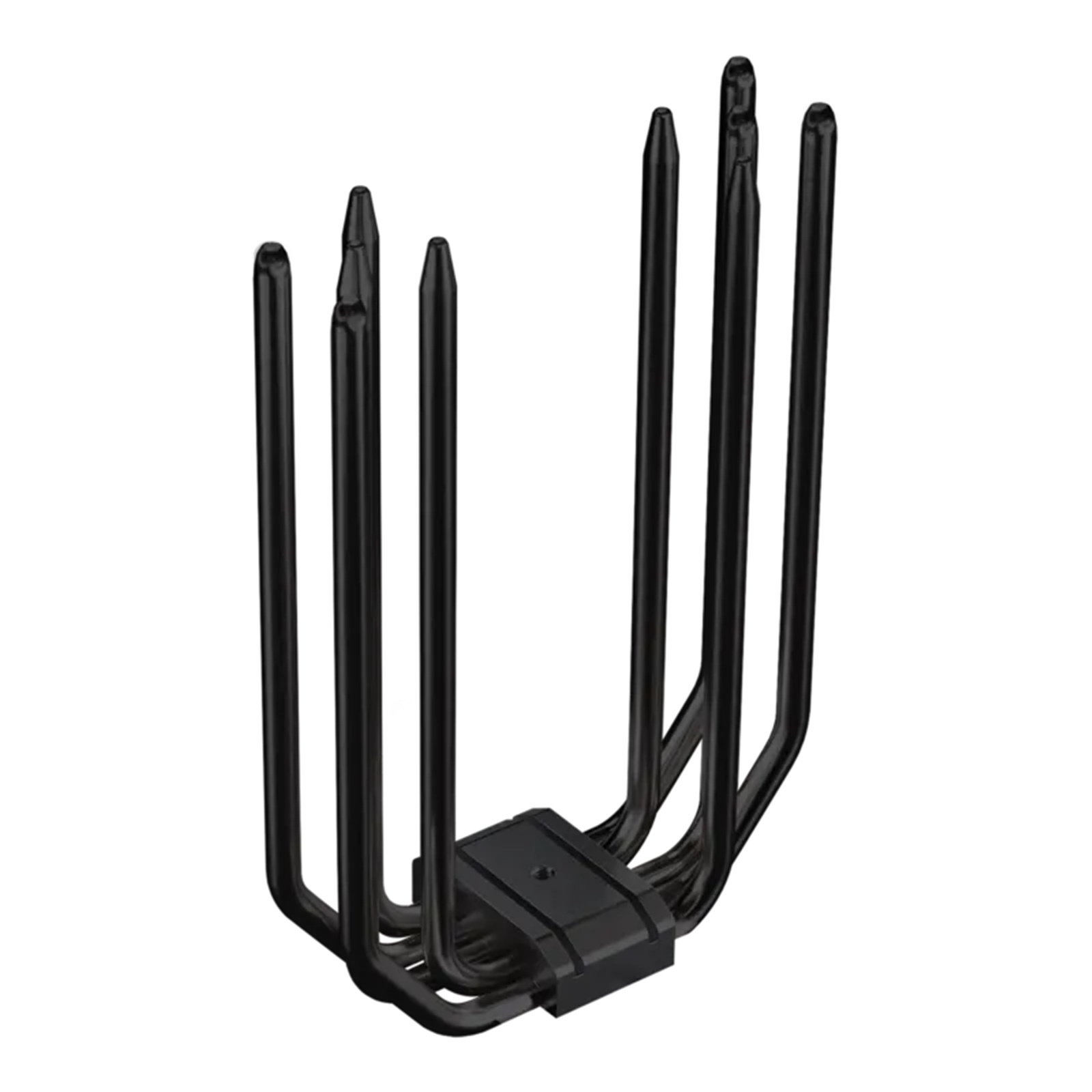

Single tower CPU cooler that can handle even the most recent high-end processors. The large copper base optimizes heat transfer for larger CPUs with large and/or multiple dies and comes with 5 sintered powder copper heat pipes to transfer large amounts of heat.
HIGH QUALITY MATERIALS
- High quality sintered powder copper heat pipes.
- Each component is carefully chosen to add as much cooling performance to create CPU coolers with exceptional value.
- Solid mounting system made of high quality steel.
- Four heat pipes directly touch the CPU heatspreader.
HIGH PERFORMANCE WITH WIDE RPM RANGE
- High performance M25-120 fan with wide RPM range.

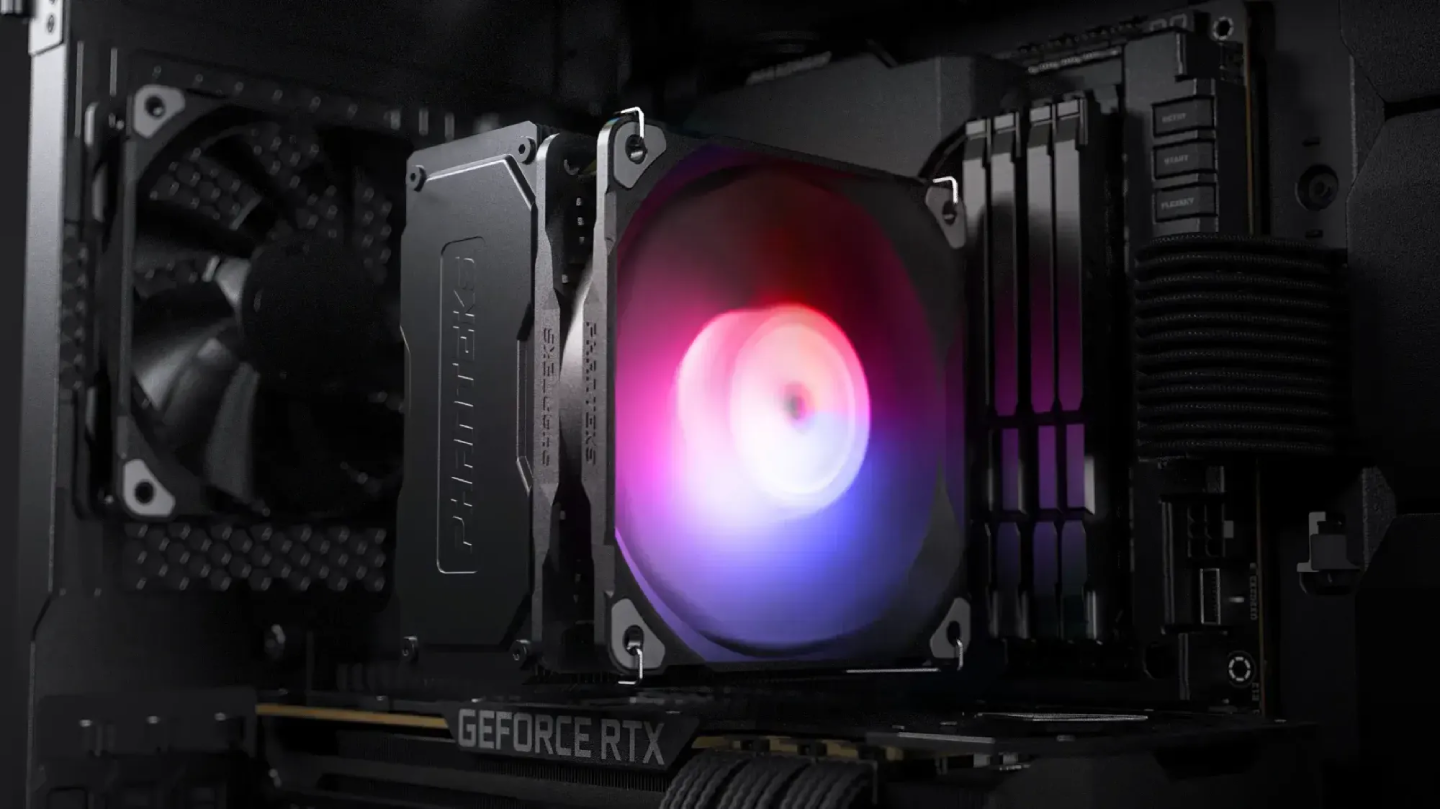

- Effective design there are no RAM clearance issues.
- Sleek design that always matches your build.
PERFORMANCE M25 FAN
- Comes with the high performing M25 fan.
- Precise RPM control through PWM with a wide RPM range.
- Excellent low noise performance.
- High cooling capacity at 2000 RPM.

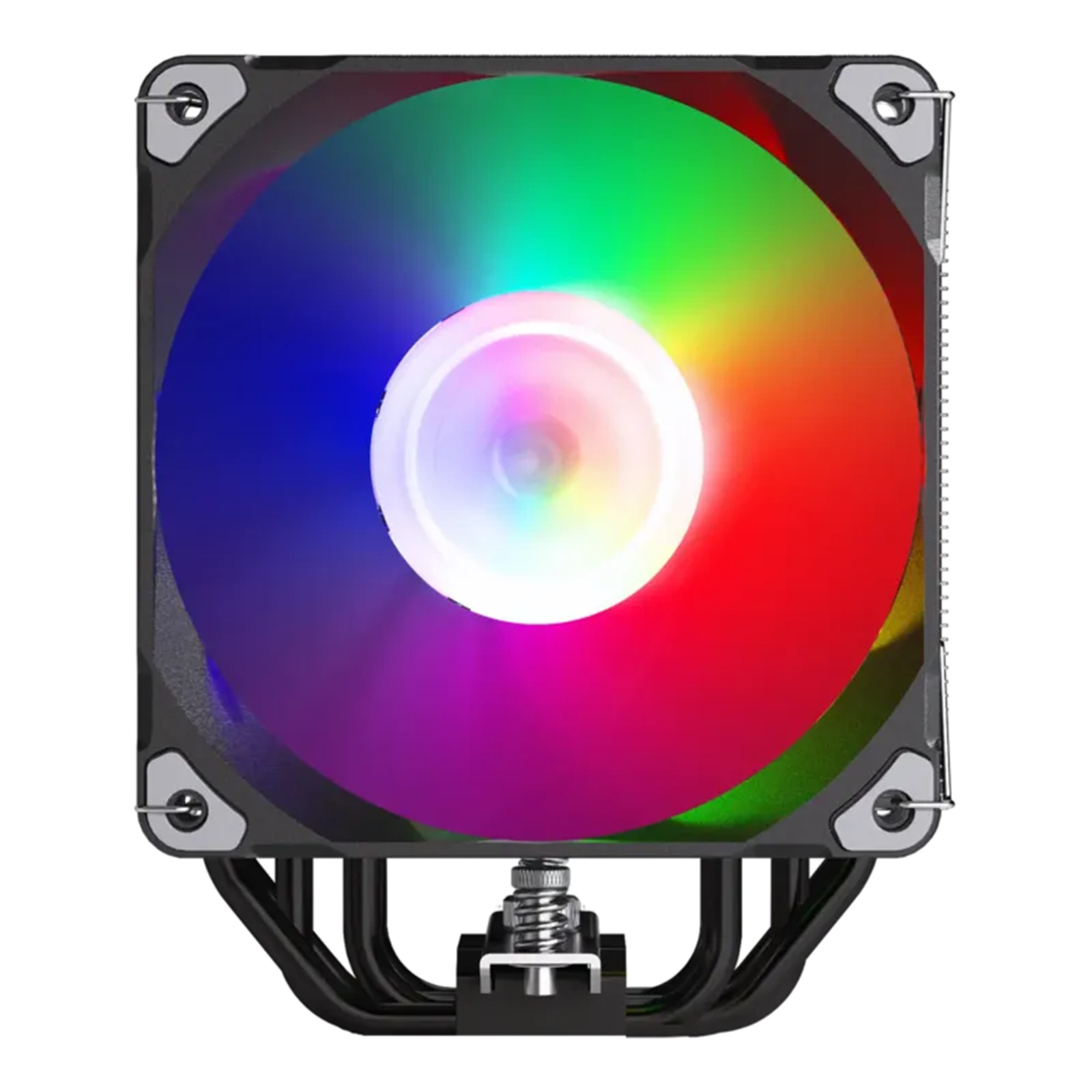

INTEGRATED D-RGB LIGHTING
- 1x 120 mm M25 D-RGB PWM fan included.
- D-RGB motherboard adapter included to connect it directly to a mainboard.
Specifications
MODEL NO.
PH-TC12ST5_DBK01
COLOR
Black
MATERIAL
Copper heat-pipes | Aluminum fins | ABS plastics
INTEL COMPATIBILITY
LGA 115x | 1200 | 1700 | 2011 | 2011-3 | 2066
AMD COMPATIBILITY
AM4 | AM5
DIMENSIONS (Length X Width X Height)
120 x 50 x 154 mm | 4.72 x 1.96 x 6.06 in
HEATSINK
HEATSINK DIMENSION
120 x 50 x 154 mm | 4.72 x 1.96 x 6.06 in
COLD PLATE
42 x 39 x 16 mm | 1.65 x 1.53 x 0.62 in
HEAT PIPE
Direct Touch 4x Ø 6 mm | Ø 0.23 in
NUMBER OF FINS
50
THERMAL PASTE
4.3 W/m-k Phanteks high performance thermal paste
FANS (1X INCLUDED)
FAN MODEL
M25-120 D-RGB PWM
DIMENSIONS (Length X Width X Height)
120 x 120 x 25 mm | 4.72 x 4.72 x 0.98 in
SPEED
400 ~ 2000 ± 10% RPM
AIR FLOW
84.26 CFM
FAN STATIC PRESSURE
2.67 mm H2O | 0.10 in H2O
SOUND LEVEL
35.7 dBA
MTFB
30.000 Hours
PWM CONNECTOR
4-Pin Daisy-chain
PWM CABLE LENGTH
120 mm | 4.72 in
D-RGB CONNECTOR
3-Pin D-RGB Daisy-chain
D-RGB CABLE LENGTH
300 + 100 mm | 11.8 + 3.9 in
EXTRA
NET WEIGHT
766 g | 27.02 oz
GROSS WEIGHT
963 g | 33.69 oz
SCOPE OF DELIVERY
1x Polar ST5-120 heatsink
1x M25-120 D-RGB fan
ACCESSORY
1x Low noise adapter
1x PH-NDC thermal compound
1x Thermal paste spreader
1x Installation guide
MOUNTING HARDWARE
1x Intel back plate for LGA115X | 1200 | 1700
4x Fan wire clips
2x Universal socket bracket
SCREWS
4x Stand-off for LGA1200 | AM4 | AM5
4x Stand-off for LGA1700
4x AMD AM4 | AM5 screws
4x Intel LGA115X | 1200 | 1700 screws
