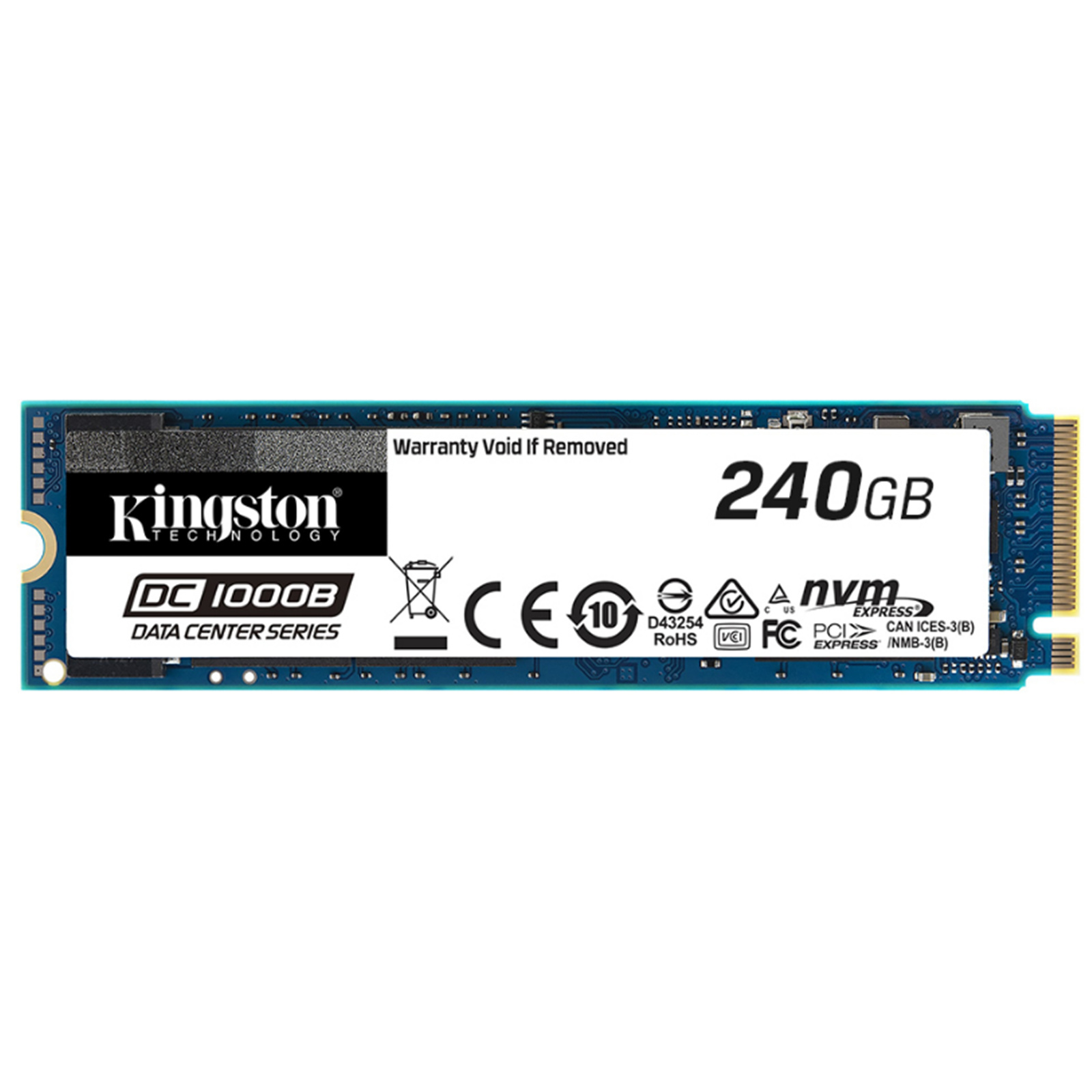

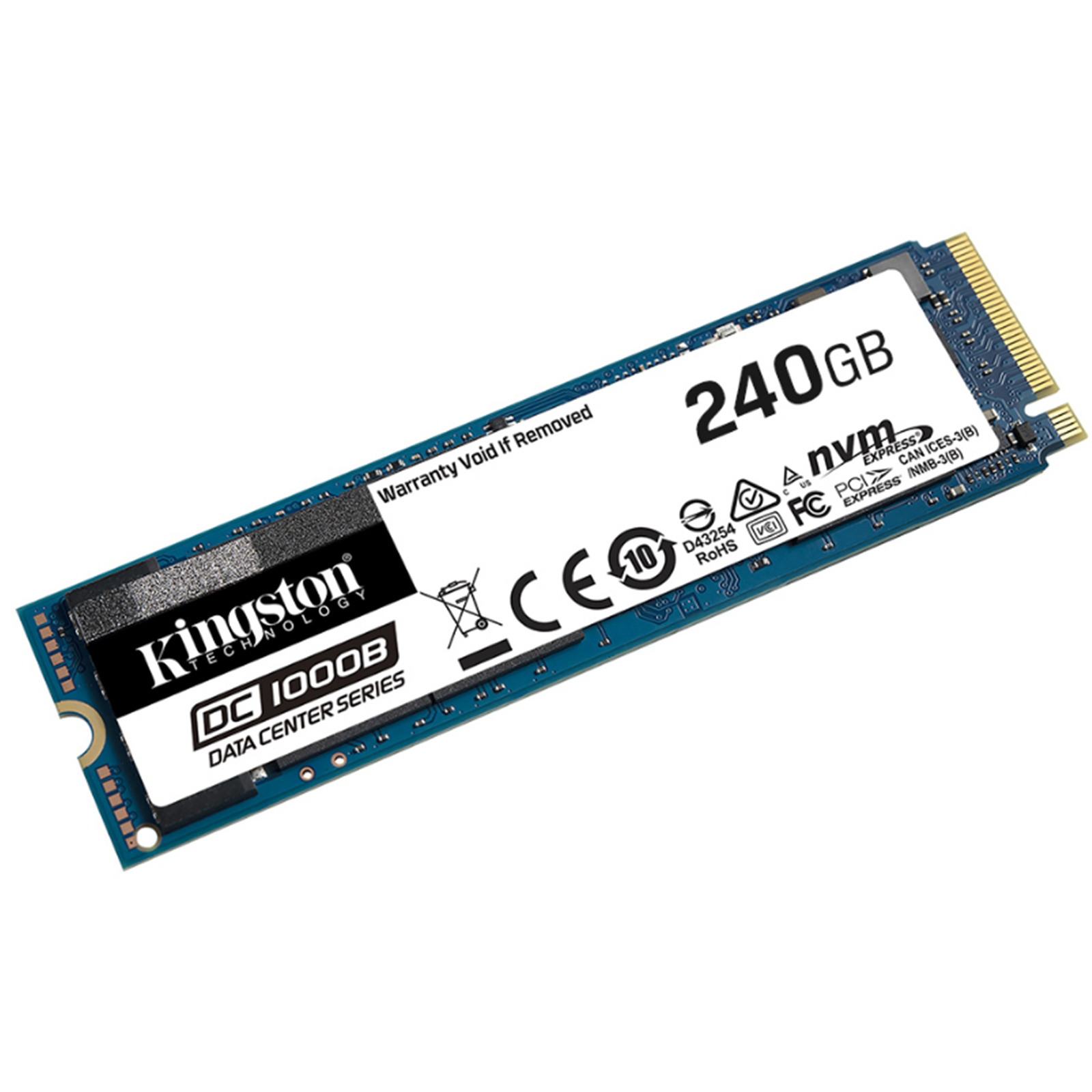

Kingston SEDC1000BM8/240G DC1000B 240 GB Solid State Drive
M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 3.0 x4)- Server Device Supported - 0.5 DWPD - 248 TB TBW - 2200 MB/s Maximum Read Transfer Rate - 256-bit Encryption Standard
Out of stock
Kingston SEDC1000BM8/240G DC1000B 240 GB Solid State Drive
M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 3.0 x4)- Server Device Supported - 0.5 DWPD - 248 TB TBW - 2200 MB/s Maximum Read Transfer Rate - 256-bit Encryption Standard
- Brand: Kingston
- MPN: SEDC1000BM8/240G
- Part #: HDDKIN1001686
- UPC: 740617303599
- Brand: Kingston
- MPN: SEDC1000BM8/240G
- Part #: HDDKIN1001686
- UPC: 740617303599
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular M.2 SSD





Kingston SEDC1000BM8/240G DC1000B 240 GB Solid State Drive M.2 2280 Internal - PCI Express NVMe (PCI Express NVMe 3.0 x4)- Server Device Supported - 0.5 DWPD - 248 TB TBW - 2200 MB/s Maximum Read Transfer Rate - 256-bit Encryption Standard
- Brand: Kingston
- MPN: SEDC1000BM8/240G
- Part #: HDDKIN1001686
- UPC:740617303599

Product URL: https://www.pbtech.co.nz/product/HDDKIN1001686/Kingston-SEDC1000BM8240G-DC1000B-240-GB-Solid-Stat
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
Kingston's Data Centre DC1000B is a high-performance M.2 (2280) NVMe PCIe SSD using the latest Gen 3.0 x 4 PCIe interface with 64-layer 3D TLC NAND. DC1000B offers data centres a cost-effective boot drive solution with the reassurance they are purchasing an SSD designed for server use. The DC1000B is ideally suited for use in high-volume rack-mount servers as an internal boot drive(s) as well as for use in purpose-built systems where a high-performance M.2 SSD is needed that includes on-board power loss protection (PLP).
Enterprise Data Centre NVMe Boot SSD
M.2 NVMe SSDs are evolving within the data centre providing efficiencies in booting servers to preserve valuable front-loading drive bays for data storage. Whitebox and Tier 1 Server OEMs are beginning to equip server motherboards with one or sometimes two M.2 sockets for boot purposes. While the M.2 form-factor was originally designed as a client SSD form-factor, its small physical size and high performance make it attractive for server use. Not all SSD are created equal and using a client SSD in a server application may result in poor inconsistent performance.
Applications
Boot drives are used primarily for booting an OS, but in many use cases today the boot drive has a secondary purpose; logging application data and/or configured as a high-speed local cache drive. Therefore, the DC1000B was designed with added endurance (0.5 DWPD for 5yrs) to handle the OS workload as well as the extra write workload of caching and data logging. In addition to being designed for long term reliability the DC1000B is designed to deliver enterprise level performance consistency and low latency features typically not found on client SSDs. Available in 240GB and 960GB capacities
M.2 (2280) NVMe Performance
Incredible speeds of up to 2.6GB/s and 200K IOPS.
Optimised Server Boot Drive
Enhanced for boot workloads as well as caching and logging applications.
On-board (PLP) Power Loss Protection
Reduce the possibility of data loss and/or corruption on ungraceful power-off.
Maximise Drive Bays
Move boot drives internally frees up front loading drive bays for additional data storage.
Specifications
Form Factor
M.2, 22mm x 80mm (2280)
Interface
PCIe NVMe Gen3 x4
Capacities
240GB
NAND
3D TLC
Self-Encrypting Drive (SED)
AES 256-bit Encryption
Sequential Read/Write
240GB - 2,200MBs/290MBs
Steady-State 4k Read/Write
240GB - 111.000/12.000 IOPS
Latency Read (Avg)
161µs
Latency Write (Avg)
75µs
Power Loss Protection (Power Caps)
Yes
SMART Health Monitoring and Telemetry
SMART, Telemetry and other Enterprise Class Diagnostic capabilities
Endurance
240GB - 248TBW (0.5 DWPD/5yrs)
Power Consumption
240GB: Idle: 1.82W Average Read: 1.71W Average Write: 3.16W Max Read: 1.81W Max Write: 3.56W
Storage temperature
-40°C ~ 85°C
Operating temperature
0°C ~ 70°C
Dimensions
80mm x 22mm x 3.8mm
Weight
240GB - 8g
Vibration operating
2.17G Peak (7-800Hz)
Vibration non-operating
20G Peak (10-2000Hz)
MTBF
2 million hours
