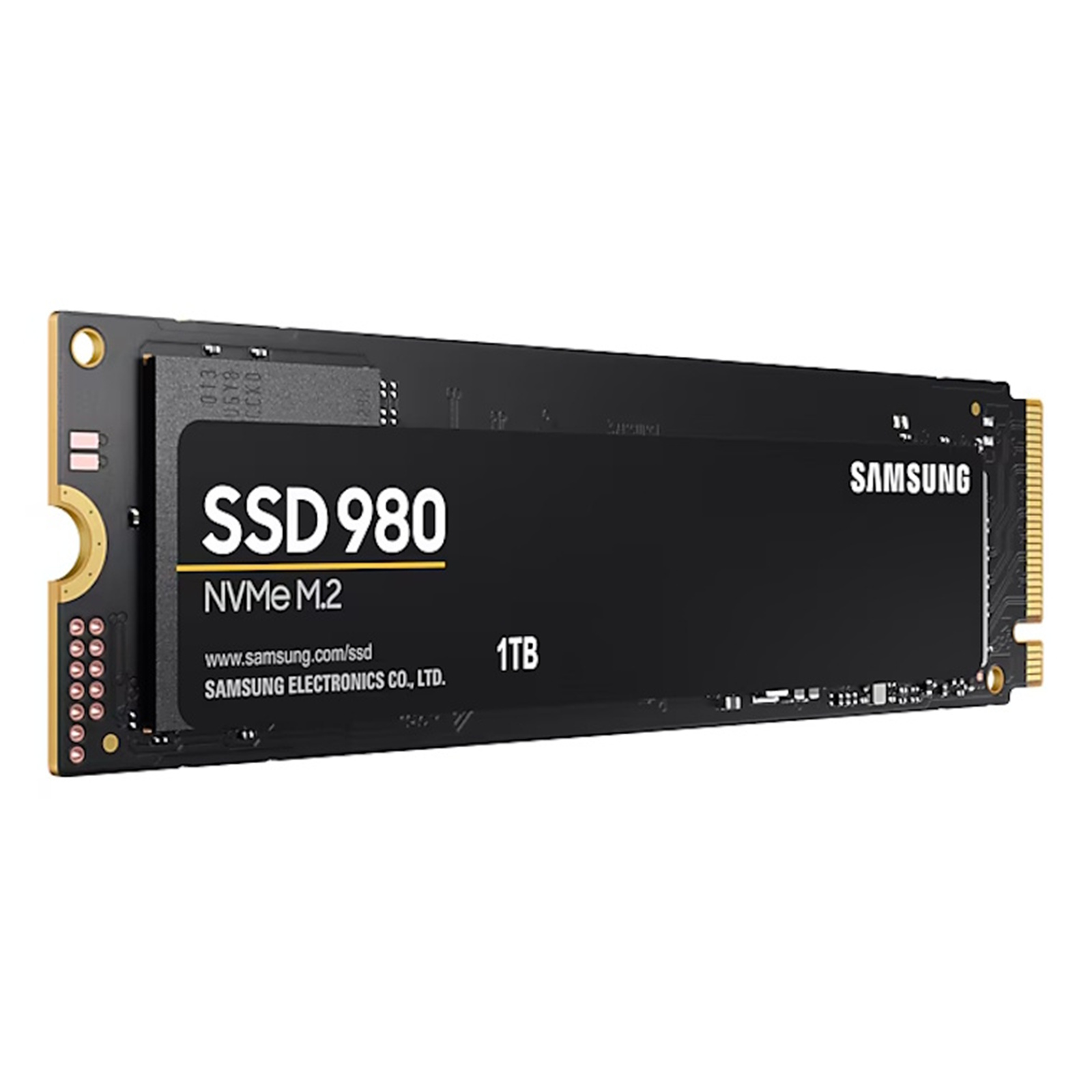

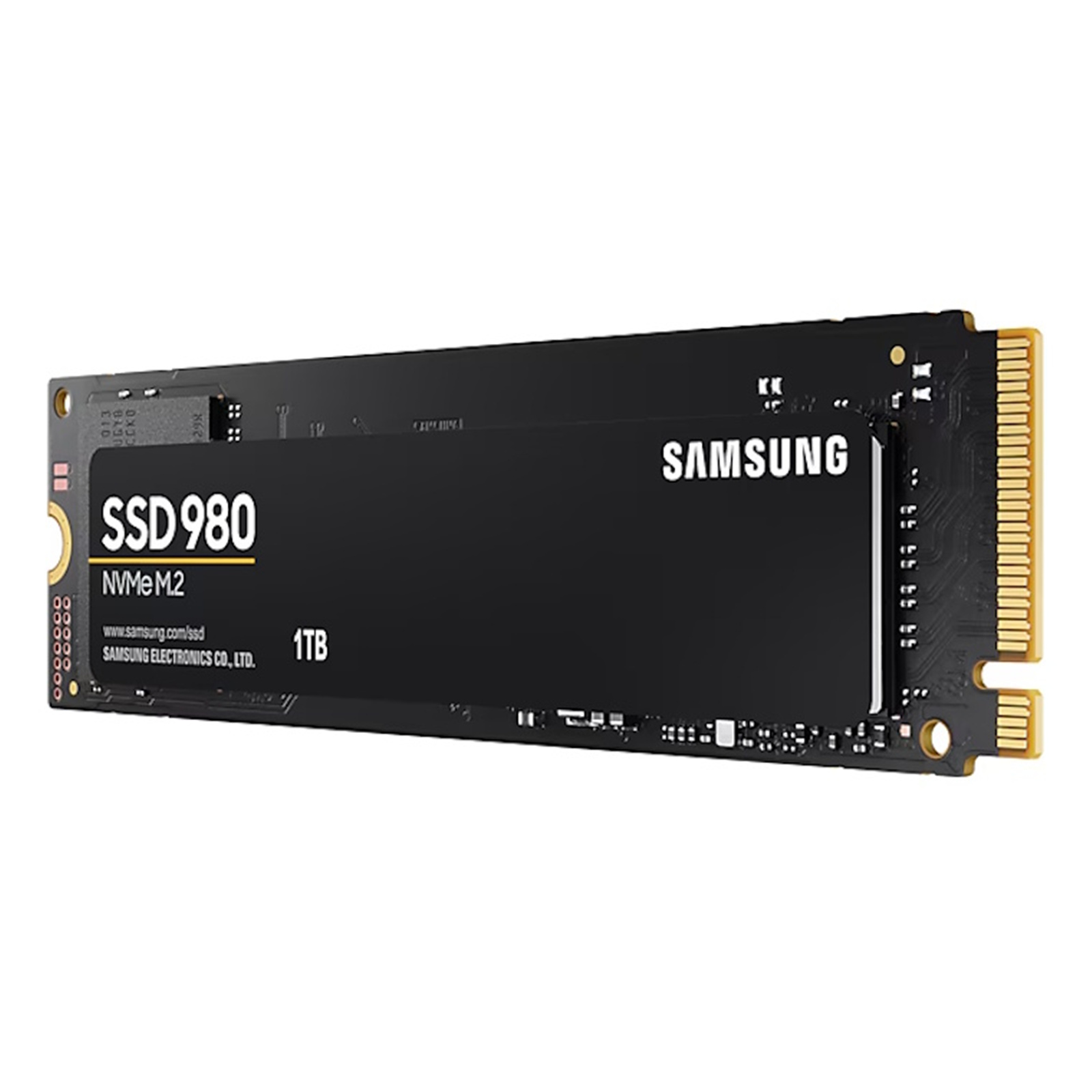

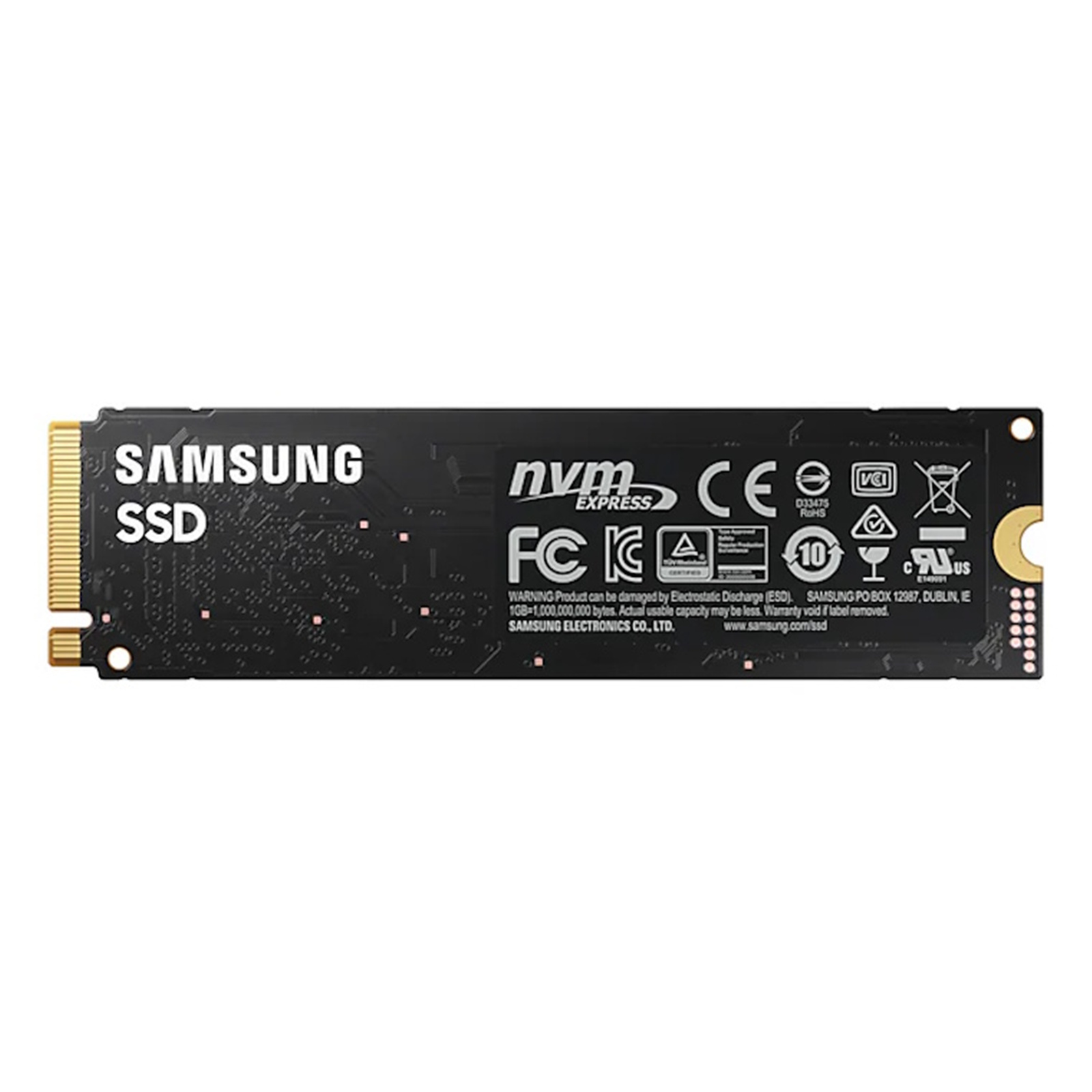

Samsung 980 1TB NVMe PCIe 3.0 M.2 SSD Read up to 3500MB/s , Write up to 3000MB/s ,500K/480K IOPS 5 Years Warranty

Samsung 980 1TB NVMe PCIe 3.0 M.2 SSD Read up to 3500MB/s , Write up to 3000MB/s ,500K/480K IOPS 5 Years Warranty
PB Tech price: PB Tech price:
$169 00  +GST $194 35  inc GST
$169.00  +GST
$194.35  inc GST

Samsung 980 1TB NVMe PCIe 3.0 M.2 SSD Read up to 3500MB/s , Write up to 3000MB/s ,500K/480K IOPS 5 Years Warranty

Part #: HDDSAM981600
91
PB Tech price: PB Tech price:
$169 00 $194 35
 +GST  inc GST


Click & Collect: Available from 15 stores.
Select your store to check availability
Delivery: Order now and it ships on 04/07/2022 When will I receive it?
$169.00  +GST
$194.35  inc GST

Six easy payments of $33.36 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $40.04 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

  • Brand: Samsung
  • MPN: MZ-V8V1T0BW
  • Part #: HDDSAM981600
  • UPC: 887276437224
  • SSD Capacity: 1000 GB
  • Read Speed: 3500 MBps
  • Write Speed: 3000 MBps
  • Form Factor: M.2
  • Interface: PCIe NVMe 3.0 x4
  • View more

What PB Tech customers are saying about this product...

See More Reviews

"This SSD was OK but it does not contain the M.2 screw and PB tech did not have the screw neither."

G
By: Guest 30/06/22

"The product is in good and quality condition."

G
By: Guest 30/06/22

"If you need a drive that does exactly what it says on the tin - you can't go wrong here. Fast enough for everything, except maybe scrubbing through 4k+ footage if you got a few tra ...view more"

M
By: MaciejP 30/06/22

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Samsung 980 1TB NVMe PCIe 3.0 M.2 SSD Read up to 3500MB/s , Write up...
Total:
$496 48
 +GST
$570 95
 inc GST
Buy together and save $13.16 $15.13

This item: Samsung 980 1TB NVMe PCIe 3.0 M.2 SSD Read up to 3500MB/s , Write up to 3000MB/s ,500K/480K IOPS 5...

$194.35 inc GST
Seagate BarraCuda 2TB 3.5 inch SATA3 6Gb/s 256MB Internal HDD ( 2 years warranty )

Seagate BarraCuda 2TB 3.5 inch SATA3 6Gb/s 256MB Internal HDD ( 2...

View Product
$85.00 $97.75   $83.31 +GST $95.81 inc GST (Buy together and save $1.69) $1.94)
G.SKILL Ripjaws V Series Black 16GB DDR4 Desktop Memory 3200Mhz (2 x 8GB) 16GB RAM CL16 1.35v F4-3200C16D-16GVKB 16-18-18-38

G.SKILL Ripjaws V Series Black 16GB DDR4 Desktop Memory 3200Mhz ...

View Product
$117.39 $135.00   $112.17 +GST $129.00 inc GST (Buy together and save $5.22) $6.00)
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste Made With 99.9% Pure Silver

Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5...

View Product
$17.39 $20.00   $16.35 +GST $18.80 inc GST (Buy together and save $1.04) $1.20)
Lian Li Lancool 215 ATX MidTower Gaming Case Tempered Glass, 2 X 200mm RGB Fans, CPU Cooler Supports Upto 166mm, Graphics Card Support Upto 370mm Length, 7X PCI Slots, 360 Rad Supported,  Front: 2X USB, HD Audio, NO PSU

Lian Li Lancool 215 ATX MidTower Gaming Case Tempered Glass, 2 X...

View Product
$120.86 $138.99   $115.65 +GST $133.00 inc GST (Buy together and save $5.21) $5.99)

Features



Samsung NVME SSD 980 - The Smart Choice for NVMe Performance

Samsung is pleased to introduce to you, the newest Samsung V-NAND SSD for client PCs, the Samsung SSD 980 with Samsung's latest 3-bit MLC V-NAND and in-house controller.

Solid NVMe Performance

Samsung NVMe SSD 980 delivers up to 3,500 MB/s and 3,000 MB/s for sequential read and write respectively.1) The performance of 980 is remarkable since this provides outstanding NVMe performance of PCIe 3.0 with DRAMless architecture. Thanks to the Host Memory Buffer (HMB) feature, and upgraded Intelligent TurboWrite 2.0, users can experience the supreme performance for even longer time than the predecessor 970 EVO.

1) Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.

Proven Reliability

The 980 boasts proven endurance with up to 600 terabytes1) 2) written. Advanced thermal control solutions enhance performance with reduced heat risk. Dynamic Thermal Guard (DTG) technology proactively minimizes overheating, and a heat spreader with an integrated thin copper film dissipates heat more efficiently. A nickel coating on the controller also helps to dissipate heat faster during heavy workload use in order to ensure the high levels of quality and reliability for which Samsung is known.

1) All documented endurance test results are obtained in compliance with JESD218 standards. Please visit www.jedec.org for detailed information.
2) TBW is based on the 1TB capacity.

Optimized Efficiency with whole renovation

Samsung has re-designed every corner of the product from the circuit architecture to passive/active elements. As the result of this optimization, 980 shows an outstanding power efficiency, which means that it shows solid performance even with a low power consumption. 980 provides 54% better power efficiency (Performance/Watt), compared to that of 970 EVO.

Enhanced Software with Full Power Mode support

With the update of Magician 6.3 in March, 980 will support the new feature called Full Power Mode. With this new feature, 980 runs at the peak level for nonstop, consistent high performance. Additionally, 980 features Samsung Data Migration Software, which helps users to move their data easily.


PB Tech is an Authorised Samsung Service Centre

Samsung Authorised Repair Centre

Specifications

Usage Application

Client PCs

Interface

PCIe Gen 3.0 x4, NVMe 1.4

Hardware Information

Capacity 1)

1TB

Controller

Samsung in-house Controller

NAND Flash Memory

Samsung V-NAND 3bit MLC

DRAM Cache Memory

-

Dimension

Max 80.15 x Max 22.15 x Max 2.38 (mm)

Form Factor

M.2 (2280)

Performance2) 3)

Sequential Read

up to 3,500 MB/s

Sequential Write

up to 3,000 MB/s

QD1 Thread 1 - Random Read

up to 17K IOPS

QD1 Thread 1 - Random Write

up to 54K IOPS

QD 32 Thread 16 - Random Read

up to 500K IOPS

QD 32 Thread 16 - Random Write

up to 480K IOPS

Power Consumption 4)

Idle (ASPT on)

up to 45mW

Active (Average) - Read

up to 4.5 W

Active (Average) - Write

up to 4.6 W

L1.2 mode

up to 5 mW

Reliability

Temperature - Operating

0°C to 70°C (Measured by S.M.A.R.T. Temperature. Proper airflow recommended)

Temperature - Non-Operating

-40°C to 85°C

Humidity

5% to 95% non-condensing

Shock - Non-Operating

1,500G(Gravity), durationL 0.5ms, 3 axis

Vibration - Non-Operating

20~2,000Hz, 20G

MTBF

1.5 million hours

Other

Supporting Features

TRIM (Required OS support), Garbage Collection, S.M.A.R.T.

Data Security

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

Model Name

MZ-V8V1T0

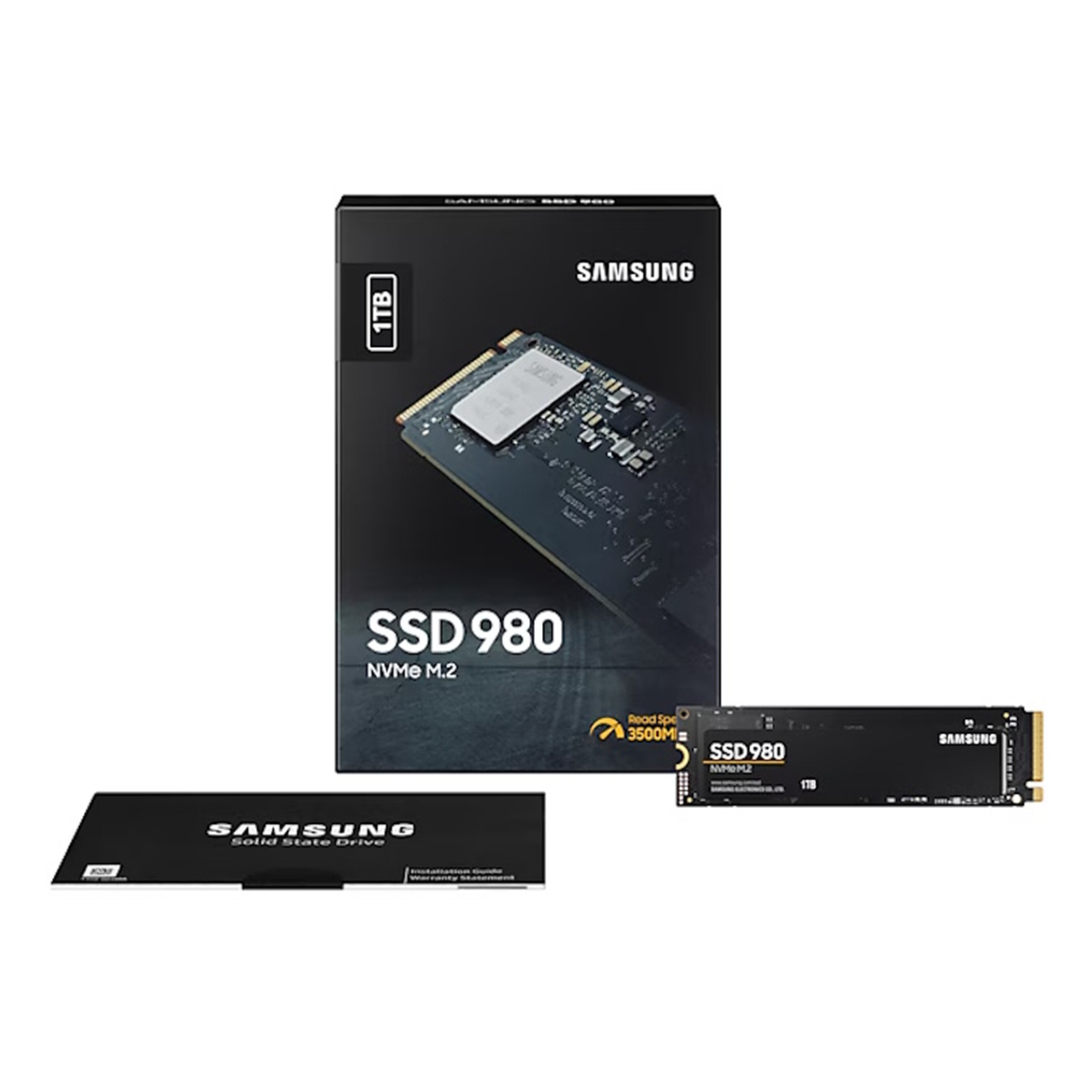

Box Contents

Samsung SSD 980 1TB
Warranty Statement

Notes

1) 1GB = 1,000,000,000 bytes by IDEMA. A certain portion of capacity may be used for system file and maintenance use, thus the actual available capacity may differ from the labeled capacity.
2) Sequential and random performance measurements are based on IOmeter1.1.0. Performance may vary based on SSD's firmware version, system hardware & configuration. Test System: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz, DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170 Extreme7+
3) Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.
4) Power consumption is measured with IOmeter1.1.0 version with AMD Ryzen 7 3700X 8 Core @3.6GHz, DDR4 8GBx2, OS-Windows 10 Pro 64bit, Chipset-GIGABYTE-X570-AORUS MASTER

Manufacturer Part No:
MZ-V8V1T0BW
Brand:
Product Type:
NVMe PCIe 3.0 M.2 SSD
UPC
887276437224
Product Family:
980
Shipping Weight:
0.1 kg
PB Part No:
HDDSAM981600
Product Model:
1TB
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 91 Reviews
5 Stars
87
4 Stars
4
3 Stars
0
2 Stars
0
1 Stars
0

Filter Results

Do you own this product?

Write a review and go into the draw Win great prizes each month!
Displaying 1 - 12 of 91 reviews

Does what it says on the tin

Grabbed this one after having to replace a potentially faulty Crucial drive. Have had a handful of Samsung NVMe drives in the past; none of them have failed me yet and this one seems to be continuing that trend.

J
By: JehfersonM 18/08/21
Verified Owner
2 out of 3 users found this review helpful
Did you find it helpful?

An excellent SSD for the price

This Samsung 980 SSD is the best 1TB SSD for the price (the promotion price). In my opinion, it is good for a data drive or backup. There is nothing wrong if you want to use it as a system (OS) drive but I would recommend the Samsung 970 Plus 1TB for a system drive, which is a bit more (but not too much) expensive but has better performance. Anyway, this Samsung 980 1TB SSD is a good SSD to me and it also works well with the AUSUS USB-C NVMe SSD enclosure.

G
By: GordonZ 03/06/22
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Excellent module

Excellent module. Super fast. No fastening screw supplied which is a bit annoying.

S
By: ShaneB254 15/07/21
Verified Owner
1 out of 2 users found this review helpful
Did you find it helpful?

Great Price to Performance SSD!

This SSD is a crazy good deal, the speeds are insane and overall Windows 10 usage is really responsive, games load super quick.
PC Mark 10 score is 2,549 vs 1,795 for the 970 Evo Plus 1TB.

J
By: JackC373 23/04/21
Verified Owner
1 out of 2 users found this review helpful
Did you find it helpful?

The product is OK, but

This SSD was OK but it does not contain the M.2 screw and PB tech did not have the screw neither.

G
By: Guest 30/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

A great product with reasonable price

The product is in good and quality condition.

G
By: Guest 30/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

Solid Dependable - it's a Samsung SSD

If you need a drive that does exactly what it says on the tin - you can't go wrong here. Fast enough for everything, except maybe scrubbing through 4k+ footage if you got a few tracks.
- but that's such an edge case... Awesome as either boot or data drive.

M
By: MaciejP 30/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

Smooth M.2

Works without hickups

I
By: IvanZ5 30/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

a great purchase for the price.

Upgrade to m.2 can't go wrong with any brand. Great price for capacity.

T
By: ThomasL86 28/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

Great purchase!

To be installed in my laptop. But I think it will be great!

J
By: JayaR6 27/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

Just what I needed

My new laptop has the same sized SSD and I want to run Linux not Windows.
It was easy to pull out the existing SSD and put this one in and install the OS I want.
The old one is filed away in case I hit warranty issues w the laptop.
It was easy to fit and screamingly fast (as expected w SSD)

R
By: RogerP79 20/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

Simple and fast

My 2nd 980. Loading times greatly reduced.

A
By: AaronT96 20/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

Ex-demo stock is available

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 2 working days for North Island deliveries and 3 working days for South Island deliveries. Rural deliveries may take an extra working day, and bulk deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.

Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.

Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

Samsung 980 1TB NVMe PCIe 3.0 M.2 SSD Read up to 3500MB/s , Write up to 3000MB/s ,500K/480K IOPS 5 Years Warranty

  • Brand: Samsung
  • MPN: MZ-V8V1T0BW
  • Part #: HDDSAM981600
  • UPC:887276437224
PB Tech price: $169.00 Excluding GST PB Tech price: $194.35 Including GST

Date Created: 20:24, 01-07-2022
Product URL: https://www.pbtech.co.nz/product/HDDSAM981600/Samsung-980-1TB-NVMe-PCIe-30-M2-SSD-Read-up-to-350
Branch New Stock On Display
Albany 30+
Glenfield 29
Queen Street 30+
Auckland Uni 14
Penrose 30+
Henderson (Express) 28
St Lukes 30+
Manukau 30+
Hamilton 30+
Tauranga 22
New Plymouth 28
Palmerston North 19
Petone 21
Wellington 27
Head Office 30+
Hornby 30+
Christchurch Central 0

Features



Samsung NVME SSD 980 - The Smart Choice for NVMe Performance

Samsung is pleased to introduce to you, the newest Samsung V-NAND SSD for client PCs, the Samsung SSD 980 with Samsung's latest 3-bit MLC V-NAND and in-house controller.

Solid NVMe Performance

Samsung NVMe SSD 980 delivers up to 3,500 MB/s and 3,000 MB/s for sequential read and write respectively.1) The performance of 980 is remarkable since this provides outstanding NVMe performance of PCIe 3.0 with DRAMless architecture. Thanks to the Host Memory Buffer (HMB) feature, and upgraded Intelligent TurboWrite 2.0, users can experience the supreme performance for even longer time than the predecessor 970 EVO.

1) Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.

Proven Reliability

The 980 boasts proven endurance with up to 600 terabytes1) 2) written. Advanced thermal control solutions enhance performance with reduced heat risk. Dynamic Thermal Guard (DTG) technology proactively minimizes overheating, and a heat spreader with an integrated thin copper film dissipates heat more efficiently. A nickel coating on the controller also helps to dissipate heat faster during heavy workload use in order to ensure the high levels of quality and reliability for which Samsung is known.

1) All documented endurance test results are obtained in compliance with JESD218 standards. Please visit www.jedec.org for detailed information.
2) TBW is based on the 1TB capacity.

Optimized Efficiency with whole renovation

Samsung has re-designed every corner of the product from the circuit architecture to passive/active elements. As the result of this optimization, 980 shows an outstanding power efficiency, which means that it shows solid performance even with a low power consumption. 980 provides 54% better power efficiency (Performance/Watt), compared to that of 970 EVO.

Enhanced Software with Full Power Mode support

With the update of Magician 6.3 in March, 980 will support the new feature called Full Power Mode. With this new feature, 980 runs at the peak level for nonstop, consistent high performance. Additionally, 980 features Samsung Data Migration Software, which helps users to move their data easily.


PB Tech is an Authorised Samsung Service Centre

Samsung Authorised Repair Centre

Specifications

Usage Application

Client PCs

Interface

PCIe Gen 3.0 x4, NVMe 1.4

Hardware Information

Capacity 1)

1TB

Controller

Samsung in-house Controller

NAND Flash Memory

Samsung V-NAND 3bit MLC

DRAM Cache Memory

-

Dimension

Max 80.15 x Max 22.15 x Max 2.38 (mm)

Form Factor

M.2 (2280)

Performance2) 3)

Sequential Read

up to 3,500 MB/s

Sequential Write

up to 3,000 MB/s

QD1 Thread 1 - Random Read

up to 17K IOPS

QD1 Thread 1 - Random Write

up to 54K IOPS

QD 32 Thread 16 - Random Read

up to 500K IOPS

QD 32 Thread 16 - Random Write

up to 480K IOPS

Power Consumption 4)

Idle (ASPT on)

up to 45mW

Active (Average) - Read

up to 4.5 W

Active (Average) - Write

up to 4.6 W

L1.2 mode

up to 5 mW

Reliability

Temperature - Operating

0°C to 70°C (Measured by S.M.A.R.T. Temperature. Proper airflow recommended)

Temperature - Non-Operating

-40°C to 85°C

Humidity

5% to 95% non-condensing

Shock - Non-Operating

1,500G(Gravity), durationL 0.5ms, 3 axis

Vibration - Non-Operating

20~2,000Hz, 20G

MTBF

1.5 million hours

Other

Supporting Features

TRIM (Required OS support), Garbage Collection, S.M.A.R.T.

Data Security

AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667)

Model Name

MZ-V8V1T0

Box Contents

Samsung SSD 980 1TB
Warranty Statement

Notes

1) 1GB = 1,000,000,000 bytes by IDEMA. A certain portion of capacity may be used for system file and maintenance use, thus the actual available capacity may differ from the labeled capacity.
2) Sequential and random performance measurements are based on IOmeter1.1.0. Performance may vary based on SSD's firmware version, system hardware & configuration. Test System: Intel(R) Core(TM) i7-6700K CPU @ 4.00GHz, DDR4 2133MHz 8GBx2 OS-Windows 10 Pro 64bit Asrock Z-170 Extreme7+
3) Sequential and random write performance was measured with Intelligent TurboWrite technology being activated. Intelligent TurboWrite operates only within a specific data transfer size. Performance may vary depending on SSD's firmware, system hardware & configuration and other factors.
4) Power consumption is measured with IOmeter1.1.0 version with AMD Ryzen 7 3700X 8 Core @3.6GHz, DDR4 8GBx2, OS-Windows 10 Pro 64bit, Chipset-GIGABYTE-X570-AORUS MASTER

Date Created: 20:24, 01-07-2022
Product URL: https://www.pbtech.co.nz/product/HDDSAM981600/Samsung-980-1TB-NVMe-PCIe-30-M2-SSD-Read-up-to-350
