Nitecore UM4 INTELLIGENT BATTERY CHARGER USB FOUR SLOT CHARGER

PB Tech price
PB Tech price
$ 57 .83
 +GST
$ 66 .50
 inc GST
$57.83  +GST
$66.50

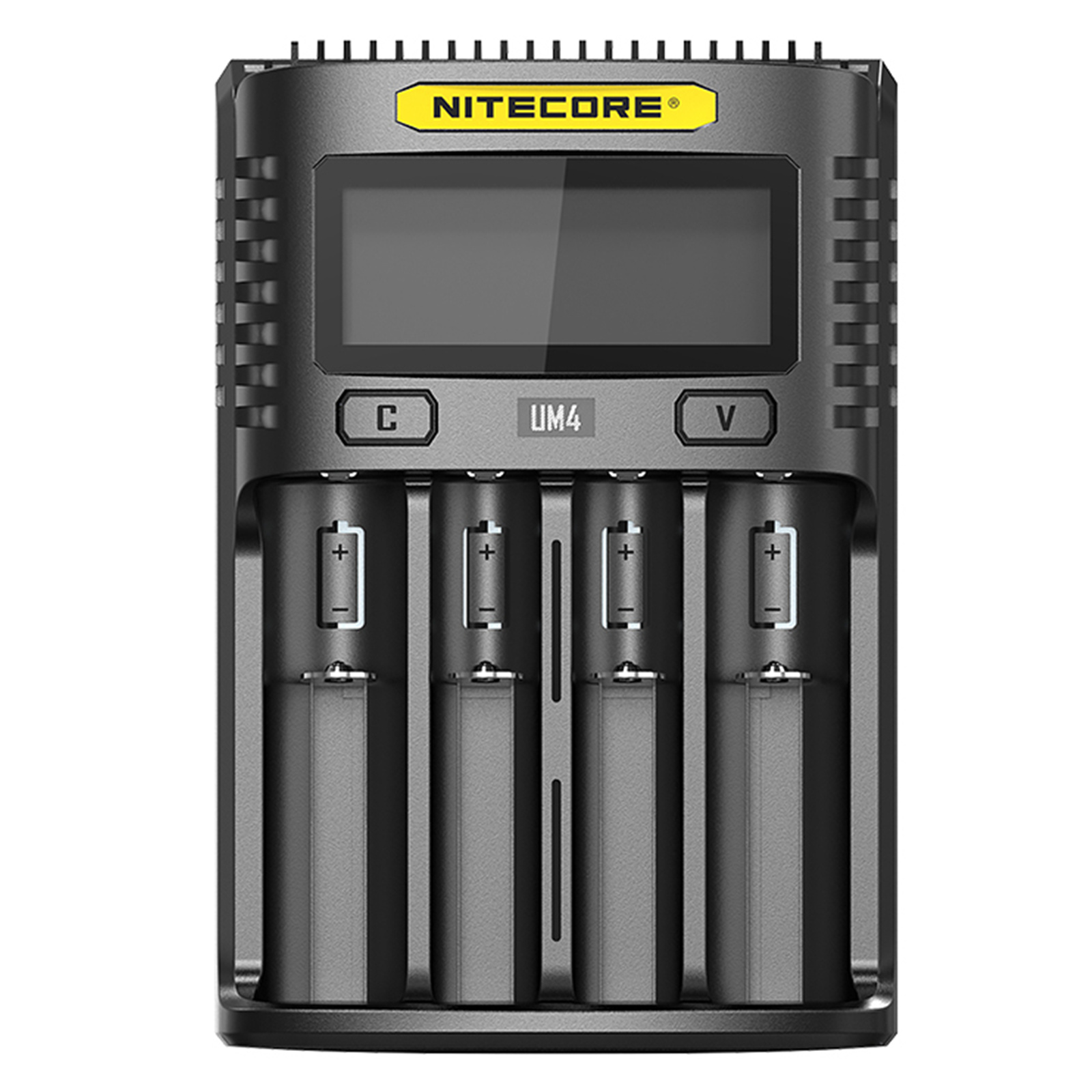

Nitecore UM4 INTELLIGENT BATTERY CHARGER USB FOUR SLOT CHARGER

  • Brand: Nitecore
  • MPN: UM4
  • Part #: HEANIC1046
  • UPC:
4
PB Tech price
$ 57 .83 $ 66 .50
 +GST  inc GST
Hurry, only 1 unit left!


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$57.83  +GST
$66.50

What PB Tech customers are saying about this product...

See More Reviews

"This thing is a beast. Previously I had a dual charger and have 5 sets of batteries to charge. This would take all day.
Now I charge them in less than half the time. The readouts i ...view more"

EM
By: EvanM6 29/05/25
Verified Owner

"seemed to charge a couple of batteries I've tried thus far. certainly appeals to those with a statistics charty things."

AS
By: AllisterS 23/01/25
Verified Owner

"I've been using this for a very long time. Upgraded from the ...view more"

AP
By: AndreyP 10/09/24

Features

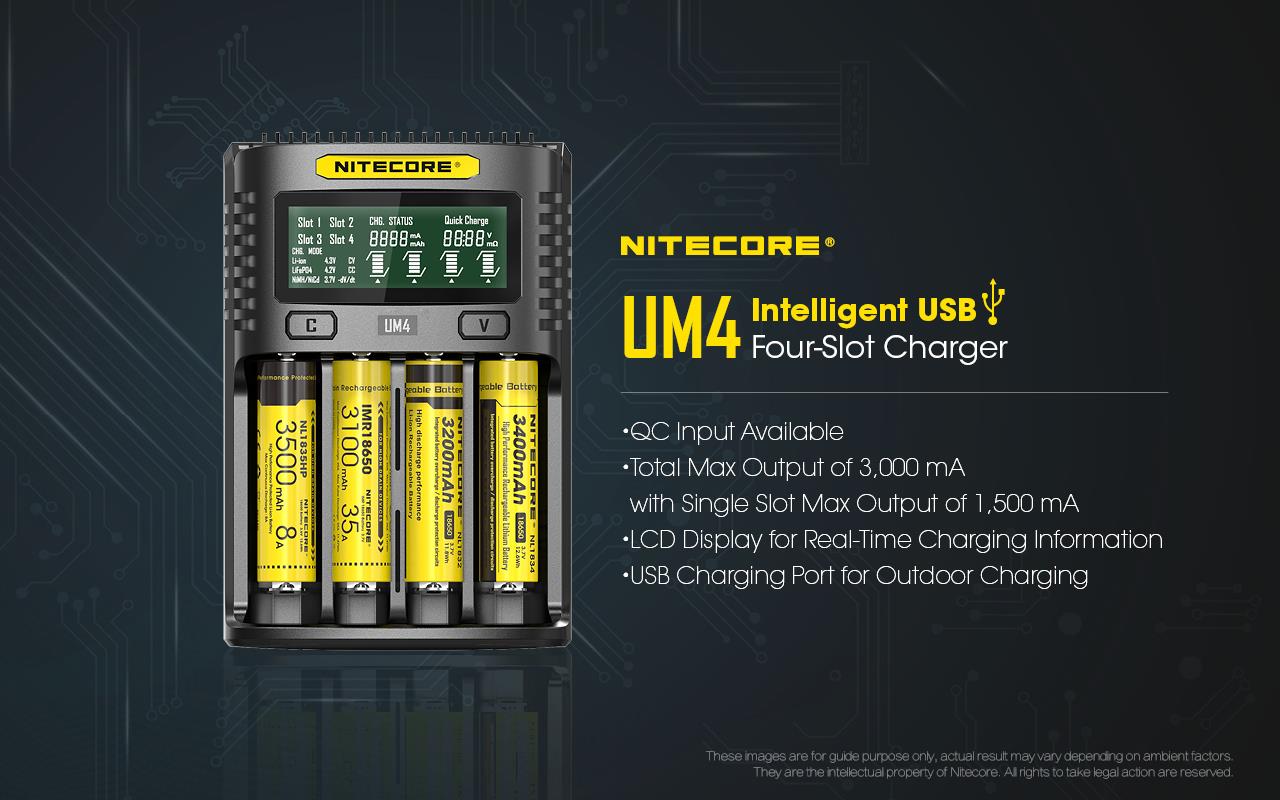

FOUR BAY USB BATTERY CHARGER

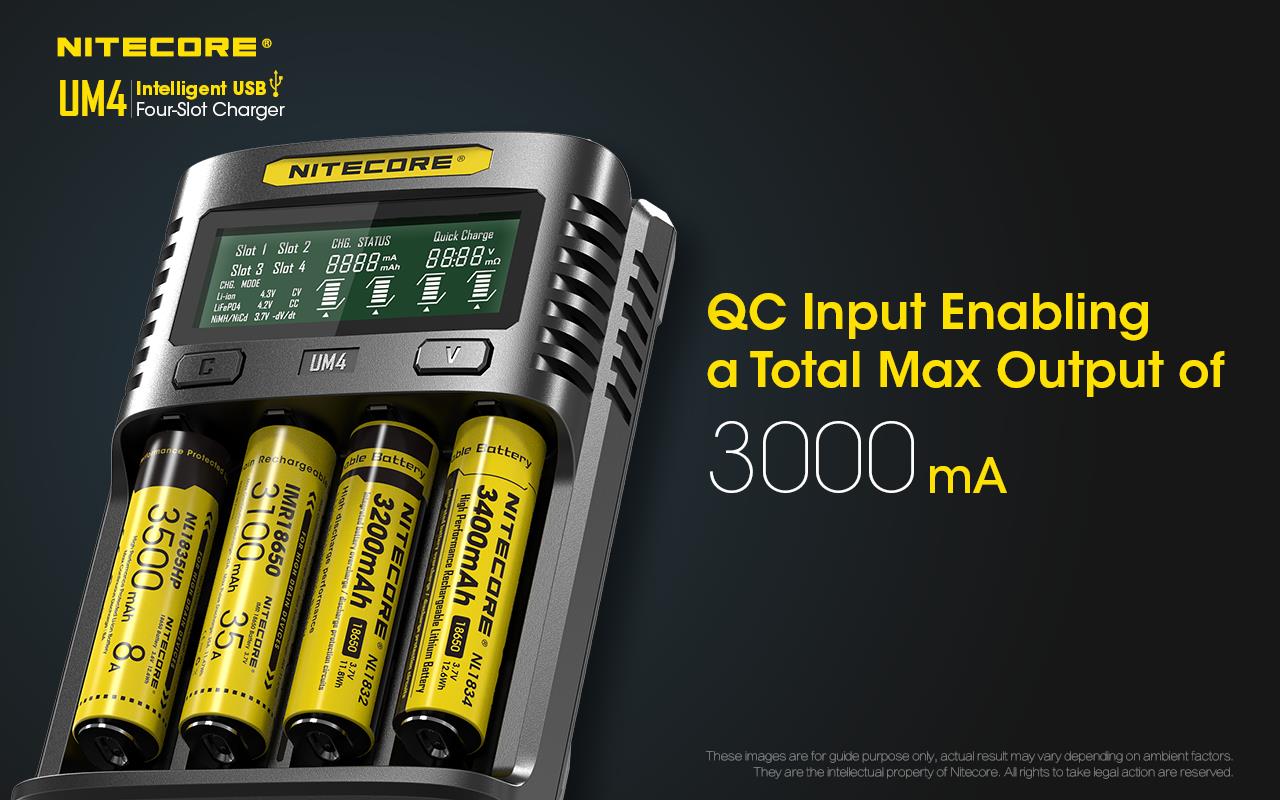

The NITECORE UM4 is a QC input available intelligent USB four-slot charger with a total max output of 3,000 mA and a single slot max output of 1,500 mA and is capable of charging 4 batteries simultaneously and controlling each slot independently. It only takes 2 hours to charge 80% of a 3,500mAh battery.

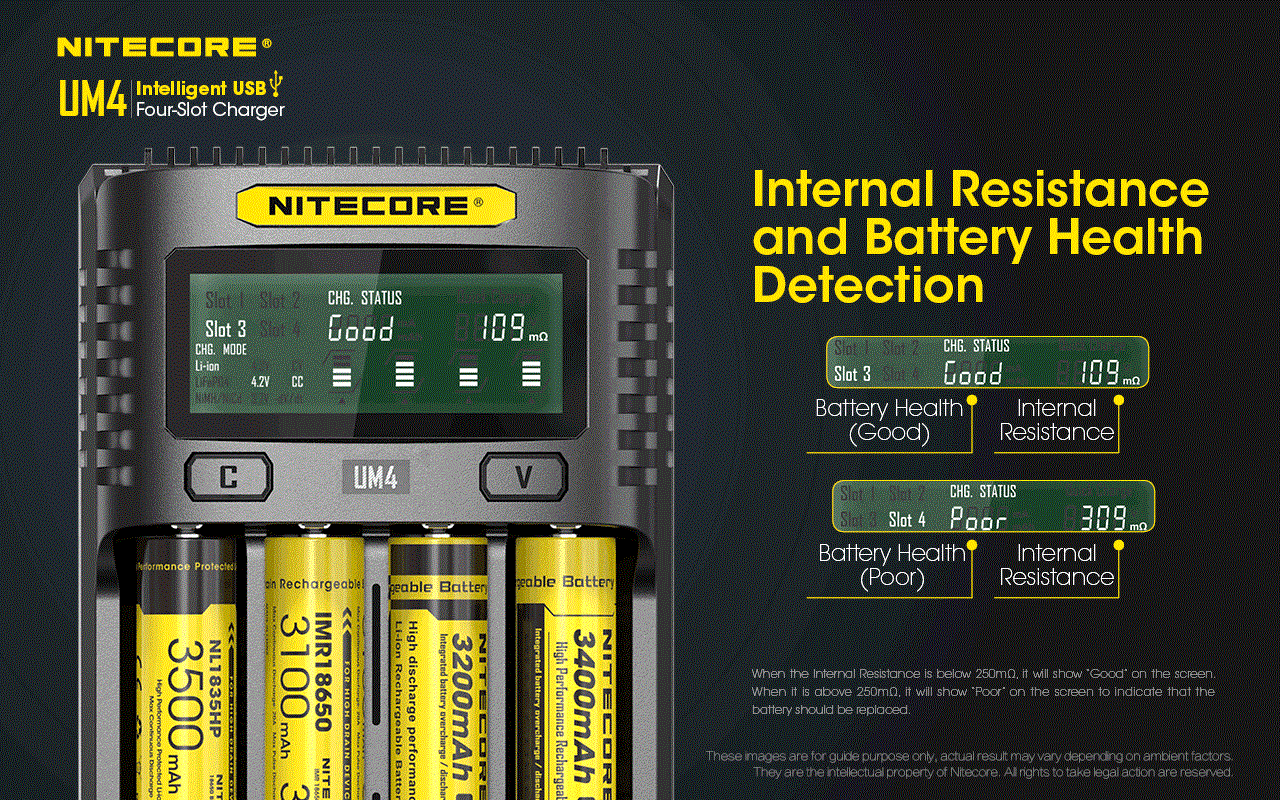

The LCD screen can display a real-time information of Battery Health by "Good" or "Poor", Internal Resistance, Charging Current, Battery Voltage, Charged Volume and Charging time. It can enable an automatic detection of battery power level and automatic selection of the appropriate voltage and charging mode and automatic selection between 3 charging modes (CC, CV and -dV/dt). The charging parameters can be set manually to meet various charging needs.

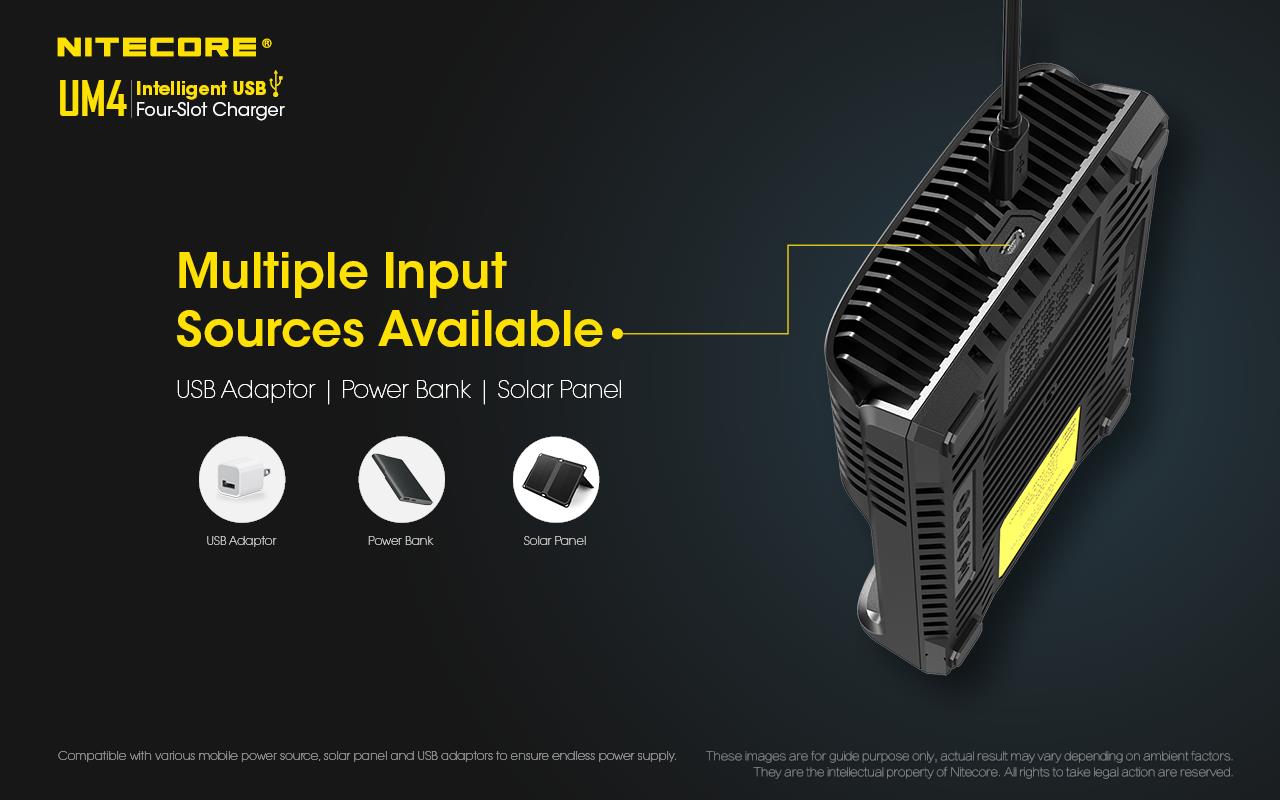

The specially designed Micro USB port is compatible with various mobile power source, solar panel and USB adaptors to ensure endless power supply. UM4 incorporates an optimized IMR battery charging program, which is able to monitor the entire charging process, ensuring that the cut-off voltage is always within safe limits to extend the lifespan of the batteries. The UM4 is compatible with 3.6V/3.7V Li-ion rechargeable batteries, 3.8V Li-ion rechargeable batteries, 1.2V Ni-MH/Ni-Cd rechargeable batteries and 3.2V LiFePO4 batteries.

Multiple safeguards ensure the safe charging process, including automatic battery internal resistance detection, anti-short circuiting and reverse polarity protection, overtime charging protection, over-discharged Li-ion battery activation and over-discharged IMR battery restoration. Apart from being constructed from durable and fire retardant PC materials, the built-in temperature regulation system is designed to prevent the overheat and to ensure the stability of the charging process. If there is no action to the buttons or batteries in 3 minutes, the screen will automatically go dim to save energy.

KEY FEATURES

Intelligent USB Four-Slot Charger

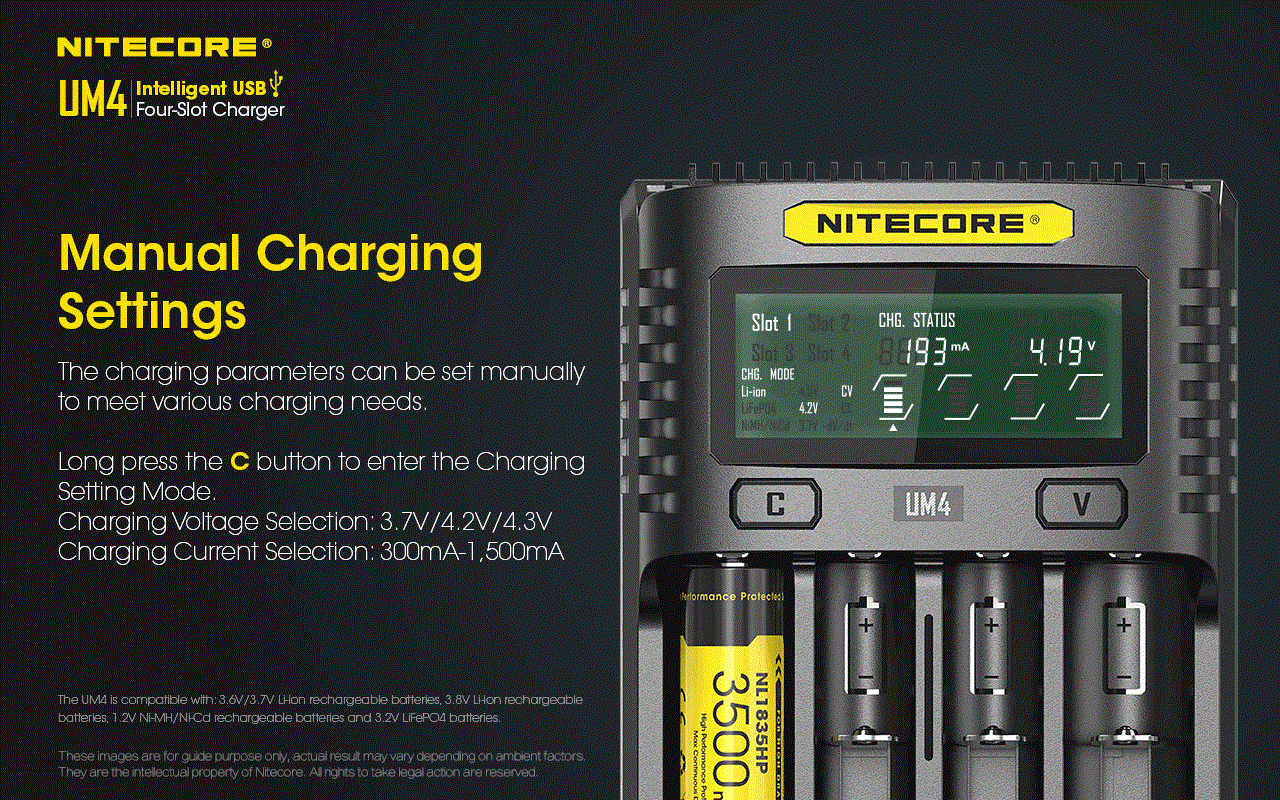

Capable of manually selecting the charging cut-off voltage and the charging current
QC 2.0 input available
Capable of charging 4 batteries simultaneously and controlling each slot independently
Automatic detection of large/small capacity batteries and automatic selection of appropriate charging current

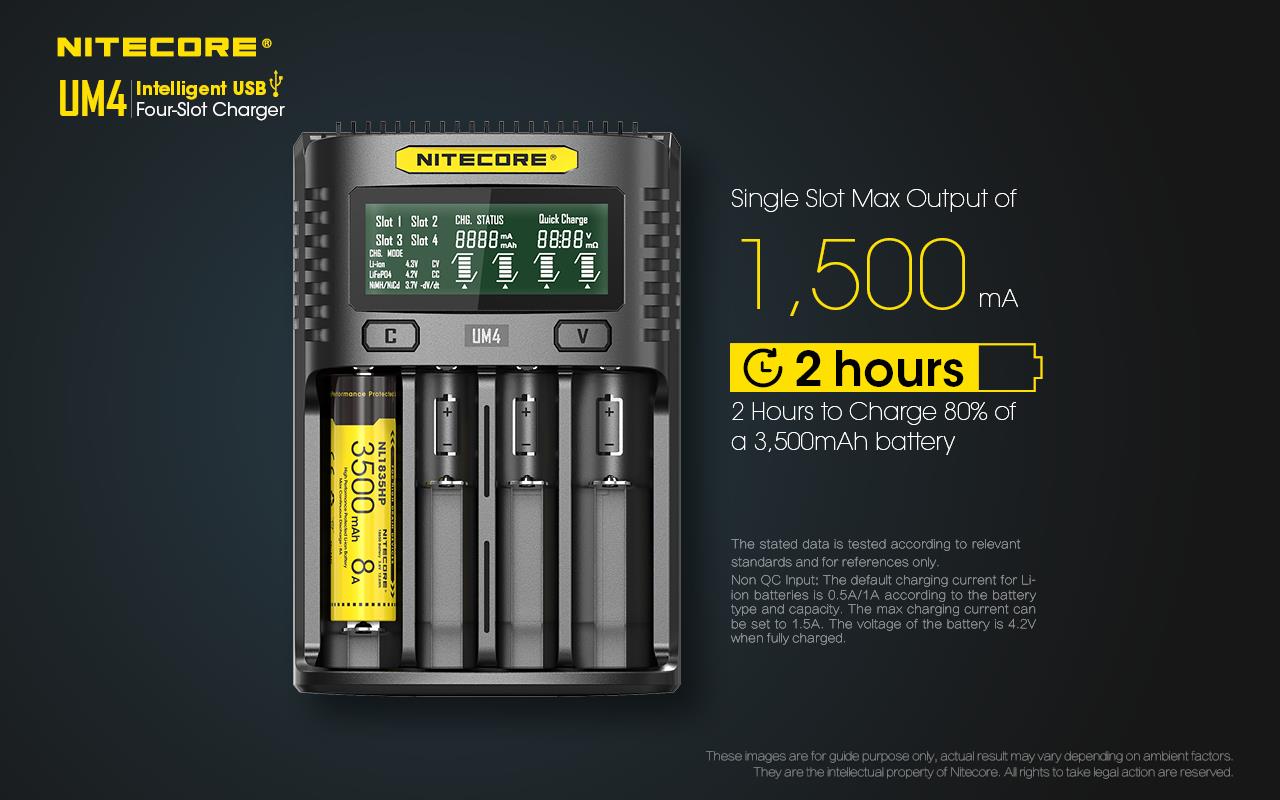

Up to 1,500mA charging speed in a single slot
Automatic termination upon charging completion
Compatible with Li-ion and Ni-MH/Ni-Cd batteries with automatic detection

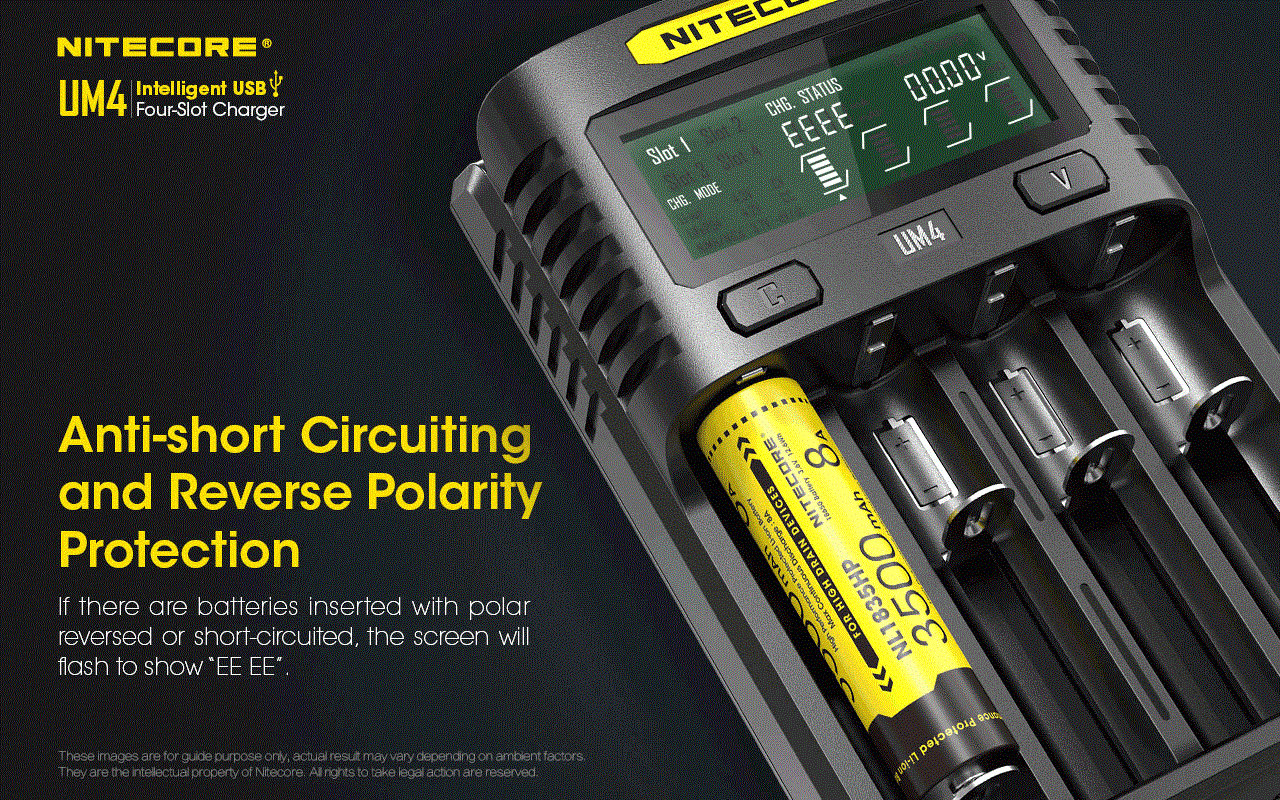

Reverse polarity protection and short circuit protection

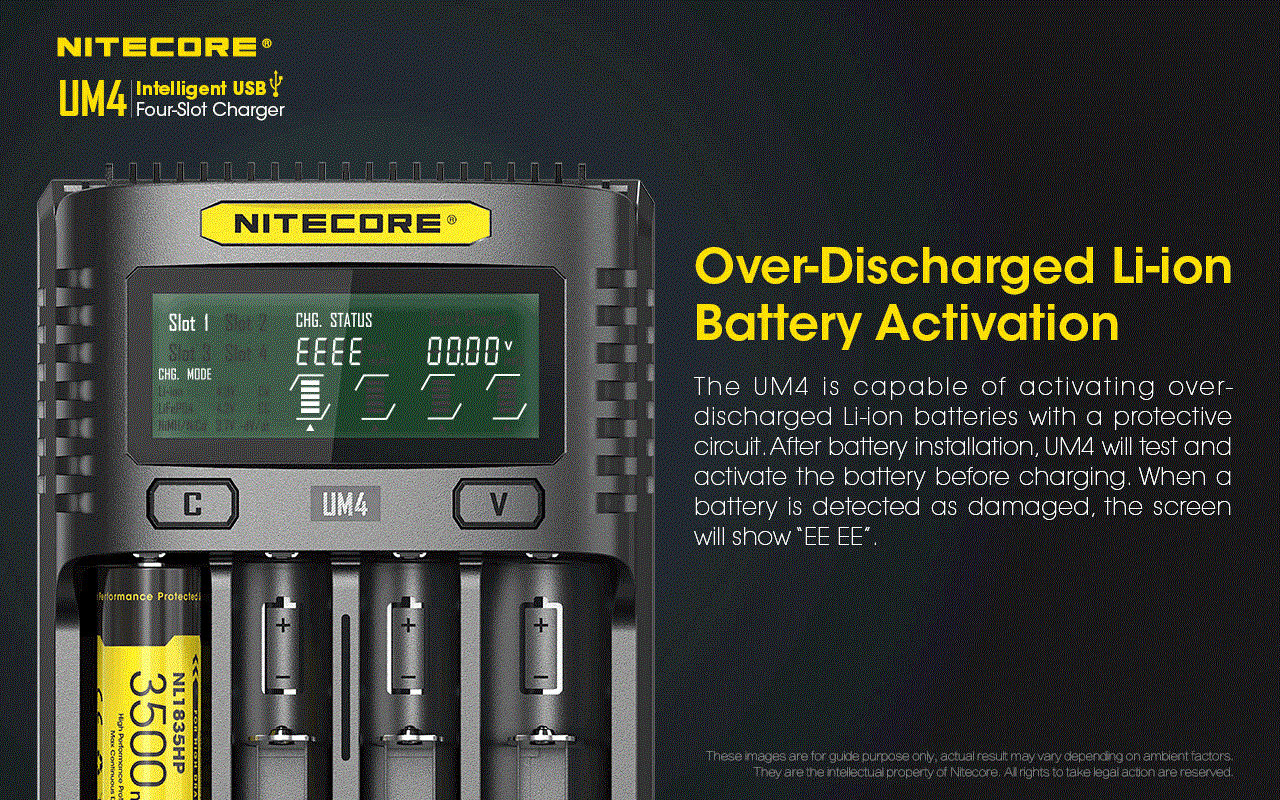

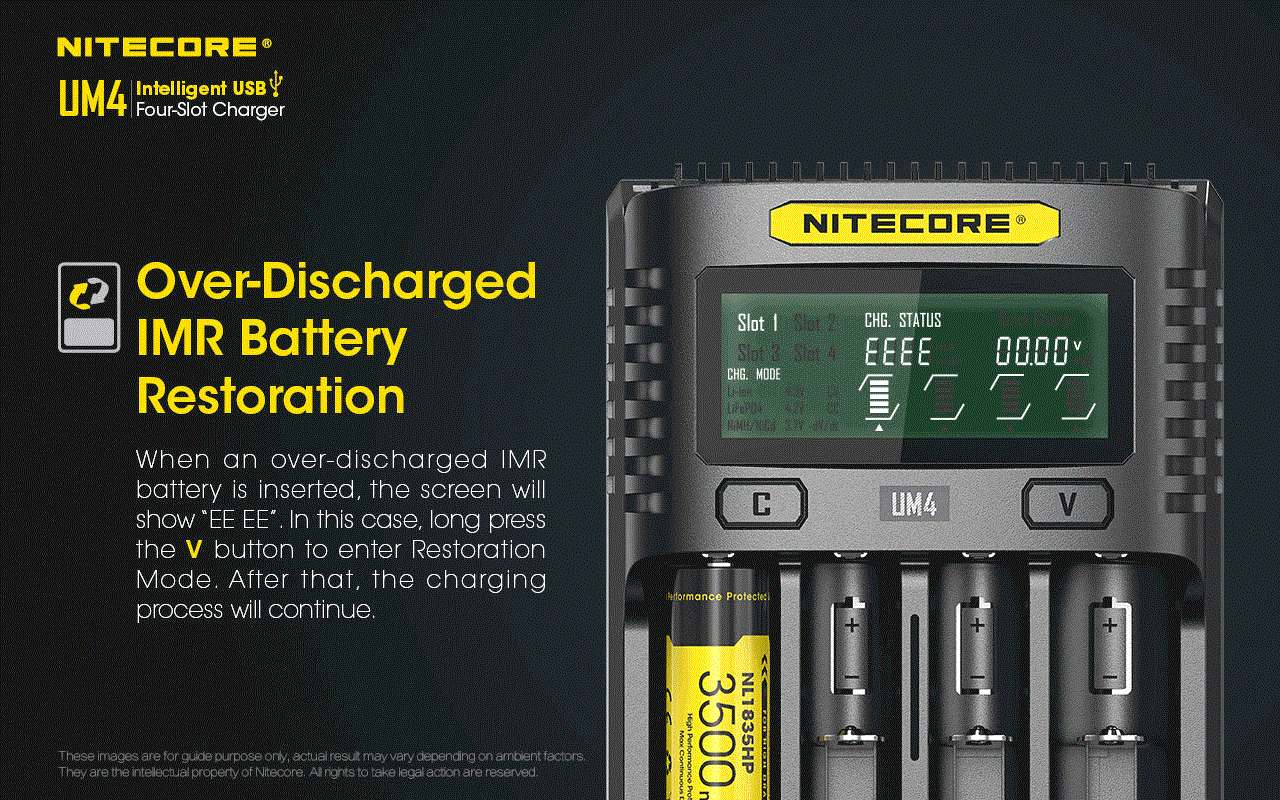

Over-discharged battery activation
Automatic detection of battery power level and automatic selection of the appropriate voltage and charging mode (LiFePO4 and 3.8V Ligon batteries excluded)
LHon battery restoration
Overtime charging protection
Automatic detection of battery internal resistance and display of battery health

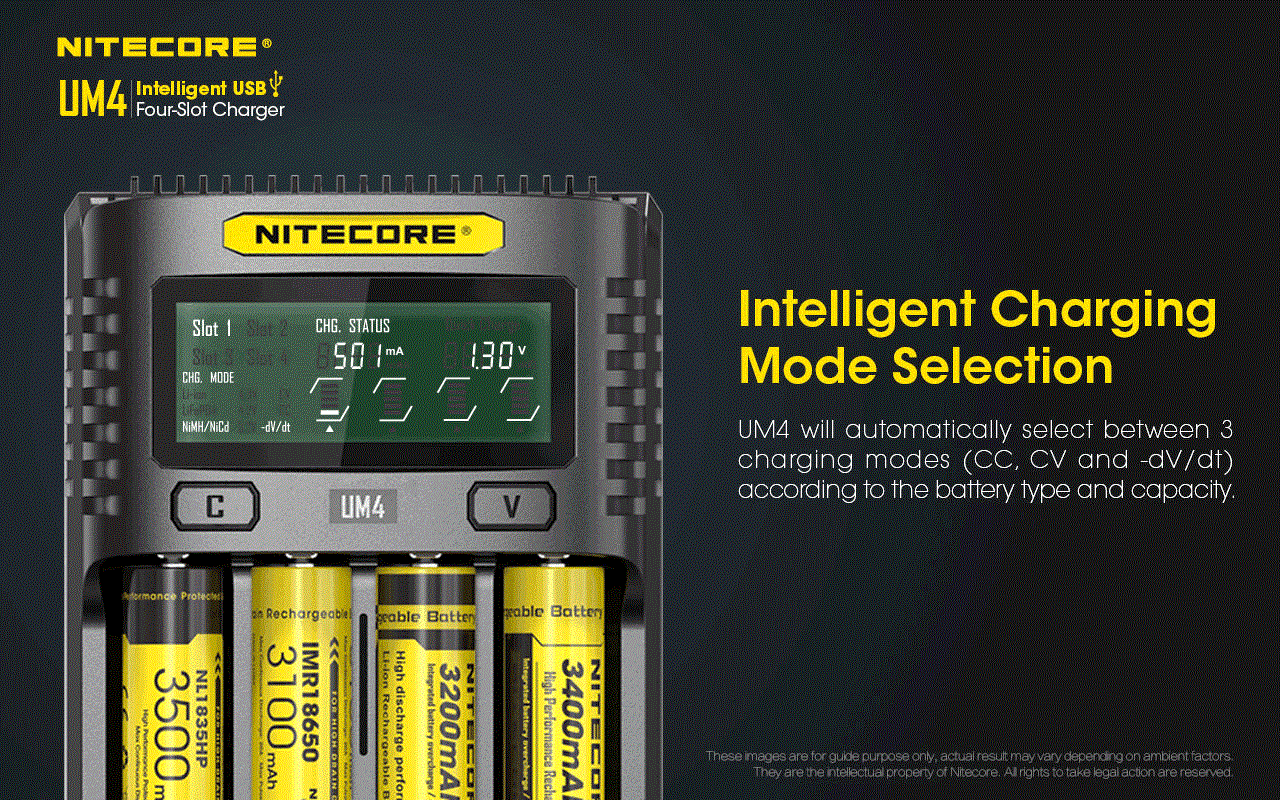

Automatic selection between 3 charging modes (CC. CV and -dV/dt)

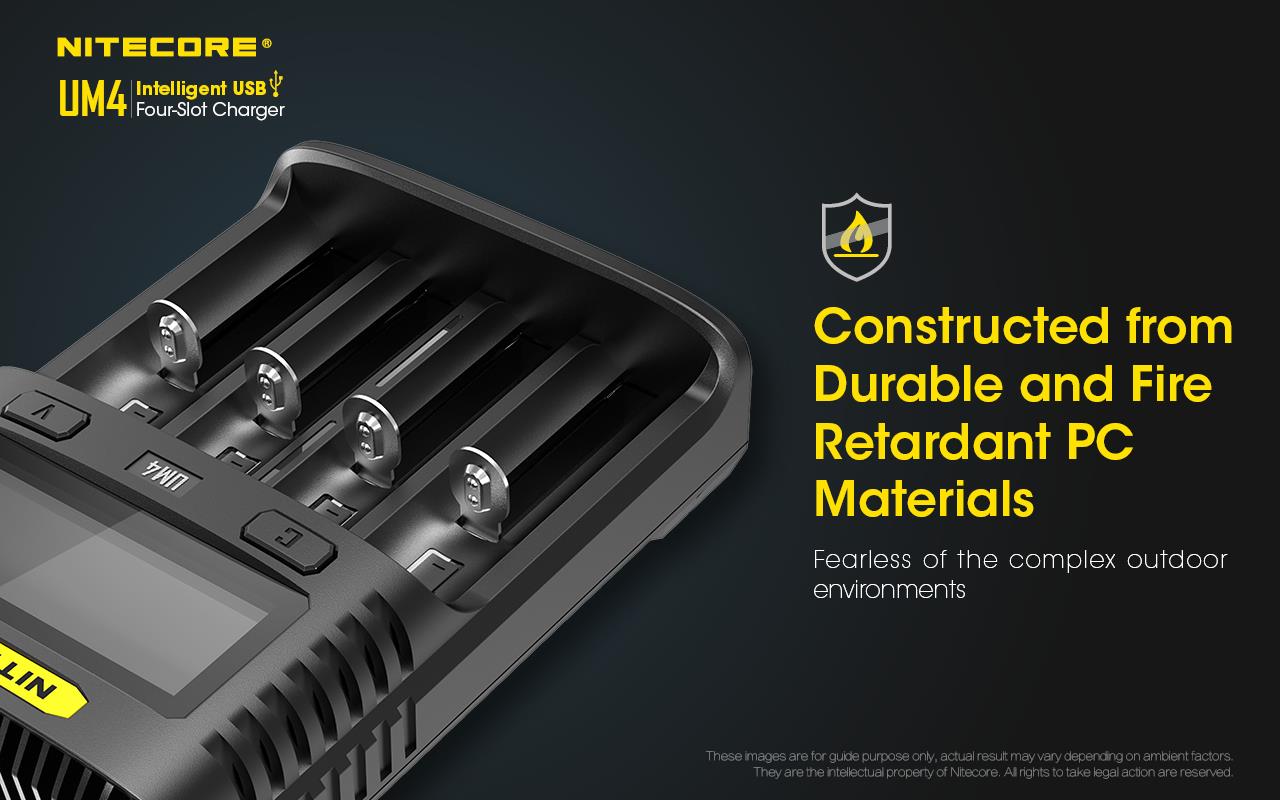

Made from durable and fire-retardant FC materials

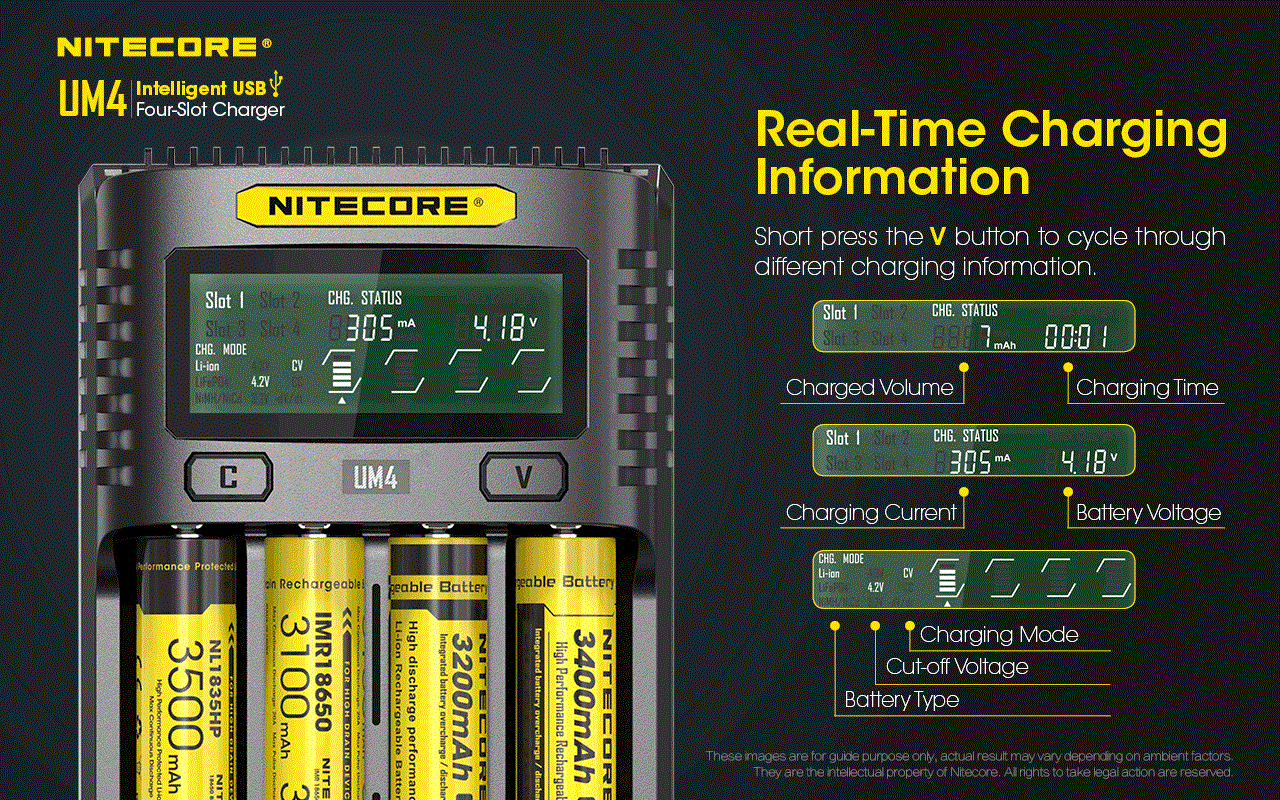

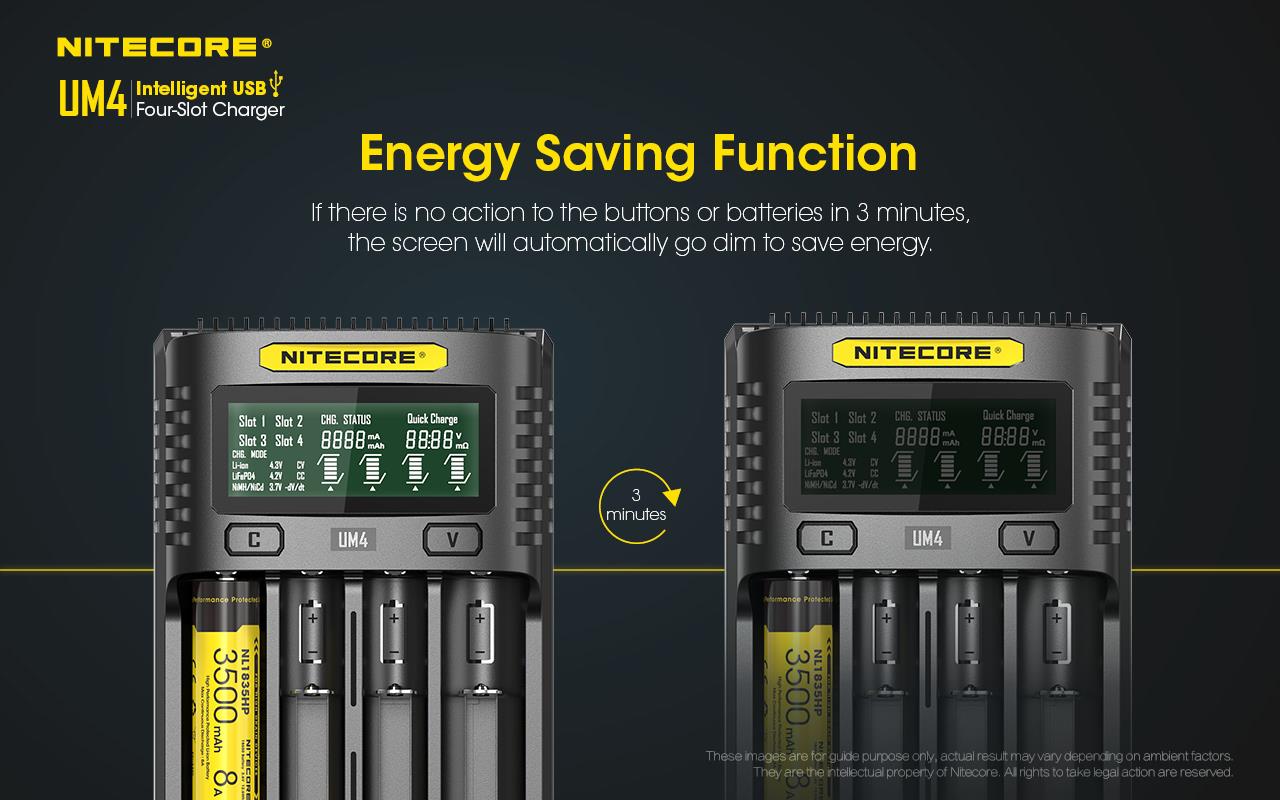

Energy-efficient LCD display for real-time charging information

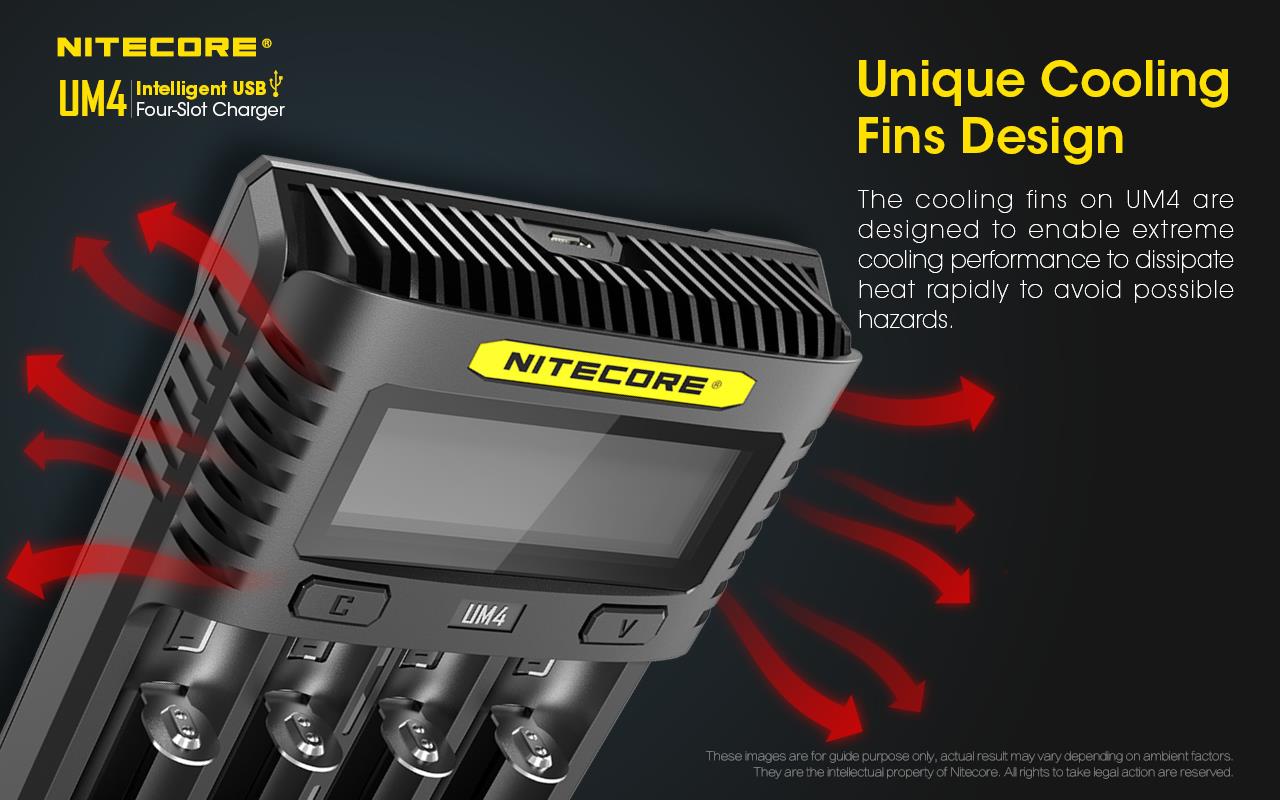

Optimal heat dissipation design
Certified by Rcti-IS. CE, FCC and CEC
Insured worldwide by Ping An Insurance (Group) Company of China. Ltd.

Specifications

Input

DC 5V/2A 9V/2A 18W (MAX)

Output

4 35V±196 / 4 2V±1% / 3 7V±1% / 1 48V±1%

QC Mode

1.500mA'1 (MAX)
1.500mA" 2 (MAX)
750mA' 4 (MAX)

Standard Made

1.500mA'1 (MAX)
1,003mA' 2 (MAX)
5COmAe4 (MAX)

Compatible with

IMR/LHon/UPePO4: 10440, 14500, 14650. 16500, 16340 (RCR123), 16650, 17350, 17500, 17650. 17670. 17700. 18350. 18490. 18500. 18650, 1870O, 20700. 217CO. 22500. 22650. 255CO. 255CO. 26650. 26700

Ni-IVII-I/Ni-Cd: AA. AAA. AMA. C.

Dimensions

159mmx107mmx41mm (6 26'x4 21"xl 61")

Weight

232.8g (8 21oz)

Manufacturer Part No:
UM4
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.5 kg
PB Part No:
HEANIC1046
Product Model:
UM4
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.8 out of 5 Stars Based on 4 reviews
5 Stars
3
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Reliable but a few glitches

I've been using this for a very long time. Upgraded from the D4.
It's my go to workhorse for a stockpile of NiMh AAs and AAAs.
Generally it's reliable and I am happy with it but it's got a number of glitches:
*If you charge x3 NiMhs, the middle one will always finish twice as fast.
My understanding is, it allocates current in pairs, so an odd number of batteries may allocate double the current to the battery without a pair.
*Which brings into question the authenticity of the displayed current, which shows 500ma for every slot. Then again... the resistance does seem to consistently show half as much for the middle battery. Which could explain ...view more

AP
By: AndreyP 10/09/24
3 out of 3 users found this review helpful
Did you find it helpful?

Great Charger

This thing is a beast. Previously I had a dual charger and have 5 sets of batteries to charge. This would take all day.
Now I charge them in less than half the time. The readouts is comprehensive and shows battery health & charging status among other things.
I would definitely recommend this product!

EM
By: EvanM6 29/05/25
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

quite a nice looking unit

seemed to charge a couple of batteries I've tried thus far.
certainly appeals to those with a statistics charty things.

AS
By: AllisterS 23/01/25
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Much needed upgrade

Needed a new charger, debated between two of them, chose this one. I go through many 18650 batteries a day and being able to charge them all at once is a big bonus. The quick charge input feature with a compatible usb power source makes for fast charging of all cells, each cell has a readout of the time it's been charging, the mAh rating that has been delivered to the cell, the voltage of the cell and it's internal resistance. I might have to buy a second one of these.

G
By: Guest 21/12/23
0 out of 0 users found this review helpful
Did you find it helpful?
