ECOFLOW 500W ALTERNATOR CHARGER
Out of stock
ECOFLOW 500W ALTERNATOR CHARGER
- Brand: ECOFLOW
- MPN: EFALTCHRG500W
- Part #: HOMECF1010
- UPC:
- Brand: ECOFLOW
- MPN: EFALTCHRG500W
- Part #: HOMECF1010
- UPC:
Features
EcoFlow 500W Alternator Charger, charge while you drive, and stay powered up on the road.
- 500W alternator charger, 5x faster than traditional in- vehicle auxiliary power outlets. 500W(45A @ 12V*) input, 2.1 hrs to fully charge 1kWh (85Ah @ 12V).
- A 3-in-1 fast charger, maintainer, and jump starter keeps your battery in mint condition.
- Third party portable power stations are applicable.
- 3-step easy installation
- Suitable for a variety of vehicles, including SUVs, pickups, and RVS.
- Expands existing RV house battery capacity.
Important notes:
1. The 500W Alternator Charger includes only XT60i cable in the box and does not support reverse charging & battery maintenance functions with XT60 cable. To enable reverse charging & battery maintenance functions, additional purchase of XT150 cable is required.
2. When used with third-party portable power stations, the 500W Alternator Charger does not support reverse charging & battery maintenance functions.
3. A DELTA Pro to Smart Generator Adapter is required to connect the Alternator Charger with DELTA Pro.
4. When using an XT60 cable, the Alternator Charger switch on the device must be manually turned on and the charging function enabled in the app before charging can begin. Therefore, if planning to use the XT60 cable for output, avoid concealed installation of the Alternator Charger in advance.
*Note: The terms "DELTA" and "RIVER" as mentioned on this page refer to products exclusively manufactured by ECOFLOW INC.
Note: The terms "DELTA" and "RIVER" as mentioned on this page refer to products exclusively manufactured by ECOFLOW INC. RIVER/RIVER 2/RIVER 3 series only support XT60 port. Delta series both supports XT60 and XT150 ports.
Note: When installing the Alternator Charger main unit, make sure not to block the power button. After connecting the Alternator Charger to the portable power station（both River and Delta Series）via the XT60 port, you need to press the power button each time you turn on the car to turn it on before initiating charging through the app.
Top up 1kWh (85Ah @ 12V) in only 2.1 hours
Stay powered on the go with the EcoFlow 500W Alternator Charger. Using excess energy from your vehicle, it restores your EcoFlow power station up to 5× faster than standard 12V auxiliary sockets - topping up 1kWh (85Ah @ 12V) in only 2.1 hours. Its built-in DC-DC converter ensures efficient charging while you drive.

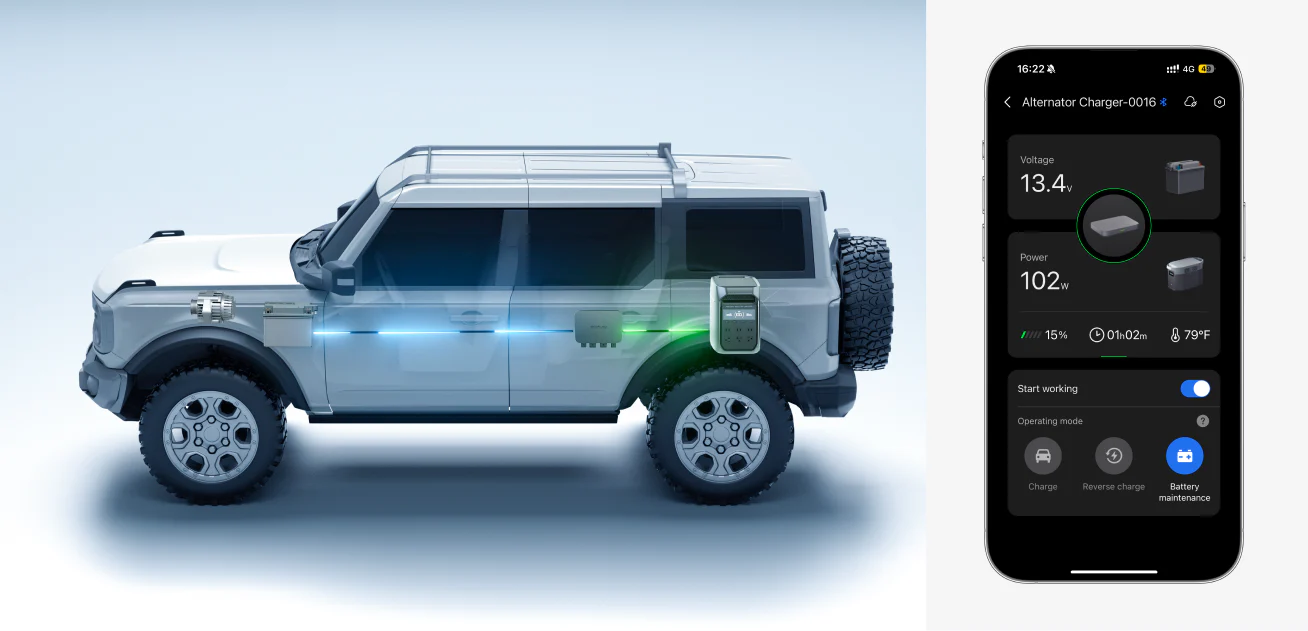

Triple the value with a 3-in-1 functional design
Save space, time, and money with a smart 3-in-1 solution: charger, battery maintainer, and jump starter. With fast and efficient charging capabilities, this all-in-one device keeps your essentials powered no matter how far your journey takes you.
* The 500W Alternator Charger comes with an XT60 cable, but does not support reverse charging & battery maintenance functions with the XT60 cable. To enable reverse charging & battery maintenance functions, purchase the XT150 cable and use with an EcoFlow DELTA Series product.
Charging Mode
Use your car's alternator to refuel your portable power station.
Reverse Charging Mode
Recharge your vehicle starter battery or RV house battery using your portable power station.
Battery Maintenance Mode
Extends your vehicle starter battery or RV house battery life by using a lower electrical current.

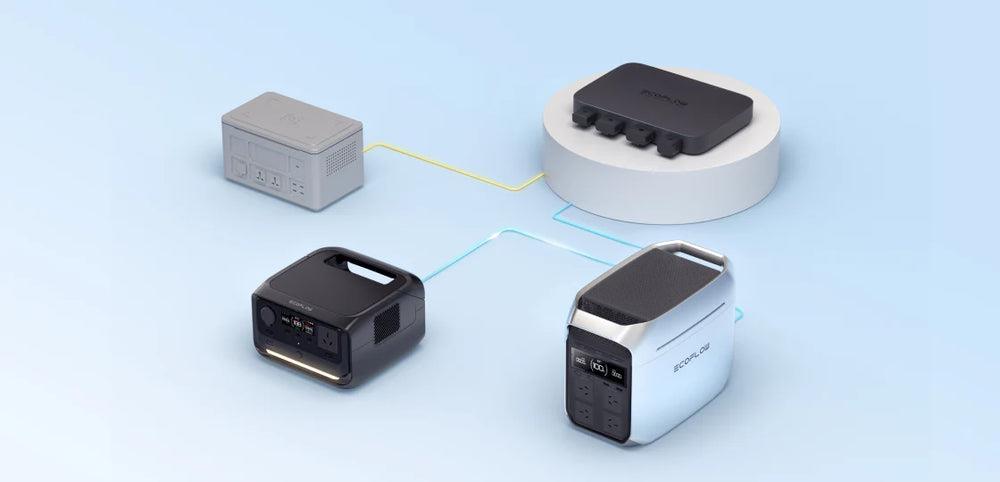

Compatible with all EcoFlow and most third-party power stations
Equipped with an XT60 connection, the 500W Alternator Charger works seamlessly with EcoFlow RIVER and DELTA Series power stations, as well as many third-party models. Designed for SUVs, pickups, and RVs, its fast-charging ability covers everything from short camping trips to extended road adventures.
*When using an XT60 cable, the Alternator Charger switch on the device must be manually turned on and the charging function enabled in the app before charging can begin. Therefore, if planning to use the XT60 cable for output, avoid concealed installation of the Alternator Charger in advance.
Traditional vs. EcoFlow Portable Dual Battery Systems
Boost Your 4WD Battery Performance
Easily adaptable to both 12V and 24V 4WD batteries, this charger connects with EcoFlow portable power stations to safeguard your vehicle's battery while expanding your energy storage by up to 7.2kWh* when paired with DELTA Pro 3 and its Extra Battery.

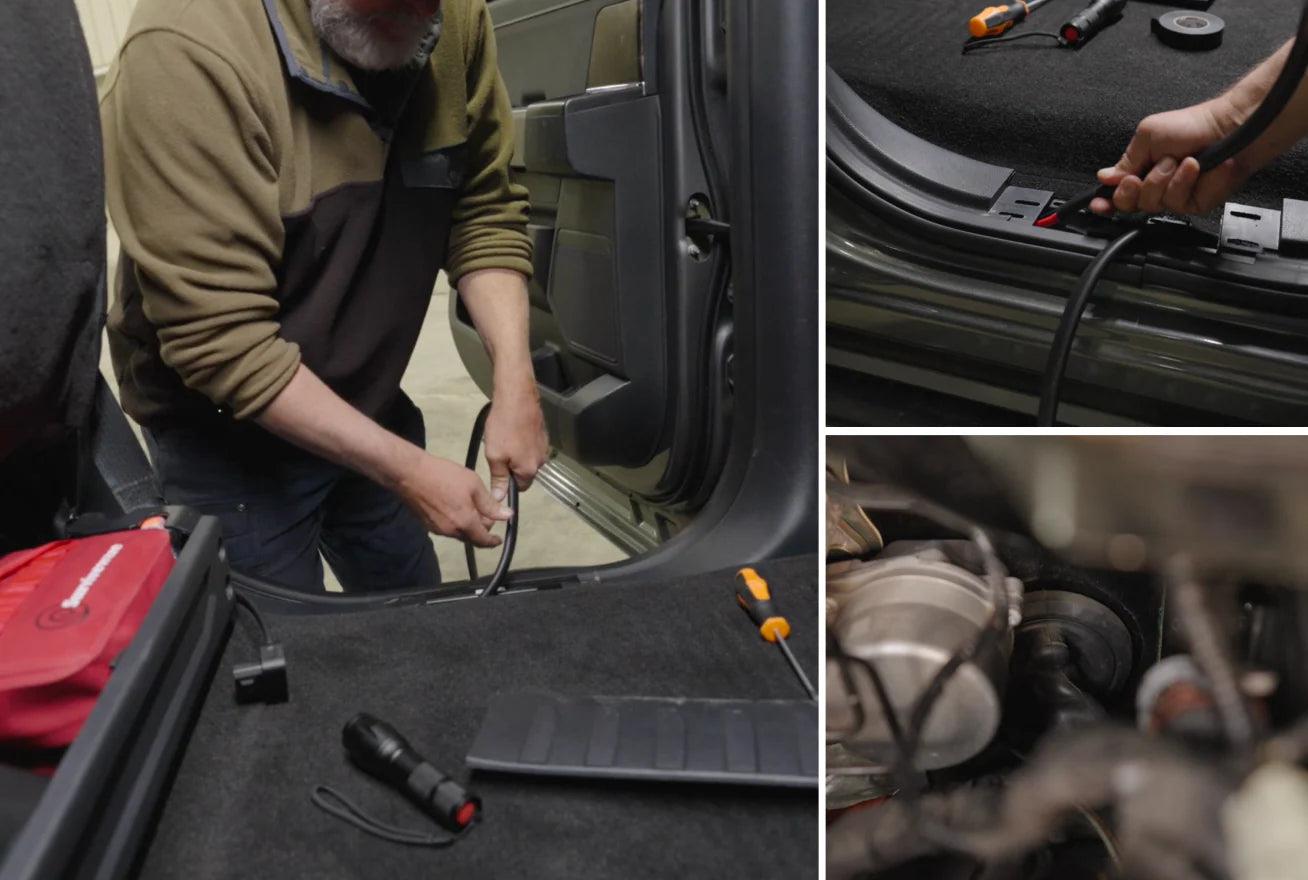

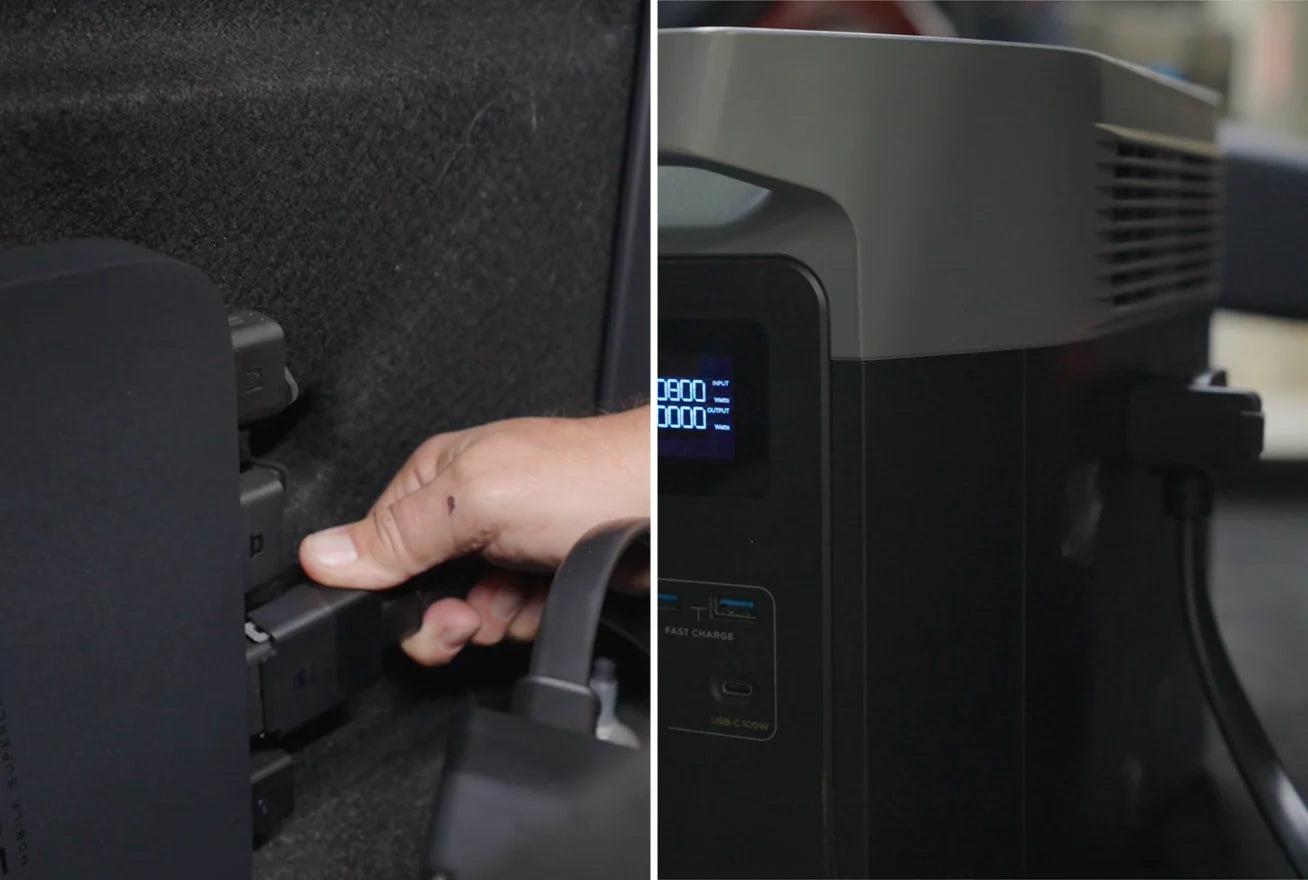

Clean, easy install without leaving a mark
Connect your 500W Alternator Charger to your vehicle's starter battery or RV's house battery to enjoy a worry-free power experience during your journey.

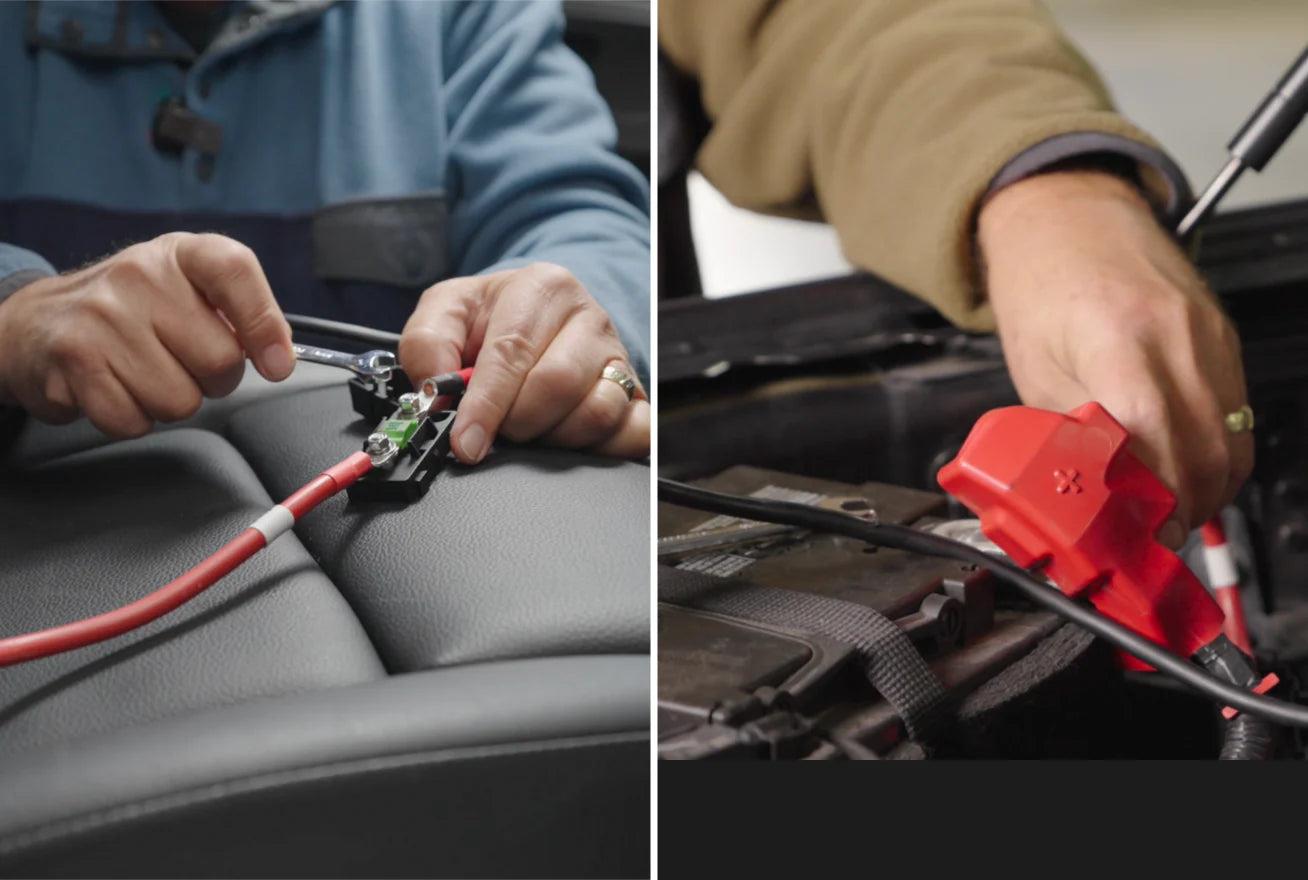

Connect the Fuse Cable
Connect the fuse cable to the input cable on one end.
Connect the Input Cable
Connect the fuse cable to the input cable on one end.
Start Charging
Connect the fuse cable to the input cable on one end.
Safety-assured for any journey
Built with advanced Gallium Nitride (GaN) technology for excellent thermal resistance, the 500W Alternator Charger provides dependable performance on every drive. Safety features such as undervoltage protection prevent excessive draw and protect your starting battery. Backed by a 2-year warranty, it's the secure way to stay powered wherever you go.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Portable Power Station Accessories
Zlos 160W Universal Foldable Solar Panel & USB Charging Fit 99%...
ECOFLOW EFALTCHRG 800W Alternator Charger
Bluetti 560W DC-DC Alternator Charger with 5 Meter Cable
Zlos Universal Solar Panel MC4 Cable Convert 99% Power station &...
ECOFLOW River 3 Max Plus Portable Power Station - 858Wh
ECOFLOW 500W ALTERNATOR CHARGER
- Brand: ECOFLOW
- MPN: EFALTCHRG500W
- Part #: HOMECF1010
Product URL: https://www.pbtech.co.nz/product/HOMECF1010/ECOFLOW-500W-ALTERNATOR-CHARGER
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
EcoFlow 500W Alternator Charger, charge while you drive, and stay powered up on the road.
- 500W alternator charger, 5x faster than traditional in- vehicle auxiliary power outlets. 500W(45A @ 12V*) input, 2.1 hrs to fully charge 1kWh (85Ah @ 12V).
- A 3-in-1 fast charger, maintainer, and jump starter keeps your battery in mint condition.
- Third party portable power stations are applicable.
- 3-step easy installation
- Suitable for a variety of vehicles, including SUVs, pickups, and RVS.
- Expands existing RV house battery capacity.
Important notes:
1. The 500W Alternator Charger includes only XT60i cable in the box and does not support reverse charging & battery maintenance functions with XT60 cable. To enable reverse charging & battery maintenance functions, additional purchase of XT150 cable is required.
2. When used with third-party portable power stations, the 500W Alternator Charger does not support reverse charging & battery maintenance functions.
3. A DELTA Pro to Smart Generator Adapter is required to connect the Alternator Charger with DELTA Pro.
4. When using an XT60 cable, the Alternator Charger switch on the device must be manually turned on and the charging function enabled in the app before charging can begin. Therefore, if planning to use the XT60 cable for output, avoid concealed installation of the Alternator Charger in advance.
*Note: The terms "DELTA" and "RIVER" as mentioned on this page refer to products exclusively manufactured by ECOFLOW INC.
Note: The terms "DELTA" and "RIVER" as mentioned on this page refer to products exclusively manufactured by ECOFLOW INC. RIVER/RIVER 2/RIVER 3 series only support XT60 port. Delta series both supports XT60 and XT150 ports.
Note: When installing the Alternator Charger main unit, make sure not to block the power button. After connecting the Alternator Charger to the portable power station（both River and Delta Series）via the XT60 port, you need to press the power button each time you turn on the car to turn it on before initiating charging through the app.
Top up 1kWh (85Ah @ 12V) in only 2.1 hours
Stay powered on the go with the EcoFlow 500W Alternator Charger. Using excess energy from your vehicle, it restores your EcoFlow power station up to 5× faster than standard 12V auxiliary sockets - topping up 1kWh (85Ah @ 12V) in only 2.1 hours. Its built-in DC-DC converter ensures efficient charging while you drive.
Triple the value with a 3-in-1 functional design
Save space, time, and money with a smart 3-in-1 solution: charger, battery maintainer, and jump starter. With fast and efficient charging capabilities, this all-in-one device keeps your essentials powered no matter how far your journey takes you.
* The 500W Alternator Charger comes with an XT60 cable, but does not support reverse charging & battery maintenance functions with the XT60 cable. To enable reverse charging & battery maintenance functions, purchase the XT150 cable and use with an EcoFlow DELTA Series product.
Charging Mode
Use your car's alternator to refuel your portable power station.
Reverse Charging Mode
Recharge your vehicle starter battery or RV house battery using your portable power station.
Battery Maintenance Mode
Extends your vehicle starter battery or RV house battery life by using a lower electrical current.
Compatible with all EcoFlow and most third-party power stations
Equipped with an XT60 connection, the 500W Alternator Charger works seamlessly with EcoFlow RIVER and DELTA Series power stations, as well as many third-party models. Designed for SUVs, pickups, and RVs, its fast-charging ability covers everything from short camping trips to extended road adventures.
*When using an XT60 cable, the Alternator Charger switch on the device must be manually turned on and the charging function enabled in the app before charging can begin. Therefore, if planning to use the XT60 cable for output, avoid concealed installation of the Alternator Charger in advance.
Traditional vs. EcoFlow Portable Dual Battery Systems
Boost Your 4WD Battery Performance
Easily adaptable to both 12V and 24V 4WD batteries, this charger connects with EcoFlow portable power stations to safeguard your vehicle's battery while expanding your energy storage by up to 7.2kWh* when paired with DELTA Pro 3 and its Extra Battery.
Clean, easy install without leaving a mark
Connect your 500W Alternator Charger to your vehicle's starter battery or RV's house battery to enjoy a worry-free power experience during your journey.
Connect the Fuse Cable
Connect the fuse cable to the input cable on one end.
Connect the Input Cable
Connect the fuse cable to the input cable on one end.
Start Charging
Connect the fuse cable to the input cable on one end.
Safety-assured for any journey
Built with advanced Gallium Nitride (GaN) technology for excellent thermal resistance, the 500W Alternator Charger provides dependable performance on every drive. Safety features such as undervoltage protection prevent excessive draw and protect your starting battery. Backed by a 2-year warranty, it's the secure way to stay powered wherever you go.
Specifications
Model
EF-MS-H02-1
Net Weight
5.7 kg
Dimensions (W x D x H)
242x194x35 mm
Wi-Fi
Frequency: 2412MHz-2472MHz
Maximum output power: 18.22dBm
Bluetooth
Frequency: 2402MHz-2480MHz
Maximum output power: 7.89dBm
Charging Mode
Input: 12V/24V⎓(11V-31V⎓), 45A Max.
Output: 40V-60V⎓, 500W Max.;24V⎓, 360W Max.
Battery Maintenance Mode
Input: 40V-60V⎓, 3A Max.
Output: 13.8V/27.6V⎓, 100W Max.
Reverse Charging Mode
Input: 40V-60V⎓, 13.2A Max.
Output: 13.8V/27.6V⎓, 500W Max.
Fuse's Rated Current
125A
Protection Type
Reverse polarity protection / Overcurrent protection / Short circuit protection / Overvoltage and undervoltage protection (Provided with integral protection against overloads)
