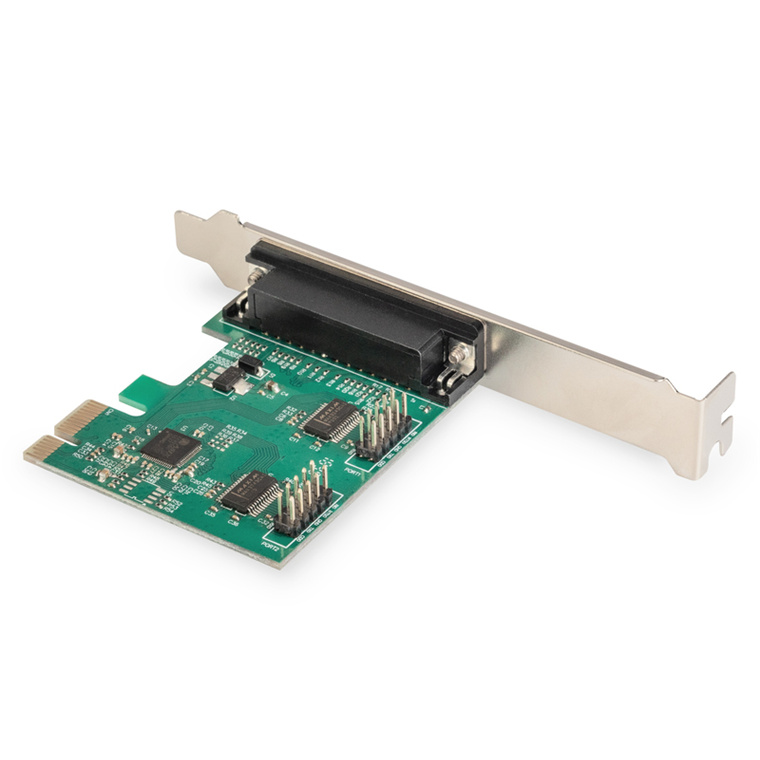

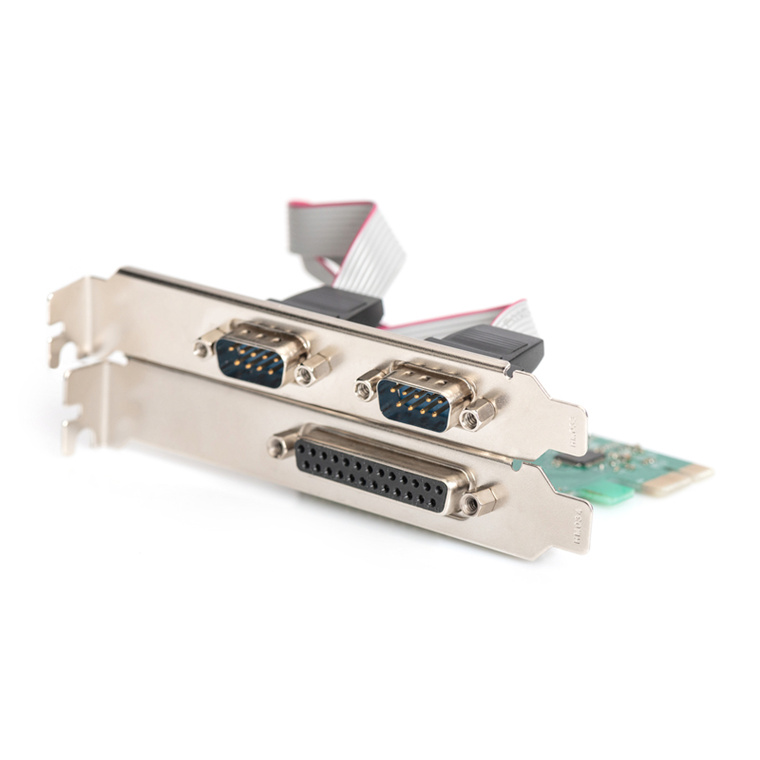

Digitus DS-30040-2 PCIE 2x Serial (RS232) 1x Parallel Card L/P low profile bracket

Digitus DS-30040-2 PCIE 2x Serial (RS232) 1x Parallel Card L/P low profile bracket

  • Brand: Digitus
  • MPN: DS-30040-2
  • Part #: IDEDIG691825
  • UPC:
PB Tech price:PB Tech price:
$5588$6426
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships today
When will I receive it?
Add To Compare

Four easy payments of $16.55 per fortnight*

Oxipay lets you spread the cost of your purchase over 4 fortnightly payments.

Click the button below or select Oxipay as your payment method during the checkout process.

If you do not have an Oxipay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Oxipay

What PB Tech customers are saying about this product...See More Reviews

"Did the job, but a warning to linux users, that it is by definition set to ECP/EPP mode, and I cannot find a way to step it down to SPP mode. Otherwise worked fine."
 Richard S. ~ 14-05-18   VERIFIED OWNER

Features

Serial/Parallel I/O, 2/1-Port,PCIexpress Fast Data Rates up to 1.5 Mbytes/sec MCS9901 chipset

Perfect for connecting any parallel or serial device including printers, scanners and ISDN terminal adapters

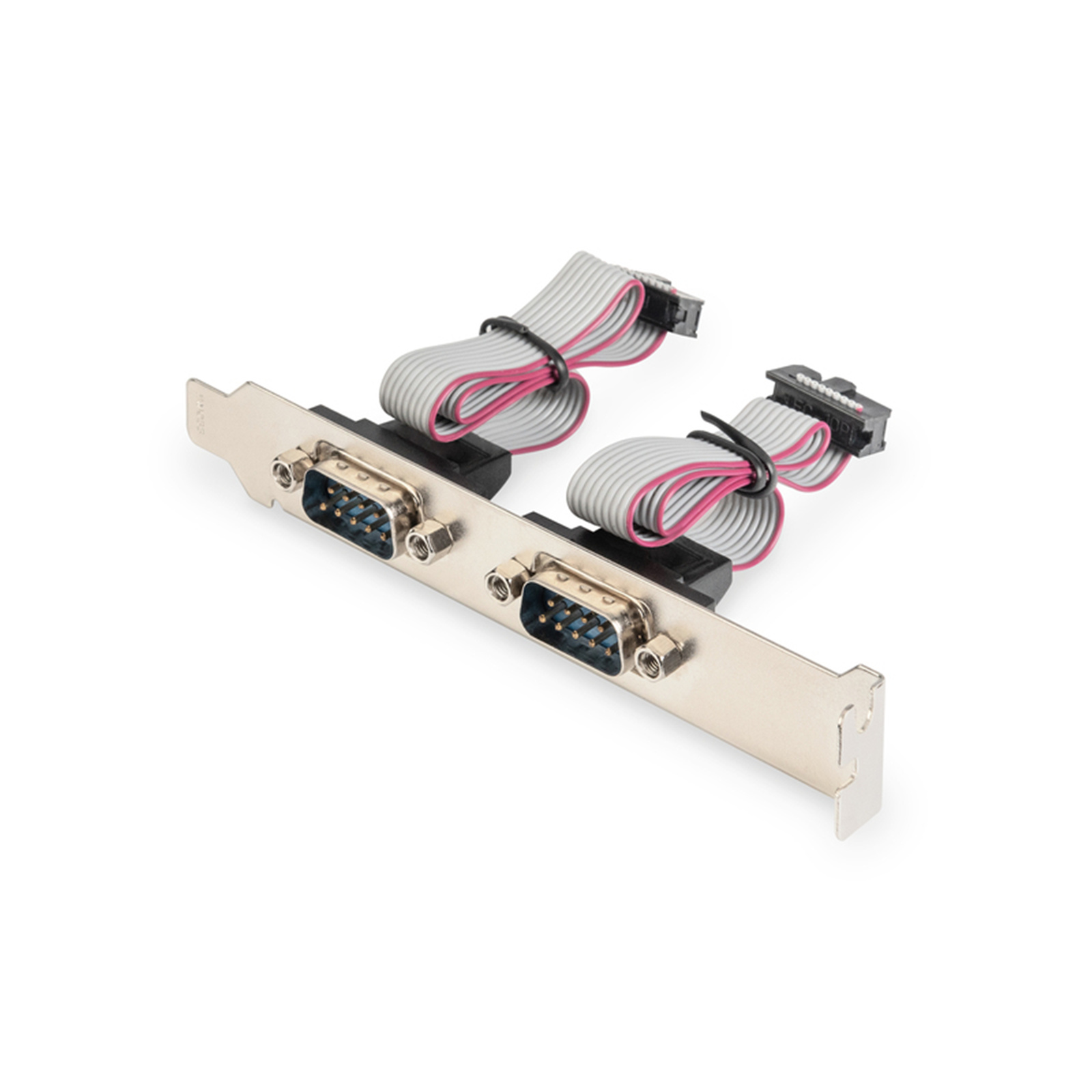

- Two serial interfaces and one parallel interface for connecting printers, scanners, ISDN adapters, and so on
- Fast data transfer of up to 2.3 Mbps (serial) and 1.5 Mbps (parallel)
- Space-saving, low-profile plate

The DIGITUS PCI parallel 1-port card can be installed on a PCI express slot, so you can connect an EPP / ECP parallel peripheral device to the computer. The good performance of the SPP / EPP / ECP parallel card has a DB25 parallel port, which is ideal for connecting printers, scanners, CD drives, memory card readers and more. With plug & play, the card simply plugs into your PC and promises to make a quick use.



Specifications

Chipset
MCS9901

Ports
2x DSUB 9, serial ports, male, UART16C450/550
1x DSUB 25, parallel port

Serial data transfer rate
Up to 2.3Mbps

Parallel data transfer rate
Up to 1.5Mbps

Supports
standard parallel port (SPP)
enhanced parallel port (EPP)
enhanced capability port (ECP)

Compliant with
PCI Express Base Specification 1.0a

Operating temperature
0 °C - 70 °C

Operating Humidity
25% - 65% RH (non-condensing)

Supports
Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux

Manufacturer Part No: DS-30040-2 Brand: Digitus Product Type: -
UPC - Product Family: - Shipping Weight: 0.15 kg
PB Part No: IDEDIG691825 Product Model: DS-30040-2

Warranty: 12 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
