Features
10GbE bandwidth and M.2 SSD cache, all at once
Synology E10M20-T1 helps you boost I/O performance and network bandwidth simultaneously using just one PCIe expansion slot on your Synology NAS..
10GbE ready - Achieve Multi-Gig Ethernet transmission speeds of up to 10 Gbps.

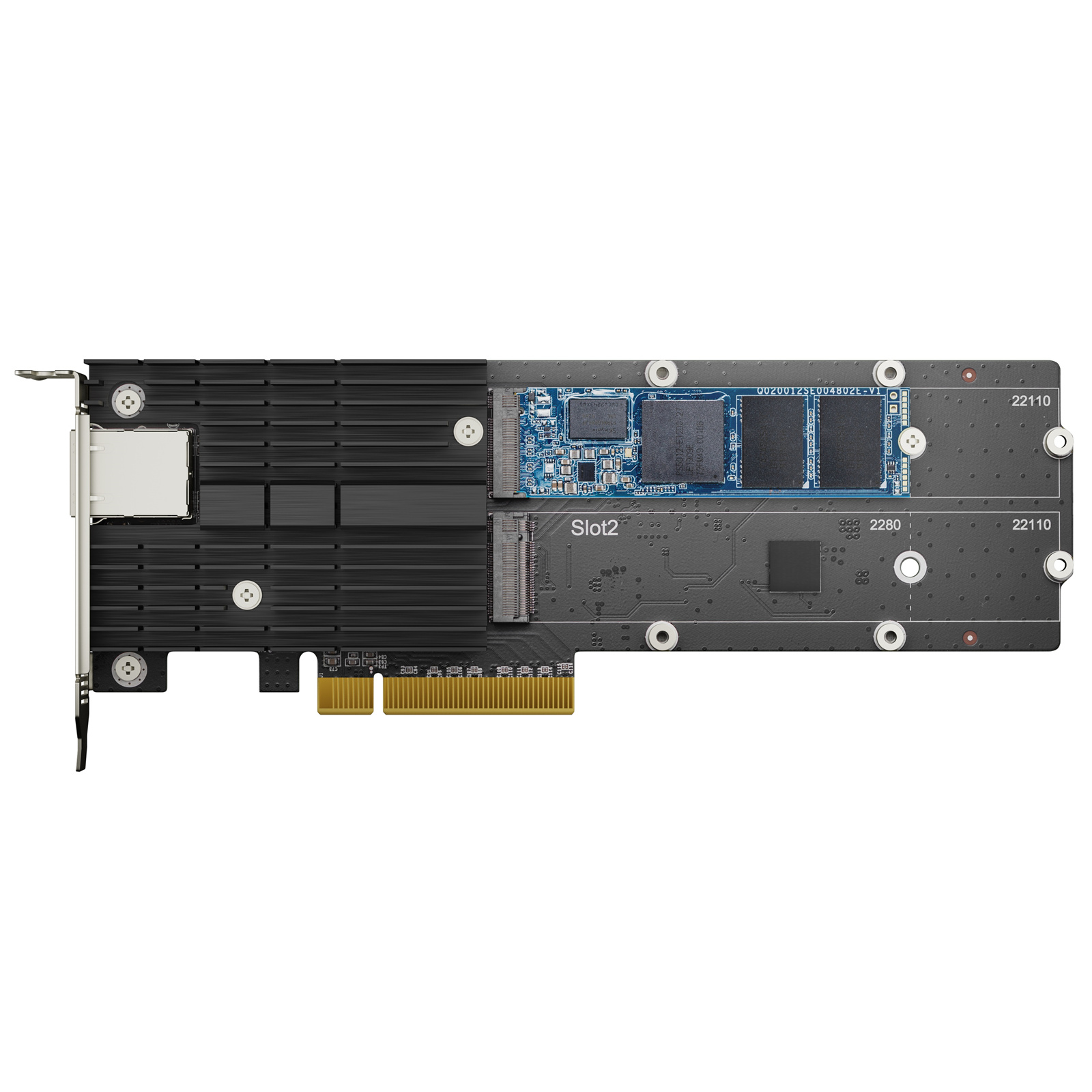

NVMe enabled - Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.
Dedicated cache slots - Free up primary drive bays for data storage.
A perfect match with Synology SNV3000 series NVMe SSD
Install Synology SNV3000 series NVMe SSD on the E10M20-T1 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD's enterprise-grade endurance, performance, and reliability with your Synology NAS.
Specifications
General
Host Bus Interface
PCIe 3.0 x8
Bracket Height
Low Profile and Full Height
Size (Height x Width x Depth)
71.75 mm x 200.05 mm x 17.70 mm
Operating Temperature
0°C to 40°C (32°F to 104°F)
Storage Temperature
-20°C to 60°C (-5°F to 140°F)
Relative Humidity
5% to 95% RH
Storage
Storage Interface
PCIe NVMe
Supported Form Factor
22110 / 2280
Connector Type and Quantity
M-key, 2 Slots
Network
IEEE Specification Compliance
IEEE 802.3an 10Gbps Ethernet
IEEE 802.3bz 2.5Gbps / 5Gbps Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3x Flow Control
Data Transfer Rates
10 Gbps
Network Operation Mode
Full Duplex
Supported Features
9 KB Jumbo Frame
TCP/UDP/IP Checksum Offloading
Auto-negotiation between 100Mb/s, 1Gb/s, 2.5Gb/s, 5Gb/s, and 10Gb/s
Compatibility | ||
---|---|---|
Applied Models |
NVMe SSD |
|
Notes |
|
