Synology M2D20 Dual M.2 SSD Adapter card, 2x NVMe 2280/22110 M-Key, PCIe 3.0 x8, Low Profile/Full Height, 5 Years Warranty

PB Tech price
PB Tech price
$ 403 .69
 +GST
$ 464 .24
 inc GST

Out of stock

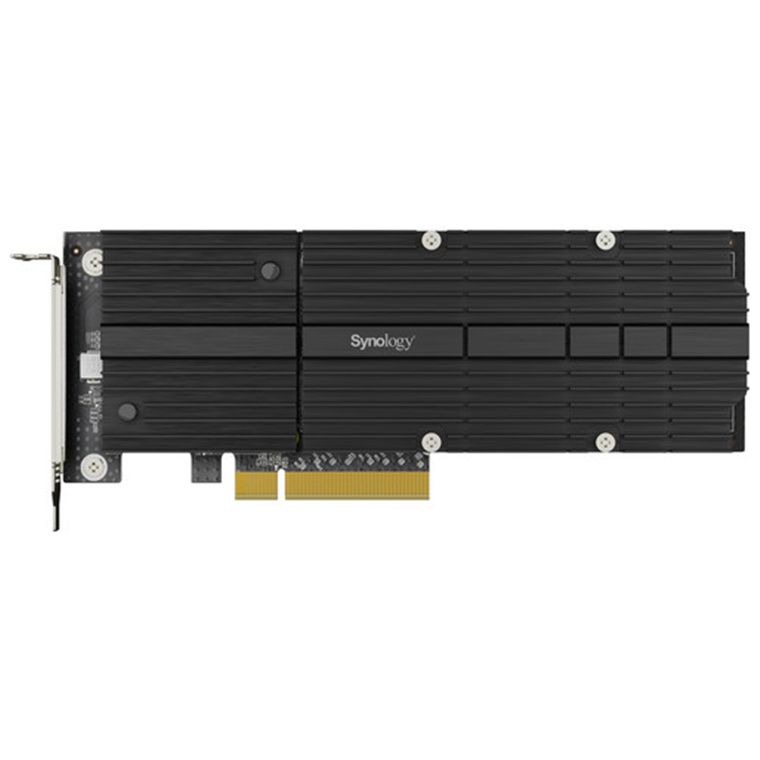

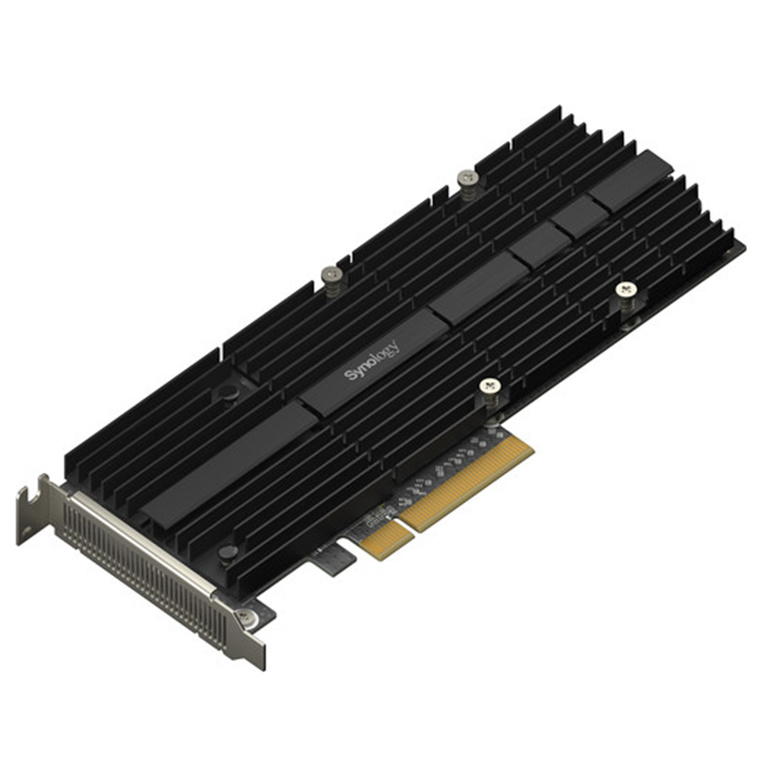

Synology M2D20 Dual M.2 SSD Adapter card, 2x NVMe 2280/22110 M-Key, PCIe 3.0 x8, Low Profile/Full Height, 5 Years Warranty

  • Brand: Synology
  • MPN: M2D20 Adapter Card
  • Part #: IDESYN1220
  • UPC: 846504003907
PB Tech price
$ 403 .69 $ 464 .24
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock
  • Brand: Synology
  • MPN: M2D20 Adapter Card
  • Part #: IDESYN1220
  • UPC: 846504003907

Features

Synology M2D20

Designed for select models of their NAS arrays, the M2D20 M.2 Adapter Card from Synology will supercharge the I/O performance of your NAS. The multi-queue capability of NVMe SSDs benefits latency-sensitive applications such as photo indexing, file search, and virtualization deployments.

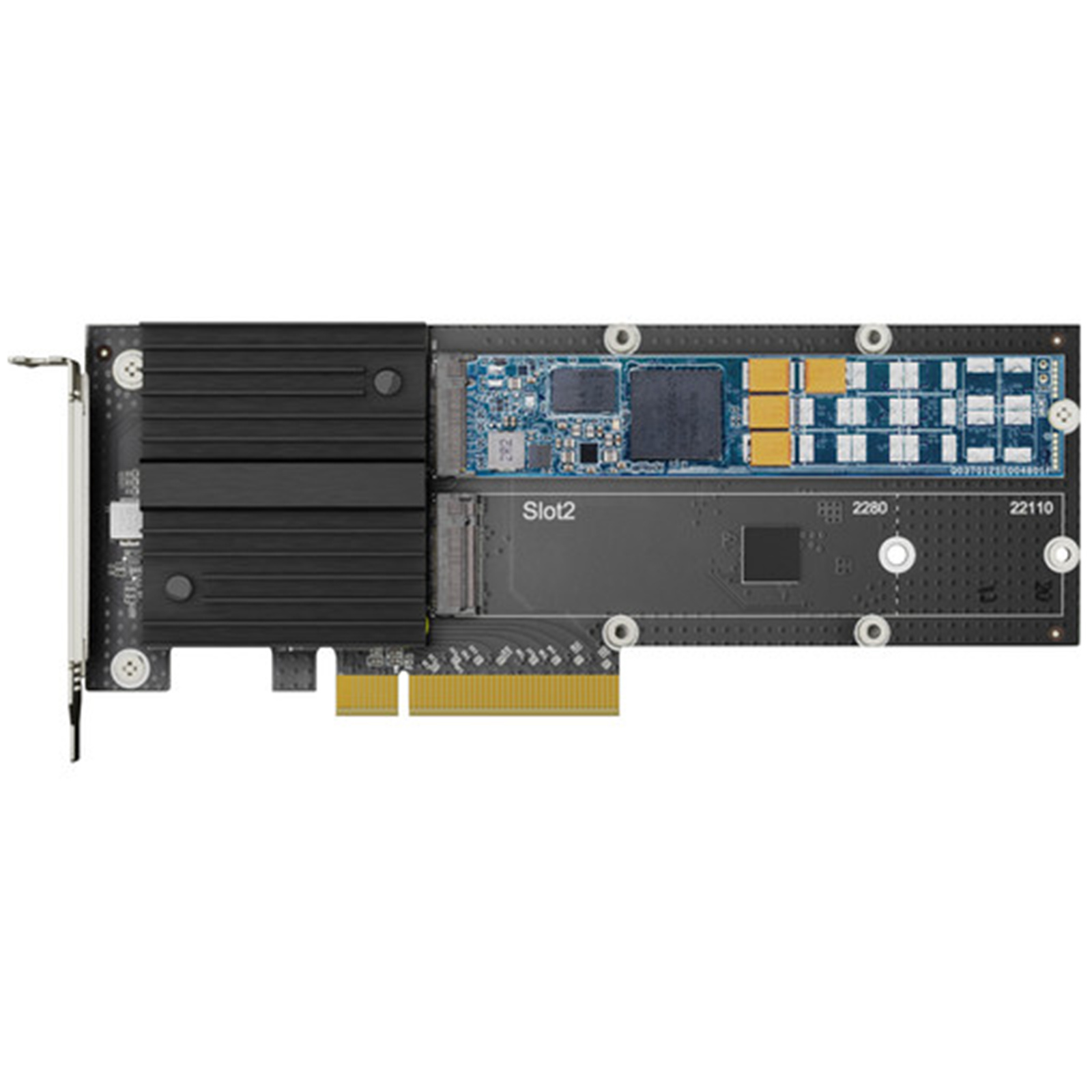

Built as a PCIe card with a low profile and full height form factor, the M2D20 has M.2 slots, each of which supports an M.2 2280 or 22110 SSD. Another advantage of creating an SSD cache via a PCIe card, as compared to using your array's 2.5" drive bays, is that the 2.5" bays on your array are still available for file storage. The M2D20 interfaces with your compatible NAS using a PCIe 3.0 x8 host bus interface and uses a PCIe NVMe storage interface.

NVMe Enabled

Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.

Dedicated Cache Slots

Free up primary drive bays for data storage. With the M2D20, you won't need to use 2.5" drive bays to create an SSD cache, since it installs into a PCIe slot.

Matches with Synology SNV3000 Series NVMe SSDs

Install Synology SNV3000 Series NVMe SSDs on the M2D20 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD's enterprise-grade endurance, performance, and reliability with your Synology NAS.

Easy IT Upgrade

Upgrade your existing storage infrastructure efficiently.

Specifications

General

Host Bus Interface

PCIe 3.0 x8

Bracket Height

Low Profile and Full Height

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-5 to 140°F / -21 to 60°C

Relative Humidity

5 to 95%

Dimensions

2.82 x 7.16 x 0.62" / 71.75 x 181.9 x 15.8 mm

Weight

Not Specified by Manufacturer

Storage

Storage Interface

PCIe NVMe

Supported Form Factors

2280 and 22110

Connector Type and Quantity

M-Key, 2 Slots

Compatibility
Applied Models

NVMe SSD

  • SA series:SA6400, SA3610, SA3600, SA3410, SA3400
  • 23 series:RS2423RP+, RS2423+
  • 22 series:RS822RP+, RS822+, DS3622xs+, DS2422+
  • 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+
  • 20 series:RS820RP+, RS820+
  • 19 series:DS2419+II, DS2419+, DS1819+
  • 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, DS3018xs, DS1618+
  • 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs

Notes

  • DSM version requirement: 6.2.3-25426 or later version
  • DSM version requirement for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs and DS3617xsII: 7.0.1 or later version
Manufacturer Part No:
M2D20 Adapter Card
Brand:
Product Type:
-
UPC
846504003907
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
IDESYN1220
Product Model:
M2D20
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
