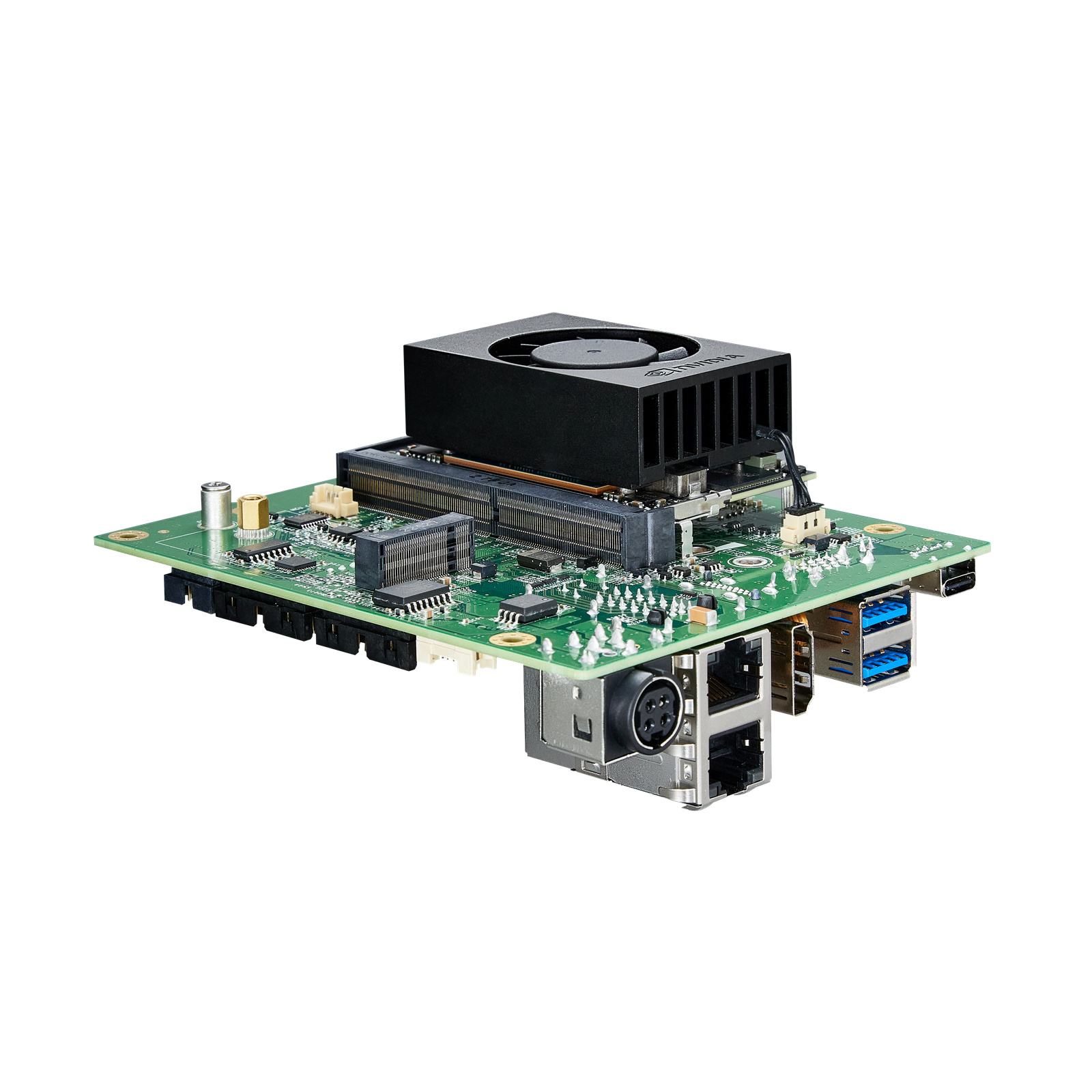

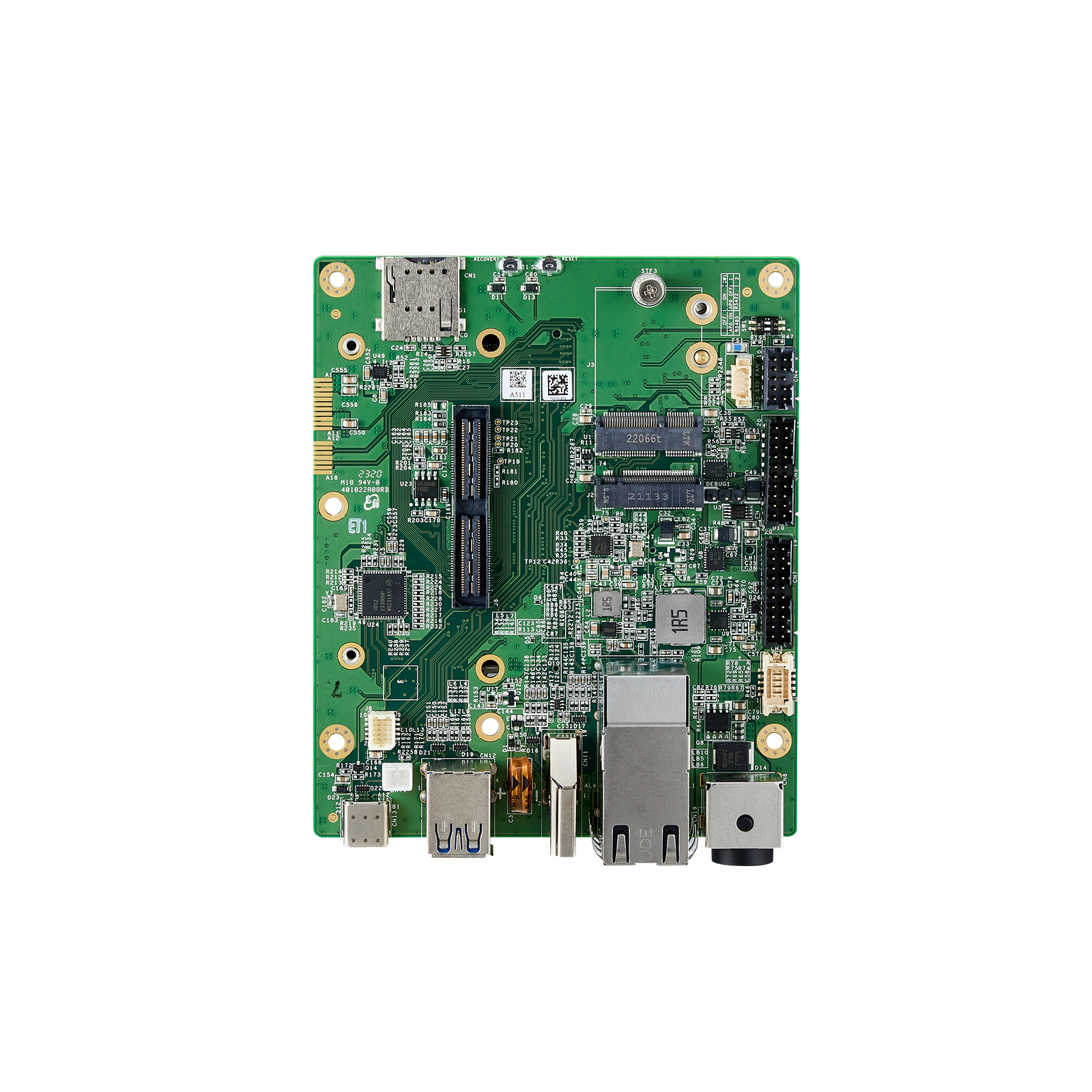

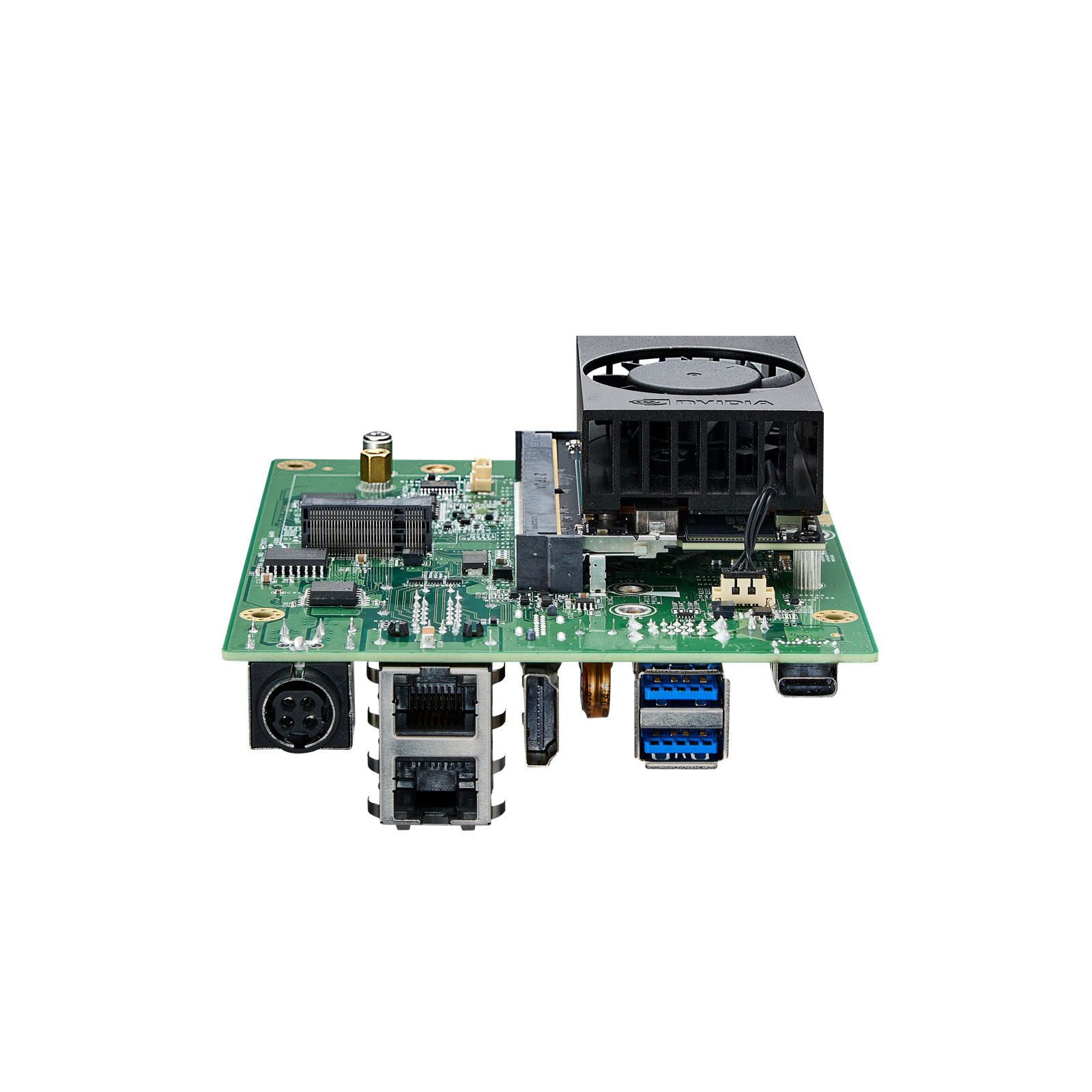

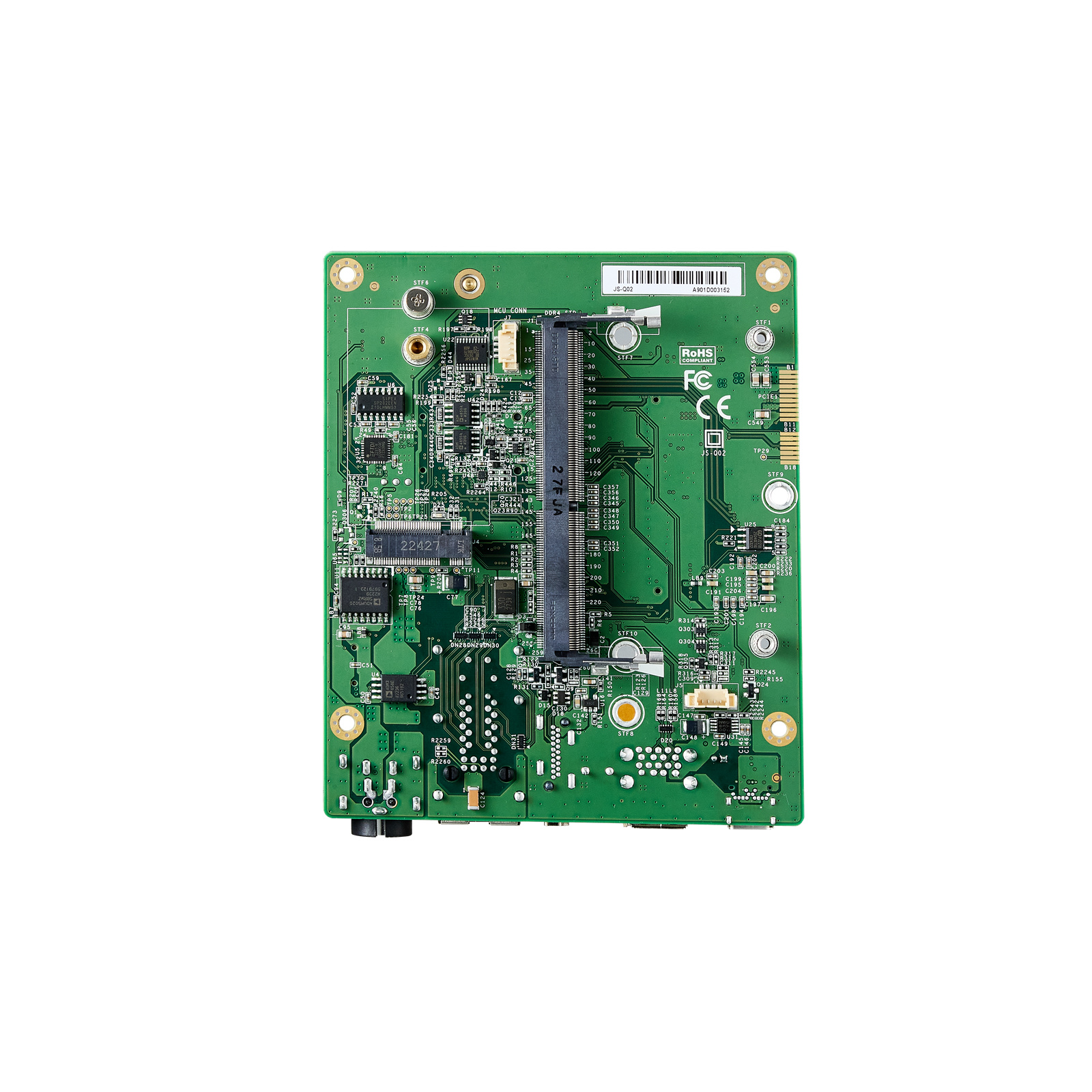

Aetina Platform ORIN NX 16GB 1 x HDMI, 2 x GbE, 2 x USB, 1 x 8-Lane MIPI 120 pins, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25 C + 80 C

PB Tech price
PB Tech price
$ 2,315 .29
 +GST
$ 2,662 .58
 inc GST

Out of stock

Aetina Platform ORIN NX 16GB 1 x HDMI, 2 x GbE, 2 x USB, 1 x 8-Lane MIPI 120 pins, 128GB SSD, B/E/M Key, 12 to 24 VDC input, -25 C + 80 C

  • Brand: Aetina
  • MPN: AIB-MN42
  • Part #: IPCAEA10022
  • UPC:
PB Tech price
$ 2,315 .29 $ 2,662 .58
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock

Features

Compatible with all Jetson Orin NX modules and Orin Nano modules

Wide input voltage range from 12 to 24VDC

1 x M.2 B-Key/E-Key/M-Key (NVMe 128GB built-in)

2 x RJ-45 GbE Ports

Supports Innodisk Out-of-Band Remote Management Module

Operating temperature -25°C ~ +80°C


? Huge leap in AI performance enables AI inference in the smallest Jetson form factor

The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano module offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.

? Comprehensive M.2 for internal and external expansion

AIB-MN42 are platforms with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. To avoid insufficient data storage for edge computing, these platforms support external M.2 2242 NVMe with fast data transmission.

? Wide input power and operating temperature for various embedded applications

To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIB-MN42 support operating temperature ranging from -25°C to 80°C and wide input power from 12 to 24VDC.


* AIB-MN42 are preliminary products, so the specifications are subject to change without prior notice.

Specifications

Model Number

AIB-MN42

AI Performance

100 TOPS

Module Compatibility

NVIDIA Jetson Orin NX 16GB

GPU

1024 Core NVIDIA Ampere, with 32 Tensor Cores

CPU

8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3

Memory

16GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s

Storage

1 x M.2 M-Key 2242 (NVMe 128GB built-in)

Display

1 x HDMI 2.0 Type A

Audio

Line-out / Line-in / Mic (optional with daughter board)

RTC

With super capacitor, battery (optional)

Camera Input

1x 8-Lane MIPI Expansion Connector (120 Pin)

LAN

2 x RJ-45 GbE ports

USB

2 x USB 3.2 Gen2 Ty pe A (supports up to 10Gbps shared)
1 x OTG Ty pe-C

I/O Interfaces

5 x GPIO,
1 x SPI,
1 x I2S,
3 x I2C,
1 x UART,
1 x UART (Debug Only ),
1 x RS-232,
1 x CAN (isolation; support CAN FD),
1 x RS-422/485 (2-in1),
1 x microSIM Card Slot

Expansion

1 x M.2 B-Key 3042/3052 (LTE/4G/5G)
1 x M.2 E-Key 2230 (WiFi/BT)
1 x M.2 M-Key 2242 (NVMe 128GB built-in)

MISC. Function

1 x Recovery / Reset Button

Power Consumption

Idle: 7.3 W
Full Loading: 39* W
*For more test condition information, please refer to user manual

Power Input/Connector

DC-in 12 to 24 VDC / 4-pin DC Jack Power Connector

Dimension (WxDxH)

120 x 100 x 57.54 mm (4.73 x 3.94 x 2.27")

Net Weight

0.195 kg (0.43 lb)

Vibration

1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis

Shock

10 G, IEC 60068-2-27, half sine, 11 ms duration

Temperature

Operating Temp. -25°C ~ +80°C (-13°F ~ +176°F)
Storage Temp. -40°C ~ +85°C (-40°F ~ +185°F)

Humidity

95% @ 40°C (104°F) (non-condensing)

Software Support

Linux (Support Jetpack 5.0 above)

Certification

CE / FCC Class A / UKCA
