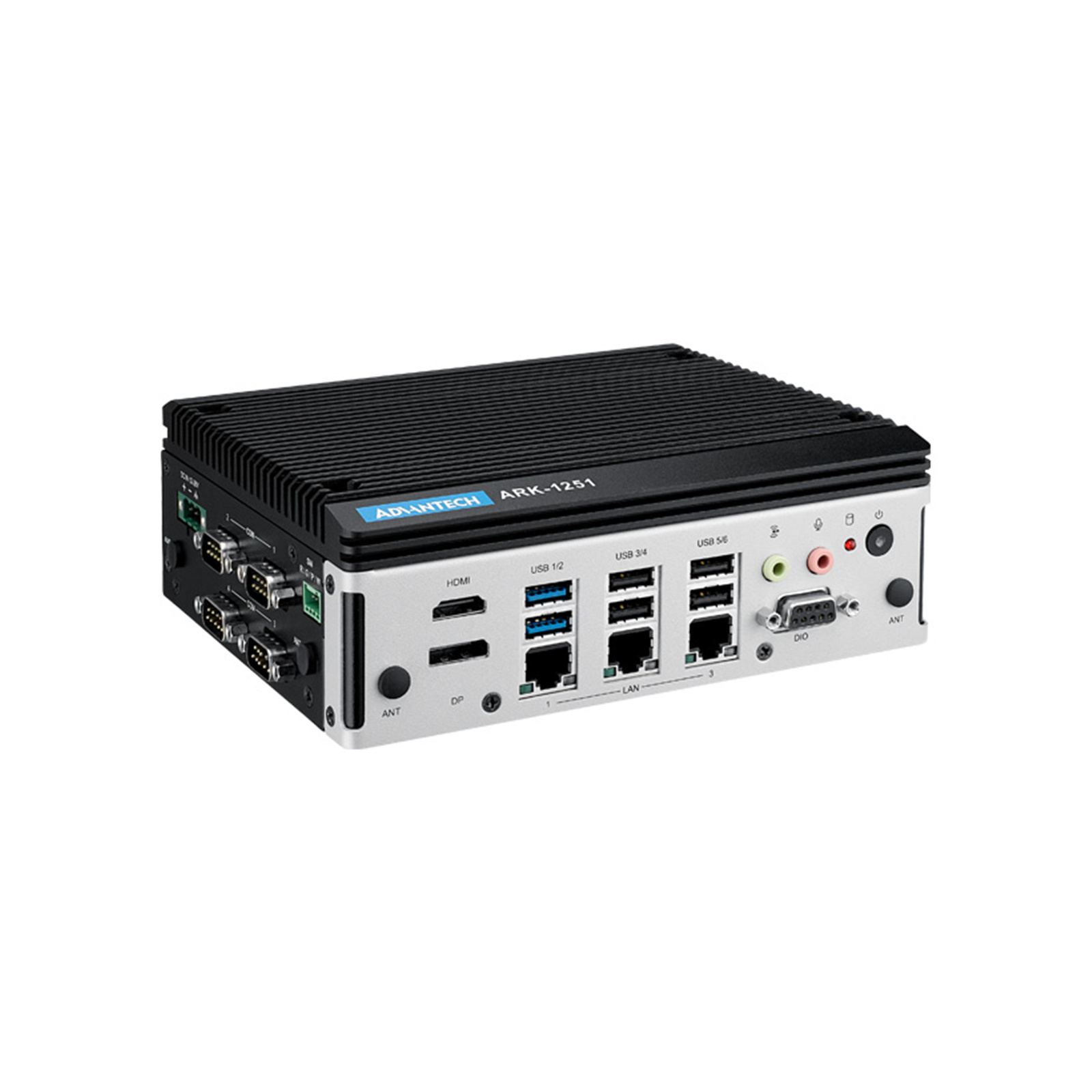

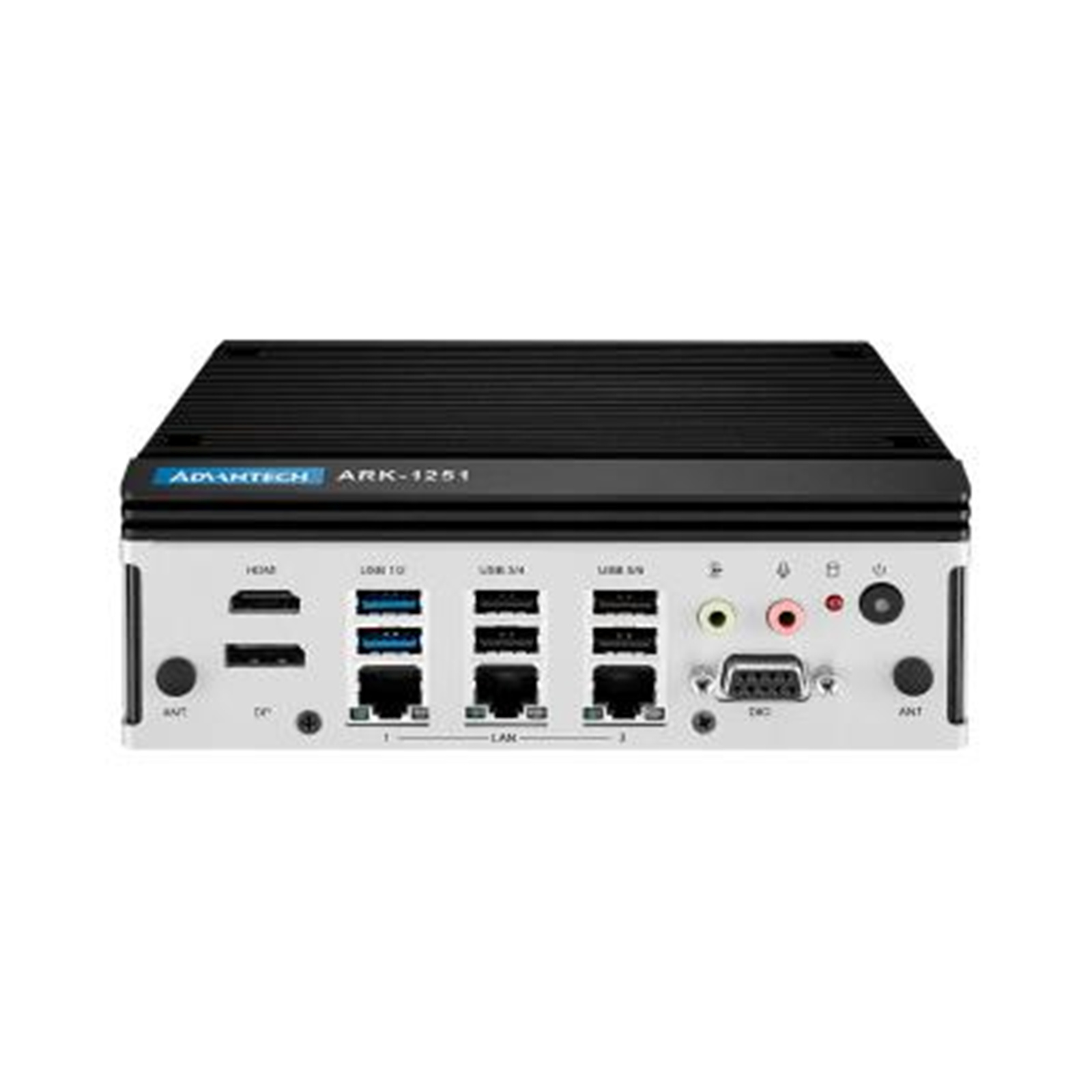

Advantech Ultra Slim Fanless ARK-1251-S3A1 Intel Core Ultra 5 125U, 8G, 512GB with HDMI+DP+3*GbE+4*COM, Remote Switch, USB x 6
Advantech Ultra Slim Fanless ARK-1251-S3A1 Intel Core Ultra 5 125U, 8G, 512GB with HDMI+DP+3*GbE+4*COM, Remote Switch, USB x 6
- Brand: Advantech
- MPN: ARK-1251-S3A1/8G/512GB
- Part #: IPCAVH020008A
- UPC:
- Brand: Advantech
- MPN: ARK-1251-S3A1/8G/512GB
- Part #: IPCAVH020008A
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Computers





Advantech Ultra Slim Fanless ARK-1251-S3A1 Intel Core Ultra 5 125U, 8G, 512GB with HDMI+DP+3*GbE+4*COM, Remote Switch, USB x 6
- Brand: Advantech
- MPN: ARK-1251-S3A1/8G/512GB
- Part #: IPCAVH020008A

Product URL: https://www.pbtech.co.nz/product/IPCAVH020008A/Advantech-Ultra-Slim-Fanless-ARK-1251-S3A1-Intel-C
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | - | |
Auckland - Glenfield | - | |
Auckland - Queen Street | - | |
Auckland - Auckland Uni | - | |
Auckland - Newmarket | - | |
Auckland - Westgate | - | |
Auckland - Penrose | - | |
Auckland - Henderson (Express) | - | |
Auckland - St Lukes | - | |
Auckland - Manukau | - | |
Hamilton | - | |
Tauranga | - | |
New Plymouth | - | |
Palmerston North | - | |
Petone | - | |
Wellington | - | |
Auckland - Head Office | - | |
Auckland - East Tamaki Warehouse | - | |
Christchurch - Hornby | - | |
Christchurch - Christchurch Central | - | |
Dunedin | - |
Features
- Intel® Core Ultra 5
- 8G DDR5-5600 SO-DIMM memory support up 96G
- 512GB M.2 E Key, B Key and M Key for storage and wireless module installation
- Up to 3 x Intel GbE, 4 x serial ports, 8-bit DIO, optional CANBus
- Dual displays with 1 x 8K HDMI + 1 x 4K DP
- 2 x USB 3.2 and 4 x USB 2.0
- 12V ~ 28V wide range power input
- -20 ~ 60 °C extended operating temperature
Specifications
Processor
CPU
Intel® Core™ Ultra 5 125U
Core Number
12
Frequency
1.7GHz
BIOS
AMI EFI 256 Mbit
Memory
Technology
DDR5 5600 MHz
Max. Capacity
96 GB (up to 48GB per DIMM)
Socket
2 x 260-pin SO-DIMM
ECC Support
No
Graphics
HDMI
1 x HDMI 2.1: Up to 7680x4320@60Hz
DP
1 x DP 1.4a: Up to 7680x4320@60Hz
Dual Display
HDMI + DP
Audio
Main System
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
Ethernet
Controller
3
LAN1
10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN
LAN2
10/100/1000/2500 Mbps Intel i226 GbE, support Wake On LAN
LAN3
10/100/1000 Mbps Intel i210 GbE, support Wake On LAN
I/O Interface
Serial
4
Serial Port

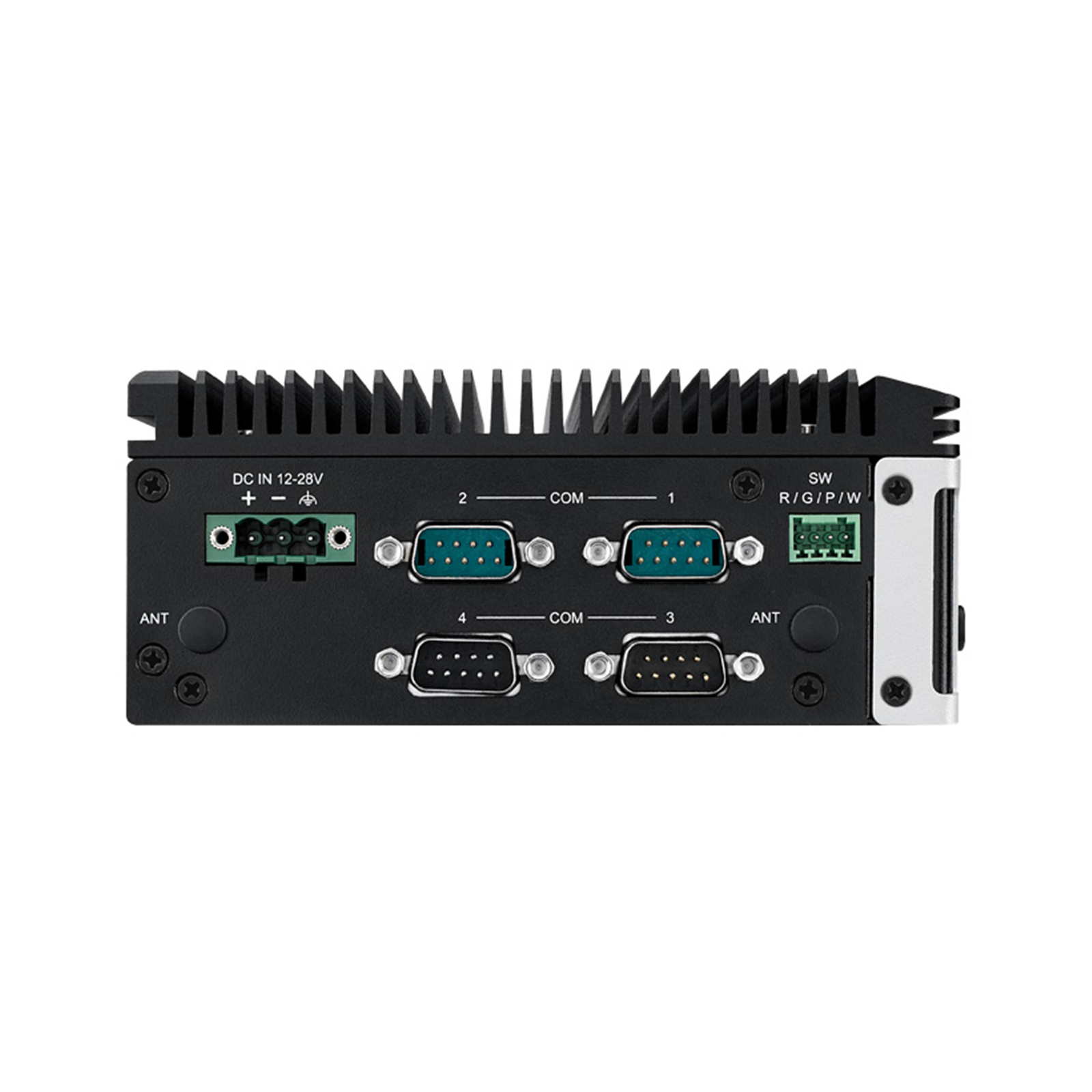

2 x RS-232/422/485, 2 x RS-422/485, with auto flow control
USB Interface
2 x USB 3.2, 2 x USB 2.0
GPIO
8-bit
Optional I/O
1 x CANBus 2.0 (DB9 connector)
Expansion
M.2
1x M.2 2230 E key (NVMe, PCIe x2), 1x M.2 2280 B key with nano SIM holder (NVMe/SATA, PCIe x2), 1x M.2 2280 M key (NVMe, PCIe x4)
Storage
SATA and PCIe/NVMe
1x M.2 2280 M key (NVMe, PCIe x4) (default), 1x M.2 2280 B key with nano SIM holder (NVMe, PCIe x2/ SATA)
Others
Watchdog timer
255 levels timer interval, setup by software
TPM
TPM 2.0
Software Support
Microsoft Windows
Windows 10/11 IoT Enterprise LTSC
Linux
Ubuntu 24.04
Operating System
Ubuntu
V
Power
Power Type
AT/ATX
Input Voltage
12 ~ 28 VDC
Power Consumption
Typical
18.19W
Max.
61.74W
Environment
Vibration During Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation
With SSD/mSATA: 30G
Temperature (Operating)
-20 ~ 60° C (-4 ~ 140° F)
Storage Temperature
- 40 ~ 85° C (-40 ~185° F)
Relative Humidity
95% @ 40° C (non-condensing)
Mechanical
Construction
Aluminum housing
Mounting
DIN-rail/Wall Mount
Dimensions
60 x 173 x 141 mm (2.36 x 6.73 x 5.55 in)
Weight
1.5 kg (3.3lb)
Certification
EMC
CE/FCC Class B, CCC, BSMI, UKCA
Safety Certifications
UL, CB, CCC
