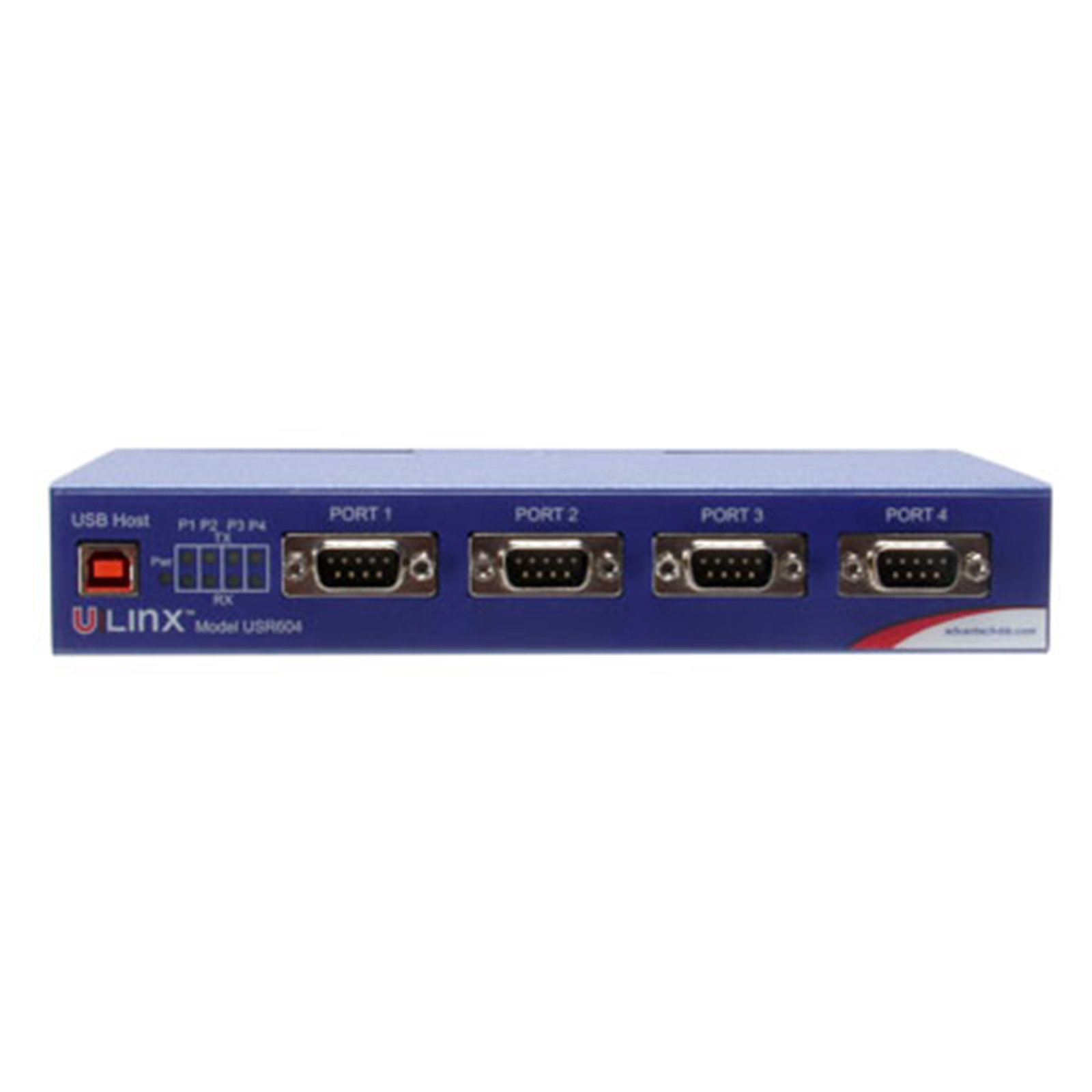

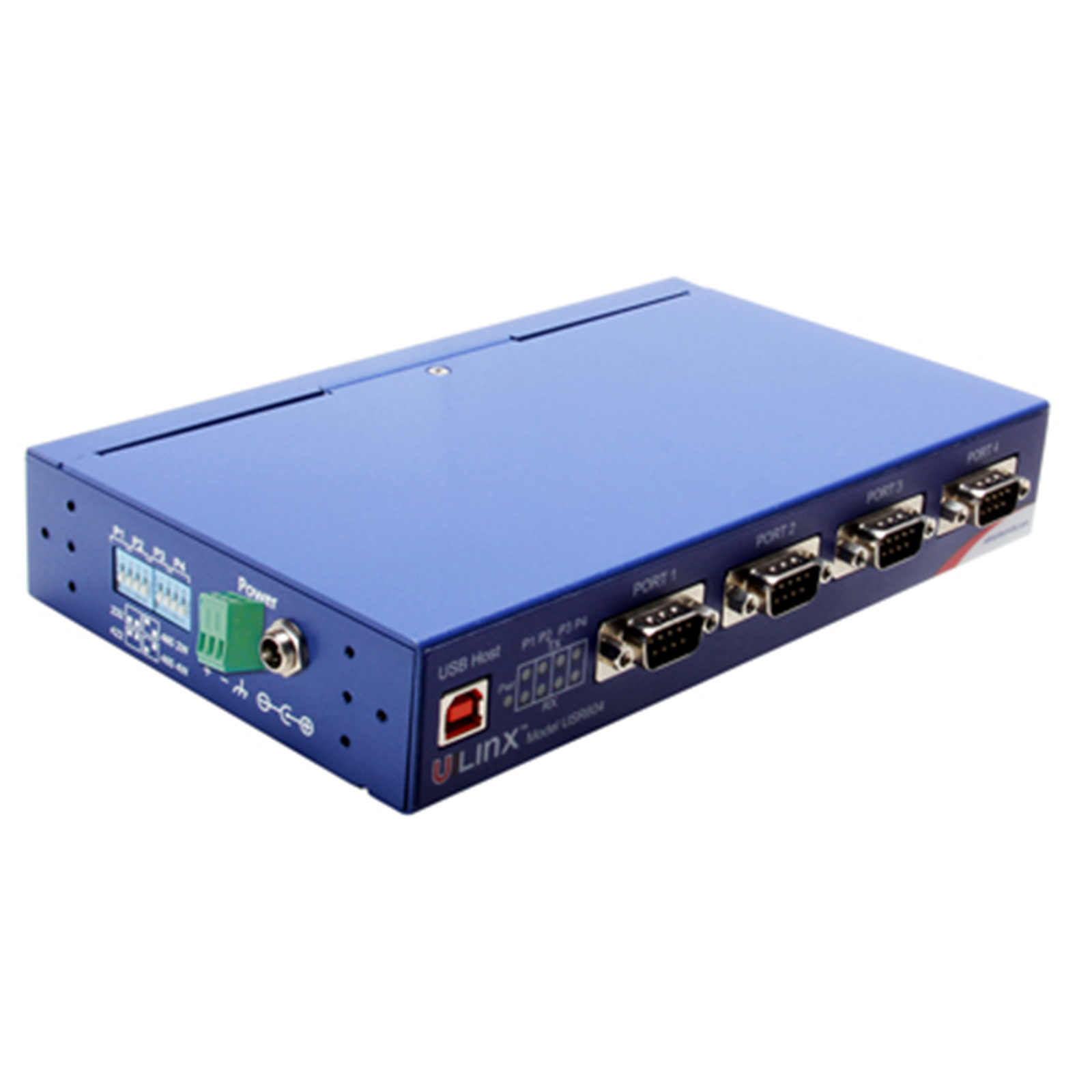

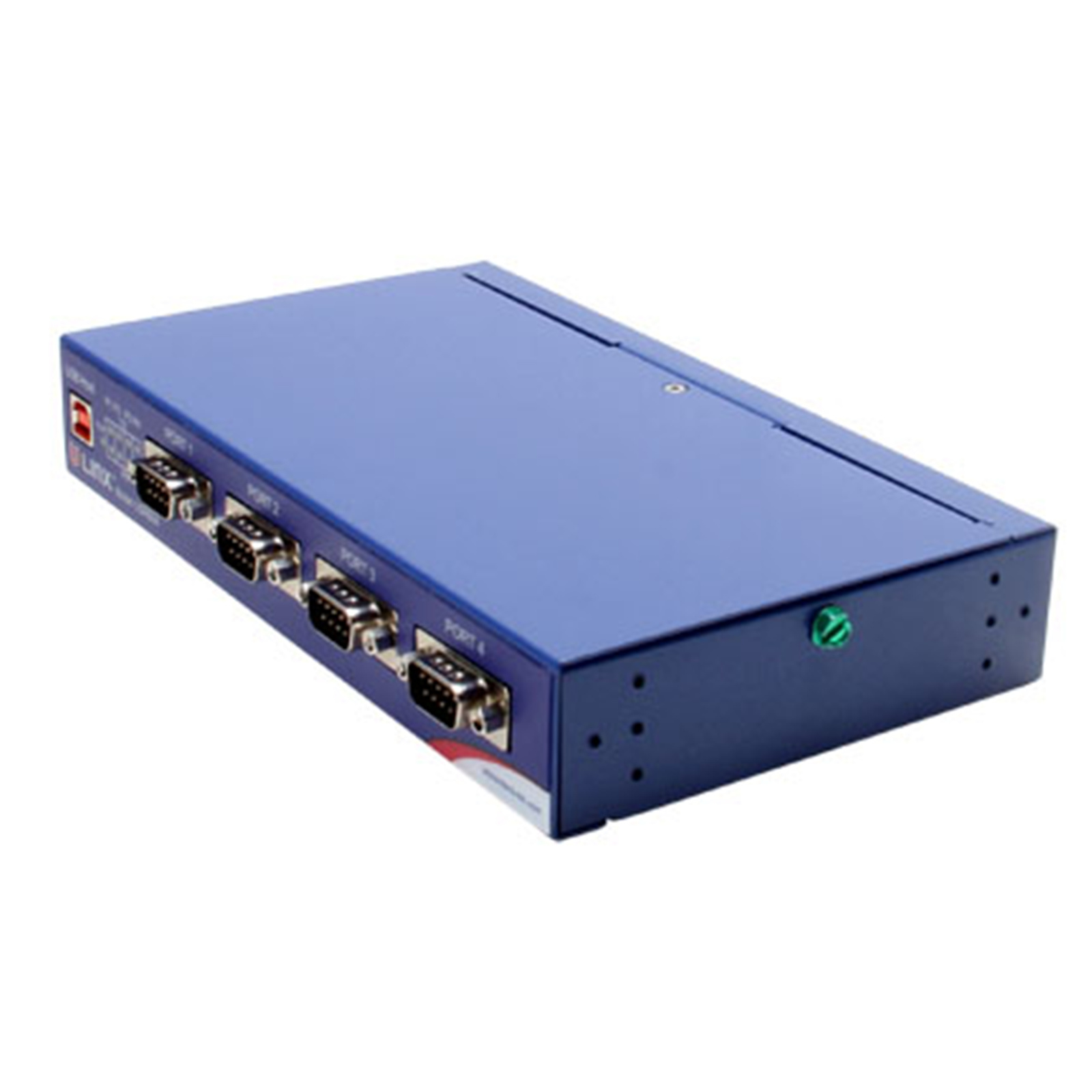

Advantech BB-USR604 ULI-314DC - USB to RS-232/422/485 (DB9 Male) Industrial Isolated Converter, 4 Port
Advantech BB-USR604 ULI-314DC - USB to RS-232/422/485 (DB9 Male) Industrial Isolated Converter, 4 Port
- Brand: Advantech
- MPN: BB-USR604
- Part #: IPCAVH030012
- UPC:
- Brand: Advantech
- MPN: BB-USR604
- Part #: IPCAVH030012
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Industrial PCs & IoT





                                                            Advantech BB-USR604 ULI-314DC - USB to RS-232/422/485 (DB9 Male) Industrial Isolated Converter, 4 Port
- Brand: Advantech
- MPN: BB-USR604
- Part #: IPCAVH030012

            Product URL: https://www.pbtech.co.nz/product/IPCAVH030012/Advantech-BB-USR604-ULI-314DC---USB-to-RS-23242248
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | - | |
| Auckland - Glenfield | - | |
| Auckland - Queen Street | - | |
| Auckland - Auckland Uni | - | |
| Auckland - Westgate | - | |
| Auckland - Penrose | - | |
| Auckland - Henderson (Express) | - | |
| Auckland - St Lukes | - | |
| Auckland - Manukau | - | |
| Hamilton | - | |
| Tauranga | - | |
| New Plymouth | - | |
| Palmerston North | - | |
| Petone | - | |
| Wellington | - | |
| Auckland - Head Office | - | |
| Auckland - East Tamaki Warehouse | - | |
| Christchurch - Hornby | - | |
| Christchurch - Christchurch Central | - | |
| Dunedin | - |
Features
- USB to RS-R32/422/485 Converter
- UL Class 1/Division 2
- 2 kV Isolation
- Level 4 ESD Protection (15 kV Air, 8 kV Contact)
- 921.6 Kbps Serial Data Rate
- - 40 to + 80 °C Operating Temperature
- DIN and Flat Panel Mounting Options
- TB and Power Jack 10-30 VDC Power Inputs
- High Retention USB Connector, Plug in Serial Terminal Block
Specifications
General
Technology
USB
Mounting
DIN, Panel
Power
10 to 48VDC
Temperature
-40 to 80C
Isolation
2kV
Serial Port Count
4
Serial Type
RS-232, RS-422, RS-485
Serial Connector
DB9 Male
Software (SW)
Baud Rate
50 ~ 921.6 Kbps
Serial Communication
Serial Standard x
RS-232 / RS-422 / RS-485
Serial Port Number
4
