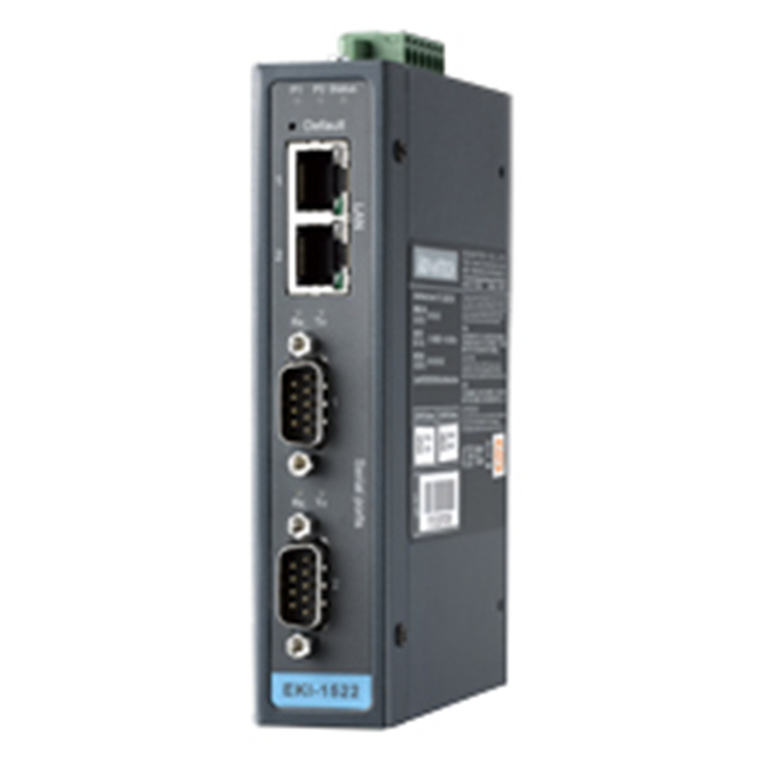

Advantech EKI-1522-CE 2-port RS-232/422/485 Serial Device Server

PB Tech price
PB Tech price
$ 502 .04
 +GST
$ 577 .35
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-1522-CE 2-port RS-232/422/485 Serial Device Server

  • Brand: Advantech
  • MPN: EKI-1522-CE
  • Part #: IPCAVH040008
  • UPC:
PB Tech price
$ 502 .04 $ 577 .35
 +GST  inc GST

No store stock available.

Click & Collect: Collect unavailable
Delivery: Out of stock When will I receive it?

Features

- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Provides COM port redirection (Virtual COM), TCP and UDP operation modes
- Supports up to 921.6 kbps, and any baud rate setting
- Allows a max. of 5 hosts to access one serial port
- Allows a max. of 16 hosts to be accessed as TCP client mode
- Built-in 15 KV ESD protection for all serial signals
- Provides rich configuration methods including Windows utility, Telnet console, and Web Browser
- Supports 32-bit/64-bit Windows 2000/XP/Vista/7/8/8.1/10, Windows Server2003/2008/2012/2016, and Linux
- Automatic RS-485 data flow control
- Supports line to line 2 KV, line to ground 4 KV surge protection

Specifications

Certification

EMC

CE, FCC

EMI

EN 55011/ EN 55032 Class A, EN 61000-6-4, FCC Part 15 Subpart B Class A

EMS

EN 61000-4-2 (Level 4), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 4), EN 61000-4-5 (Level 4), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 4), EN55024

Freefall

IEC 60068-2-32

Safety

UL 60950-1

Shock

IEC 60068-2-27

Vibration

IEC 60068-2-6

Ethernet Communication

RJ-45 Port Connector Type !

RJ-45

Ethernet Standard

IEEE 802.3 , 802.3ab , 802.3u

RJ-45 Port Number

2

RJ-45 Transmission Speed

10/100 Mbps x

Serial Communication

Serial Port Connector Type

DB9 male

Serial Port Number

2

RS-232

Yes

RS-422

Yes

RS-485

Yes

Baud Rate

50 ~ 921.6 Kbps

Serial Transmission Speed

50 ~ 921.6 Kbps

Environment

Humidity (Operating Range)

10 ~ 95% RH

Temperature (Min. Operating)

-10°C (14°F) x

Temperature (Max. Operating)

60°C (140°F)x

Temperature (Operating Range)

-10 ~ 60°C (14 ~ 140°F)

Temperature (Storage Range)

-20 ~ 80°C (-4 ~ 176°F) x

Mechanism

Dimensions (W x H x D)

30 x 140 x 95 mm (1.18' x 5.51' x 3.74 in.) x

Enclosure (Metal)

Metal with solid mounting hardware

IP Rating

IP30

Mounting (DIN-rail)

Yes

Mounting (Wall)

Yes

Weight

432 g

Power

Power Consumption

3.2W

Power Input (DC)

12 ~ 48 VDC

Power Operating Current

0.7A @ 24 V

Redundant Dual Inputs

Yes

Protection

Reverse Polarity

Present

Software (SW)

Configuration

Windows utility, Telnet console, Web Browser

Driver

Windows XP/7/8.1/10, Windows Server 2003/2008/2012/2016/2019, and Linux

Operation Mode

COM port redirection mode (Virtual COM), TCP/UDP server (polling) mode, TCP/UDP client (event handling) mode,

Manufacturer Part No:
EKI-1522-CE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.59 kg
PB Part No:
IPCAVH040008
Product Model:
EKI-1522-CE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
